TOYOTA RAV4 2010 XA30 / 3.G Owners Manual

380
4-3. Do-it-yourself maintenance

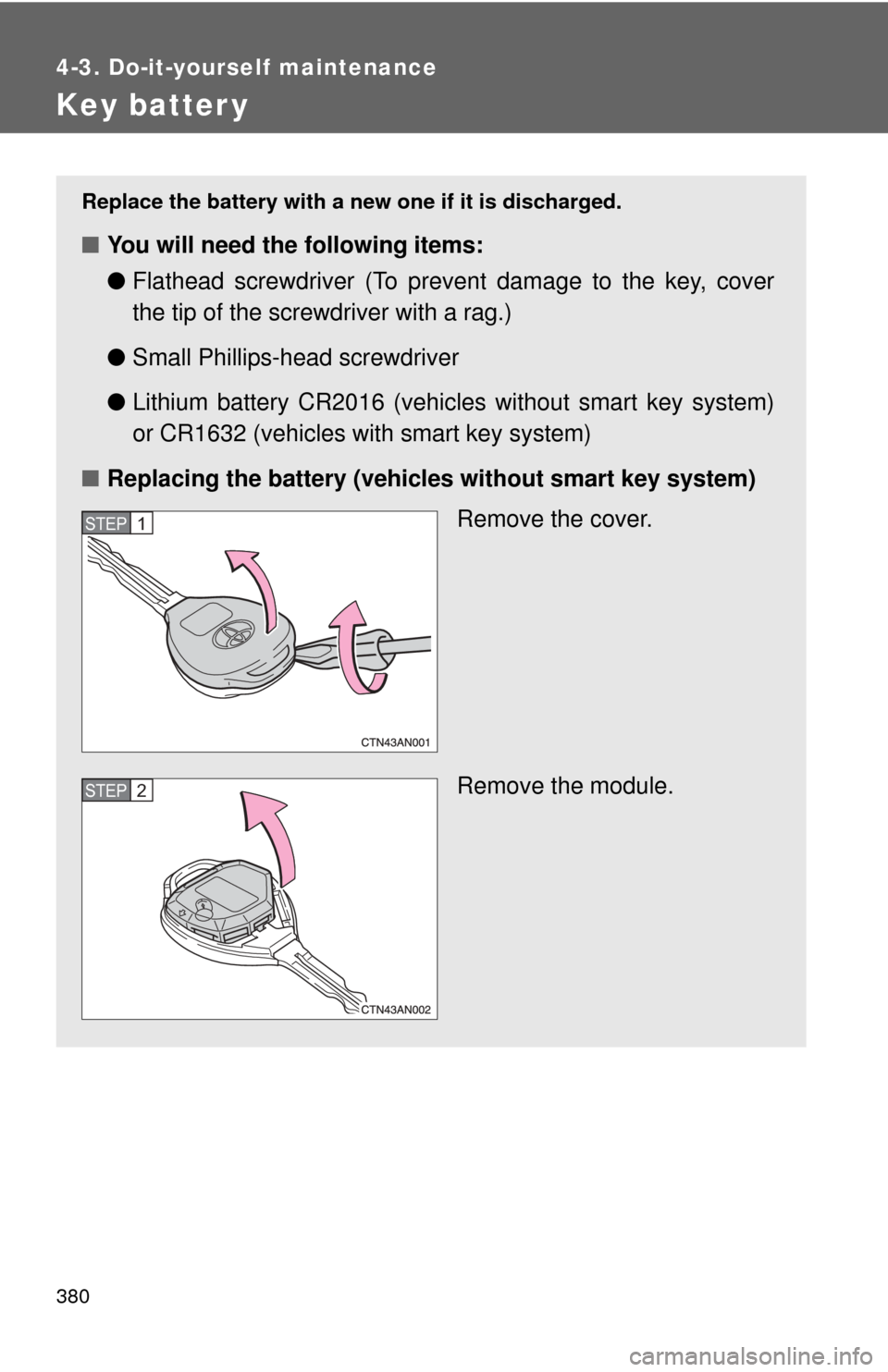

Key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with a rag.)
● Small Phillips-hea d screwdriver
● Lithium battery CR2016 (vehicles without smart key system)
or CR1632 (vehicles with smart key system)
■ Replacing the battery (vehicles without smart key system)
Remove the cover.
Remove the module.
STEP 1
STEP 2

381
4-3. Do-it-yourself maintenance
4
Maintenance and care

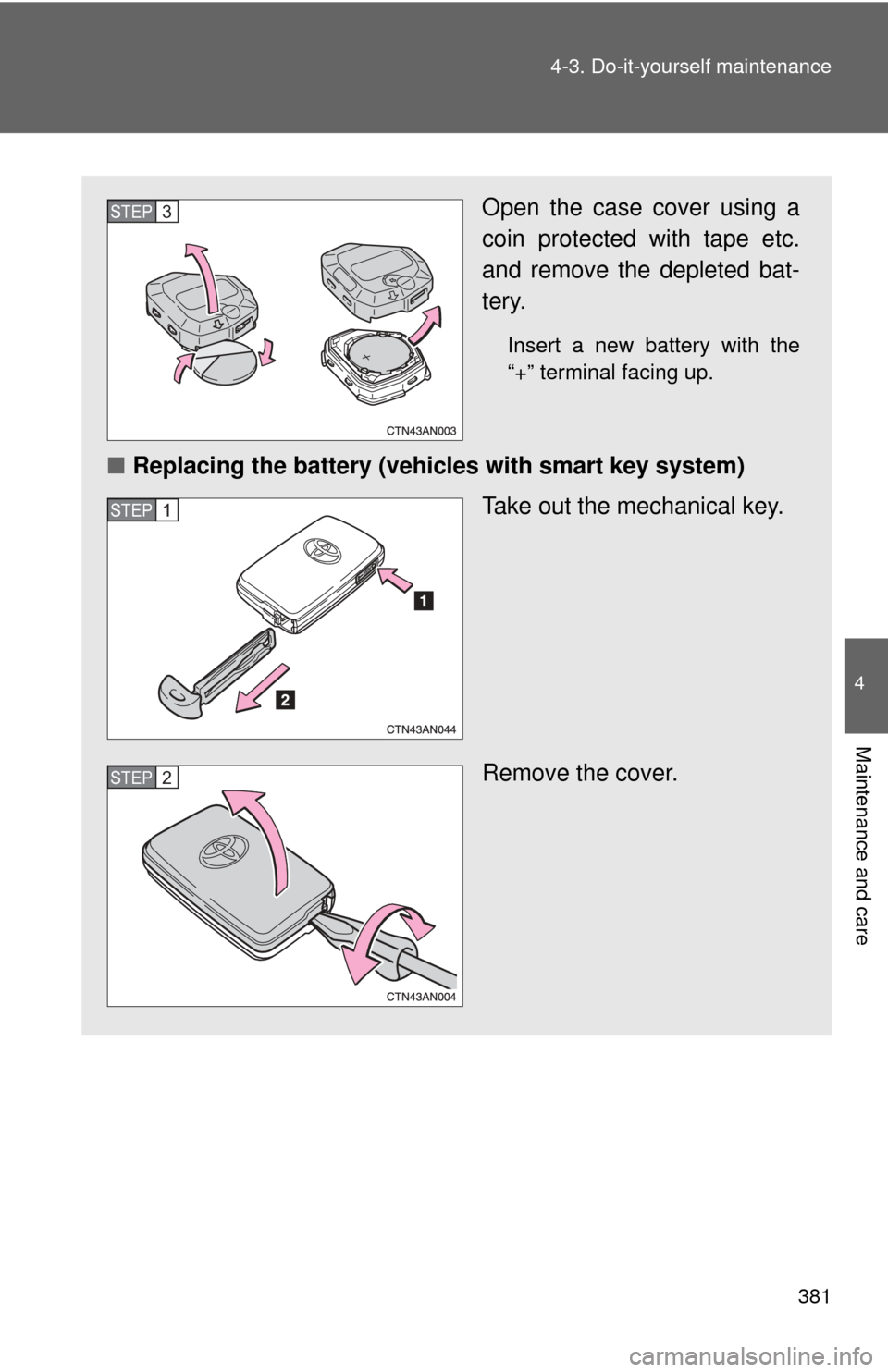

Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery.
Insert a new battery with the
“+” terminal facing up.
■
Replacing the battery (vehicles with smart key system)
Take out the mechanical key.
Remove the cover.
STEP 3
STEP 1
STEP 2

382 4-3. Do-it-yourself maintenance
■If the key battery is depleted
The following symptoms may occur.
●The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR2016 (vehicles without sm art key system) or CR1632 (vehicles
with smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by your
Toyota dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 3

383
4-3. Do-it-yourself maintenance
4
Maintenance and care
NOTICE
■
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.

384
4-3. Do-it-yourself maintenance

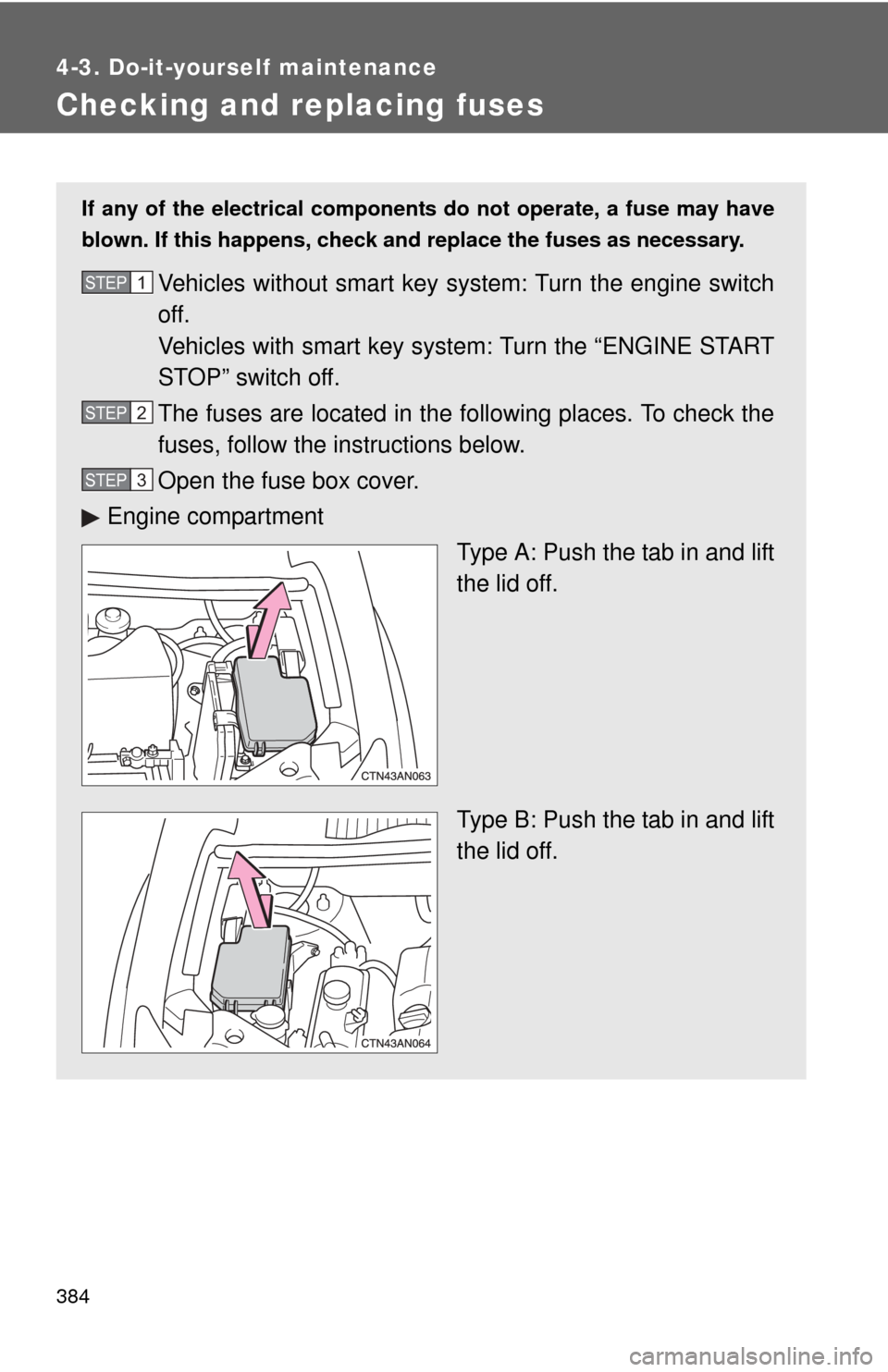

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart key system: Turn the engine switch
off.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch off.
The fuses are located in the following places. To check the
fuses, follow the in structions below.
Open the fuse box cover.
Engine compartment Type A: Push the tab in and lift
the lid off.
Type B: Push the tab in and lift
the lid off.STEP 1
STEP 2
STEP 3

385
4-3. Do-it-yourself maintenance
4
Maintenance and care

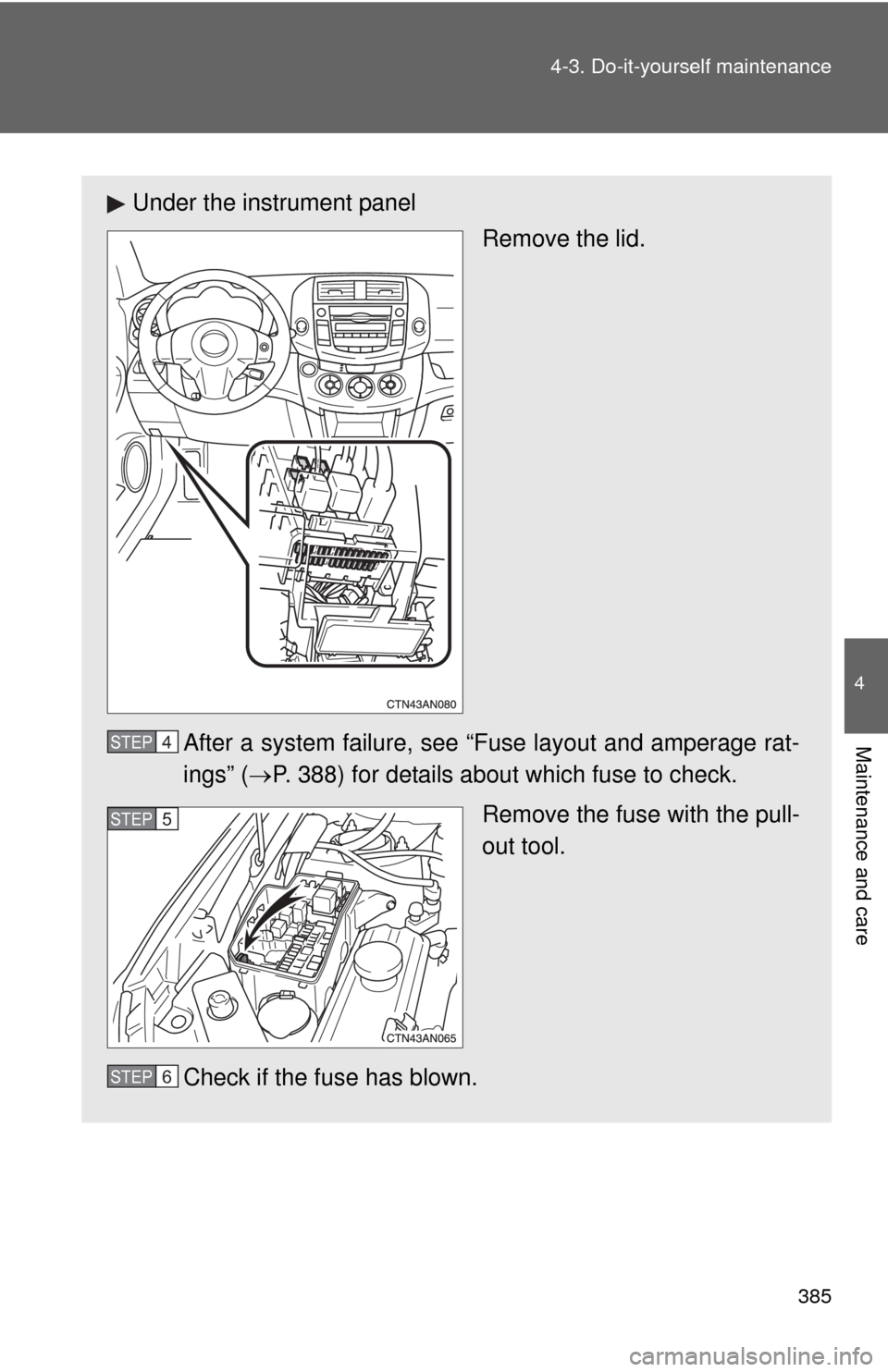

Under the instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 388) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
STEP 4
STEP 5
STEP 6

386 4-3. Do-it-yourself maintenance
Ty p e ANormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.

387
4-3. Do-it-yourself maintenance
4
Maintenance and care

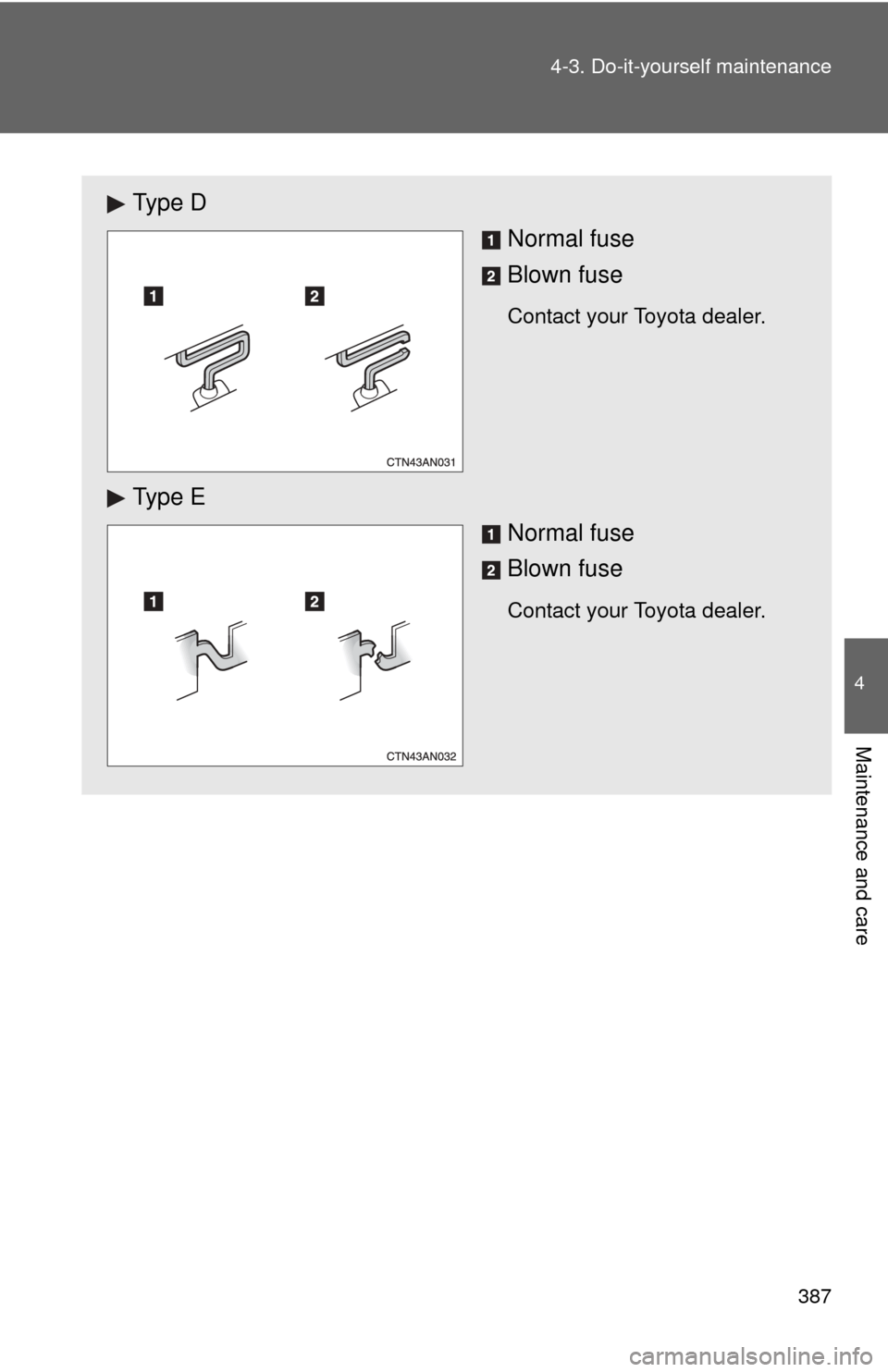

Ty p e D
Normal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e E
Normal fuse
Blown fuse
Contact your Toyota dealer.

388 4-3. Do-it-yourself maintenance

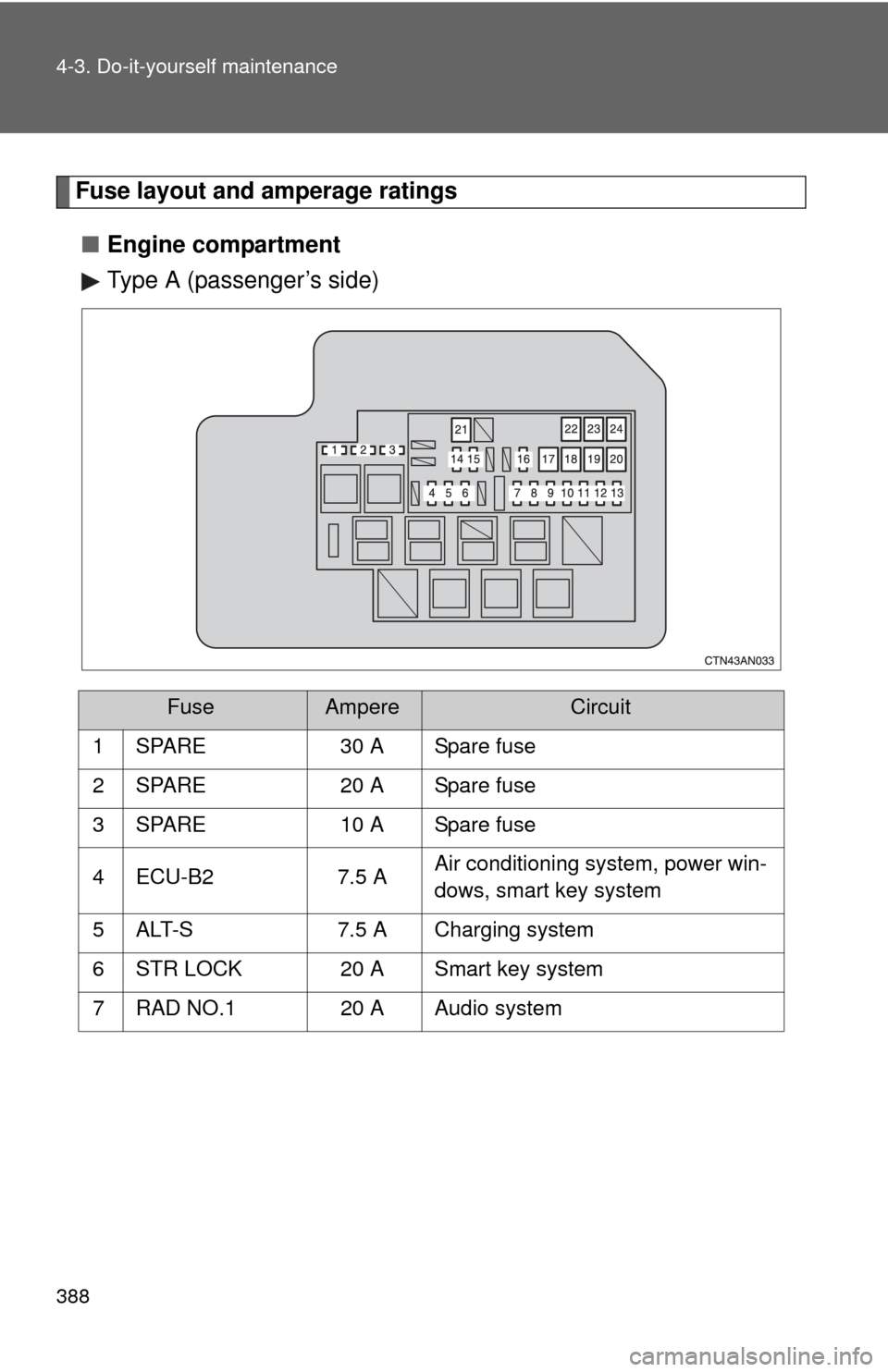

Fuse layout and amperage ratings■ Engine compartment
Type A (passenger’s side)
FuseAmpereCircuit
1 SPARE 30 A Spare fuse
2 SPARE 20 A Spare fuse
3 SPARE 10 A Spare fuse
4 ECU-B2 7.5 A Air conditioning system, power win-
dows, smart key system
5 ALT-S 7.5 A Charging system
6 STR LOCK 20 A Smart key system
7 RAD NO.1 20 A Audio system

389
4-3. Do-it-yourself maintenance
4
Maintenance and care
8 ECU-B
10 AGauges and meters, clock, main
body ECU, wireless remote control,
smart key system, audio system,
front passenger occupant classifi-
cation system, ABS, TRAC,
Enhanced VSC, AUTO LSD, down-
hill assist control system, hill-start
assist control system, Active torque
control 4WD system
9 DOME 10 AVanity lights, personal/interior
lights, interior light, luggage com-
partment light, engine switch light,
foot lights
10 H-LP LH 10 A Left-hand headlight (high beam)
11 H-LP RH 10 A Right-hand headlight (high beam)
12 H-LP LL 10 A Left-hand headlight (low beam)
13 H-LP RL 10 A Right-hand headlight (low beam)
14 AC INV 15 A AC inverter
15 TOWING*
130 A No circuit
16 DEICER 20 A Windshield wiper deicer
17 HTR 50 A Air conditioning system
18 PTC NO.3 50 A No circuit
19 PTC NO.2 50 A No circuit
20 PTC NO.1 50 A No circuit
21 HEAD MAIN 50 A H-LP LH, H-LP RH, H-LP LL,
H-LP RL fuses
22 RDI*
230 A
Electric cooling fan
FA N 2 *
150 A
FuseAmpereCircuit
