11
C
Shift lever P. 152
Outside rear view mirror switches P. 81
Parking brake lever
P. 156
AUX port P. 277
Cup holders P. 323
Shift lock overridebutton
P. 469
Page 12 of 544
12
Tilt and telescopic steering lock release lever P. 78
Headlight switch
Turn signal lever
Fog light switch
P. 167
P. 155
P. 171
Windshield wiper and washer switch
Rear window wiper and washer switch P. 173
P. 177
Fuel filler door opener
P. 91
Emergency flasher
switch
P. 424
Four-wheel drive lock switch P. 203
Pictorial indexInstrument panel
Gauges and meters P. 158
Audio system
Navigation system *P. 251
Hood release lever P. 363
Horn P. 157
Page 13 of 544
13
A

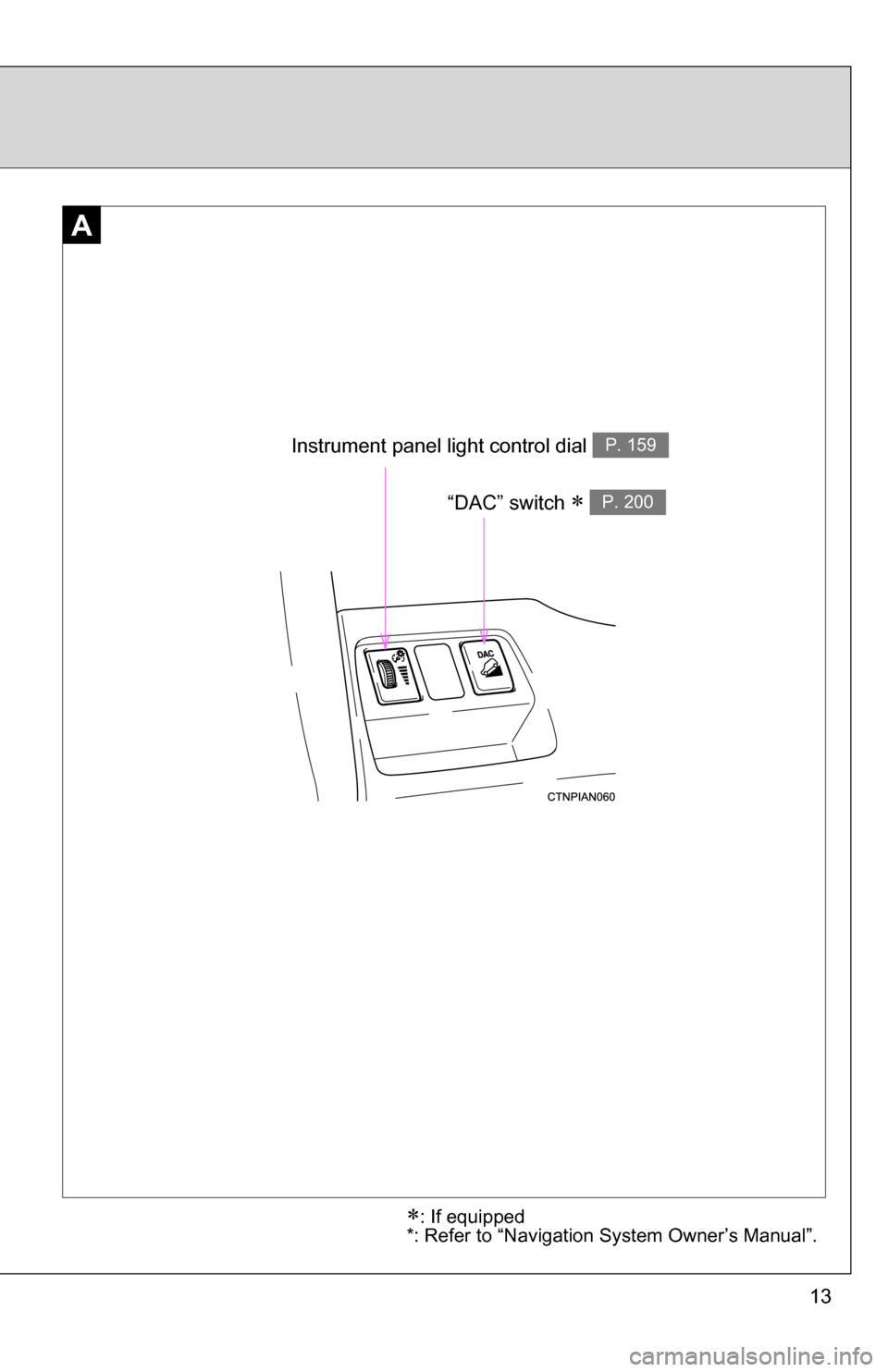

Instrument panel light control dial P. 159
“DAC” switch P. 200
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Page 14 of 544
14
B

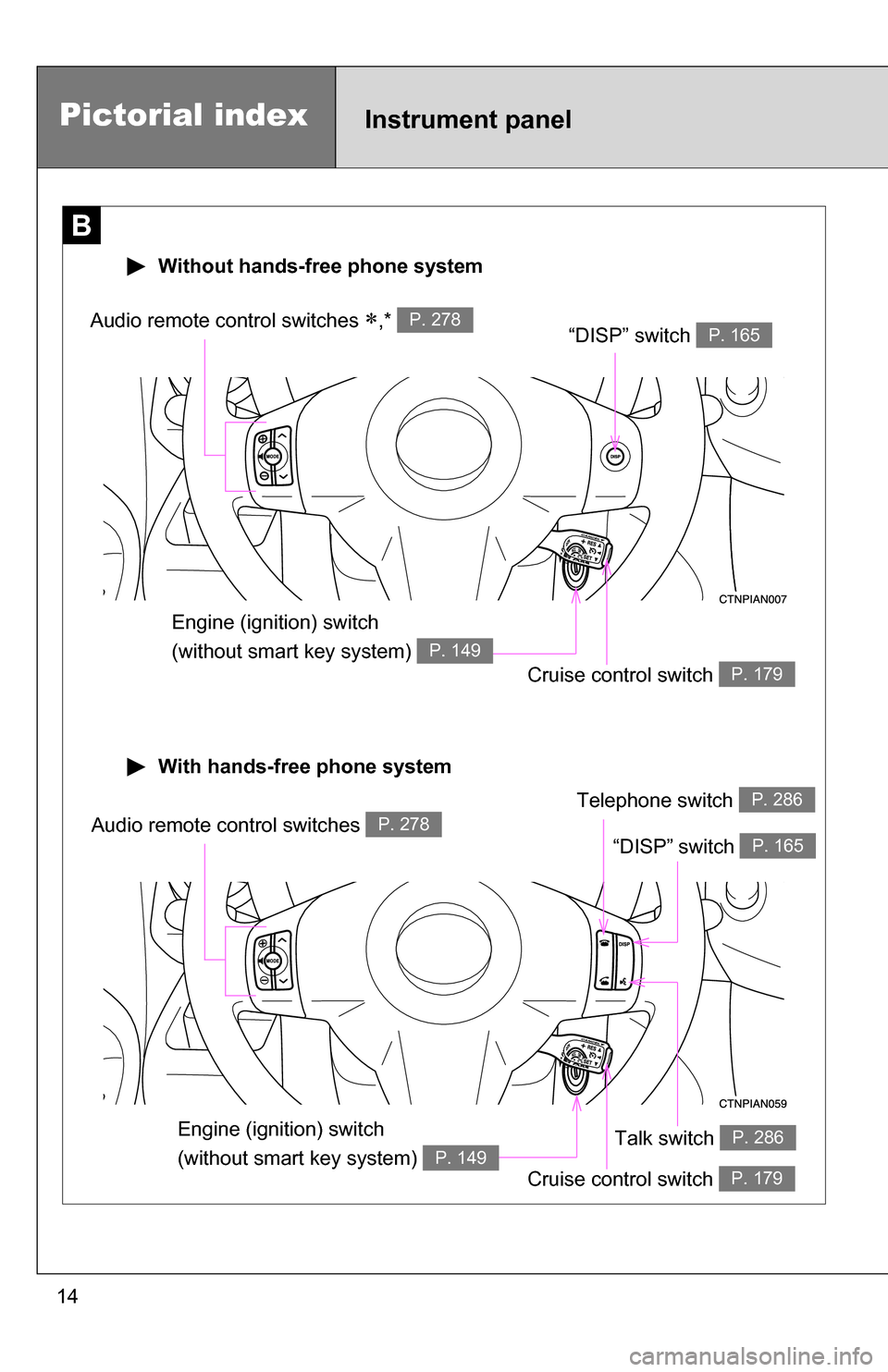

Cruise control switch P. 179
“DISP” switch P. 165Audio remote control switches ,* P. 278
Without hands-free phone system
Engine (ignition) switch
(without smart key system)
P. 149
Instrument panelPictorial index
With hands-free phone system
Cruise control switch P. 179
“DISP” switch P. 165Audio remote control switches P. 278
Talk switch P. 286
Telephone switch P. 286
Engine (ignition) switch
(without smart key system)
P. 149
Page 15 of 544
15

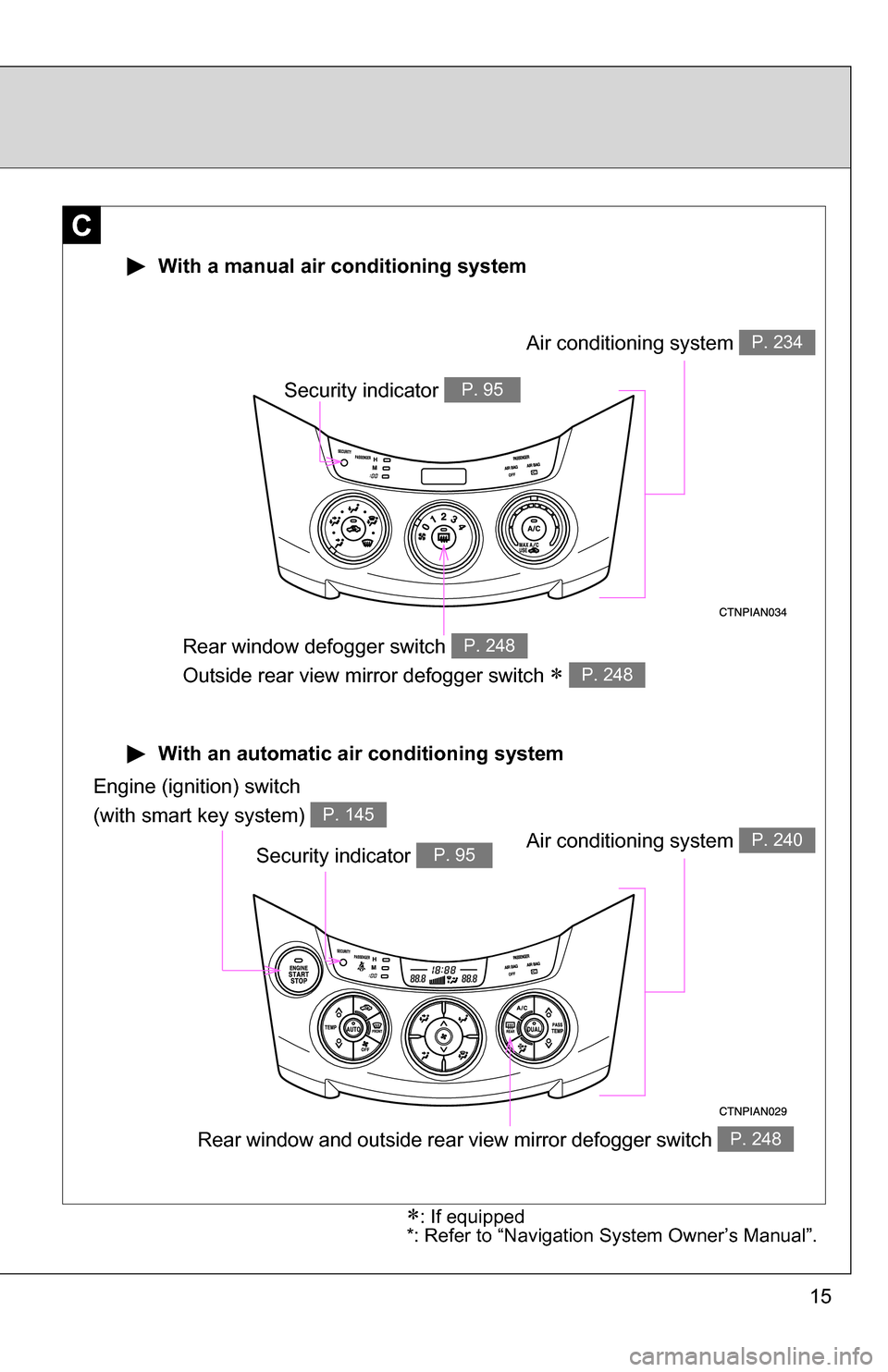

With an automatic air conditioning system
With a manual air conditioning system
C
Air conditioning system P. 234
Rear window defogger switch
Outside rear view mirror defogger switch
P. 248
P. 248
Engine (ignition) switch
(with smart key system)
P. 145
Air conditioning system P. 240
Rear window and outside rear view mirror defogger switch P. 248
Security indicator P. 95
Security indicator P. 95
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Page 16 of 544
16
D
Windshield wiper de-icer switch P. 250
Cup holders P. 323
Seat heater switch P. 335
Power outlet P. 330
VSC OFF
switch
P. 193, 194
Instrument panelPictorial index
: If equipped
Page 17 of 544
17
Luggage compartmentPictorial index

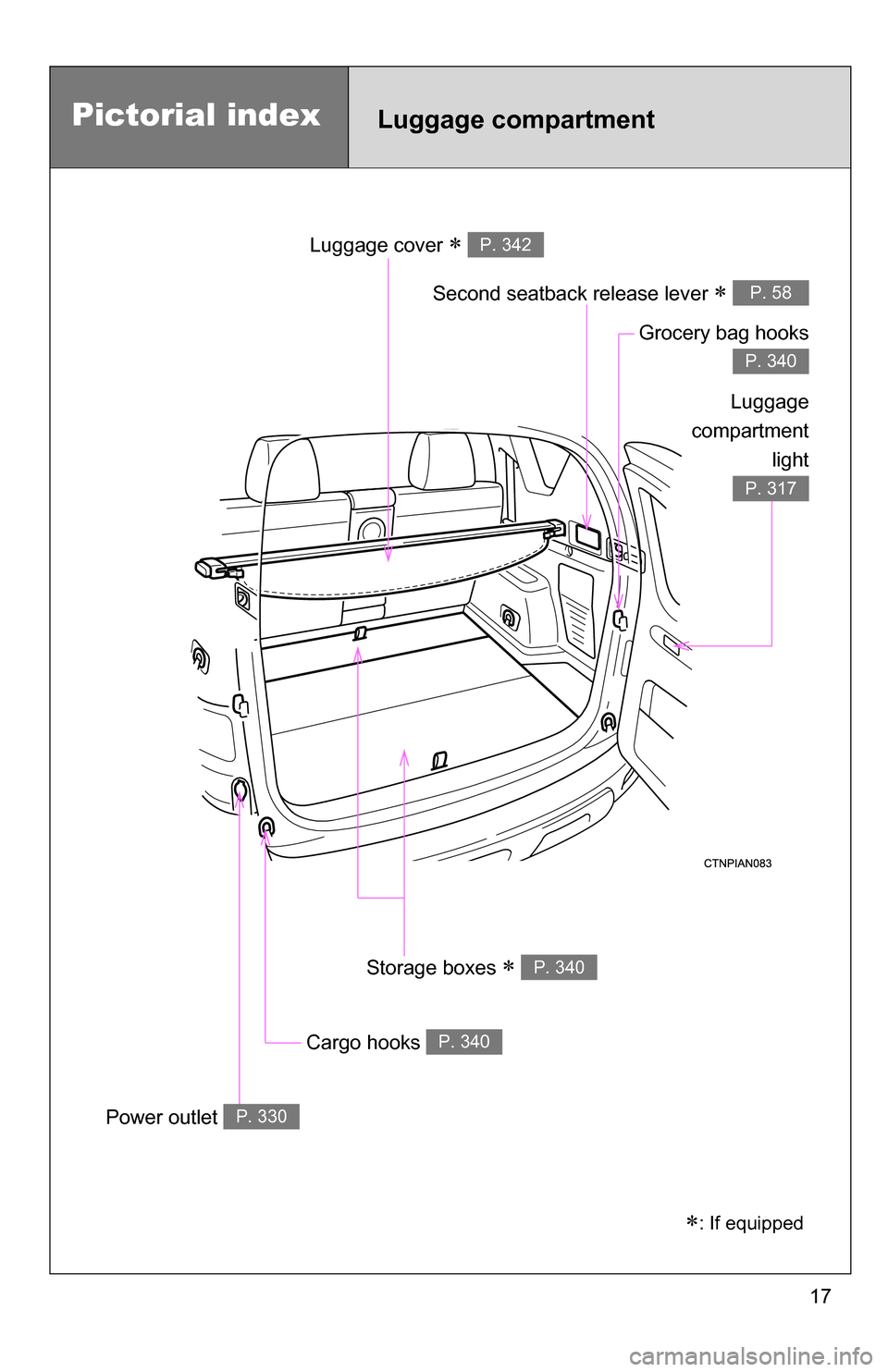

Luggage cover P. 342
Second seatback release lever P. 58
Grocery bag hooks
P. 340
Storage boxes P. 340
Cargo hooks P. 340
: If equipped
Power outlet P. 330
Luggage
compartment light
P. 317
Page 18 of 544
18

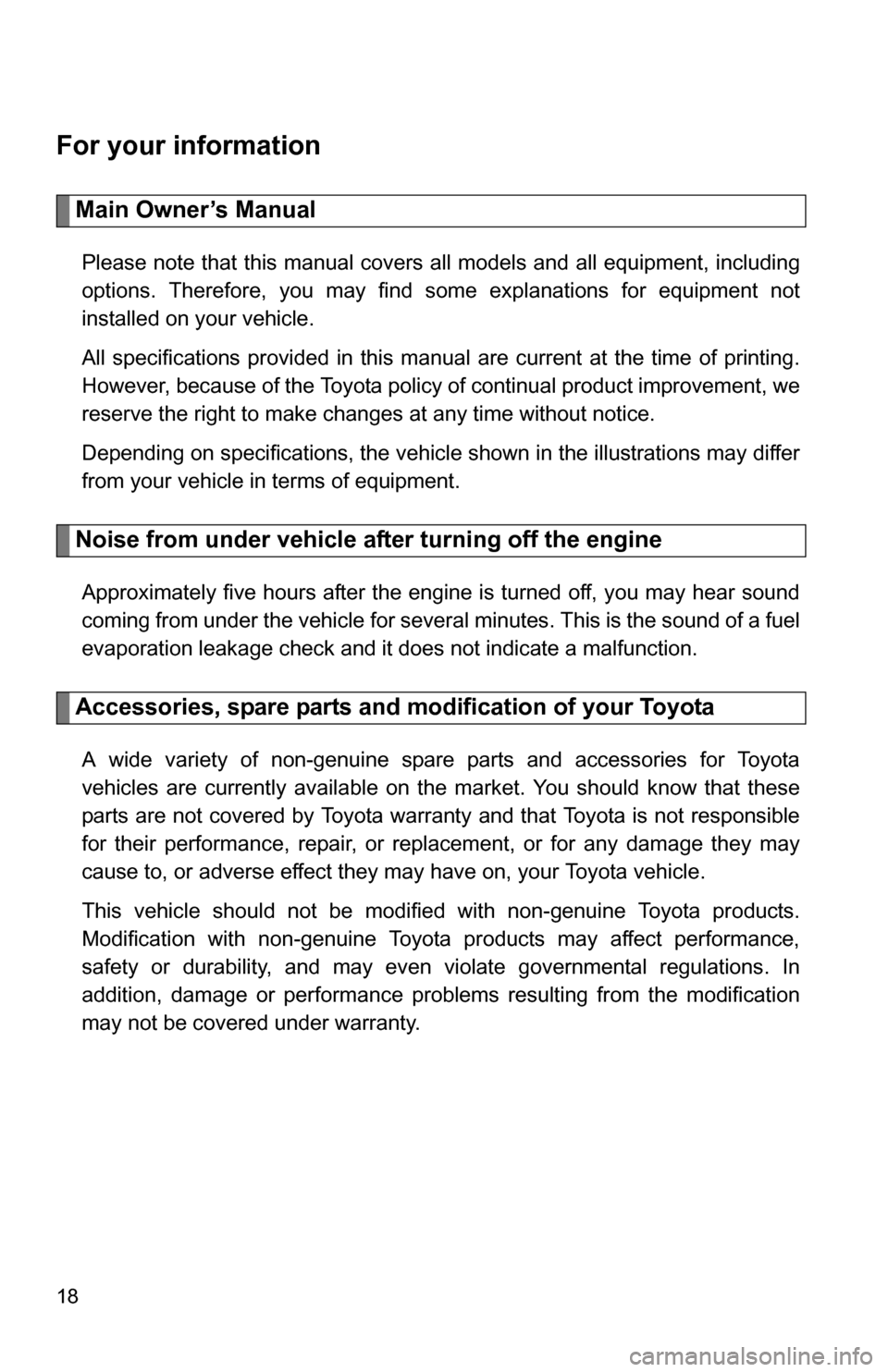

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available on the market. You should know that these
parts are not covered by Toyota warranty and that Toyota is not responsible
for their performance, repair, or replacement, or for any damage they may
cause to, or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products may affect performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
Page 19 of 544
19
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Page 20 of 544
20

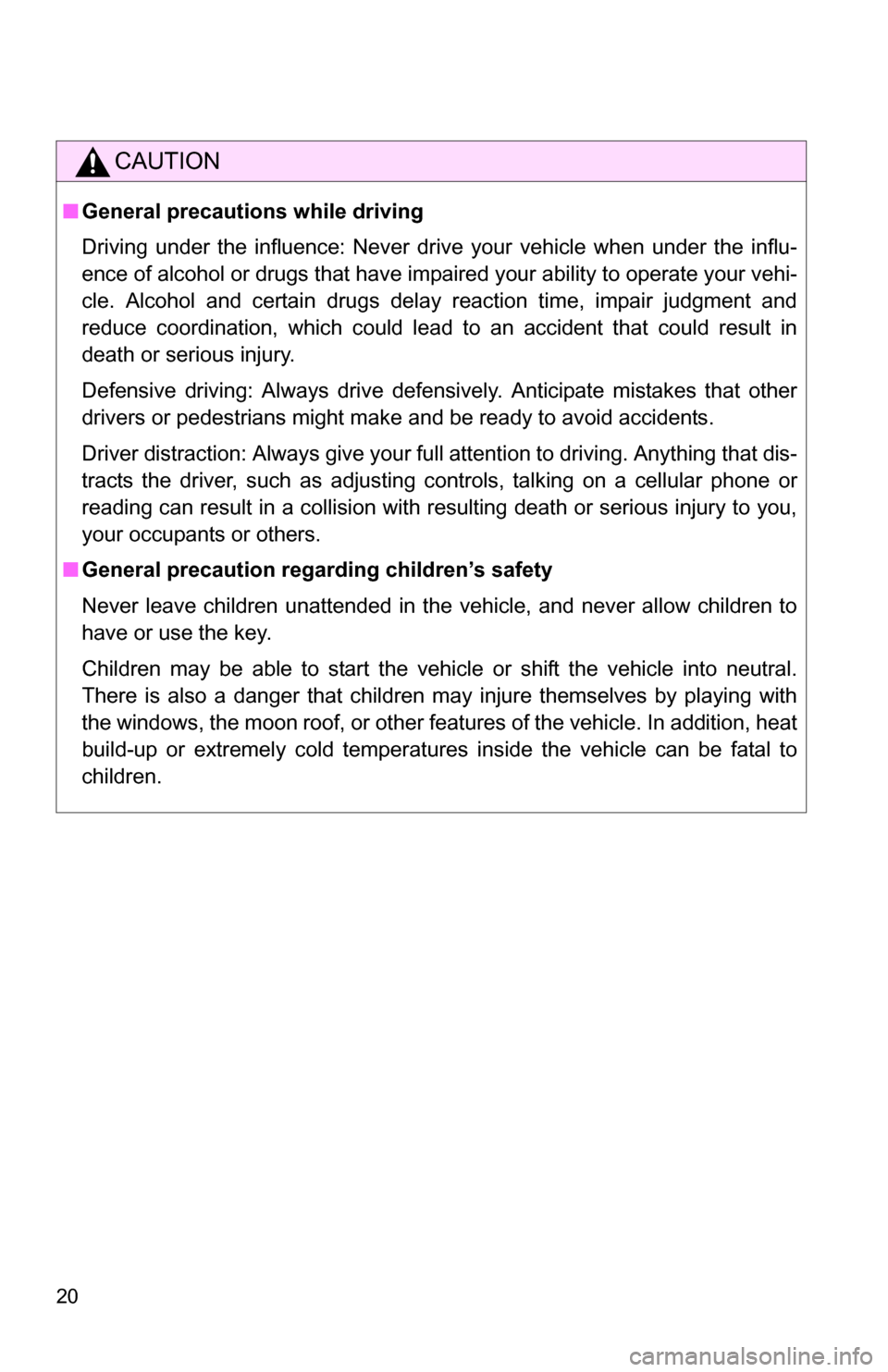

CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.
