TOYOTA RAV4 2012 XA30 / 3.G Owners Manual

401
4-3. Do-it-yourself maintenance
4
Maintenance and care

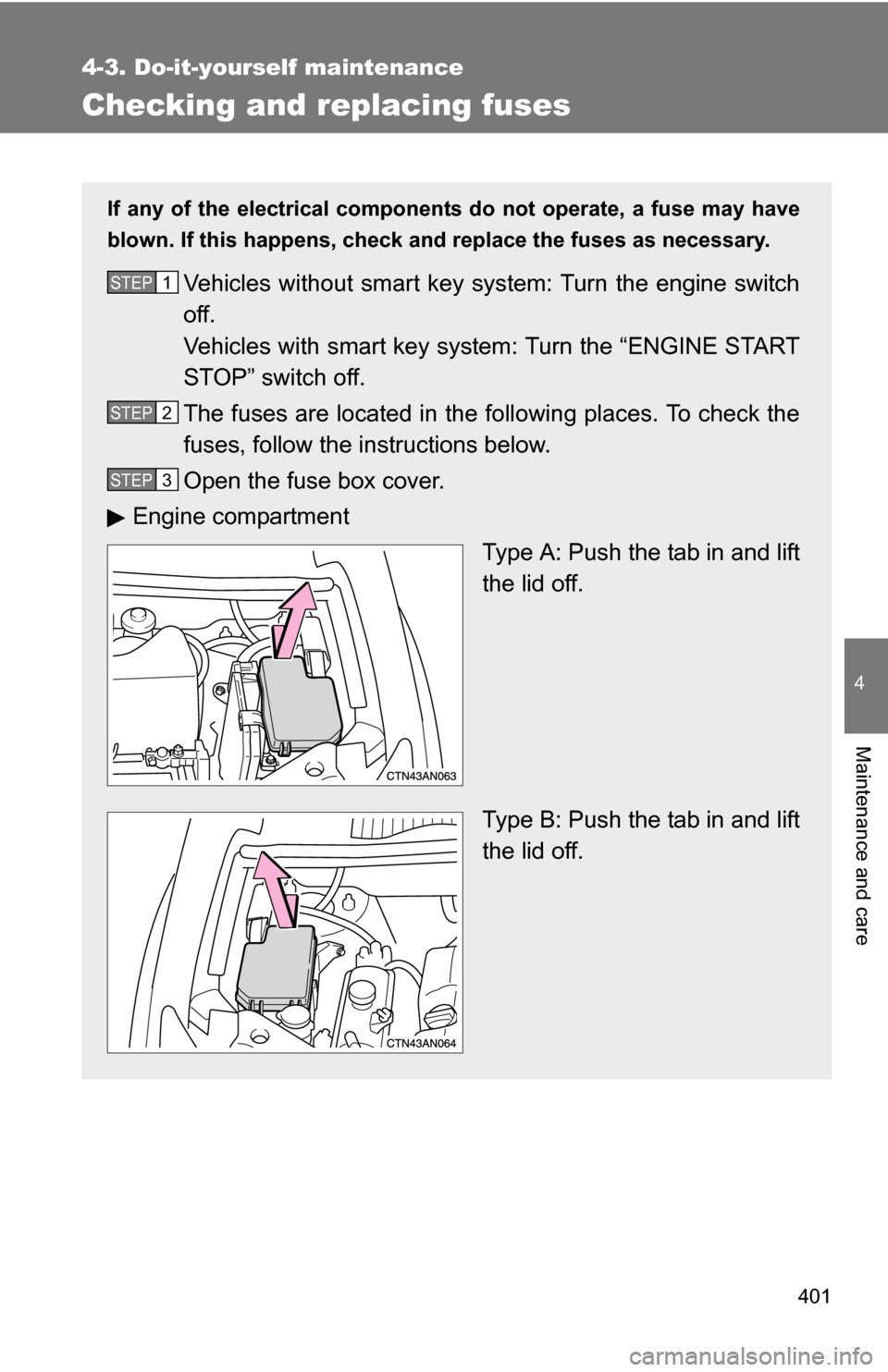

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart key system: Turn the engine switch
off.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch off.
The fuses are located in the following places. To check the
fuses, follow the in structions below.
Open the fuse box cover.
Engine compartment Type A: Push the tab in and lift
the lid off.
Type B: Push the tab in and lift
the lid off.STEP 1
STEP 2
STEP 3

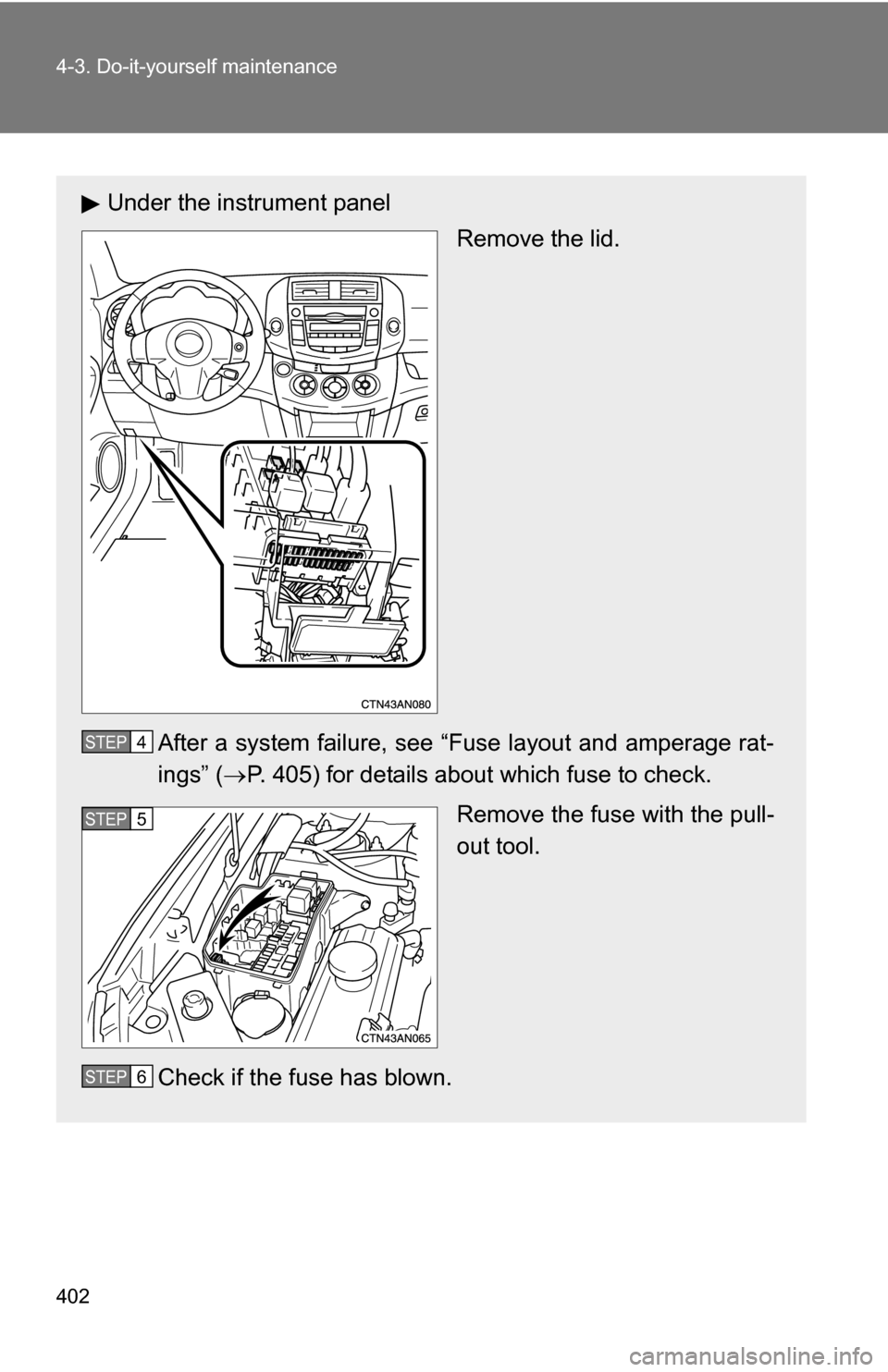

402 4-3. Do-it-yourself maintenance
Under the instrument panelRemove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 405) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
STEP 4
STEP 5
STEP 6

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.

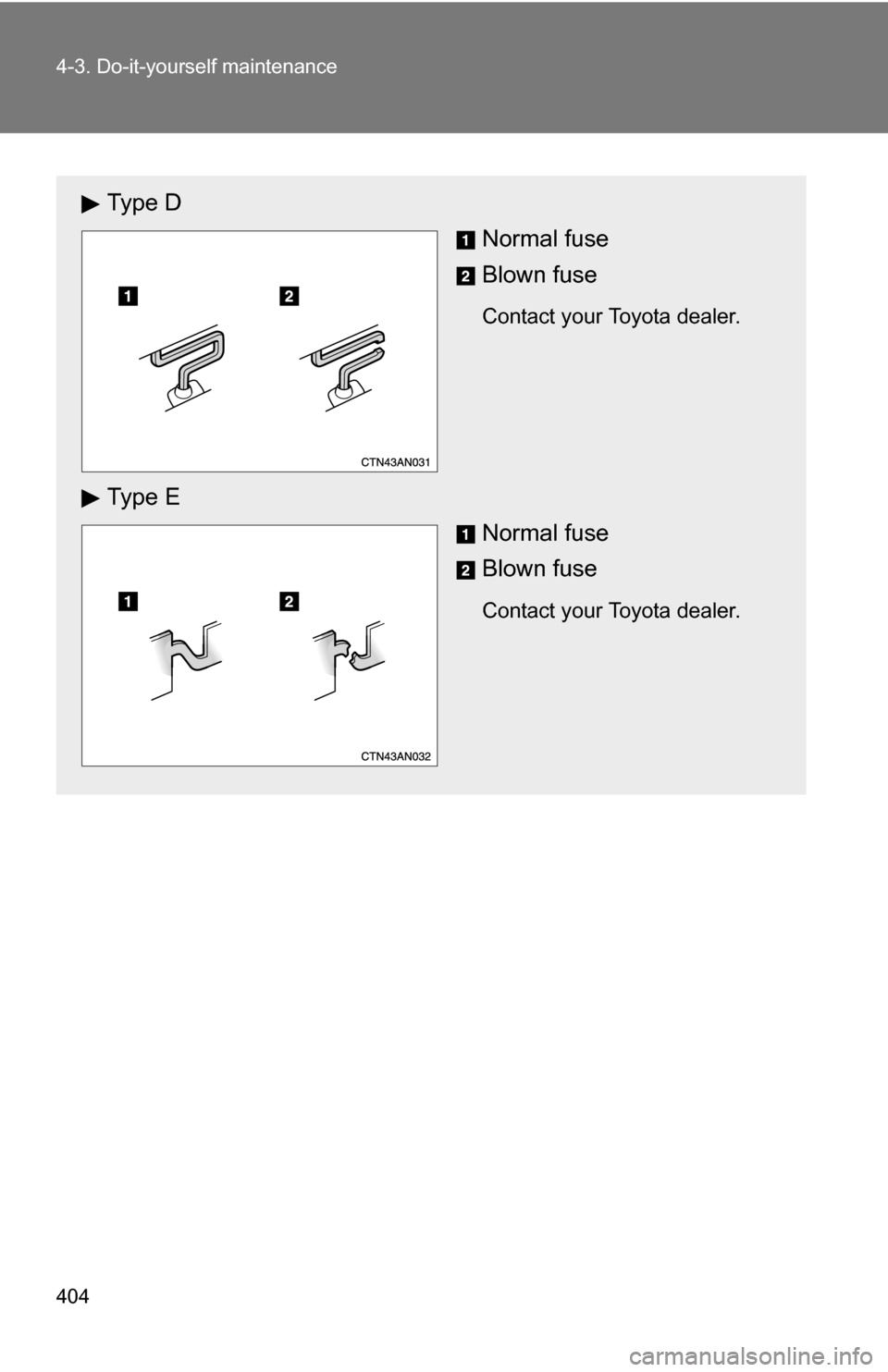

404 4-3. Do-it-yourself maintenance
Ty p e DNormal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e E
Normal fuse
Blown fuse
Contact your Toyota dealer.

405
4-3. Do-it-yourself maintenance
4
Maintenance and care

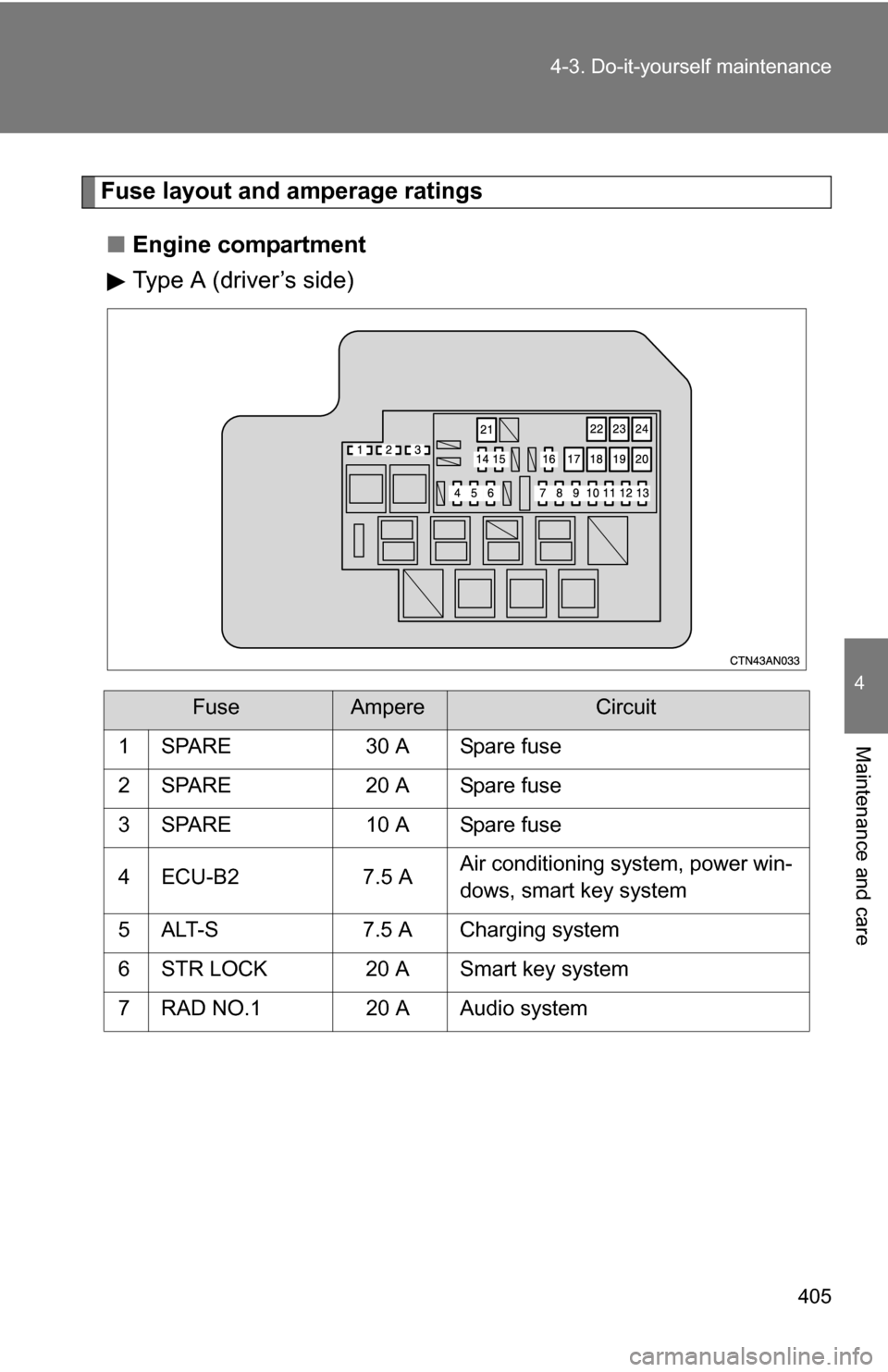

Fuse layout and amperage ratings
■ Engine compartment
Type A (driver’s side)
FuseAmpereCircuit
1 SPARE 30 A Spare fuse
2 SPARE 20 A Spare fuse
3 SPARE 10 A Spare fuse
4 ECU-B2 7.5 A Air conditioning system, power win-
dows, smart key system
5 ALT-S 7.5 A Charging system
6 STR LOCK 20 A Smart key system
7 RAD NO.1 20 A Audio system

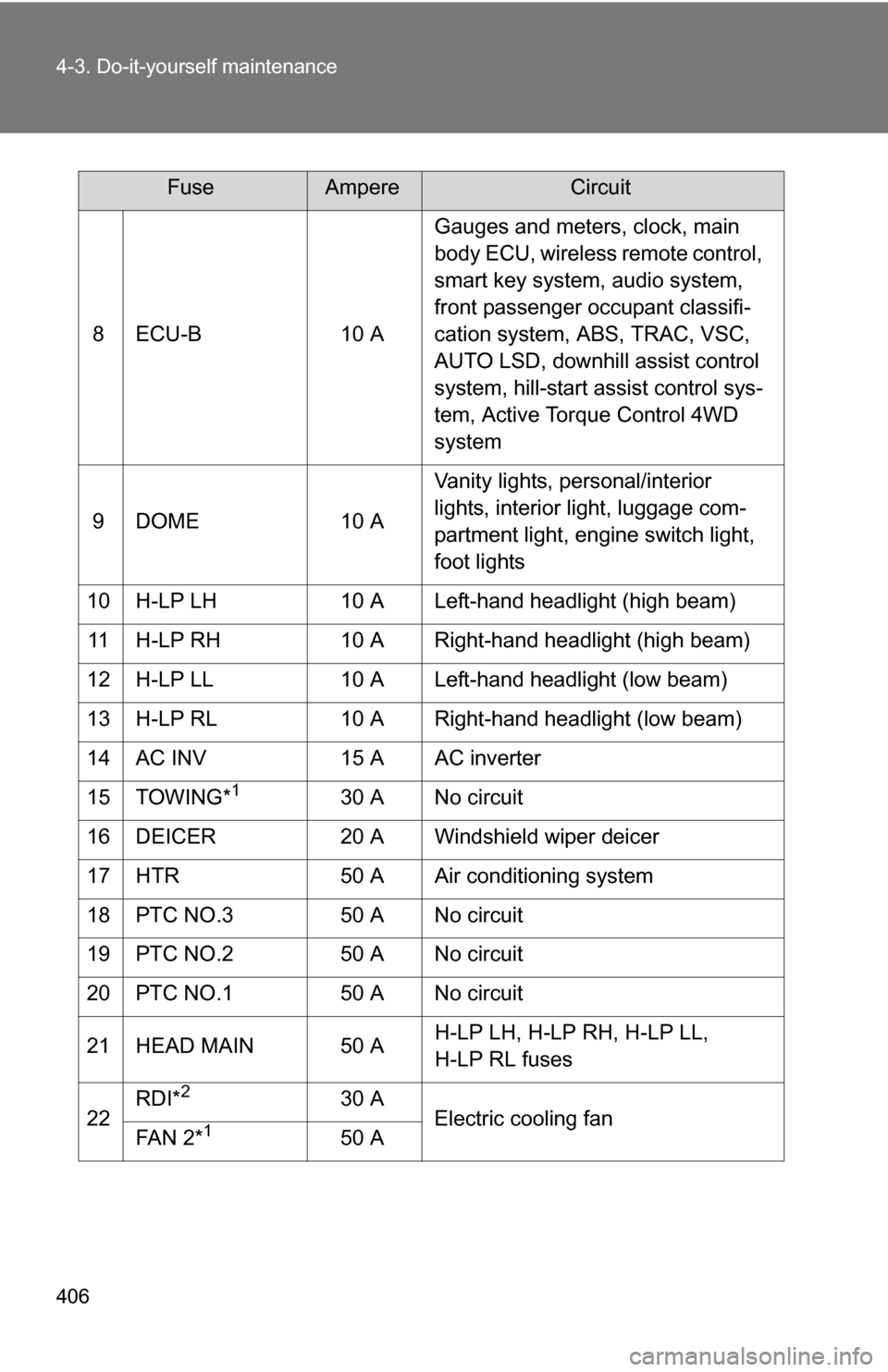

406 4-3. Do-it-yourself maintenance
8 ECU-B10 AGauges and meters, clock, main
body ECU, wireless remote control,
smart key system, audio system,
front passenger occupant classifi-
cation system, ABS, TRAC, VSC,
AUTO LSD, downhill assist control
system, hill-start assist control sys-
tem, Active Torque Control 4WD
system
9 DOME 10 AVanity lights, personal/interior
lights, interior light, luggage com-
partment light, engine switch light,
foot lights
10 H-LP LH 10 A Left-hand headlight (high beam)
11 H-LP RH 10 A Right-hand headlight (high beam)
12 H-LP LL 10 A Left-hand headlight (low beam)
13 H-LP RL 10 A Right-hand headlight (low beam)
14 AC INV 15 A AC inverter
15 TOWING*
130 A No circuit
16 DEICER 20 A Windshield wiper deicer
17 HTR 50 A Air conditioning system
18 PTC NO.3 50 A No circuit
19 PTC NO.2 50 A No circuit
20 PTC NO.1 50 A No circuit
21 HEAD MAIN 50 A H-LP LH, H-LP RH, H-LP LL,
H-LP RL fuses
22 RDI*
230 A
Electric cooling fan
FA N 2 *
150 A
FuseAmpereCircuit

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
*1: Vehicles with towing package
*
2: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
*
3: Vehicles with 3.5 L V6 (2GR-FE) engine

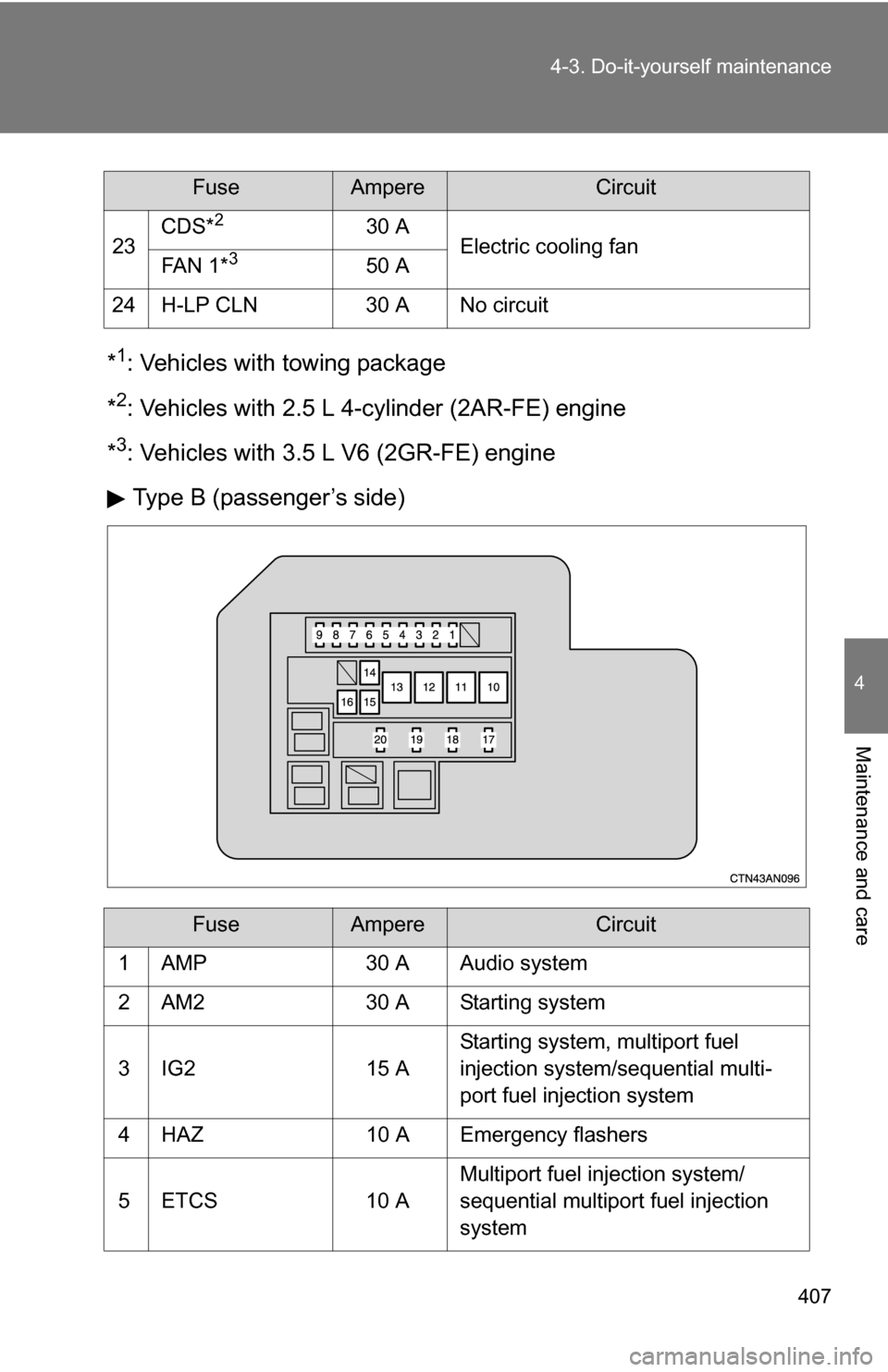

Type B (passenger’s side)
23 CDS*
230 A
Electric cooling fan
FA N 1 *
350 A
24 H-LP CLN 30 A No circuit
FuseAmpereCircuit
1 AMP 30 A Audio system
2 AM2 30 A Starting system
3 IG2 15 A Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
4 HAZ 10 A Emergency flashers
5 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

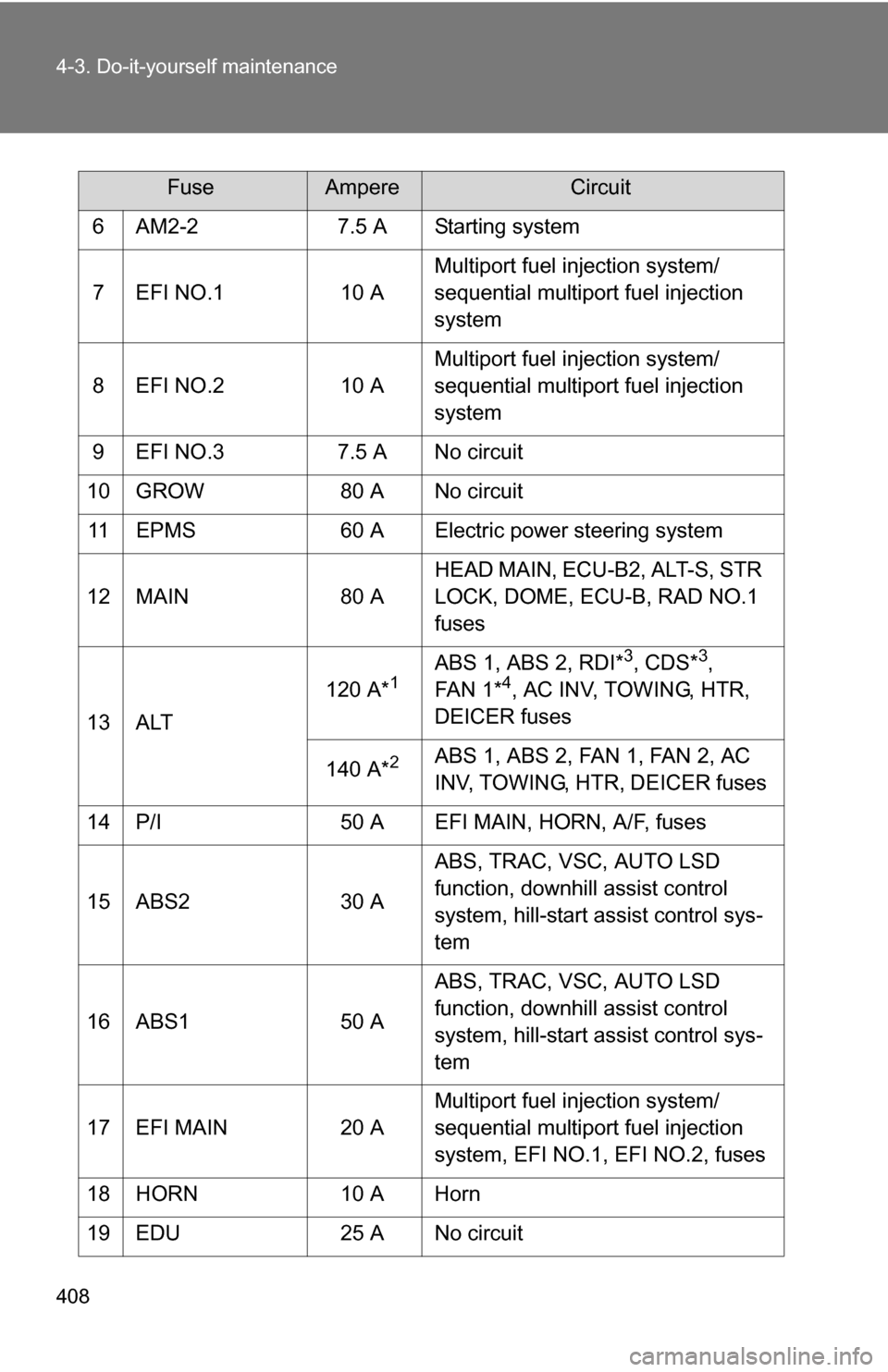

408 4-3. Do-it-yourself maintenance
6 AM2-27.5 A Starting system
7 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
8 EFI NO.2 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
9 EFI NO.3 7.5 A No circuit
10 GROW 80 A No circuit
11 EPMS 60 A Electric power steering system
12 MAIN 80 AHEAD MAIN, ECU-B2, ALT-S, STR
LOCK, DOME, ECU-B, RAD NO.1
fuses
13 ALT 120 A*
1ABS 1, ABS 2, RDI*3, CDS*3,
FA N 1 *4, AC INV, TOWING, HTR,
DEICER fuses
140 A*
2ABS 1, ABS 2, FAN 1, FAN 2, AC
INV, TOWING, HTR, DEICER fuses
14 P/I 50 A EFI MAIN, HORN, A/F, fuses
15 ABS2 30 A ABS, TRAC, VSC, AUTO LSD
function, downhill assist control
system, hill-start assist control sys-
tem
16 ABS1 50 A ABS, TRAC, VSC, AUTO LSD
function, downhill assist control
system, hill-start assist control sys-
tem
17 EFI MAIN 20 A Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2, fuses
18 HORN 10 A Horn
19 EDU 25 A No circuit
FuseAmpereCircuit

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
*1: Vehicles without towing package
*
2: Vehicles with towing package
*
3: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
*
4: Vehicles with 3.5 L V6 (2GR-FE) engine

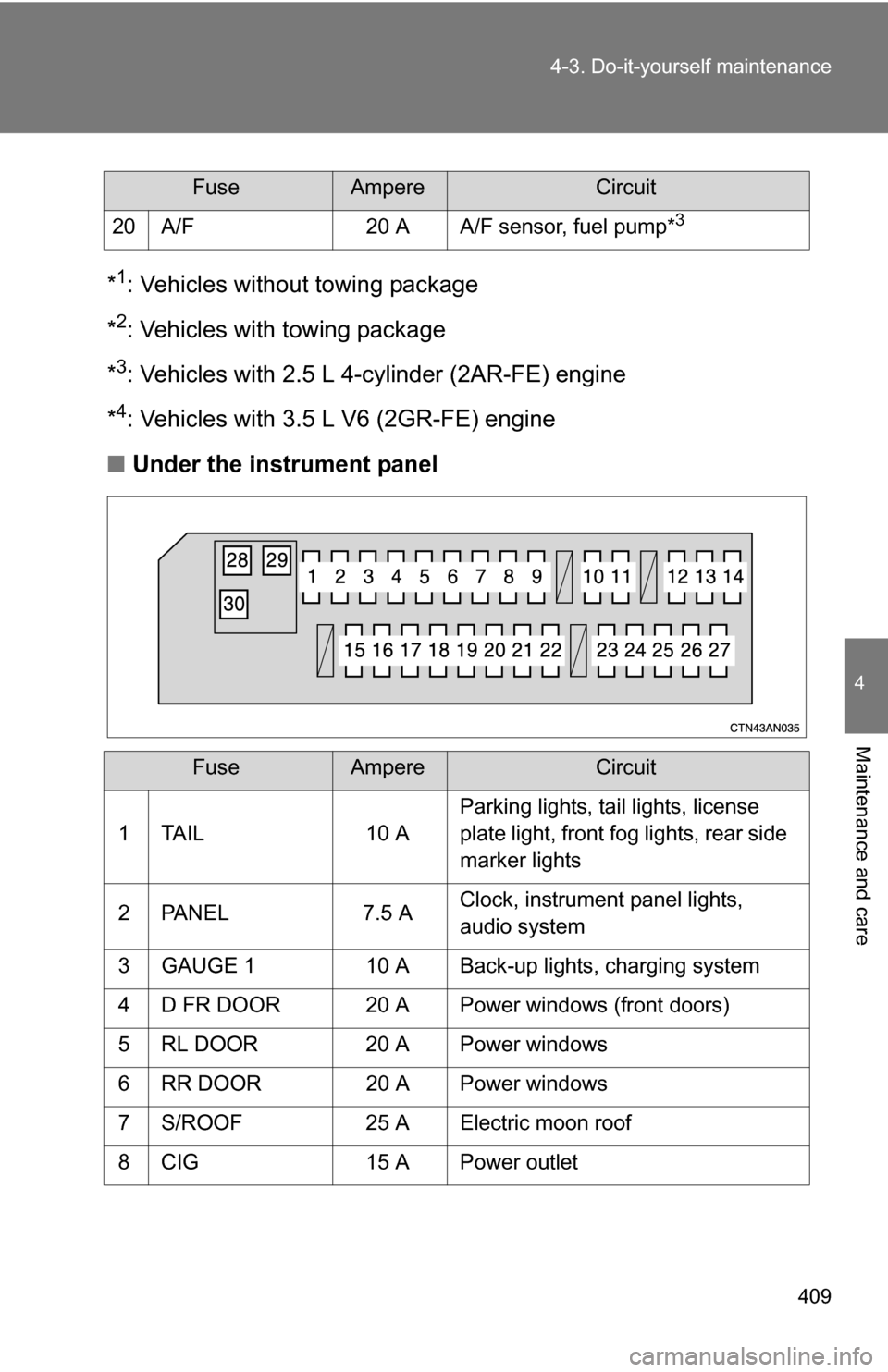

■ Under the instrument panel
20 A/F 20 A A/F sensor, fuel pump*3
FuseAmpereCircuit
1 TAIL 10 A Parking lights, tail lights, license
plate light, front fog lights, rear side
marker lights
2 PANEL 7.5 A Clock, instrument panel lights,
audio system
3 GAUGE 1 10 A Back-up lights, charging system
4 D FR DOOR 20 A Power windows (front doors)
5 RL DOOR 20 A Power windows
6 RR DOOR 20 A Power windows
7 S/ROOF 25 A Electric moon roof
8 CIG 15 A Power outlet
FuseAmpereCircuit

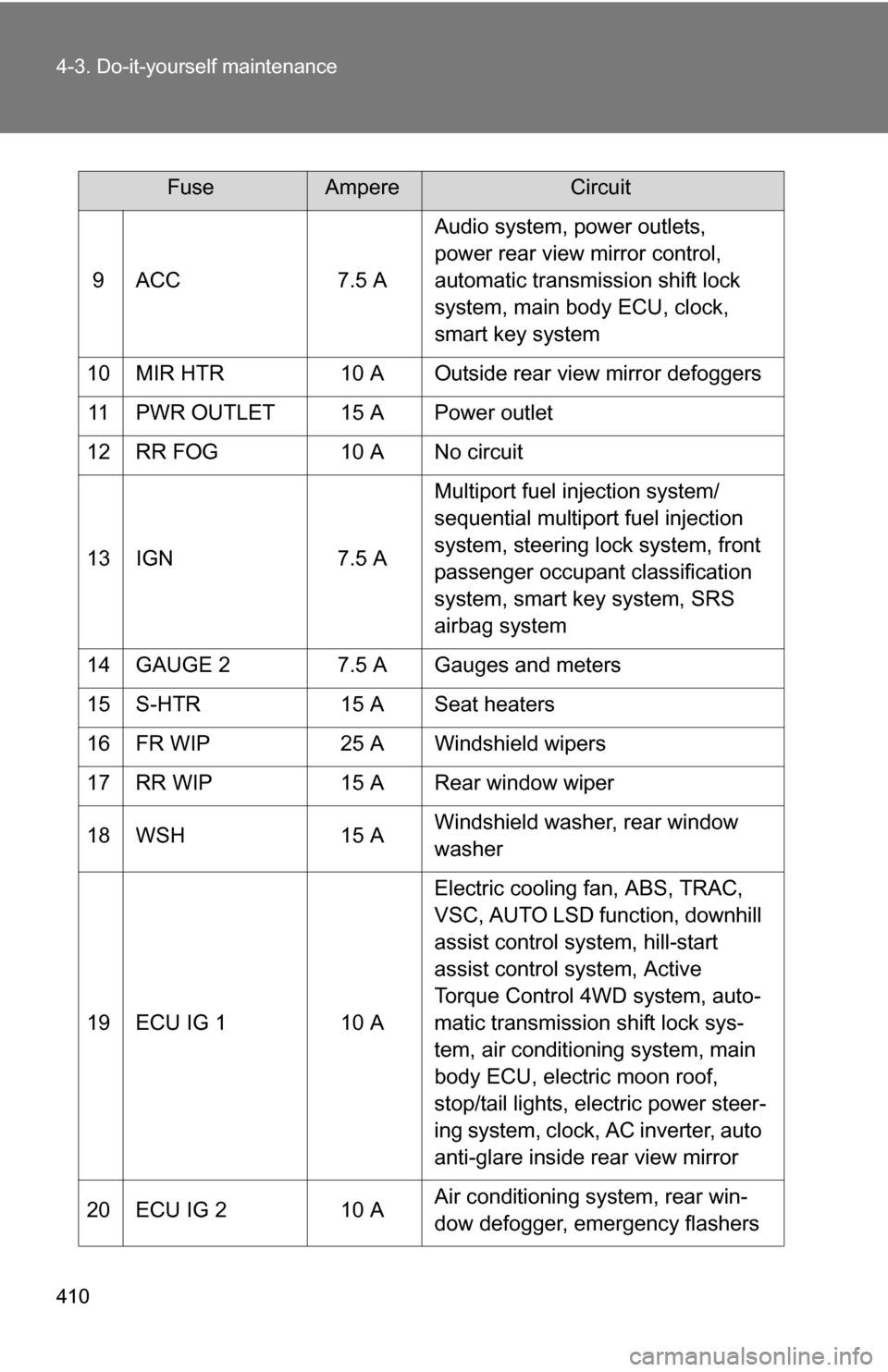

410 4-3. Do-it-yourself maintenance
9 ACC7.5 AAudio system, power outlets,
power rear view mirror control,
automatic transmission shift lock
system, main body ECU, clock,
smart key system
10 MIR HTR 10 A Outside rear view mirror defoggers
11 PWR OUTLET 15 A Power outlet
12 RR FOG 10 A No circuit
13 IGN 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, steering lock system, front
passenger occupant classification
system, smart key system, SRS
airbag system
14 GAUGE 2 7.5 A Gauges and meters
15 S-HTR 15 A Seat heaters
16 FR WIP 25 A Windshield wipers
17 RR WIP 15 A Rear window wiper
18 WSH 15 AWindshield washer, rear window
washer
19 ECU IG 1 10 AElectric cooling fan, ABS, TRAC,
VSC, AUTO LSD function, downhill
assist control system, hill-start
assist control system, Active
Torque Control 4WD system, auto-
matic transmission shift lock sys-
tem, air conditioning system, main
body ECU, electric moon roof,
stop/tail lights, electric power steer-
ing system, clock, AC inverter, auto
anti-glare inside rear view mirror
20 ECU IG 2 10 AAir conditioning system, rear win-
dow defogger, emergency flashers
FuseAmpereCircuit
