4-3. Do-it-yourself maintenance
4
Maintenance and care
*: Vehicles without smart key system
21 OBD
7.5 A On-board diagnosis system
22 STOP 10 AStop/tail lights, high mounted stop-
light, automatic transmission shift
lock system, multiport fuel injection
system/sequential multiport fuel
injection system, ABS, TRAC,
VSC, AUTO LSD function, downhill
assist control system, hill-start
assist control system
23 DOOR 25 AMain body ECU, power door lock
system
24 ACC-B 25 A ACC, CIG, fuses
25 4WD 7.5 A Active Torque Control 4WD system
26 FR FOG 15 A Front fog lights
27 AM1* 7.5 A Starting system
28 DEF 30 ARear window defogger, MIR HTR
fuse
29 P/SEAT 30 A Power seat
30 POWER 30 A Power windows
FuseAmpereCircuit

412 4-3. Do-it-yourself maintenance

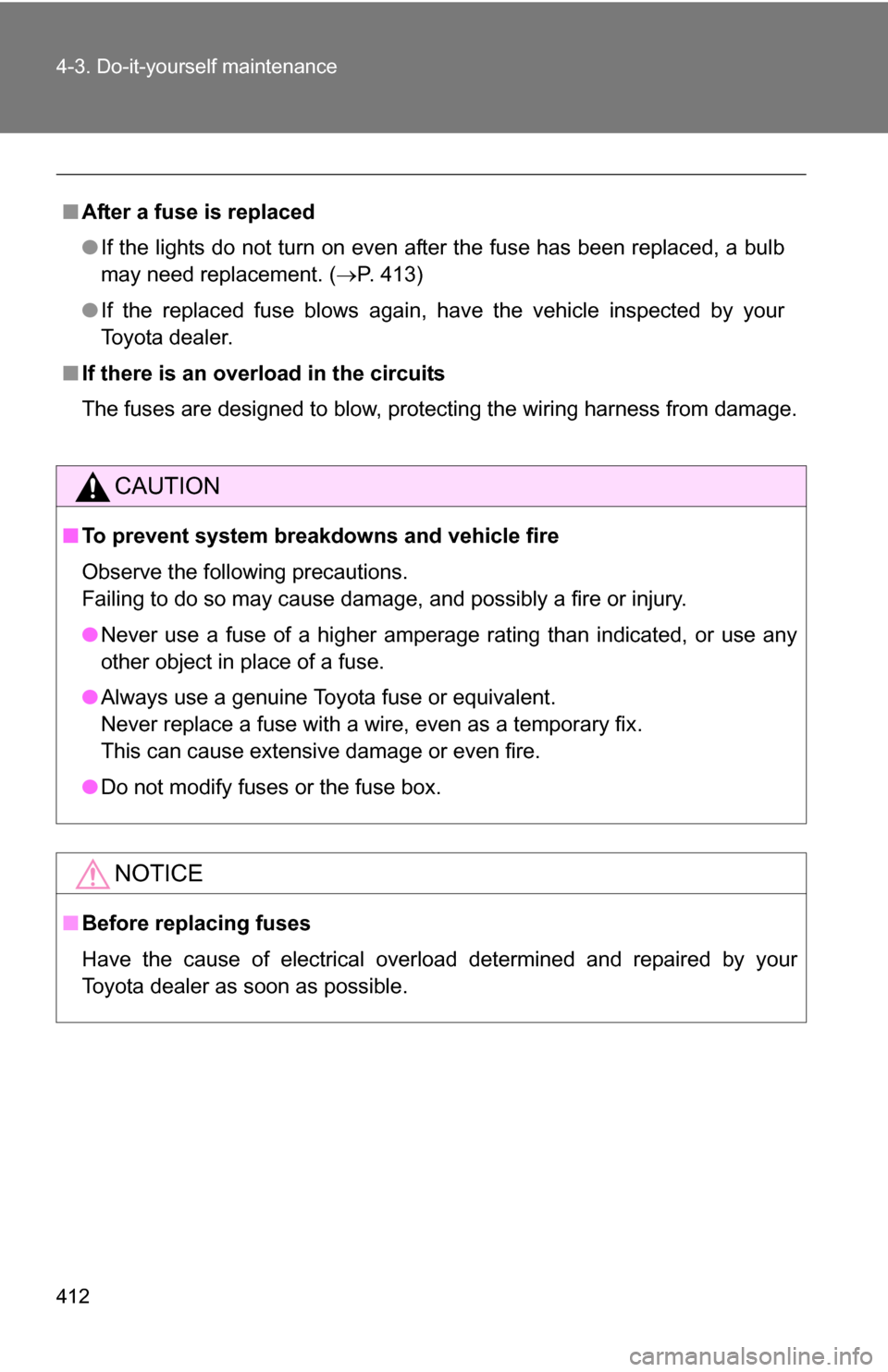

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 413)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Preparing a light bulb for replacement
Check the wattage of the light bulb being replaced. ( P. 495)
■ Removing the engine compartment cover
 P. 369
■ Front bulb locations
Headlight
low beam
Front turn signal, parking and
front side marker lights
Headlight high beam and
daytime running lights
Front fog lights
(if equipped)

414 4-3. Do-it-yourself maintenance

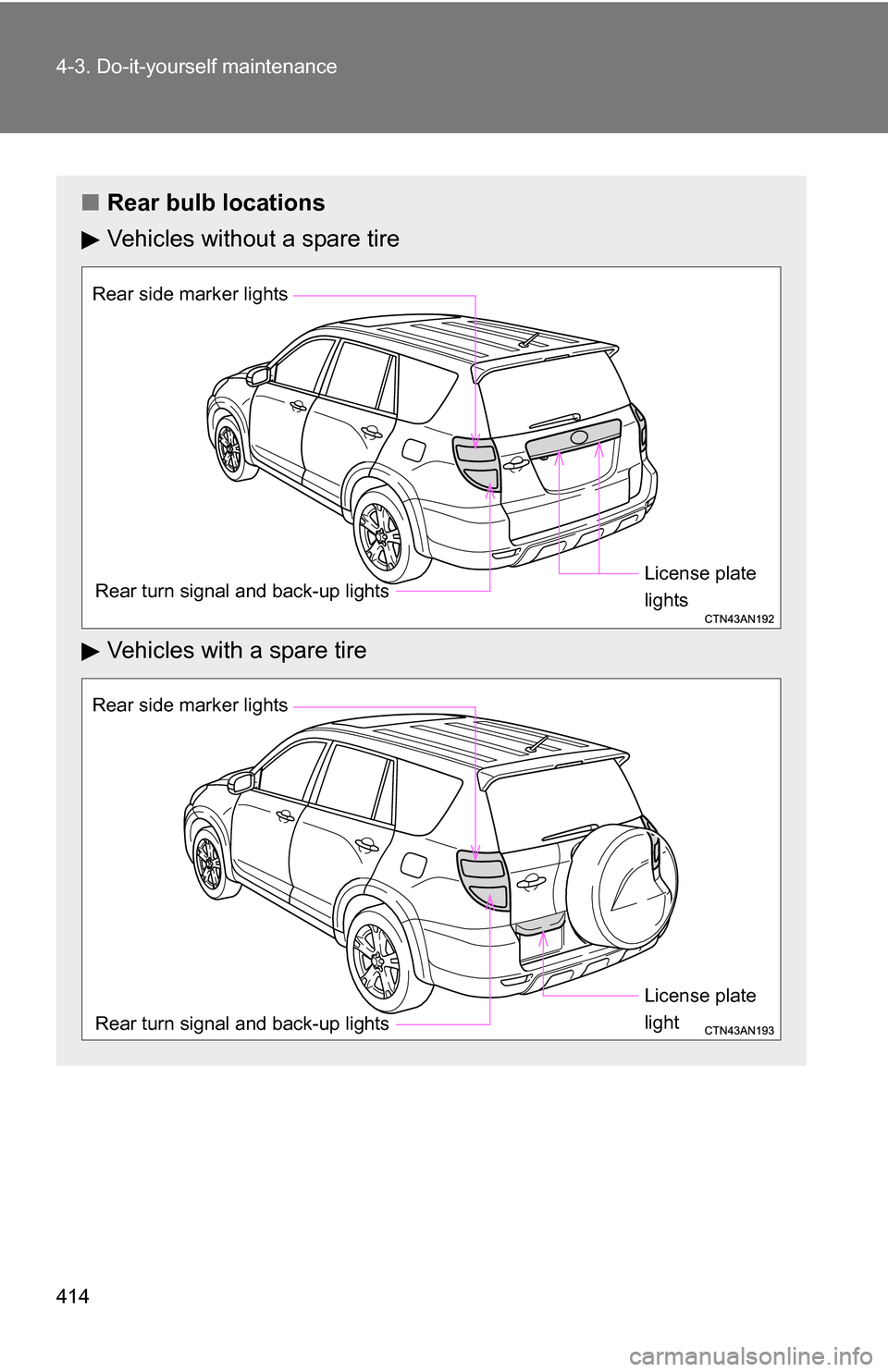

■Rear bulb locations
Vehicles without a spare tire
Vehicles with a spare tire
Rear turn signal and back-up lightsLicense plate
lights
Rear side marker lights
Rear turn signal and back-up lights
License plate
light
Rear side marker lights

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs

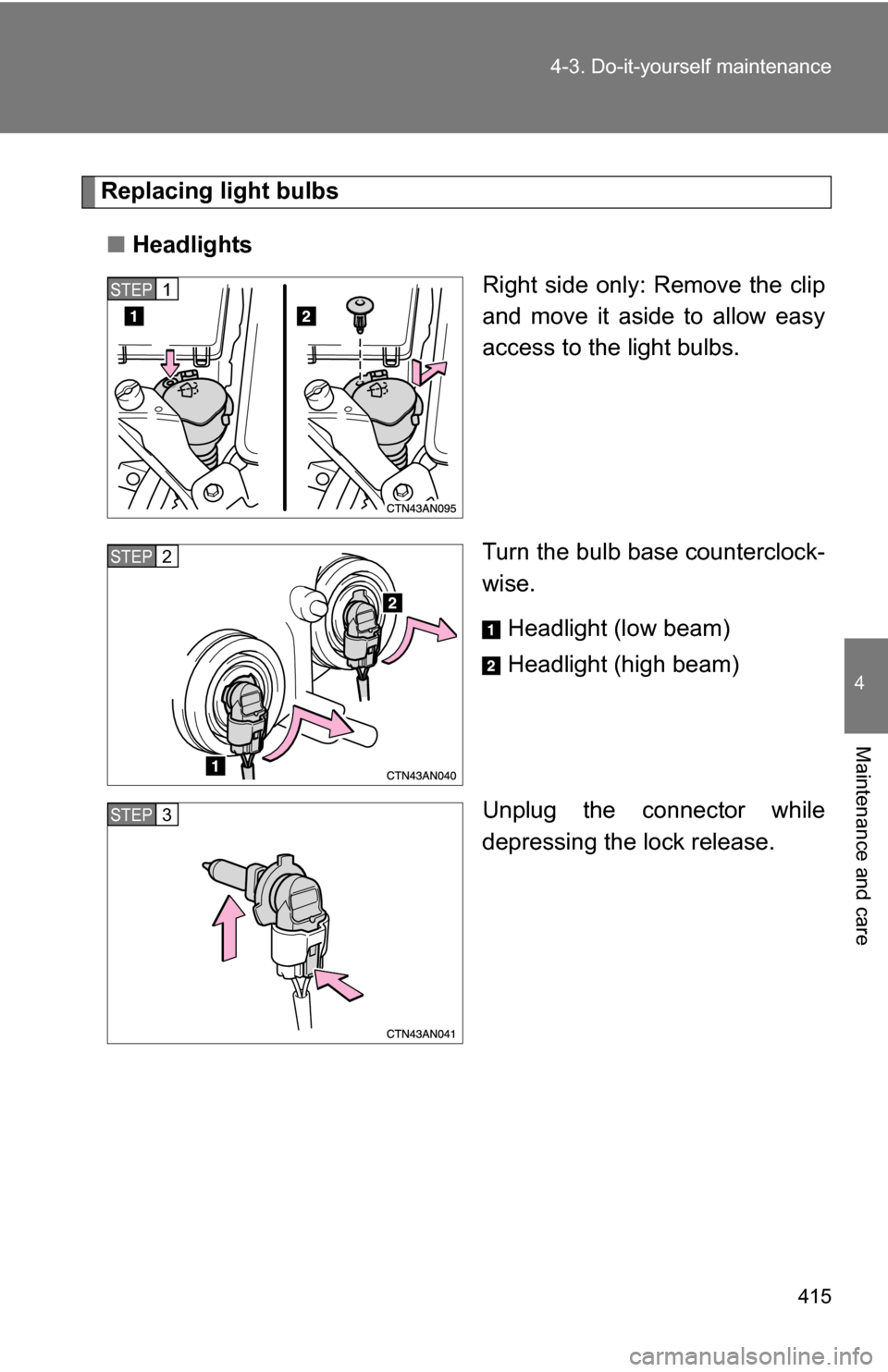

■ Headlights
Right side only: Remove the clip
and move it aside to allow easy
access to the light bulbs.
Turn the bulb base counterclock-
wise.
Headlight (low beam)
Headlight (high beam)
Unplug the connector while
depressing the lock release.
STEP 1
STEP 2
STEP 3

416 4-3. Do-it-yourself maintenance
Reinstalling the clip
■ Front turn signal, parking a nd front side marker lights
Right side only: Remove the clip
and move it aside to allow easy
access to the light bulbs.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
Reinstalling the clip

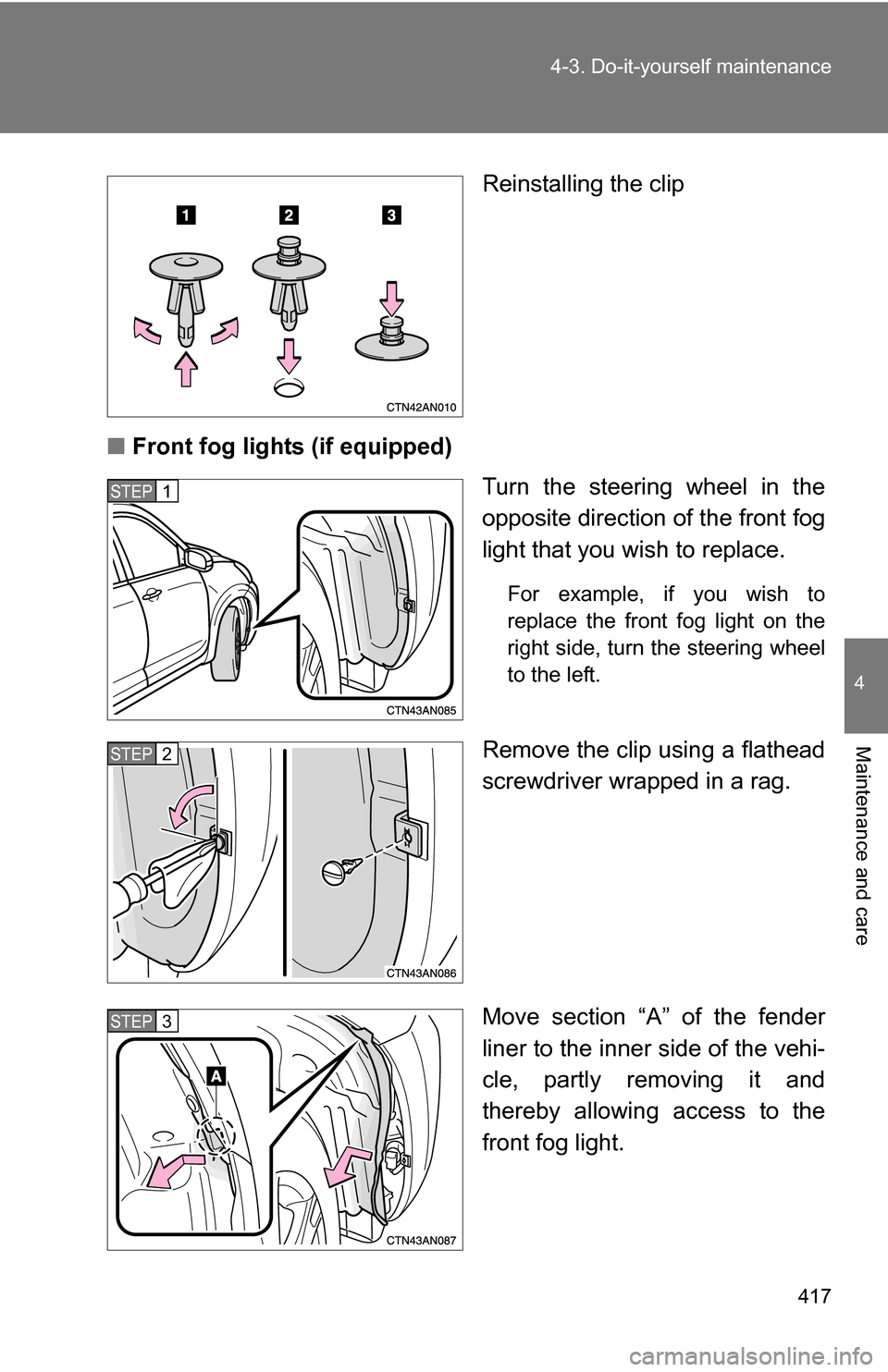

■ Front fog lights (if equipped)
Turn the steering wheel in the
opposite direction of the front fog
light that you wish to replace.
For example, if you wish to
replace the front fog light on the
right side, turn the steering wheel
to the left.
Remove the clip using a flathead
screwdriver wrapped in a rag.
Move section “A” of the fender
liner to the inner side of the vehi-
cle, partly removing it and
thereby allowing access to the
front fog light.
STEP 1
STEP 2
STEP 3

418 4-3. Do-it-yourself maintenance

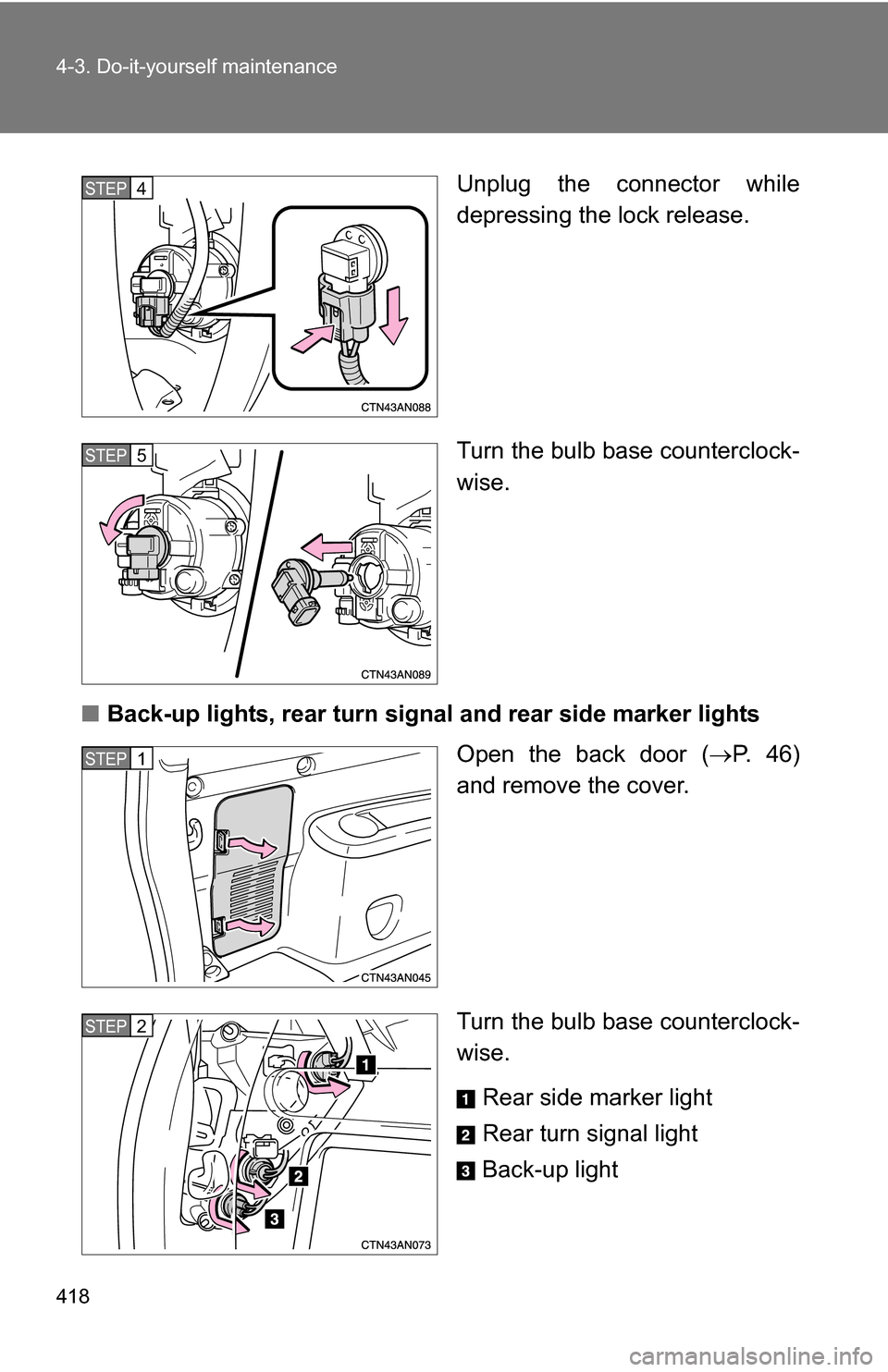

Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
■ Back-up lights, rear turn signal and rear side marker lights
Open the back door (P. 46)
and remove the cover.
Turn the bulb base counterclock-
wise.
Rear side marker light
Rear turn signal light
Back-up lightSTEP 4
STEP 5
STEP 1
STEP 2

419
4-3. Do-it-yourself maintenance
4
Maintenance and care

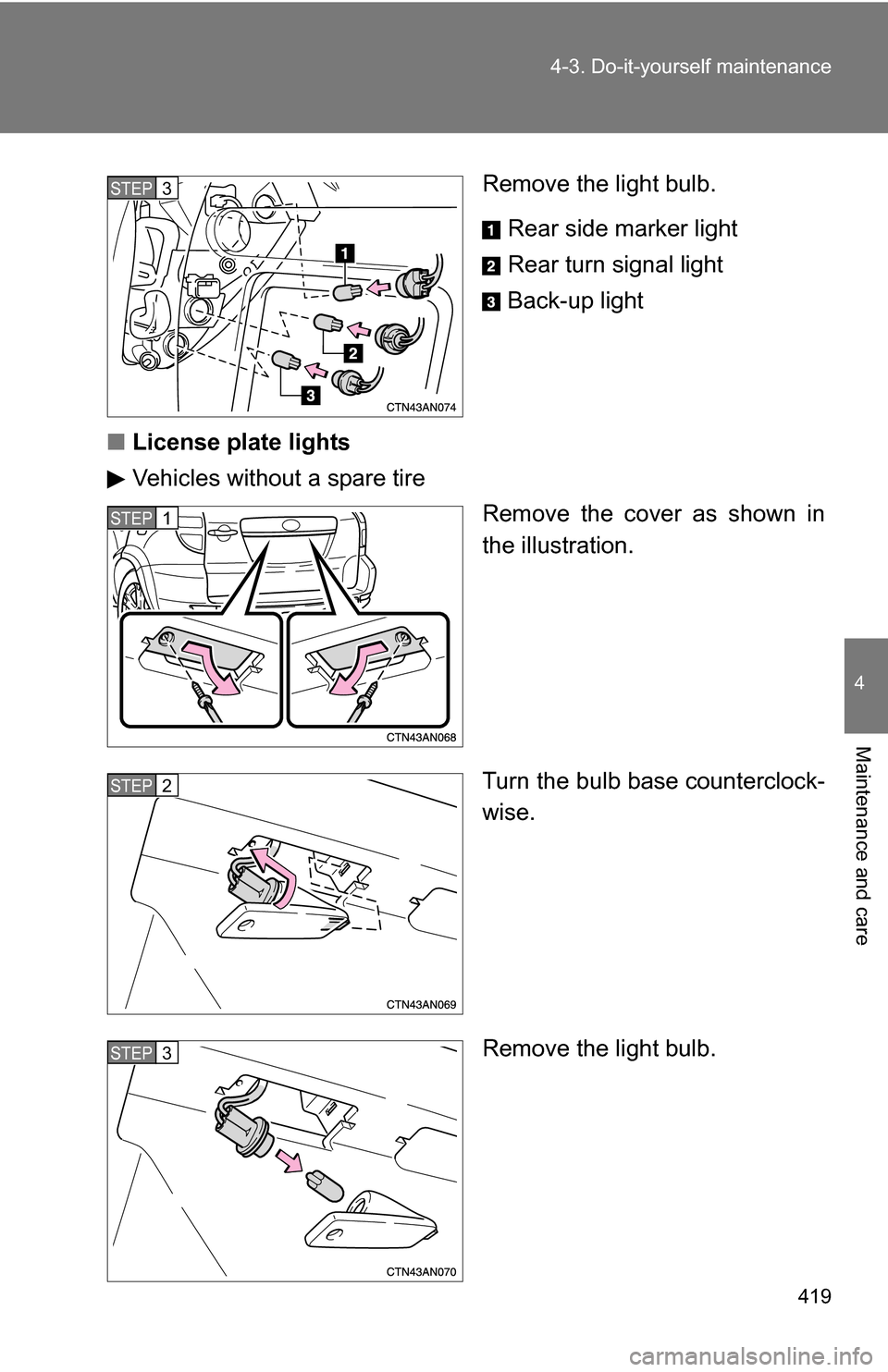

Remove the light bulb.
Rear side marker light
Rear turn signal light
Back-up light
■ License plate lights
Vehicles without a spare tire
Remove the cover as shown in
the illustration.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP 3
STEP 1
STEP 2
STEP 3

420 4-3. Do-it-yourself maintenance
Vehicles with a spare tireUse a flathead screwdriver to
disengage the side of the lamp.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Light other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● High mounted stoplight
● Stop/tail lights
● Side turn signal lights (if equipped)
STEP 1
STEP 2
STEP 3
