When trouble arises
481
5-2. Steps to take in an emergency
CAUTION
■
If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.

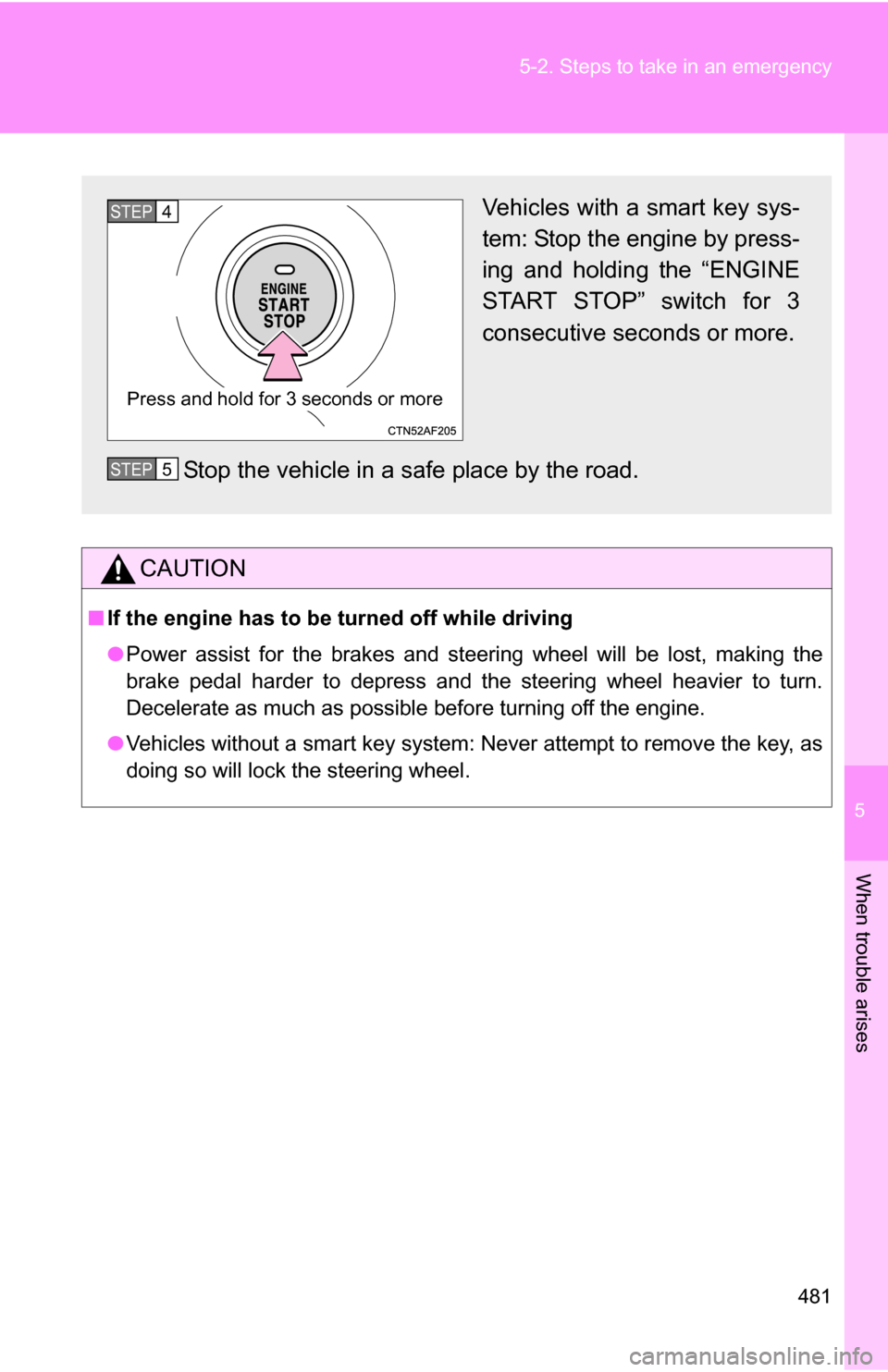

Vehicles with a smart key sys-
tem: Stop the engine by press-
ing and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more
STEP 4
STEP 5

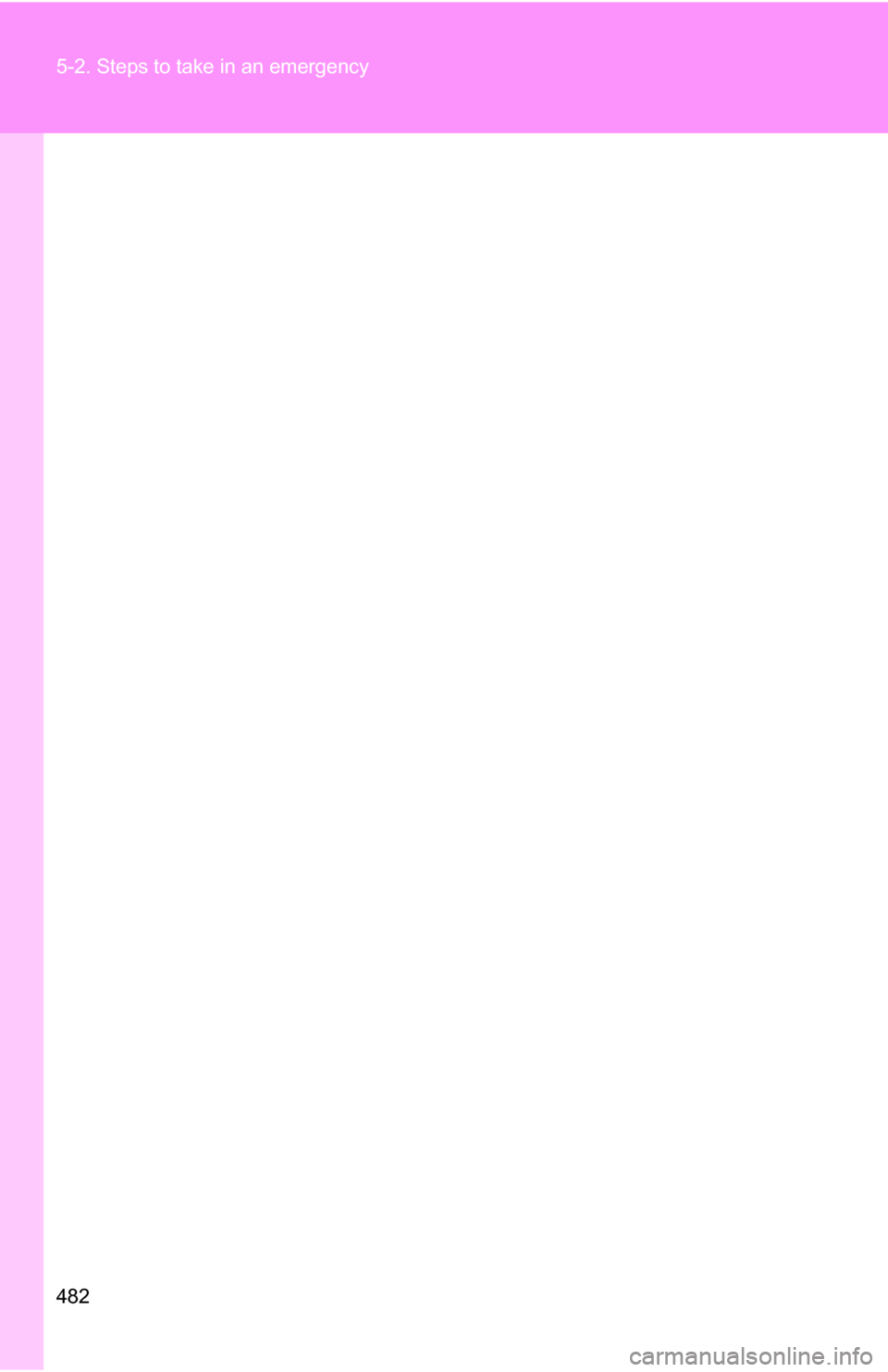

482 5-2. Steps to take in an emergency

Vehicle specifications6

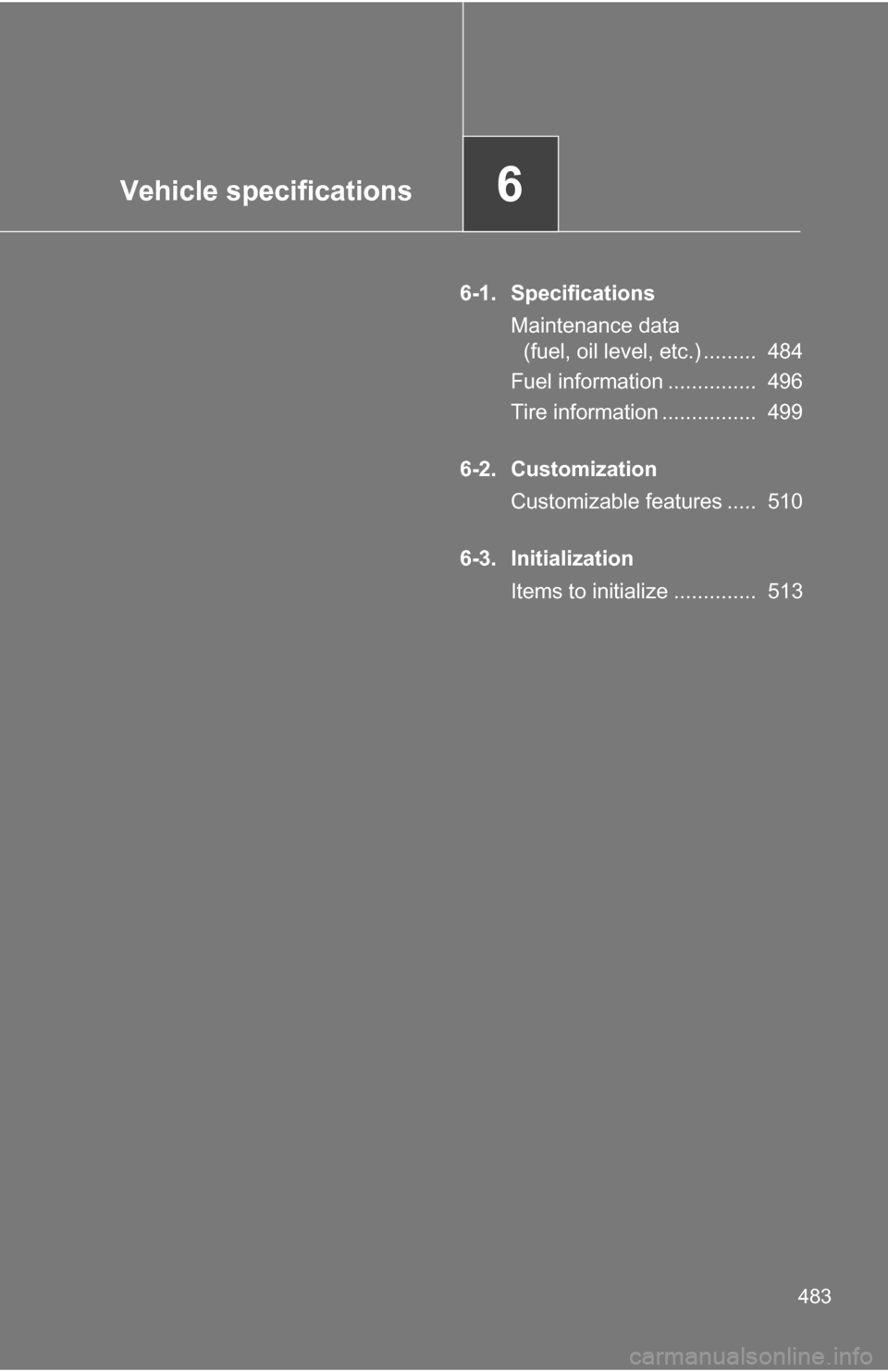

483
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 484
Fuel information ............... 496
Tire information ................ 499
6-2. Customization Customizable features ..... 510
6-3. Initialization Items to initialize .............. 513

484
6-1. Specifications
Maintenance data (fuel, oil level, etc.)

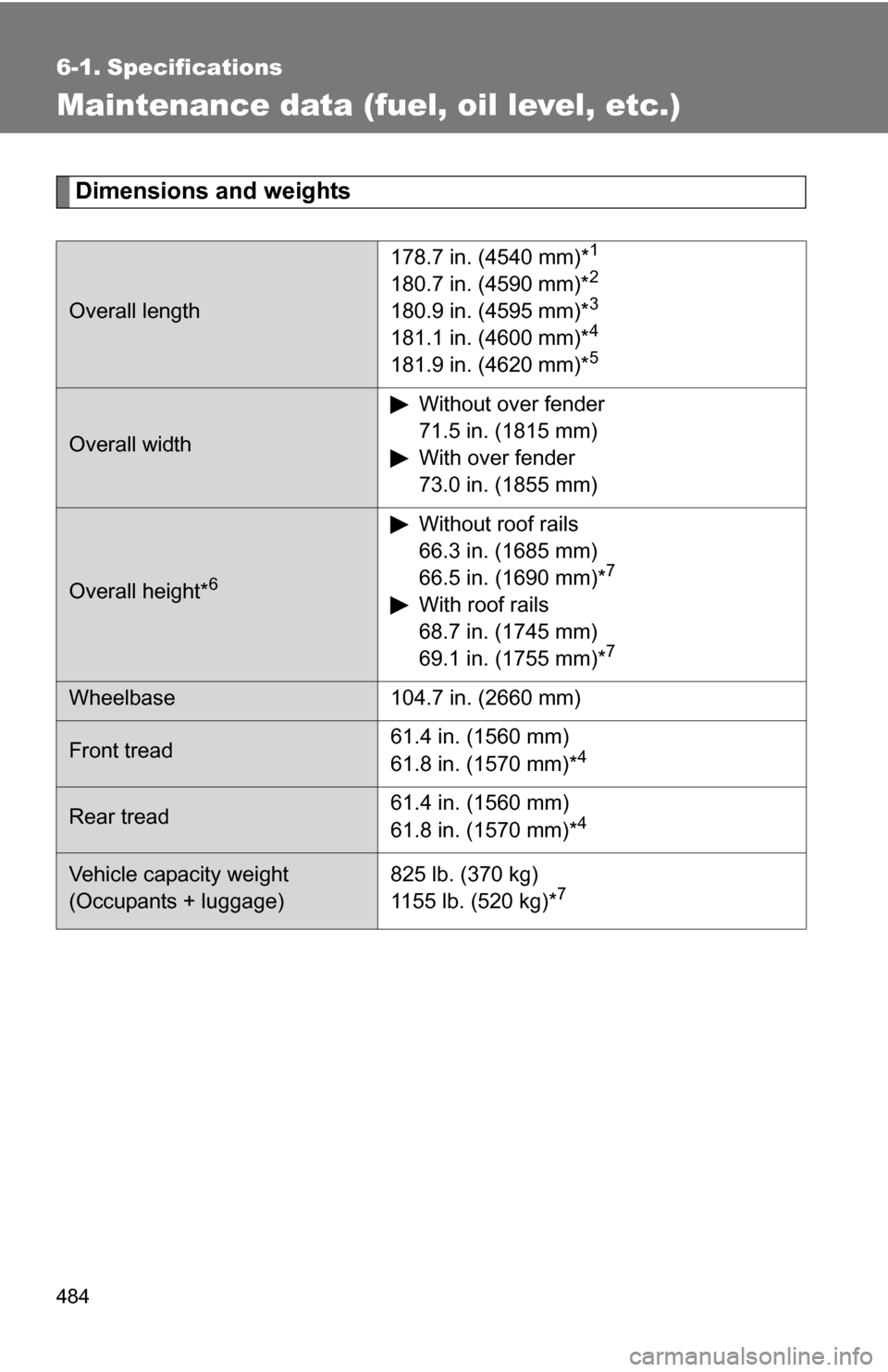

Dimensions and weights
Overall length178.7 in. (4540 mm)*
1
180.7 in. (4590 mm)*2
180.9 in. (4595 mm)*3
181.1 in. (4600 mm)*4
181.9 in. (4620 mm)*5
Overall width
Without over fender
71.5 in. (1815 mm)
With over fender
73.0 in. (1855 mm)
Overall height*6
Without roof rails
66.3 in. (1685 mm)
66.5 in. (1690 mm)*
7
With roof rails
68.7 in. (1745 mm)
69.1 in. (1755 mm)*
7
Wheelbase
104.7 in. (2660 mm)
Front tread 61.4 in. (1560 mm)
61.8 in. (1570 mm)*4
Rear tread61.4 in. (1560 mm)
61.8 in. (1570 mm)*4
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
1155 lb. (520 kg)*7

485
6-1. Specifications
6
Vehicle specifications

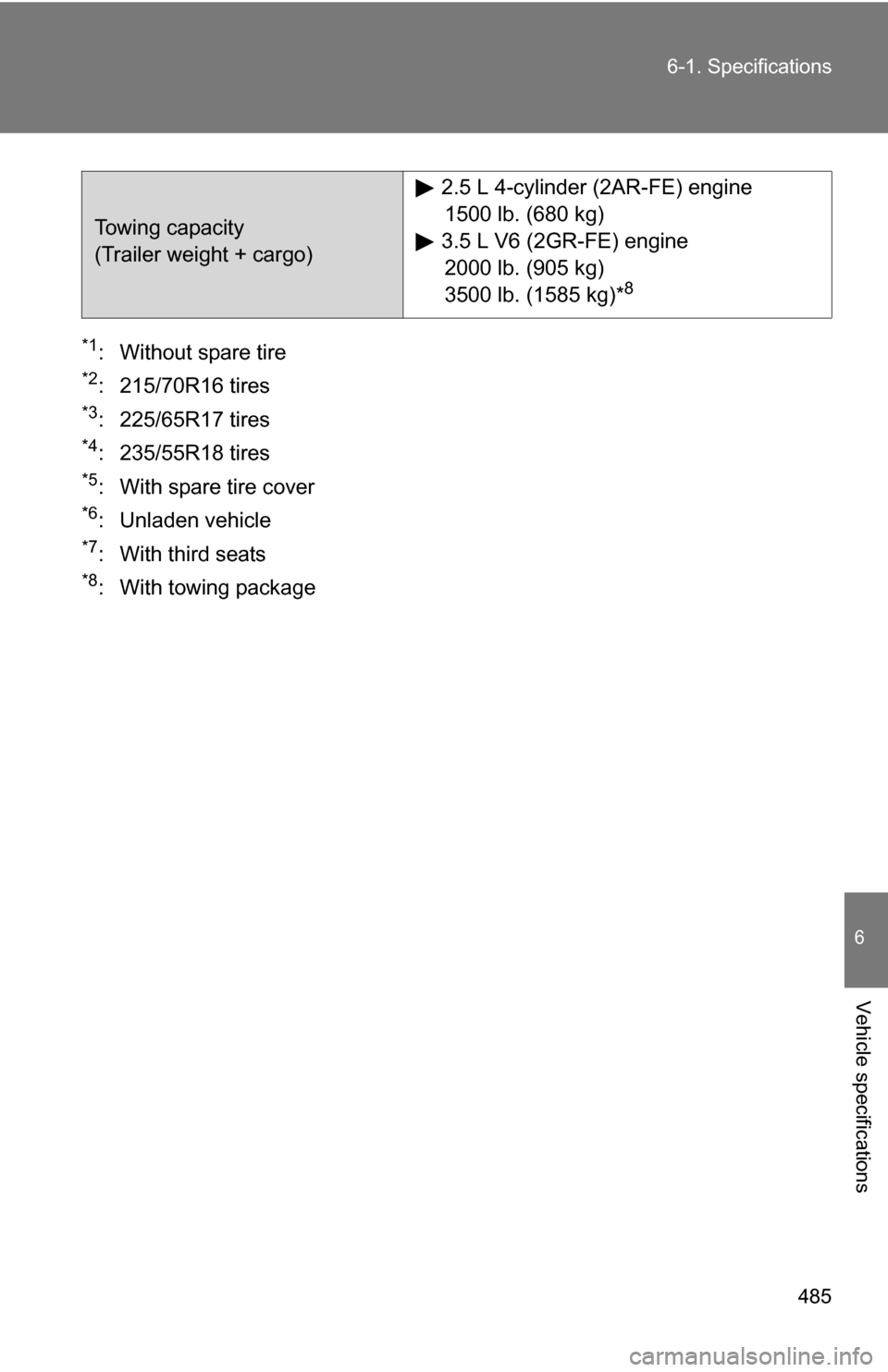

*1: Without spare tire
*2: 215/70R16 tires
*3: 225/65R17 tires
*4: 235/55R18 tires
*5: With spare tire cover
*6: Unladen vehicle
*7: With third seats
*8: With towing package
Towing capacity
(Trailer weight + cargo)
2.5 L 4-cylinder (2AR-FE) engine
1500 lb. (680 kg)
3.5 L V6 (2GR-FE) engine 2000 lb. (905 kg)
3500 lb. (1585 kg)*
8

486 6-1. Specifications

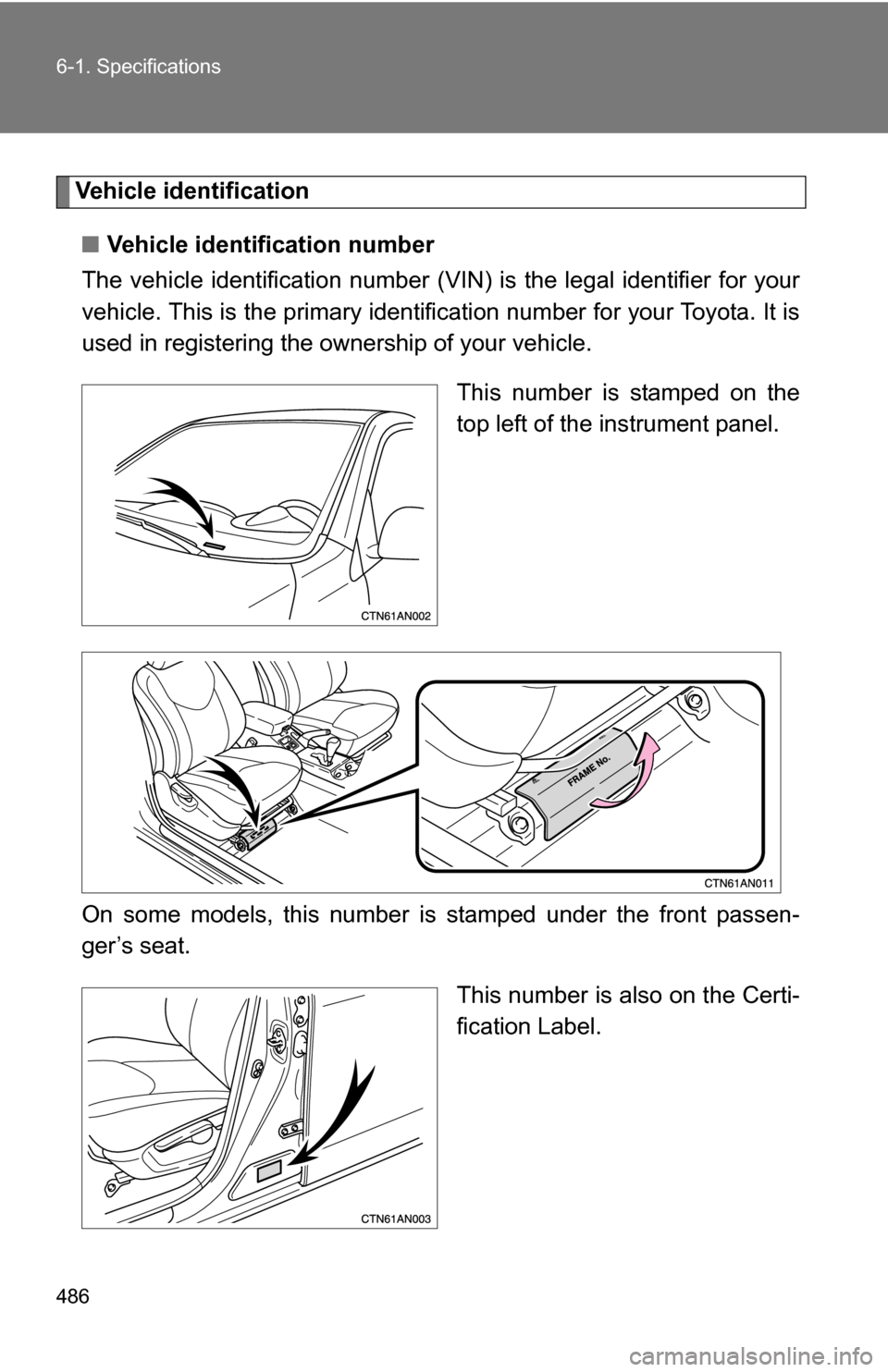

Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
On some models, this number is stamped under the front passen-
ger’s seat. This number is also on the Certi-
fication Label.

487
6-1. Specifications
6
Vehicle specifications
■
Engine number
The engine number is stamped on the engine bl ock as shown.
2.5 L 4-cylinder (2AR-FE) engine
3.5 L V6 (2GR-FE) engine
Engine
Model 2AR-FE2GR-FE
Ty p e 4-cylinder in line,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke
3.54 
3.86 in.
(90.0  98.0 mm) 3.70 
3.27 in.
(94.0  83.0 mm)
Displacement 152.2 cu.in. (2494 cm3) 210.9 cu.in. (3456 cm3)
Drive belt tension Automatic adjustment

488 6-1. Specifications
Fuel
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 15.9 gal. (60 L, 13.2 Imp. gal.)
Oil capacity
(Drain and refill

reference*) Without filter
With filter 2.5 L 4-cylinder (2AR-FE) engine
4.2 qt. (4.0 L, 3.5 Imp. qt.)
3.5 L V6 (2GR-FE) engine
6.0 qt. (5.7 L, 5.0 Imp. qt.)
2.5 L 4-cylinder (2AR-FE) engine
4.7 qt. (4.4 L, 3.9 Imp. qt.)
3.5 L V6 (2GR-FE) engine
6.4 qt. (6.1 L, 5.4 Imp. qt.)

489
6-1. Specifications
6
Vehicle specifications

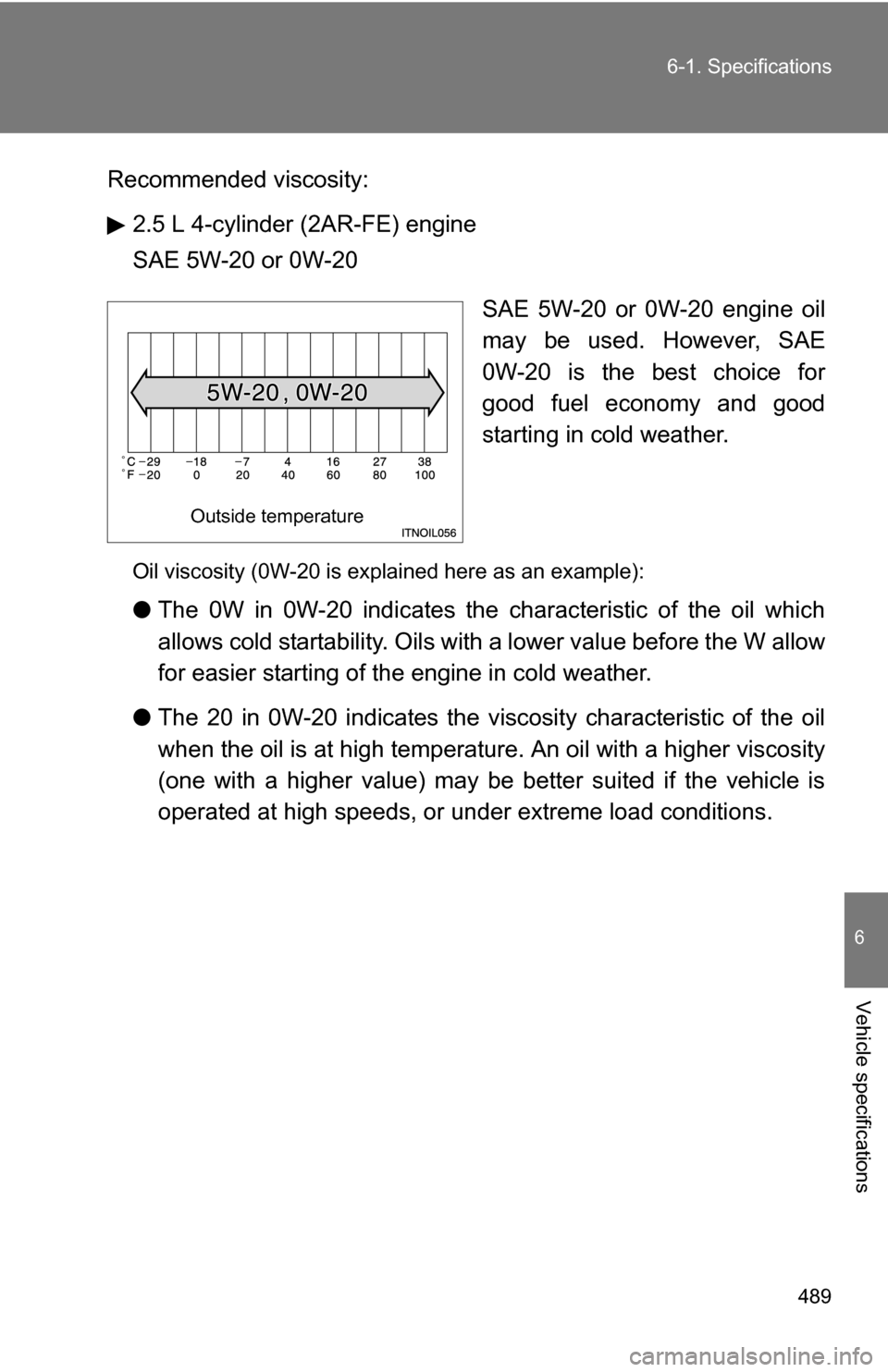

Recommended viscosity:
2.5 L 4-cylinder (2AR-FE) engine
SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the visc osity characteristic of the oil
when the oil is at high temperatur e. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Outside temperature

490 6-1. Specifications

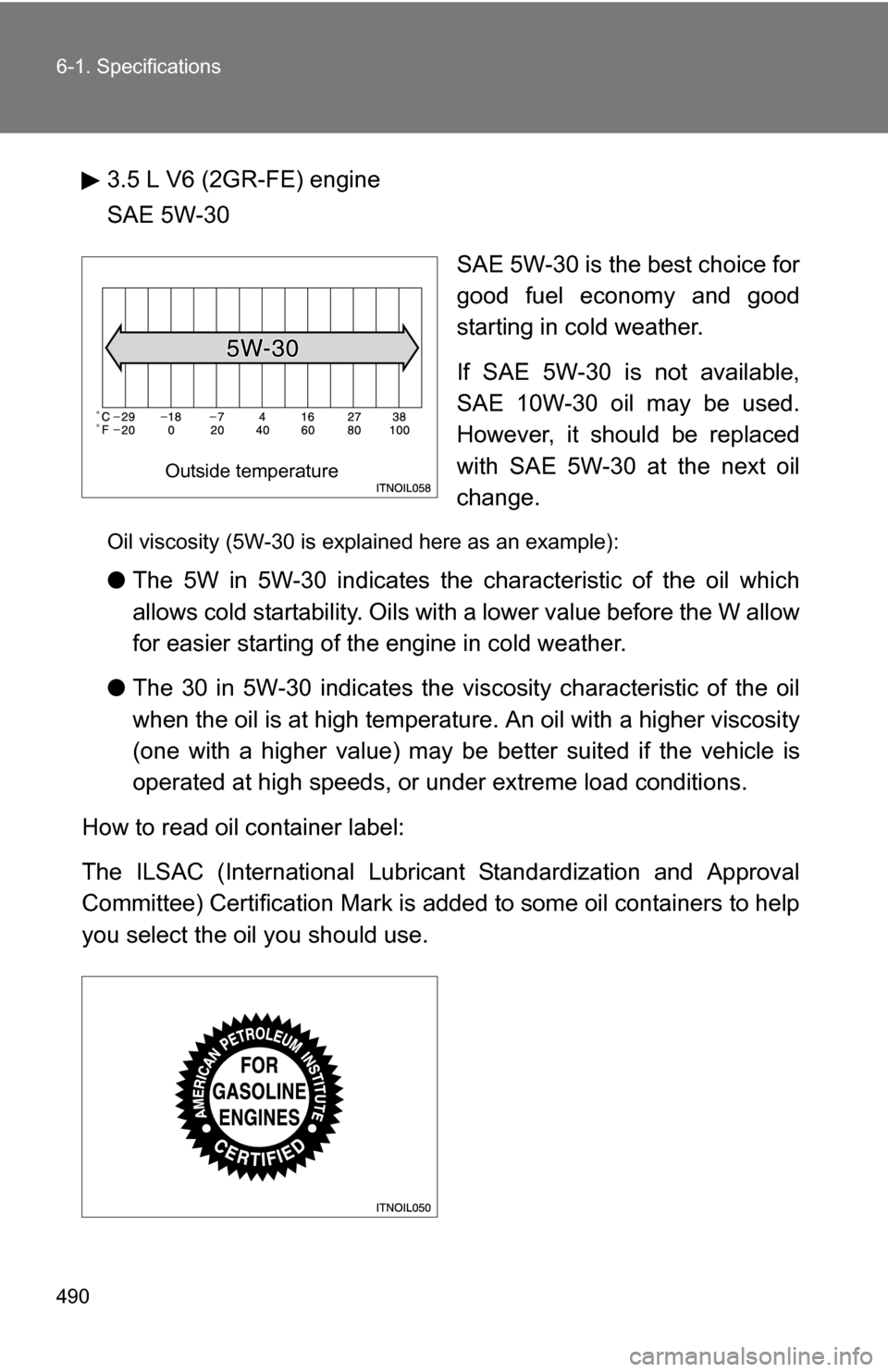

3.5 L V6 (2GR-FE) engine
SAE 5W-30SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Oil viscosity (5W-30 is explained here as an example):
●The 5W in 5W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperatur e. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Outside temperature
