TOYOTA RAV4 2012 XA30 / 3.G Owners Manual

5
When trouble arises
451
5-2. Steps to take in an emergency
Taking out the tool bag
Disengage the claws and
remove the cover.
Take out the tool bag.
STEP 1
STEP 2

452 5-2. Steps to take in an emergency
Taking out the spare tire (vehicles with the spare tire cover)Open the back door. Unlock the
latch handle which is on the bot-
tom of the spare tire cover.
Close the back door. Remove the spare tire cover by
holding the bottom and lifting it
up and away from the vehicle.
When placing the spare tire
cover on the ground, make sure
the cover design side faces up
to avoid scratching the cover
surface.
Using the wheel nut wrench,
loosen the hold-down nuts by
turning them counterclockwise
until they can be loosened by
hand. Follow the order shown in
the illustration.
Remove all the wheel nuts and the spare tire.
When placing the spare tire on the ground, make sure the wheel
design side faces up to avoid scratching the wheel surface.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

5
When trouble arises
453
5-2. Steps to take in an emergency
Taking out the spare tire (vehicles without the spare tire cover)
Using the wheel nut wrench,
loosen the hold-down nuts by
turning them counterclockwise
until they can be loosened by
hand. Follow the order shown in
the illustration.
Remove all the wheel nuts and the spare tire.
When placing the spare tire on the ground, make sure the wheel
design side faces up to avoid scratching the wheel surface.
STEP 1
STEP 2

454 5-2. Steps to take in an emergency
Replacing a flat tireChock the tires.
STEP 1
Flat tire
Wheel
chock posi- tions
Front
Left-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
Rear
Left-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire

5
When trouble arises
455
5-2. Steps to take in an emergency
Remove the wheel ornament using the wheel nut wrench as
shown below.
16-inch wheel
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
17-inch and 18-inch wheels
Slightly loosen the wheel nuts
(one turn).STEP 2
STEP 3

456 5-2. Steps to take in an emergency
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Type A: Assemble the jack han-
dle extension.
Type B: Assemble the jack han-
dle extension.STEP 4
STEP 5
STEP 5

5
When trouble arises
457
5-2. Steps to take in an emergency

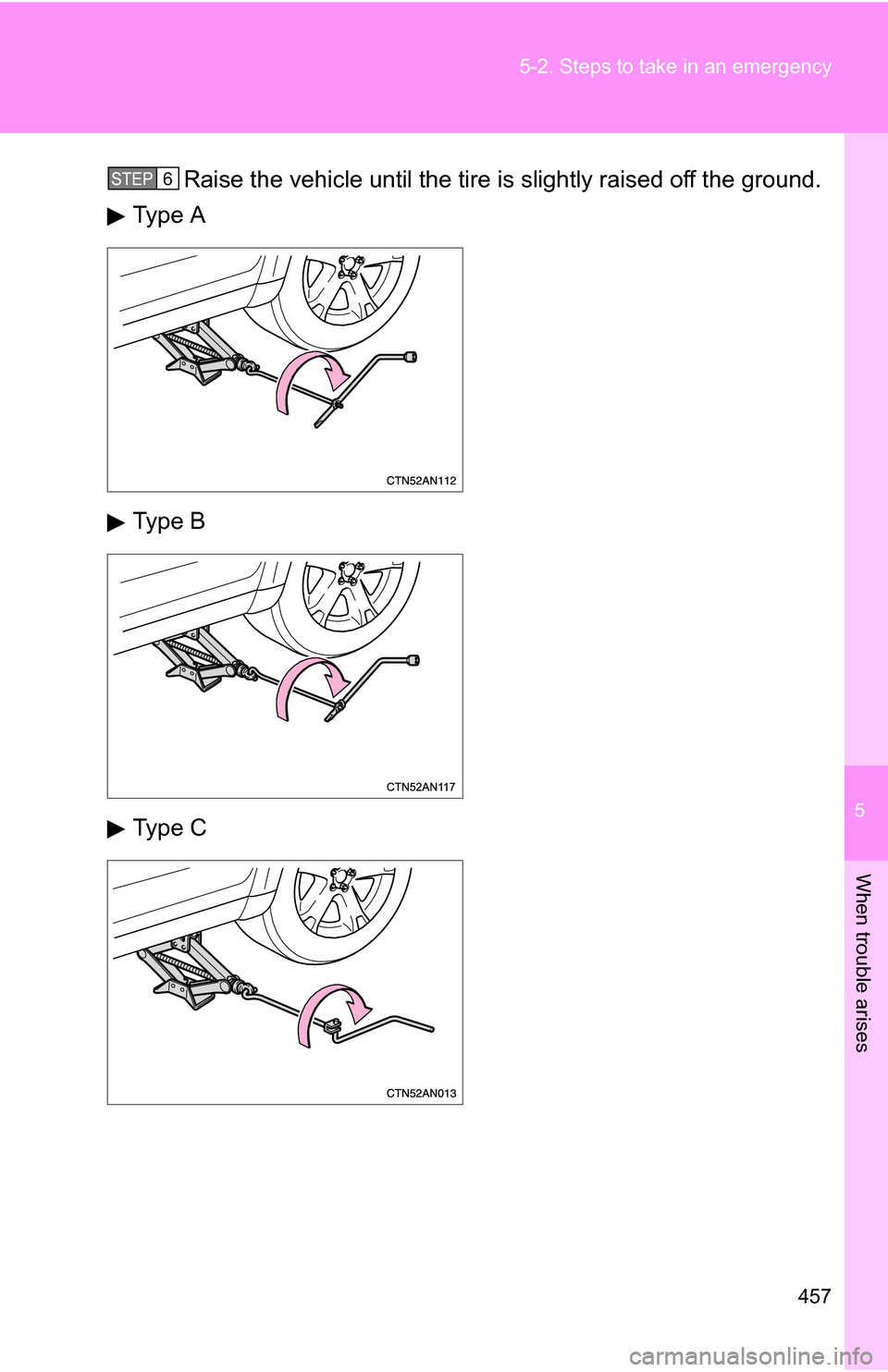

Raise the vehicle until the tire is slightly raised off the ground.
Type A
Type B
Type CSTEP 6

458 5-2. Steps to take in an emergency
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
STEP 7
STEP 1

5
When trouble arises
459
5-2. Steps to take in an emergency
Install the tire and loosely ti
ghten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a steel wheel
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Replacing an aluminum wheel with a steel wheel Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Replacing an aluminum wheel with an aluminum wheel Turn the nut washers until they
come into contact with the disc
wheel.STEP 2
Tapered portion
Disc
wheel
seat
Tapered portion Disc
wheel
seat
Disc wheel
Washer

460 5-2. Steps to take in an emergency
Lower the vehicle.
Type A
Type B
Type CSTEP 3
