CAUTION
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body und er the vehicle while it is supported
by the jack.
●Do not start the engine or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Stop the vehicle on firm, flat and level ground, firmly set the parking
brake and shift the shift lever to P. Block the wheel diagonally opposite
to the one being changed if necessary.
●When lowering the vehicle, make su re that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.

5227-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)

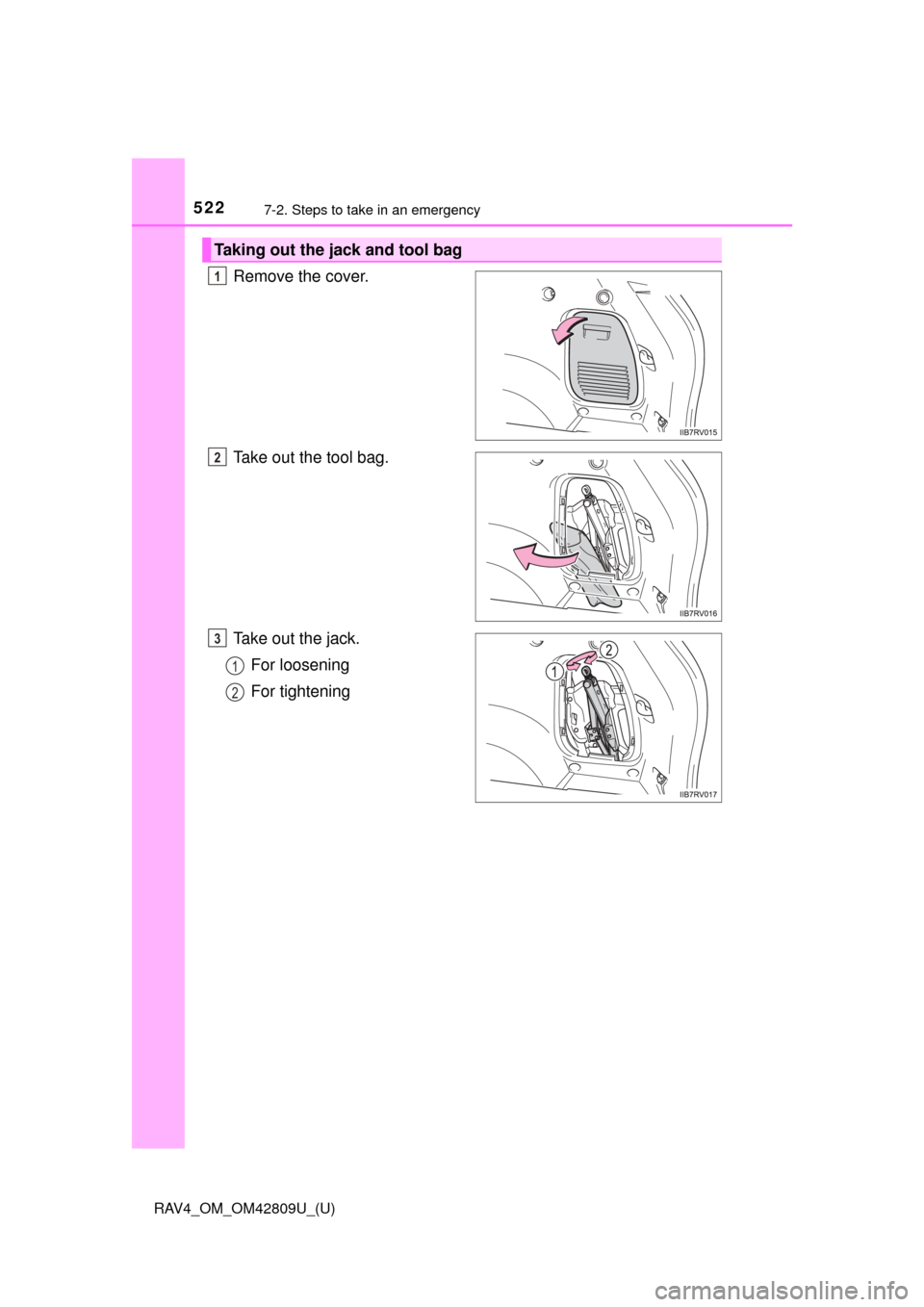

Remove the cover.
Take out the tool bag.
Take out the jack.For loosening
For tightening
Taking out the jack and tool bag
1
2
3
1
2

5237-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)
7
When trouble arises
Remove the rear deck board.
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
2
CAUTION
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare
tire and the body of the vehicle.

5247-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)
Chock the tires.
For vehicles with full wheel
ornament, remove the wheel
ornament using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.

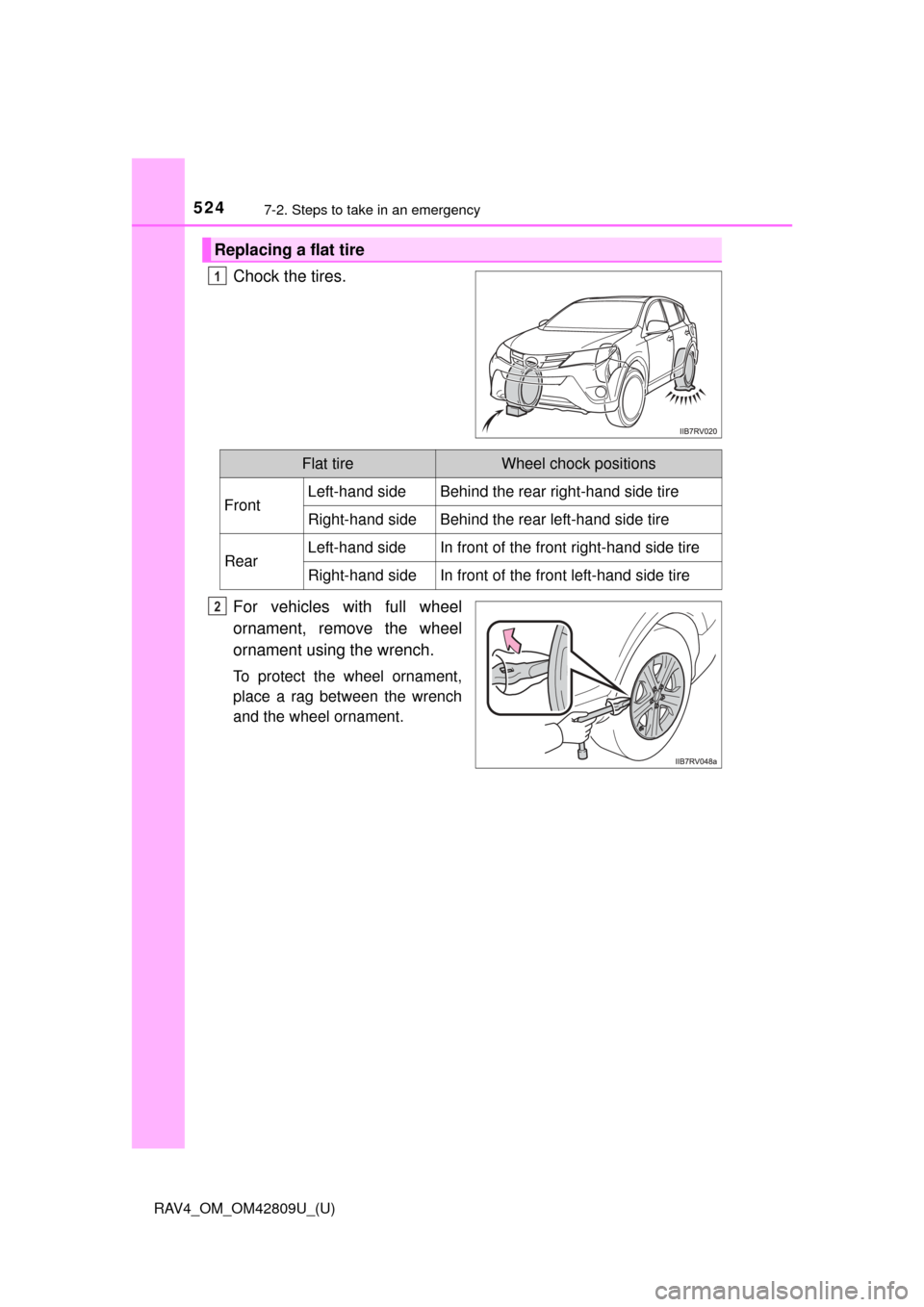

Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2

5257-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)
7
When trouble arises

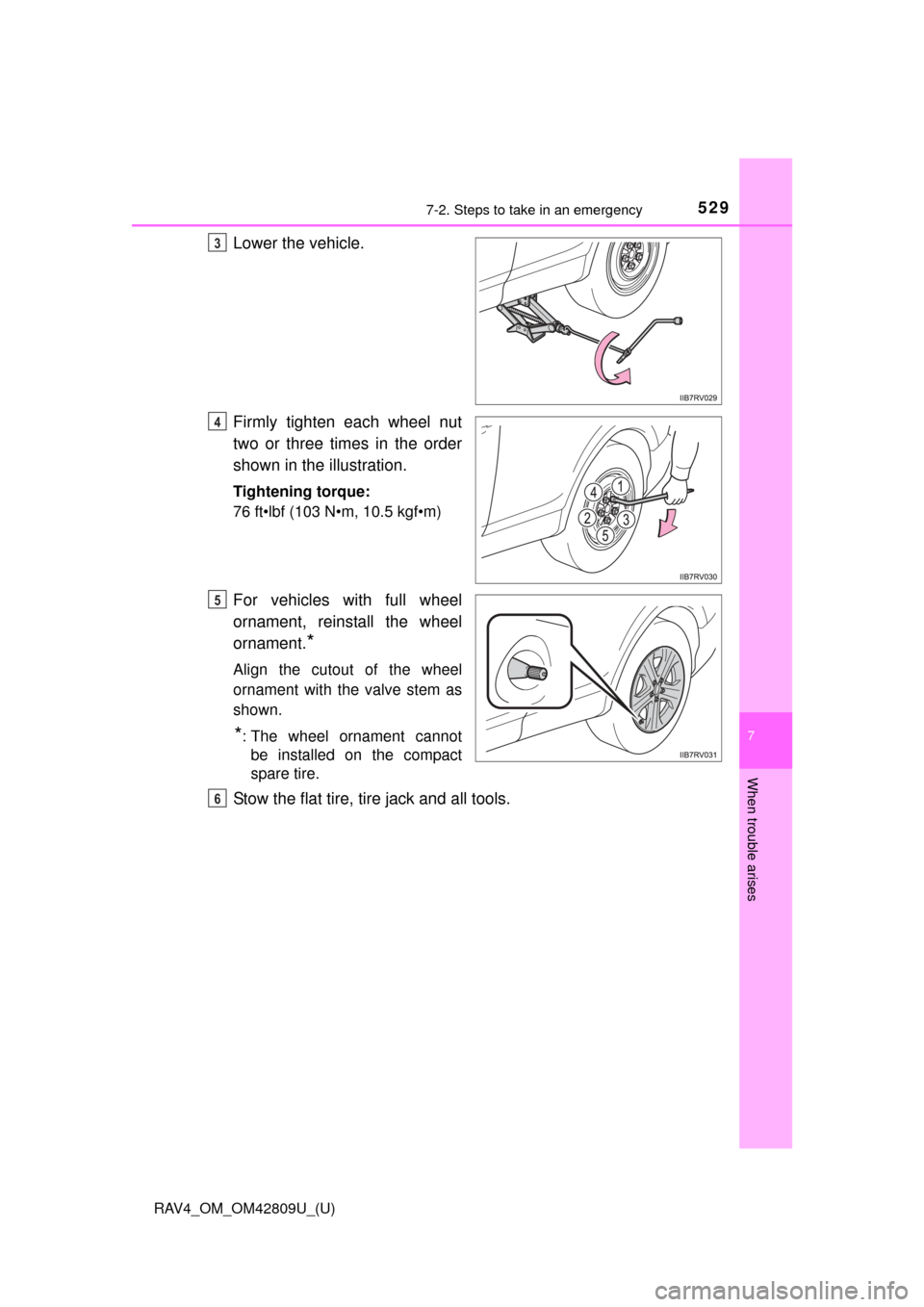

Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.

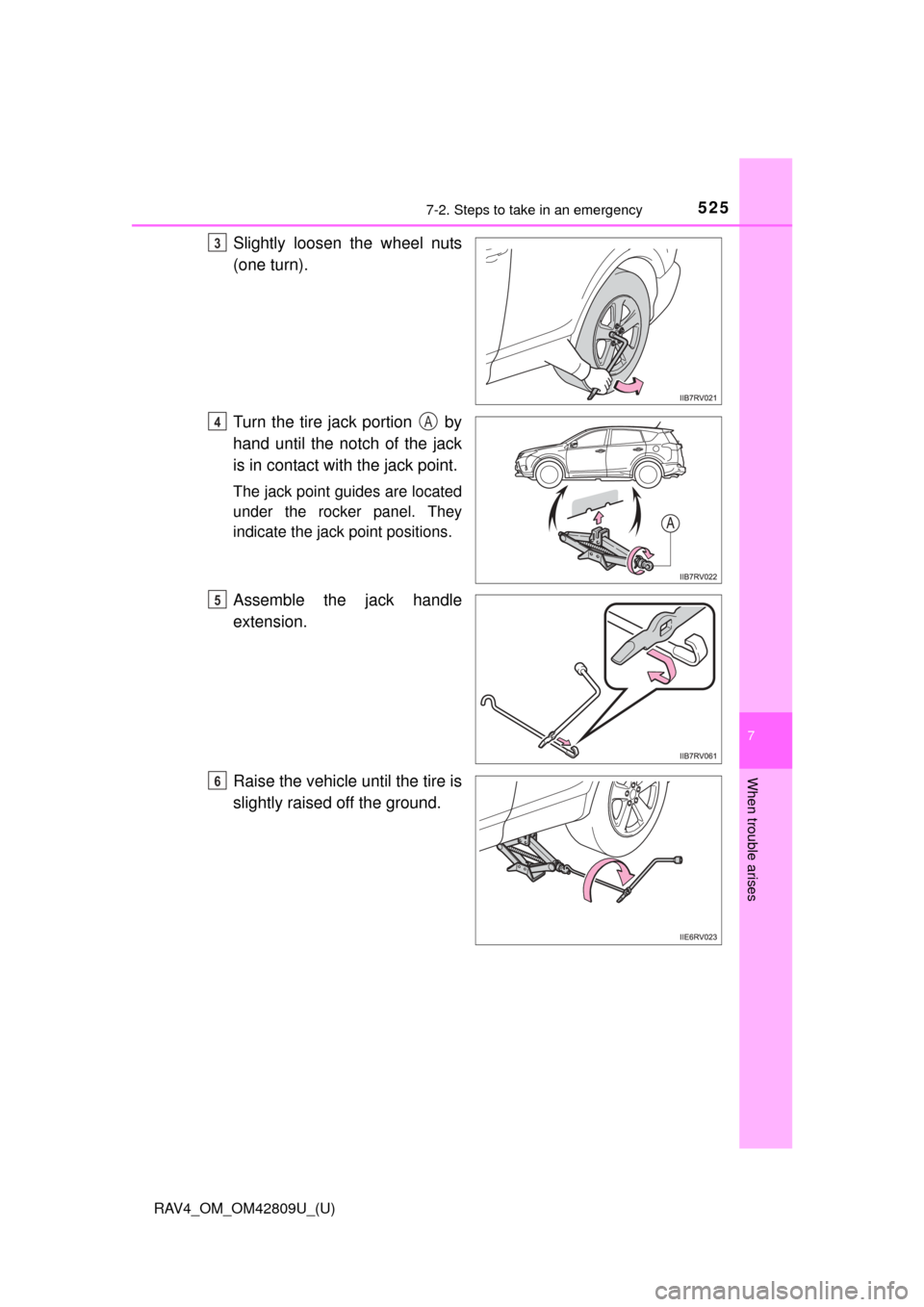

Assemble the jack handle
extension.
Raise the vehicle until the tire is
slightly raised off the ground.
3
4A
5
6

5267-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)

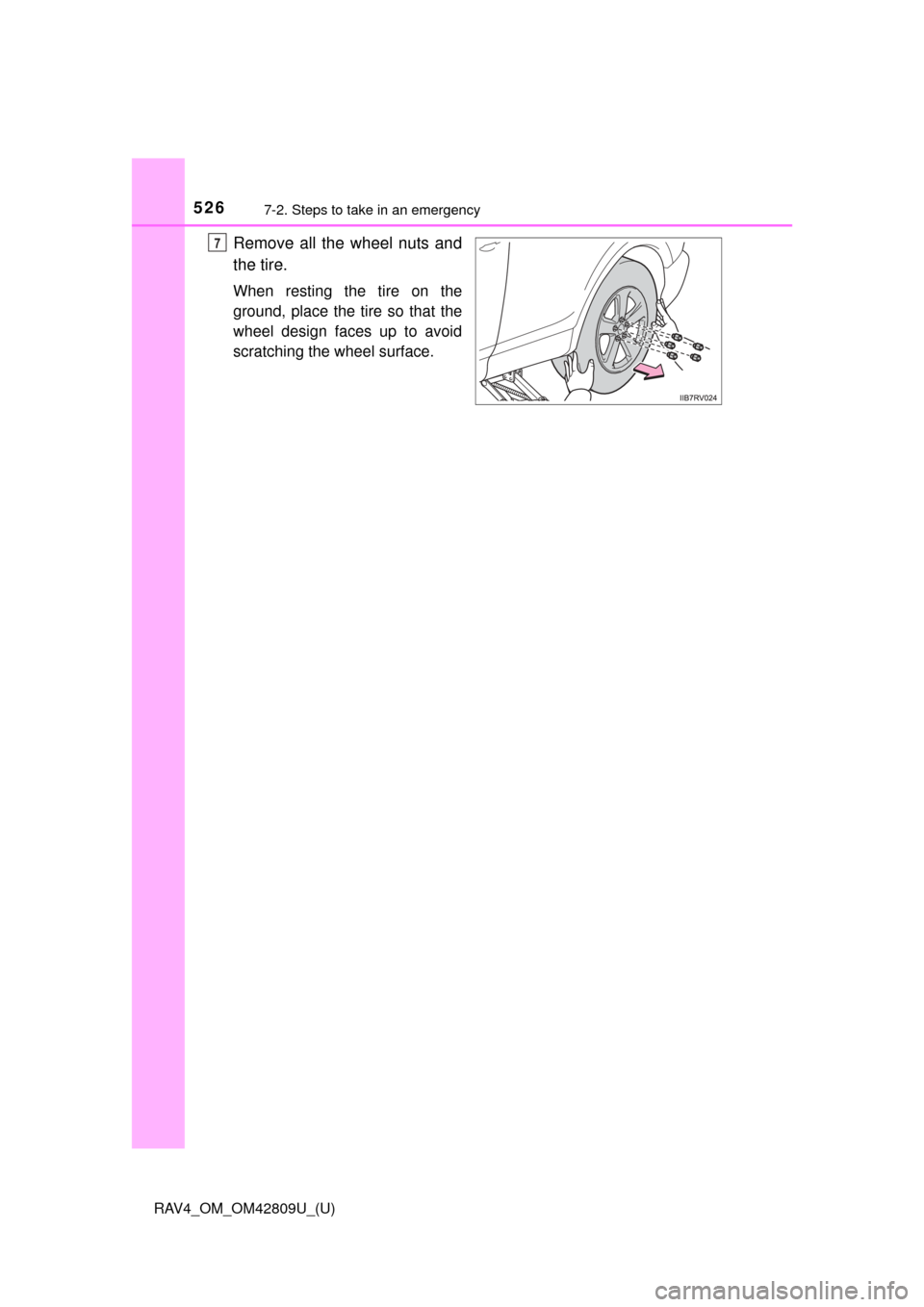

Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
7

5277-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)
7
When trouble arises
CAUTION
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touc hing these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wh eel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deforma tions in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. ( P. 458)
■Replacing a flat tire for vehicles with power back door (if equipped)
In cases such as when replacing tire s, make sure to turn off the power
back door main switch ( P. 127). Failure to do so may cause the back
door to operate unintentionally if the power back door switch is acciden-
tally touched, resulting in hands and fingers being caught and injured.

5287-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.

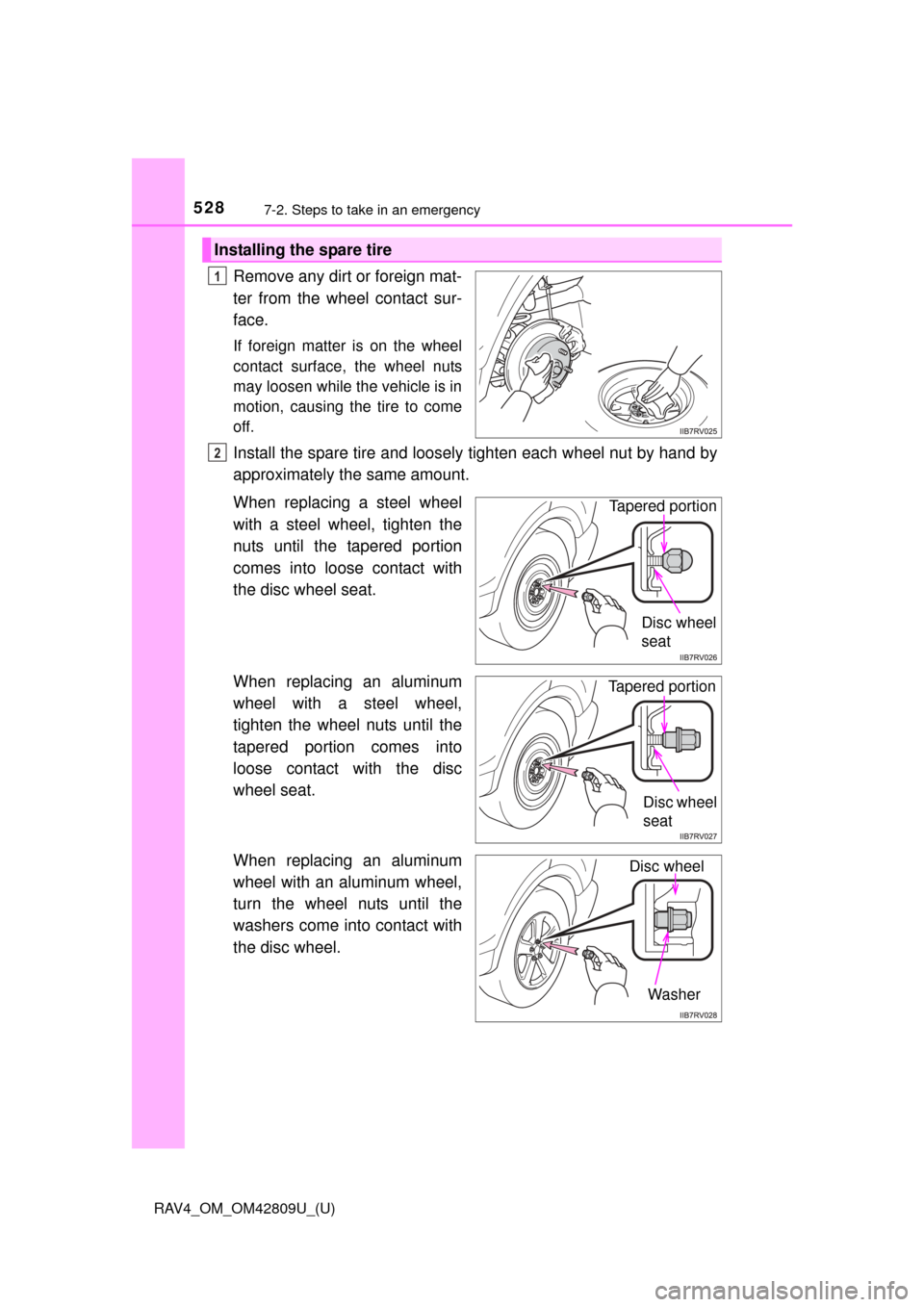

Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a steel wheel, tighten the
nuts until the tapered portion
comes into loose contact with
the disc wheel seat.
When replacing an aluminum
wheel with a steel wheel,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Installing the spare tire
1
2
Tapered portionDisc wheel
seat
Tapered portion Disc wheel
seat
Washer
Disc wheel

5297-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)
7
When trouble arises
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
For vehicles with full wheel
ornament, reinstall the wheel
ornament.
*
Align the cutout of the wheel
ornament with the valve stem as
shown.
*: The wheel ornament cannot
be installed on the compact
spare tire.
Stow the flat tire, tire jack and all tools.
3
4
5
6

5307-2. Steps to take in an emergency
RAV4_OM_OM42809U_(U)
Ty p e A
For vehicles with an aluminum
wheel: Before stowing the flat
tire, remove the center wheel
ornament by pushing from the
reverse side.
Place the flat tire on the deck
board, hook the end of the belt
which is not forked to the cargo
hook on the far left side.
Pass the belts from between
the wheel spokes through the
center hole.
Hook one end of the forked belt
to the cargo hook on the far
right side, and the other end to
the cargo hook on the near left
side.
After stowing the flat tire, check
that the tire and belts are
secured.

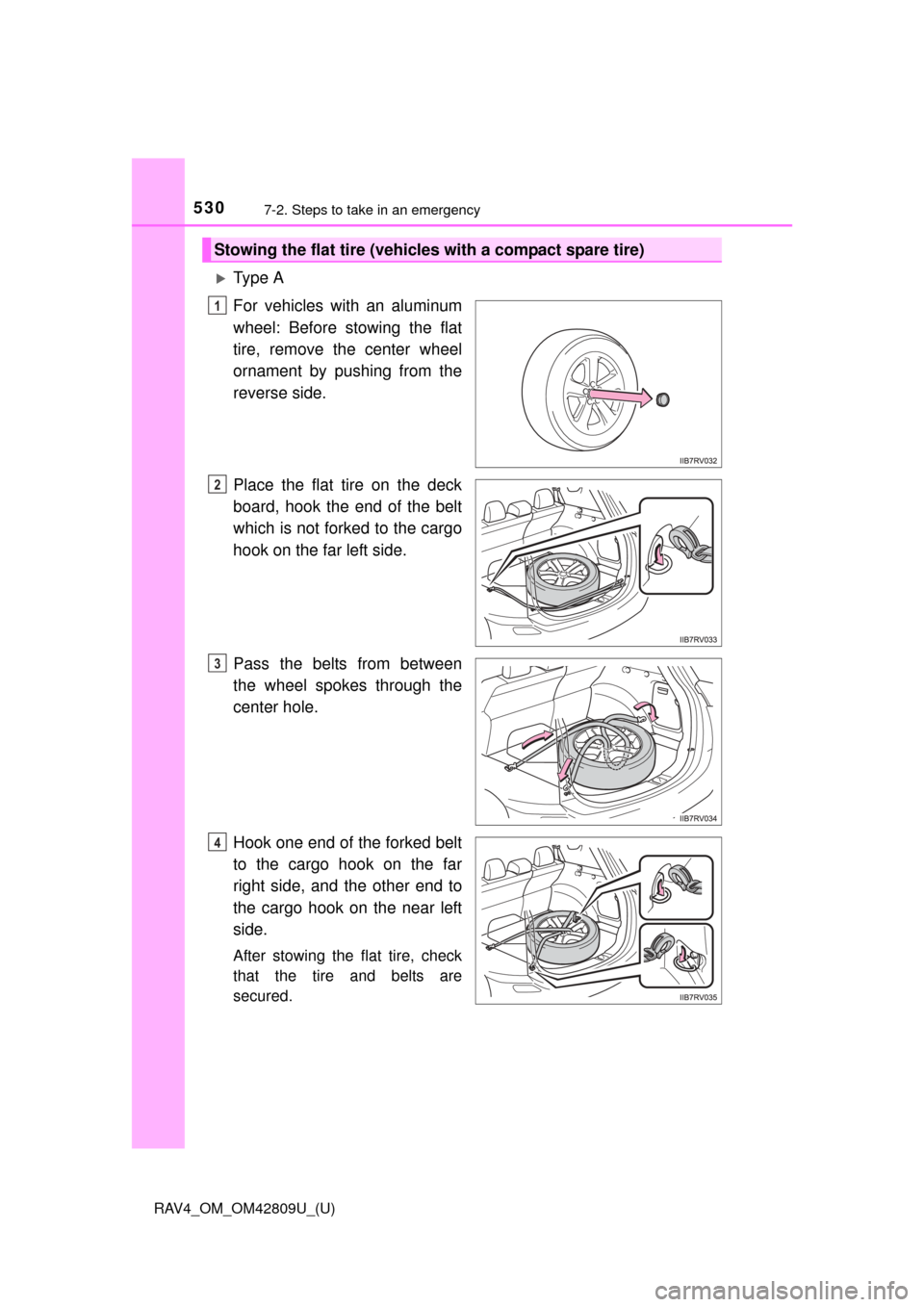

Stowing the flat tire (vehicles with a compact spare tire)
1
2
3
4
