8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 552
Fuel information ................ 563
Tire information ................. 566
8-2. Customization Customizable features ...... 579
8-3. Items to initialize Items to initialize ............... 587

552
RAV4_OM_OM42809U_(U)
8-1. Specifications
Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weights
Overall length179.9 in. (4570 mm)
Overall width72.6 in. (1845 mm)
Overall height*
Without the roof
luggage carrier65.4 in. (1660 mm)
With the roof lug-
gage carrier67.1 in. (1705 mm)
Wheelbase104.7 in. (2660 mm)
Front and rear
tread17-inch tires61.8 in. (1570 mm)
18-inch tires61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage)900 lb. (410 kg)
Trailer Weight Rating
(Trailer weight + cargo weight)1500 lb. (680 kg)

RAV4_OM_OM42809U_(U)
5538-1. Specifications
8
Vehicle specifications
■Vehicle identification number

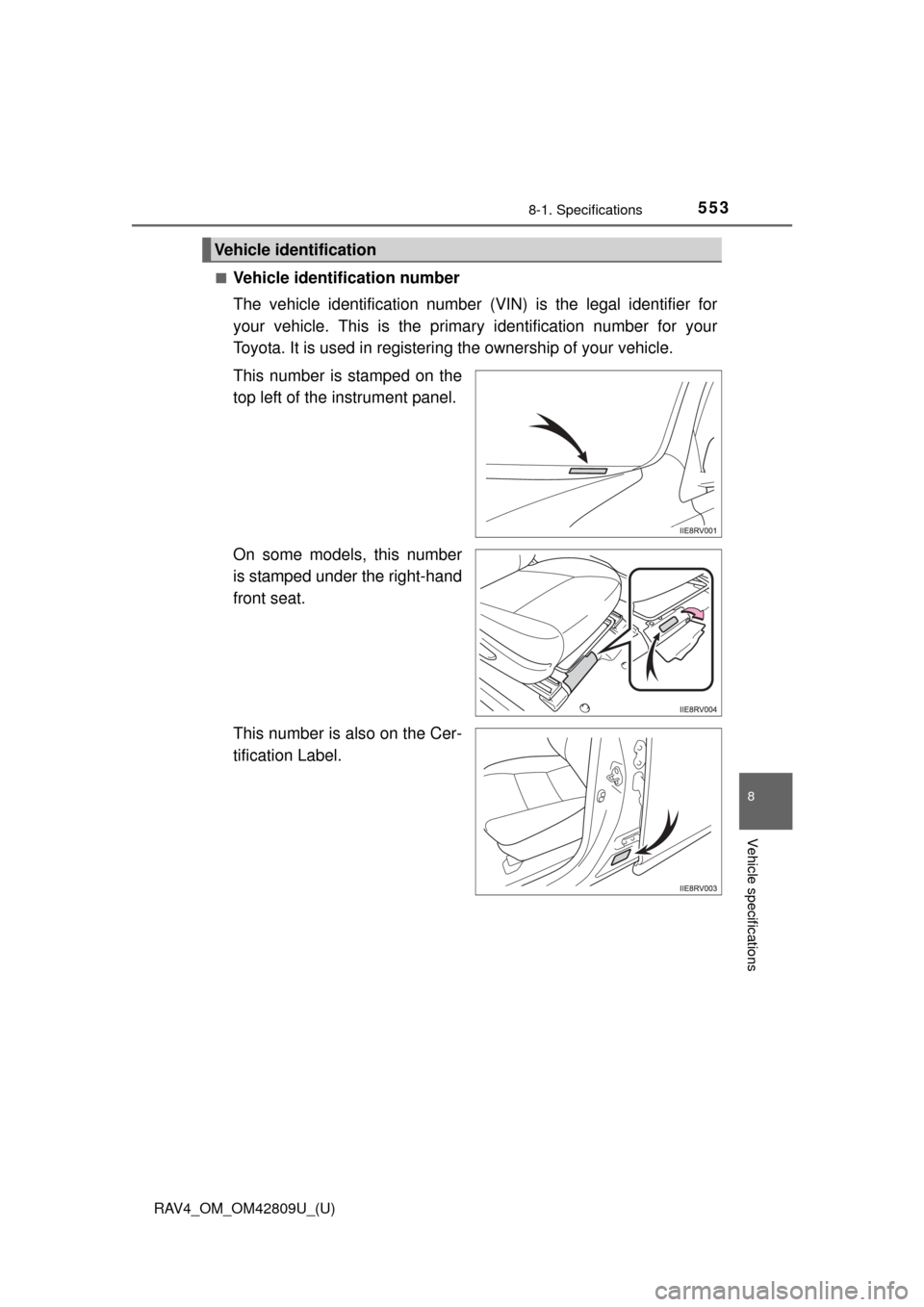

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
On some models, this number
is stamped under the right-hand
front seat.
This number is also on the Cer-
tification Label.
Vehicle identification

554
RAV4_OM_OM42809U_(U)
8-1. Specifications
■Engine number

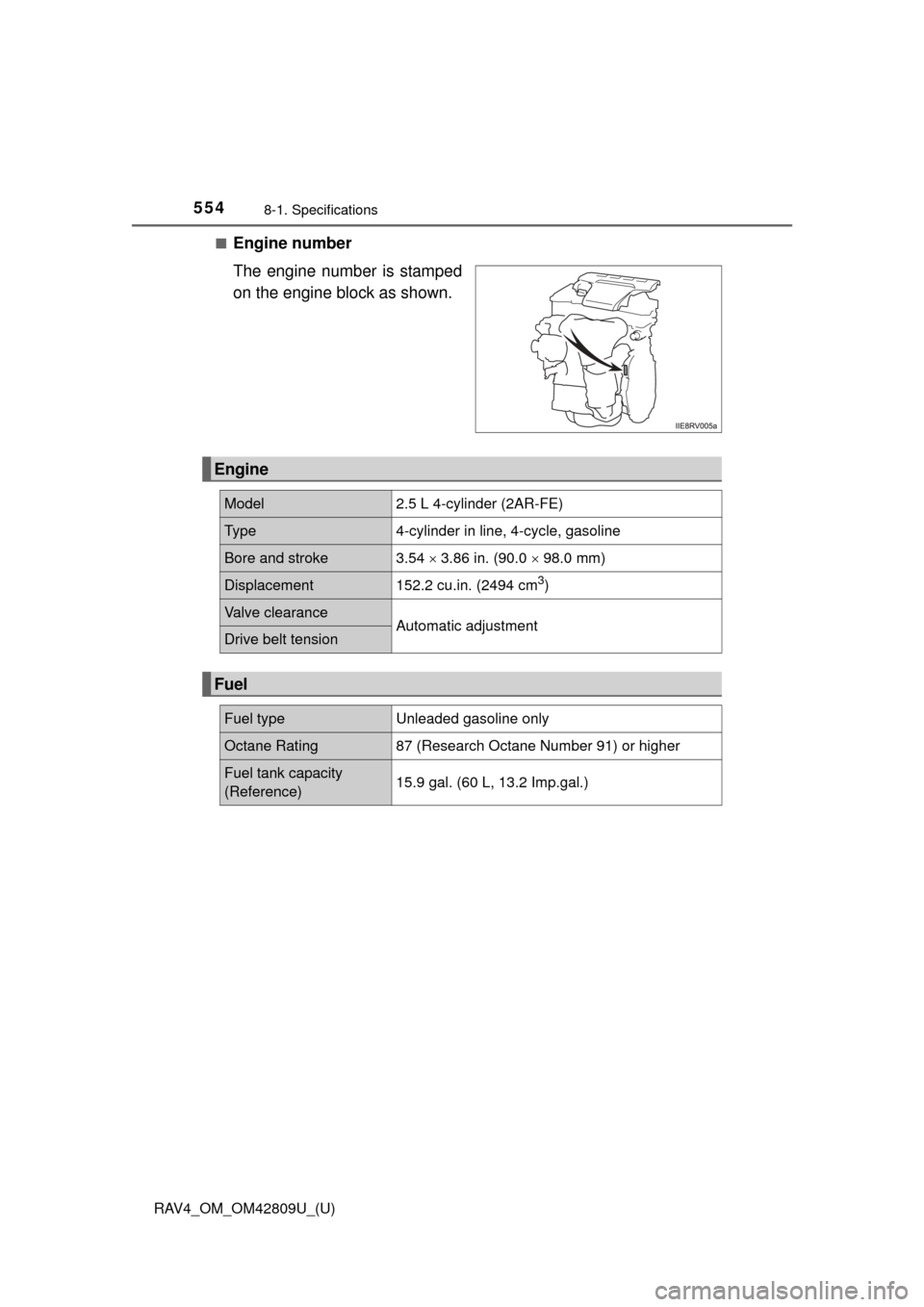

The engine number is stamped
on the engine block as shown.
Engine
Model2.5 L 4-cylinder (2AR-FE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.54  3.86 in. (90.0  98.0 mm)
Displacement152.2 cu.in. (2494 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)15.9 gal. (60 L, 13.2 Imp.gal.)

RAV4_OM_OM42809U_(U)
5558-1. Specifications
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil

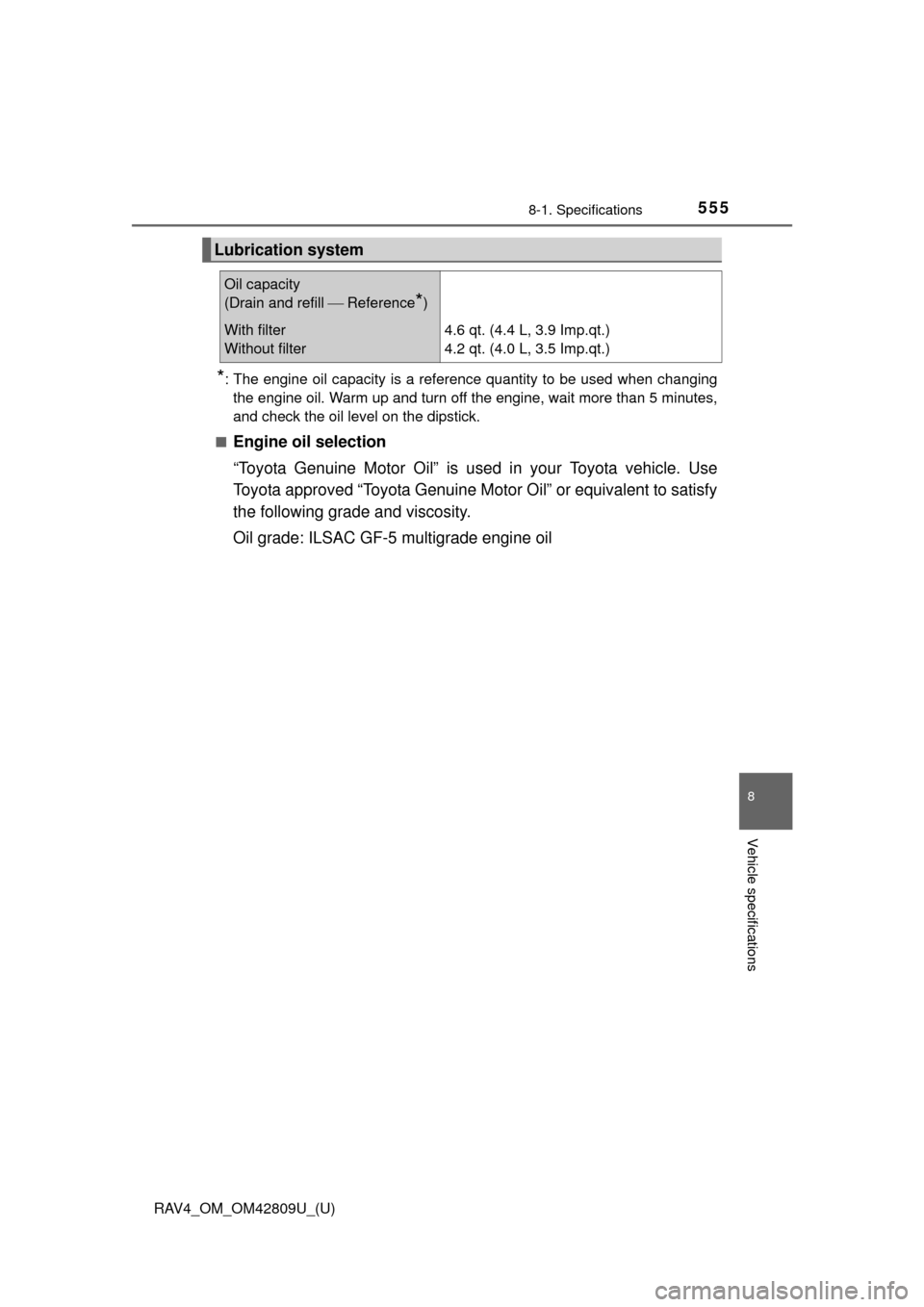

Lubrication system
Oil capacity
(Drain and refill  Reference
*)
With filter
Without filter4.6 qt. (4.4 L, 3.9 Imp.qt.)
4.2 qt. (4.0 L, 3.5 Imp.qt.)

556
RAV4_OM_OM42809U_(U)
8-1. Specifications

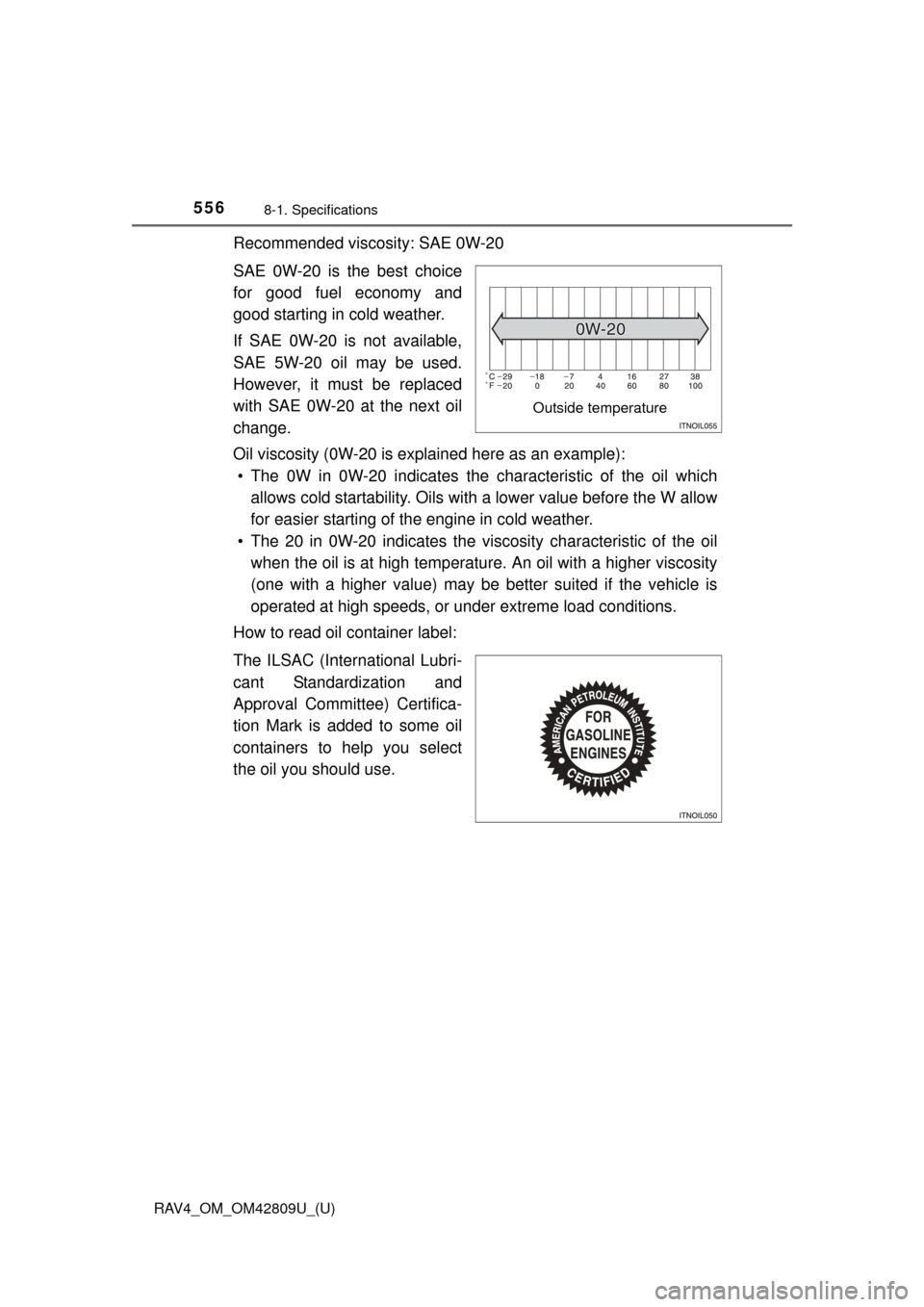

Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certifica-
tion Mark is added to some oil
containers to help you select
the oil you should use.
Outside temperature

RAV4_OM_OM42809U_(U)
5578-1. Specifications
8
Vehicle specifications
Cooling system

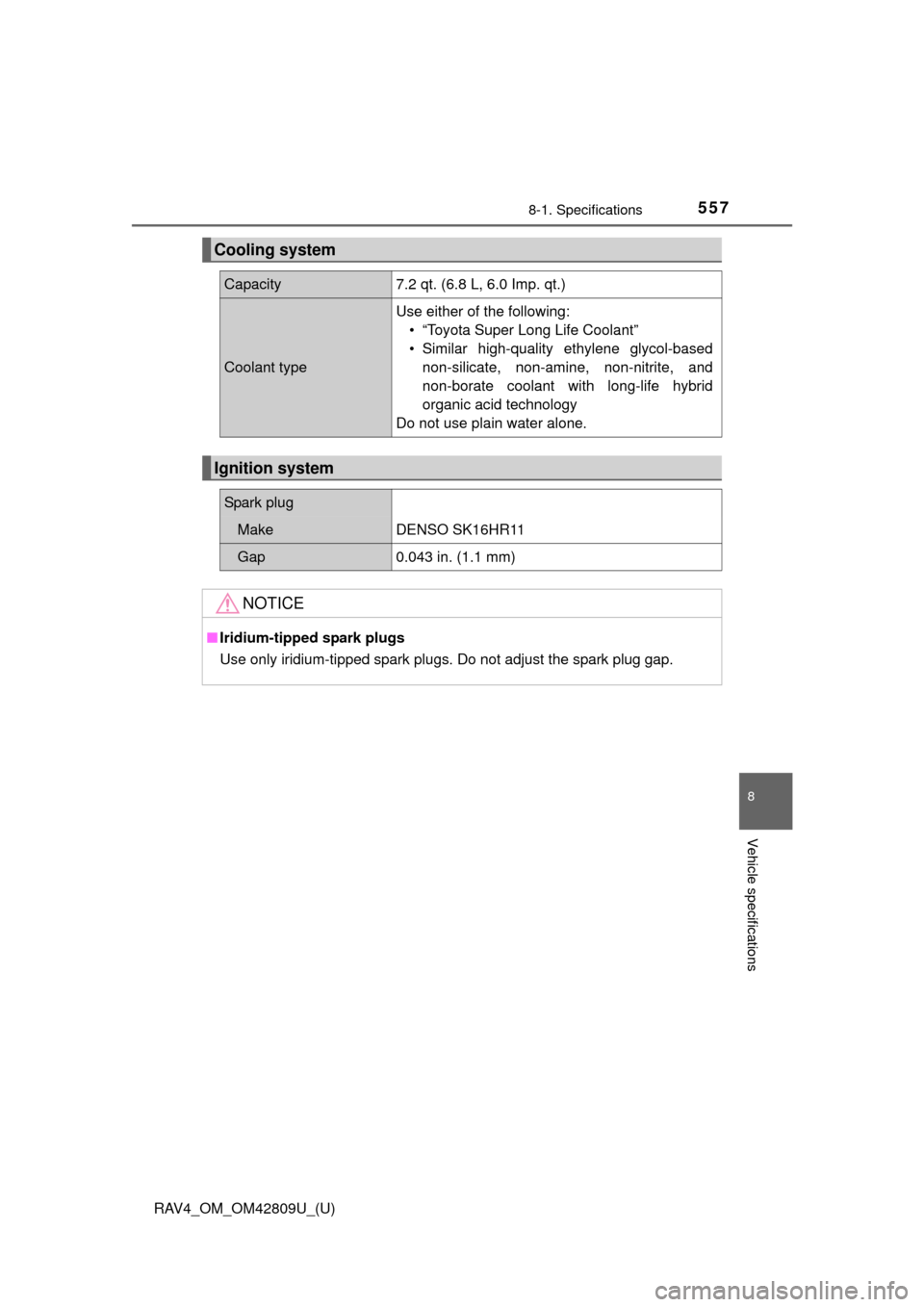

Capacity7.2 qt. (6.8 L, 6.0 Imp. qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO SK16HR11
Gap0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

558
RAV4_OM_OM42809U_(U)
8-1. Specifications
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification. Please contact your
Toyota dealer for further details.
Electrical system

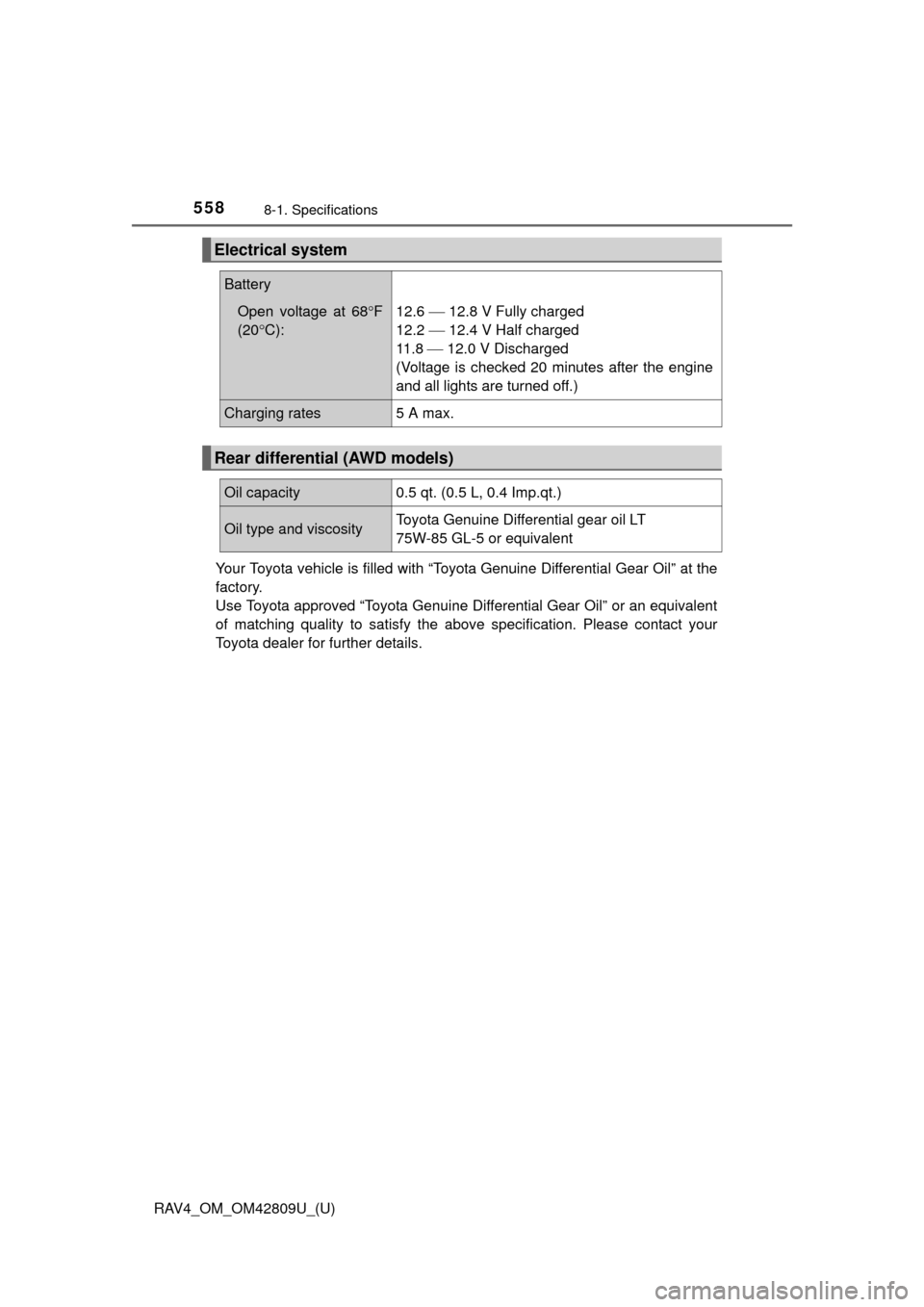

Battery
Open voltage at 68F
(20 C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8 
12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Rear differential (AWD models)
Oil capacity0.5 qt. (0.5 L, 0.4 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

RAV4_OM_OM42809U_(U)
5598-1. Specifications
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Toyota dealer.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent
of matching quality to satisfy the above specification. Please contact your
Toyota dealer for further details.
Automatic transaxle

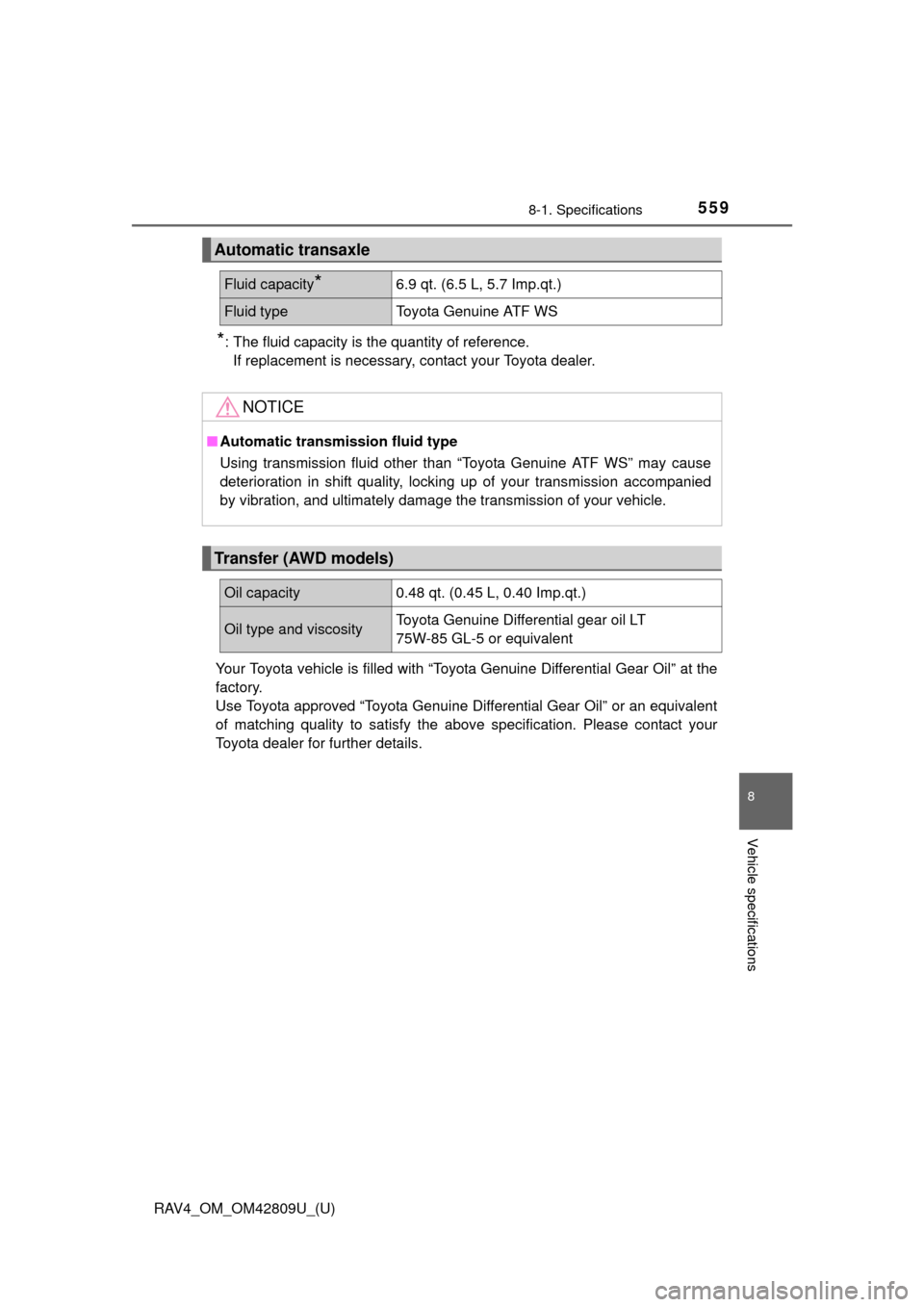

Fluid capacity*6.9 qt. (6.5 L, 5.7 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
Transfer (AWD models)
Oil capacity0.48 qt. (0.45 L, 0.40 Imp.qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

560
RAV4_OM_OM42809U_(U)
8-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,50 kgf) while the engine is operating.
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Brakes

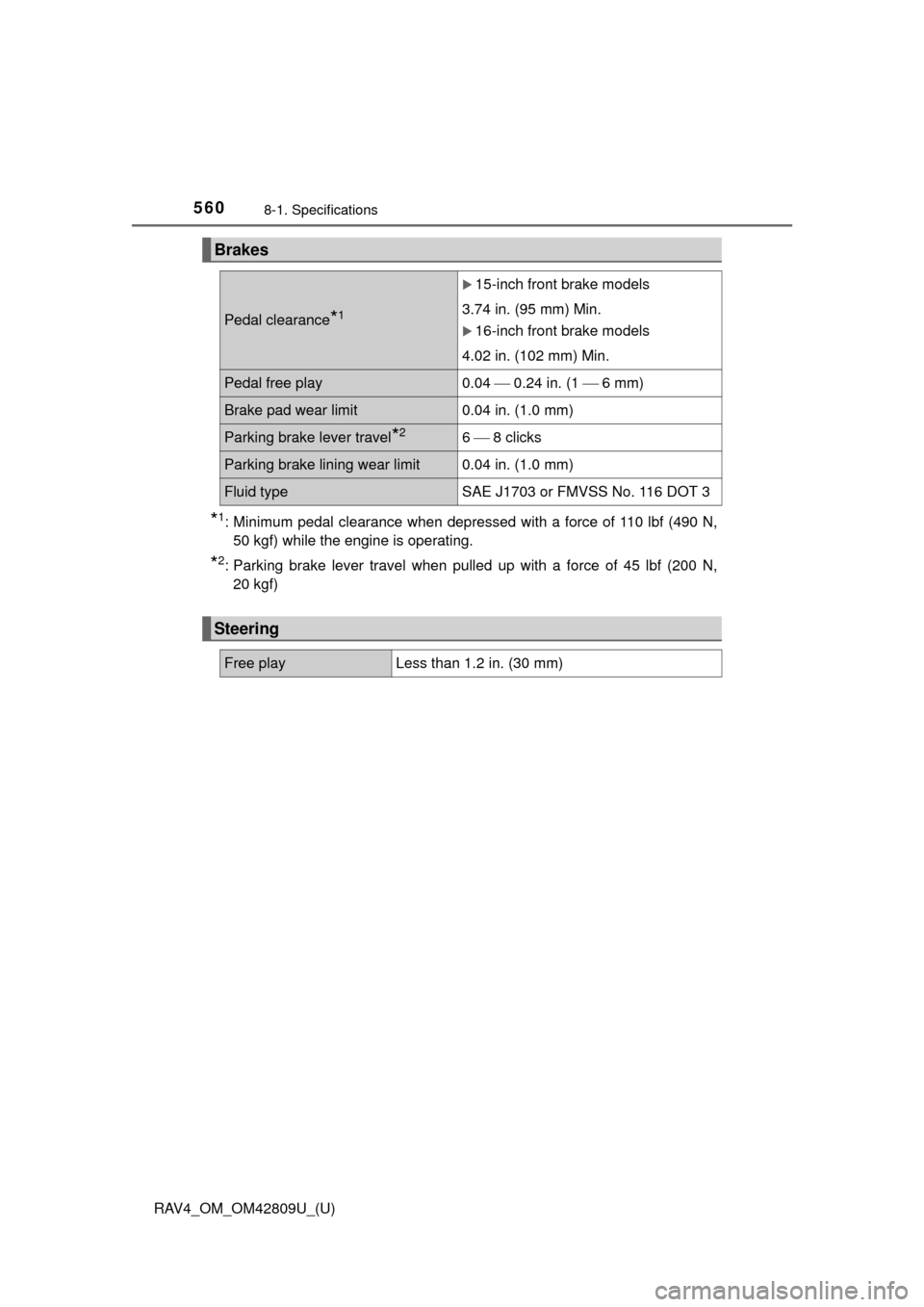

Pedal clearance*1
15-inch front brake models
3.74 in. (95 mm) Min.
16-inch front brake models
4.02 in. (102 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lever travel*26  8 clicks
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
