TOYOTA RAV4 2016 XA40 / 4.G Owners Manual

320
RAV4_OM_OM42A41U_(U)
4-6. Driving tips
When driving your vehicle off-road, please observe the following pre-
cautions to ensure your driving enjoyment and to help prevent the clo-
sure of areas to off-road vehicles:
● Drive your vehicle only in areas where off-road vehicles are permit-
ted to travel.
● Respect private property. Get owner’s permission before entering
private property.
● Do not enter areas that are clos ed. Honor gates, barriers and signs
that restrict travel.
● Stay on established roads. When c onditions are wet, driving tech-
niques should be changed or trav el delayed to prevent damage to
roads.
■ Additional information for off-road driving
For owners in U.S. mainland, Hawaii and Puerto Rico:
To obtain additional information pertain ing to driving your vehicle off-road,
consult the following organizations:
● State and Local Parks and Recreation Departments
● State Motor Vehicle Bureau
● Recreational Vehicle Clubs
● U.S. Forest Service and Bureau of Land Management
Off-road driving

RAV4_OM_OM42A41U_(U)
3214-6. Driving tips
4
Driving
WARNING
■Off-road driving precautions
Always observe the following precautions to minimize the risk of death, seri-
ous injury or damage to your vehicle:
● Drive carefully when off the road. Do not take unnecessary risks by driving
in dangerous places.
● Do not grip the steering wheel spokes when driving off-road. A bad bump
could jerk the wheel and injure your hands. Keep both hands and espe-
cially your thumbs on the outside of the rim.
● Always check your brakes for effectiveness immediately after driving in
sand, mud, water or snow.
● After driving through tall grass, mud, rock, sand, rivers, etc., check that
there is no grass, bush, paper, rags, stone, sand, etc. adhering or trapped
on the underbody. Clear off any such matter from the underbody. If the
vehicle is used with these materials trapped or adhering to the underbody,
a breakdown or fire could occur.
● When driving off-road or in rugged te rrain, do not drive at excessive
speeds, jump, make sharp turns, strike objects, etc. This may cause loss
of control or vehicle rollover causing death or serious injury. You are also
risking expensive damage to your vehicle’s suspension and chassis.

322
RAV4_OM_OM42A41U_(U)
4-6. Driving tips
NOTICE
■To prevent the water damage
Take all necessary safety measures to ensure that water damage to the
engine or other components does not occur.
● Water entering the engine air intake will cause severe engine damage.
● Water entering the automatic transmission will cause deterioration in shift
quality, locking up of your transmission accompanied by vibration, and ulti-
mately damage.
● Water can wash the grease from wheel bearings, causing rusting and pre-
mature failure, and may also enter the differentials, transmission and
transfer case (AWD models), reducing the gear oil’s lubricating qualities.
■ When you drive through water
If driving through water, such as when crossing shallow streams, first check
the depth of the water and the bottom of the riverbed for firmness. Drive
slowly and avoid deep water.
■ Inspection after off-road driving
● Sand and mud that has accumulated around brake drums and around
brake discs may affect braking efficiency and may damage brake system
components.
● Always perform a maintenance inspection after each day of off-road driv-
ing that has taken you through rough terrain, sand, mud, or water. For
scheduled maintenance information, refer to the “Scheduled Maintenance
Guide” or “Owner’s Manual Supplement”.

RAV4_OM_OM42A41U_(U)
3234-6. Driving tips
4
Driving

324
RAV4_OM_OM42A41U_(U)
5-1. Basic OperationsAudio system types ........... 326
Using the steering wheel audio switches ................ 329
AUX port/USB port ............ 332
5-2. Using the audio system Optimal use of the audio system ................... 334
5-3. Using the radio Radio operation ................. 336
5-4. Playing an audio CD and MP3/WMA discs
CD player operation .......... 338
5-5. Using an external device Listening to an iPod .......... 348
Listening to USB memory device................ 354
Using the AUX port ........... 360
5-6. Using Bluetooth
® devices
Bluetooth® audio/
phone .............................. 361
Using the steering wheel switches ................ 366
Register a Bluetooth
®
device.............................. 367
5-7. “SETUP” menu Using the “SETUP” menu (“Bluetooth
*” menu) ........ 368
Using the “SETUP” menu (“PHONE” menu) ............ 373 5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player .............................. 378
5-9. Bluetooth
® Phone
Making a phone call .......... 381
When receiving a phone call ....................... 383
Speaking on the phone ..... 384
5-10. Bluetooth
®
Bluetooth®......................... 386
5-11. Using the audio system (Entune Audio)
Audio system (Entune Audio) ................ 389
5-12. Basic Operations Audio system operations (Entune Audio) ................ 391
Steering wheel audio switches .......................... 393
AUX port/USB port ............ 394
Basic audio operations...... 395
5-13. Setup Setup menu....................... 397
General settings ................ 398
Audio settings ................... 400
Display settings ................. 401
Voice settings.................... 403
5-14. Using the audio system Selecting the audio source ............................. 404
List screen operation......... 405
Optimal use of the audio system ............................ 407
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
5Audio system

325
RAV4_OM_OM42A41U_(U)
5Audio system
5-15. Using the radioRadio operation ................. 408
5-16. Playing an audio CD and MP3/WMA/AAC discs
CD player operation .......... 410
CD player and disc information ...................... 411
5-17. Using an external device iPod player operation ........ 417
USB memory device player operation .............. 422
Using the AUX port ........... 427
5-18. Connecting Bluetooth
®
Preparations to use wireless
communication ................ 428
Registering a Bluetooth
®
audio player for the
first time .......................... 431
Registering a Bluetooth
®
phone for the
first time .......................... 432
Registering a Bluetooth
®
device.............................. 433
Connecting a Bluetooth
®
device.............................. 435
Displaying a Bluetooth
®
device details .................. 437
Detailed Bluetooth
®
settings............................ 438 5-19. Bluetooth
® Audio
Listening to Bluetooth®
Audio............................... 440
5-20. Bluetooth
® Phone
Using a Bluetooth®
Phone ............................. 442
Making a call ..................... 444
Receiving a call ................. 447
Speaking on the phone ..... 448
Bluetooth
® phone
message function ............ 451
Using the steering wheel switches ................ 456
Bluetooth
® phone
settings ........................... 457
5-21. Phonebook Contact/Call History Settings ........................... 459
5-22. Bluetooth
®
What to do if... (Troubleshooting) ............ 469
Bluetooth
®......................... 473
5-23. Other function Voice command system ............................ 478

326
RAV4_OM_OM42A41U_(U)
5-1. Basic Operations

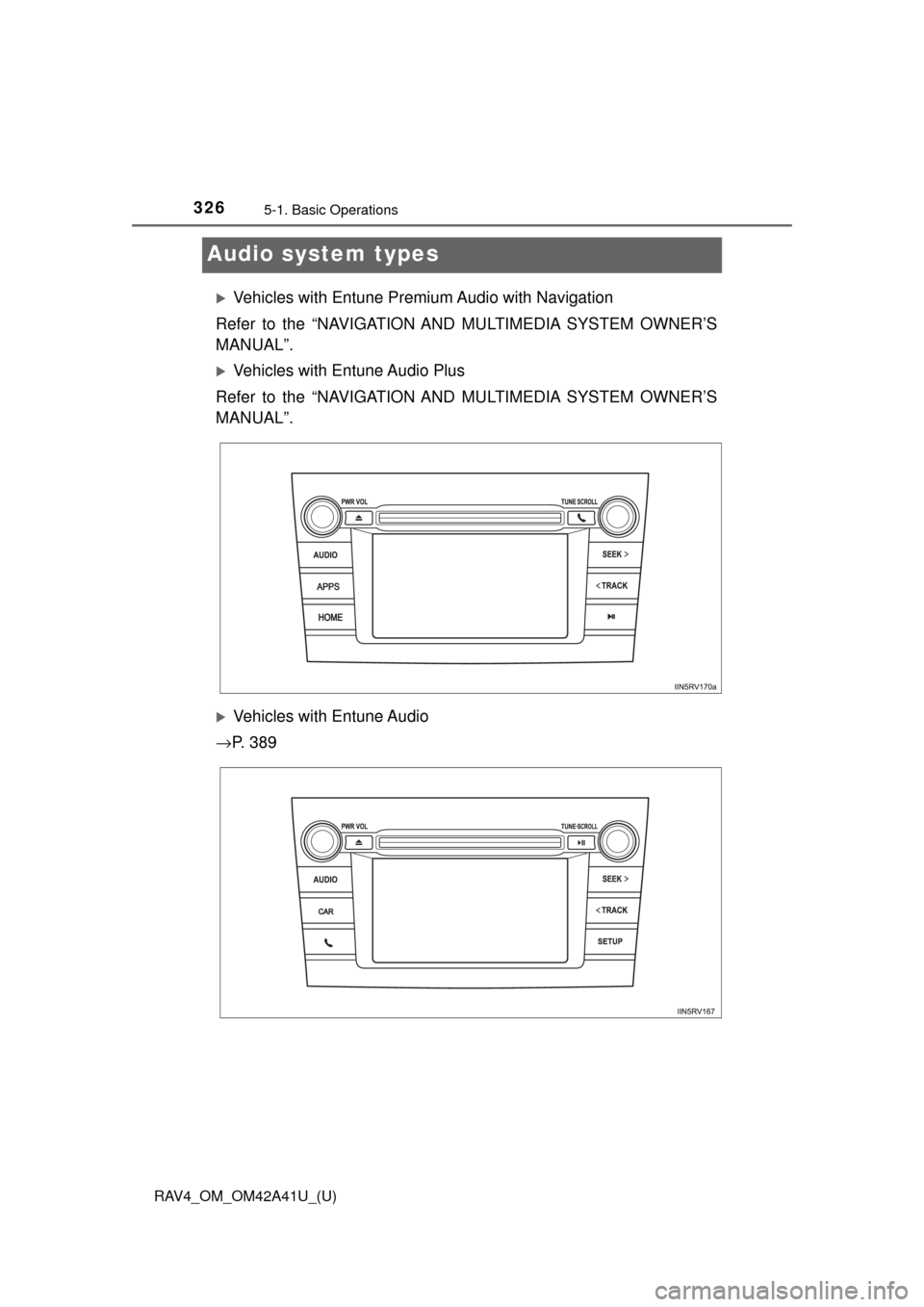

Audio system types
Vehicles with Entune Premium Audio with Navigation
Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Vehicles with Entune Audio Plus
Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Vehicles with Entune Audio
→ P. 3 8 9

RAV4_OM_OM42A41U_(U)
3275-1. Basic Operations
5
Audio system
Vehicles without Entune Premium Audio with Navigation or Entune
Audio Plus or Entune Audio
CD player with AM/FM radio
Press the “SETUP” button.
Turn the “TUNE•SCROLL” knob to select “Language”.
Press the knob.
Turn the knob as corresponds to the desired language.
“English”, “Español”, or “Français” can be selected.
Press the knob or (SAVE) to return to the setup menu.
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
Changing language setting
1
2
3
4

328
RAV4_OM_OM42A41U_(U)
5-1. Basic Operations
WARNING
■Certification for the disc player
● Part 15 of the FCC Rules
FCC Warning:
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate the equip-
ment.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disassem-
ble the player or alter any of its parts since you may be exposed to laser
rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine is
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

329
RAV4_OM_OM42A41U_(U)
5-1. Basic Operations
5
Audio system

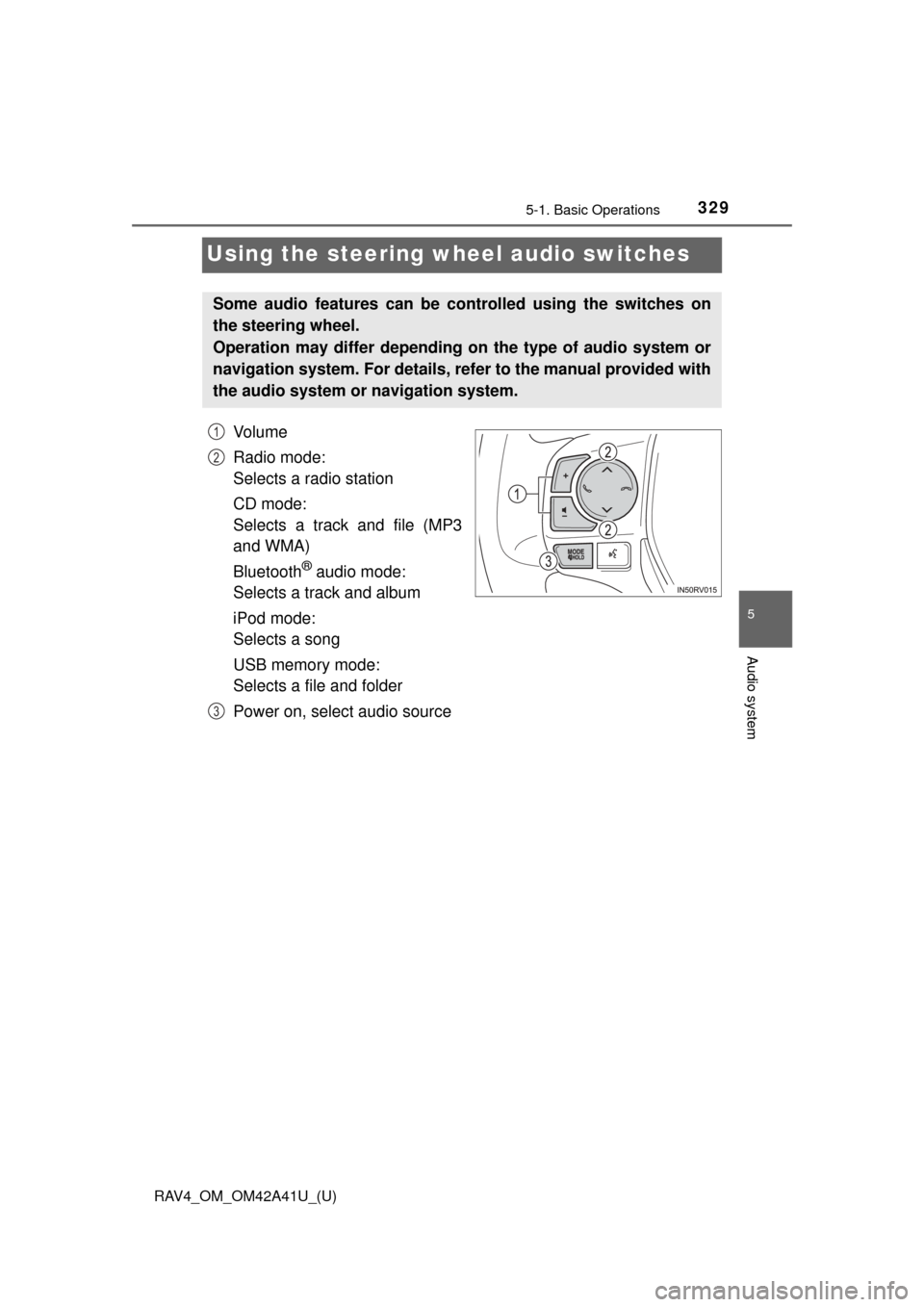

Using the steering wheel audio switches
Vo l u m e
Radio mode:
Selects a radio station
CD mode:
Selects a track and file (MP3
and WMA)
Bluetooth
® audio mode:
Selects a track and album
iPod mode:
Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio source
Some audio features can be c ontrolled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
1
2
3
