For safety and security

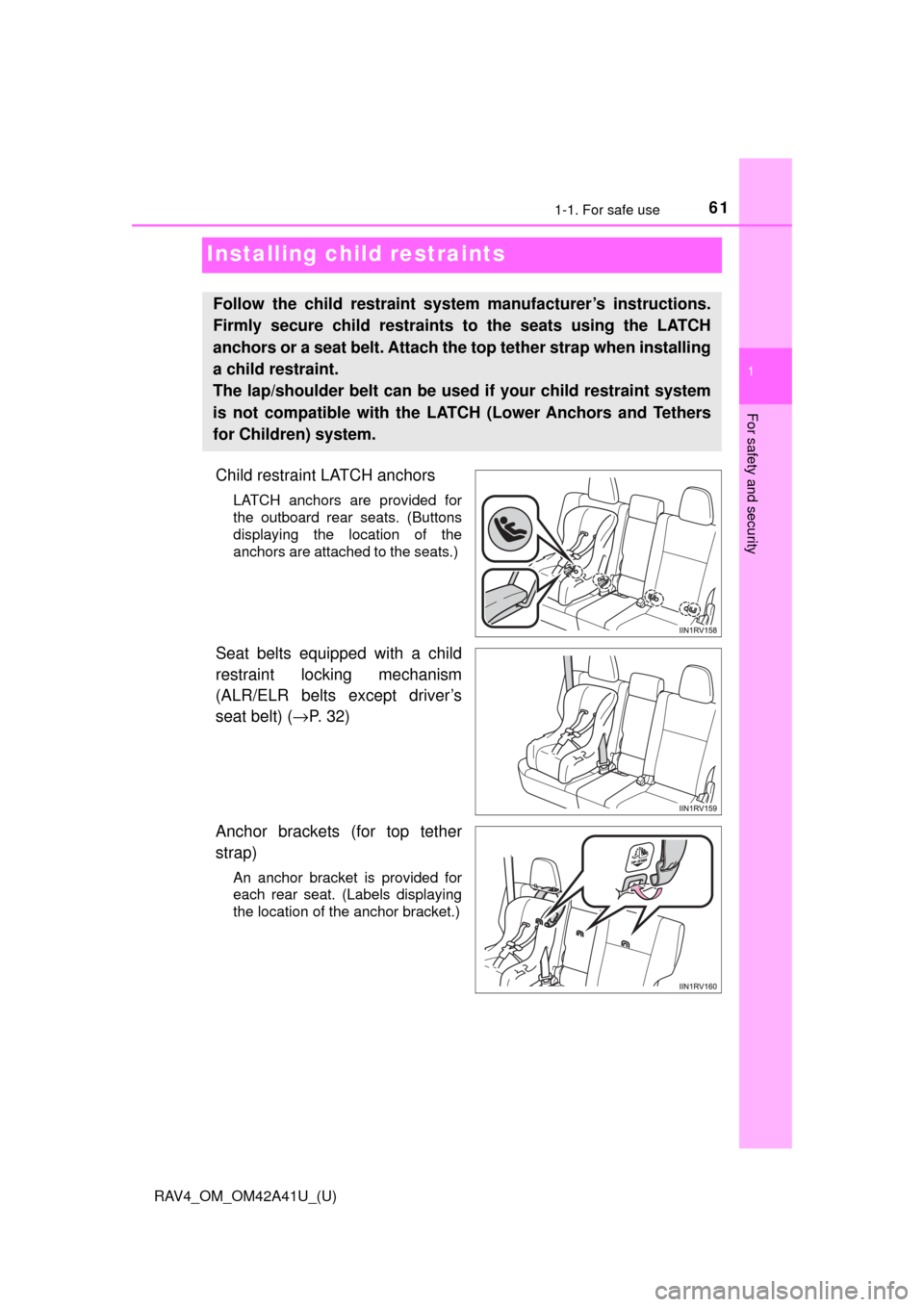

Installing child restraints
Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 32)
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat. (Labels displaying
the location of the anchor bracket.)
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.

621-1. For safe use
RAV4_OM_OM42A41U_(U)
If the child restraint has a top
tether strap, adjust the head
restraint to the upmost position.
(→ P. 146)
Widen the gap between the seat cu shion and seatback slightly.
Ty p e A
Latch the hooks of the lower
straps onto the LATCH
anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
When installing the child
restraint system with the head
restraint being raised, be sure
to have the top tether strap
pass underneath the head
restraint.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.

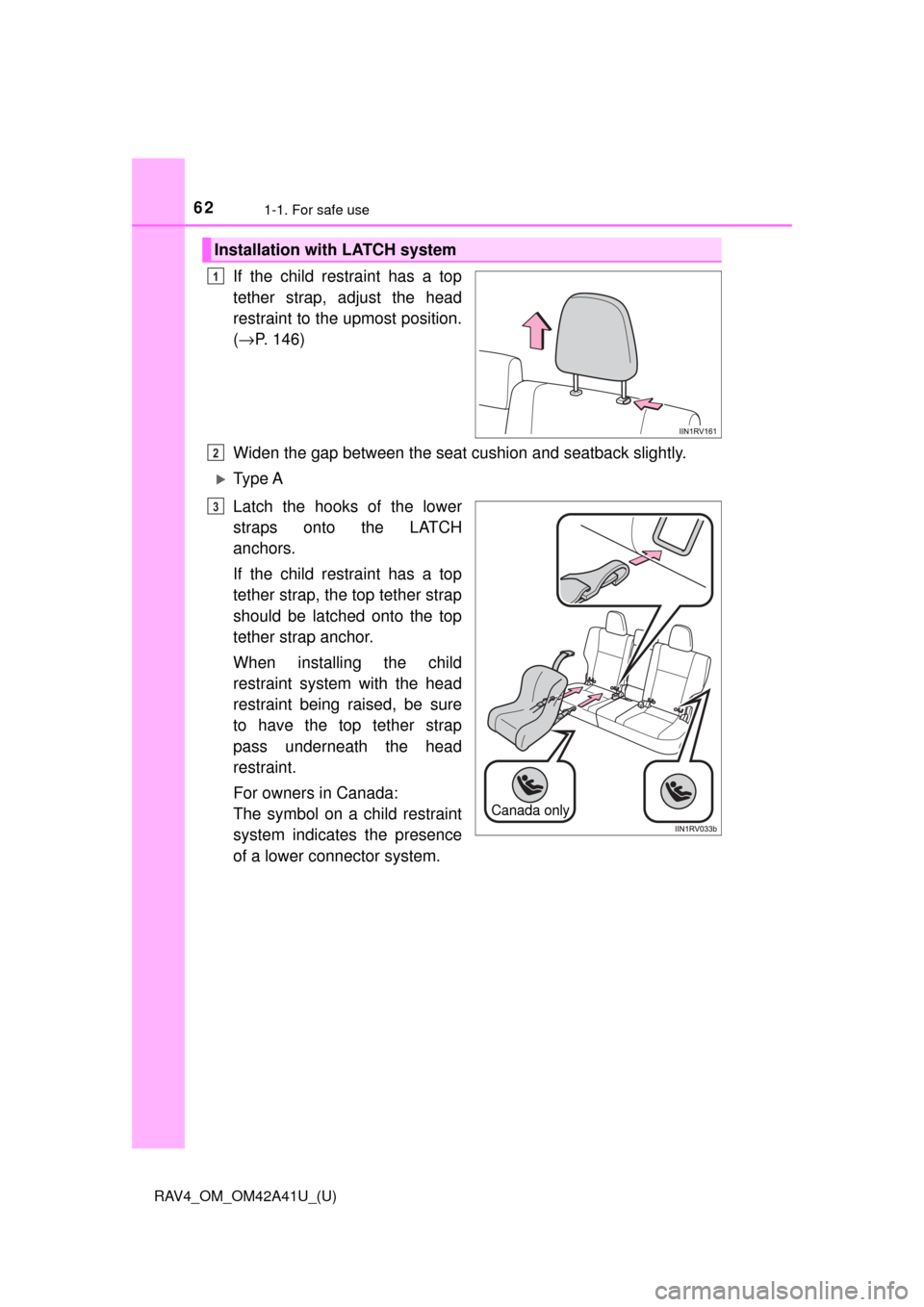

Installation with LATCH system
1
2
Canada only
3

631-1. For safe use
RAV4_OM_OM42A41U_(U)
1
For safety and security
Ty p e B
Latch the buckles onto the
LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
When installing the child
restraint system with the head
restraint being raised, be sure
to have the top tether strap
pass underneath the head
restraint.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
If there is gap between the child restraint system and the seatback,
adjust the seatback until good contact is achieved. ( →P. 141)
Canada only
3
4

641-1. For safe use
RAV4_OM_OM42A41U_(U)■
Rear-facing
⎯ Infant seat/convertible seat
Adjust the seatback to the
8th lock position from the
fully reclined position.
( → P. 141)
Fully reclined position
8th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, insta ll the child restraint system after
removing the head restraint. ( →P. 146)
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.

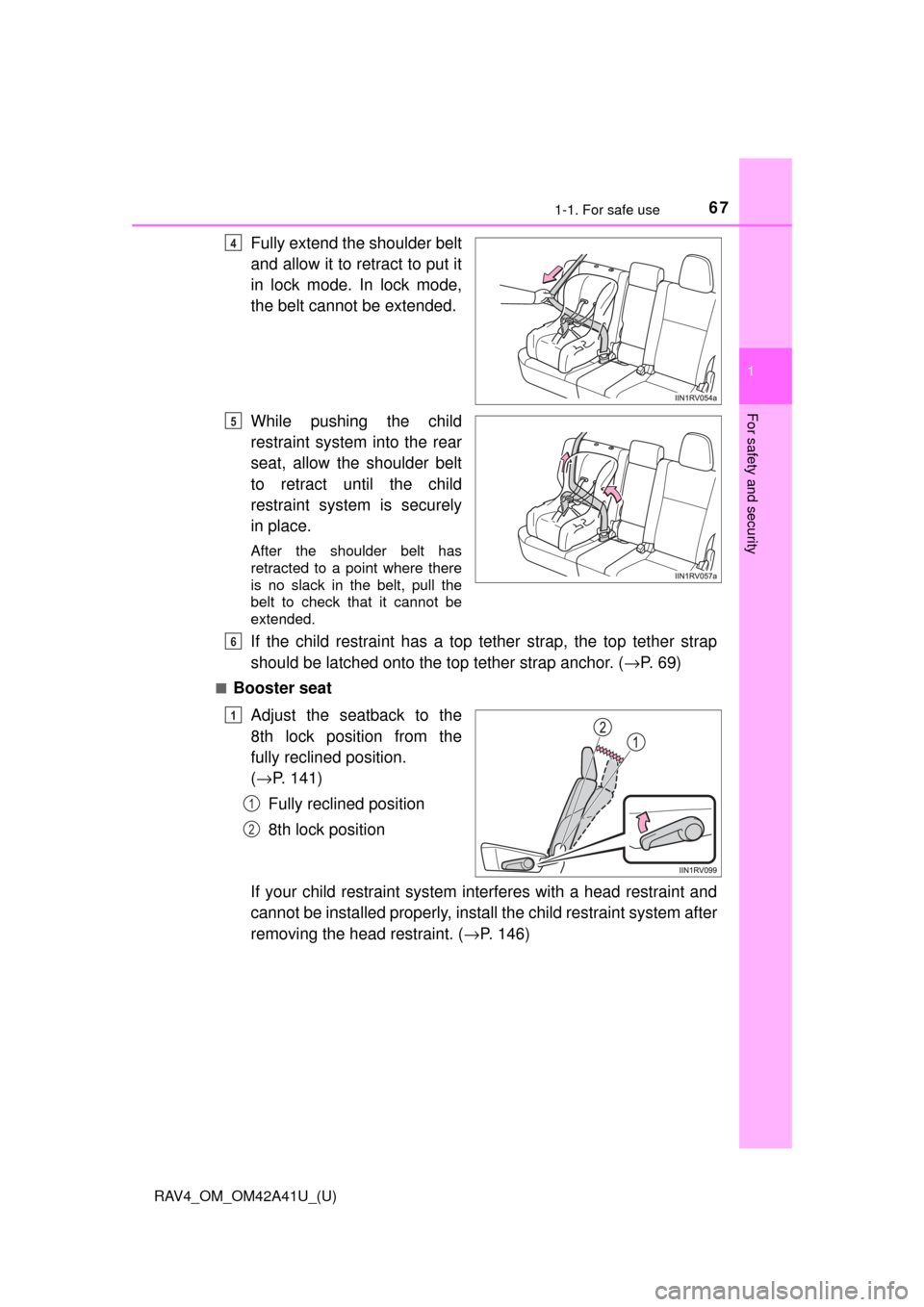

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

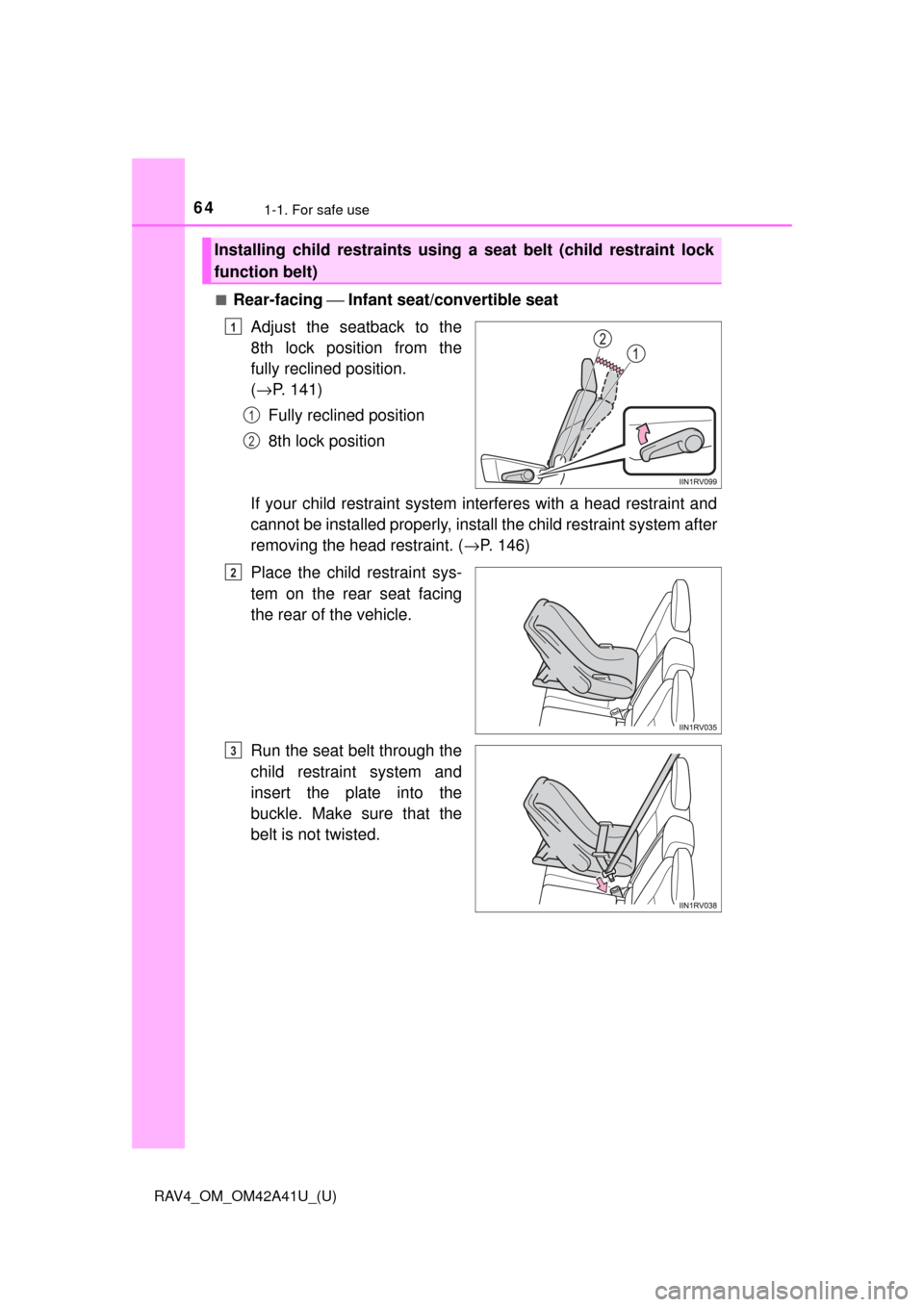

Installing child restraints using a seat belt (child restraint lock
function belt)
1
1
2
2
3

651-1. For safe use
RAV4_OM_OM42A41U_(U)
1
For safety and security

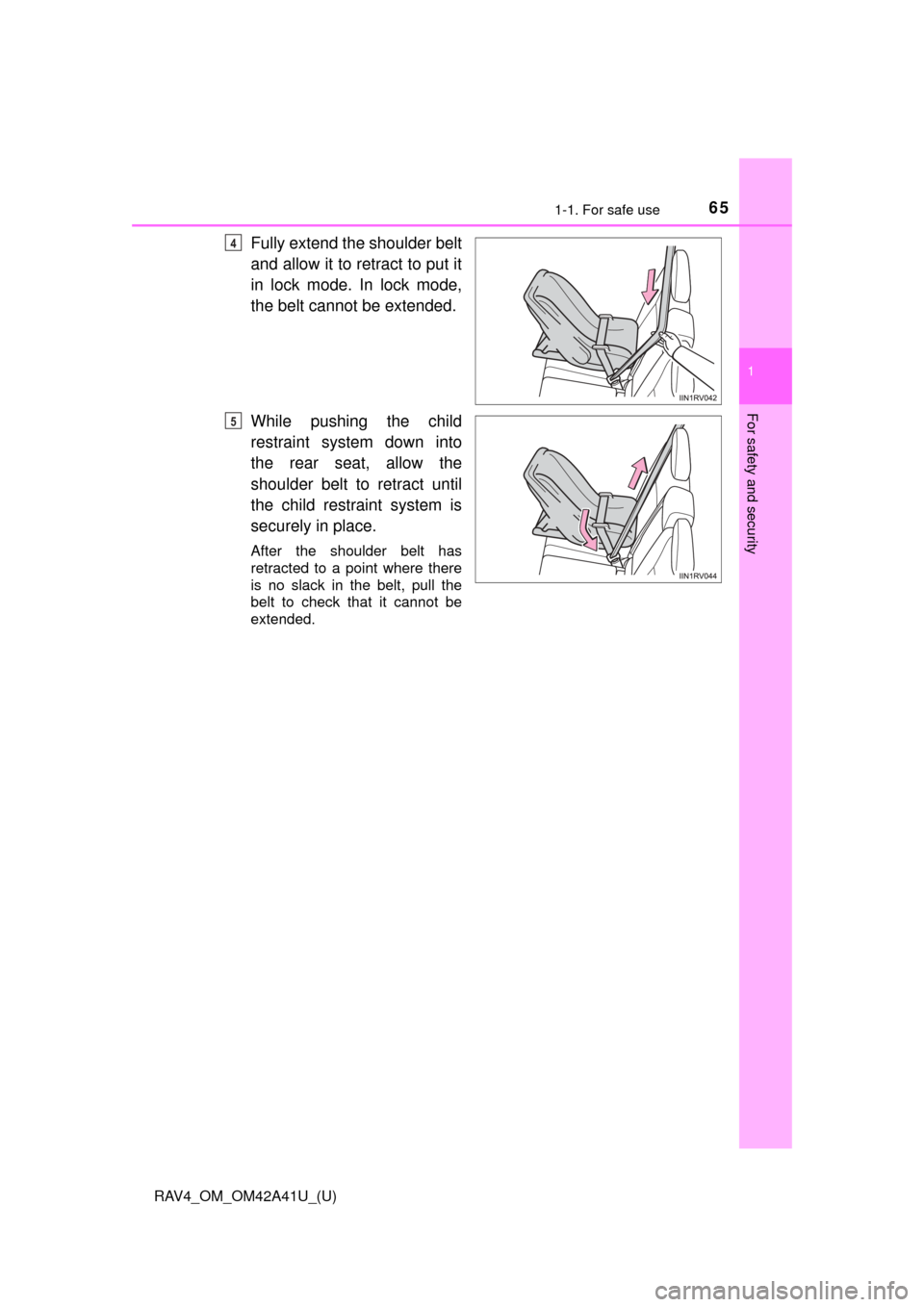

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
4
5

661-1. For safe use
RAV4_OM_OM42A41U_(U)■

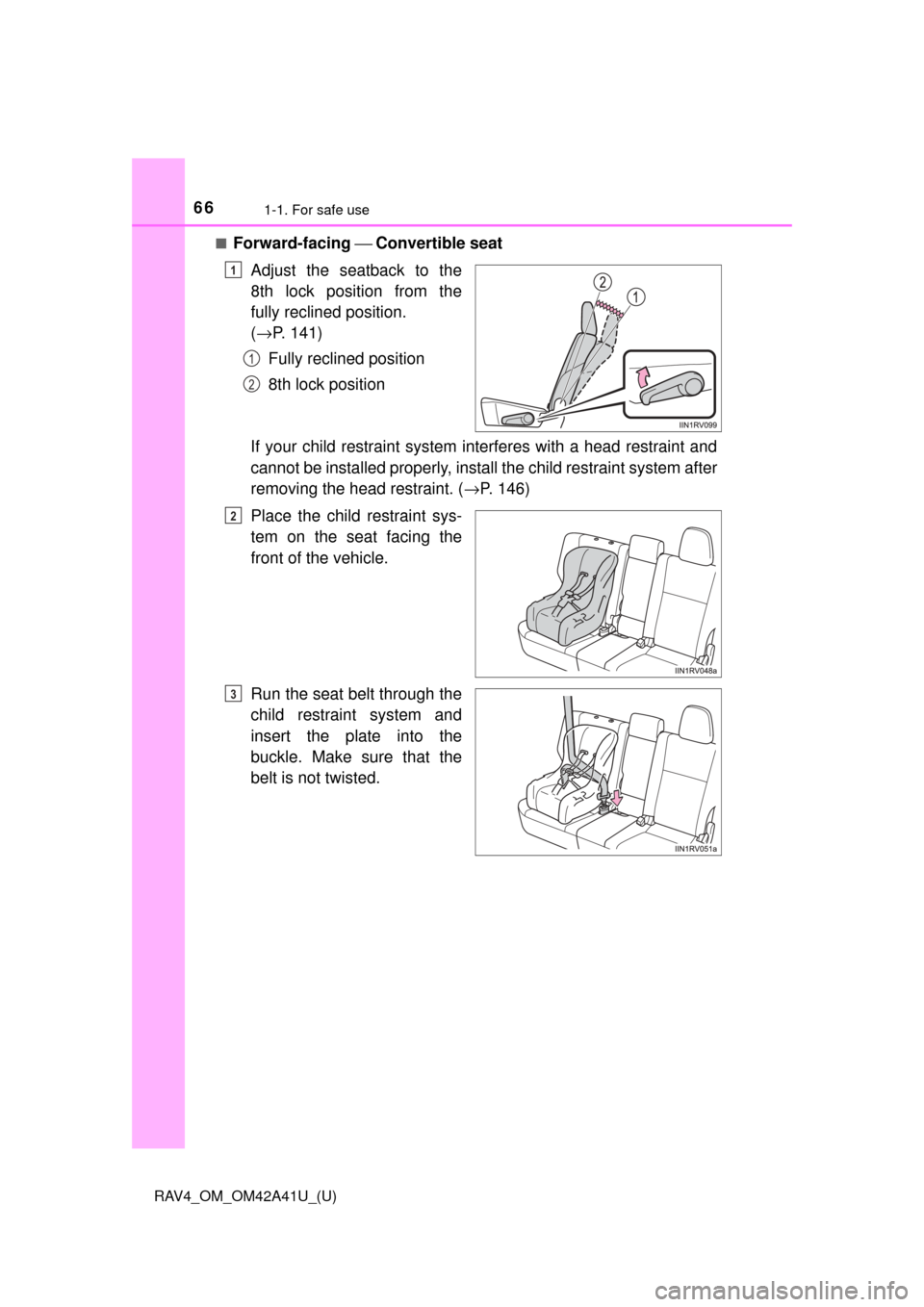

Forward-facing
⎯ Convertible seat
Adjust the seatback to the
8th lock position from the
fully reclined position.
( → P. 141)
Fully reclined position
8th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, insta ll the child restraint system after
removing the head restraint. ( →P. 146)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
1
1
2
2
3

671-1. For safe use
RAV4_OM_OM42A41U_(U)
1
For safety and security
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (→P. 69)

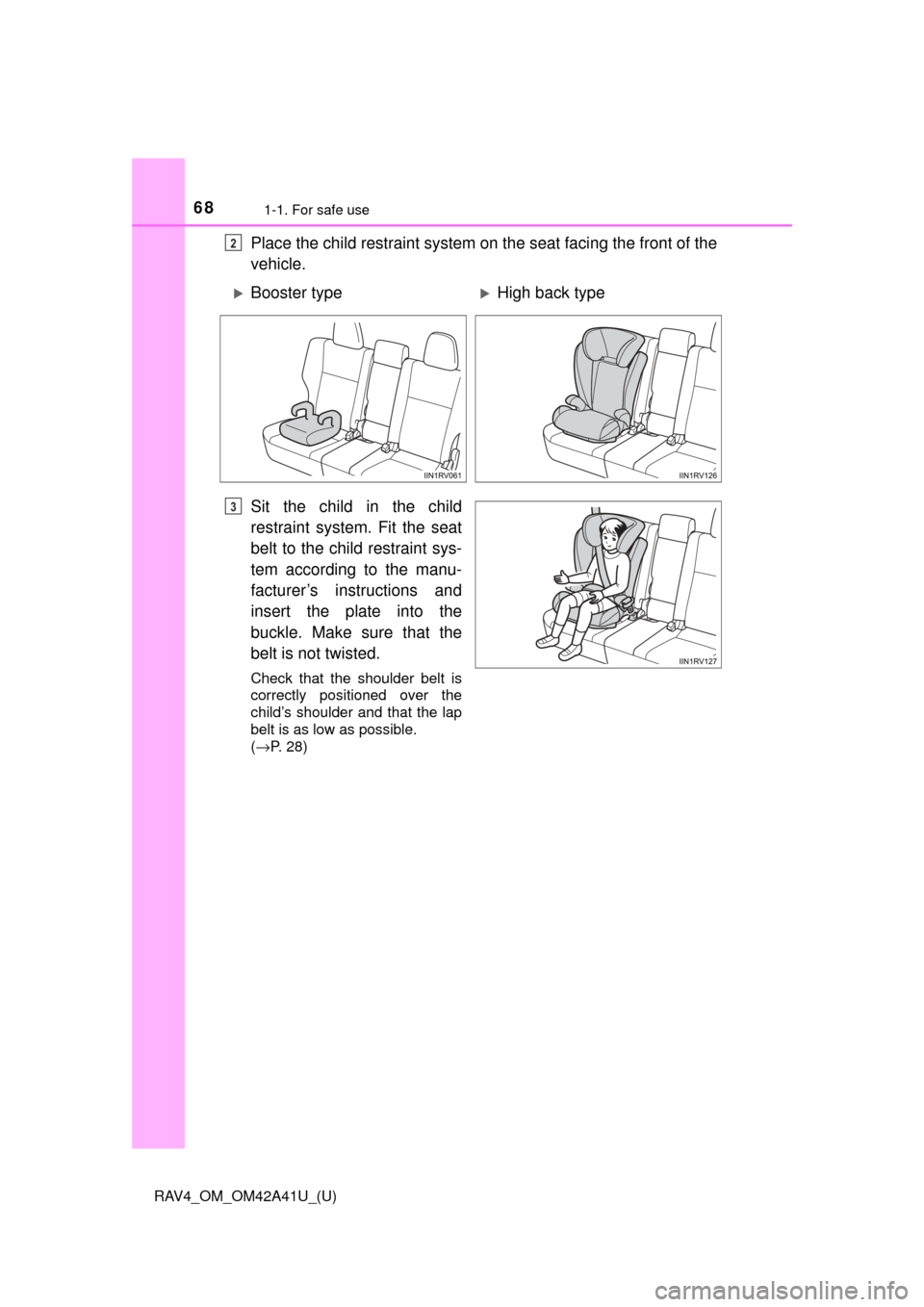

■Booster seat
Adjust the seatback to the
8th lock position from the
fully reclined position.
(→ P. 141)
Fully reclined position
8th lock position
If your child restraint system interferes with a head restraint and
cannot be installed properly, insta ll the child restraint system after
removing the head restraint. ( →P. 146)
4
5
6
1
1
2

681-1. For safe use
RAV4_OM_OM42A41U_(U)
Place the child restraint system on the seat facing the front of the
vehicle.

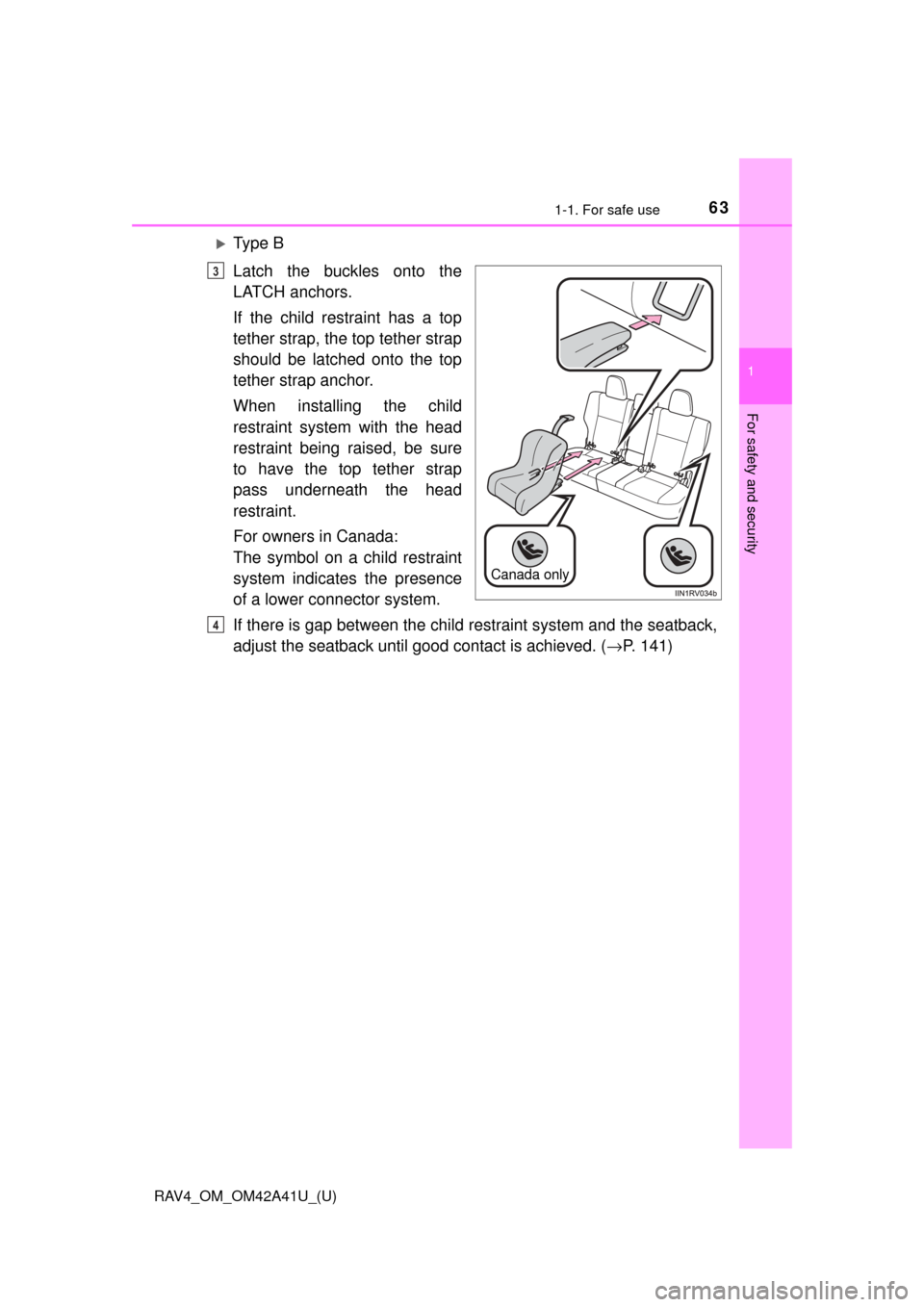

Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
( →P. 28)
2
Booster typeHigh back type
3

691-1. For safe use
RAV4_OM_OM42A41U_(U)
1
For safety and security
Push the buckle release button
and fully retract the seat belt. Secure the child restraint sys-
tem using the seat belt or
LATCH anchors.
Latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Run the top tether strap under the
head restraint.
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.

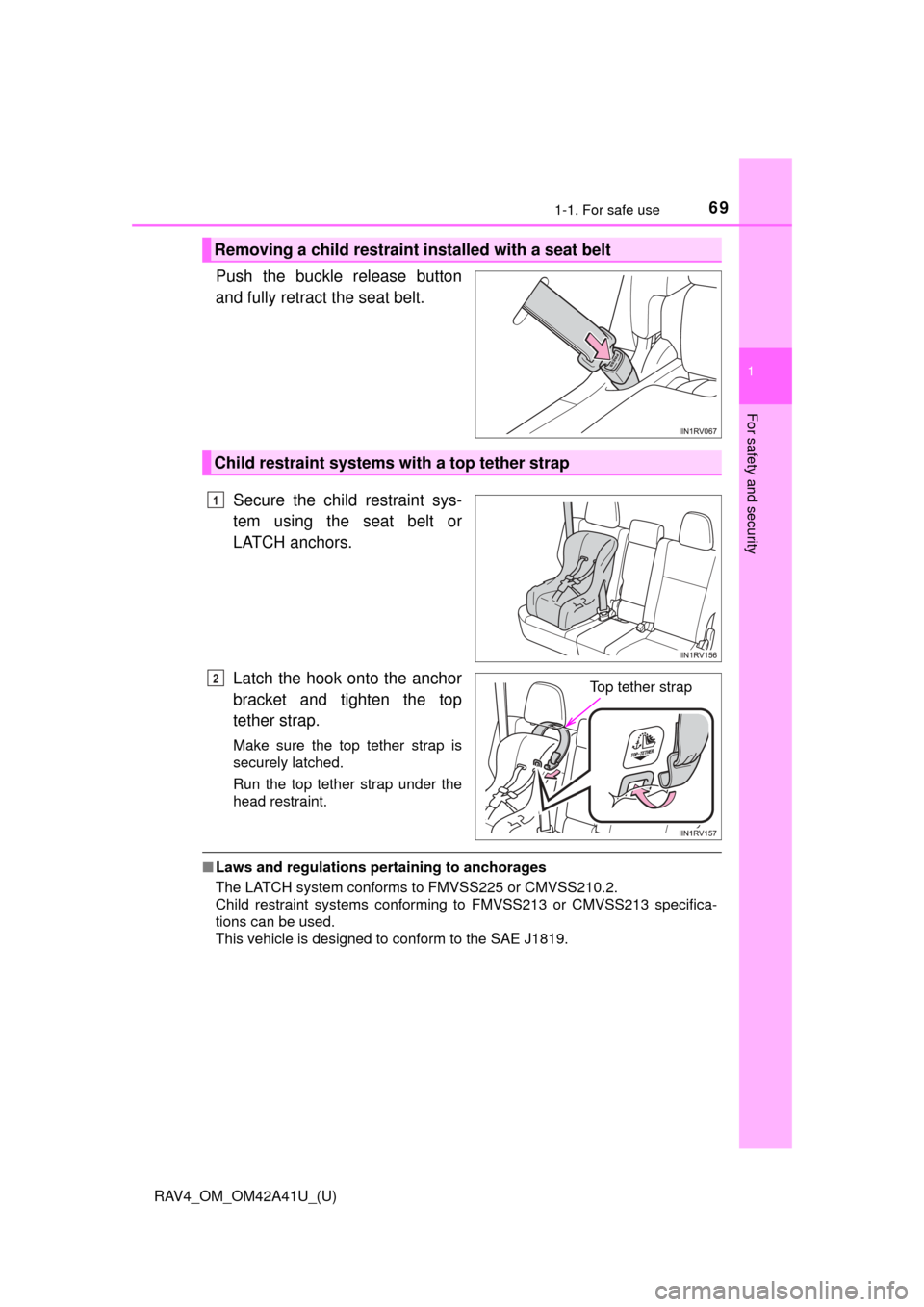

Removing a child restraint installed with a seat belt
Child restraint systems with a top tether strap
1
Top tether strap2

701-1. For safe use
RAV4_OM_OM42A41U_(U)
WARNING
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. ( →P. 32)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.

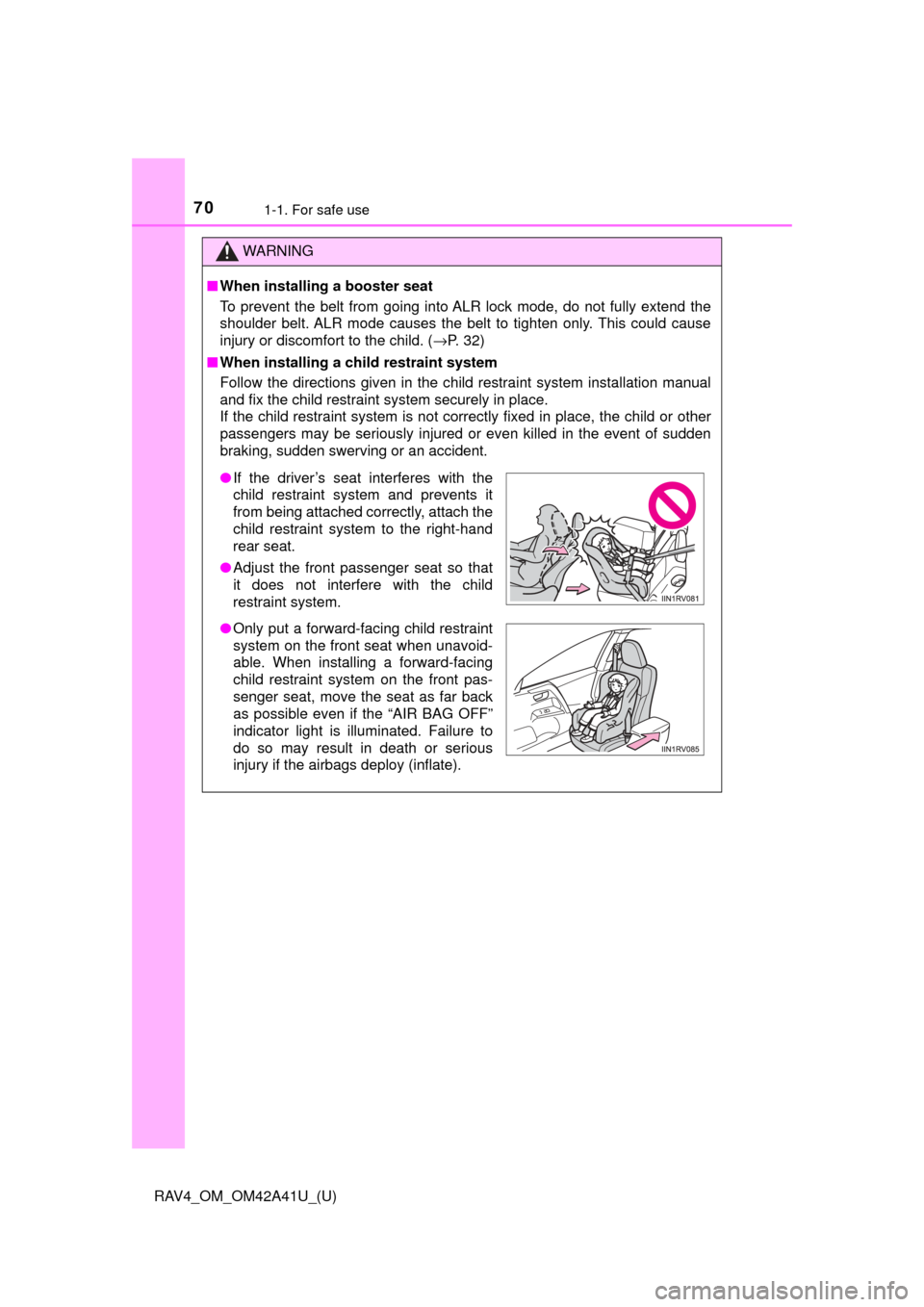

● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).
