812. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( →P. 210)*1VSC OFF indicator
(→P. 299)
(U.S.A.)
Headlight indicator
(→P. 212)*1
(if equipped)
“TRAC OFF” indicator
(→P. 299)
(Canada)
Tail light indicator
(→P. 212)*3Security indicator
(→P. 73)
Headlight high beam
indicator ( →P. 214) “SPORT” indicator
(
→P. 205)
(green)
(if equipped)
Automatic High Beam
indicator ( →P. 216) “ECO MODE” indicator
(
→P. 205)
(if equipped)
Fog light indicator
(→P. 220)*1Eco Driving Indicator
Light ( →P. 83)
(green)
(if equipped)
Cruise control indicator
(→P. 272)*1
(if equipped)
All-wheel drive lock
indicator ( →P. 296)
(if equipped)
Dynamic radar cruise
control indicator
(→P. 260)*1
(if equipped)
“AUTO LSD” indicator
(→P. 299)
Cruise control “SET”
indicator ( →P. 272)
*3
(if equipped)
Intuitive parking assist
indicator (→P. 277)
*1, 2Slip indicator
(→P. 298)
(if equipped)
Intuitive parking assist
indicator ( →P. 278)

82
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without smart key system) or IGNITION ON mode (vehicles with
smart key system), to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if the lights do not come on, or turn off.
Have the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: This light illuminates on the center panel.
*4: In order to confirm operation, the BS M outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without smart key system) or IGNITION ON mode (vehicles with smart key sys-
tem) while the system is set to on.
• When the system is set to on while the engine switch is in the “ON” posi- tion (vehicles without smart key system) or IGNITION ON mode (vehicles
with smart key system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction with the system. If this occurs, have the
vehicle inspected by your Toyota dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: The light turns on when the system is off.
*7: When the outside temperature is approximately 37° F (3°C) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
(if equipped)
LDA indicator
( →P. 252)*1, 3“AIR BAG ON/OFF”
indicator ( →P. 49)
*4, 5
(if equipped)
BSM outside rear
view mirror indicators
(→P. 305)*1, 6
(if equipped)
PCS warning light
(→P. 242)
(if equipped)
BSM indicator ( →P. 305)
*7
(if equipped)
Ice warning indicator
(→P. 635)

RAV4_OM_OM42A41U_(U)
832. Instrument cluster
2
Instrument cluster
■Eco Driving Indicator
Suggests Zone of Eco driving and Eco driving ratio based on acceleration.
Eco Driving Indicator will not operate in the following conditions:
● The shift lever is anything other than D.
● Paddle shift switch (if equipped) is operated.
● Neither normal mode nor Eco drive mode is selected. ( →P. 205)
● The vehicle speed is approximately 80 mph (130 km/h) or higher. Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on.
When the acceleration exceeds Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Light availability
can be customized. The default setting
is on. ( →P. 91, 697)
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
With monochrome display: Eco Driving
Indicator Zone Display availability can
be customized at your Toyota dealer.
The default setting is off.
Zone of Eco driving
Eco driving ratio based on acceleration
With monochrome display: If the accel-
eration exceeds Zone of Eco driving,
the right side of Eco Driving Indicator
Zone Display blinks.
With color display: If the acceleration
exceeds the Zone of Eco driving, the
right side of the Eco Driving Indicator
Zone Display illuminates.
With monochrome display
With color display
1
2
3
4

84
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
NOTICE
■ To prevent damage to the engine and its components (with mono-
chrome display)
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(→P. 664)

85
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
2
Instrument cluster
Gauges and meters
With monochrome display
With color display
The units used on the meter and display may differ depending on the tar-
get region.

86
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range (→P. 203)
Multi-information display
Presents the driver with a variety of driving-related data (→P. 89, 92)
Outside temperature display
→P. 8 8
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
1
2
3
4
5
6
7
8

RAV4_OM_OM42A41U_(U)
872. Instrument cluster
2
Instrument cluster
With monochrome display
→ P. 8 9
With color display
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
The brightness of the instrument pan el lights can be adjusted by turn-
ing the dial.
Brighter
Darker

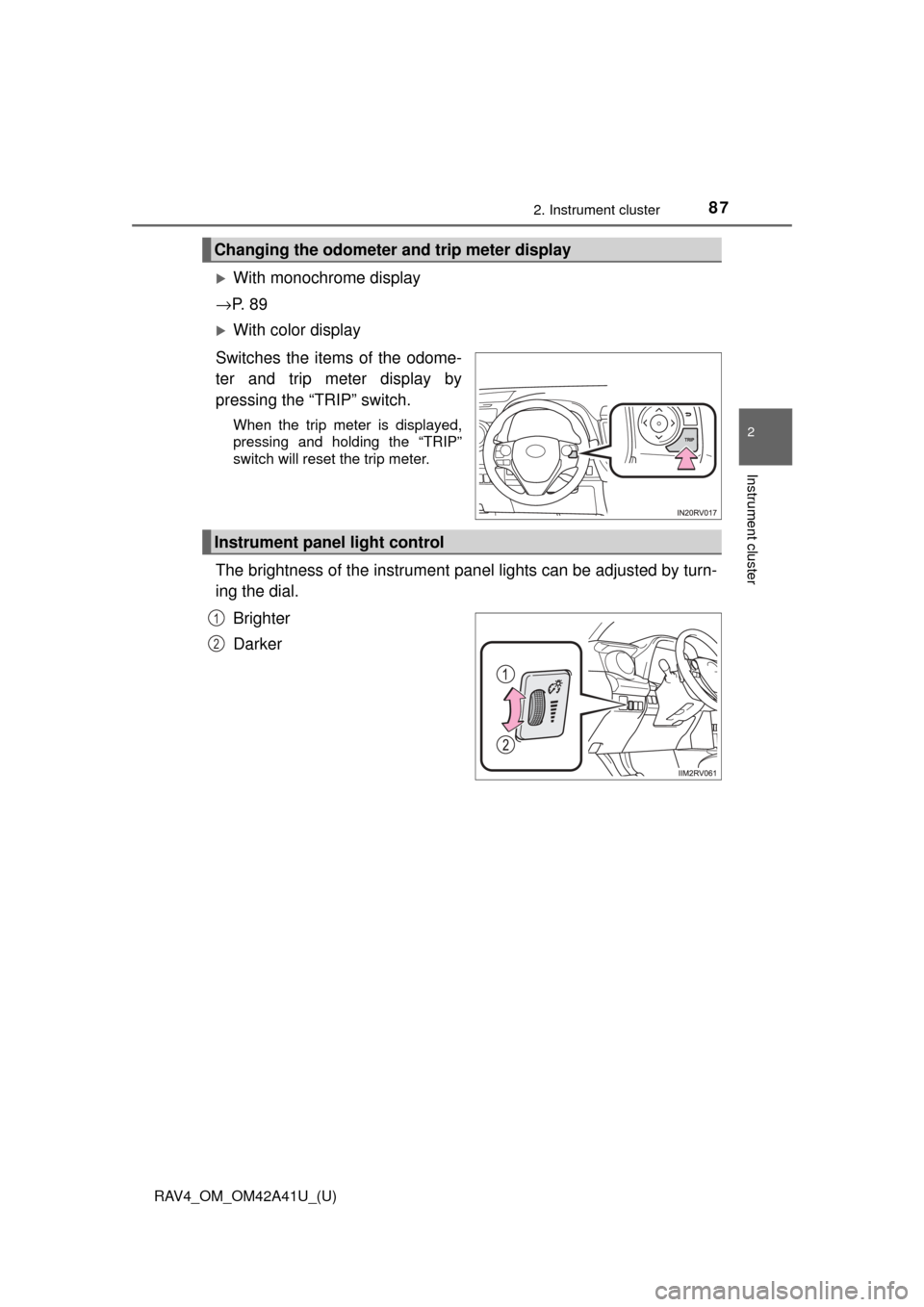

Changing the odometer and trip meter display
Instrument panel light control
1
2

88
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
■The meters and display illuminate when
Vehicles without smart key system
The engine switch is in the “ON” position.
Vehicles with smart key system
The engine switch is in IGNITION ON mode.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
● The temperature range that can be displayed is from -40° F (-40°C) to 122° F
(50° C).
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This l ag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● Vehicles with color display: The engine may be overheating if the engine
coolant temperature gauge is in the red zone (“H”). In this case, immedi-
ately stop the vehicle in a safe place, and check the engine after it has
cooled completely. ( →P. 664)

89
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
2
Instrument cluster

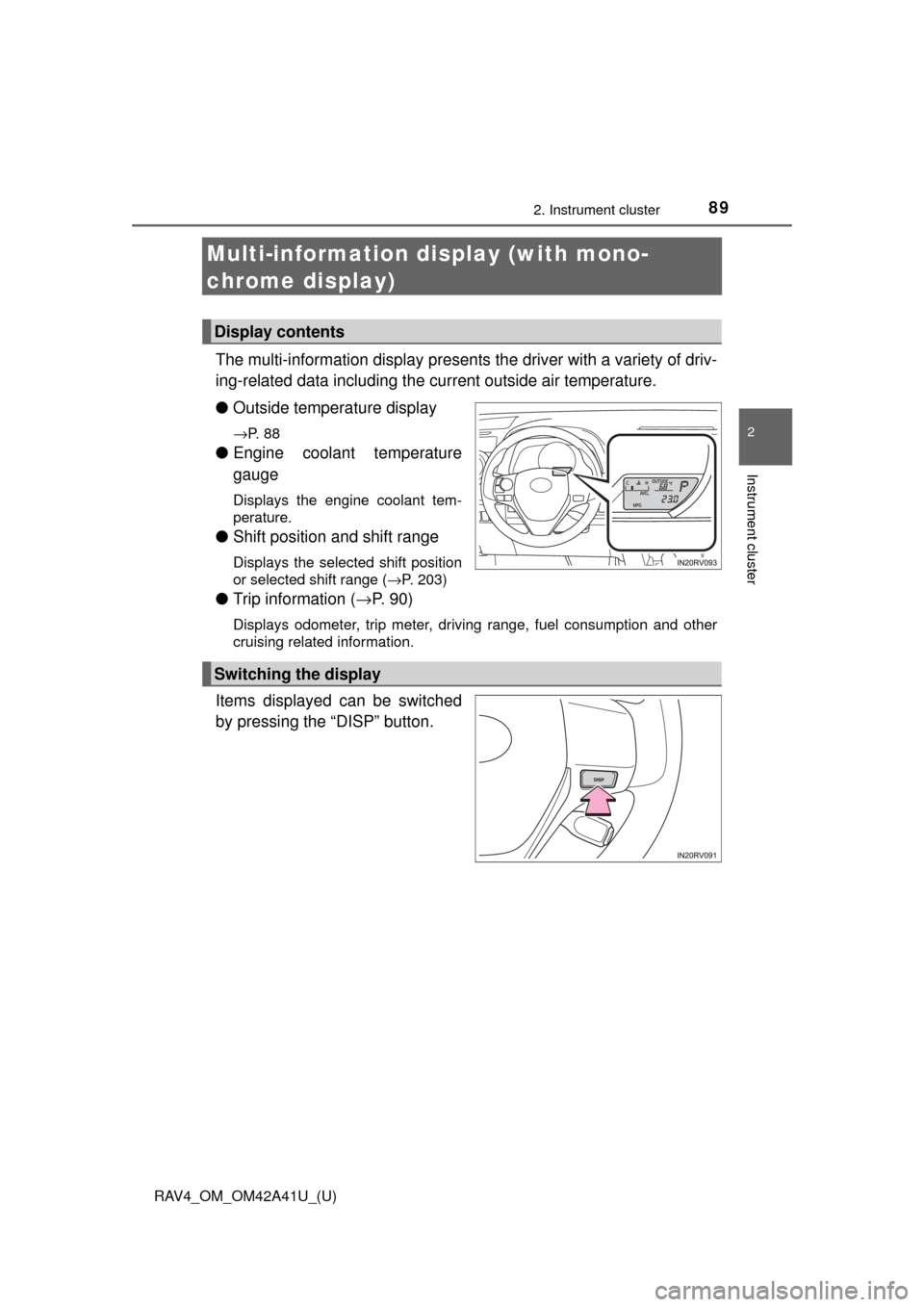

Multi-information display (with mono-
chrome display)
The multi-information display presents the driver with a variety of driv-
ing-related data including the current outside air temperature.
● Outside temperature display
→P. 8 8
●Engine coolant temperature
gauge
Displays the engine coolant tem-
perature.
●Shift position and shift range
Displays the selected shift position
or selected shift range ( →P. 203)
●Trip information ( →P. 9 0 )
Displays odometer, trip meter, driving range, fuel consumption and other
cruising related information.
Items displayed can be switched
by pressing the “DISP” button.
Display contents
Switching the display

90
RAV4_OM_OM42A41U_(U)
2. Instrument cluster
●Odometer
Displays the total distance the vehicle has been driven.
● Trip meters “A” and “B”
Displays the distance the vehicl e has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Pressing and holding the “DISP” button will reset the trip meter that is
currently displayed.
● Current fuel consumption
Displays the current rate of fuel consumption.
● Average fuel consumption
Displays the average fuel consum ption since the function was
reset.
• The function can be reset by pressing the “DISP” button for longer than 1 second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
● Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
● Driving range
Displays the estimated approxim ate distance that can be driven
with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
Trip information
