5116-3. Using the storage features
6
Interior features
Press in the lid.

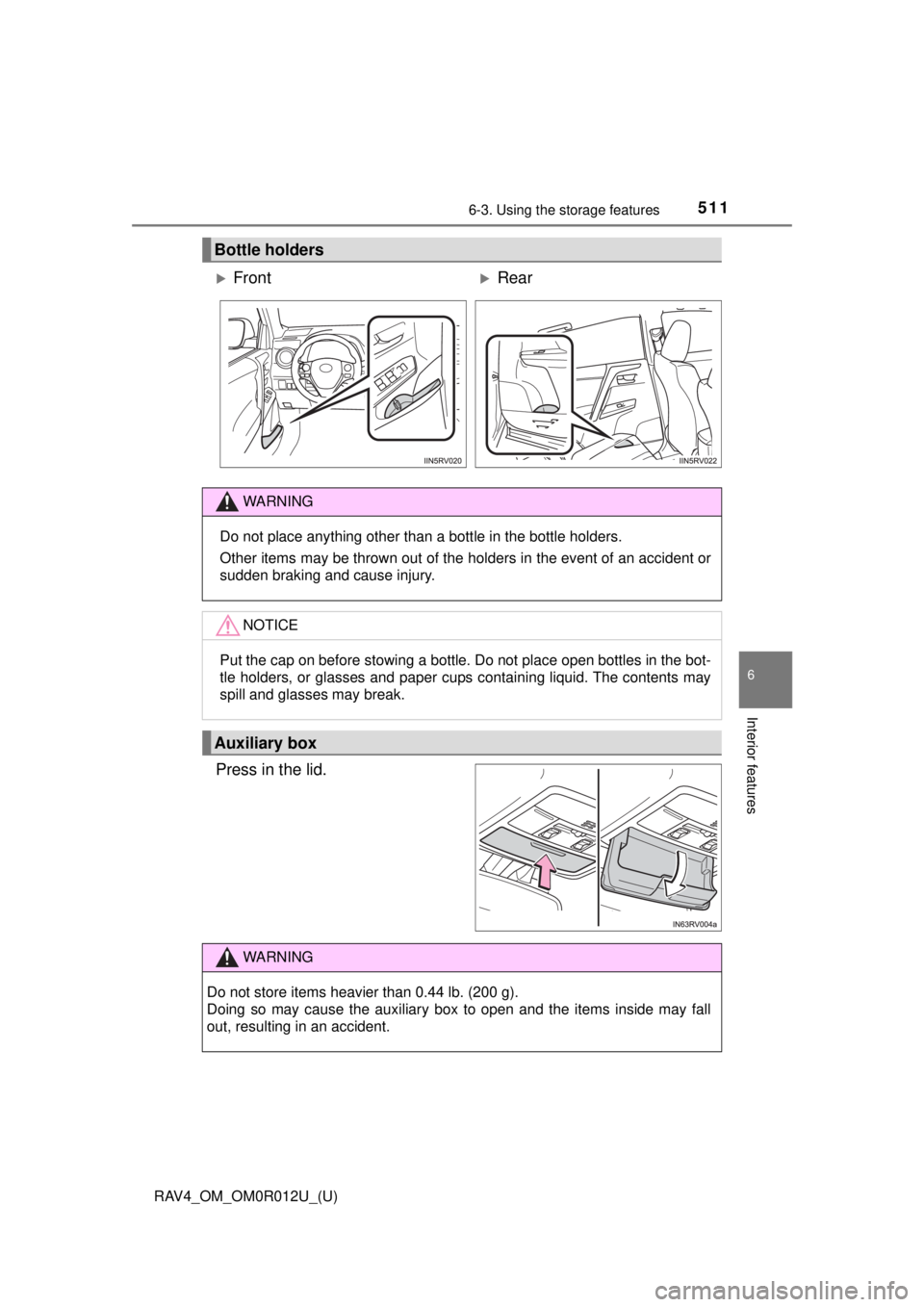

Bottle holders
FrontRear
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Auxiliary box
WARNING
Do not store items heavier than 0.44 lb. (200 g).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

512
RAV4_OM_OM0R012U_(U)
6-3. Using the storage features
Luggage compartment features
Raise the hooks to use.
The cargo hooks are provided for
securing loose items.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hooks.

RAV4_OM_OM0R012U_(U)
5136-3. Using the storage features
6
Interior features
■Front
Open the deck board by pulling
up the strap.
Warning reflector etc. can be
stowed.
■
Rear Vehicles with full-size spare
tire: Turn the knob of each
clip on the rear deck board to
unlock.
Open the deck board by pull-
ing up the strap.
Fold up the deck board.
The deck board can be
removed.
Storage boxes
1
2
3

514
RAV4_OM_OM0R012U_(U)
6-3. Using the storage features

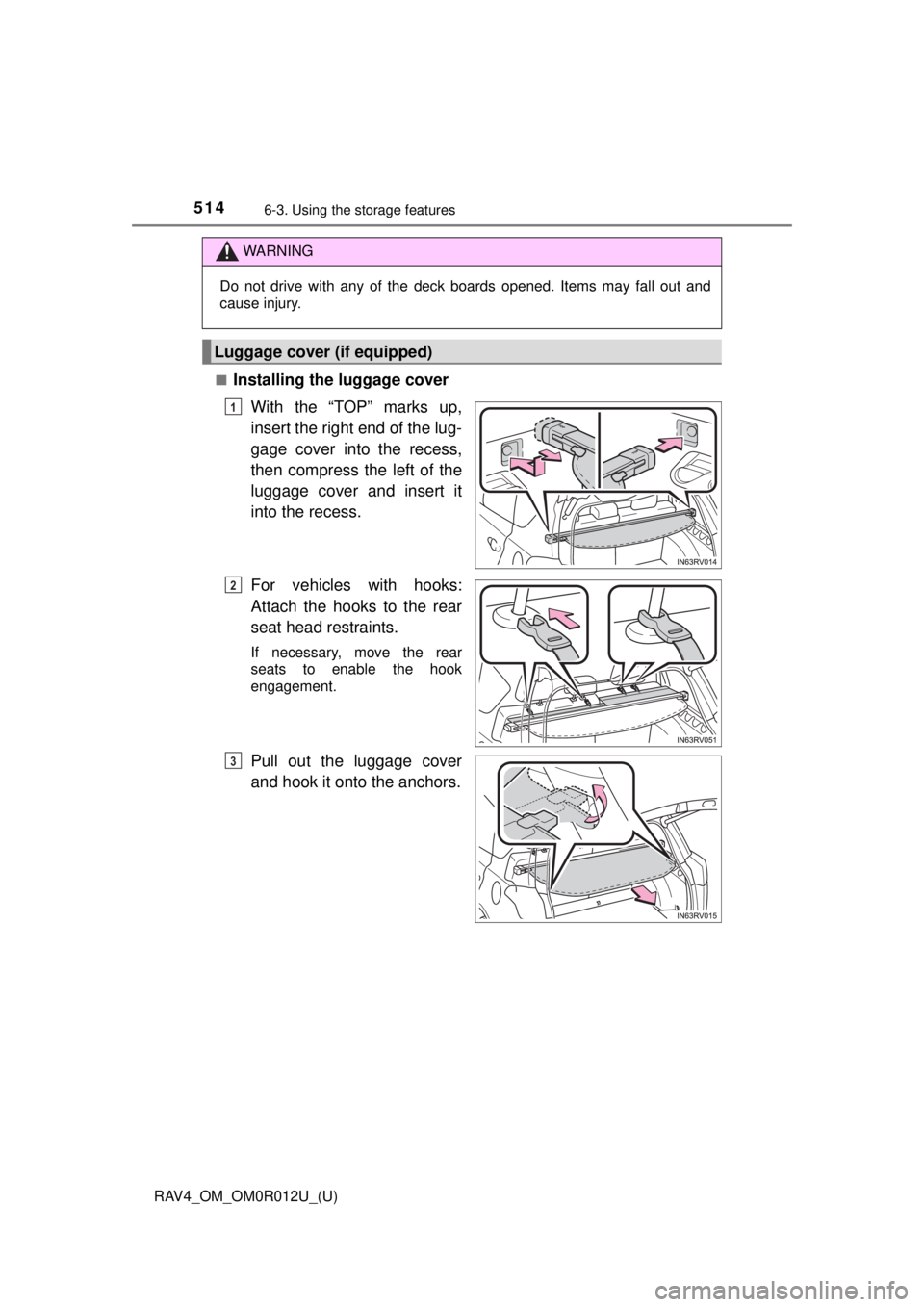

■Installing the luggage cover
With the “TOP” marks up,
insert the right end of the lug-
gage cover into the recess,
then compress the left of the
luggage cover and insert it
into the recess.
For vehicles with hooks:
Attach the hooks to the rear
seat head restraints.
If necessary, move the rear
seats to enable the hook
engagement.
Pull out the luggage cover
and hook it onto the anchors.
WARNING
Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
Luggage cover (if equipped)
1
2
3

RAV4_OM_OM0R012U_(U)
5156-3. Using the storage features
6
Interior features
■Removing the luggage coverRelease the cover from the
left and right anchors and
allow it to retract.
Compress the end of the lug-
gage cover and lift the lug-
gage cover up.
■Stowing the luggage cover (except for vehicles with full-size
spare tire)
Open the rear deck board
and remove the side deck
covers.
Insert the right end of the lug-
gage cover into the recess,
then compress the left end of
the luggage cover and insert
it into the recess.
1
2
1
2

516
RAV4_OM_OM0R012U_(U)
6-3. Using the storage features
WARNING
●When installing/stowing the luggage cover, make sure that the luggage
cover is securely installed/stowed. Failure to do so may result in serious
injury in the event of sudden braking or a collision.
● Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
NOTICE
●Do not put heavy items on the luggage cover.
●Install the cover unit in the correct direc-
tion so that the “TOP” mark faces
upward.

RAV4_OM_OM0R012U_(U)
5176-3. Using the storage features
6
Interior features
The fixed position of the poles can be changed to accommodate the
size and type of luggage being stored. Also, the cargo net can be
used to prevent luggage from spilling out by installing one of the poles
at a lower level.
■Installation positions
Slide rail
Upper level fixed positions
Lower level fixed positions A
Lower level fixed positions
B
*
*: Not usable on the vehicles withfull-size spare tire.
Rear cargo net (If equipped)
1
2
3
4

518
RAV4_OM_OM0R012U_(U)
6-3. Using the storage features
■Installing to the upper level and changing the fixed position
●Installing the rear cargo net
Except for vehicles with
full-size spare tire:
Take out the rear cargo
net.
Push the right or left end of
the pole into the slide rail.
Push the other end of the
pole into the slide rail, and
then install both ends into
fixed positions.
After installing, check that
both ends of the pole are
firmly inserted into their fixed
positions.
When removing the rear
cargo net, follow the installa-
tion procedures in reverse
order.
1
2
3

RAV4_OM_OM0R012U_(U)
5196-3. Using the storage features
6
Interior features
●Changing the fixed position of the pole
Lift the pole to move up to
the slide rail.
Slide the pole to the
desired fixed position, and
push down.
Move the pole so that its left
and right ends line up and the
pole is straight.
After changing the position,
check that both ends of the
pole are firmly inserted into
their fixed positions.
1
2

520
RAV4_OM_OM0R012U_(U)
6-3. Using the storage features

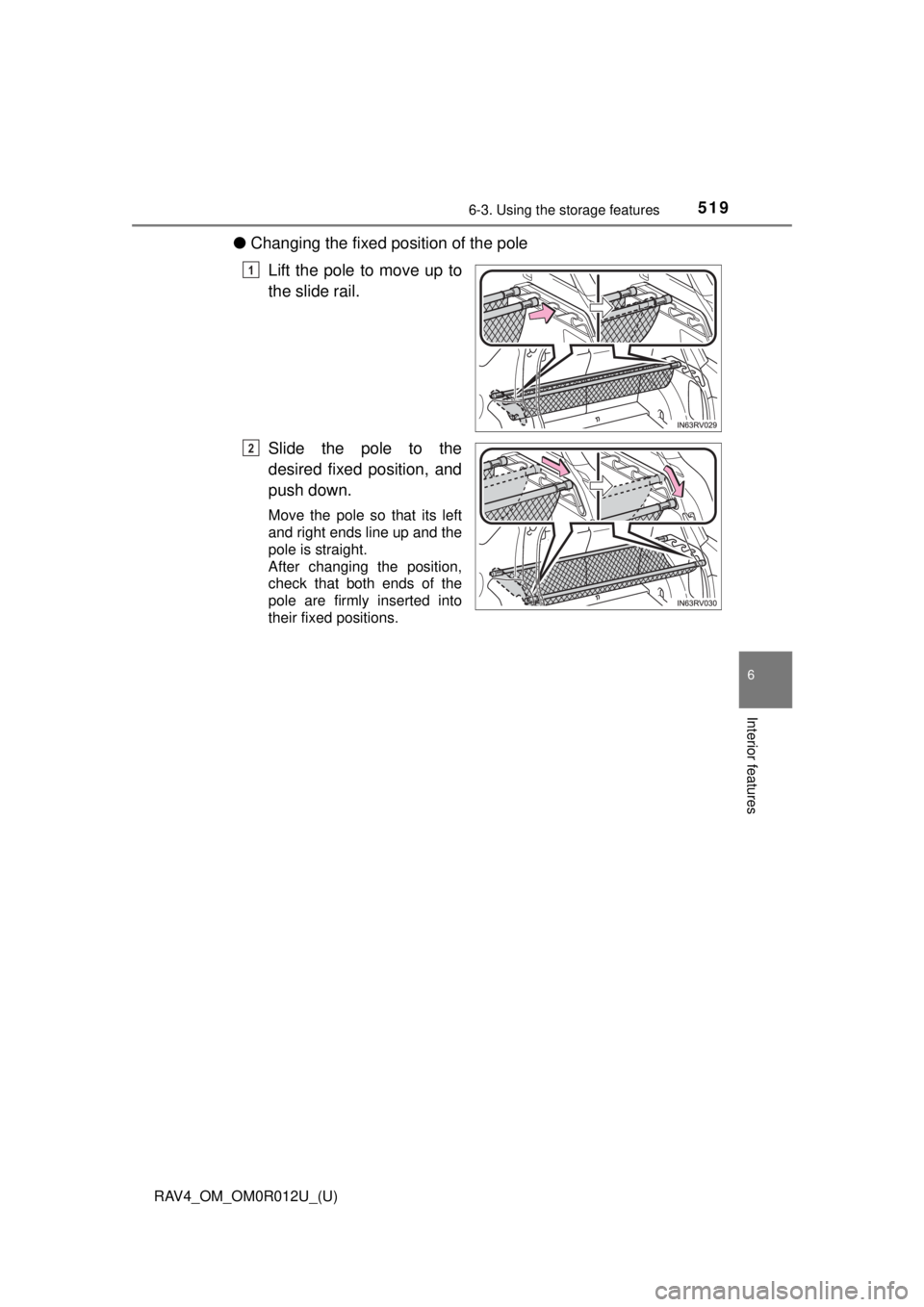

■Installing to the lower level and changing the fixed position
● Installing the rear cargo net
Except for vehicles with
full-size spare tire:
Take out the rear cargo
net.
Push one end of the pole
into a fixed position to
shorten the pole.
Align the other end of the
pole with the correspond-
ing fixed position on the
other side and release the
pole.
After installing, check that
both ends of the pole are
firmly inserted into their fixed
positions.
When removing the rear
cargo net, follow the installa-
tion procedures in reverse
order.
1
2
3
