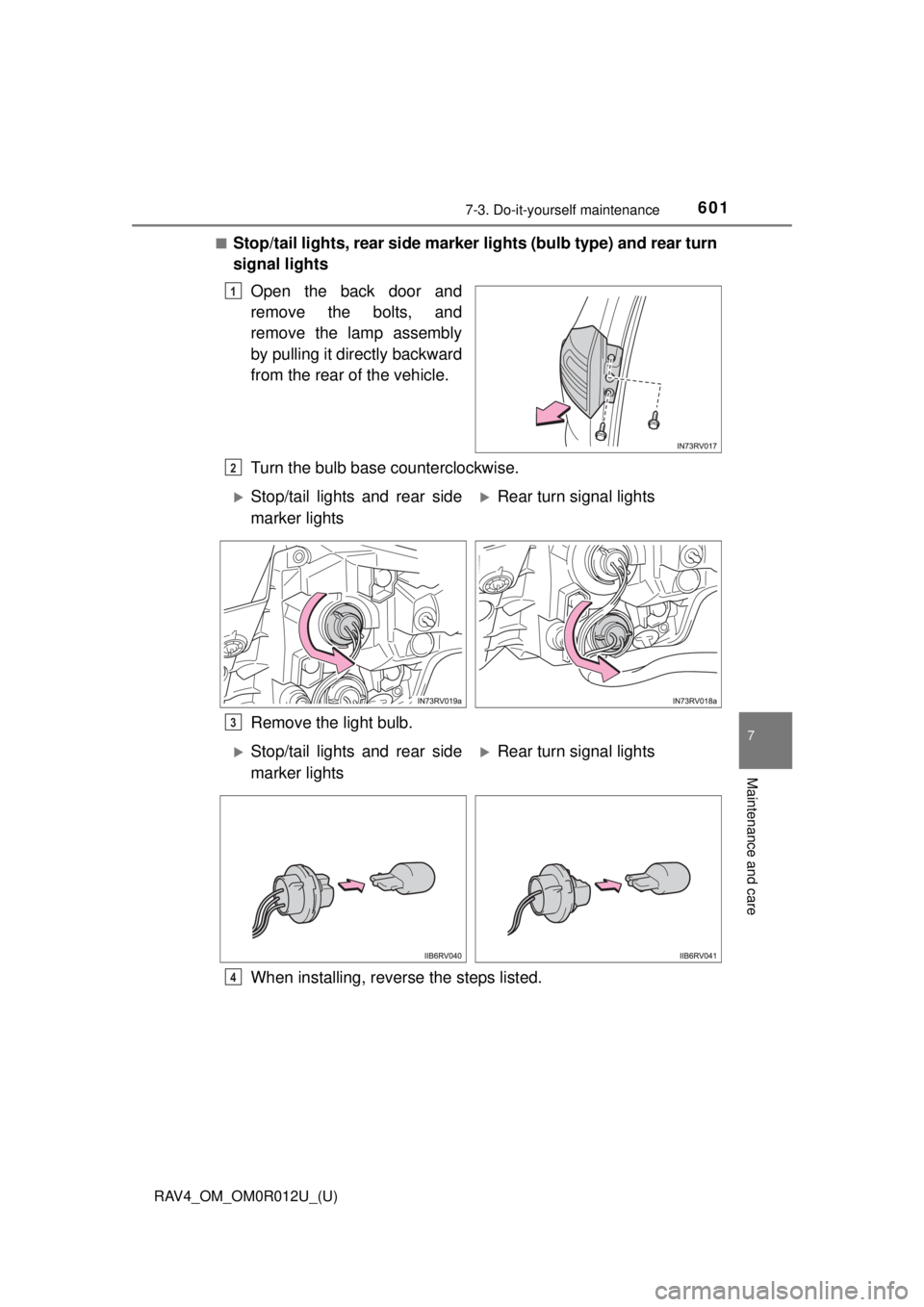

■Stop/tail lights, rear side marker lights (bulb type) and rear turn
signal lights
Open the back door and
remove the bolts, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
Stop/tail lights and rear side
marker lightsRear turn signal lights
3
Stop/tail lights and rear side
marker lightsRear turn signal lights
4

602
RAV4_OM_OM0R012U_(U)
7-3. Do-it-yourself maintenance

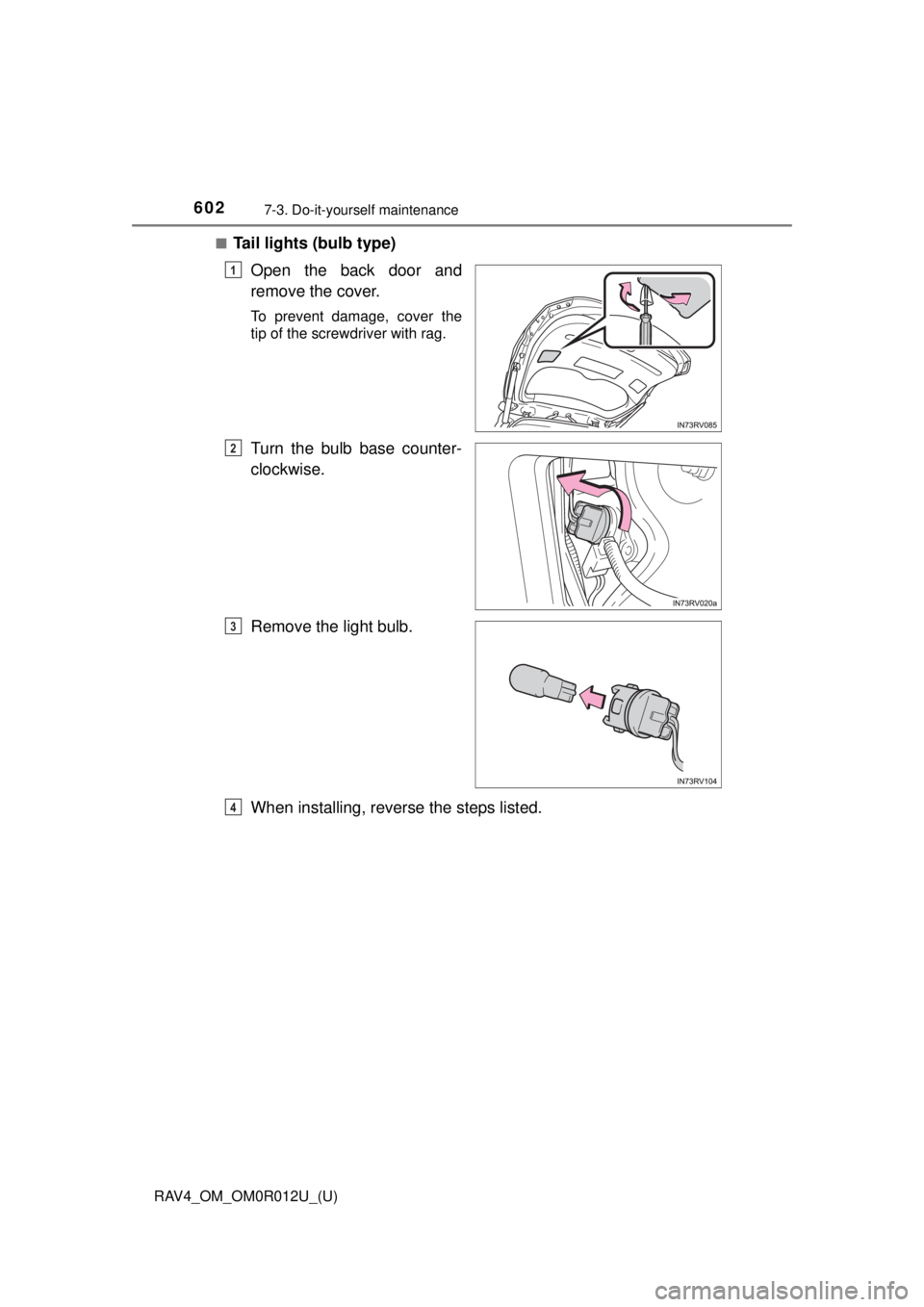

■Tail lights (bulb type)Open the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3
4

RAV4_OM_OM0R012U_(U)
6037-3. Do-it-yourself maintenance
7
Maintenance and care

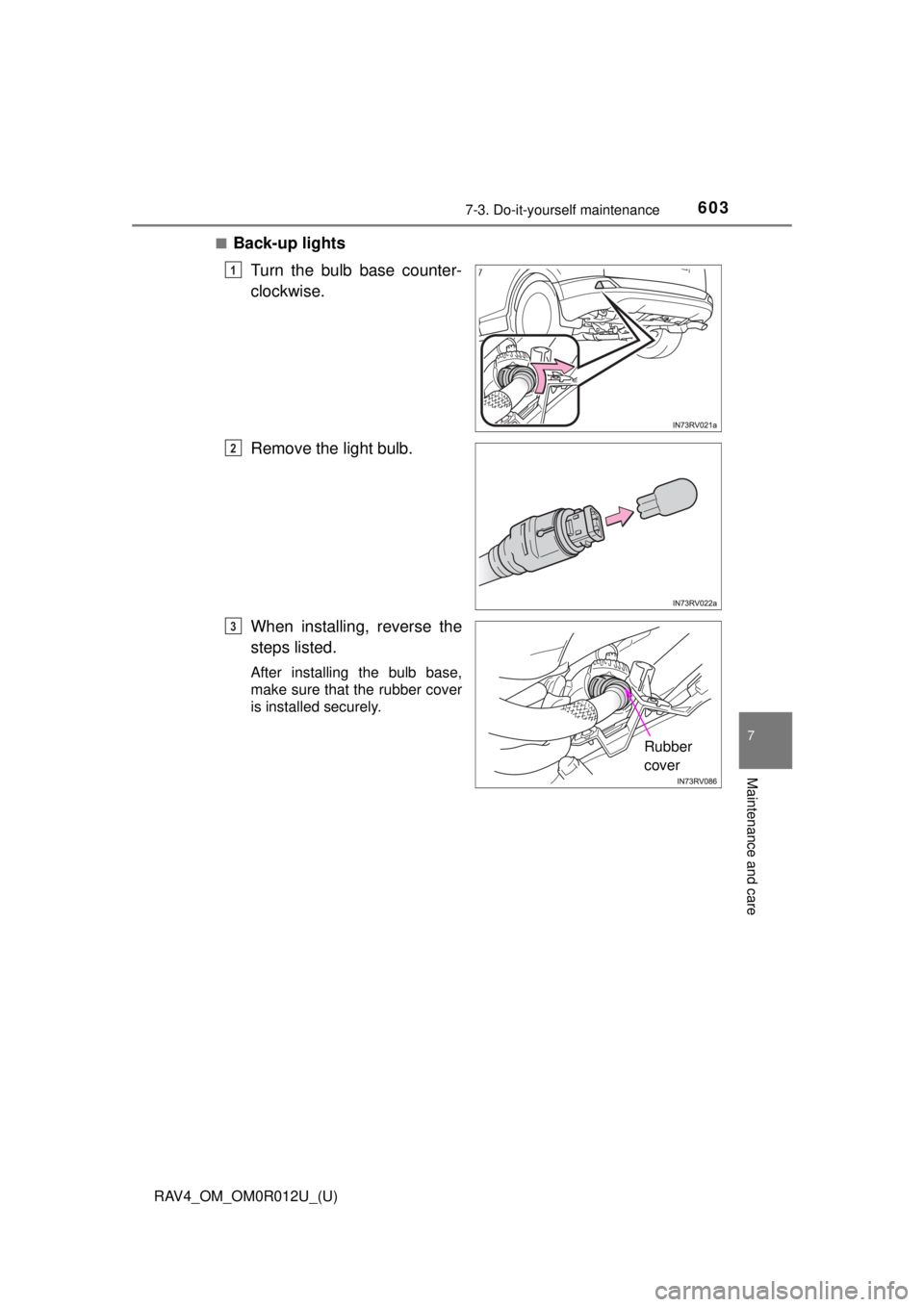

■Back-up lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
make sure that the rubber cover
is installed securely.
1
2
Rubber
cover
3

604
RAV4_OM_OM0R012U_(U)
7-3. Do-it-yourself maintenance
■License plate lightsOpen the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
Left sideRight side
3
4

RAV4_OM_OM0R012U_(U)
6057-3. Do-it-yourself maintenance
7
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights (LED headlights)
● Parking lights/daytime runni ng lights (LED headlights)
● Side turn signal lights (if equipped)
● Stop/tail lights (LED type)
● Tail lights (LED type)
● Rear side marker lights (LED type)
● High mounted stoplight
■LED Lights
The headlights (LED headlights), parking lights/daytime running lights\
(LED
headlights) side turn signal lights (if equipped), stop/tail lights (\
LED type), tail
lights (LED type), rear side marker lights (LED type) and high mounted stop-
light consist of a number of LEDs. If any of the LEDs burn out, take your vehi-
cle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.

606
RAV4_OM_OM0R012U_(U)
7-3. Do-it-yourself maintenance
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
● When replacing the back up light of the right side, be careful not to touch
the exhaust pipes until they have cooled down sufficiently, as touching hot
exhaust pipes can cause burns.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

607
RAV4_OM_OM0R012U_(U)
8When trouble arises
8-1. Essential informationEmergency flashers .......... 608
If your vehicle has to be stopped in an
emergency ...................... 609
8-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 611
If you think something is wrong ......... 617
Fuel pump shut off system ............................ 618
If a warning light turns on or a warning buzzer
sounds ............................ 619
If a warning message is displayed......................... 629
If you have a flat tire.......... 645
If the engine will not start ..................... 658
If the electronic key does not operate properly
(vehicles with
smart key system) ........... 660
If the vehicle battery is discharged ................... 662
If your vehicle overheats ... 666
If the vehicle becomes stuck ............................... 669

608
RAV4_OM_OM0R012U_(U)
8-1. Essential information
Emergency flashers
Press the switch.
All the turn signals will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is n\
ot run-
ning, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road to a breakdown, etc.

609
RAV4_OM_OM0R012U_(U)
8-1. Essential information
8
When trouble arises

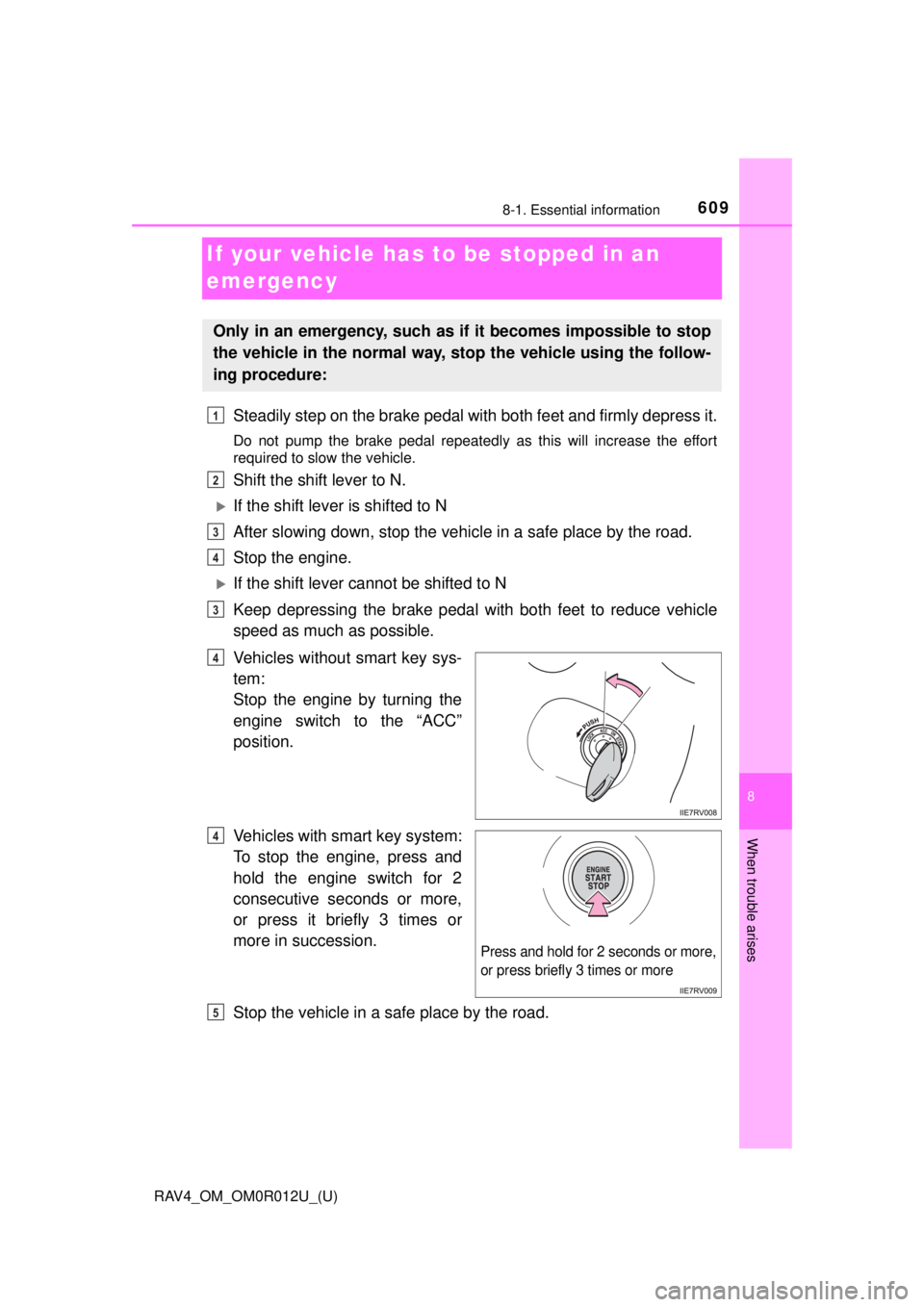

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without smart key sys-
tem:
Stop the engine by turning the
engine switch to the “ACC”
position.
Vehicles with smart key system:
To stop the engine, press and
hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
5

6108-1. Essential information
RAV4_OM_OM0R012U_(U)
WARNING
■If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
