display TOYOTA RAV4 2023 User Guide

832-1. Instrument cluster
2
Vehicle status information and indicators
The display of the speedometer can be selected from two types,
analog or digital. (P.98)
Analog speedometer
The units used on the meter and display may differ depending on the target
region.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Clock
Automatically adjusts the time by using the GPS time informatio n (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.85 if the actual quantity of fuel
remaining in the tank is not displayed correctly.

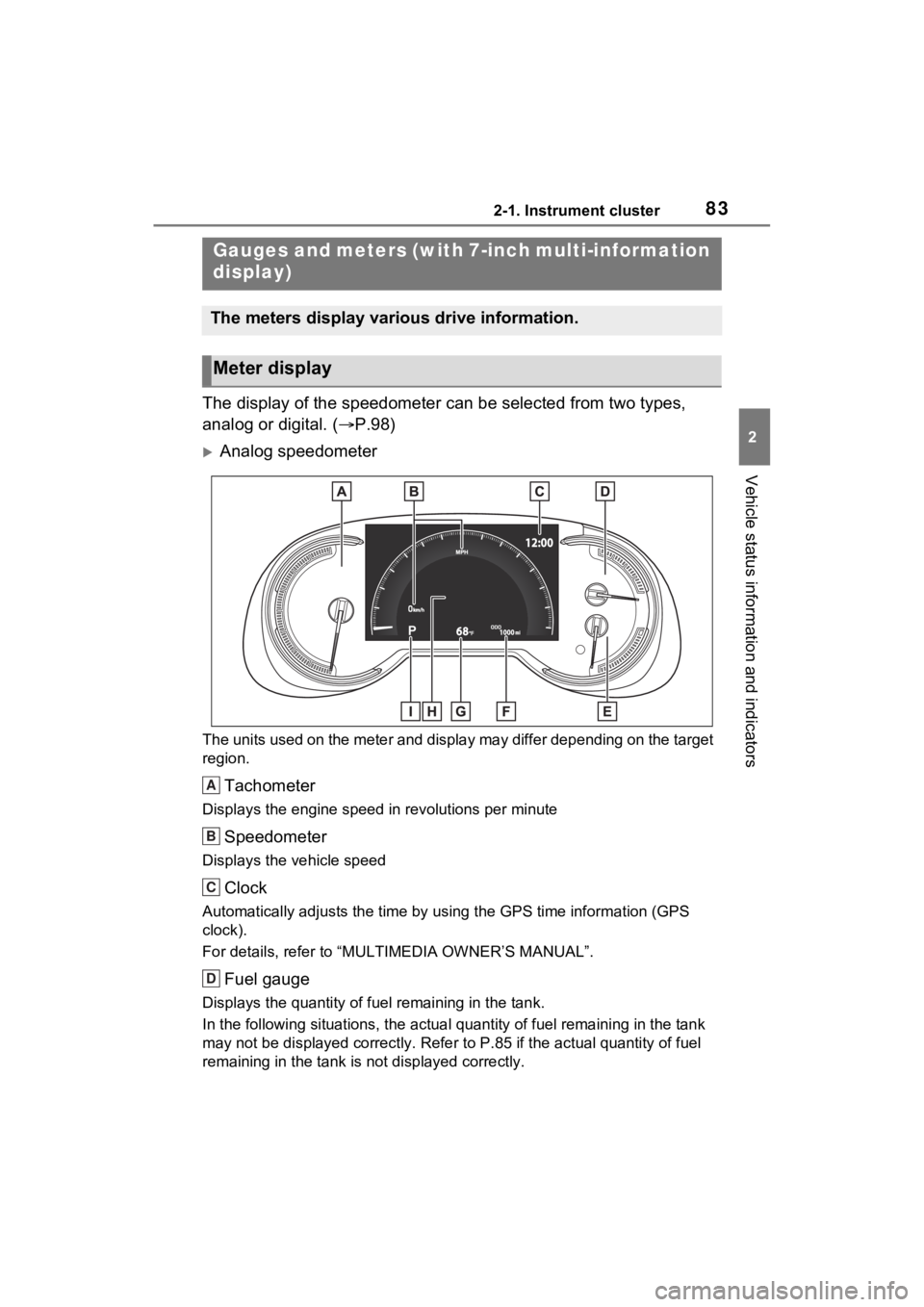

Gauges and meters (with 7-inch multi-information
display)
The meters display various drive information.
Meter display
A
B
C
D

842-1. Instrument cluster
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter
Odometer:
Displays the total distance th at the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” c an be used to record and display different
distances independently.
Outside temperature ( P.86)
Multi-information display
Presents the driver with a variety of driving-related data ( P.93)
Displays warning messages if a malfunction occurs (P.459)
Shift position and shift range indicator
Displays the selected shift posit ion or selected shift range (P.209)

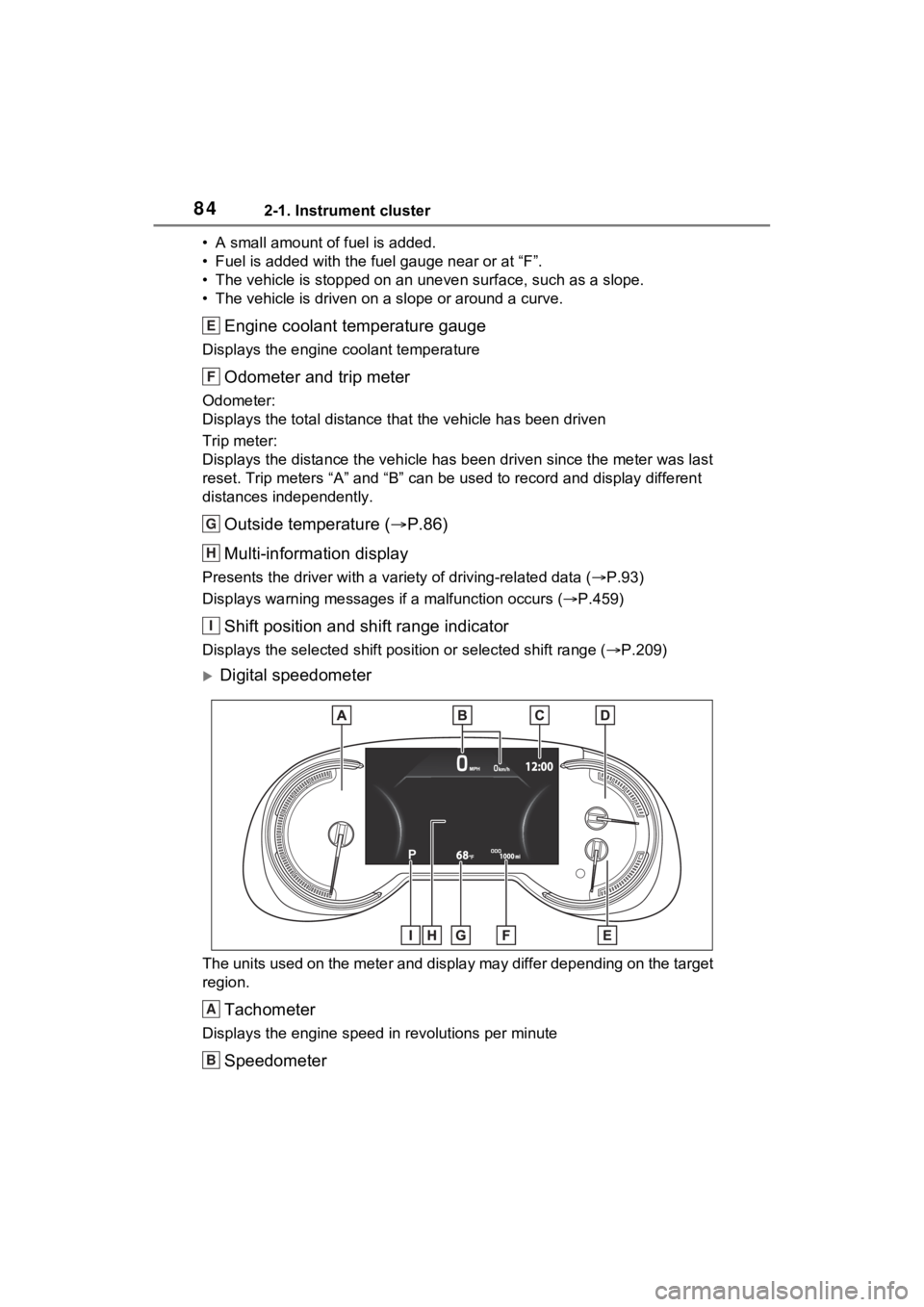

Digital speedometer
The units used on the meter and display may differ depending on the target
region.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
E
F
G
H
I
A
B

852-1. Instrument cluster
2
Vehicle status information and indicators
Displays the vehicle speed
Clock
Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.85 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopp ed on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter
Odometer:
Displays the total distance th at the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” c an be used to record and display different
distances independently.
Outside temperature ( P.86)
Multi-information display
Presents the driver with a variety of driving-related data ( P.93)
Displays warning messages if a malfunction occurs (P.459)
Shift position and shift range indicator
Displays the selected shift posit ion or selected shift range (P.209)
■The meters and display illumi-
nate when
The engine switch is in ON.
■When changing driving mode
●Speedometer color is changed fol-
lowing the select ed driving mode.
(  P.310)
●AWD models: Speedometer color
is changed following the selected driving mode or
Multi-terrain
Select mode. ( P.310, 312)
■Manually updating the fuel
gauge and possible driving
range
The fuel gauge and the possible
driving range are linked. If the dis-
plays of the fuel gauge and possible
driving range do n ot update after
adding a small amount of fuel, the
displays can be updated by per-
C
D
E
F
G
H
I

862-1. Instrument cluster
forming the following procedure.
1Stop the vehicle on a level sur-
face.
2 Press the “ODO TRIP” switch to
change the odometer and trip
meter display to odometer.
3 Turn the engine switch off.
4 While pressing and holding the
“ODO TRIP” switch, turn the
engine switch to ON.
5 Continue to hold the “ODO TRIP”
switch for approximately 5 sec-
onds, and then release it once
the odometer begins flashing.
Updating is complete once the
odometer flashes for approximately
5 seconds and th en the display
returns to normal.
■Outside temperature display
●In the following si tuations, the cor-
rect outside tempe rature may not
be displayed, or the display may
take longer than normal to
change.
• When stopped, or driving at low
speeds (less than 12 mph [20
km/h])
• When the outside temperature
has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)
●When “--” or “E” is displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.
●Displays the outside temperature
within the range of -40°F (-40°C)
to 122°F (50°C).
●When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator will flash
for approximately 10 seconds,
then stay on.
■Liquid crystal display
 P.94
■Customization
Settings (e. g. meter display) can be changed on the screen of the
multi-informat
ion display. (P.98)
Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before using the liquid
crystal information display. At
extremely low temperatures, the
display monitor may respond
slowly, and display changes may
be delayed.
For example, there is a lag
between the driver’s shifting and
the new gear number appearing
on the display. This lag could
cause the driver to downshift
again, causing rapid and exces-
sive engine braking and possibly
an accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
●Do not let the indicator needle
of the tachometer enter the red
zone, which indicates the maxi-
mum engine speed.
●The engine may be overheating
if the engine coolant tempera-
ture gauge is in the red zone
(“H”). In this case, immediately
stop the vehicle in a safe place,
and check the engine after it
has cooled completely.
(  P.480)
Using the “ODO TRIP”
switch

882-1. Instrument cluster
■Locations of gauges and meters
The meter type can be changed on of the multi-information dis-
play. ( P.107)

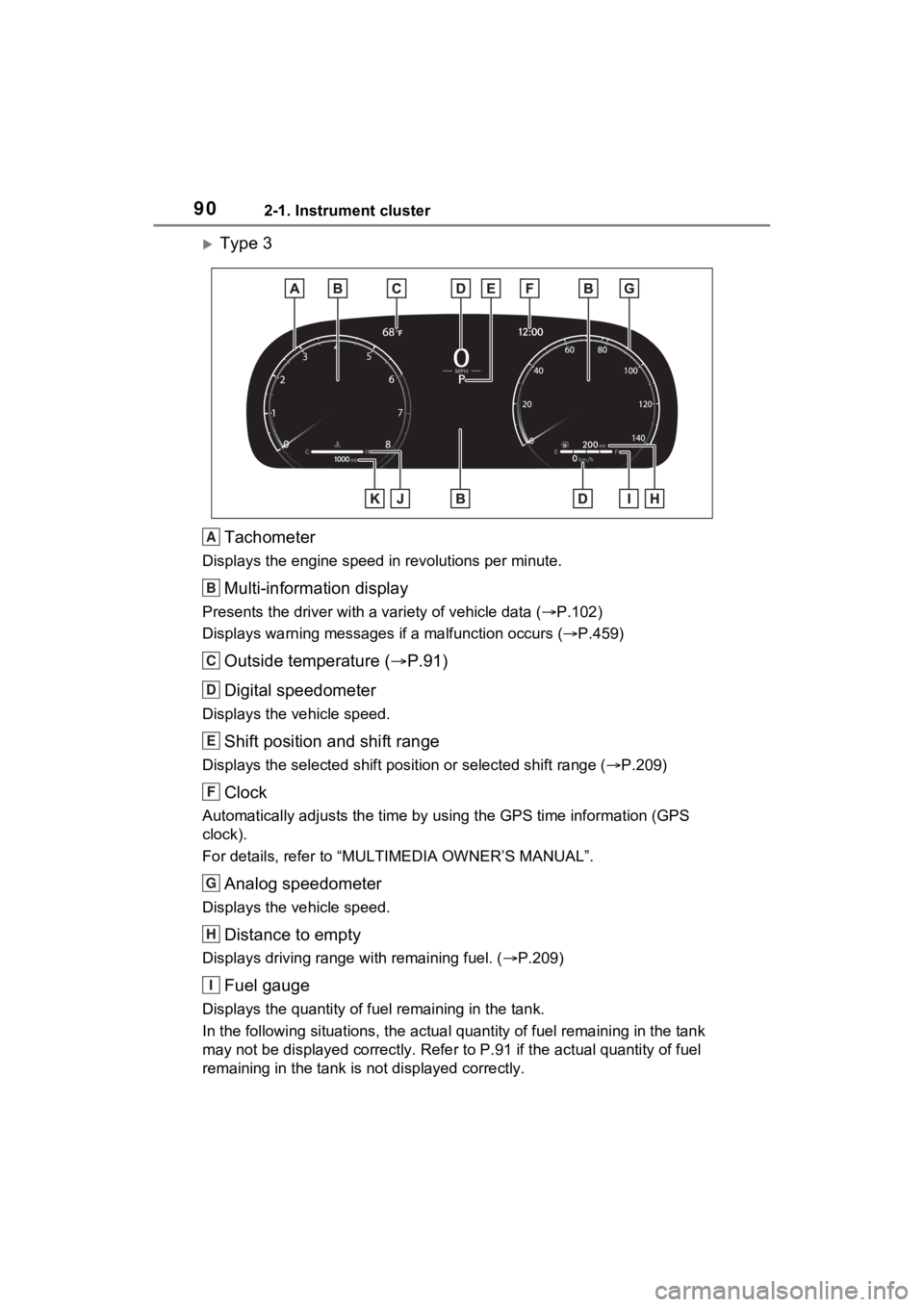

Type 1/Type 2
The units of measure may differ depending on the intended destination of
the vehicle.
Multi-information display
Presents the driver with a variety of vehicle data (P.102)
Displays warning messages if a malfunction occurs (P.459)
Outside temperature ( P.91)
Analog meter (Type 2 only)
The dial type of analog meter c an be changed on of the multi-i nforma-
tion display. ( P.111)
Tachometer:
Displays the engine speed in revolutions per minute.
Analog speedometer:
Displays the vehicle speed.

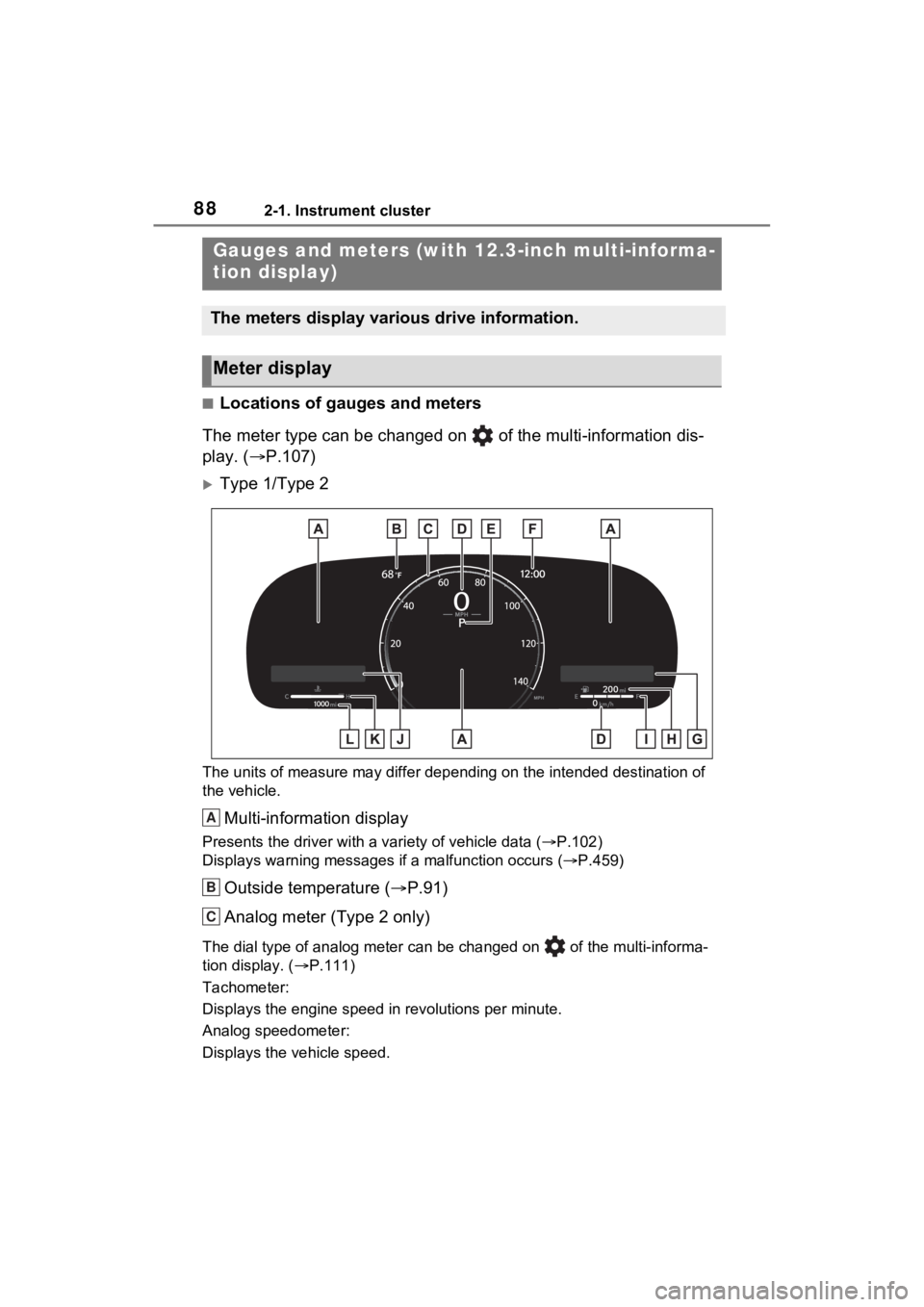

Gauges and meters (with 12.3-inch multi-informa-
tion display)
The meters display various drive information.
Meter display
A
B
C

892-1. Instrument cluster
2
Vehicle status information and indicators
Digital speedometer
Displays the vehicle speed
Shift position and shift range
Displays the selected shift position or selected shift range (P.209)
Clock
Automatically adjusts the time by using the GPS time informatio n (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Widget (Audio system-linked display)
Displays selection of an audio source or track on the meter. ( P.106)
If contents list is displayed on t he multi-information display, widget will not
be displayed. ( P.104)
Distance to empty
Displays driving range with remaining fuel. ( P.91)
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.91 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopp ed on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Widget (Fuel Economy)
Displays fuel economy information. ( P.105)
If contents list is displayed on t he multi-information display, widget will not
be displayed. ( P.104)
Engine coolant temperature gauge
Displays the engine c oolant temperature
Odometer and trip meter display ( P.92)
D
E
F
G
H
I
J
K
L

902-1. Instrument cluster
Type 3Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of vehicle data (P.102)
Displays warning messages if a malfunction occurs (P.459)
Outside temperature ( P.91)
Digital speedometer
Displays the vehicle speed.
Shift position and shift range
Displays the selected shift posit ion or selected shift range (P.209)
Clock
Automatically adjusts the time by using the GPS time informatio n (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Analog speedometer
Displays the vehicle speed.
Distance to empty
Displays driving range with remaining fuel. ( P.209)
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.91 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
A
B
C
D
E
F
G
H
I

912-1. Instrument cluster
2
Vehicle status information and indicators
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter display ( P.92)
■The meters and display illumi-
nate when
The engine switch is in ON.
■Distance to empty
●This distance is computed based
on your averag e fuel consump-
tion. As a result, the actual dis-
tance that can be driven may
differ from tha t displayed.
●When only a small amount of fuel
is added to the tank, the display
may not be updated. When refuel-
ing, turn the engine switch off. If
the vehicle is refueled without
turning the engi ne switch off, the
display may not be updated.
●When “Refuel” is displayed, the
remaining fuel amount is low and
the distance that can be driven
with the remaining fuel cannot be
calculated. Refuel immediately.
■Manually updating the fuel
gauge and possible driving
range
The fuel gauge and the possible
driving range are linked. If the dis-
plays of the fuel gauge and possible
driving range do not update after
adding a small amount of fuel, the
displays can be u pdated by per-
forming the following procedure.
1 Stop the vehicle on a level sur-
face.
2 Press the “ODO TRIP” switch to
change the odometer and trip
meter display to odometer.
3 Turn the engine switch off. 4
While pressing and holding the
“ODO TRIP” switch, turn the
engine switch to ON.
5 Continue to hold the “ODO TRIP”
switch for appro ximately 5 sec-
onds, and then release it once
the odometer begins flashing.
Updating is complete once the
odometer flashes for approximately
5 seconds and then the display
returns to normal.
■Outside temperature display
●Displays the outsi de temperature
within the range of -40°F (-40°C)
to 122°F (50°C).
●When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator will flash
for approximately 10 seconds,
then stay on.
●In the following sit uations, the cor-
rect outside temperature may not
be displayed, or the display may
take longer than normal to
change:
• When stopped, or driving at low
speeds (less than 12 mph [20
km/h])
• When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)
●When “--” or “E” i s displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.
J
K

922-1. Instrument cluster
■Free/Open Source Software
Information
This product contains Free/Open
Source Software (FOSS). The
license information and/or the
source code of such FOSS can be
found at the following URL.
https://www.denso.com/global/en/
opens ource/meter/toyota/
■Liquid crystal display
 P.103
■Customization
The gauges and meters can be cus-
tomized on of the multi-informa-
tion display. ( P.509)
■Display items
 Odometer
Displays the total distance the vehi-
cle has been driven.
 Trip meter A/trip meter B
Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.
■Changing the display
Each time the “ODO TRIP”
switch is pressed, the displayed
item will be changed.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before u sing the liquid
crystal informat ion display. At
extremely low temperatures, the
information display monitor may
respond slowly, and display
changes may be delayed.
For example, there is a lag
between the driver’s shifting and
the new gear number appearing
on the display. This lag could
cause the driver to downshift
again, causing rapid and exces-
sive engine braking and possibly
an accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
●Do not let the i ndicator needle
of the tachomete r enter the red
zone, which indicates the maxi-
mum engine speed.
●The engine may be overheating
if the engine coolant tempera-
ture gauge is in the red zone
(H). In this case, immediately
stop the vehicle in a safe place,
and check the engine after it
has cooled completely.
(  P.480)
Odometer and trip meter
display

932-1. Instrument cluster
2
Vehicle status information and indicators
The brightness of the instrument
panel lights can be adjusted.
1Brighter
2 Darker
■Brightness of the meter lights
(day mode and night mode)
The brightness of the meter lights
can be adjusted individually.
In the following situations, the
meters changes between day mode
and night mode.
●Day mode: When the tail lights are
off or when the tail lights are on
but the surrounding area is bright
●Night mode: When the tail lights
are on and the surrounding area is
dark
Following information is dis-
played on the multi-information
display.
Driving support system infor-
mation
Displays recognized signs while the
RSA system (if equipped) is operat-
ing. ( P.261)
Displays an image when the follow-
ing systems are operating and a
menu icon other than is
selected:
• LTA (Lane Tracing Assist) ( P.250)
• Dynamic radar cruise control with
Changing the instrument
panel light brightnessMulti-information dis-
play (with 7-inch multi-
information display)
The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.
Display contents
A
