4817-2. Steps to take in an emergency
7
When trouble arises
3After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radi-
ator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.
4The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be us ed in an emer-
gency if coolant is unavailable.
If water was added in an emer-
gency, have the vehicle inspected at your Toyota dealer as soon as
possible.
6
Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.
The fan operates when the air con-
ditioning system is turned on imme-
diately after a cold start. Confirm
that the fan is operating by check-
ing the fan sound and air flow. If it is
difficult to check th ese, turn the air
conditioning system on and off
repeatedly. (The fa n may not oper-
ate in freezing temperatures.)
7 If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.
8 Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual”
is shown on the multi-infor-
mation display.
If the message does not disappear:
Stop the engine and contact your
Toyota dealer.
If the message is not displayed:
Have the vehicle inspected at the
A
B
A
B
C

4827-2. Steps to take in an emergency
nearest Toyota dealer.
1Stop the engine. Set the
parking brake and shift the
shift lever to P.
2 Remove the mud, snow or
sand from around the stuck
tire.
3 Place wood, stones or some
other material to help provide
traction under the tires.
4 Restart the engine.
5 Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.
■When it is difficult to free the
vehicle
Press to turn off TRAC.
(  P.320)
WARNING
■When inspecting under the
hood of your vehicle
Observe the following precau-
tions.
Failure to do so may result in seri-
ous injury such as burns.
●If steam is seen coming from
under the hood, do not open the
hood until the steam has sub-
sided. The engine compart-
ment may be very hot.
●Keep hands and clothing (espe-
cially a tie, a scarf or a muffler)
away from the fan and belts.
Failure to do so m ay cause the
hands or clothing to be caught,
resulting in serious injury.
●Do not loosen the coolant reser-
voir cap while the engine and
radiator are hot. High tempera-
ture steam or coolant could
spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the
engine has cooled down suffi-
ciently. Adding cool coolant to a
hot engine too quickly can cause
damage to the engine.
■To prevent damage to the
cooling system
Observe the following precau-
tions:
●Avoid contaminating the coolant
with foreign matter (such as
sand or dust etc.).
●Do not use any coolant additive.
If the vehicle becomes
stuck
Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:
Recovering procedure

5138-2. Customization
8
Vehicle specifications
*1: For details about each function: P.107
*2: The default setting varies according to country.
*3: The on/off operation of the widget can be changed.
*4: The setting may not be changed depending on currently selected meter
type.
Eco Driving IndicatorOnOff–O–
Fuel Economy
The average
fuel economy after startingThe average
fuel economy
since the func- tion was reset
–O–
Drive informatio n items (first
item)Distance
Average Speed
–O–
Total Time
Drive information items (sec-
ond item)Total Time
Average Speed
–O–
Distance
TRIP A information itemsDistance
Average Speed
–O–
Total time
TRIP B information itemsAverage SpeedDistance–O–Total time
Pop-up displayOnOff–O–
Convenience Services (Sug-
gestion function)On
On (when the vehicle is stopped)
O–O
Off
Function*1Default settingCustomized settingABC

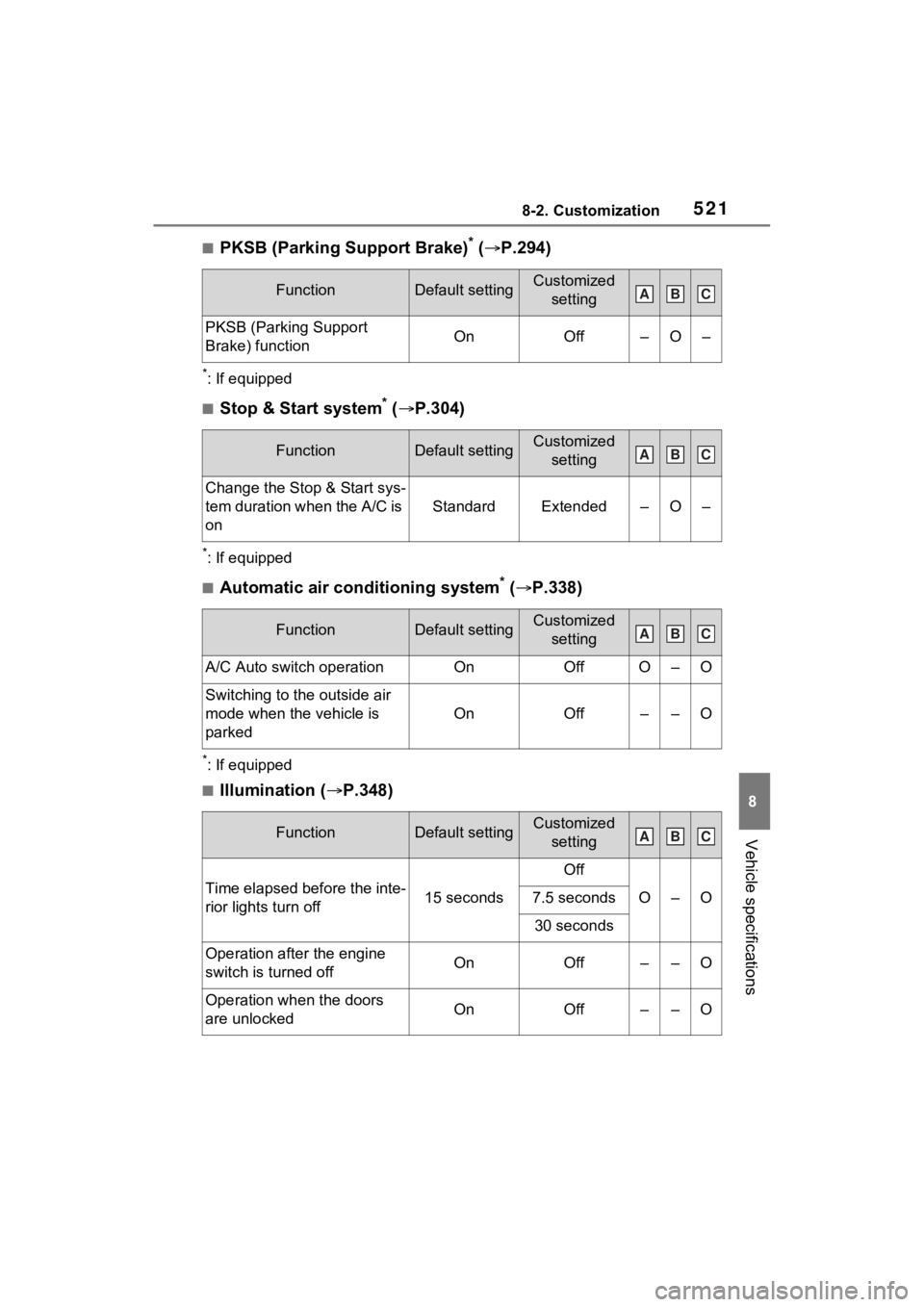

5218-2. Customization
8
Vehicle specifications
■PKSB (Parking Support Brake)* ( P.294)
*: If equipped
■Stop & Start system* ( P.304)
*: If equipped
■Automatic air conditioning system* ( P.338)
*: If equipped
■Illumination ( P.348)
FunctionDefault settingCustomized
setting
PKSB (Parking Support
Brake) functionOnOff–O–
FunctionDefault settingCustomized setting
Change the Stop & Start sys-
tem duration when the A/C is
on
StandardExtended–O–
FunctionDefault settingCustomized setting
A/C Auto switch operationOnOffO–O
Switching to t he outside air
mode when the vehicle is
parked
OnOff––O
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff––O
Operation when the doors
are unlockedOnOff––O
ABC
ABC
ABC
ABC

541What to do if... (Troubleshooting)
switch while firmly depress-
ing the brake pedal?
(P.204)
 Is the shift lever in P?
( P.204)
 Is the electronic key any-
where detectable inside the
vehicle? ( P.140)
 Is the electronic key battery
weak or depleted?
In this case, the engine can
be started in a temporary
way. ( P.475)
 Is the battery discharged?
( P.476)
 Is the engine switch in ON?
If you cannot release the shift
lever by depressing the brake
pedal with the engine switch
in ON ( P.210)
 It is locked to prevent theft of
the vehicle if the key is
removed from the engine
switch. ( P.203) 
Is the window lock switch
pressed?
The power window except for
the one at the driver’s seat
cannot be operated if the win-
dow lock switch is pressed.
( P.169)
 The auto power off function
will be operated if the vehicle
is left in ACC or ON (the
engine is not running) for a
period of time. ( P.207)
 The seat belt reminder light is
flashing
Are the driver and the passengers
wearing the seat belts? ( 
P.455,
456
)
 The parking brake indicator is
on
Is the parking br ake released?
( 
P.213)
Depending on the situation,
other types of warning buzzer
may also sound. ( P.449, 459)
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The steering wheel can-
not be turned after the
engine is stopped (vehi-
cles without smart key
system)
The windows do not open
or close by operating the
power window switches
The engine switch is
turned off automatically
(vehicles with smart key
system)
A warning buzzer sounds
during driving

542What to do if... (Troubleshooting)
Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.71)
To stop the alarm, turn the engine
switch to ON or start the engine.
 Is the message displayed on
the multi-information display?
Check the message on the
multi-information display.
( P.459)
 When a warning light turns on
or a warning message is dis-
played, refer to P.449, 459.
 Stop the vehicle in a safe
place and replace the flat tire
with the spare tire. ( P.463)
Try the procedure for when
the vehicle becomes stuck in
mud, dirt, or snow. ( P.482)
An alarm is activated and
the horn sounds (if
equipped)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on
or a warning message is
displayed
When a problem has
occurred
If you have a flat tire
The vehicle becomes
stuck

546Alphabetical Index
Dynamic radar cruise control with full-speed rangeFunction ............................... 264
Warning message ................ 459
Dynamic Torque Control AWD system ................................... 319
Dynamic Torque Vectoring AWD system ................................... 319
E
Eco drive mode ...................... 310
Eco Driving Indicator ....... 96, 105
Eco Driving Indicator Light ... 96, 105
EDR (Event data recorder)......... 8
Elapsed time ............................. 97
Electric Power Steering (EPS) Function ............................... 319
Warning light ........................ 451
Electronic key Battery-saving function......... 141
If the electronic key does not operate properly ................. 474
Replacing the battery ........... 425
Electronic sunshade .............. 173 Jam protection function ........ 174
Operation ............................. 173
Emergency, in case of If a warning buzzer sounds .. 449
If a warning light turns on ..... 449
If a warning message is dis-played................................. 459
If the electronic key does not operate properly ................. 474
If the engin e will not start ..... 472
If the vehicle battery is dis- charged .............................. 476
If the vehicle is submerged or water on the road is rising .. 441
If you have a flat tire ............. 463
If you lose your keys ............ 474
If you think something is wrong ...........................................447
If your vehicle becomes stuck ...........................................482
If your vehicle has to be stopped in an emergency .................440
If your vehicle needs to be towed ...........................................443
If your vehicle ove rheats ......480
Emergency flashers ...............440
Engine Compartment........................398
Engine switch ...............203, 204
Fuel pump shut off system ...448
Hood .....................................395
How to start the engine 203, 204
Identification number ............487
If the engine will not start......472
If your vehicle has to be stopped in an emergency .................440
Ignition switch (Engine switch) ...................................203, 204
Overheating ..........................480
Tachometer ......................83, 88
Engine coolant Capacity ...............................489
Checking ..............................400
Preparing and checking before winter ..................................325
Warning light ........................450
Engine coolant temperature ..83, 88
Engine immobilizer system .....70
Engine oil Capacity ...............................488
Checking ..............................398
Preparing and checking before winter ..................................325
Warning light ........................450
Engine switch .................203, 204 Auto power off fun ction.........207
Changing the engine switch modes.................................207

548Alphabetical Index
Head restraints ....................... 150
Heated steering wheel ........... 345
HeatersAutomatic air conditioning sys-tem ..................................... 338
Heated steering wheel ......... 345
Manual air conditioning system ........................................... 332
Outside rear view mirrors ... 333, 340
Seat heaters ......................... 345
High mounted stoplight Replacing light bulbs ............ 432
Hill-start assist control .......... 319
Hood ........................................ 395
Hooks Cargo hooks ......................... 354
Coat hooks ........................... 370
Retaining hooks (floor mat) .... 26
Horn ......................................... 153
I
I/M test ..................................... 391
Identification number Engine .................................. 487
Vehicle ................................. 487
Ignition switch (Engine switch) ....................................... 203, 204Auto power off function ........ 207
Changing the engine switch modes ................................ 207
Changing the engine switch positions ............................. 203
If your vehicle has to be stopped in an emergency................. 440
Starting the engine ....... 203, 204
Immobilizer system .................. 70
Indicators .................................. 76
Initialization Items to initialize................... 523
Maintenance......................... 388 Moon roof .............................171
Panoramic moon r
oof ...........174
Parking Support Brake .........298
Power back door ..................134
Power windows ....................167
Tire pressure warning system ...................................410, 411
Inside rear view m irror ...154, 156
Instrument panel light control87, 93
Interior lights...........................348 Switch ...................................349
Intuitive parking assist Function................................280
Warning message . ...............283
J
Jack
Positioning a floor jack .........396
Vehicle-equipped jack ..........464
Jack handle .............................464
Jam protection function Electronic sunshade .............174
Moon roof .............................170
Panoramic moon r oof ...........174
Power back door ..................132
Power windows ....................167
K
Keyless entry Smart key system .................139
Wireless remote control........116
Keys .........................................114 Battery-saving function .........141
Electronic key .......................114
Engine switch ...............203, 204
If the electronic key does not operate properly .................474
If you lose your keys.............474
Key number plate .................114

Alphabetical Index553
Side auxiliary box ................... 356
Side doors ............................... 119
Side marker lightsLight switch .......................... 219
Replacing light bulbs ............ 432
Wattage ................................ 496
Side mirrors ............................ 165 Adjustment ........................... 165
BSM (Blind Spot Monitor)..... 275
Folding ................................. 166
Heaters......................... 333, 340
RCTA (Rear Cross Traffic Alert) function............................... 289
Side turn signal lights Replacing light bulbs ............ 432
Turn signal lever................... 212
Side windows ...... ................... 167
Smart key system ................... 139 Antenna location .................. 139
Entry functions ............. 119, 127
Starting the engine ............... 204
Warning message ................ 459
Snow mode switch ................. 315
Snow tires ............................... 325
Spare tire Storage location ................... 464
Spark plug ............................... 490
Specifications ......................... 486
Speedometer ...................... 83, 88
Sport mode ............................. 310
Steering lock Column lock release............. 203
Steering wheel Adjustment ........................... 153
Heated steering wheel ......... 345
Meter control switches ... 94, 103
Stop lights Replacing light bulbs ............ 432
Stop & Start system Function ............................... 304
Replacing the battery ........... 478
Storage feature ....................... 350 Storage precaution
s ...............350
Stuck If the vehicle becomes stuck 482
Sunglass holder.... ..................352
Sunshade ........................170, 173
Sun visors ...............................359
Switches “ODO TRIP” switch ...........86, 92
“SOS” button ..........................65
Automatic High Beam switch 222
Brake hold switch .................217
Digital Rear-view Mirror control switches..............................156
Door lock switch ...................123
Driving mode select switch ...310
Driving position memory switches..............................147
Dynamic radar cruise control with full-speed range ..........264
Electronic sunshade switch ..173
Emergency flashers switch...440
Engine switch ...............203, 204
Fog light switch .....................226
Garage door opener switches ...........................................370
Heated steering wheel..........346
Ignition switch (Engine switch) ...................................203, 204
Instrument panel light control switches..........................87, 93
Light switch...........................219
LTA switch ............................255
Meter control switches....94, 103
Moon roof switches ..............170
Outside rear v iew mirror
switches..............................165
Panoramic moon roof switches ...........................................173
Parking brake switch ............213
Power back door switch129, 130
Power door lock switch.........123
Power window switch ...........167

554Alphabetical Index
Rear window and outside rear view mirror defoggers switch................................... 333, 340
Rear window wipe r and washer
switch ................................. 229
Seat heater switches .... 346, 347
Seat ventilator switches ....... 347
Snow mode switch ............... 315
Stop & Start cancel switch ... 305
Tire pressure warning reset switch ......................... 410, 411
Vehicle-to-vehicle distance switch ................................. 264
VSC OFF switch................... 320
Window lock switch .............. 169
Windshield defogger switch 333, 340
Windshield wipers and washer switch ................................. 226
Wireless charger switch ....... 362
T
Tachometer ......................... 83, 88
Tail lights Light switch .......................... 219
Replacing light bulbs ............ 432
Theft deterrent system Alarm ...................................... 71
Engine immobilizer system .... 70
Tire inflati on pressure
Maintenance data................. 492
Tire inflation pressure display function............................... 408
Warning light ........................ 455
Tire information ...................... 499 Glossary ............................... 503
Size ...................................... 501
Tire identification number ..... 500
Tire section names ............... 501
Tire pressure warning system Function ............................... 408
Initializing ............................. 410 Installing tire p
ressure warning
valves and transmitters ......409
Registering ID codes ............413
Warning light ........................455
Tires .........................................405 Chains ..................................327
Checking ..............................405
Glossary ...............................503
If you have a flat tire .............463
Inflation pressure ..................416
Information ......... ..................499
Replacing .............................463
Rotating tires ........................407
Size ......................................492
Snow tires.............................325
Spare tire ..............................463
Tire identification number .....500
Tire inflation pressure display function ...............................408
Tire pressure warning system ...........................................408
Uniform Tire Qua lity Grading 502
Warning light ........................455
Tools ........................................464
Top tether strap ........................61
Total load capacity .........185, 188
Towing Dinghy towing .......................201
Emergency towing ................445
Towing eyelet ...............445, 464
Trailer sway control ..............319
Trailer towing ........................189
Toyota Safety Sense 2.5 ........234 Automatic High Be am ...........222
Dynamic radar cruise control with full-speed range ..........264
LTA (Lane Traci ng Assist) ....250
PCS (Pre-Collisio n System) .239
RSA (Road Sign Assist) .......261
TRAC (Traction Control) ........319
Traction Control (TRAC) ........319
Trailer sway contro l................319
