TOYOTA RAV4 EV 2014 1.G Quick Reference Guide

OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29
In the unlikely event that the electrical leakage detection function is not
operating properly, contact your Toyota dealer as soon as possible.
Check that it is operating properly by following the procedure below.
Step 1 Insert the charging cable into the electrical receptacle of the external
power source.
Step 2 Press the test button on the CCID (Charging Circuit Interrupting Device).
If the error warning indicator
illuminates when the test button
is pressed, the function is
operating correctly.
Step 3 Press the reset button on the CCID (Charging Circuit Interrupting Device).
Turn off the error warning indicator. Charging cannot be carried out while the
error warning indicator is illuminated.
Charging can be continued by following the normal procedure. Store the charging
cable when not in use.
See the Owner’s Manual for important precautionary information.
Inspecting electrical leakage
detection function

30
Parking brake
FEATURES/OPERATIONS
Transmission
*

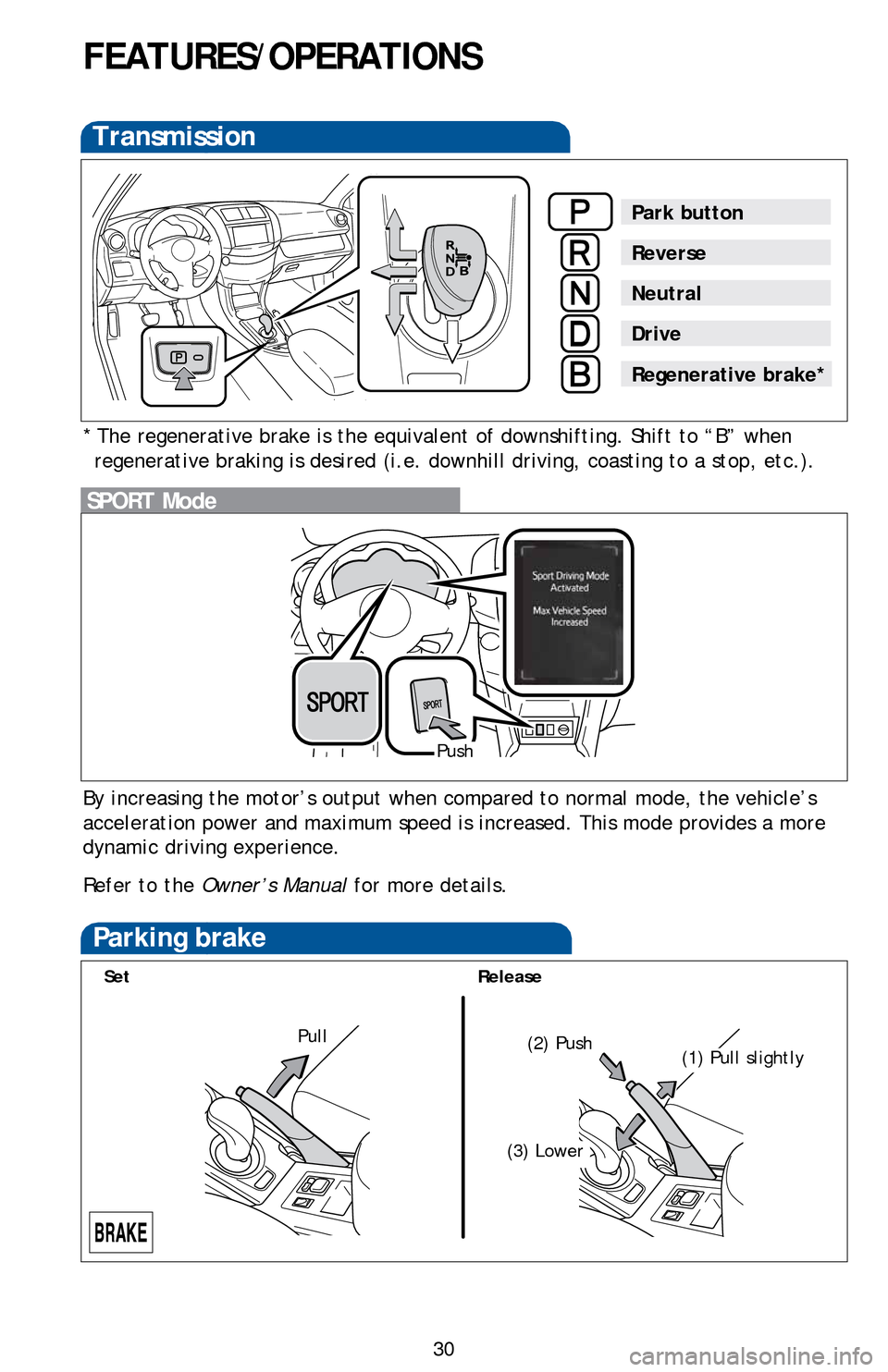

The regenerative brake is the equivalent of downshifting. Shift to “B” when
regenerative braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park button
Reverse
Neutral
Drive
Regenerative brake*
SPORT Mode
By increasing the motor’s output when compared to normal mode, the vehicle’s
acceleration power and maximum speed is increased. This mode provides a more
dynamic driving experience.
Refer to the Owner’s Manual for more details.
Push
Pull
(2) Push(1) Pull slightly
(3) Lower
Set Release

OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
31

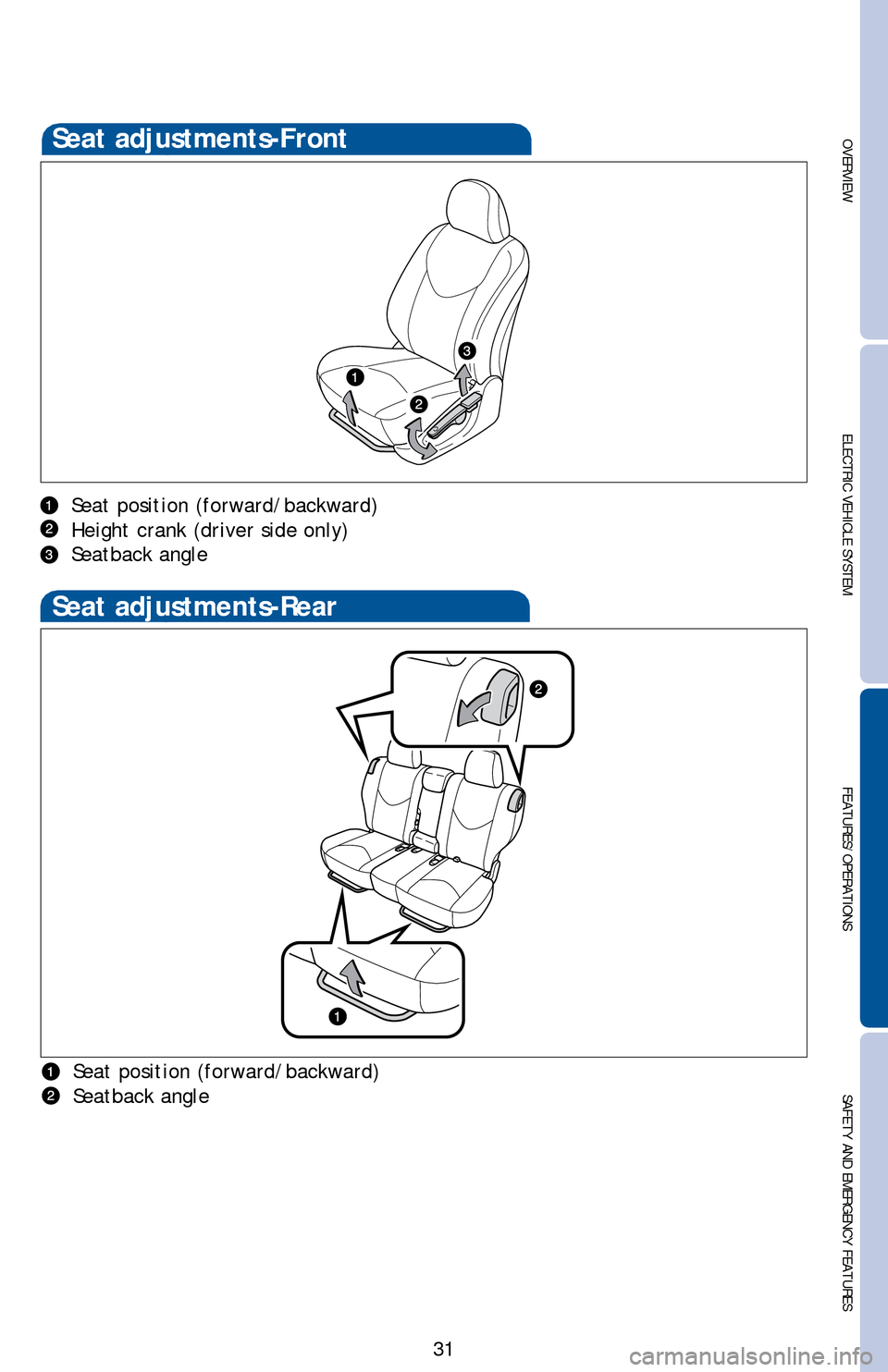

Seat adjustments-Rear
Seat position (forward/backward)
Seatback angle
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat adjustments-Front

32
FEATURES/OPERATIONS
(2) Lower(3) Pull down
From inside
(1) Push
Seats-Folding down rear seats
(1) Push(2) Pull up
From outside
Seats-Head restraints
Front seatsRear seats
Lock release buttonLock release button

OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
33
Lights & turn signals
Turn signals
Headlights
Low beam
-Daytime Running Light system (DRL)
Automatically turns on the Daytime Running Lights after EV System is started
and parking brake released.
-Automatic light cut off system Automatically turns lights off after a delay of 30
seconds, or the lock switch on remote may be pushed after locking.
High beam flasher
High beam
Right turn
Lane change
Lane change
Left turn Headlights
Parking lights
Auto
DRL OFF

34
FEATURES/OPERATIONS
Windows-Power
Driver side
Automatic operation (driver side only) Push the switch completely down or pull
it completely up and release to fully open or close. To stop the window partway,
operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Up
Down
Window lock switch

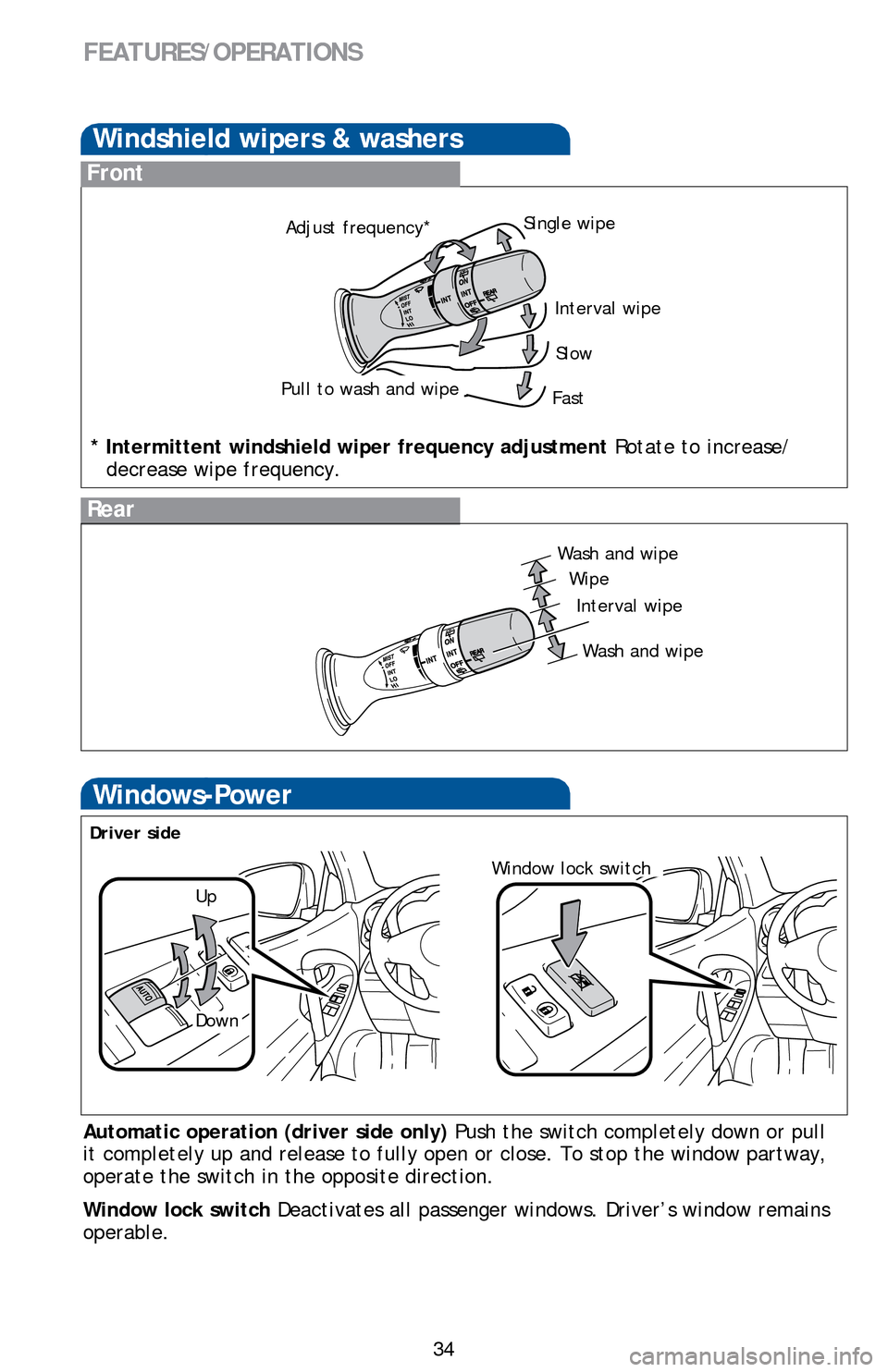

Windshield wipers & washers
Rear
Front
Pull to wash and wipeAdjust frequency*
Interval wipe
Slow
Fast
Wash and wipe
Wipe
Interval wipe
Wash and wipe Single wipe
* Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.

OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
35
Door locks
Unlock
Lock
Light control-Instrument panel
With the dial turned fully up, instrument panel lights will not dim when the
headlights are turned ON.
Brightness
control
+
-

36

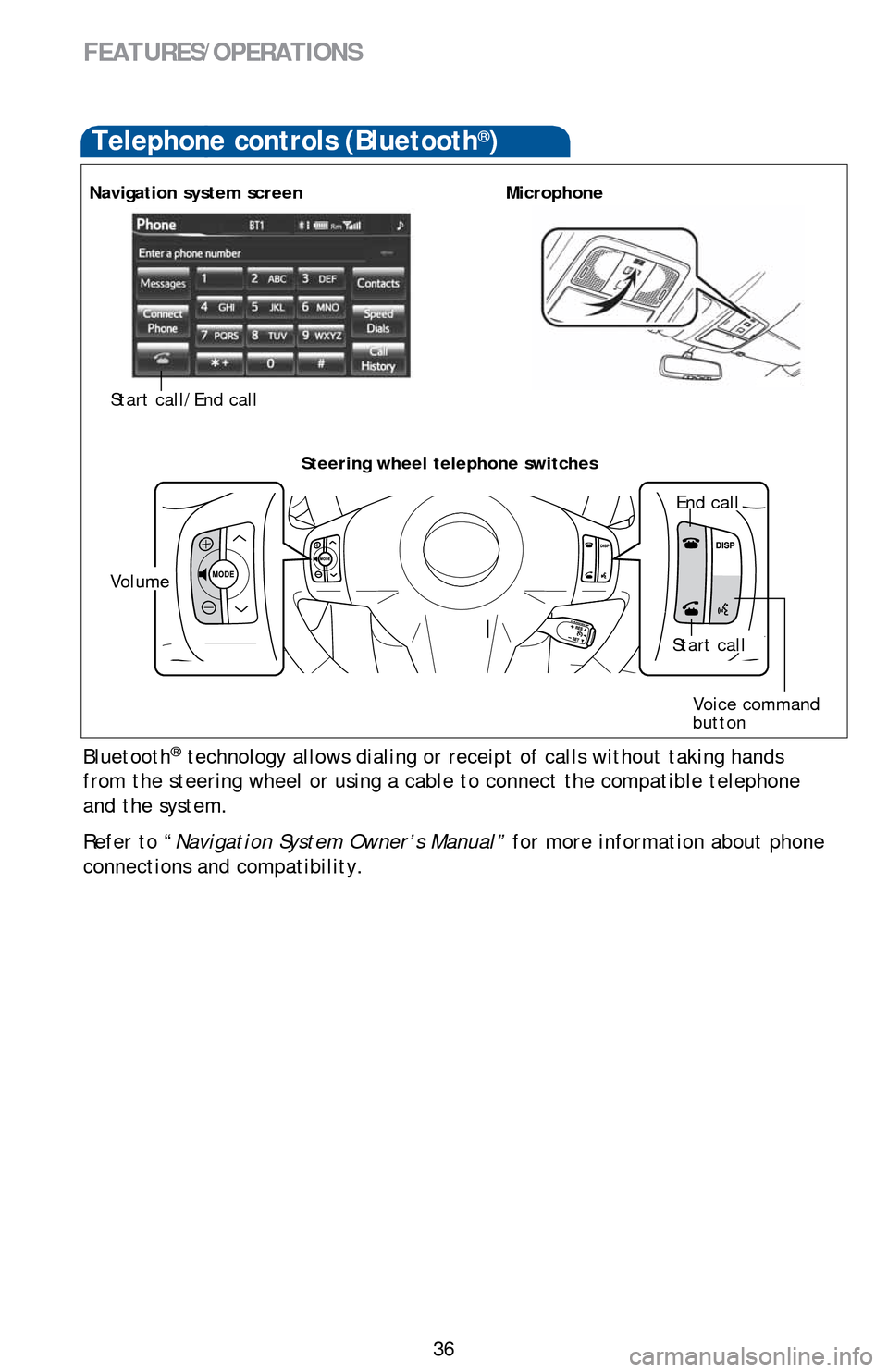

Bluetooth® technology allows dialing or receipt of calls without taking hands
from the steering wheel or using a cable to connect the compatible telephone
and the system.
Refer to “Navigation System Owner’s Manual” for more information about phone
connections and compatibility.
Navigation system screen
Volume
Start call/End call
FEATURES/OPERATIONS
Voice command
button
End call
Start call
Telephone controls (Bluetooth®)
Steering wheel telephone switches
Microphone

OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
37

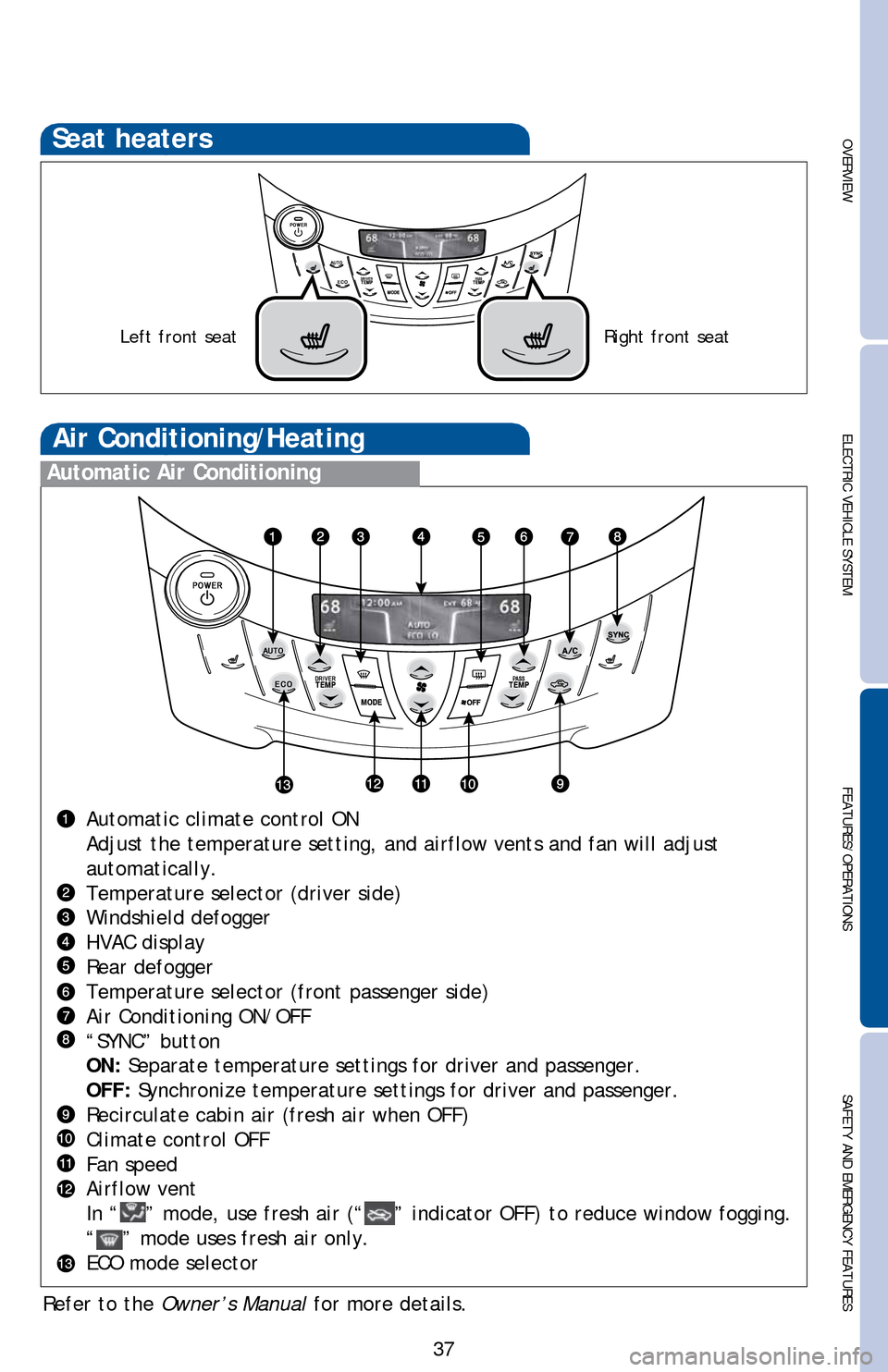

Seat heaters
Air Conditioning/Heating
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Temperature selector (driver side)
Windshield defogger
HVAC display
Rear defogger
Temperature selector (front passenger side)
Air Conditioning ON/OFF
“SYNC” button
ON: Separate temperature settings for driver and passenger.
OFF: Synchronize temperature settings for driver and passenger.
Recirculate cabin air (fresh air when OFF)
Climate control OFF
Fan speed
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window fogging.
“
” mode uses fresh air only.
ECO mode selector
Automatic Air Conditioning
Left front seatRight front seat
Refer to the Owner’s Manual for more details.

38
FEATURES/OPERATIONS
Clock
The time settings can be changed on the navigation system.
Refer to the Navigation System Owner’s Manual for more details.
Screen operations
Navigation System
Touch
Changing and selecting various settings.
Double tap
Changing the map scale.
Drag
Moving around the map, adjusting audio
volume, etc.
Flick
Moving around the map, skipping to the
next page of a list, etc.
