TOYOTA RAV4 HYBRID 2020 (in English) Owner's Manual

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

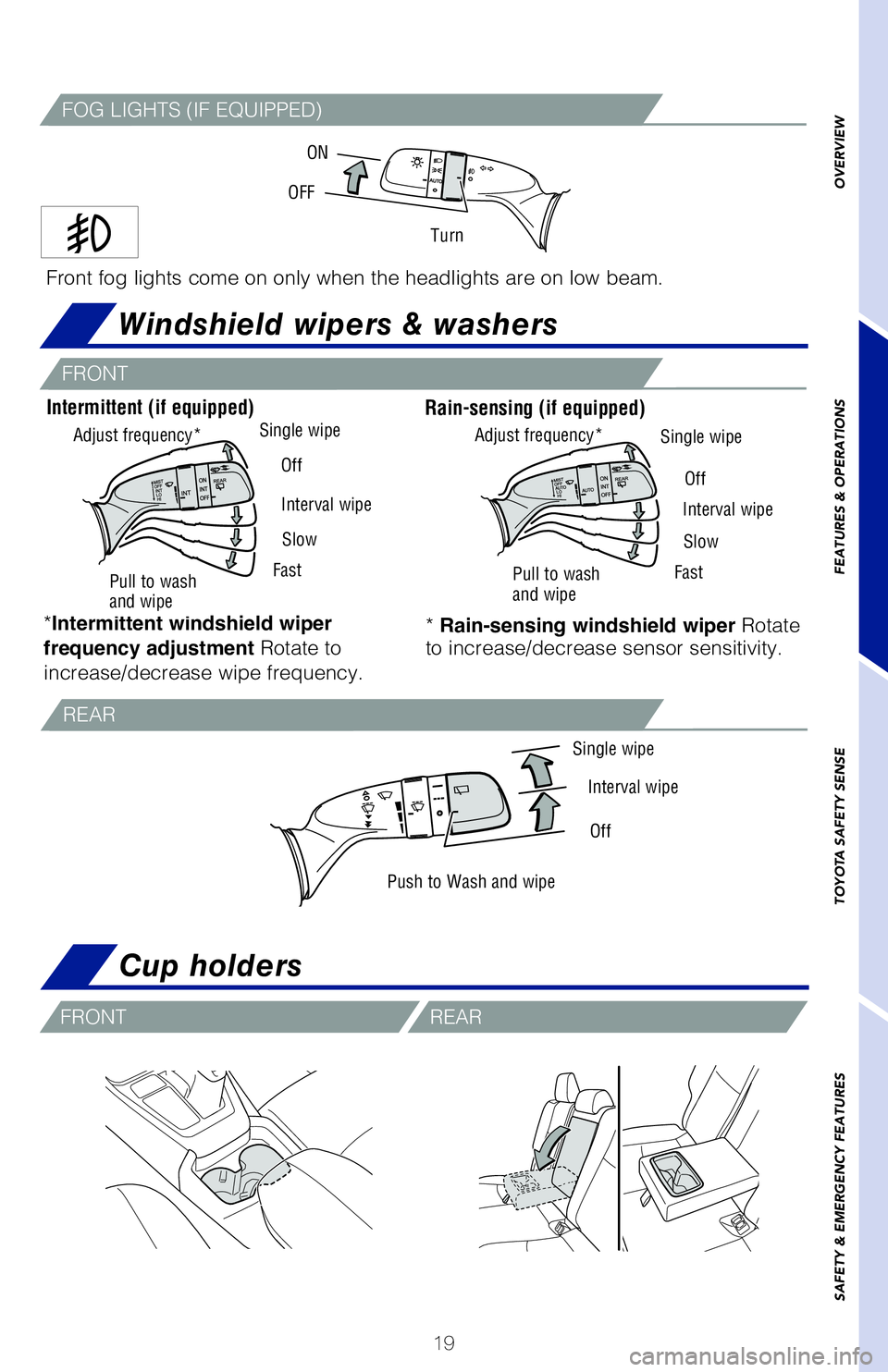

Windshield wipers & washers
Front fog lights come on only when the headlights are on low beam.
Turn
OFF
ON
FRONT
*Intermittent windshield wiper
frequency adjustment Rotate to
increase/decrease wipe frequency. *
Rain-sensing windshield wiper Rotate
to increase/decrease sensor sensitivity.
Intermittent (if equipped)
Adjust frequency*
Adjust frequency*Single wipeSingle wipe
Interval wipeInterval wipe
Slow Slow
FastFastPull to wash
and wipePull to wash
and wipe
Off
Off
Rain-sensing (if equipped)
REAR
Single wipe
Interval wipe
Off
Push to Wash and wipe
'0(-*()54 *'&26*11&%

Cup holders
FRONT REAR

20
FEATURES & OPERATIONS
Moonroof (if equipped)
Recommended driving position to
minimize wind noise.
Push once to open partway; again
to open completely.
SLIDING OPERATION
TILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway.
Push once to open completely.
Tilt
Close
Open
Close

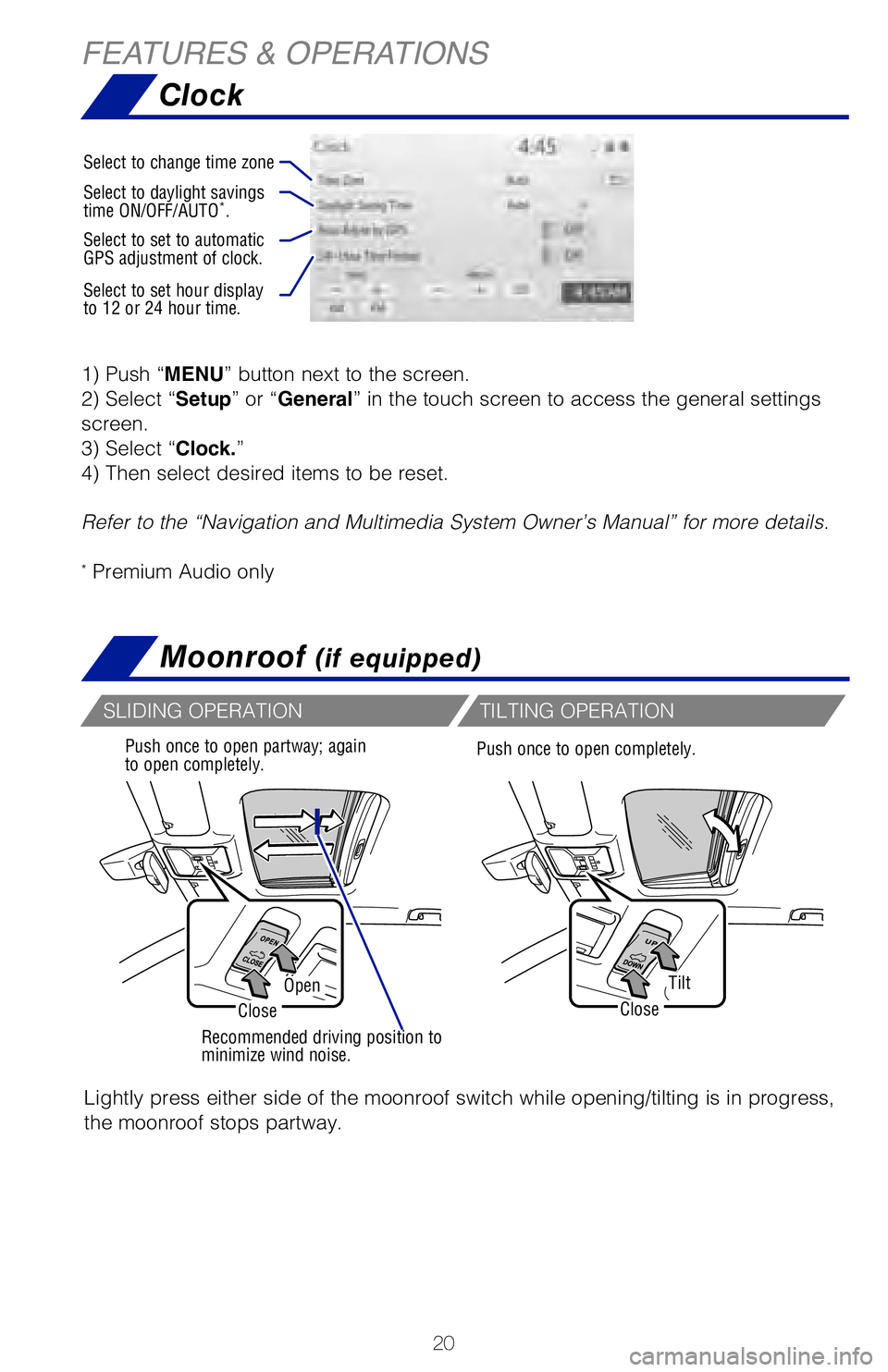

Clock

1VTIiMENU” button next to the screen.

4FMFDUiSetup” or “General ” in the touch screen to access the general settings
screen.

4FMFDUiClock. ”

5IFOTFMFDUEFTJSFEJUFNTUPCFSFTFU

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Premium Audio only
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO*.
Select to set to automatic
GPS adjustment of clock.
Select to set hour display
to 12 or 24 hour time.

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SLIDING OPERATION
TILTING OPERATION
Open - Slide and hold the switch backward.
The electronic sunshade will open fully
automatically.*
Close - Slide and hold the
switch forward.
The electronic sunshade will close fully
automatically.*
Open - Slide and hold the switch backward.
The panoramic moonroof and electronic
sunshade will open automatically.*
Close - Slide and hold the switch forward.
The panoramic moonroof will fully close
automatically.
Tilt-up - Press the center of the switch to
tilt the panoramic moonroof up. When the
panoramic moonroof is tilted up, the electronic
sunshade opens to the half-open position.
Tilt-down - Press and hold the
switch to tilt
down. The panoramic moonroof can be tilted
down only when it is in the tilt-up position.
Note: The panoramic moonroof can be opened from the tilt-up position. Al\
so,
lightly pressing the
switch again stops the panoramic moonroof partway.
* Note: Quickly slide and release the switch in either direction to stop\
the
electronic sunshade partway.
* Note: Quickly slide and release the switch in either direction to stop\
the
panoramic moonroof partway. Open and closing the electronic sunshade
Open and closing the panoramic moonroof
Tilting the panoramic moonroof up and down
Open
Open
Close
Close
Panoramic moonroof (if equipped)

22
FEATURES & OPERATIONS

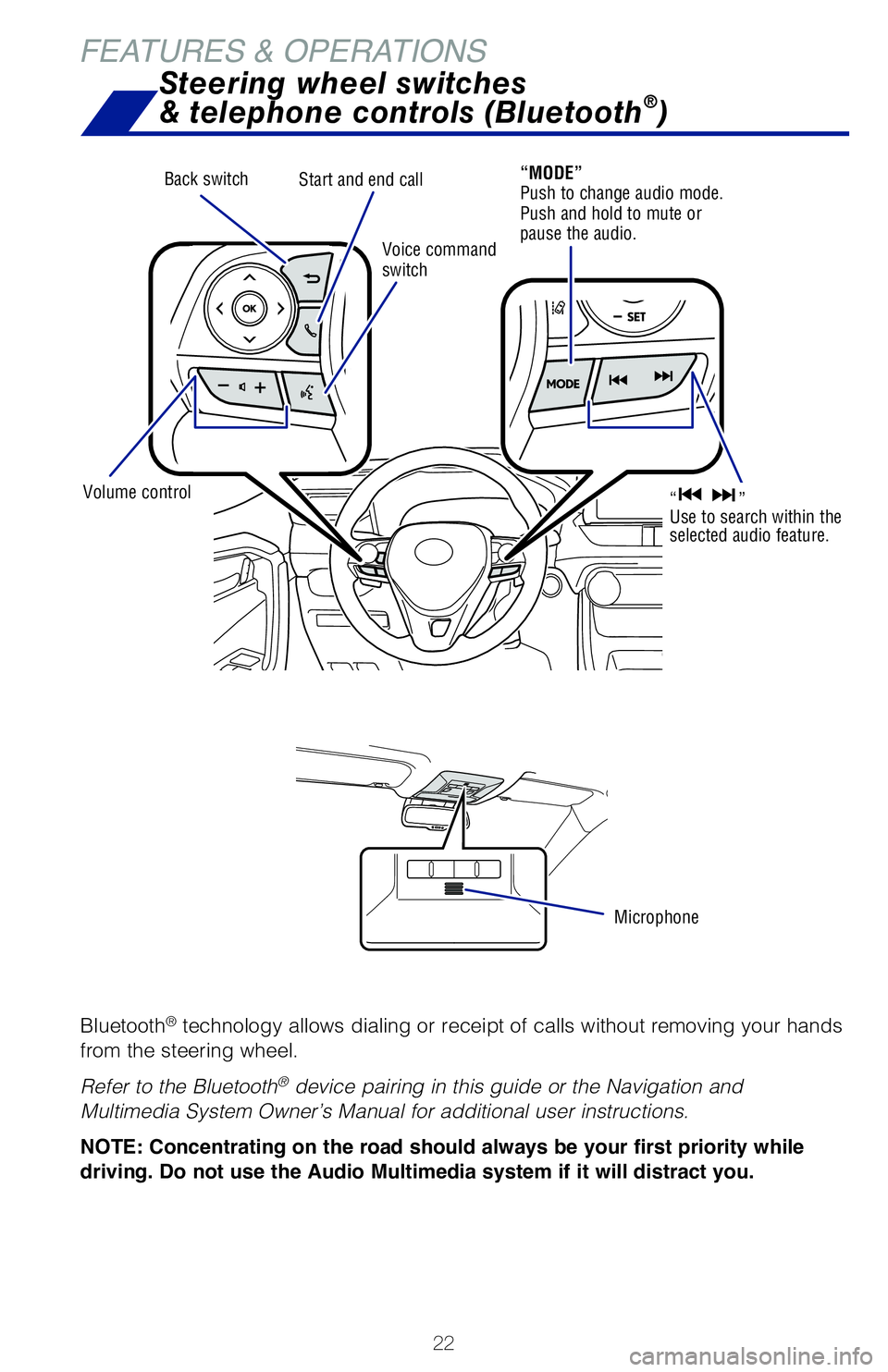

Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority whi\
le
driving. Do not use the Audio Multimedia system if it will distract you.\
Back switch
Volume control
Microphone
Voice command
switch
Start and end call
“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for more information.
Driving support system information
display areaDriving support system information
display area
Menu icons
Menu iconsInformation display
area
4.2-inch display 7-inch display
Push MID control switches to view or change information in the following\
: Driving support system information Driving information
Vehicle information
"VEJPTZTUFNMJOLFEEJTQMBZ JGFRVJQQFE

Settings display
Warning message display

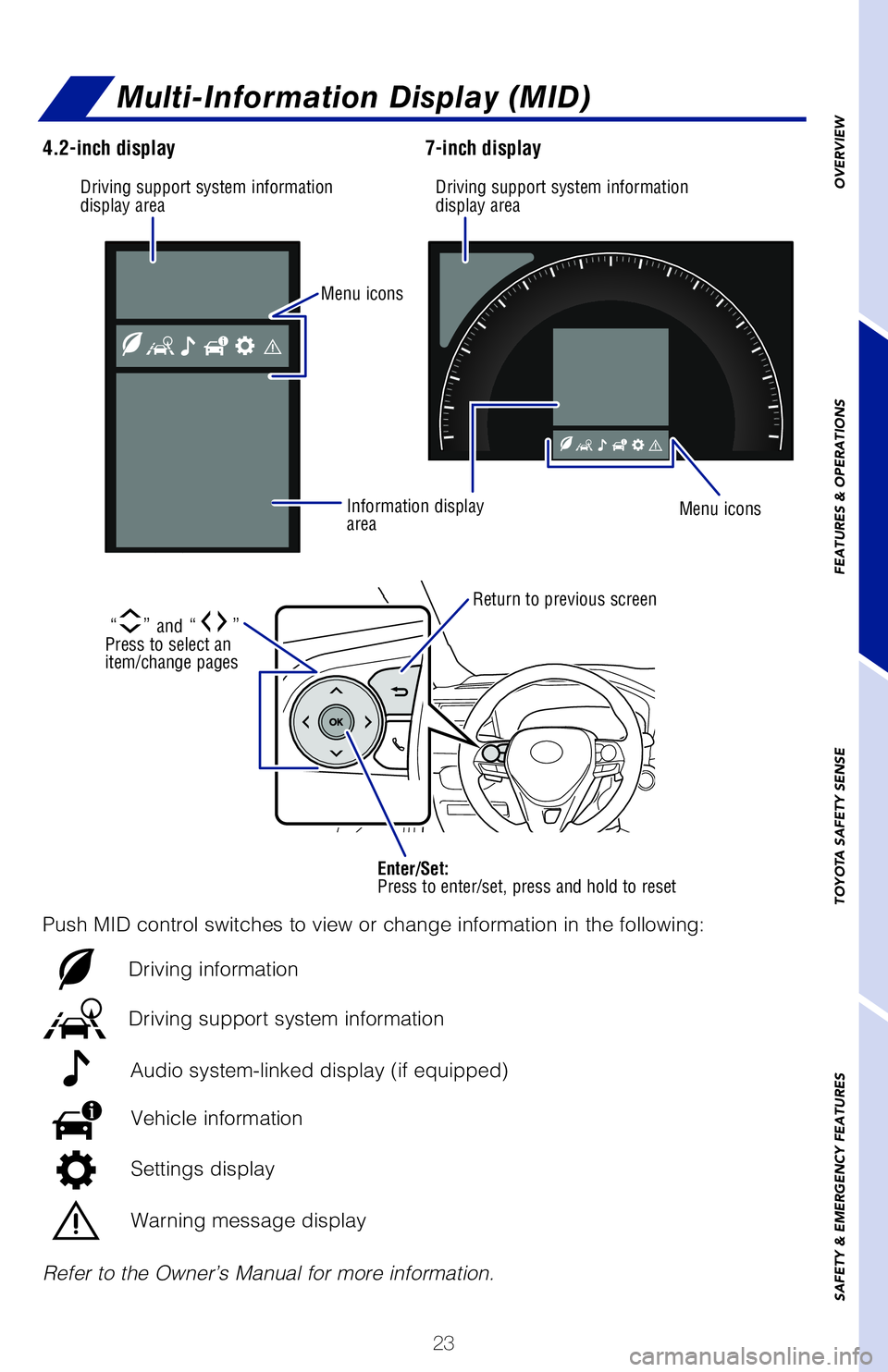

Multi-Information Display (MID)
Enter/Set:
Press to enter/set, press and hold to reset Return to
previous screen

“” and “” Press to select an
item/change pages

24
FEATURES & OPERATIONS
The power switch must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
The power switch must be in the “ACC” or “ON” position (without Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
Front
Luggage compartment (if equipped)
Front

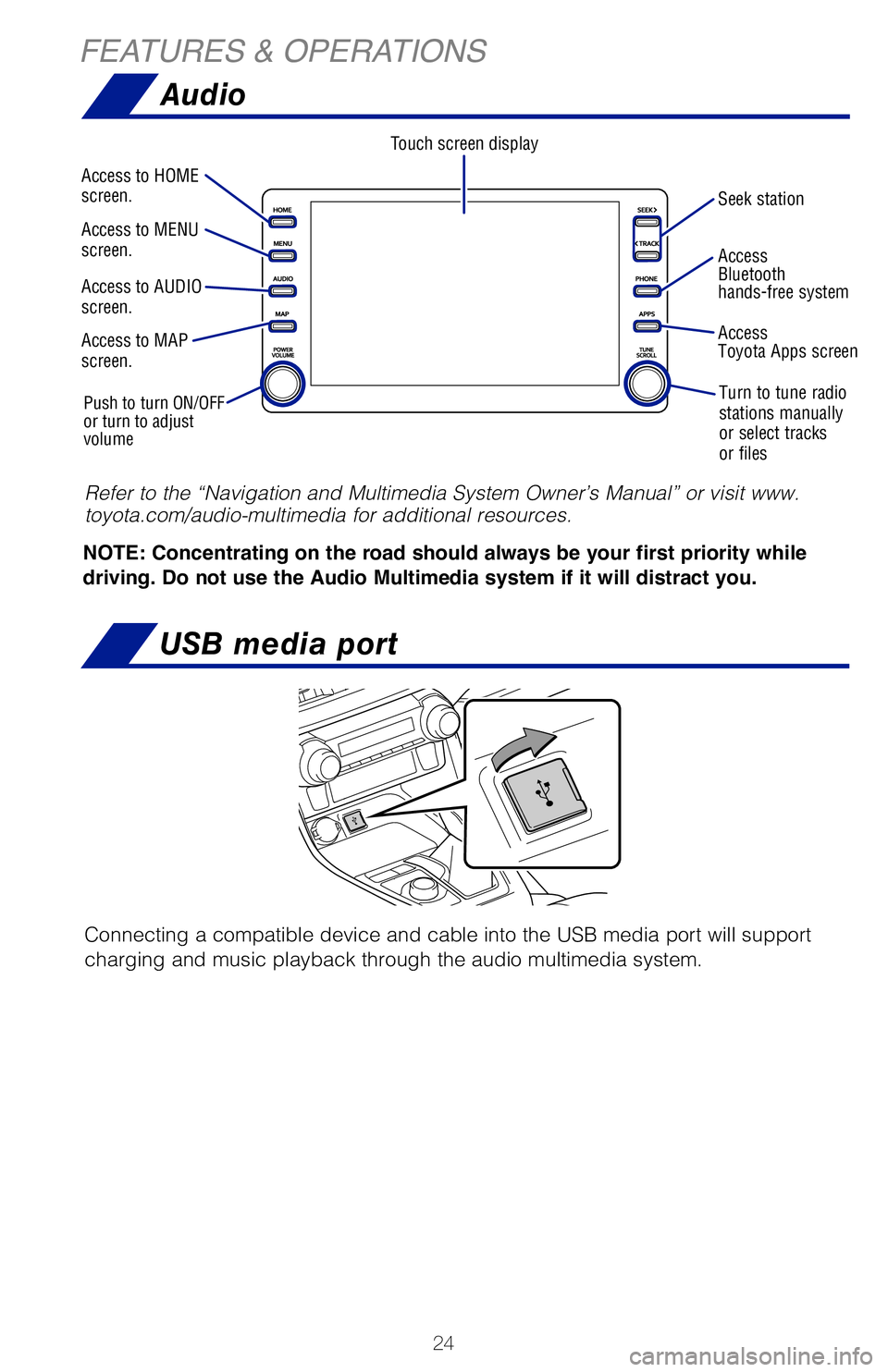

Touch screen display
Turn to tune radio
stations manually
or select tracks
or files
Access to MENU
screen.
Access to HOME
screen.
Access to AUDIO
screen.
Access to MAP
screen.
Audio
Push to turn ON/OFF
or turn to adjust
volume
Access
Bluetooth
hands-free system
Seek station
Access
Toyota Apps screen
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia system if it will distract you. Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
MY20_RAV4-HV_QRG_V2_ML_0930.indd 2410/2/19 7:48 AM

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
5IFQPXFSTXJUDINVTUCFJOUIFi"$$wPSi0/wQPTJUJPO XJUIPVU4NBSU,FZ

i"$$&4403:wPSw*(/*5*0/0/wNPEF XJUI4NBSU,FZ
GPSVTF
5IFQPXFSTXJUDINVTUCFJOUIFi"$$wPSi0/wQPTJUJPO XJUIPVU4NBSU,FZ

i"$$&4403:wPSw*(/*5*0/0/wNPEF XJUI4NBSU,FZ
GPSVTF

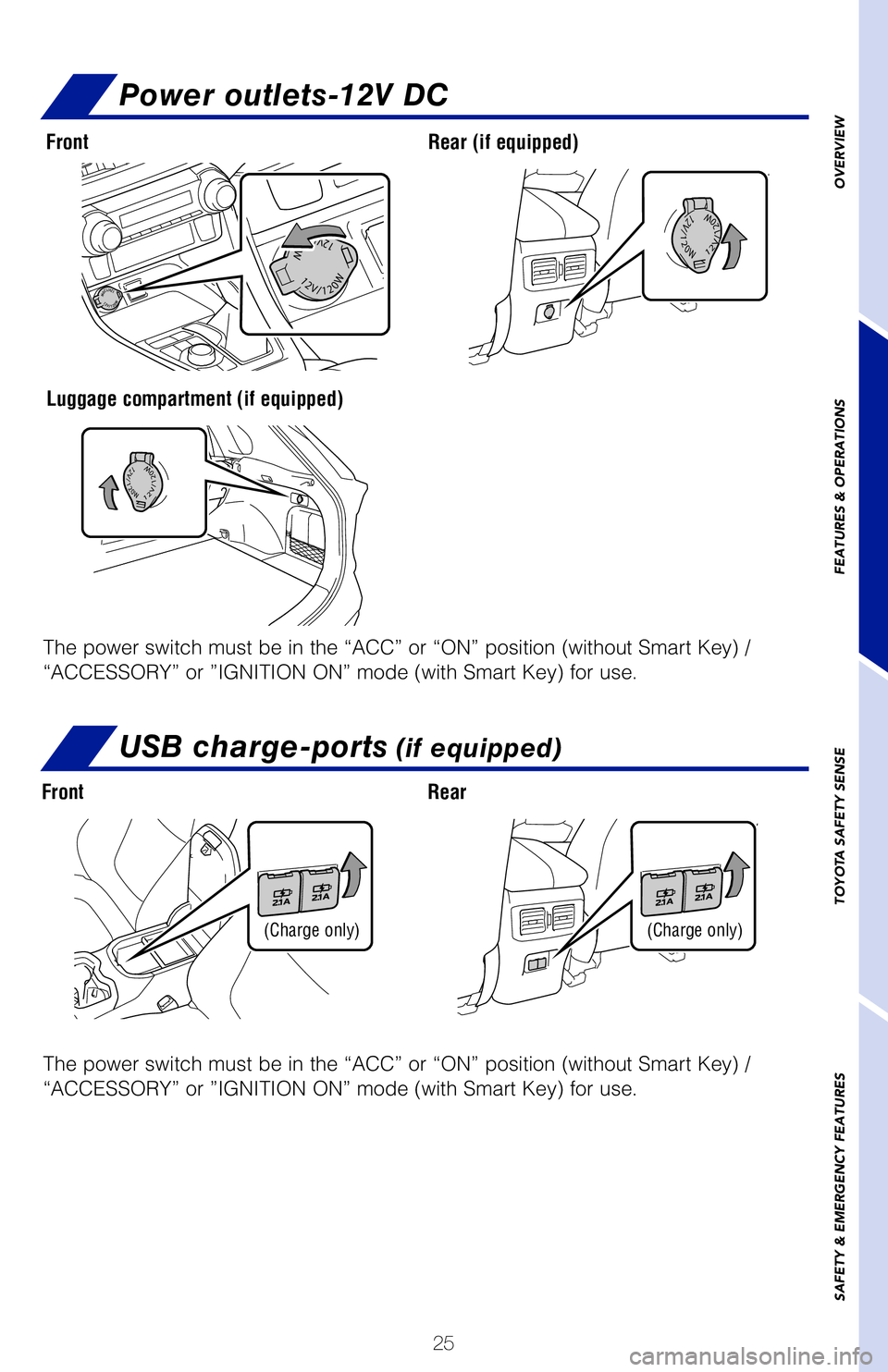

Power outlets-12V DC
FrontRear (if equipped)
Luggage compartment (if equipped)
FrontRear
USB charge-ports (if equipped)
(Charge only) (Charge only)

26
FEATURES & OPERATIONS
Power switchCharge areaOperation indicator light

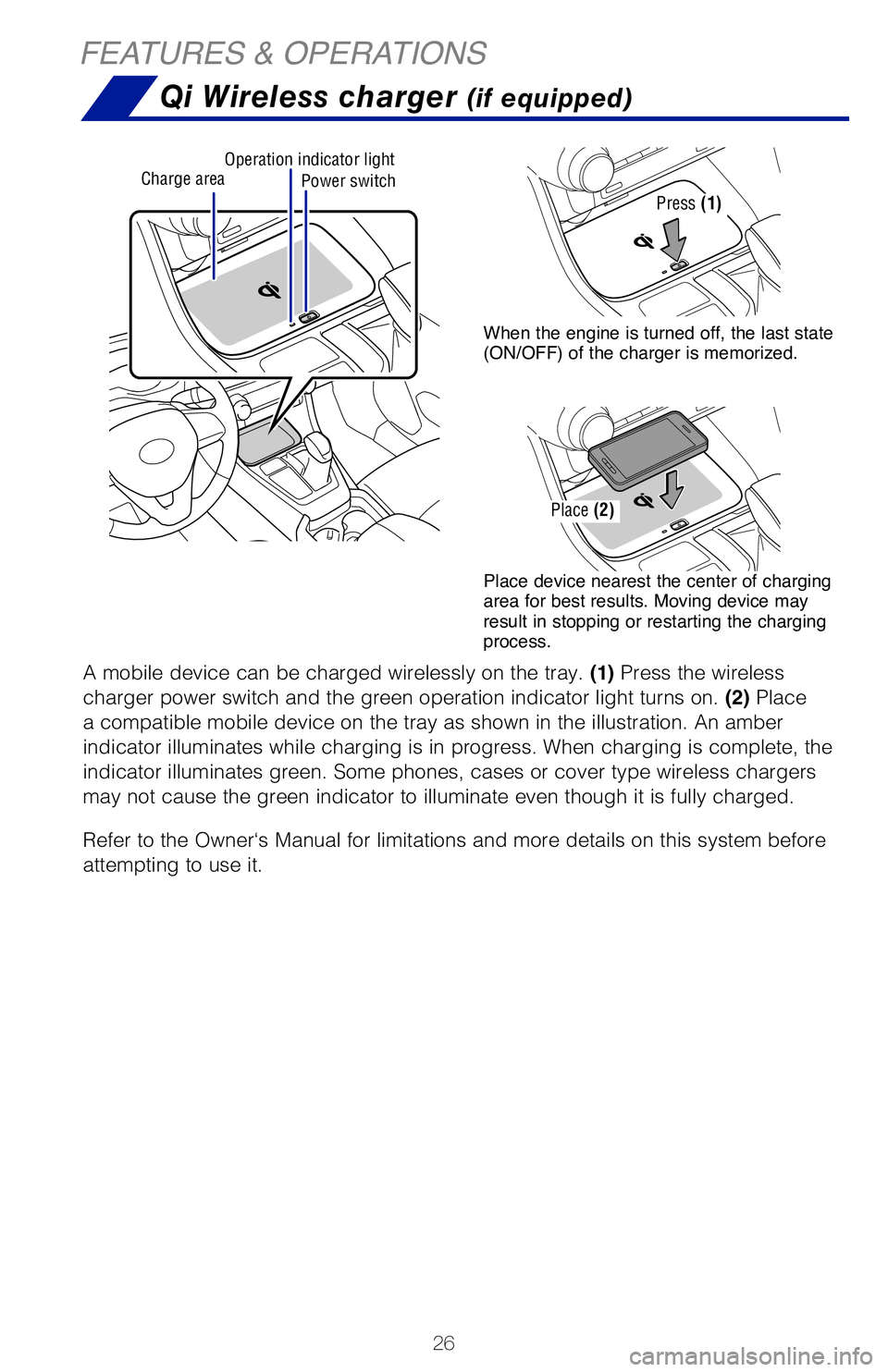

Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An \
amber
indicator illuminates while charging is in progress. When charging is co\
mplete, the
indicator illuminates green. Some phones, cases or cover type wireless c\
hargers
may not cause the green indicator to illuminate even though it is fully \
charged.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Press (1)
When the engine is turned off, the last state
(ON/OFF) of the charger is memorized.
Place device nearest the center of charging
area for best results. Moving device may
result in stopping or restarting the charging
process.
Place (2)

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

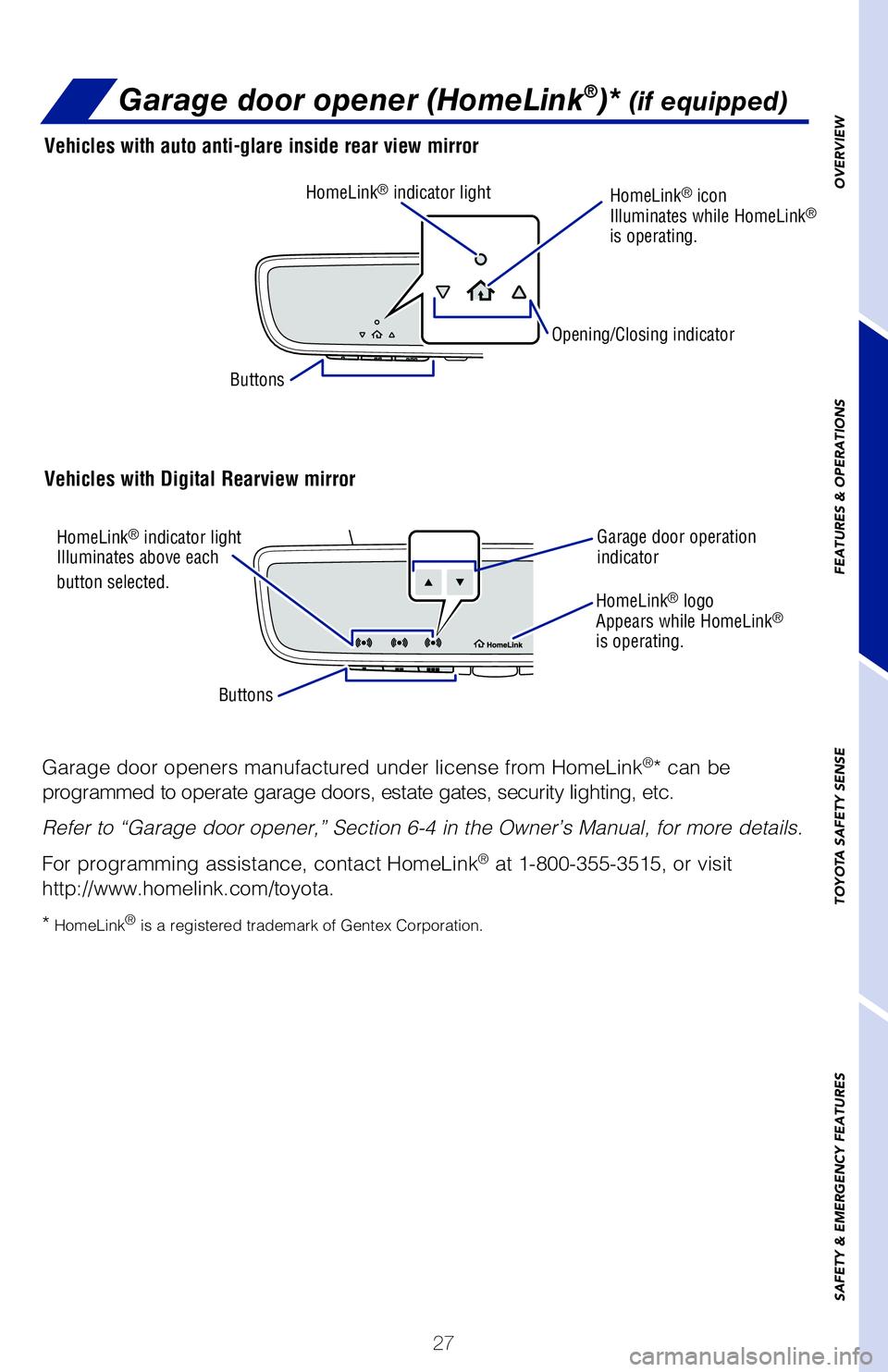

Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manua\
l, for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
*
HomeLink® is a registered trademark of Gentex Corporation.
Garage door opener (HomeLink®)* (if equipped)
Opening/Closing indicator HomeLink
® icon
Illuminates while HomeLink®
is operating.
Buttons HomeLink
® indicator light
Vehicles with auto anti-glare inside rear view mirror
Garage door operation
indicator
HomeLink
® logo
Appears while HomeLink®
is operating.
Buttons
HomeLink
® indicator light
Illuminates above each
button selected.
Vehicles with Digital Rearview mirror

28

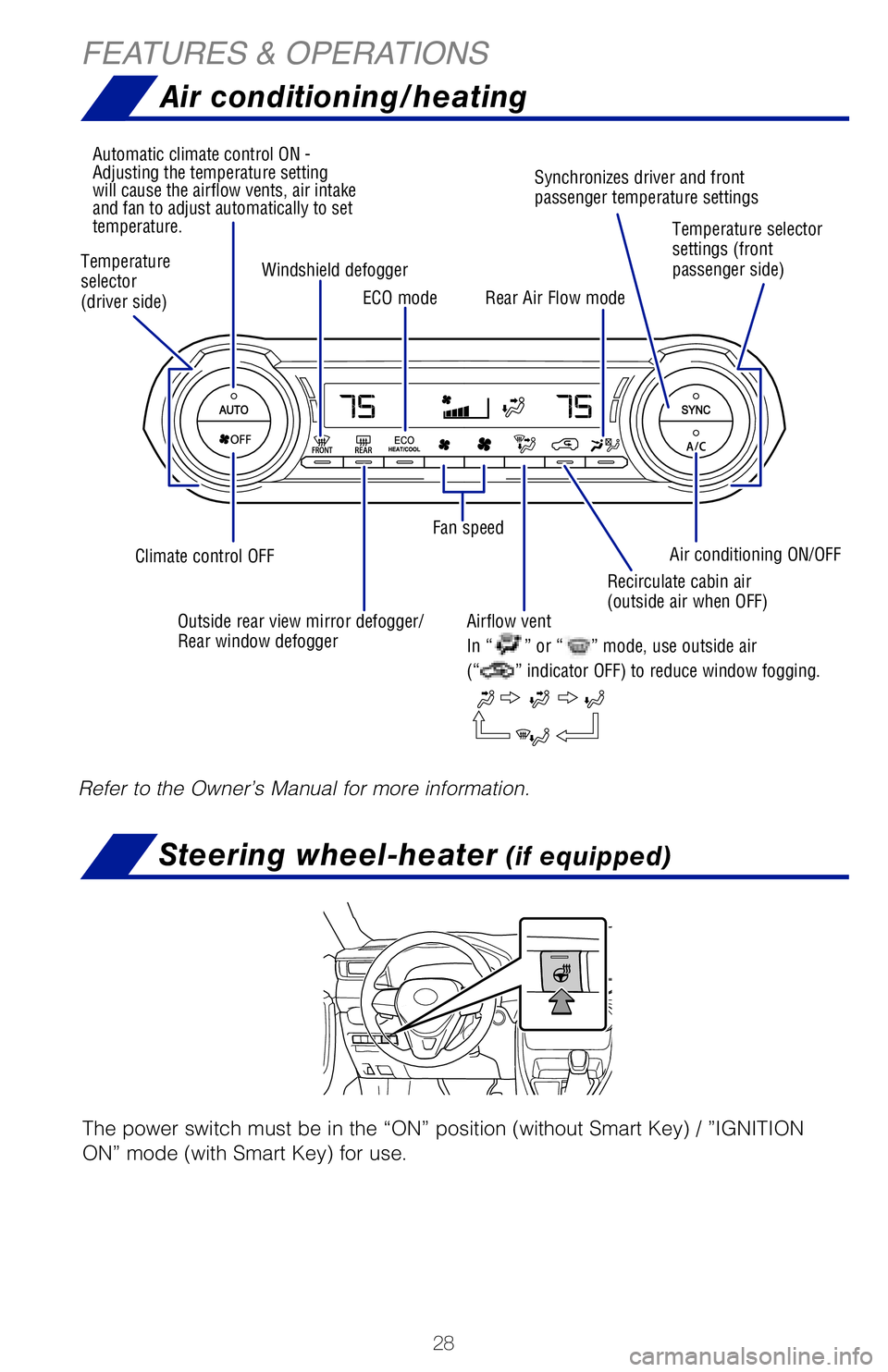

FEATURES & OPERATIONSAir conditioning/heating
Automatic climate control ON -
Adjusting the temperature setting
will cause the airflow vents, air intake
and fan to adjust automatically to set
temperature.
Steering wheel-heater (if equipped)
5IFQPXFSTXJUDINVTUCFJOUIFi0/wQPTJUJPO XJUIPVU4NBSU,FZ
w*(/*5*0/
0/wNPEF XJUI4NBSU,FZ
GPSVTF
Temperature
selector
(driver side) Windshield defogger Synchronizes driver and front
passenger temperature settings
Temperature selector
settings (front
passenger side)
Air conditioning ON/OFF
Fan speed
Climate control OFF Recirculate cabin air
(outside air when OFF)
Rear Air Flow mode
ECO mode
Outside rear view mirror defogger/
Rear window defogger
Airflow vent
In “
” or “” mode, use outside air
(“
” indicator OFF) to reduce window fogging.
Refer to the Owner’s Manual for more information.
