TOYOTA RAV4 HYBRID 2020 Owners Manual (in English)

QUICK
REFERENCE
GUIDE
2020

RAV4 HV 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
"NFSJDB
*ODXJTIZPVNBOZZFBSTPGTBUJTmFEESJWJOHJOZPVS
new RAV4 HV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of RAV4 HV operatio\
ns.
Every RAV4 HV owner should review the Owner’s Manual that accompanies\

this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1 8-9
Smart Key system1 9
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
Air conditioning/heating 28
Audio 24
Auto lock/unlock
1
12
Bird’s Eye View Camera
with Perimeter Scan function 30
Blind Spot Monitor with Rear
$SPTT5SBGmD"MFSU #4.X3$5"

Clock 20
Cup holders 19
Door locks 16
Driving mode select 33
Electric parking brake 14
EV drive mode 33
Front and Rear Parking Assist
with Automated Braking 32
Garage door opener (Homelink
®)3 27
Hybrid Synergy Drive System 12
Hybrid transmission 13
Intuitive parking assist 32
Lights
1,2 & turn signals1 18-19
Moonroof 20
Multi-Information Display (MID)
2 23
Panoramic moonroof 21
Power outlets-12V DC 25
Qi Wireless charger 26
Rear door-Power Liftgate 15
Rear view monitor system 31
Seat adjustments-Front 17
Seat adjustments-Rear 17
Seat heaters/ventilators 29 Seats-Head restraints 17
Steering lock release 13
Steering wheel-Heater 28
Steering wheel switches &
UFMFQIPOFDPOUSPMT #MVFUPPUI
®

Tilt & telescopic steering wheel 16
Trail mode 30
USB charge-ports 25
USB media Port 24
7FIJDMF4UBCJMJUZ$POUSPM 74$
53"$
Trailer sway control OFF button 29
Windows-Power 16
Windshield wipers & washers 19
Floor mat installation 54
Rear door child safety locks 50
Safety Connect
® 52
Seat belts 50
Seat belts-Shoulder belt anchor 50
Spare tire & tools 51
Star Safety System
™ 53-54
Tire Pressure Monitoring
XBSOJOH
4ZTUFN 51.4

BLUETOOTH® DEVICE
PAIRING SECTION 56-58
"VUPNBUJD)JHI#FBNT ")#

Full-Speed Range Dynamic Radar
$SVJTF$POUSPM %3$$

Lane Departure Alert with Steering
"TTJTU -%"X4"

-BOF5SBDJOH"TTJTU -5"

Pre-Collision System with Pedestrian
%FUFDUJPO 1$4X1%

Quick overview-
Toyota Safety Sense
™ 544
34
3PBE4JHO"TTJTU 34"

Sensors 35

2

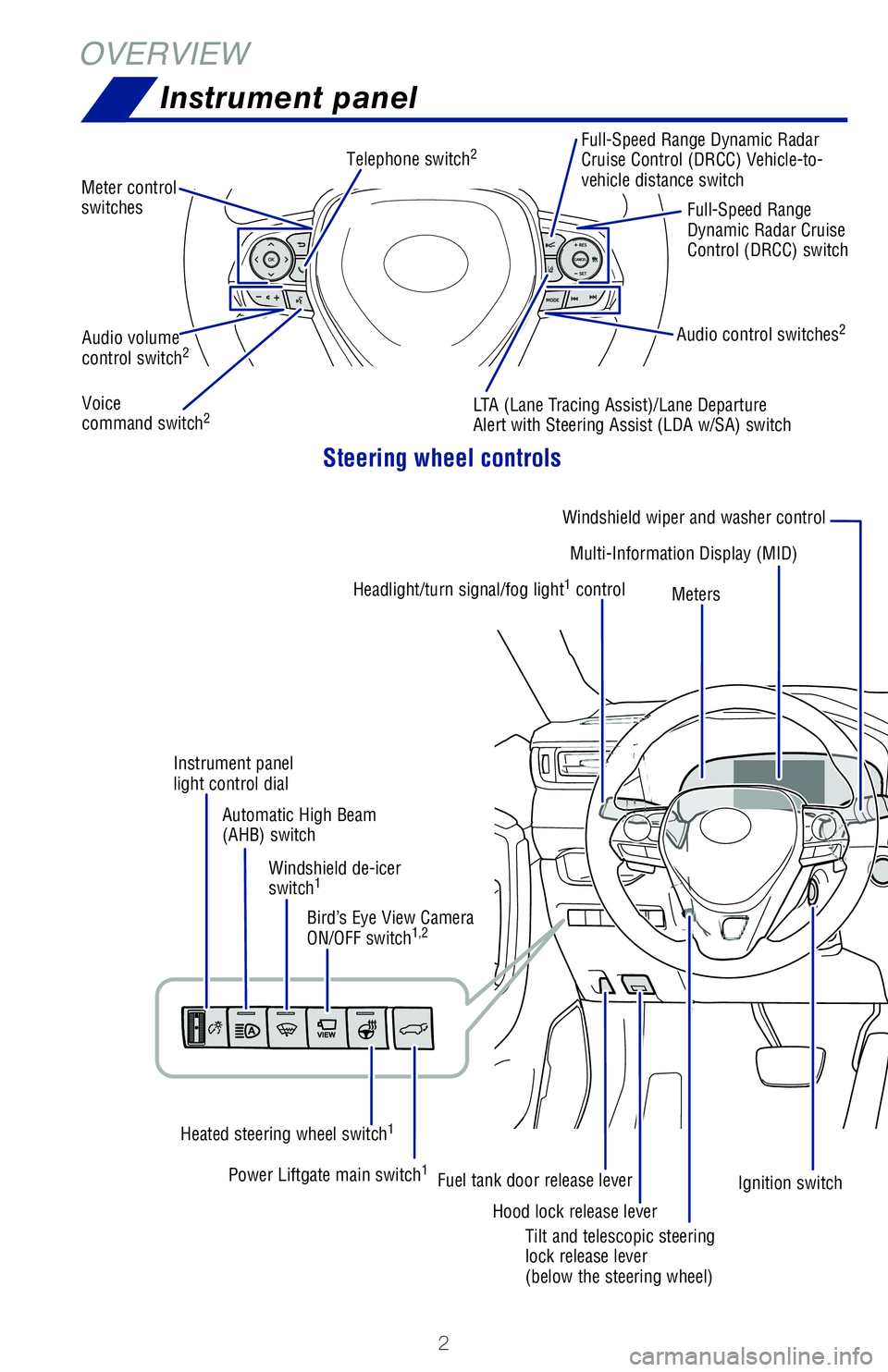

OVERVIEWInstrument panel
Steering wheel controls
Audio volume
control switch2
Telephone switch2
Voice
command switch2
Audio control switches2
LTA (Lane Tracing Assist)/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
Meter control
switches
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) Vehicle-to-
vehicle distance switch
Full-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
Tilt and telescopic steering
lock release lever
(below the steering wheel)
Ignition switch
Hood lock release lever
Headlight/turn signal/fog light
1 control
Fuel tank door release lever
Power Liftgate main switch
1
Bird’s Eye View Camera
ON/OFF switch1,2
Windshield de-icer
switch1
Instrument panel
light control dial
Automatic High Beam
(AHB) switch
Heated steering wheel switch
1
Windshield wiper and washer control Meters
Multi-Information Display (MID)

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit
www.toyota.com/audio-multimedia for additional audio/multimedia resource\
s.

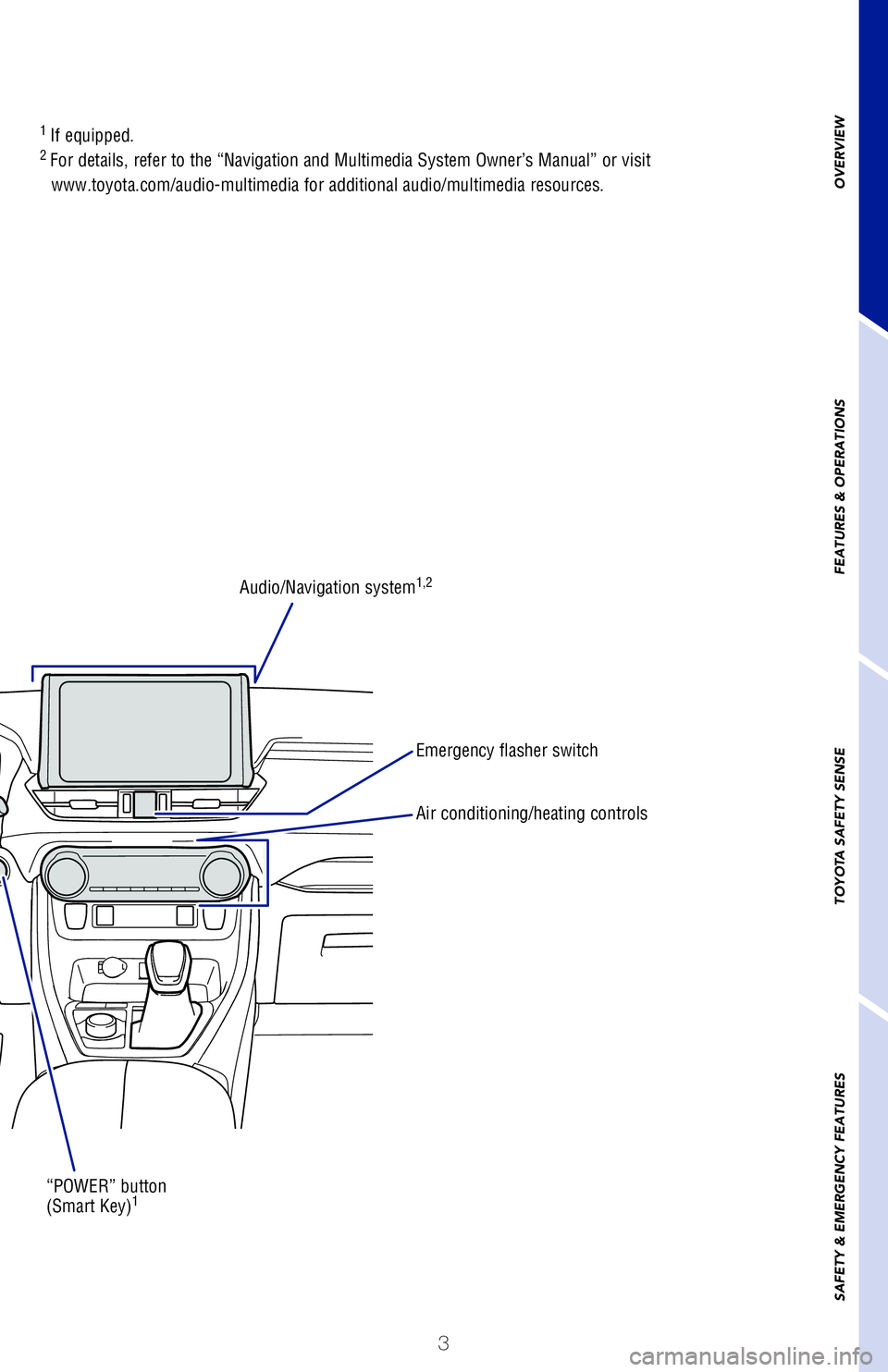

Emergency flasher switch
Air conditioning/heating controls
“POWER” button
(Smart Key)
1
Audio/Navigation system1,2

4
OVERVIEW
CENTER PANEL AREA

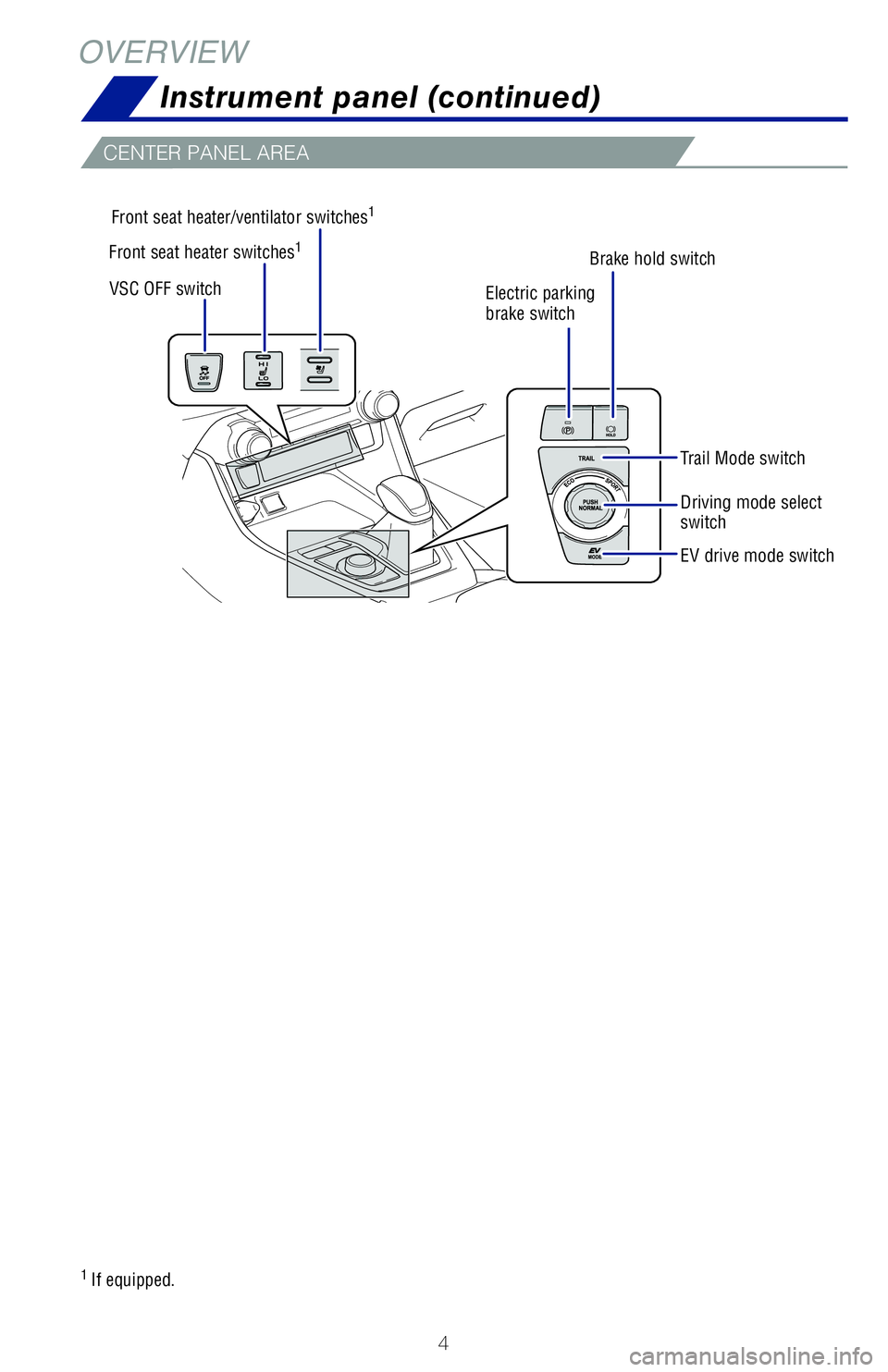

Instrument panel (continued)
1 If equipped.
Electric parking
brake switch Brake hold switch
Trail Mode switch
Driving mode select
switch
EV drive mode switchVSC OFF switchFront seat heater/ventilator switches
1
Front seat heater switches1

5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

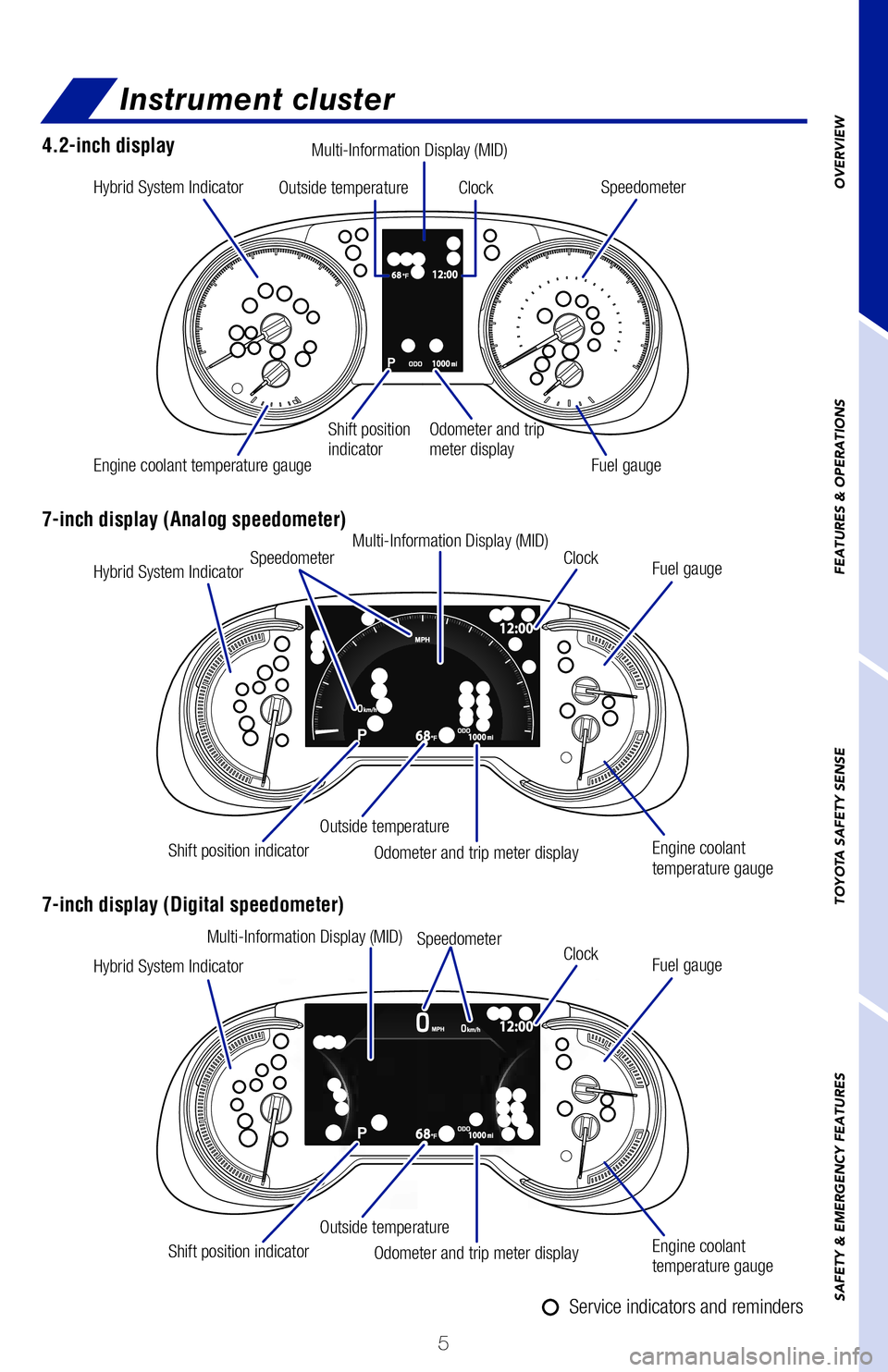

Instrument cluster
Hybrid System Indicator
Hybrid System Indicator
Hybrid System Indicator Speedometer
Fuel gauge
Fuel gauge Engine coolant
temperature gauge
Engine coolant
temperature gauge
Speedometer
Speedometer Clock
Clock
Outside temperature
Outside temperature
Outside temperature
Engine coolant temperature gauge Fuel gauge
Odometer and trip meter display
Odometer and trip meter display
Shift position
indicator
Shift position indicator
Shift position indicator Clock
Multi-Information Display (MID)
Multi-Information Display (MID)
Multi-Information Display (MID) Odometer and trip
meter display
4.2-inch display
7-inch display (Analog speedometer)
7-inch display (Digital speedometer)
Service indicators and reminders

6
OVERVIEWIndicator symbols
For details, refer to “Indicators and warning lights,” Section 2-1\
, 2020 Owner’s
Manual.
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror
indicators4
Brake system warning1
Charging system warning1
Brake system warning1
[Yellow]
Fuel tank door position
Airbag ON/OFF indicator
1
Anti-lock Brake System (ABS)
warning1
Automatic High Beam (AHB)
indicator
ECO drive mode indicator
Electric power steering system
warning1 [Red/yellow]
Hybrid system overheat warningFront and Rear Parking Assist
with Automated Braking OFF
indicator
1,2,4
Brake hold operating indicator1,2
Brake hold standby indicator1
Brake Override System/Drive-Start
Control/Front and Rear Parking
Assist with Automated Braking
4,5
warning
Driver’s and front passenger’s seat
belt reminder
(alarm will sound when
the engine switch is ON mode)
Airbag SRS warning1
Fog light indicator4
High coolant temperature warning Headlight low/high beam
indicators
EV drive mode indicator
EV indicator
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Range Dynamic
Radar Cruise Control (DRCC)
indicator/DRCC SET indicator

1 If the indicator does not turn off within a few seconds of starting the \
Hybrid System, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owne\
r’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.5 Refer to section PKSB (Parking Support Braking function) in the Owner’\
s Manual.
7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

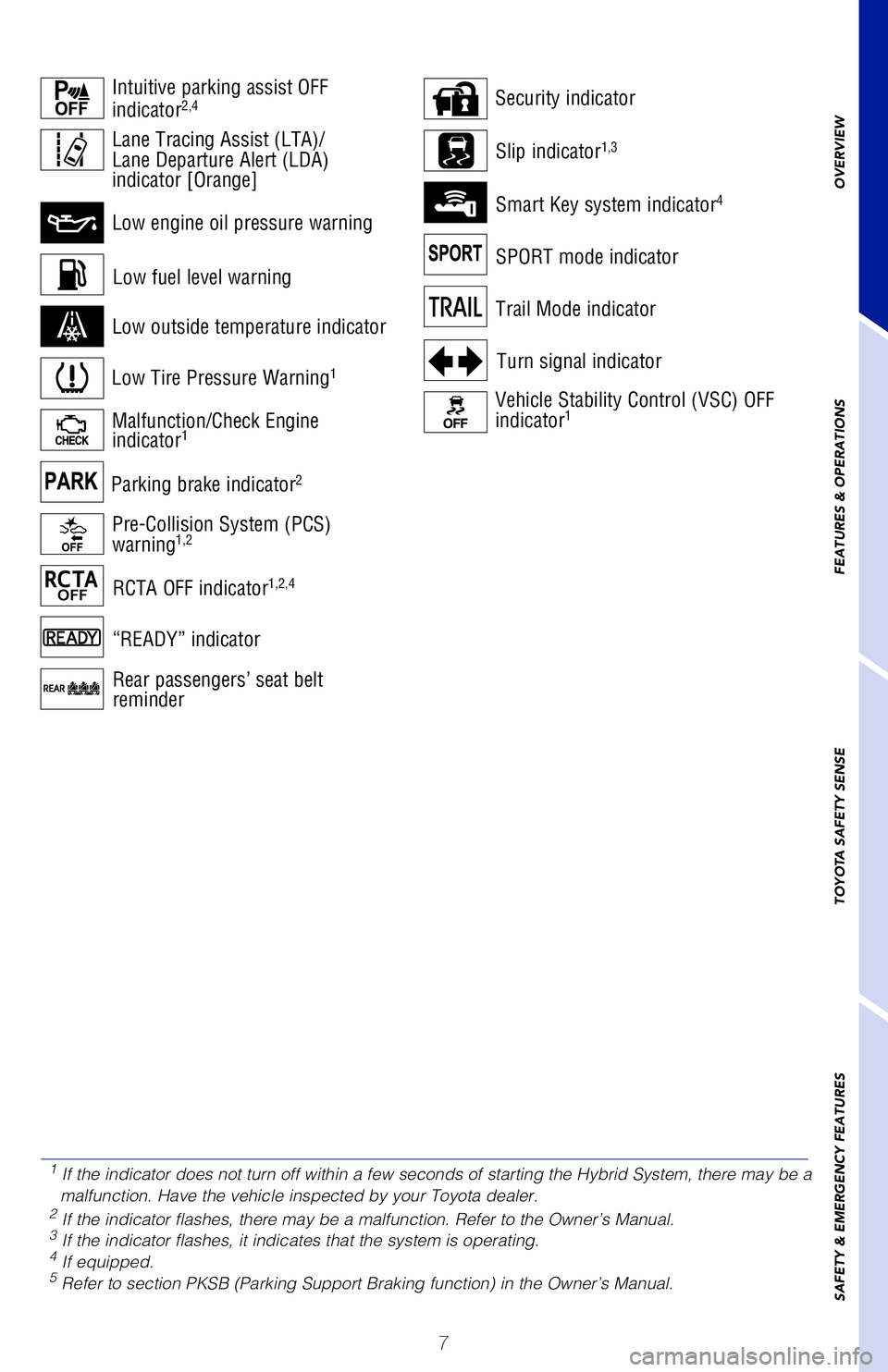

Low outside temperature indicator
Intuitive parking assist OFF
indicator2,4
Pre-Collision System (PCS)
warning1,2
Vehicle Stability Control (VSC) OFF
indicator1
Slip indicator1,3
SPORT mode indicator
RCTA OFF indicator1,2,4
Rear passengers’ seat belt
reminder
Parking brake indicator2
“READY” indicator
Trail Mode indicator
Smart Key system indicator4
Security indicator
Turn signal indicator
Lane Tracing Assist (LTA)/
Lane Departure Alert (LDA)
indicator [Orange]
Low engine oil pressure warning
Low fuel level warning
Low Tire Pressure Warning1
Malfunction/Check Engine
indicator1

8

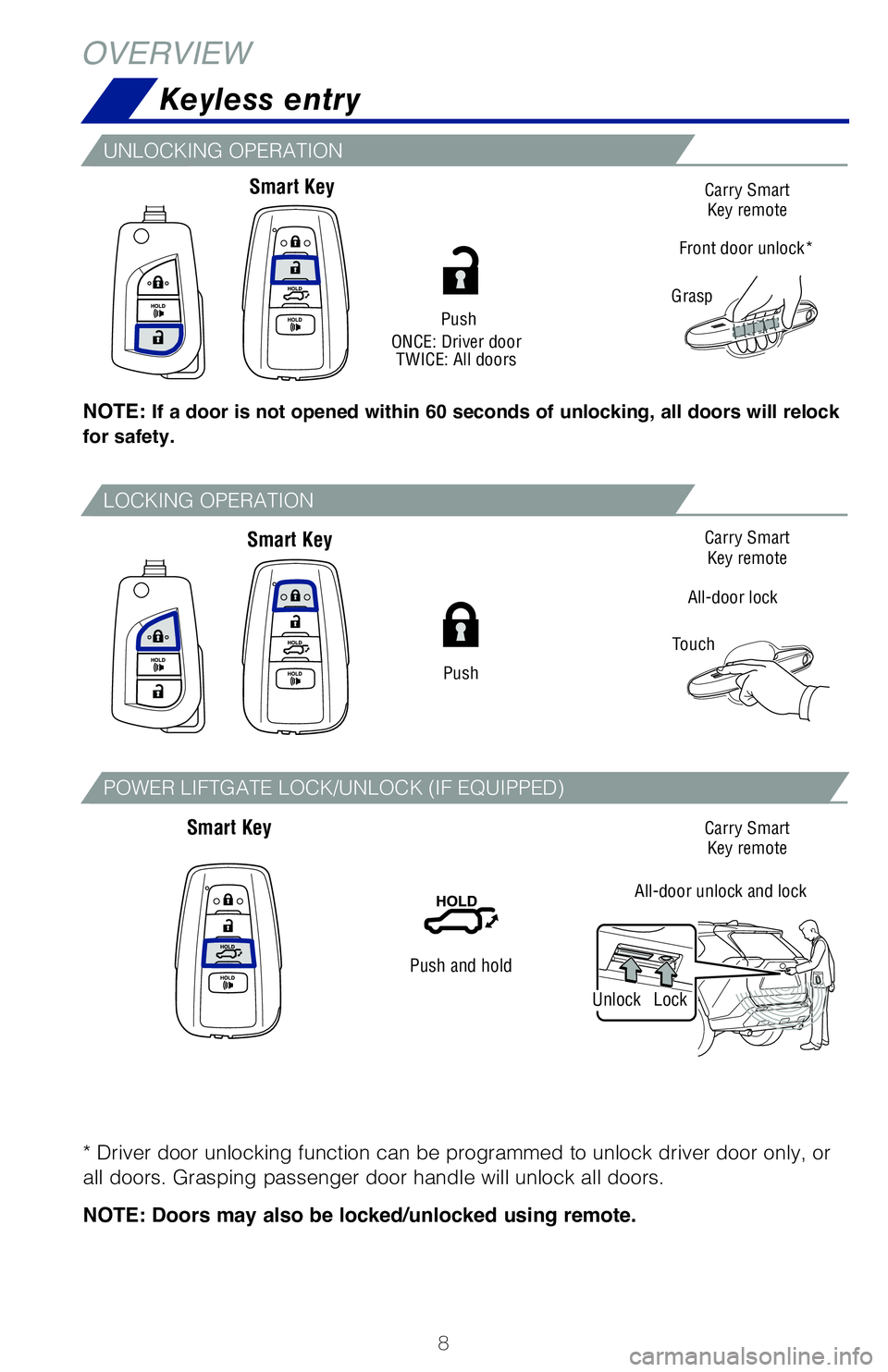

Keyless entry
OVERVIEW
Push
ONCE: Driver door TWICE: All doors
All-door lock
Touch
Grasp
Front door unlock*
Push
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will r\
elock
for safety.
Push and hold
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
LockUnlock
All-door unlock and lock
Smart Key
Smart Key
Smart Key
LOCKING OPERATION
UNLOCKING OPERATION
108&3-*'5("5&-0$,6/-0$, *'&26*11&%

Carry Smart Key remote
Carry Smart Key remote
Carry Smart Key remote
