fuses TOYOTA RAV4 HYBRID 2020 Owners Manual (in English)

5TABLE OF CONTENTS
1
2
3
4
5
6
7
8
9
10
5-16.Connected Services over-view
Connected Services ...... 507
Type A: Function achieved by using a smartphone or DCM
.................................... 508
Type B: Function achieved by using DCM and the system
.................................... 510
Type C: Function achieved by using DCM.............. 511
Type D: Function achieved by using DCM and a smart-
phone .......................... 514
5-17.Connected Services opera- tion
Toyota Apps .................. 516
5-18.Setup Toyota Apps settings .... 520
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ......................... 522
Heated steering wheel/seat heaters/seat ventilators 529
6-2. Using the interior lights Interior lights list ............ 532
6-3. Using the storage features List of storage features . 535
Luggage compartment fea- tures ............................ 539
6-4. Using the other interior fea- tures
Other interior features ... 544
Garage door opener...... 5547-1. Maintenance and care
Cleaning and protecting the vehicle exterior ............ 564
Cleaning and protecting the vehicle interior ............. 567
7-2. Maintenance Maintenance requirements.................................... 570
General maintenance .... 571
Emission inspection and maintenance (I/M) programs
.................................... 574
7-3. Do-it-yourself maintenance Do-it-yourself service precau-tions ............................. 575
Hood .............................. 577
Positioning a floor jack .. 578
Engine compartment ..... 580
12-volt battery................ 586
Tires .............................. 588
Tire inflation pressure .... 602
Wheels .......................... 604
Air conditioning filter ...... 606
Cleaning the hybrid battery (traction battery) air intake
vent and filter .............. 608
Wiper insert replacement .................................... 612
Wireless remote control/elec- tronic key battery ......... 615
Checking and replacing fuses .................................... 618
Light bulbs ..................... 620
6Interior features
7Maintenance and care

563
7
7
Maintenance and care
Maintenance and care
7-1. Maintenance and careCleaning and protecting the vehicle exterior .......... 564
Cleaning and protecting the vehicle interior ........... 567
7-2. Maintenance Maintenance requirements.................................. 570
General maintenance.. 571
Emission inspection and maintenance (I/M) pro-
grams ........................ 574
7-3. Do-it-yourself mainte- nance
Do-it-yourself service pre- cautions ..................... 575
Hood ........................... 577
Positioning a floor jack 578
Engine compartment ... 580
12-volt battery ............. 586
Tires ............................ 588
Tire inflation pressure . 602
Wheels ......... ...............604
Air conditioning filter .... 606
Cleaning the hybrid battery (traction battery) air intake
vent and filter ............ 608
Wiper insert replacement .................................. 612
Wireless remote con- trol/electronic key battery.................................. 615Checking and replacing
fuses .......................... 618
Light bulbs ................... 620

5757-3. Do-it-yourself maintenance
7
Maintenance and care

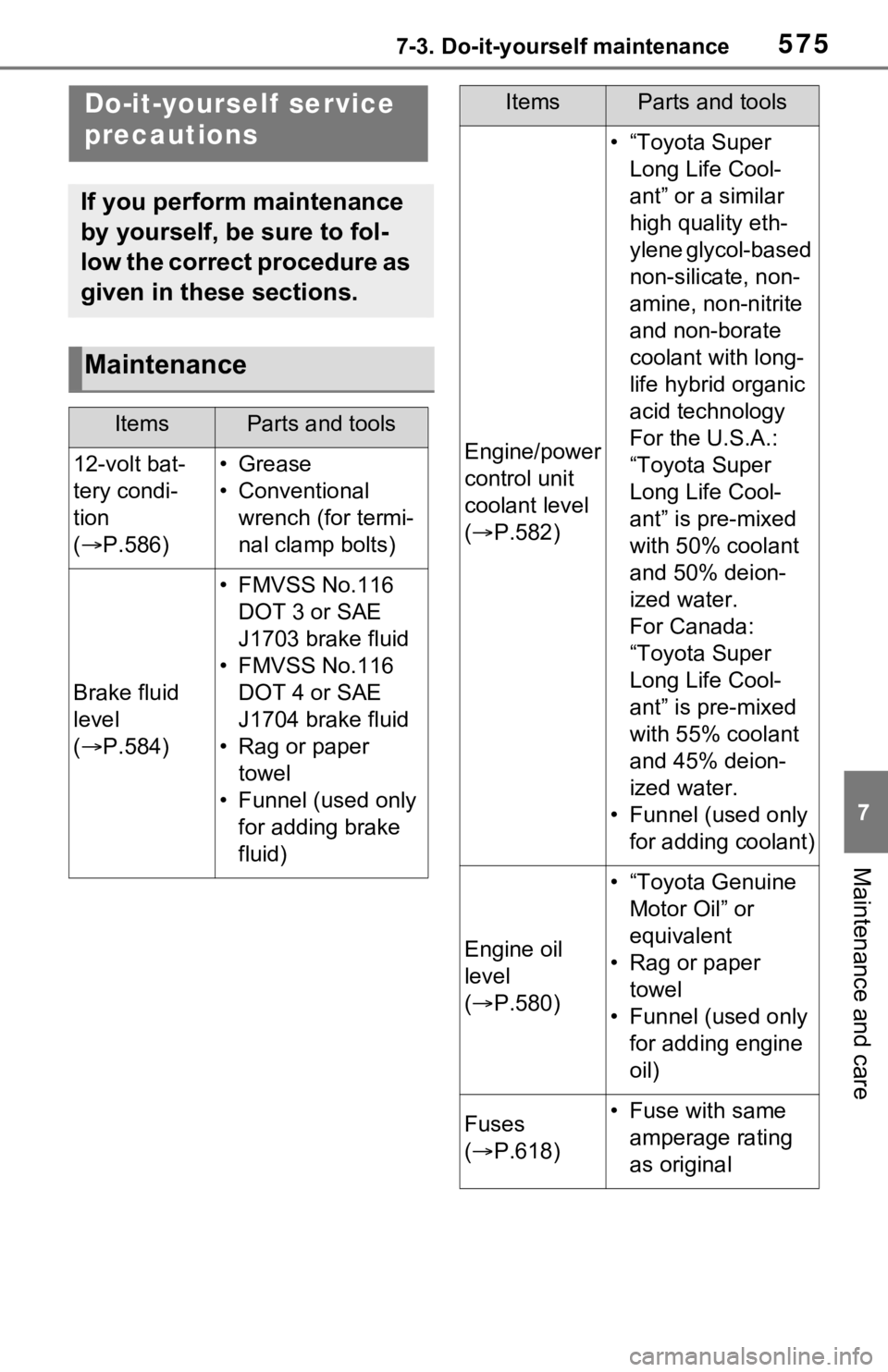

7-3.Do-it-yourself maintenance
Do-it-yourself service
precautions
If you perform maintenance
by yourself, be sure to fol-
low the correct procedure as
given in these sections.
Maintenance
ItemsParts and tools
12-volt bat-
tery condi-
tion
( P.586)•Grease
• Conventional
wrench (for termi-
nal clamp bolts)
Brake fluid
level
( P.584)
• FMVSS No.116
DOT 3 or SAE
J1703 brake fluid
• FMVSS No.116 DOT 4 or SAE
J1704 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake
fluid)
Engine/power
control unit
coolant level
( P.582)
• “Toyota Super
Long Life Cool-
ant” or a similar
high quality eth-
ylene glycol-based
non-silicate, non-
amine, non-nitrite
and non-borate
coolant with long-
life hybrid organic
acid technology
For the U.S.A.:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 50% coolant
and 50% deion-
ized water.
For Canada:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 55% coolant
and 45% deion-
ized water.
• Funnel (used only for adding coolant)
Engine oil
level
( P.580)
• “Toyota Genuine
Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine
oil)
Fuses
( P.618)• Fuse with same
amperage rating
as original
ItemsParts and tools

6187-3. Do-it-yourself maintenance

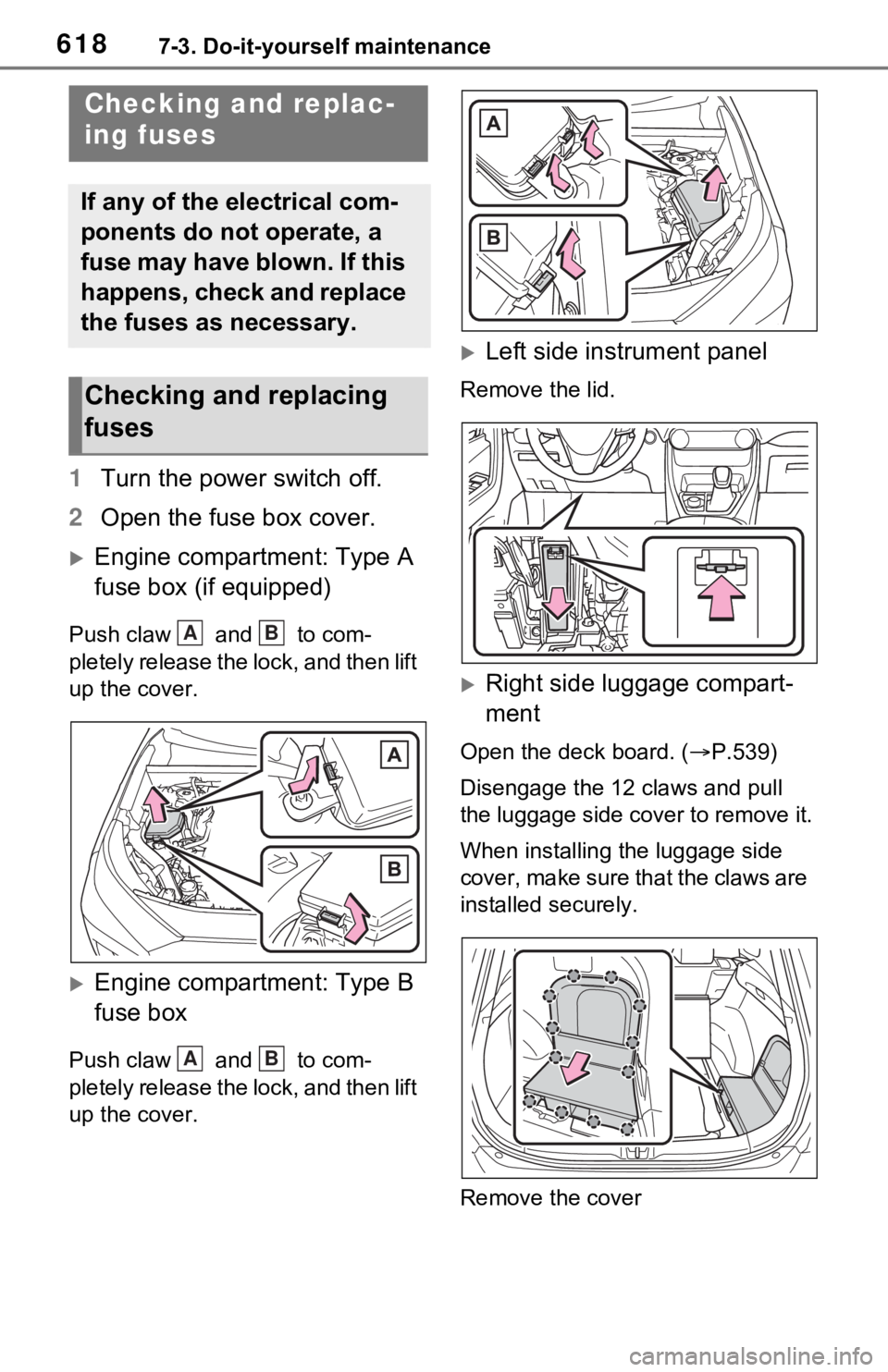

1Turn the power switch off.
2 Open the fuse box cover.
Engine compartment: Type A
fuse box (if equipped)
Push claw and to com-
pletely release the lock, and then lift
up the cover.
Engine compartment: Type B
fuse box
Push claw and to com-
pletely release the lock, and then lift
up the cover.
Left side instrument panel
Remove the lid.
Right side luggage compart-
ment
Open the deck board. ( P.539)
Disengage the 12 claws and pull
the luggage side cover to remove it.
When installing the luggage side
cover, make sure that the claws are
installed securely.
Remove the cover
Checking and replac-
ing fuses
If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.
Checking and replacing
fuses
AB
AB

6197-3. Do-it-yourself maintenance
7
Maintenance and care

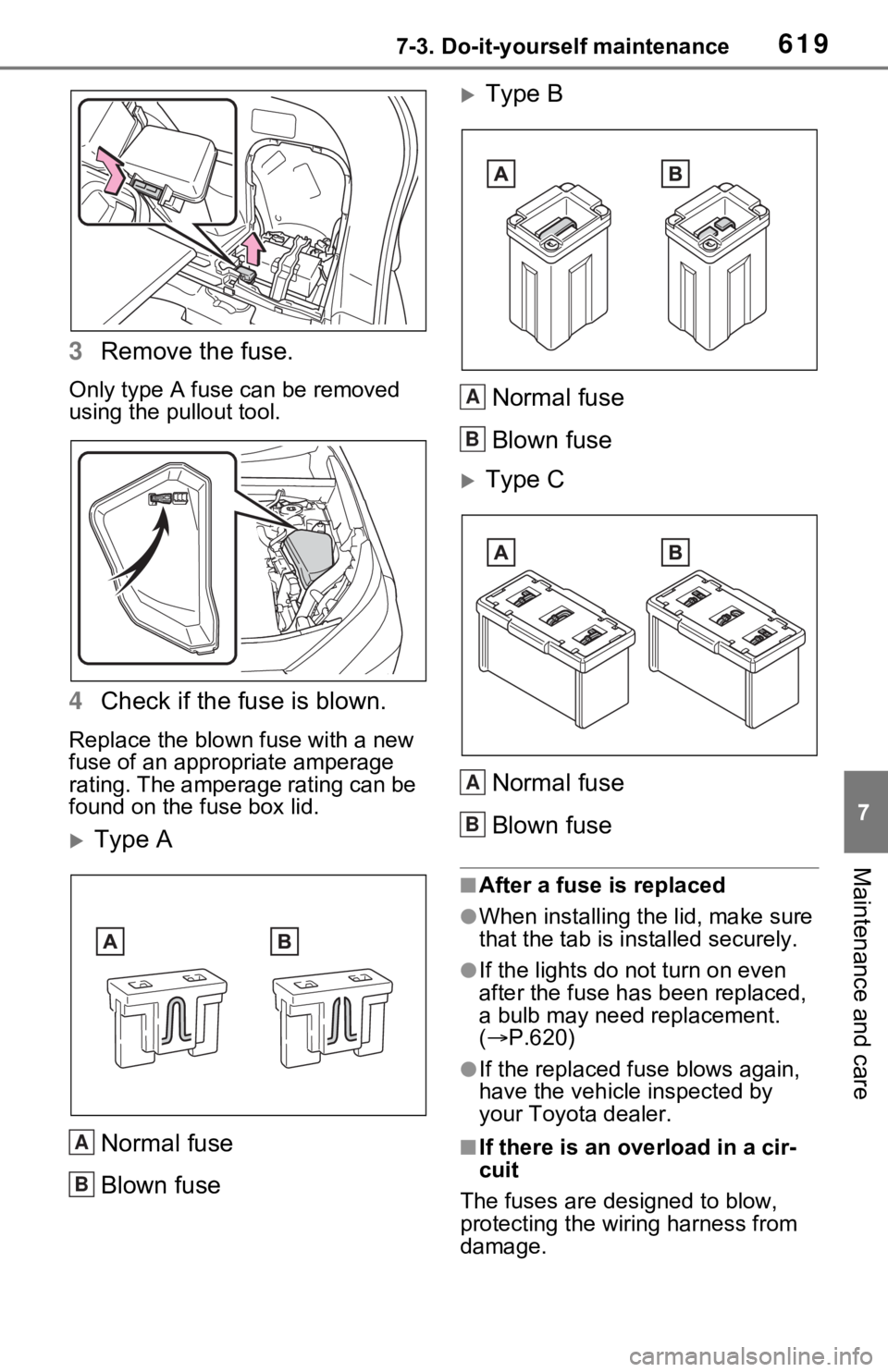

3Remove the fuse.
Only type A fuse can be removed
using the pullout tool.
4Check if the fuse is blown.
Replace the blown fuse with a new
fuse of an appropriate amperage
rating. The amperage rating can be
found on the fuse box lid.
Type A
Normal fuse
Blown fuse
Type BNormal fuse
Blown fuse
Type CNormal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure
that the tab is ins talled securely.
●If the lights do not turn on even
after the fuse has been replaced,
a bulb may need replacement.
( P.620)
●If the replaced fuse blows again,
have the vehicle inspected by
your Toyota dealer.
■If there is an ove rload in a cir-
cuit
The fuses are designed to blow,
protecting the wiring harness from
damage.A
B
A
B
A
B

6207-3. Do-it-yourself maintenance
Check the wattage of the light
bulb to be replaced. ( P.686)
Front (type A)
Front turn signal/parking
lights
Fog lights (if equipped)
Front side marker lights

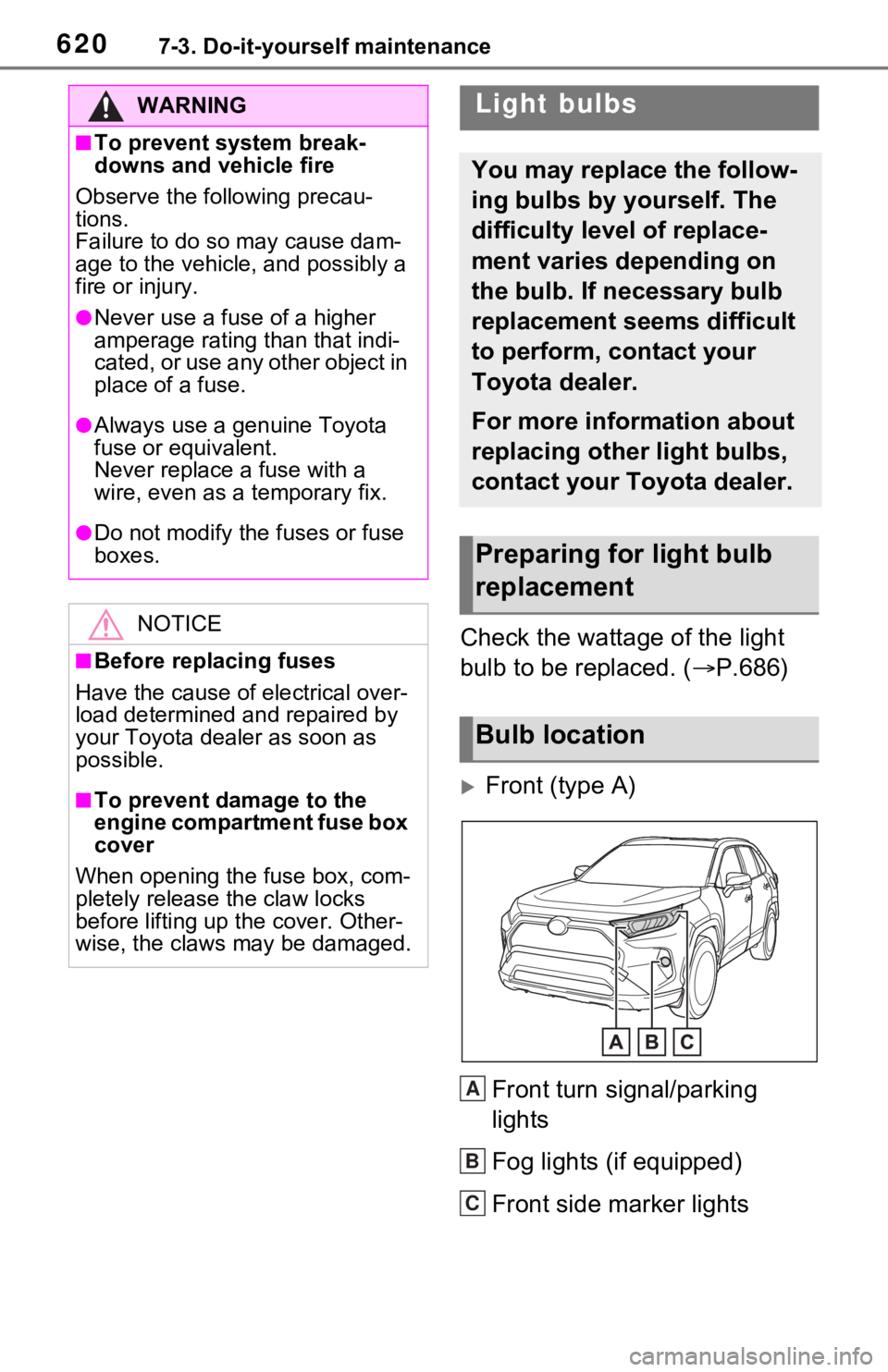

WARNING
■To prevent system break-
downs and vehicle fire
Observe the following precau-
tions.
Failure to do so may cause dam-
age to the vehicle, and possibly a
fire or injury.
●Never use a fuse of a higher
amperage rating than that indi-
cated, or use any other object in
place of a fuse.
●Always use a genuine Toyota
fuse or equivalent.
Never replace a fuse with a
wire, even as a temporary fix.
●Do not modify the fuses or fuse
boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical over-
load determined and repaired by
your Toyota dealer as soon as
possible.
■To prevent damage to the
engine compartment fuse box
cover
When opening the fuse box, com-
pletely release the claw locks
before lifting up the cover. Other-
wise, the claws may be damaged.
Light bulbs
You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.
Preparing for light bulb
replacement
Bulb location
A
B
C

734Alphabetical Index
Footwell lights ........................ 532
Front passenger’s seat belt reminder light ....................... 644
Front passenger occupant clas- sification system .................... 45
Front position lights Light switch .......................... 229
Front seat heaters .................. 529
Front seats .............................. 154 Adjustment ........................... 154
Cleaning ............................... 567
Correct driving posture ........... 29
Driving position memory....... 157
Head restraints ..................... 160
Memory recall function ......... 158
Seat heaters ......................... 529
Seat position memory .......... 157
Seat ventilators .................... 529
Front side marker lights ........ 229 Light switch .......................... 229
Replacing light bulbs ............ 620
Wattage ................................ 686
Front turn signal lights
Replacing light bulbs ............ 620
Turn signal lever................... 223
Wattage ................................ 686
Fuel Capacity ............................... 679
Fuel gauge ....................... 94, 98
Gas station information ........ 748
Information ........................... 688
Refueling .............................. 241
Type ............................. 679, 688
Warning light ........................ 644
Fuel consumption information Average fuel consumption.... 119
Current fuel consumption ..... 119
Fuel filler door ..... ................... 242
If the fuel filler door cannot be opened ............................... 663
Refueling .............................. 241
Fuel gauge .......................... 94, 98 Fuses .......................................618
G
Garage door opene
r ...............554
Gas station information .........748
Gauges ................................94, 98
General button (Setup screen) .......................................392, 426
General settings .....................426 Displaying the general settings screen.................................426
General settings screen .......426
Glove box ................................535
H
Hands-free system .................477
Headlights ...............................229 Adaptive Front-lighting System (AFS) ..................................231
Automatic headlight leveling sys- tem .....................................230
Automatic High Beam system ...........................................232
Light switch...........................229
Replacing light bulbs ............620
Wattage ................................686
Head restraints .......................160
Heated steering wheel............529
Heaters Automatic air conditioning sys-tem .....................................522
Heated steering wheel..........529
Outside rear view mirrors .....524
Seat heaters ....... ..................529
High mounted stoplight Replacing light bulbs ............620
Hill-start assist control...........369
HOME button...........................396
Home screen ...........................396
Hood ........................................577
Hooks

740Alphabetical Index
Remote Connect ..................... 514
ReplacingElectronic key battery ........... 615
Fuses ................................... 618
Light bulbs ............................ 620
Tires ..................................... 652
Wiper insert .......................... 612
Wireless remote control battery........................................... 615
Reporting safety defects for U.S. owners................................... 714
Resetting the message indicat- ing maintenance is required 571
Road accident cautions ........... 77
Road Sign Assist .................... 268
RSA (Road Sign Assist) ......... 268
S
Screen adjustment ................. 400
Seat belt reminder light . 644, 645
Seat belts .................................. 31 Adjusting the seat belt shoulder anchor height ....................... 33
Automatic Locking Retractor .. 33
Child restraint system installation ............................................. 56
Cleaning and maintaining the seat belt.............................. 567
Emergency Locking Retractor 33
How to wear your seat belt..... 32
How your child should wear the seat belt................................ 32
Pregnant women, proper seat belt use................................. 31
Reminder light and buzzer ........................ 644, 645
Seat belt extender .................. 32
Seat belt pretensioners .......... 34
SRS warning light................. 640
Seat heaters ............................ 529
Seating capacity ..................... 199
Seat position memory ............ 157 Seats
Adjustment precautions 154, 155
Adjustment ...................154, 155
Child seats/child restraint system installation ............................52
Cleaning ...............................567
Driving position memory .......157
Folding down the rear seatbacks ...........................................156
Head restraint .......................160
Properly sitting in the seat ......29
Seat heaters ....... ..................529
Seat position memory...........157
Seat ventilators.....................529
Seat ventilators .. .....................529
Secondary Collision Brake ....370
Sensor Automatic headlight system .230
Automatic High Beam system...........................................232
BSM (Blind Spot M onitor) .....285
Digital Rear-view Mirror ........168
Inside rear view mirror ..........164
Intuitive parking assist ..........291
LTA (Lane Traci ng Assist) ....258
Parking Support Brake function (rear-crossing vehicles) ......285
Parking Support Brake function (static objects) ....................291
Rain-sensing windshield wipers ...........................................237
RCTA ....................................285
Toyota Safety Sense 2.0 ......244
Service Connect ... ..................515
Service plug ..............................76
Service reminder message ....571
Setup button (Menu screen) ...............389, 392
Setup screen ...........................392
Shift lever ................................219 If th e s hif t le ver ca n no t b e s hif te d from P .................................221
