6068-2. Steps to take in an emergency
played on the multi-information
display.
4 Press the power switch shortly
and firmly.
In the event that the hybrid system
still cannot be st arted, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Stopping the hybrid system
Shift the shift lever to P, set the parking
brake and press the power switch as you normally do when stopping the
hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is rec ommended that the
electronic key battery be replaced
immediately when the battery is depleted. ( →P.543)
■Alarm (if equipped)
Using the mechanical key to lock the
doors will not set the alarm system.
If a door is unlocked using the mechani -
cal key when the al arm system is set,
the alarm may be triggered. ( →P.78)
■Changing power switch modes
Release the brake pedal and press the power switch in step 3 above.
The hybrid system does not start and
modes will be changed each time the switch is pressed. ( →P.320)
If you have a set of jumper (or
booster) cables an d a second vehi-
cle with a 12-volt battery, you can
jump start your vehicle by following
the steps below.
1 Vehicles with alarm (→P.78)
Confirm that the electronic key
is being carried.
When connecting the jumper (or booster) cables, depending on the situ -
ation, the alarm ma y activate and the
doors locked. ( →P.79)
2Open the hood (→P.498) and
fuse box cover.
If the 12-volt battery is
discharged
The following procedures may
be used to start the hybrid sys -
tem if the vehicle’s 12-volt bat -
tery is discharged.
You can also call any autho -
rized Toyota ret ailer or Toyota
authorized repairer, or any reli -
able repairer or a qualified
repair shop.
Restarting the hybrid sys -
tem

6088-2. Steps to take in an emergency
minutes to recharge the 12-volt
battery of your vehicle.
6 Open and close any of the doors
of your vehicle with the power
switch off.
7 Maintain the engine speed of
the second vehicle and start the
hybrid system of your vehicle by
turning the power switch to ON.
8 Make sure the “READY” indica-
tor comes on. If the indicator
light does not come on, contact
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
9 Once the hybrid system has
started, remove the jumper
cables in the exact reverse
order from which they were con -
nected.
10 Close the exclusive jump start-
ing terminal cover, and reinstall
the fuse box cover to its original
position.
Once the hybrid system starts,
have the vehicle inspected at any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
■Starting the hybrid system when
the 12-volt battery is discharged
The hybrid system c annot be started by push-starting.
■To prevent 12-volt battery dis -
charge
●Turn off the headlights and the audio
system while the hybrid system is off.
●Turn off any unnecessary electrical
components when the vehicle is run - ning at a low speed for an extended
period, such as in heavy traffic.
■When the 12-volt battery is
removed or discharged
●Information stored in the ECU is
cleared. When the 12 -volt battery is depleted, have the vehicle inspected
at any authorized Toyota retailer or
Toyota authorized repairer, or any reli - able repairer.
●Some systems may r equire initializa- tion. ( →P.643)
■When removing the 12-volt battery
terminals
When the 12-volt batte ry terminals are removed, the in formation stored in the
ECU is cleared. Before removing the 12-
volt battery termi nals, contact any authorized Toyota r etailer or Toyota
authorized repairer, or any reliable
repairer.
■Charging the 12-volt battery
The electricity stor ed in the 12-volt bat-
tery will discharge gr adually even when
the vehicle is not in use, due to natural discharge and the dr aining effects of
certain electrical appliances. If the vehi -
cle is left for a long time, the 12-volt bat- tery may discharge, and the hybrid
system may be unable t o start. (The 12-
volt battery recharges automatically while the hybrid syst em is operating.)
■When recharging or replacing the
12-volt battery
●In some cases, it may not be possible
to unlock the doors using the smart
entry & start system when the 12-volt
battery is discharged. Use the wire - less remote control o r the mechanical
key to lock or unlock the doors.
●The hybrid system may not start on
the first attempt after reinstalling the
12-volt battery. In t hat case, start the hybrid system in t he same manner as
when the electr onic key does not
operate properly ( →P.605). This is not

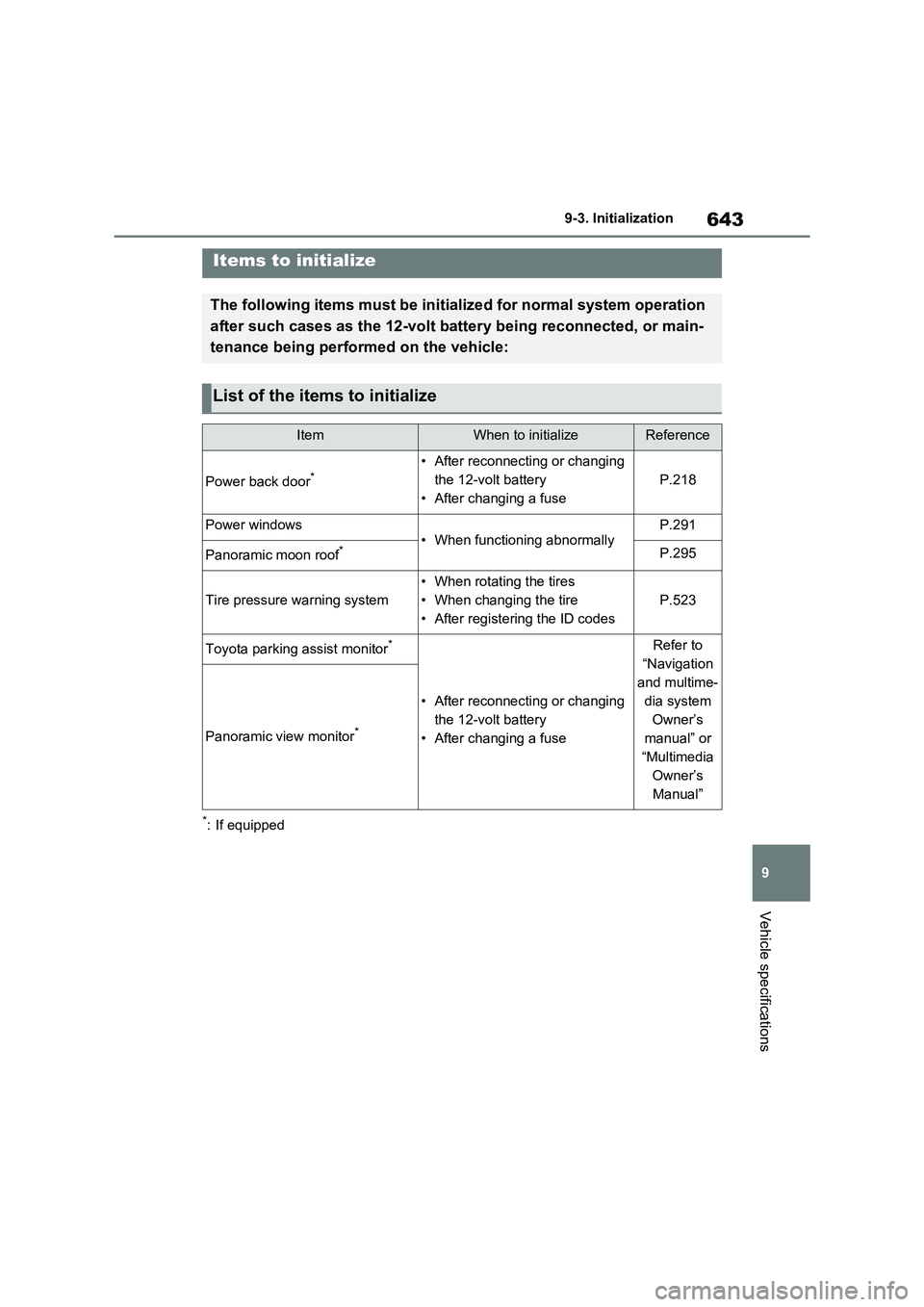

643
9
9-3. Initialization
Vehicle specifications
9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system opera tion
after such cases as the 12-volt battery being reconnected, or main-
tenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or changing
the 12-volt battery
• After changing a fuse
P.218
Power windows• When functioning abnormallyP.291
Panoramic moon roof*P.295
Tire pressure warning system
• When rotating the tires
• When changing the tire
• After registering the ID codes
P.523
Toyota parking assist monitor*
• After reconnecting or changing
the 12-volt battery
• After changing a fuse
Refer to
“Navigation
and multime -
dia system
Owner’s
manual” or
“Multimedia
Owner’s
Manual”
Panoramic view monitor*

654Alphabetical Index
light.............................................. 575
Front position lights
Light switch ................................ 332
Replacing light bulbs .................. 548
Front seat concentrated airflow
mode (S-FLOW) .......................... 457
Front seat heaters ........................ 462
Front seats .................................... 270
Adjustment ................................. 270
Cleaning ..................................... 491
Correct driving posture................. 33
Driving position memory ............ 273
Head restraints........ ................... 276
Memory recall function ............... 274
Seat heaters............................... 462
Seat position memory ................ 273
Seat ventilators .......................... 462
Front turn signal lights
Replacing light bulbs .................. 548
Turn signal lever ........................ 325
Wattage...................................... 626
Fuel
Capacity ................ ..................... 620
Fuel gauge ................................. 174
Gas station information .............. 664
Information ................................. 627
Refueling .................................... 342
Type ........................................... 620
Warning light .............................. 575
Fuel consumption information
Average fuel consumption ......... 198
Current fuel consumption ........... 198
Fuel filler door .............................. 343
If the fuel filler door cannot be
opened..................................... 603
Opener ....................................... 343
Refueling .................................... 342
Fuel gauge .................................... 174
Fuses ............................................. 545
G
Gas station information ...............664
Gauges...........................................174
Glove box ......................................469
GPF (Gasoline Part iculate Filter)
system ........... ..............................437
H
Headlight cleaner ..........................338
Headlights .....................................332
Automatic headlight leveling ...... 333
Automatic High Beam (AHB)...... 334
Extended Headlight Lighting system
.................................................333
Light switch ................................332
Replacing light bulbs ..................548
Head restraints..............................276
Head-up display ............................ 191
Heated steering wheel ..................462
Heated Windshield Defroster.......457
Heaters
Automatic air conditioning system
.................................................452
Heated steering wheel ...............462
Hybrid battery (traction battery).. 128
Outside rear view mirrors ........... 454
Seat heaters ............................... 462
High coolant temperature warning
light ..............................................569
High mounted stoplight
Replacing light bulbs ..................548
High voltage components .............. 94
Hill-start assist control ................. 438
Hood............................................... 498
Warning message ...................... 578
Hooks
Cargo hooks ............. .................. 472
Coat hooks ................................. 484
Retaining hooks (floor mat) .......... 32
Horn ............................................... 278

659Alphabetical Index
Inside rear view mirror ............... 279
Outside rear view mirrors ........... 289
Rear window defogger ................. 454
Rear window wiper ....................... 340
Refueling ....................................... 342
Capacity ................ ..................... 620
Fuel types .................................. 620
If the fuel filler door cannot be
opened..................................... 603
Opening the fuel tank cap .......... 342
Regenerative braking ..................... 90
Remote Air Conditioning System 460
Replacing
Electronic key battery................. 543
Fuses ......................................... 545
Light bulbs.................................. 548
Tires ........................................... 593
Wiper insert ................................ 539
Road accident caution s ................. 96
Road Sign Assist .......................... 372
RSA (Road Sign Assist) ............... 372
S
Seat belt reminder light........ 575, 576
Seat belts ........................................ 35
Adjusting the seat belt shoulder
anchor height ............................. 37
Child restraint syst em installation 61
Cleaning and maintaining the seat
belt ........................................... 491
Emergency Locking Retractor (ELR)
................................................... 37
How to wear your seat belt .......... 36
How your child should wear the seat
belt ............................................. 36
Pregnant women, proper seat belt
use ............................................. 35
Reminder light and buzzer . 575, 576
Seat belt pretensioners ................ 37
SRS warning light ...................... 570
Seat heaters .................................. 462
Seat position memory ..................273
Seats
Adjustment precautions...... 270, 271
Adjustment ......................... 270, 271
Armrest......... .............................. 484
Cleaning .....................................491
Driving position memory.............273
Folding down the rear seatbacks272
Head restraint.............................276
Properly sitting in the seat ............ 33
Seat heaters ............................... 462
Seat position memory ................273
Seat ventilators ..........................462
Seat ventilators .............................462
Secondary Collision Brake ..........439
Sensor
Automatic headlig ht system .......332
Automatic High Be am system ....334
BSM (Blind Spot Monitor)........... 408
Digital Rear-view Mirror.............. 283
Front camera ..............................344
Humidity sensor ......................... 459
Inside rear view mirror................279
Intrusion sensor and tilt sensor .... 79
LTA (Lane Tracing Assist)..........362
Parking Support Brake function
(rear-crossing vehicles)............ 408
Parking Support Brake function
(static objects) ..........................414
Radar sensor..............................344
Rain-sensing windshield wipers . 339
RCTA .........................................408
Tilt sensor..................................... 79
Toyota parking assi st-sensor ..... 414
Toyota Safety Sense ..................344
Service plug .................................... 94
Shift lever ......................................321
If the shift lever cannot be shifted
from P ......................................323
Shift lock system ..........................323
Side airbags .................................... 39
