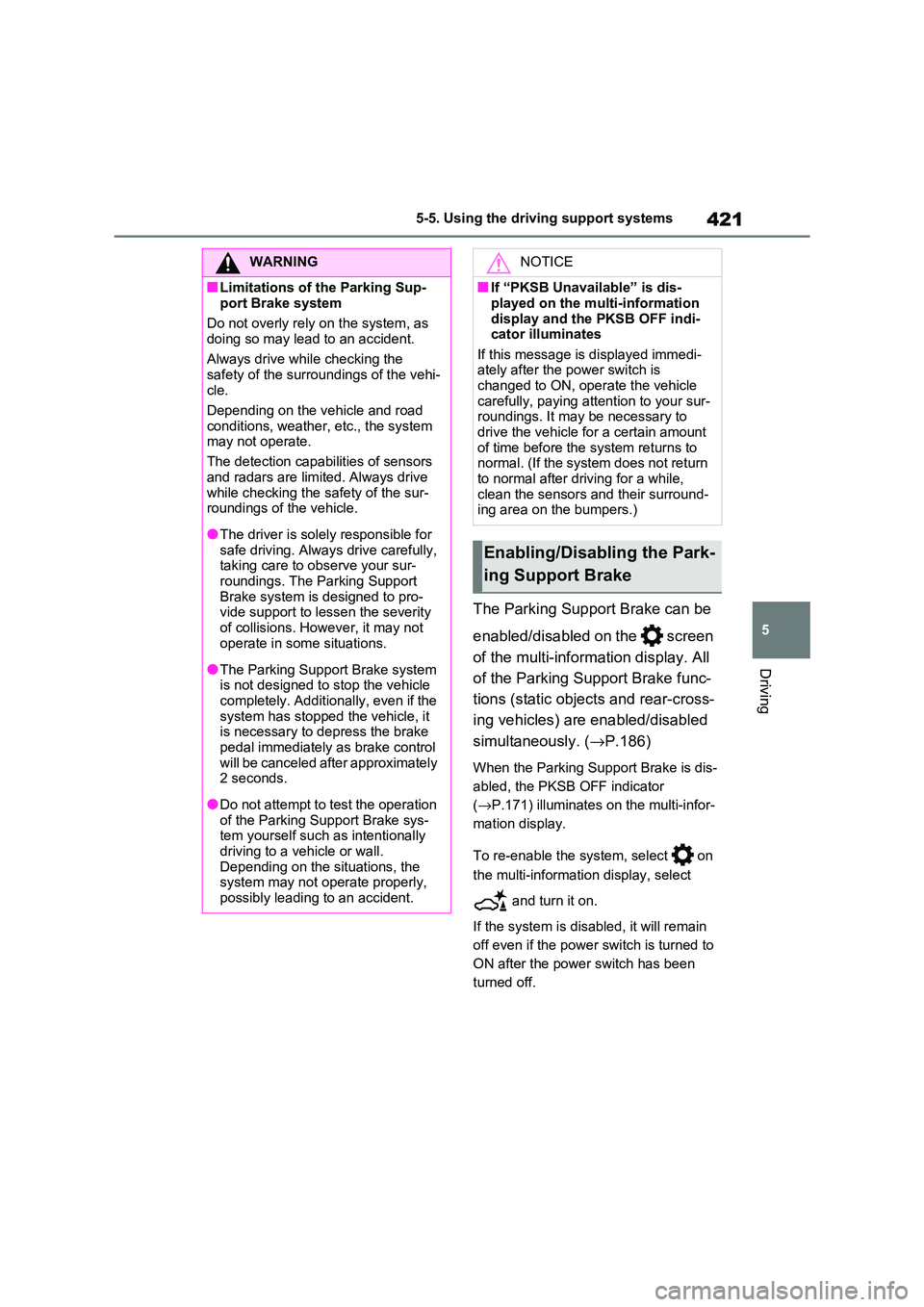

421
5
5-5. Using the driving support systems
Driving
The Parking Support Brake can be
enabled/disabled on the screen
of the multi-information display. All
of the Parking Support Brake func -
tions (static objects and rear-cross -
ing vehicles) are enabled/disabled
simultaneously. ( →P.186)
When the Parking Support Brake is dis-
abled, the PKSB OFF indicator
( →P.171) illuminates on the multi-infor-
mation display.
To re-enable the system, select on
the multi-information display, select
and turn it on.
If the system is disabl ed, it will remain
off even if the power switch is turned to
ON after the power switch has been
turned off.
WARNING
■Limitations of the Parking Sup -
port Brake system
Do not overly rely on the system, as doing so may lead to an accident.
Always drive while checking the
safety of the surroundings of the vehi - cle.
Depending on the v ehicle and road
conditions, weather, etc., the system
may not operate.
The detection capabilities of sensors
and radars are limited. Always drive
while checking the safety of the sur- roundings of the vehicle.
●The driver is solely responsible for safe driving. Always drive carefully,
taking care to observe your sur -
roundings. The Parking Support Brake system is designed to pro-
vide support to lessen the severity
of collisions. However, it may not operate in som e situations.
●The Parking Support Brake system is not designed to stop the vehicle
completely. Additionally, even if the
system has stopped the vehicle, it is necessary to depress the brake
pedal immediately as brake control
will be canceled after approximately 2 seconds.
●Do not attempt to test the operation of the Parking Support Brake sys -
tem yourself such as intentionally
driving to a vehicle or wall. Depending on the situations, the
system may not ope rate properly,
possibly leading to an accident.
NOTICE
■If “PKSB Unavailable” is dis -
played on the multi-information
display and the PKSB OFF indi - cator illuminates
If this message is displayed immedi -
ately after the power switch is changed to ON, ope rate the vehicle
carefully, paying attention to your sur -
roundings. It may be necessary to
drive the vehicle for a certain amount of time before the system returns to
normal. (If the syst em does not return
to normal after driving for a while, clean the sensors and their surround -
ing area on the bumpers.)
Enabling/Disabling the Park -
ing Support Brake

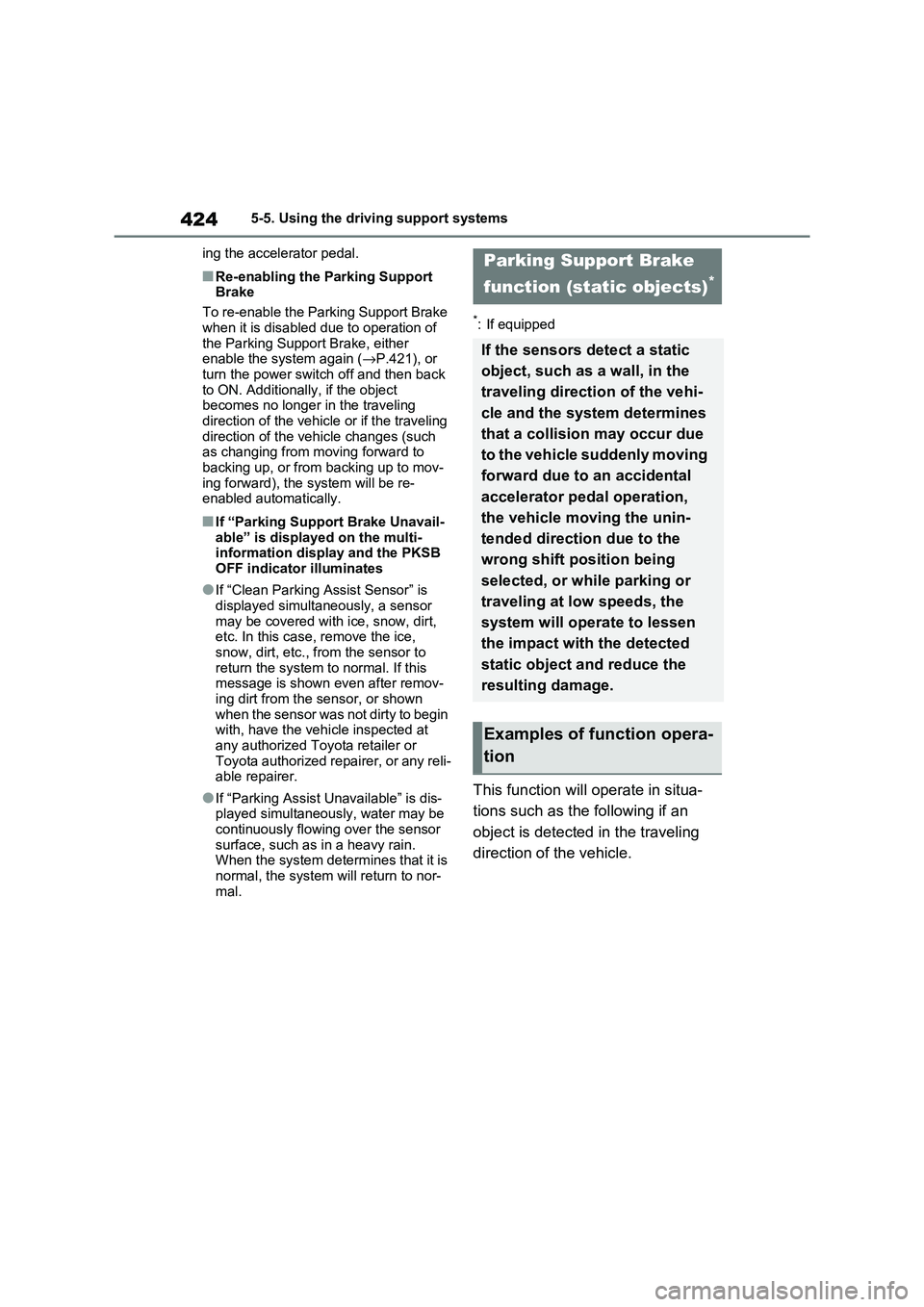

4245-5. Using the driving support systems
ing the accelerator pedal.
■Re-enabling the Parking Support
Brake
To re-enable the Parking Support Brake
when it is disabled due to operation of
the Parking Support Brake, either enable the system again ( →P.421), or
turn the power switch off and then back
to ON. Additionally, if the object becomes no longer in the traveling
direction of the vehicle or if the traveling
direction of the vehicle changes (such as changing from moving forward to
backing up, or from backing up to mov -
ing forward), the system will be re- enabled automatically.
■If “Parking Support Brake Unavail -
able” is displayed on the multi-
information display and the PKSB OFF indicator illuminates
●If “Clean Parking Assist Sensor” is displayed simultaneously, a sensor
may be covered with ice, snow, dirt,
etc. In this case, remove the ice, snow, dirt, etc., from the sensor to
return the system to normal. If this
message is shown even after remov - ing dirt from the sensor, or shown
when the sensor was not dirty to begin
with, have the vehi cle inspected at any authorized Toy ota retailer or
Toyota authorized repairer, or any reli -
able repairer.
●If “Parking Assist Unavailable” is dis -
played simultaneously, water may be continuously flowing over the sensor
surface, such as in a heavy rain.
When the system determines that it is normal, the system w ill return to nor-
mal.
*: If equipped
This function will operate in situa -
tions such as the following if an
object is detected in the traveling
direction of the vehicle.
Parking Support Brake
function (static objects)*
If the sensors detect a static
object, such as a wall, in the
traveling direction of the vehi -
cle and the system determines
that a collision may occur due
to the vehicle suddenly moving
forward due to an accidental
accelerator pedal operation,
the vehicle moving the unin -
tended direction due to the
wrong shift position being
selected, or while parking or
traveling at low speeds, the
system will operate to lessen
the impact with the detected
static object and reduce the
resulting damage.
Examples of function opera -
tion

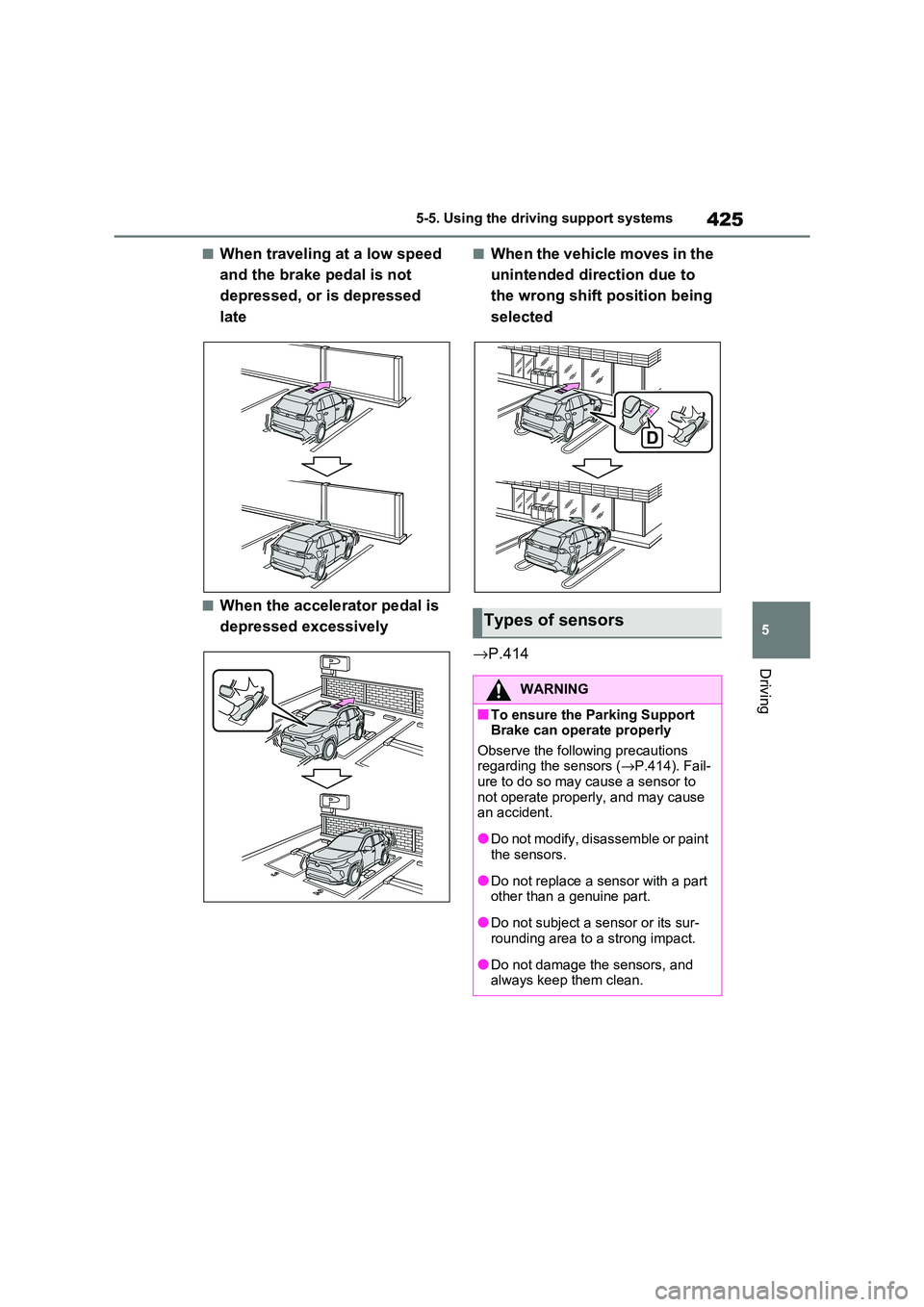

425
5
5-5. Using the driving support systems
Driving
■When traveling at a low speed
and the brake pedal is not
depressed, or is depressed
late
■When the accelerator pedal is
depressed excessively
■When the vehicle moves in the
unintended direction due to
the wrong shift position being
selected
→ P.414
Types of sensors
WARNING
■To ensure the Parking Support
Brake can operate properly
Observe the following precautions regarding the sensors ( →P.414). Fail-
ure to do so may cause a sensor to
not operate proper ly, and may cause an accident.
●Do not modify, disassemble or paint the sensors.
●Do not replace a s ensor with a part other than a genuine part.
●Do not subject a sensor or its sur - rounding area to a strong impact.
●Do not damage the sensors, and always keep them clean.

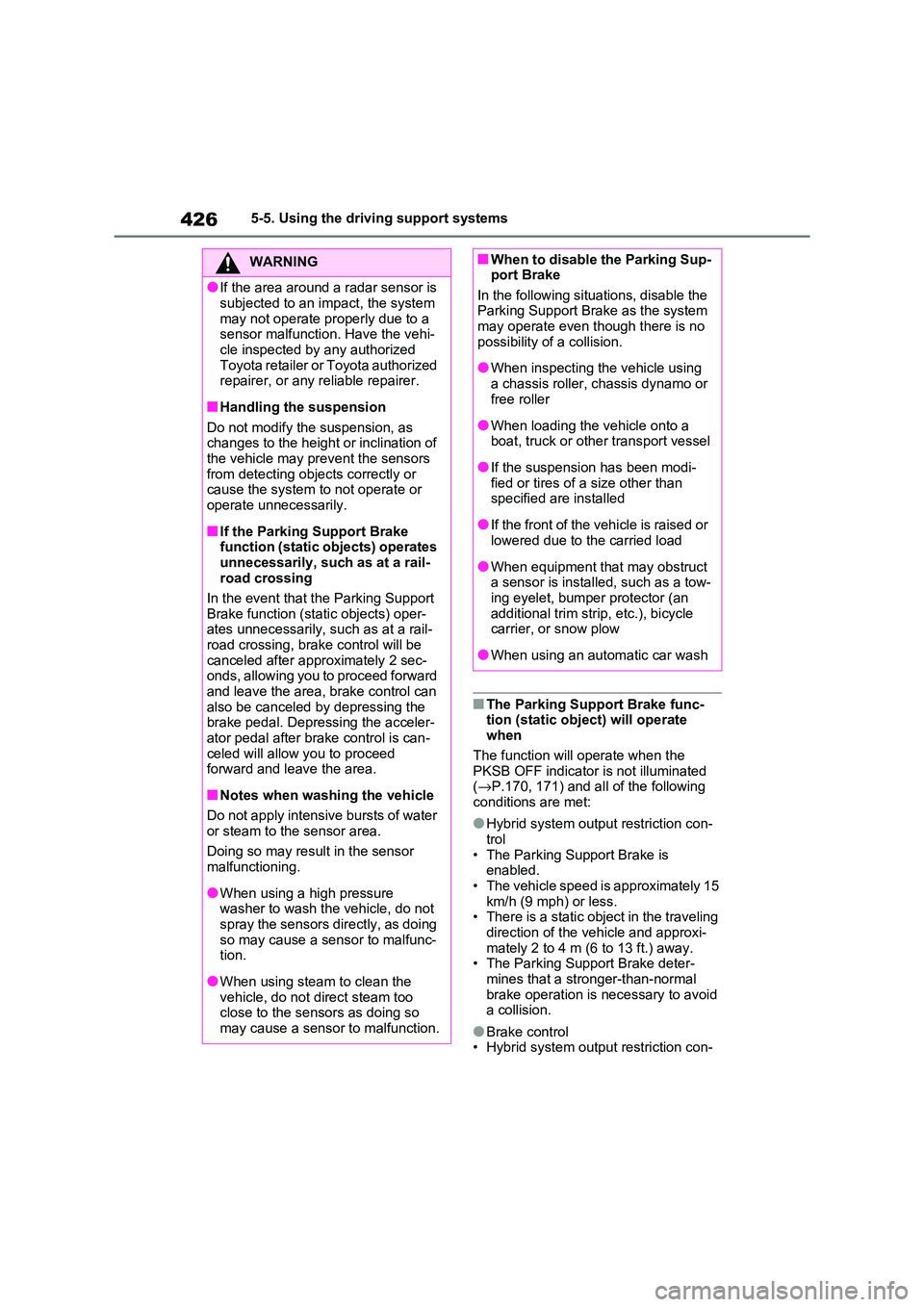

4265-5. Using the driving support systems
■The Parking Support Brake func- tion (static object) will operate
when
The function will operate when the
PKSB OFF indicator is not illuminated ( →P.170, 171) and all of the following
conditions are met:
●Hybrid system outpu t restriction con-
trol
• The Parking Support Brake is enabled.
• The vehicle speed is approximately 15
km/h (9 mph) or less. • There is a static object in the traveling
direction of the v ehicle and approxi-
mately 2 to 4 m (6 to 13 ft.) away. • The Parking Support Brake deter -
mines that a stronger-than-normal
brake operation is n ecessary to avoid a collision.
●Brake control• Hybrid system outpu t restriction con-
WARNING
●If the area around a radar sensor is
subjected to an im pact, the system
may not operate properly due to a sensor malfunction. Have the vehi -
cle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Handling the suspension
Do not modify the suspension, as changes to the height or inclination of
the vehicle may pr event the sensors
from detecting objects correctly or cause the system to not operate or
operate unnecessarily.
■If the Parking Support Brake
function (static objects) operates
unnecessarily, such as at a rail - road crossing
In the event that the Parking Support
Brake function (sta tic objects) oper- ates unnecessarily, such as at a rail-
road crossing, brake control will be
canceled after appr oximately 2 sec- onds, allowing you to proceed forward
and leave the area, brake control can
also be canceled by depressing the brake pedal. Depressing the acceler -
ator pedal after brake control is can -
celed will allow you to proceed forward and leav e the area.
■Notes when washing the vehicle
Do not apply intensive bursts of water
or steam to the sensor area.
Doing so may resul t in the sensor malfunctioning.
●When using a high pressure washer to wash the vehicle, do not
spray the sensors directly, as doing
so may cause a sensor to malfunc - tion.
●When using steam to clean the vehicle, do not direct steam too
close to the sensors as doing so
may cause a sensor to malfunction.
■When to disable the Parking Sup - port Brake
In the following situations, disable the
Parking Support Brake as the system may operate even t hough there is no
possibility of a collision.
●When inspecting t he vehicle using
a chassis roller, chassis dynamo or
free roller
●When loading the vehicle onto a
boat, truck or other transport vessel
●If the suspension has been modi -
fied or tires of a size other than specified are installed
●If the front of the vehicle is raised or lowered due to the carried load
●When equipment that may obstruct a sensor is instal led, such as a tow-
ing eyelet, bumper protector (an
additional trim st rip, etc.), bicycle carrier, or snow plow
●When using an autom atic car wash

427
5
5-5. Using the driving support systems
Driving
trol is operating
• The Parking Support Brake deter - mines that an imm ediate brake opera-
tion is necessary t o avoid a collision.
■The Parking Support Brake func-
tion (static objects) will stop oper - ating when
The function will stop operating if any of
the following conditions are met:
●Hybrid system output restriction con -
trol • The Parking Support Brake is dis -
abled.
• The system determine s that the colli- sion has become avoidable with nor-
mal brake operation.
• The static object is no longer approxi - mately 2 to 4 m (6 to 13 ft.) away from
the vehicle or in the traveling direction
of the vehicle.
●Brake control
• The Parking Support Brake is dis - abled.
• Approximately 2 seconds have
elapsed since the vehicle was stopped by brake control.
• The brake pedal is depressed after
the vehicle is stopped by brake con - trol.
• The static object is no longer approxi -
mately 2 to 4 m (6 to 13 ft.) away from the vehicle or in the traveling direction
of the vehicle.
■Detection range of the Parking Sup -
port Brake function (static objects)
The detection range of the Parking Sup -
port Brake function ( static objects) dif-
fers from the detection range of the Toyota parking assist-sensor. ( →P.418)
Therefore, even if the Toyota parking
assist-sensor detect s an object and pro-
vides a warning, the Parking Support Brake function (static objects) may not
start operating.
■Objects that the Parking Support
Brake function (static objects) may not detect
The sensors may not be able to detect
certain objects, such as the following:
●Pedestrian
●Cotton, snow, and other materials that
are poor reflectors of sonic waves
●Objects which are not perpendicular
to the ground, are not perpendicular to
the traveling direction of the vehicle, are uneven or are waving
●Low objects
●Thin objects such as wires, fences,
ropes and signposts
●Objects that are e xtremely close to
the bumper
●Sharply-angled objects
●Tall objects with upper sections pro-
jecting outwards in the direction of
your vehicle
■Situations in which the Parking Support Brake function (static
objects) may not operate
When the shift lever is in N
■Toyota parking assist-sensor buzzer
Regardless of whether the Toyota park -
ing assist-sensor function is enabled or not ( →P.415), if the Parking Support
Brake function (static objects) is enabled
( →P.421), the front or rear sensors detect an object and brake control and
hybrid system output r estriction control
are performed, the Toyota parking assist-sensor buzzer will sound to notify
the driver of the approximate distance to
the object.
■Situations in which the Parking Support Brake function (static
objects) may operate even if there
is no possibility of a collision
In some situations, s uch as the follow-
ing, the Parking Support Brake function
(static objects) may operate even
though there is no possibility of a colli - sion.
●Vehicle surroundings• When driving on a narrow road

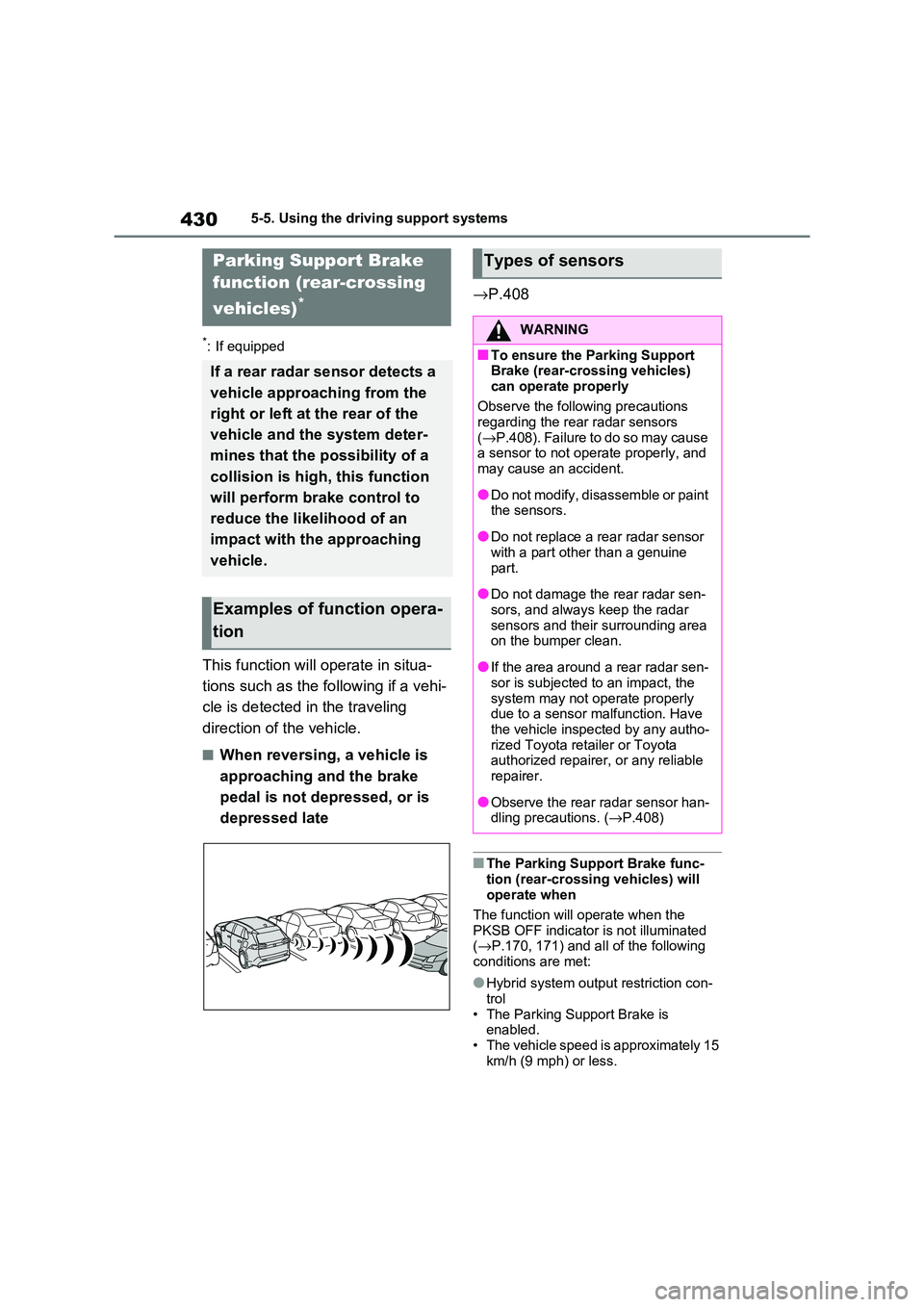

4305-5. Using the driving support systems
*: If equipped
This function will operate in situa-
tions such as the following if a vehi -
cle is detected in the traveling
direction of the vehicle.
■When reversing, a vehicle is
approaching and the brake
pedal is not depressed, or is
depressed late
→ P.408
■The Parking Support Brake func-
tion (rear-crossing vehicles) will operate when
The function will operate when the
PKSB OFF indicator is not illuminated ( →P.170, 171) and all of the following
conditions are met:
●Hybrid system outpu t restriction con-
trol
• The Parking Support Brake is enabled.
• The vehicle speed is approximately 15
km/h (9 mph) or less.
Parking Support Brake
function (rear-crossing
vehicles)*
If a rear radar sensor detects a
vehicle approaching from the
right or left at the rear of the
vehicle and the system deter -
mines that the possibility of a
collision is high, this function
will perform brake control to
reduce the likelihood of an
impact with the approaching
vehicle.
Examples of function opera -
tion
Types of sensors
WARNING
■To ensure the Parking Support
Brake (rear-crossing vehicles)
can operate properly
Observe the following precautions
regarding the rear radar sensors
( →P.408). Failure to do so may cause
a sensor to not ope rate properly, and may cause an accident.
●Do not modify, disassemble or paint the sensors.
●Do not replace a rear radar sensor with a part other than a genuine
part.
●Do not damage the rear radar sen -
sors, and always keep the radar
sensors and their surrounding area on the bumper clean.
●If the area around a rear radar sen - sor is subjected to an impact, the
system may not operate properly
due to a sensor malfunction. Have the vehicle inspected by any autho -
rized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
●Observe the rear radar sensor han - dling precautions. ( →P.408)

431
5
5-5. Using the driving support systems
Driving
• Vehicles are ap proaching from the
right or left at the rear of the vehicle at a traveling speed of more than
approximately 8 km/h (5 mph)
• The shift lever is in R. • The Parking Support Brake deter -
mines that a stronger than normal
brake operation is necessary to avoid a collision with an approaching vehi -
cle.
●Brake control
• Hybrid system output restriction con -
trol is operating • The Parking Support Brake deter -
mines that an emergency brake oper -
ation is necessary to avoid a collision with an approaching vehicle.
■The Parking Support Brake func -
tion (rear-crossing vehicles) will
stop operating when
The function will stop operating if any of
the following conditions are met:
●Hybrid system output restriction con -
trol
• The Parking Support Brake is dis - abled.
• The collision becomes avoidable with
normal brake operation. • A vehicle is no longer approaching
from the right or lef t at the rear of the
vehicle.
●Brake control
• The Parking Support Brake is dis - abled.
• Approximately 2 seconds have
elapsed since the vehicle was stopped by brake control.
• The brake pedal is depressed after
the vehicle is stopped by brake con - trol.
• A vehicle is no longer approaching
from the right or lef t at the rear of the
vehicle.
■Detection area of the Parking Sup - port Brake function (rear-crossing
vehicles)
The detection area of the Parking Sup - port Brake function (rear-crossing vehi -
cles) differs from t he detection area of
the RCTA function ( →P.412). Therefore,
even if the RCTA function detects a
vehicle and provides an alert, the Park - ing Support Brake function (rear-cross -
ing vehicles) may not start operating.
■Conditions under which the Park -
ing Support Brake function (rear- crossing vehicles) will not detect a
vehicle
The Parking Support Brake function (rear-crossing vehicles) is not designed
to detect the following types of vehicles
and/or objects:
●Vehicles approaching from directly
behind
●Vehicles backing up in a parking
space next to your vehicle
●Vehicles that the sensors cannot
detect due to obstructions
●Vehicles which suddenly accelerate or
decelerate near your vehicle
●Guardrails, walls, signs, parked vehi -
cles and similar stationary objects*
●Small motorcycles, bicycles, pedestri -
ans, etc.*
●Vehicles moving away from your vehi - cle
●Vehicles approachin g from the park-
ing spaces next to your vehicle*
●Objects which are ex tremely close to
a radar sensor*
●Vehicles which are approaching from
the right or left at the rear of the vehi -
cle at a traveling sp eed of less than
approximately 8 km/h (5 mph)
●Vehicles which are approaching from
the right or left at the rear of the vehi - cle at a traveling sp eed of more than

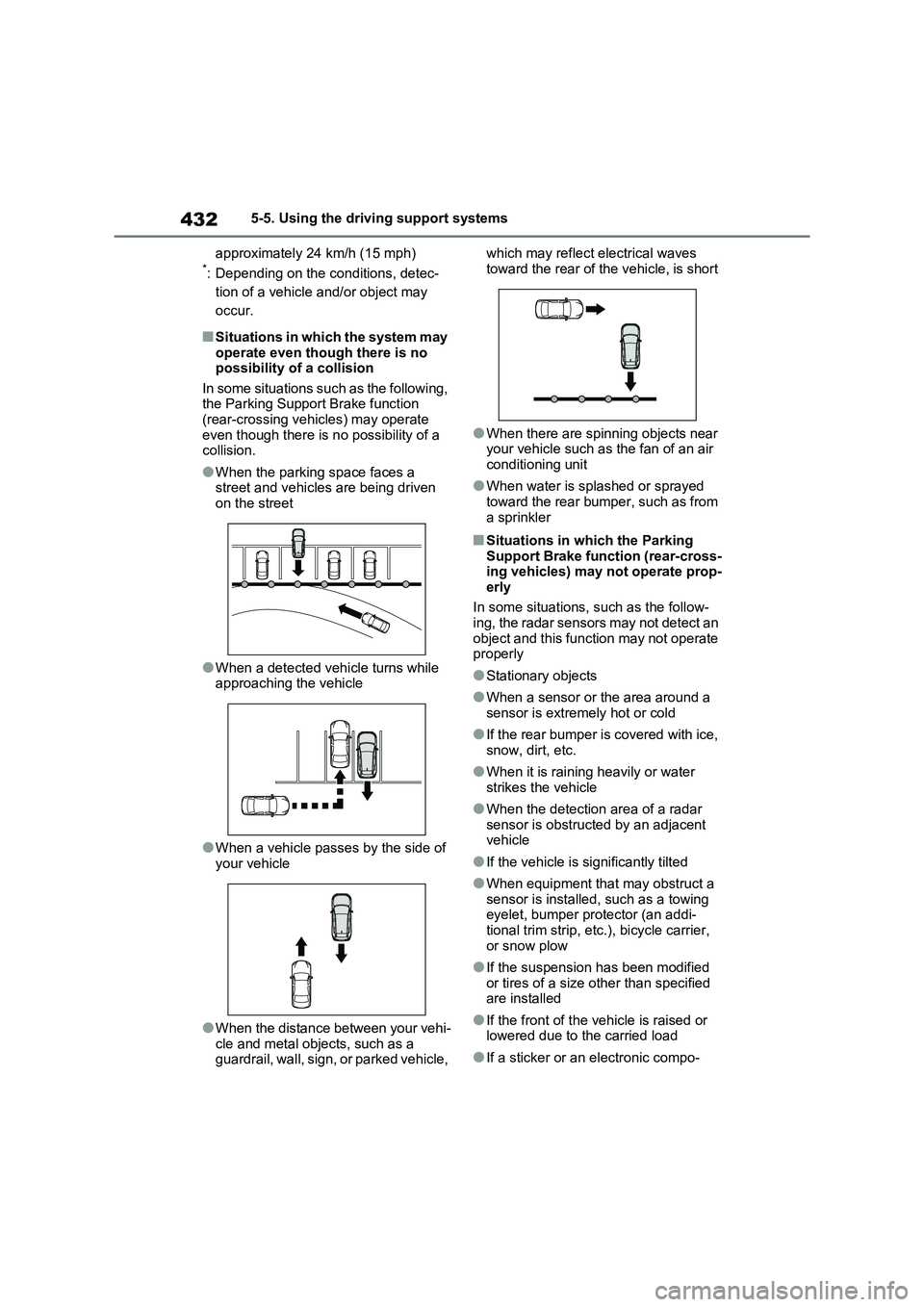

4325-5. Using the driving support systems
approximately 24 km/h (15 mph)*: Depending on the conditions, detec-
tion of a vehicle and/or object may
occur.
■Situations in which the system may
operate even though there is no possibility of a collision
In some situations such as the following,
the Parking Support Brake function (rear-crossing vehicles) may operate
even though there is n o possibility of a
collision.
●When the parking space faces a
street and vehicles are being driven on the street
●When a detected vehicle turns while approaching the vehicle
●When a vehicle passe s by the side of your vehicle
●When the distance between your vehi -
cle and metal objects, such as a guardrail, wall, sign, or parked vehicle,
which may reflect electrical waves
toward the rear of the vehicle, is short
●When there are spinning objects near
your vehicle such as the fan of an air conditioning unit
●When water is spla shed or sprayed toward the rear bumper, such as from
a sprinkler
■Situations in which the Parking
Support Brake function (rear-cross - ing vehicles) may not operate prop -
erly
In some situations, s uch as the follow- ing, the radar sensors may not detect an
object and this function may not operate
properly
●Stationary objects
●When a sensor or the area around a
sensor is extremely hot or cold
●If the rear bumper is covered with ice,
snow, dirt, etc.
●When it is raining heavily or water
strikes the vehicle
●When the detection area of a radar
sensor is obstruct ed by an adjacent
vehicle
●If the vehicle is significantly tilted
●When equipment that may obstruct a
sensor is installed , such as a towing
eyelet, bumper protector (an addi - tional trim str ip, etc.), bicycle carrier,
or snow plow
●If the suspension has been modified or tires of a size o ther than specified
are installed
●If the front of the v ehicle is raised or
lowered due to the carried load
●If a sticker or an electronic compo -

657Alphabetical Index
Vanity mirrors ............................. 476
Multi-information display
Audio system-linked display....... 184
BSM (Blind Spot Monitor) .......... 393
Changing the display ................. 180
Display contents......................... 179
Driving information display ......... 181
Driving support system information
display ..................................... 184
Dynamic radar cruise control with
full-speed range ....................... 376
Energy monitor/consumption screen
................................................. 195
Hybrid System Indicator ..... 177, 631
Language ................ ........... 188, 631
LTA (Lane-Tracing Assist) ......... 368
Menu icons................................. 180
Meter control switches ............... 180
Navigation system-l inked display184
Parking Support Brake function . 422
PCS (Pre-Collision System) ....... 355
Pop-up display ................... 188, 630
RSA (Road Sign Assist) ............. 372
Settings ...................................... 186
Suggestion function ........... 189, 631
Toyota parking assi st-sensor ..... 414
Units ........................................... 188
Vehicle information display ........ 185
Warning message display .......... 189
Warning messages .... ................ 578
“My Room Mode” ......................... 153
N
Normal mode ................................ 434
O
Odometer ...................................... 174
“ODO TRIP” switch .................... 178
“ODO TRIP” switch ...................... 178
Oil
Engine oil ...................................621
Opener
Back door ...........................212, 214
Fuel filler door ....... ..................... 343
Hood...........................................498
Outer foot lights
Replacing light bulbs ..................548
Wattage ......................................626
Outside rear view mirrors ............289
Adjusting and folding ..................289
BSM (Blind Spot Monitor)........... 393
Outside rear view mirror defoggers
.................................................454
Outside temperature display .......177
Overheating ...................................611
P
Paddle shift switches ................... 323
Panoramic moon roof
Jam protection function .............. 295
Operation ...................................294
Warning message ...................... 296
Parking assist sensors (Toyota park -
ing assist-sensor).......................414
Parking brake
Operation ...................................326
Parking brake engaged warning
buzzer ......................................328
Warning light ..............................574
Warning message ...................... 328
Parking Support Brake (PKSB) ... 420
Indicator .....................................171
Parking Support Brake function
(rear-crossing vehicles)............ 430
Parking Support Brake function
(static objects) ..........................424
Warning light ..............................572
PCS (Pre-Collis ion System)
Enabling/disabling the pre-collision
system......................................357
Function .....................................355
