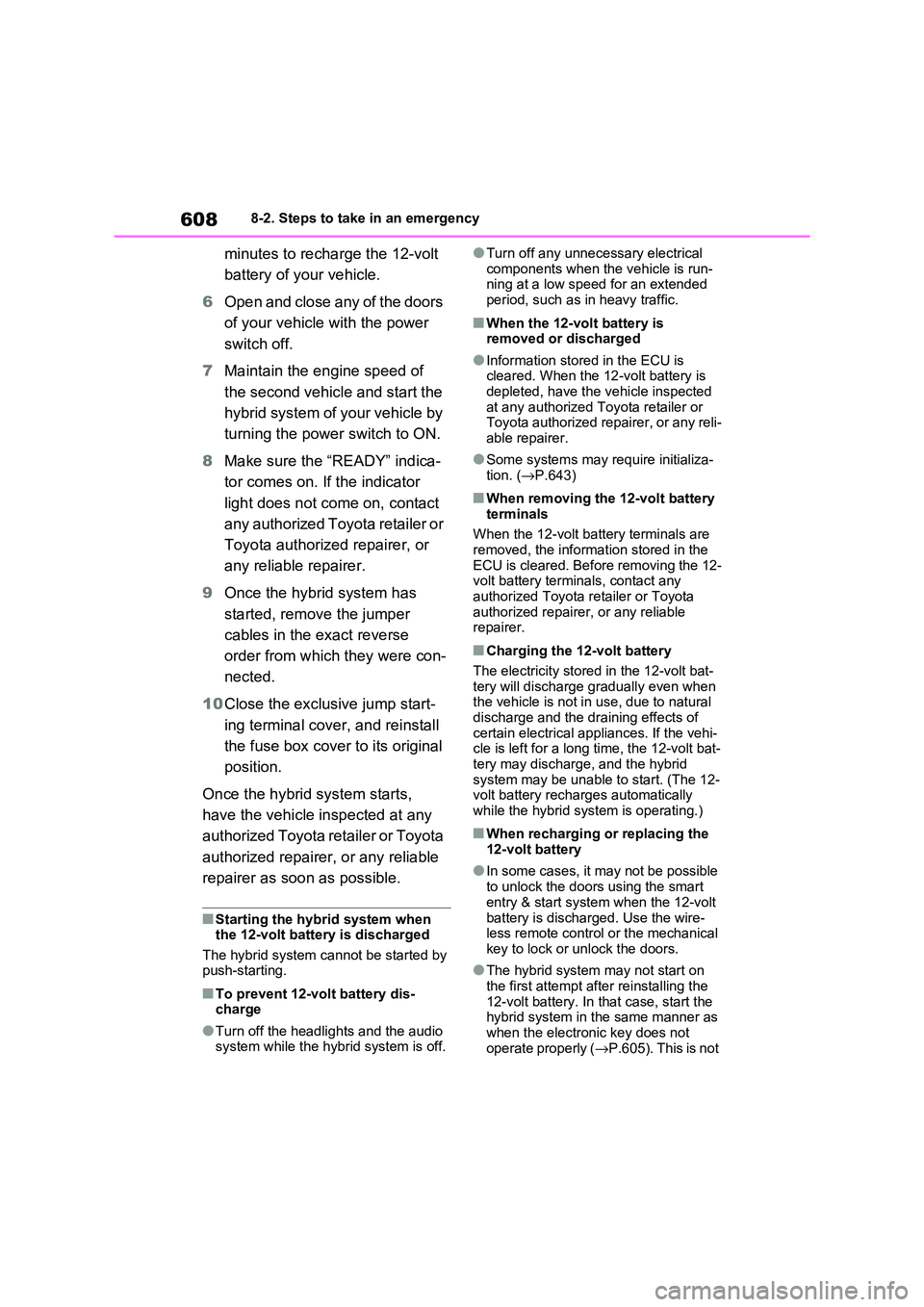

6088-2. Steps to take in an emergency
minutes to recharge the 12-volt
battery of your vehicle.
6 Open and close any of the doors
of your vehicle with the power
switch off.
7 Maintain the engine speed of
the second vehicle and start the
hybrid system of your vehicle by
turning the power switch to ON.
8 Make sure the “READY” indica-
tor comes on. If the indicator
light does not come on, contact
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
9 Once the hybrid system has
started, remove the jumper
cables in the exact reverse
order from which they were con -
nected.
10 Close the exclusive jump start-
ing terminal cover, and reinstall
the fuse box cover to its original
position.
Once the hybrid system starts,
have the vehicle inspected at any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
■Starting the hybrid system when
the 12-volt battery is discharged
The hybrid system c annot be started by push-starting.
■To prevent 12-volt battery dis -
charge
●Turn off the headlights and the audio
system while the hybrid system is off.
●Turn off any unnecessary electrical
components when the vehicle is run - ning at a low speed for an extended
period, such as in heavy traffic.
■When the 12-volt battery is
removed or discharged
●Information stored in the ECU is
cleared. When the 12 -volt battery is depleted, have the vehicle inspected
at any authorized Toyota retailer or
Toyota authorized repairer, or any reli - able repairer.
●Some systems may r equire initializa- tion. ( →P.643)
■When removing the 12-volt battery
terminals
When the 12-volt batte ry terminals are removed, the in formation stored in the
ECU is cleared. Before removing the 12-
volt battery termi nals, contact any authorized Toyota r etailer or Toyota
authorized repairer, or any reliable
repairer.
■Charging the 12-volt battery
The electricity stor ed in the 12-volt bat-
tery will discharge gr adually even when
the vehicle is not in use, due to natural discharge and the dr aining effects of
certain electrical appliances. If the vehi -
cle is left for a long time, the 12-volt bat- tery may discharge, and the hybrid
system may be unable t o start. (The 12-
volt battery recharges automatically while the hybrid syst em is operating.)
■When recharging or replacing the
12-volt battery
●In some cases, it may not be possible
to unlock the doors using the smart
entry & start system when the 12-volt
battery is discharged. Use the wire - less remote control o r the mechanical
key to lock or unlock the doors.
●The hybrid system may not start on
the first attempt after reinstalling the
12-volt battery. In t hat case, start the hybrid system in t he same manner as
when the electr onic key does not
operate properly ( →P.605). This is not
