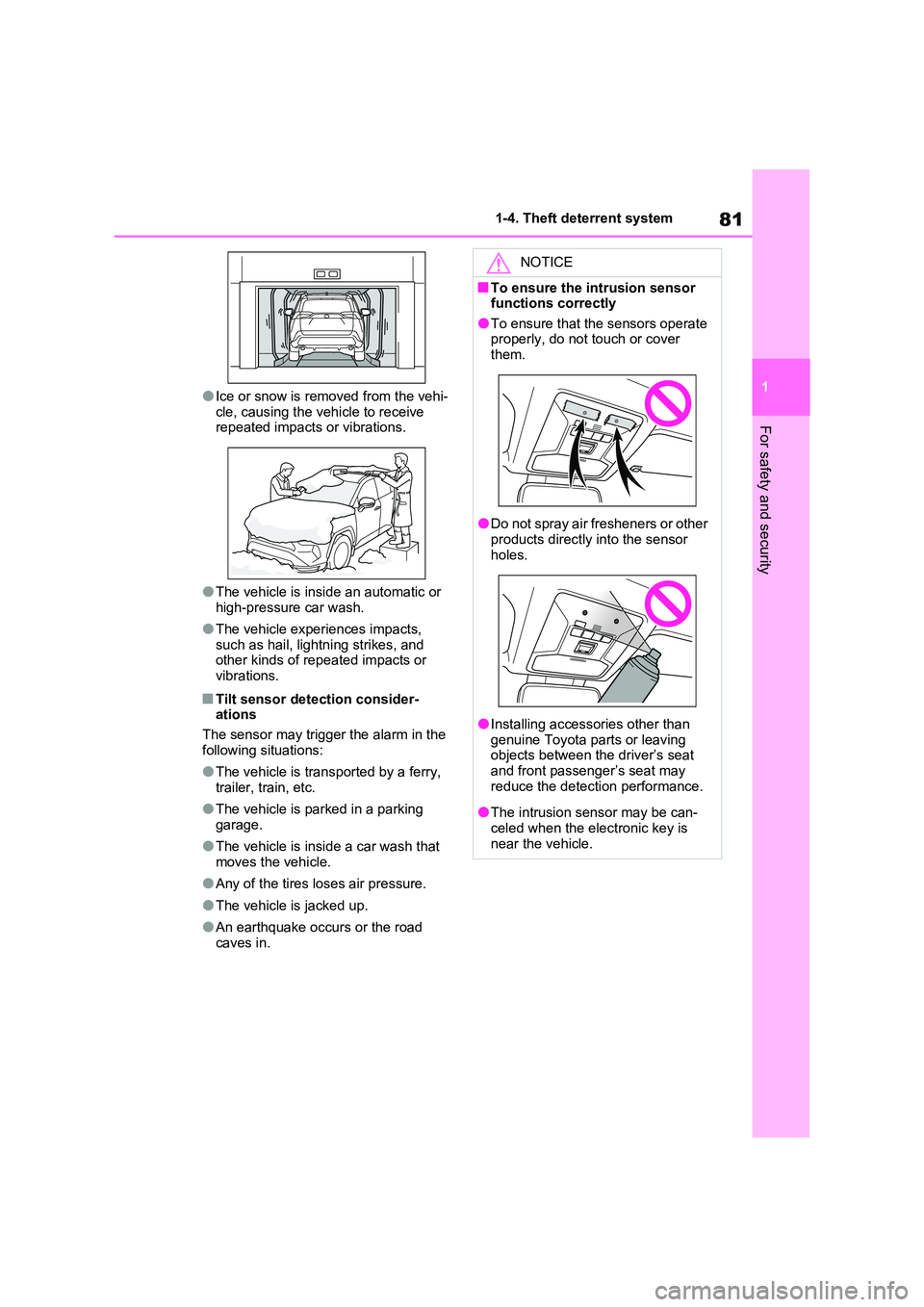

1-4. Theft deterrent system
For safety and security
OIce or snow is removed from the vehi-
cle, causing the vehicle to receive repeated impacts or vibrations.
OThe vehicle is inside an automatic or high-pressure car wash.
OThe vehicle experiences impacts, such as hail, lightning strikes, and other kinds of repeated impacts or
vibrations.
QTilt sensor detection consider- ations
The sensor may trigger the alarm in the
following situations:
OThe vehicle is transported by a ferry,
trailer, train, etc.
OThe vehicle is parked in a parking
garage.
OThe vehicle is inside a car wash that
moves the vehicle.
OAny of the tires loses air pressure.
OThe vehicle is jacked up.
OAn earthquake occurs or the road caves in.
NOTICE
QTo ensure the intrusion sensor functions correctly
OTo ensure that the sensors operate properly, do not touch or cover them.
ODo not spray air fresheners or other products directly into the sensor
holes.
OInstalling accessories other than
genuine Toyota parts or leaving objects between the driver’s seat and front passenger’s seat may
reduce the detection performance.
OThe intrusion sensor may be can-
celed when the electronic key is near the vehicle.

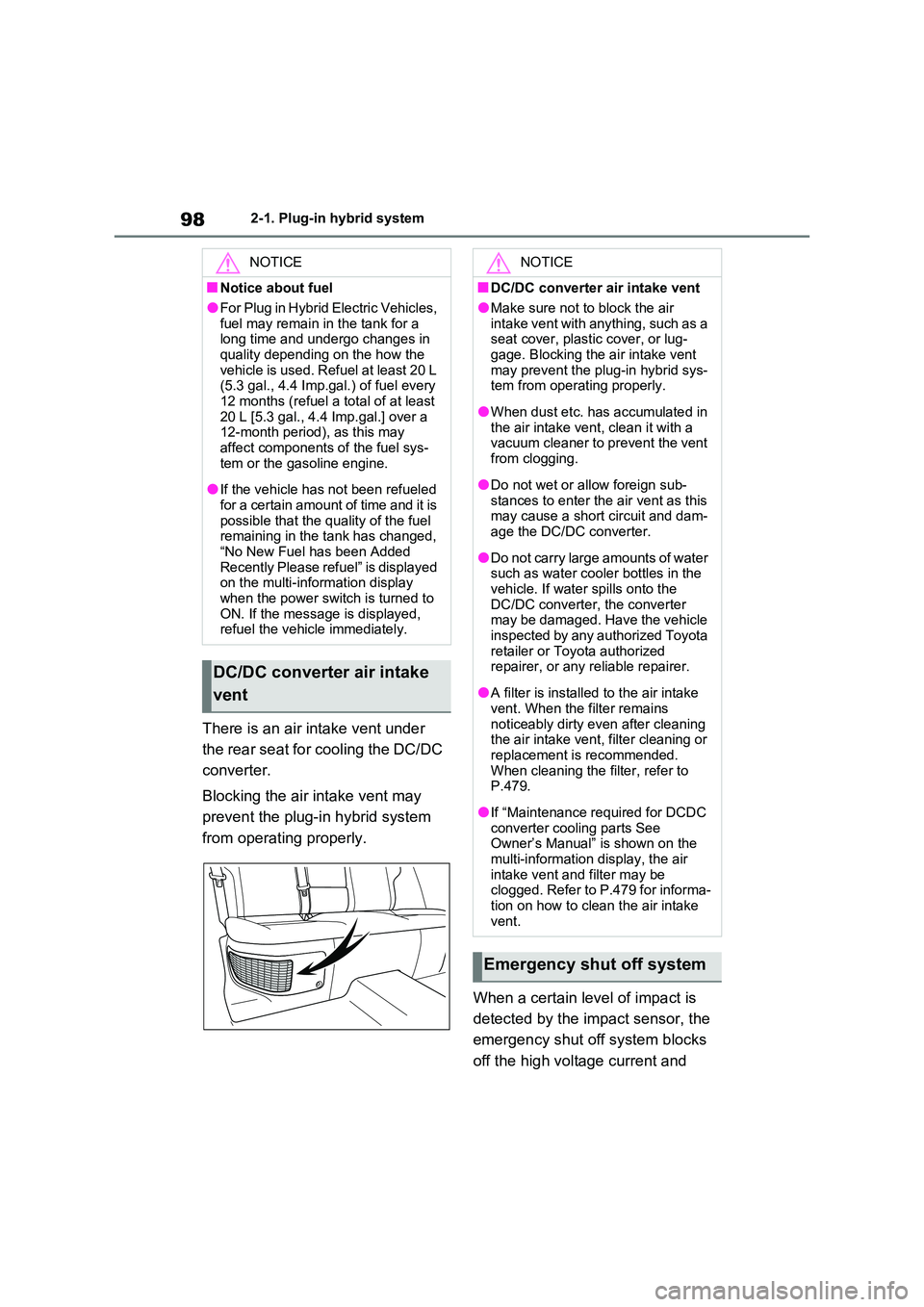

982-1. Plug-in hybrid system
There is an air intake vent under
the rear seat for cooling the DC/DC
converter.
Blocking the air intake vent may
prevent the plug-in hybrid system
from operating properly.
When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks
off the high voltage current and
NOTICE
QNotice about fuel
OFor Plug in Hybrid Electric Vehicles,
fuel may remain in the tank for a long time and undergo changes in quality depending on the how the
vehicle is used. Refuel at least 20 L (5.3 gal., 4.4 Imp.gal.) of fuel every 12 months (refuel a total of at least
20 L [5.3 gal., 4.4 Imp.gal.] over a 12-month period), as this may affect components of the fuel sys-
tem or the gasoline engine.
OIf the vehicle has not been refueled
for a certain amount of time and it is possible that the quality of the fuel remaining in the tank has changed,
“No New Fuel has been Added Recently Please refuel” is displayed on the multi-information display
when the power switch is turned to ON. If the message is displayed, refuel the vehicle immediately.
DC/DC converter air intake
vent
NOTICE
QDC/DC converter air intake vent
OMake sure not to block the air
intake vent with anything, such as a seat cover, plastic cover, or lug-gage. Blocking the air intake vent
may prevent the plug-in hybrid sys- tem from operating properly.
OWhen dust etc. has accumulated in the air intake vent, clean it with a vacuum cleaner to prevent the vent
from clogging.
ODo not wet or allow foreign sub-
stances to enter the air vent as this may cause a short circuit and dam-age the DC/DC converter.
ODo not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the DC/DC converter, the converter may be damaged. Have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
OA filter is installed to the air intake vent. When the filter remains
noticeably dirty even after cleaning the air intake vent, filter cleaning or replacement is recommended.
When cleaning the filter, refer to P.479.
OIf “Maintenance required for DCDC converter cooling parts See Owner’s Manual” is shown on the
multi-information display, the air intake vent and filter may be clogged. Refer to P.479 for informa-
tion on how to clean the air intake vent.
Emergency shut off system

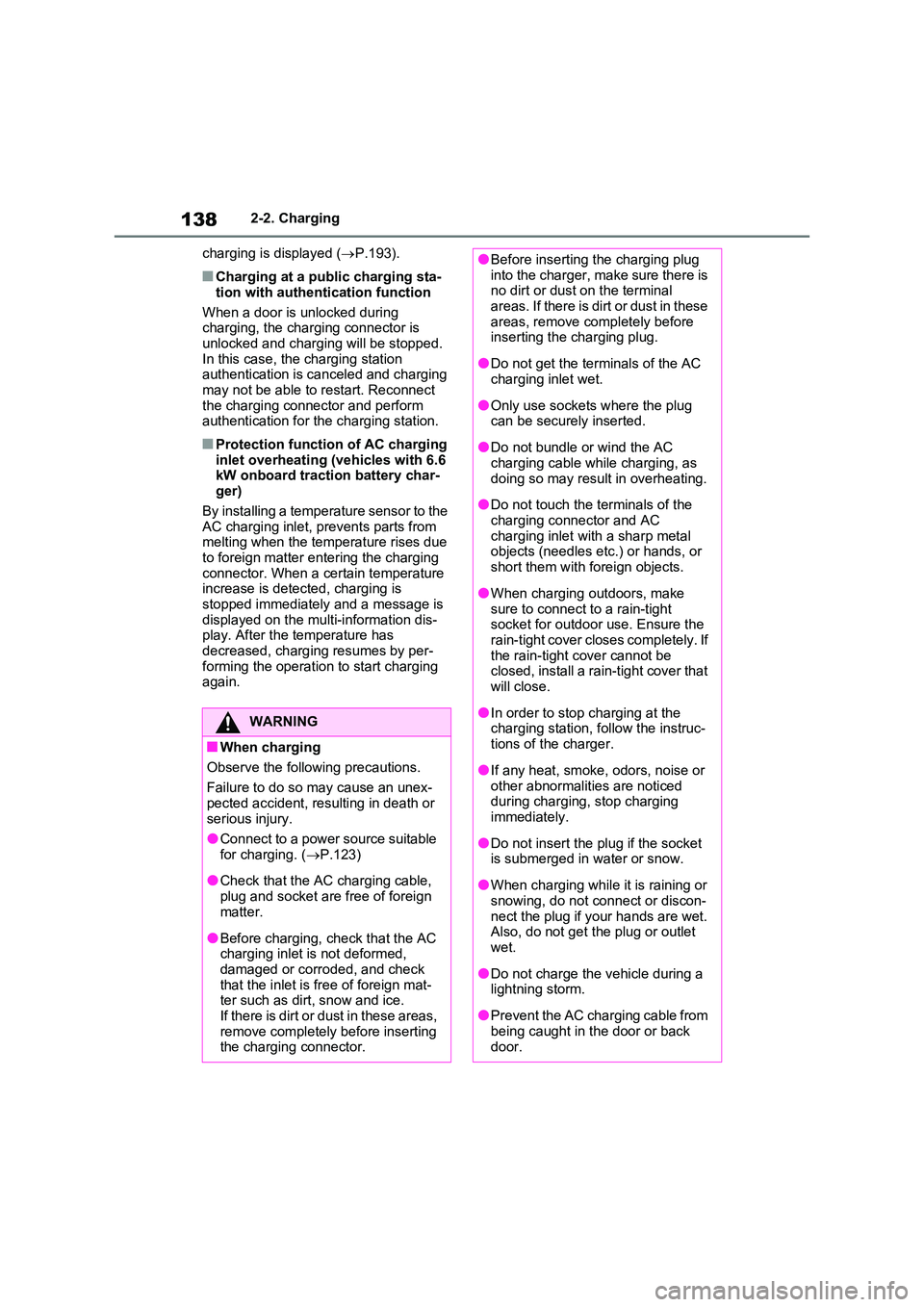

1382-2. Charging
charging is displayed ( P.193).
QCharging at a public charging sta-
tion with authentication function
When a door is unlocked during charging, the charging connector is
unlocked and charging will be stopped. In this case, the charging station authentication is canceled and charging
may not be able to restart. Reconnect the charging connector and perform authentication for the charging station.
QProtection function of AC charging
inlet overheating (vehicles with 6.6 kW onboard traction battery char-ger)
By installing a temperature sensor to the AC charging inlet, prevents parts from melting when the temperature rises due
to foreign matter entering the charging connector. When a certain temperature increase is detected, charging is
stopped immediately and a message is displayed on the multi-information dis-play. After the temperature has
decreased, charging resumes by per- forming the operation to start charging again.
WARNING
QWhen charging
Observe the following precautions.
Failure to do so may cause an unex-
pected accident, resulting in death or serious injury.
OConnect to a power source suitable
for charging. ( P.123)
OCheck that the AC charging cable,
plug and socket are free of foreign matter.
OBefore charging, check that the AC charging inlet is not deformed, damaged or corroded, and check
that the inlet is free of foreign mat- ter such as dirt, snow and ice. If there is dirt or dust in these areas,
remove completely before inserting the charging connector.
OBefore inserting the charging plug into the charger, make sure there is no dirt or dust on the terminal
areas. If there is dirt or dust in these areas, remove completely before inserting the charging plug.
ODo not get the terminals of the AC charging inlet wet.
OOnly use sockets where the plug can be securely inserted.
ODo not bundle or wind the AC charging cable while charging, as
doing so may result in overheating.
ODo not touch the terminals of the
charging connector and AC charging inlet with a sharp metal objects (needles etc.) or hands, or
short them with foreign objects.
OWhen charging outdoors, make
sure to connect to a rain-tight socket for outdoor use. Ensure the rain-tight cover closes completely. If
the rain-tight cover cannot be closed, install a rain-tight cover that will close.
OIn order to stop charging at the charging station, follow the instruc-
tions of the charger.
OIf any heat, smoke, odors, noise or
other abnormalities are noticed during charging, stop charging immediately.
ODo not insert the plug if the socket is submerged in water or snow.
OWhen charging while it is raining or snowing, do not connect or discon-
nect the plug if your hands are wet. Also, do not get the plug or outlet wet.
ODo not charge the vehicle during a lightning storm.
OPrevent the AC charging cable from being caught in the door or back
door.

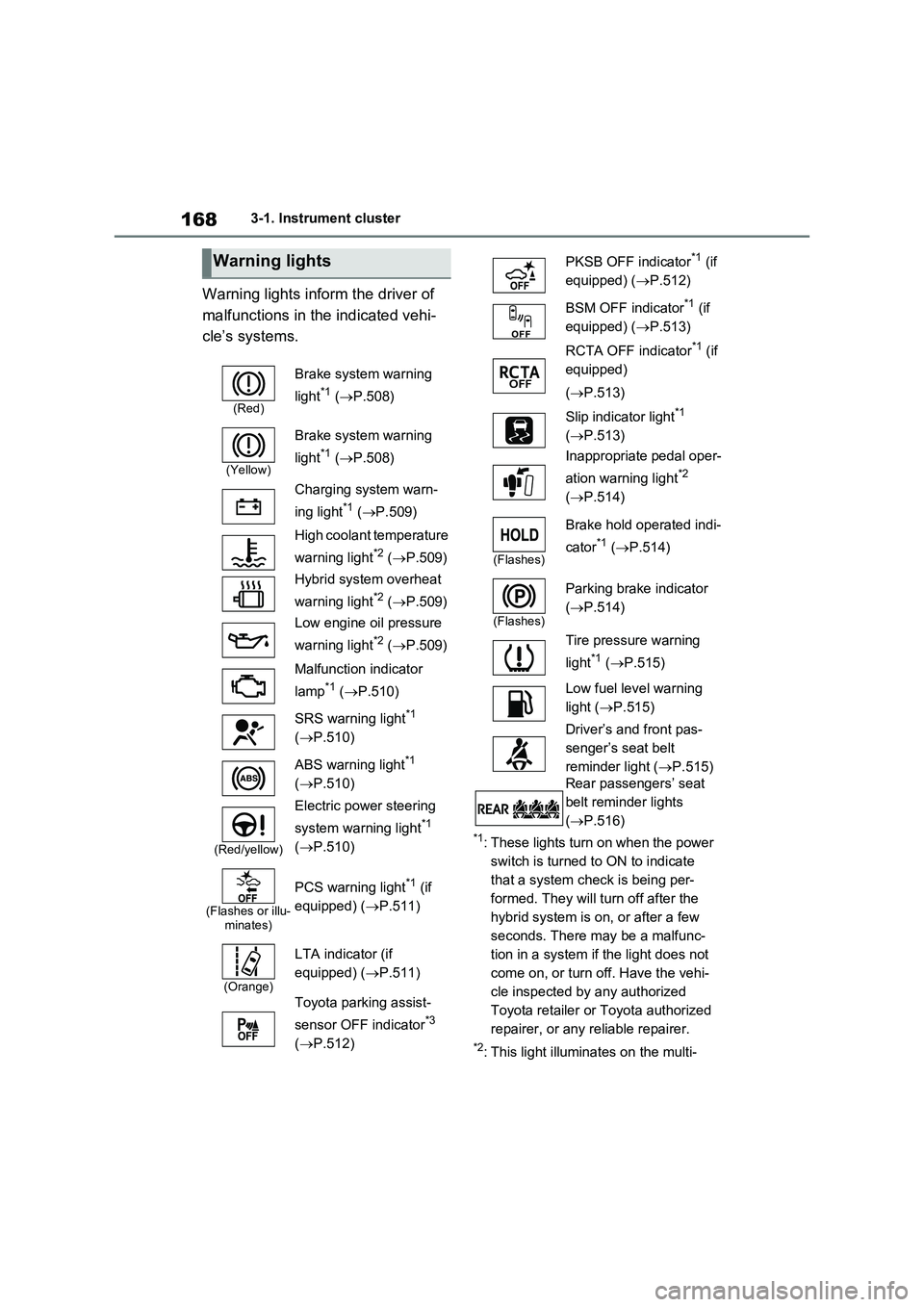

1683-1. Instrument cluster
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
*1: These lights turn on when the power
switch is turned to ON to indicate
that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few
seconds. There may be a malfunc-
tion in a system if the light does not
come on, or turn off. Have the vehi-
cle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
*2: This light illuminates on the multi-
Warning lights
(Red)
Brake system warning
light
*1 (P.508)
(Yellow)
Brake system warning
light
*1 (P.508)
Charging system warn-
ing light
*1 (P.509)
High coolant temperature
warning light
*2 (P.509)
Hybrid system overheat
warning light
*2 (P.509)
Low engine oil pressure
warning light
*2 (P.509)
Malfunction indicator
lamp
*1 (P.510)
SRS warning light
*1
(P.510)
ABS warning light
*1
(P.510)
(Red/yellow)
Electric power steering
system warning light
*1
(P.510)
(Flashes or illu-
minates)
PCS warning light*1 (if
equipped) (P.511)
(Orange)
LTA indicator (if
equipped) (P.511)
Toyota parking assist-
sensor OFF indicator
*3
(P.512)
PKSB OFF indicator*1 (if
equipped) (P.512)
BSM OFF indicator
*1 (if
equipped) (P.513)
RCTA OFF indicator
*1 (if
equipped)
(P.513)
Slip indicator light
*1
(P.513)
Inappropriate pedal oper-
ation warning light
*2
(P.514)
(Flashes)
Brake hold operated indi-
cator
*1 (P.514)
(Flashes)
Parking brake indicator
(P.514)
Tire pressure warning
light
*1 (P.515)
Low fuel level warning
light (P.515)
Driver’s and front pas-
senger’s seat belt
reminder light (P.515)
Rear passengers’ seat
belt reminder lights
(P.516)

169
3
3-1. Instrument cluster
Vehicle status information and indicators
information display with a message.
*3: Toyota parking assist-sensor OFF
indicator turns on when the power
switch is turned to ON while the
Toyota parking assist-sensor func-
tion is on. It will turn off after a few
seconds.
The indicators inform the driver of
the operating state of the vehicle’s
various systems.
WARNING
QIf a safety system warning light
does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these systems are not available to help pro-
tect you in an accident, which could result in death or serious injury. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota autho- rized repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( P.281)
Tail light indicator
( P.288)
Headlight high beam
indicator ( P.289)
Automatic High Beam
indicator (if equipped)
( P.290)
Front fog light indicator
( P.293)
Rear fog light indicator
( P.293)
Smart entry & start sys-
tem indicator*1
( P.273)
Cruise control indicator
( P.332, 344)
Dynamic radar cruise
control indicator (if
equipped) ( P.332)
Cruise control “SET”
indicator ( P.332, 344)
Speed limiter indicator
(if equipped) ( P.347)
LTA indicator*2 (if
equipped) ( 323)
Toyota parking assist-
sensor OFF indicator*3,
4 ( P.372)
PKSB OFF indicator*3, 5
(if equipped) ( P.380)

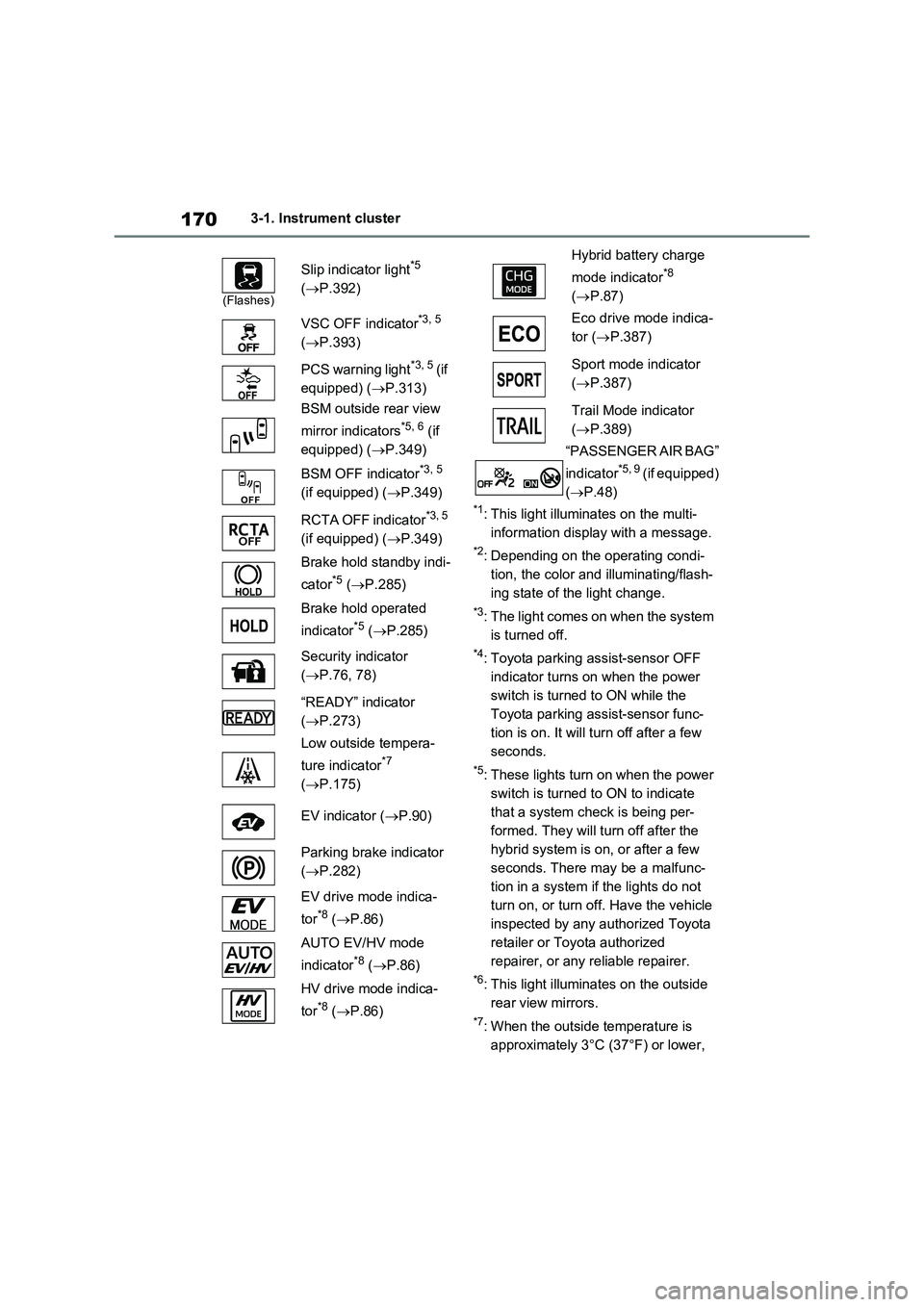

1703-1. Instrument cluster
*1: This light illuminates on the multi-
information display with a message.
*2: Depending on the operating condi-
tion, the color and illuminating/flash-
ing state of the light change.
*3: The light comes on when the system
is turned off.
*4: Toyota parking assist-sensor OFF
indicator turns on when the power
switch is turned to ON while the
Toyota parking assist-sensor func-
tion is on. It will turn off after a few
seconds.
*5: These lights turn on when the power
switch is turned to ON to indicate
that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few
seconds. There may be a malfunc-
tion in a system if the lights do not
turn on, or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
*6: This light illuminates on the outside
rear view mirrors.
*7: When the outside temperature is
approximately 3°C (37°F) or lower,
(Flashes)
Slip indicator light*5
(P.392)
VSC OFF indicator
*3, 5
(P.393)
PCS warning light
*3, 5 (if
equipped) (P.313)
BSM outside rear view
mirror indicators
*5, 6 (if
equipped) (P.349)
BSM OFF indicator
*3, 5
(if equipped) (P.349)
RCTA OFF indicator
*3, 5
(if equipped) (P.349)
Brake hold standby indi-
cator
*5 (P.285)
Brake hold operated
indicator
*5 (P.285)
Security indicator
(P.76, 78)
“READY” indicator
(P.273)
Low outside tempera-
ture indicator
*7
(P.175)
EV indicator (P.90)
Parking brake indicator
(P.282)
EV drive mode indica-
tor
*8 (P.86)
AUTO EV/HV mode
indicator
*8 (P.86)
HV drive mode indica-
tor
*8 (P.86)
Hybrid battery charge
mode indicator
*8
(P.87)
Eco drive mode indica-
tor (P.387)
Sport mode indicator
(P.387)
Trail Mode indicator
(P.389)
“PASSENGER AIR BAG”
indicator
*5, 9 (if equipped)
(P.48)

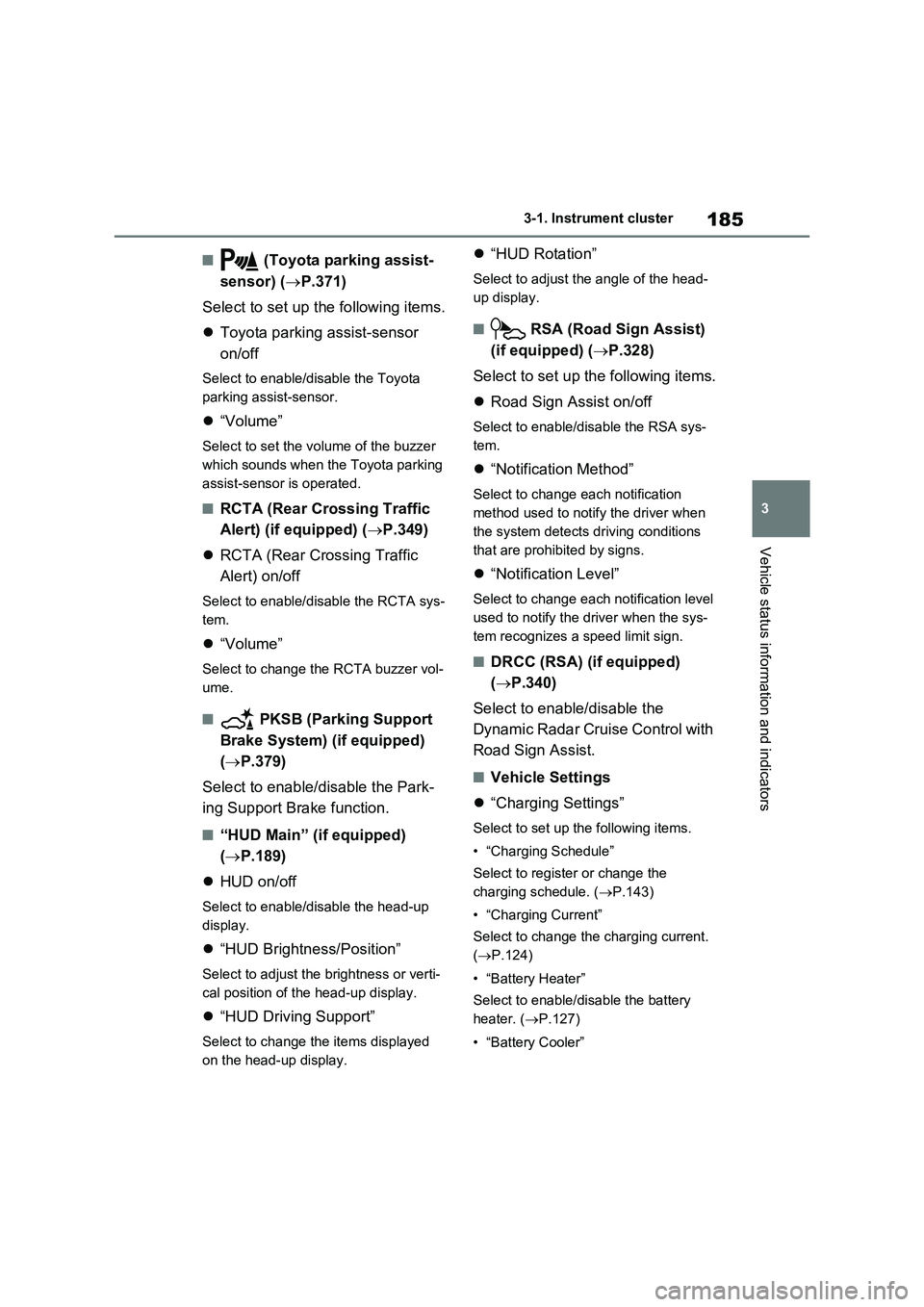

185
3 3-1. Instrument cluster
Vehicle status information and indicators
Q (Toyota parking assist-
sensor) (P.371)
Select to set up the following items.
Toyota parking assist-sensor
on/off
Select to enable/disable the Toyota
parking assist-sensor.
“Volume”
Select to set the volume of the buzzer
which sounds when the Toyota parking
assist-sensor is operated.
QRCTA (Rear Crossing Traffic
Alert) (if equipped) (P.349)
RCTA (Rear Crossing Traffic
Alert) on/off
Select to enable/disable the RCTA sys-
tem.
“Volume”
Select to change the RCTA buzzer vol-
ume.
Q PKSB (Parking Support
Brake System) (if equipped)
(P.379)
Select to enable/disable the Park-
ing Support Brake function.
Q“HUD Main” (if equipped)
(P.189)
HUD on/off
Select to enable/disable the head-up
display.
“HUD Brightness/Position”
Select to adjust the brightness or verti-
cal position of the head-up display.
“HUD Driving Support”
Select to change the items displayed
on the head-up display.
“HUD Rotation”
Select to adjust the angle of the head-
up display.
Q RSA (Road Sign Assist)
(if equipped) (P.328)
Select to set up the following items.
Road Sign Assist on/off
Select to enable/disable the RSA sys-
tem.
“Notification Method”
Select to change each notification
method used to notify the driver when
the system detects driving conditions
that are prohibited by signs.
“Notification Level”
Select to change each notification level
used to notify the driver when the sys-
tem recognizes a speed limit sign.
QDRCC (RSA) (if equipped)
(P.340)
Select to enable/disable the
Dynamic Radar Cruise Control with
Road Sign Assist.
QVehicle Settings
“Charging Settings”
Select to set up the following items.
• “Charging Schedule”
Select to register or change the
charging schedule. (P.143)
• “Charging Current”
Select to change the charging current.
(P.124)
• “Battery Heater”
Select to enable/disable the battery
heater. (P.127)
• “Battery Cooler”

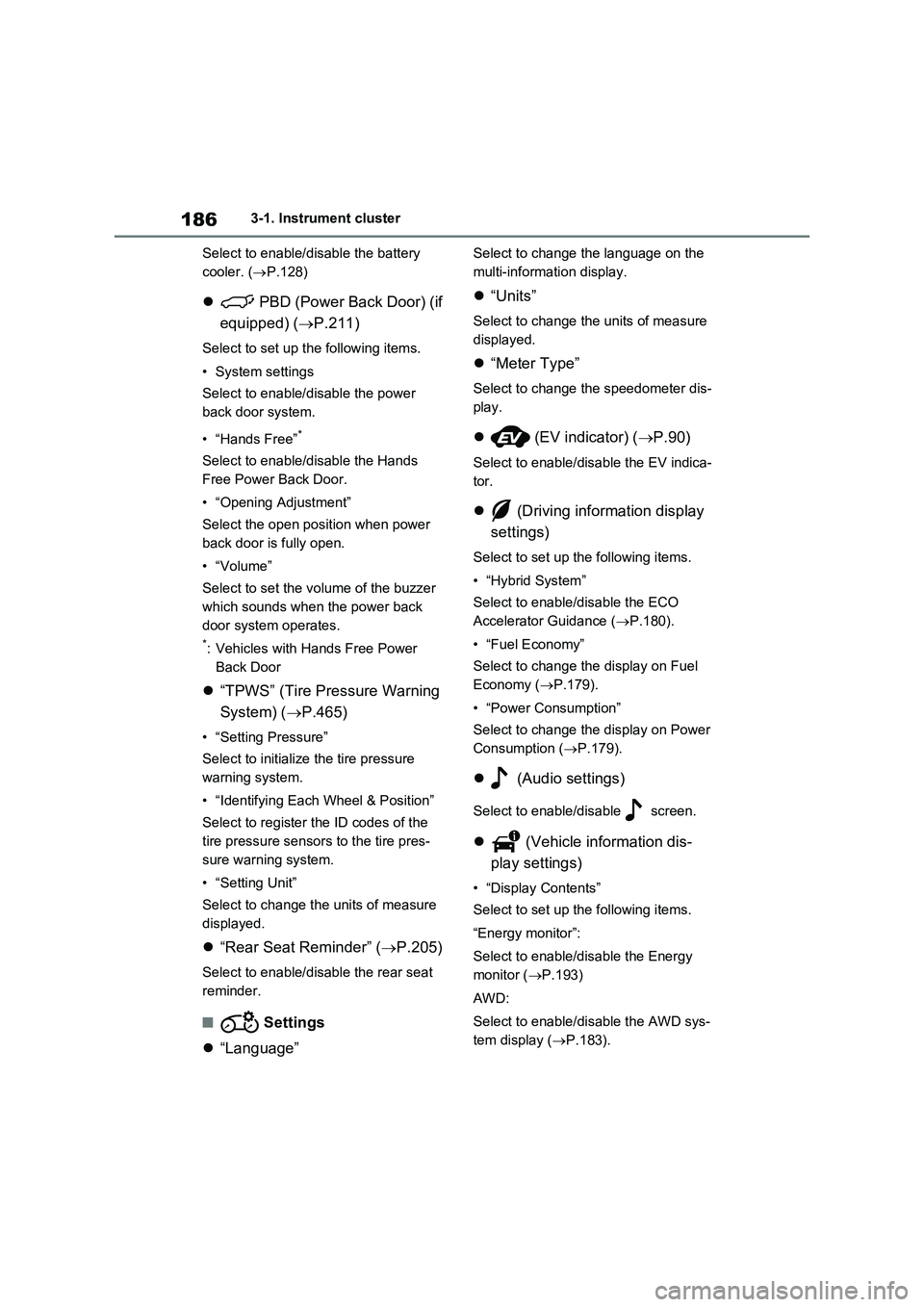

1863-1. Instrument cluster
Select to enable/disable the battery
cooler. (P.128)
 PBD (Power Back Door) (if
equipped) (P.211)
Select to set up the following items.
•System settings
Select to enable/disable the power
back door system.
•“Hands Free”
*
Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”
Select the open position when power
back door is fully open.
•“Volume”
Select to set the volume of the buzzer
which sounds when the power back
door system operates.
*: Vehicles with Hands Free Power
Back Door
“TPWS” (Tire Pressure Warning
System) (P.465)
• “Setting Pressure”
Select to initialize the tire pressure
warning system.
• “Identifying Each Wheel & Position”
Select to register the ID codes of the
tire pressure sensors to the tire pres-
sure warning system.
•“Setting Unit”
Select to change the units of measure
displayed.
“Rear Seat Reminder” (P.205)
Select to enable/disable the rear seat
reminder.
Q Settings
“Language”
Select to change the language on the
multi-information display.
“Units”
Select to change the units of measure
displayed.
“Meter Type”
Select to change the speedometer dis-
play.
 (EV indicator) (P.90)
Select to enable/disable the EV indica-
tor.
 (Driving information display
settings)
Select to set up the following items.
•“Hybrid System”
Select to enable/disable the ECO
Accelerator Guidance (P.180).
• “Fuel Economy”
Select to change the display on Fuel
Economy (P.179).
• “Power Consumption”
Select to change the display on Power
Consumption (P.179).
 (Audio settings)
Select to enable/disable screen.
 (Vehicle information dis-
play settings)
• “Display Contents”
Select to set up the following items.
“Energy monitor”:
Select to enable/disable the Energy
monitor (P.193)
AWD:
Select to enable/disable the AWD sys-
tem display (P.183).

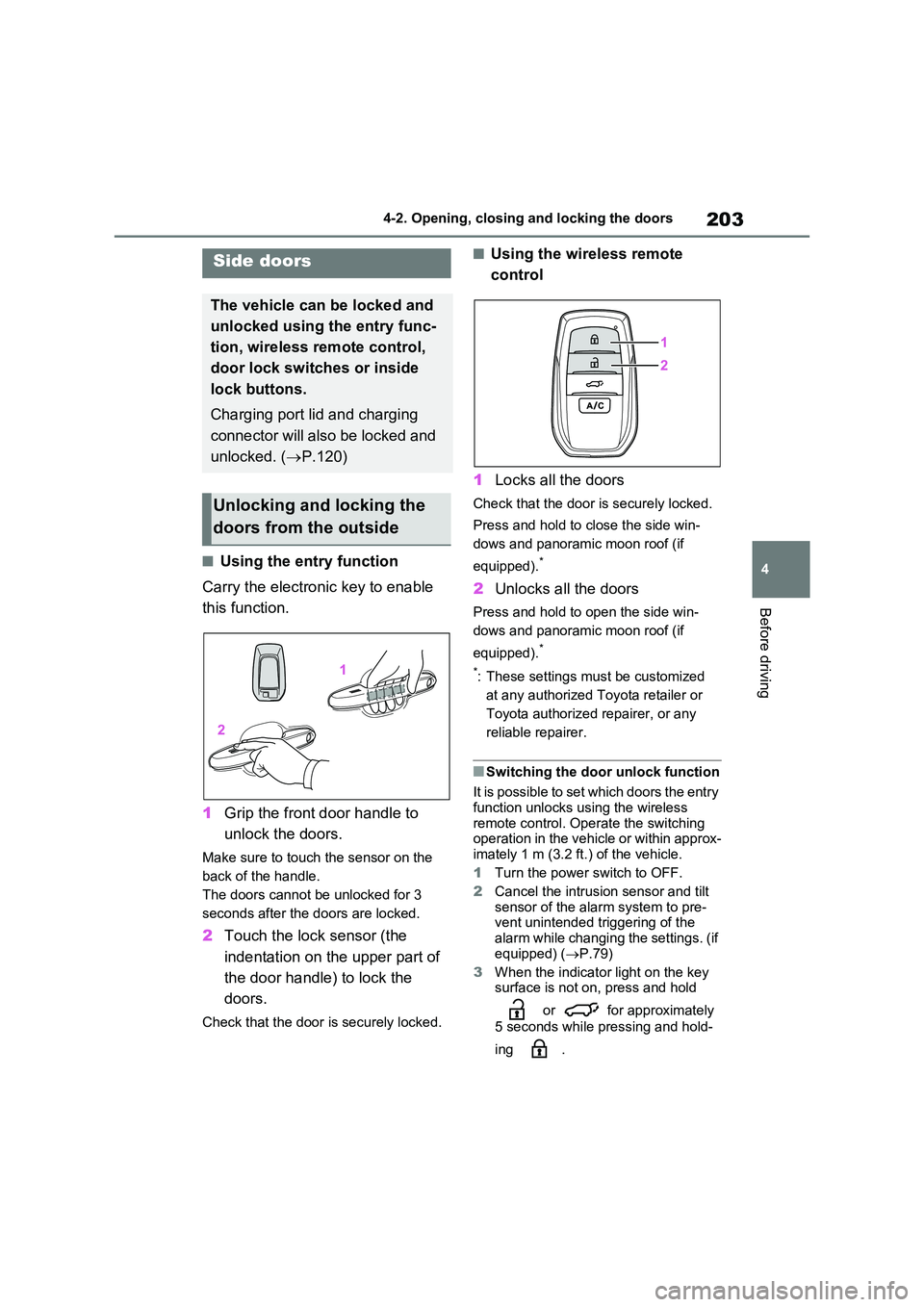

203
4
4-2. Opening, closing and locking the doors
Before driving
4-2.Opening, closing and lo cking th e d oors
QUsing the entry function
Carry the electronic key to enable
this function.
1 Grip the front door handle to
unlock the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
2 Touch the lock sensor (the
indentation on the upper part of
the door handle) to lock the
doors.
Check that the door is securely locked.
QUsing the wireless remote
control
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the side win-
dows and panoramic moon roof (if
equipped).*
2 Unlocks all the doors
Press and hold to open the side win-
dows and panoramic moon roof (if
equipped).*
*: These settings must be customized
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
QSwitching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless
remote control. Operate the switching operation in the vehicle or within approx-imately 1 m (3.2 ft.) of the vehicle.
1 Turn the power switch to OFF.
2 Cancel the intrusion sensor and tilt
sensor of the alarm system to pre- vent unintended triggering of the
alarm while changing the settings. (if equipped) ( P.79)
3 When the indicator light on the key surface is not on, press and hold
or for approximately
5 seconds while pressing and hold-
ing .
Side doors
The vehicle can be locked and
unlocked using the entry func-
tion, wireless remote control,
door lock switches or inside
lock buttons.
Charging port lid and charging
connector will also be locked and
unlocked. ( P.120)
Unlocking and locking the
doors from the outside

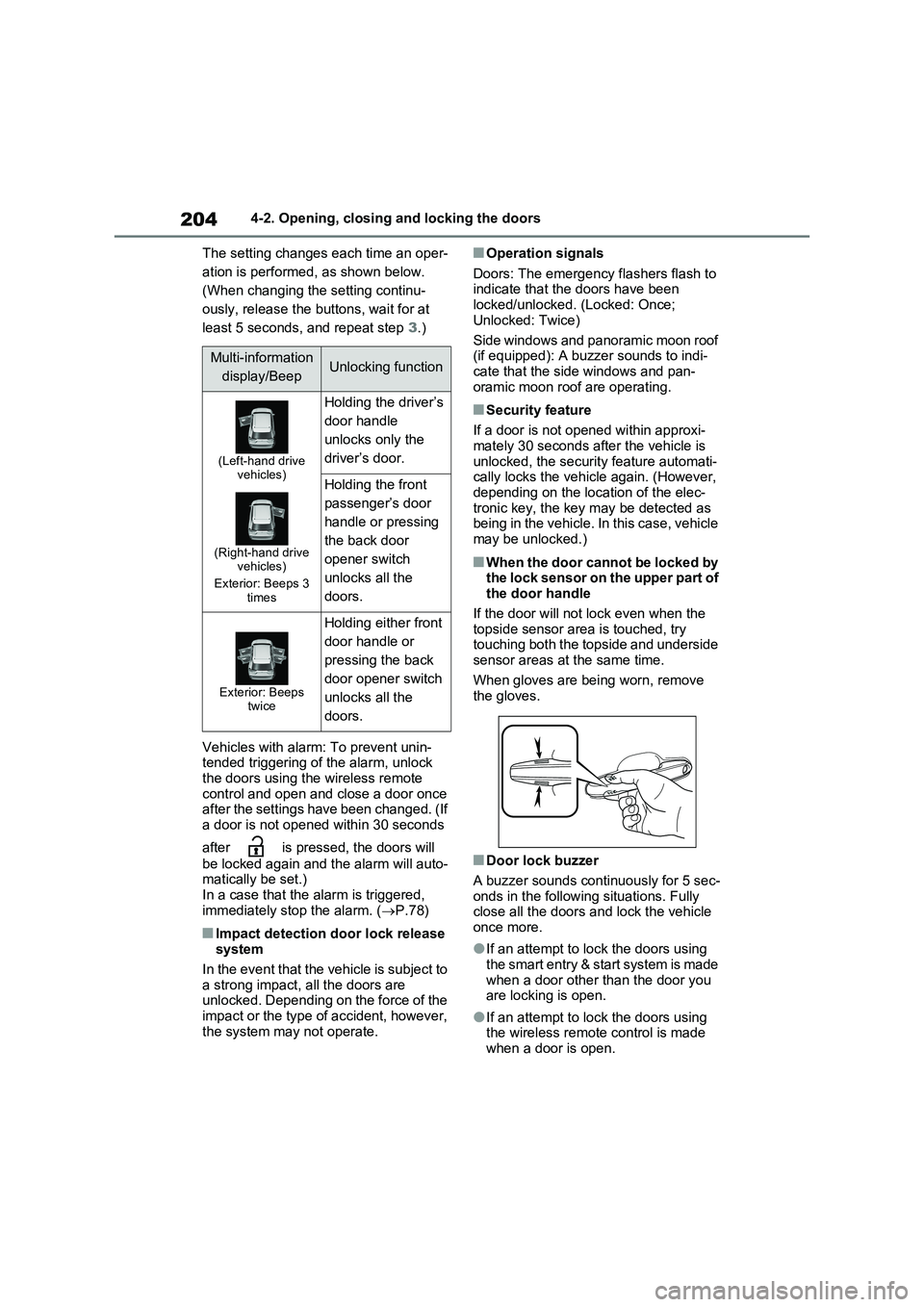

2044-2. Opening, closing and locking the doors
The setting changes each time an oper-
ation is performed, as shown below.
(When changing the setting continu-
ously, release the buttons, wait for at
least 5 seconds, and repeat step 3.)
Vehicles with alarm: To prevent unin-
tended triggering of the alarm, unlock
the doors using the wireless remote
control and open and close a door once
after the settings have been changed. (If
a door is not opened within 30 seconds
after is pressed, the doors will
be locked again and the alarm will auto-
matically be set.)
In a case that the alarm is triggered,
immediately stop the alarm. (P.78)
QImpact detection door lock release
system
In the event that the vehicle is subject to
a strong impact, all the doors are
unlocked. Depending on the force of the
impact or the type of accident, however,
the system may not operate.
QOperation signals
Doors: The emergency flashers flash to
indicate that the doors have been
locked/unlocked. (Locked: Once;
Unlocked: Twice)
Side windows and panoramic moon roof
(if equipped): A buzzer sounds to indi-
cate that the side windows and pan-
oramic moon roof are operating.
QSecurity feature
If a door is not opened within approxi-
mately 30 seconds after the vehicle is
unlocked, the security feature automati-
cally locks the vehicle again. (However,
depending on the location of the elec-
tronic key, the key may be detected as
being in the vehicle. In this case, vehicle
may be unlocked.)
QWhen the door cannot be locked by
the lock sensor on the upper part of
the door handle
If the door will not lock even when the
topside sensor area is touched, try
touching both the topside and underside
sensor areas at the same time.
When gloves are being worn, remove
the gloves.
QDoor lock buzzer
A buzzer sounds continuously for 5 sec-
onds in the following situations. Fully
close all the doors and lock the vehicle
once more.
OIf an attempt to lock the doors using
the smart entry & start system is made
when a door other than the door you
are locking is open.
OIf an attempt to lock the doors using
the wireless remote control is made
when a door is open.
Multi-information
display/BeepUnlocking function
(Left-hand drive
vehicles)
(Right-hand drive
vehicles)
Exterior: Beeps 3
times
Holding the driver’s
door handle
unlocks only the
driver’s door.
Holding the front
passenger’s door
handle or pressing
the back door
opener switch
unlocks all the
doors.
Exterior: Beeps
twice
Holding either front
door handle or
pressing the back
door opener switch
unlocks all the
doors.
