TOYOTA RAV4 PLUG-IN HYBRID 2022 Owners Manual

579
9 9-2. Customization
Vehicle specifications
*: If equipped
QRCTA (Rear crossing traffic alert) function*1 (P.349)
*1: If equipped
*2: This setting is linked with the buzzer volume of the Toyota parking assist-sensor.
QToyota parking assist-sensor*1 (P.371)
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rear crossing traffic
alert) function.
QPKSB (Parking Support Brake)* (P.379)
*: If equipped
QAutomatic air conditioning system (P.406)
FunctionDefault
settingCustomized
setting
RCTA (Rear crossing traffic
alert) functionOnOff–O–
Buzzer volume*2Level 2Level 1–O–Level 3
FunctionDefault
settingCustomized
setting
Toyota parking assist-sensorOnOff–OO
Buzzer volume*221–OO3
FunctionDefault
settingCustomized
setting
PKSB (Parking Support Brake)
functionOnOff–O–
FunctionDefault
settingCustomized
setting
Switching between outside air
and recirculated air mode linked
to “AUTO” switch operation
OnOffO–O
ABC
ABC
ABC
ABC

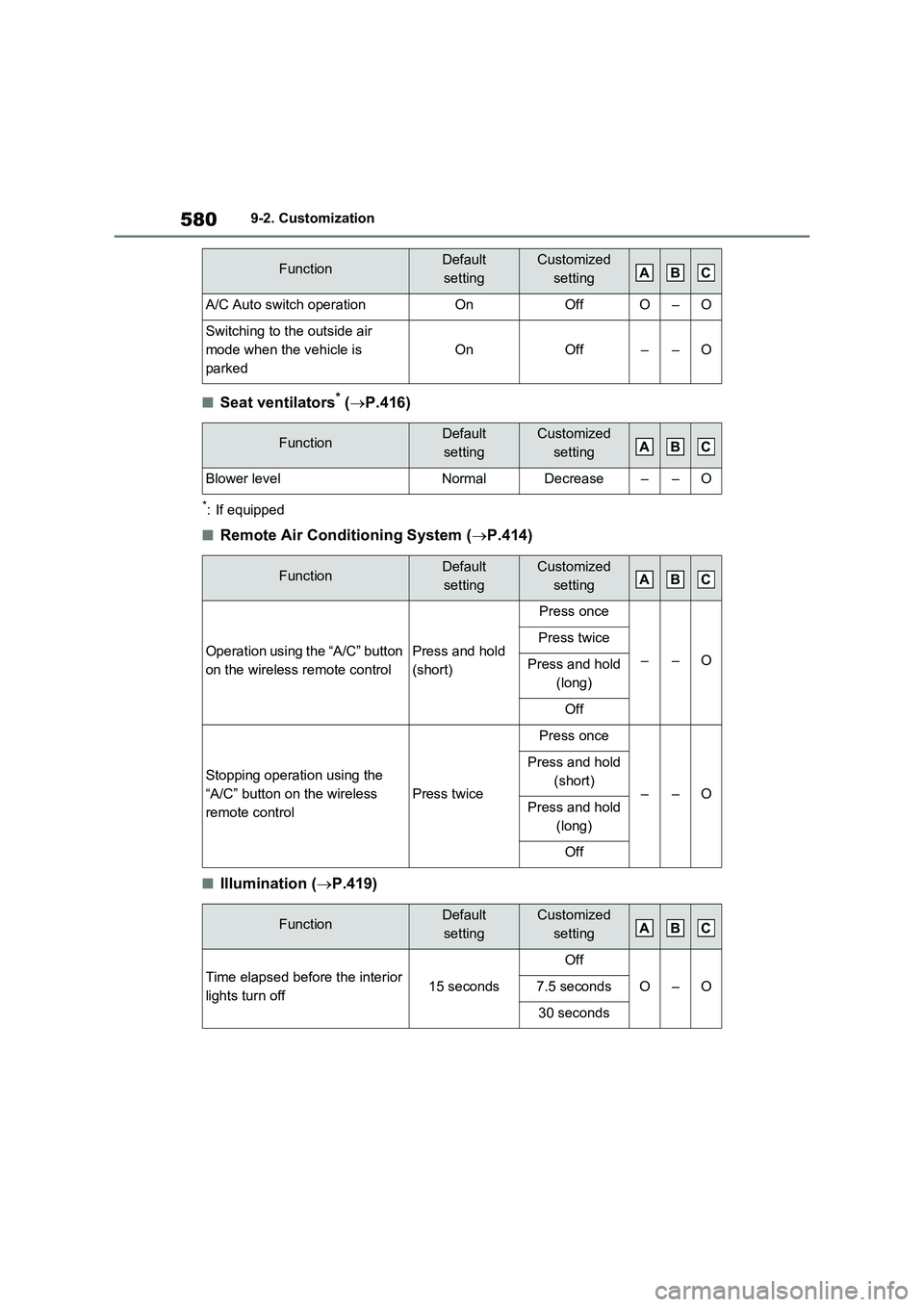

5809-2. Customization
QSeat ventilators* (P.416)
*: If equipped
QRemote Air Conditioning System (P.414)
QIllumination (P.419)
A/C Auto switch operationOnOffO–O
Switching to the outside air
mode when the vehicle is
parked
OnOff––O
FunctionDefault
settingCustomized
setting
Blower levelNormalDecrease––O
FunctionDefault
settingCustomized
setting
Operation using the “A/C” button
on the wireless remote controlPress and hold
(short)
Press once
––O
Press twice
Press and hold
(long)
Off
Stopping operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
––O
Press and hold
(short)
Press and hold
(long)
Off
FunctionDefault
settingCustomized
setting
Time elapsed before the interior
lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
FunctionDefault
settingCustomized
settingABC
ABC
ABC
ABC

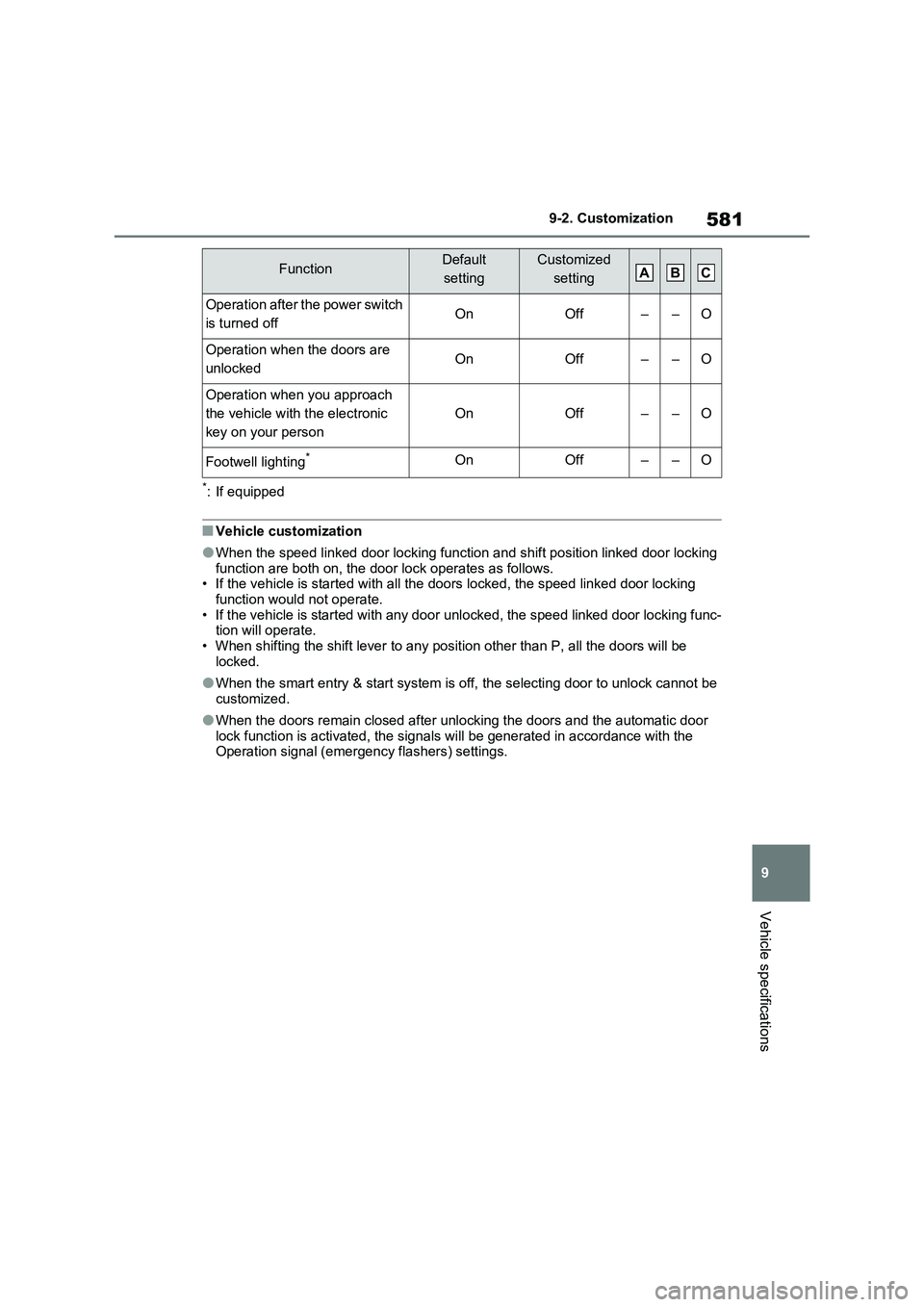

581
9 9-2. Customization
Vehicle specifications
*: If equipped
QVehicle customization
OWhen the speed linked door locking function and shift position linked door locking
function are both on, the door lock operates as follows.
• If the vehicle is started with all the doors locked, the speed linked door locking
function would not operate.
• If the vehicle is started with any door unlocked, the speed linked door locking func-
tion will operate.
• When shifting the shift lever to any position other than P, all the doors will be
locked.
OWhen the smart entry & start system is off, the selecting door to unlock cannot be
customized.
OWhen the doors remain closed after unlocking the doors and the automatic door
lock function is activated, the signals will be generated in accordance with the
Operation signal (emergency flashers) settings.
Operation after the power switch
is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
FunctionDefault
settingCustomized
settingABC

5829-3. Initialization
9- 3. In it ia li za ti on
*: If equipped
Items to initialize
The following items must be initialized for normal system operation
after such cases as the 12-volt battery being reconnected, or main-
tenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or changing
the 12-volt battery
• After changing a fuse
P.216
Power windows• When functioning abnormallyP.247
Panoramic moon roof*P.251
Tire pressure warning system
• When rotating the tires
• When changing the tire
• After registering the ID codes
P.468
Toyota parking assist monitor*
• After reconnecting or changing
the 12-volt battery
• After changing a fuse
Refer to
“Navigation
and multime-
dia system
Owner’s
manual” or
“Multimedia
Owner’s
Manual”
Panoramic view monitor*

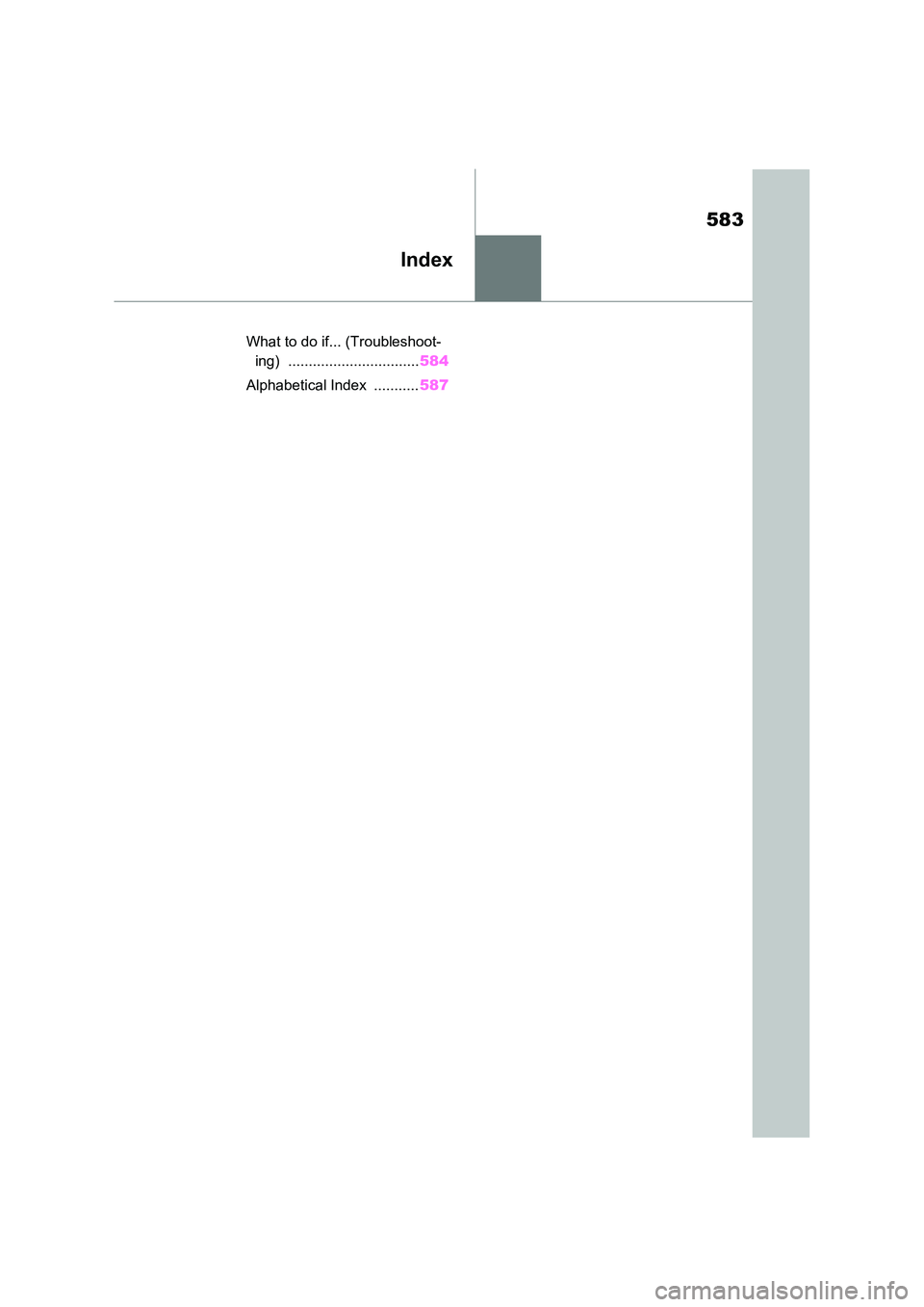

583
Index
What to do if... (Troubleshoot-
ing) ................................ 584
Alphabetical Index ........... 587

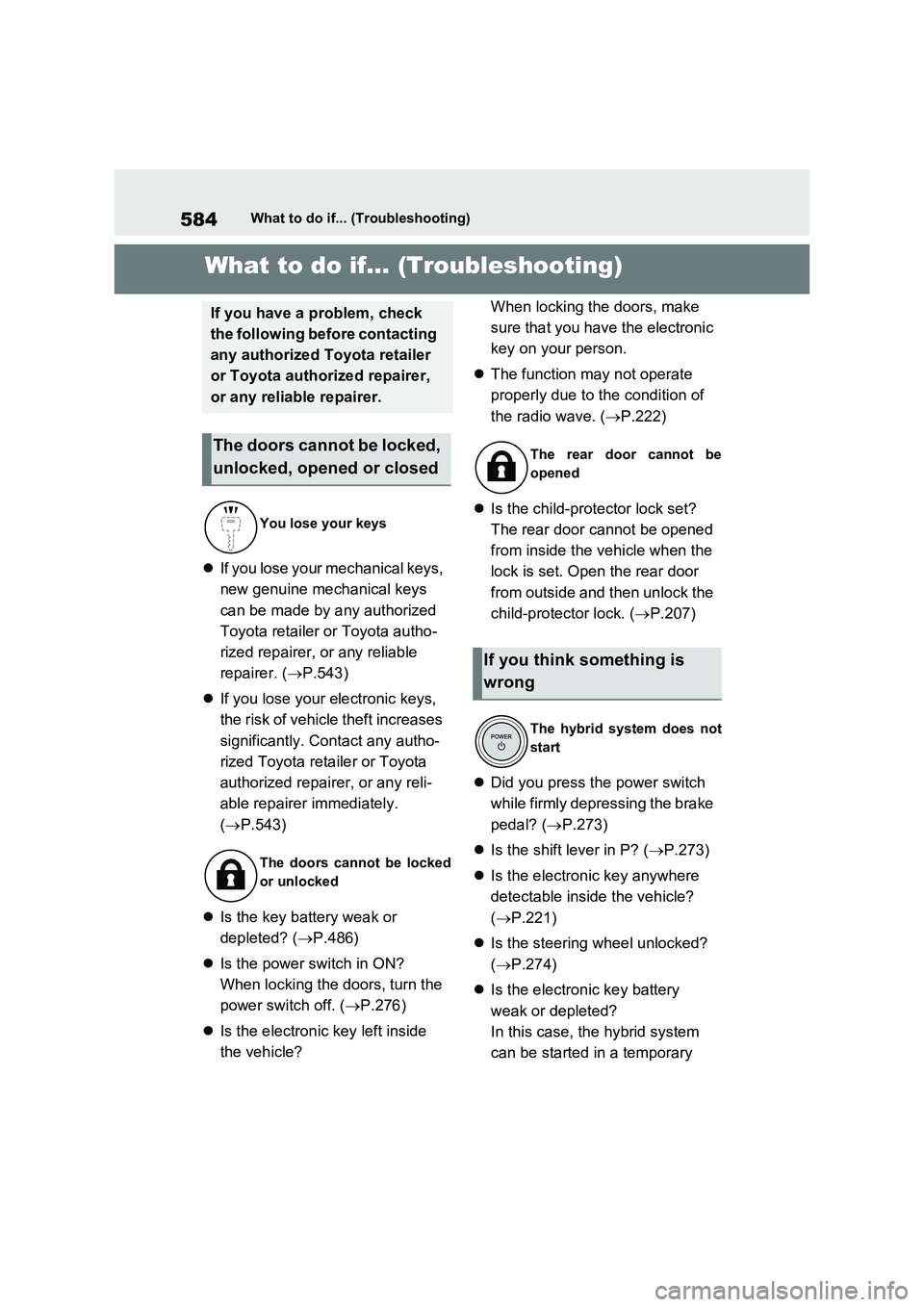

584What to do if... (Troubleshooting)
1-1.What to d o if... (Tro ubleshoo ting)What to do if... (Troubleshooting)
If you lose your mechanical keys,
new genuine mechanical keys
can be made by any authorized
Toyota retailer or Toyota autho-
rized repairer, or any reliable
repairer. ( P.543)
 If you lose your electronic keys,
the risk of vehicle theft increases
significantly. Contact any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer immediately.
( P.543)
 Is the key battery weak or
depleted? ( P.486)
 Is the power switch in ON?
When locking the doors, turn the
power switch off. ( P.276)
 Is the electronic key left inside
the vehicle?
When locking the doors, make
sure that you have the electronic
key on your person.
 The function may not operate
properly due to the condition of
the radio wave. ( P.222)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door
from outside and then unlock the
child-protector lock. ( P.207)
 Did you press the power switch
while firmly depressing the brake
pedal? ( P.273)
 Is the shift lever in P? (P.273)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.221)
 Is the steering wheel unlocked?
( P.274)
 Is the electronic key battery
weak or depleted?
In this case, the hybrid system
can be started in a temporary
If you have a problem, check
the following before contacting
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The hybrid system does not
start

585What to do if... (Troubleshooting)
way. (P.545)
 Is the 12-volt battery dis-
charged? ( P.546)
 Is the power switch in ON? If you
cannot release the shift lever by
depressing the brake pedal with
the power switch in ON.
( P.279)
 It is locked automatically to pre-
vent theft of the vehicle.
( P.274)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot
be operated if the window lock
switch is pressed. ( P.249)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the hybrid system
is not operating) for a period of
time. ( P.276)
 The seat belt reminder light is
flashing
Are the driver and the passengers
wearing the seat belts? ( P.515, 516)
The parking brake indicator is on
Is the parking brake released?
( P.282)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.508, 518)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.78)
To stop the alarm, turn the power
switch to ON or start the hybrid system.
 Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( P.518)
 When a warning light turns on or
a warning message is displayed,
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The steering wheel cannot
be turned after the hybrid
system is stopped
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (if equipped)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on or a
warning message is dis-
played

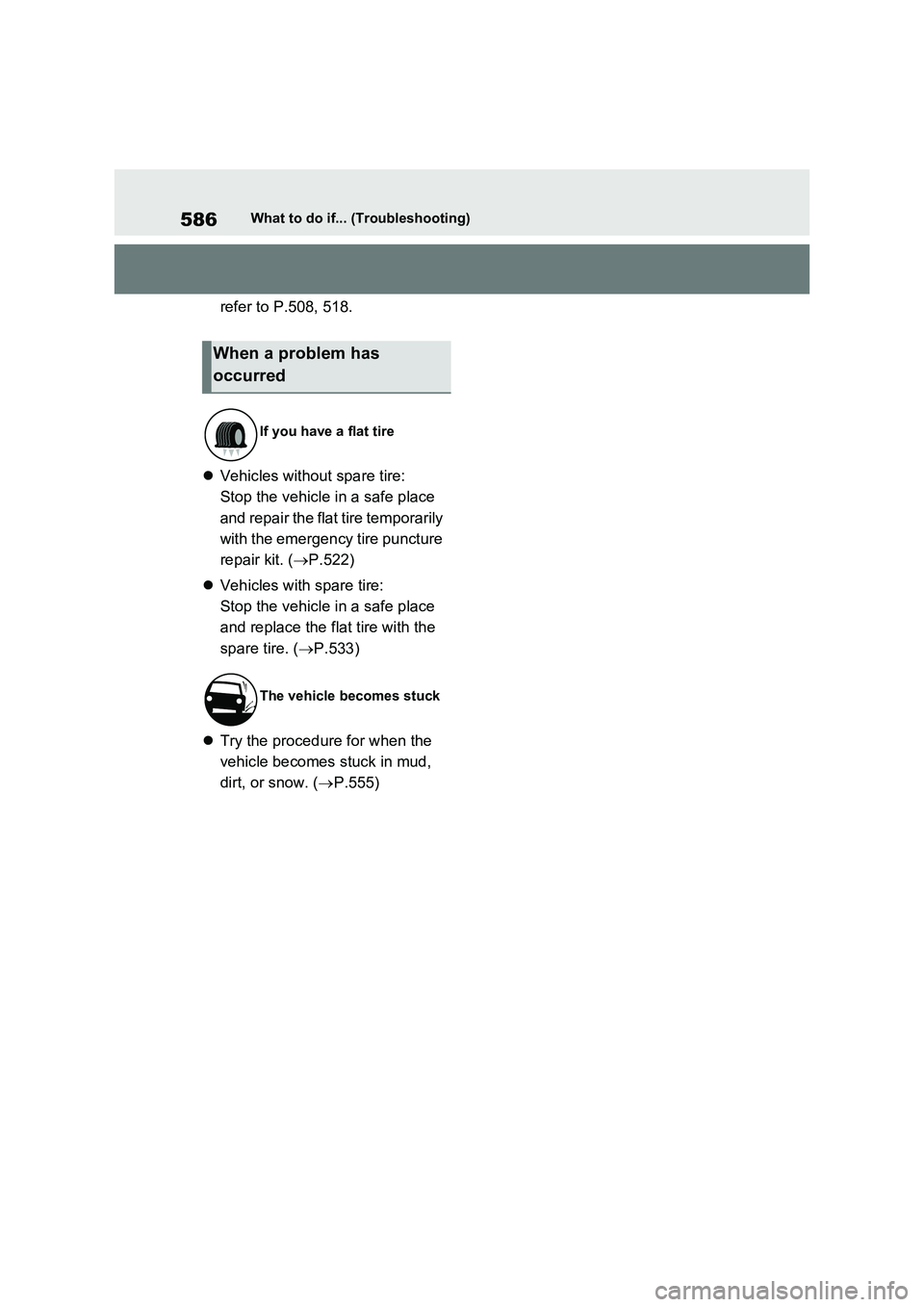

586What to do if... (Troubleshooting)
refer to P.508, 518.
Vehicles without spare tire:
Stop the vehicle in a safe place
and repair the flat tire temporarily
with the emergency tire puncture
repair kit. (P.522)
Vehicles with spare tire:
Stop the vehicle in a safe place
and replace the flat tire with the
spare tire. (P.533)
Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. (P.555)
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

587Alphabetical Index
Alphabetical Index
A
A/C
“My Room Mode” ....................... 152
Air conditioning filter................... 475
Automatic air conditioning system
................................................. 406
Blower customization ................. 408
Front seat concentrated airflow
mode (S-FLOW) ...................... 411
Humidity sensor ......................... 413
Remote Air Conditioning System414
ABS (Anti-lock Brake System) .... 391
Function ..................................... 391
Warning light .............................. 510
ACA (Active Cornering Assist).... 392
AC charging cable ........................ 108
AC charging cable types ............ 110
CCID (Charging Circuit Interrupting
Device) .................................... 109
If the charging connector cannot be
unlocked .................................. 122
Indicator ..................................... 113
Locking and unlocking ............... 121
Maintenance .............................. 116
Replacing the plug-cord ............. 114
Safety functions ......................... 112
Acoustic Vehicle Alerting System 92
Active Cornering Assist (ACA).... 392
Airbag manual on-off system ........ 48
Airbags ............................................ 39
Airbag manual on-off system ....... 48
Airbag operating conditions ......... 41
Airbag precautions for your child . 44
Airbag warning light ................... 510
Correct driving posture................. 33
Curtain shield airbag operating con-
ditions ........................................ 41
Curtain shield airbag precautions 44
General airbag precautions.......... 44
Locations of airbags ..................... 39Modification and disposal of airbags
................................................... 46
Side airbag operating conditions .. 41
Side airbag precautions ............... 44
Side and curtain shield airbags oper-
ating conditions .......................... 41
Side and curtain shield airbags pre-
cautions...................................... 44
SRS airbags ................................. 39
SRS warning light.......................510
Air conditioning filter ................... 475
Air conditioning system
“My Room Mode” .......................152
Air conditioning filter ................... 475
Automatic air conditioning system
................................................. 406
Blower customization ................. 408
Front seat concentrated airflow
mode (S-FLOW).......................411
Humidity sensor ......................... 413
Remote Air Conditioning System414
Air intake vent ................................. 98
Cleaning ..................................... 479
Alarm................................................78
Alarm ............................................ 78
Warning buzzer .......................... 508
Antenna
Smart entry & start system ......... 221
Anti-lock brake system (ABS) ..... 391
Function ..................................... 391
Warning light .............................. 510
Approach warning ........................ 339
Armrest .......................................... 439
Ashtray .......................................... 430
Assist grips ...................................439
AUTO EV/HV mode .........................85
AUTO EV/HV mode switch ............. 86
Automatic air conditioning system
..................................................... 406
“My Room Mode” .......................152
Air conditioning filter ................... 475

588Alphabetical Index
Blower customization ................. 408
Front seat concentrated airflow
mode (S-FLOW) ...................... 411
Humidity sensor ......................... 413
Remote Air Conditioning System414
Automatic headlight leveling system
..................................................... 289
Automatic High Beam (AHB) ....... 290
Automatic light control system ... 288
Auxiliary box ................................. 425
Average fuel consumption .......... 196
Average fuel economy ................. 179
Average vehicle speed ......... 183, 196
B
Back door ...................................... 208
Hands Free Power Back Door ... 212
Power back door ........................ 211
Wireless remote control ............. 211
Back-up lights
Replacing light bulbs .................. 491
Wattage...................................... 565
Battery (12-volt battery) ............... 460
If the 12-volt battery is discharged
................................................. 546
Preparing and checking before win-
ter ............................................ 398
Replacing ................................... 549
Warning light .............................. 509
Battery (traction battery)................ 94
Charging .................................... 134
Location ....................................... 94
Specification............................... 561
Blind Spot Monitor (BSM) ............ 349
Blind Spot Monitor function ........ 364
Rear Crossing Traffic Alert function
................................................. 367
Bottle holders ............................... 424
Brake
Brake Hold ................................. 285
Parking brake ............................. 282Regenerative braking ................... 90
Warning light .............................. 508
Brake assist...................................391
Brake Hold ..................................... 285
Brake Override System ................ 257
Break-in tips .................................. 257
BSM (Blind Spot Monitor) ............349
Blind Spot Monitor function ........ 364
Rear Crossing Traffic Alert function
................................................. 367
C
Card holder.................................... 425
Care
Aluminum wheels .......................442
Exterior ....................................... 442
Front camera .............................. 301
Interior ........................................445
Radar sensor.............................. 301
Seat belts ...................................445
Water-repellent coating .............. 443
Cargo hooks .................................. 426
Chains ............................................ 400
Charging
“My Room Mode” .......................152
AC charging cable ...................... 108
Charging equipment ................... 105
Charging indicator ...................... 106
Charging messages ................... 159
Charging procedure ................... 134
Charging schedule function........ 143
Charging time may increase ...... 127
High voltage components............. 94
How to charge ............................ 134
Information related to charging dis-
play .......................................... 130
Opening and closing the charging
port lid ...................................... 106
Power sources precautions ........ 125
Power sources that can be used 123
Safety functions.......................... 131
