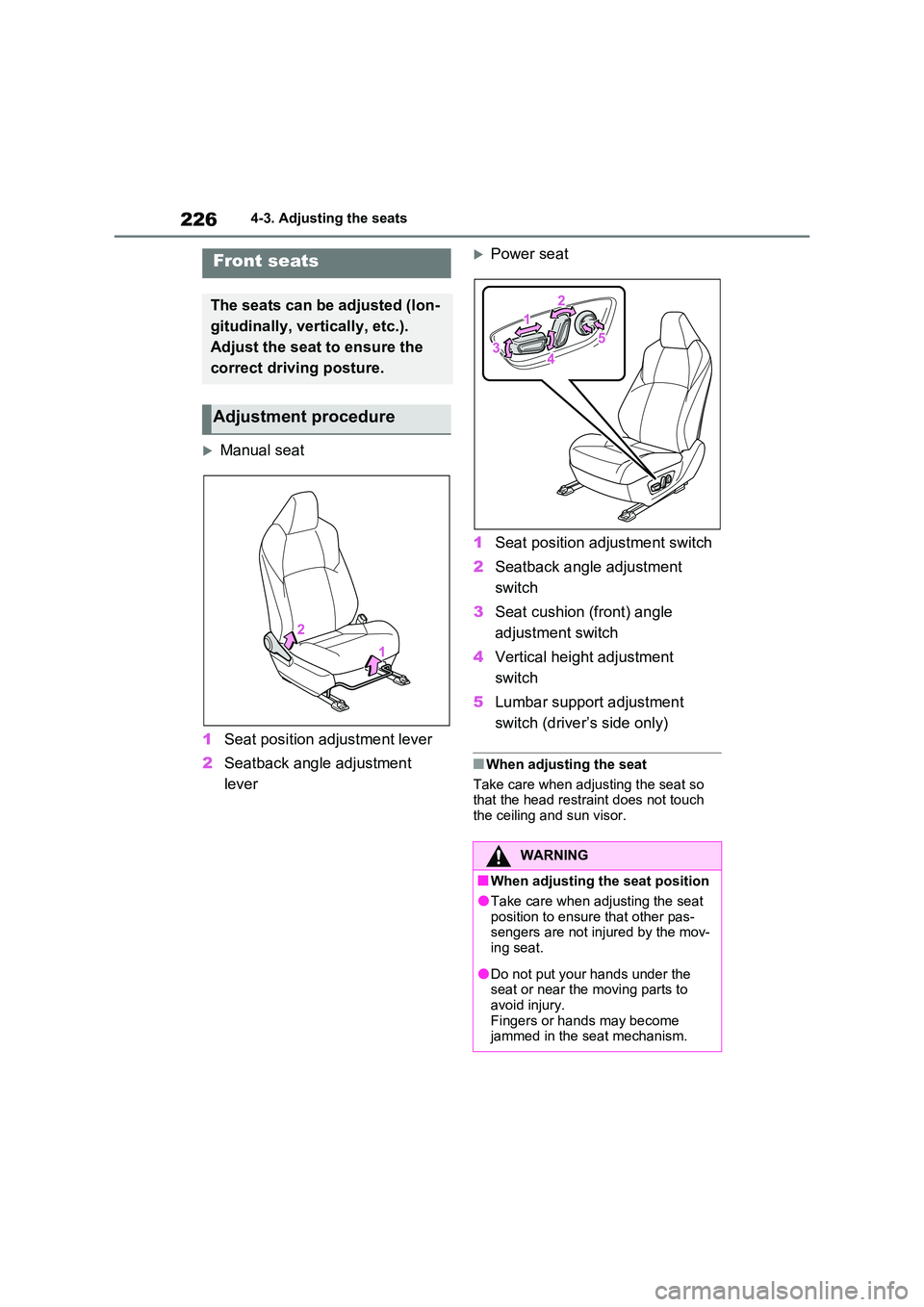

2264-3. Adjusting the seats
4-3.Adjusting the sea ts
Manual seat
1 Seat position adjustment lever
2 Seatback angle adjustment
lever
Power seat
1 Seat position adjustment switch
2 Seatback angle adjustment
switch
3 Seat cushion (front) angle
adjustment switch
4 Vertical height adjustment
switch
5 Lumbar support adjustment
switch (driver’s side only)
QWhen adjusting the seat
Take care when adjusting the seat so that the head restraint does not touch
the ceiling and sun visor.
Front seats
The seats can be adjusted (lon-
gitudinally, vertically, etc.).
Adjust the seat to ensure the
correct driving posture.
Adjustment procedure
WARNING
QWhen adjusting the seat position
OTake care when adjusting the seat
position to ensure that other pas- sengers are not injured by the mov-ing seat.
ODo not put your hands under the seat or near the moving parts to
avoid injury. Fingers or hands may become jammed in the seat mechanism.

2324-3. Adjusting the seats
QFront seats
1 Up
Pull the head restraints up.
2Down
Push the head restraint down while
pressing the lock release button .
QRear seats
1 Up
Pull the head restraints up.
2Down
Push the head restraint down while
pressing the lock release button .
QAdjusting the height of the head restraints (front seats)
Make sure that the head restraints are
adjusted so that the center of the head restraint is closest to the top of your ears.
QAdjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when using.
Pull the head restraint up while
pressing the lock release button
.
Head restraints
Head restraints are provided
for all seats.
WARNING
QHead restraint precautions
Observe the following precautions
regarding the head restraints. Failure to do so may result in death or serious injury.
OUse the head restraints designed for each respective seat.
OAdjust the head restraints to the correct position at all times.
OAfter adjusting the head restraints, push down on them and make sure they are locked in position.
ODo not drive with the head restraints removed.
Vertical adjustment
A
Removing the head
restraints
A
A

237
4
4-4. Adjusting the steering wheel and mirrors
Before driving
1 Digital mirror mode
Displays an image of the area behind
the vehicle.
will illuminate in this mode.
2 Optical mirror mode
Turns off the display of the Digital Rear-
view Mirror allows it to be used as an
optical mirror.
QDigital mirror mode operating con- dition
The power switch is turned to ON.
When the power switch is changed from ON to OFF or ACC, the image will dis-appear after several seconds.
QWhen using the Digital Rear-view
Mirror in digital mirror mode
OIf it is difficult to see the displayed
image due to light reflected off the Digital Rear-view Mirror, the camera being dirty or covered with water drop-
lets, or if lights of a vehicle behind your vehicle or the displayed image are bothering you, change to optical
mirror mode.
OWhen the back door is open, the Digi-
tal Rear-view Mirror image may not display properly. Before driving, make sure the back door is closed.
OIf the display is difficult to see due to reflected light, close the electronic
sunshade for the panoramic moon roof (if equipped).
OAny of the following conditions may occur when driving in the dark, such
as at night. None of them indicates
that a malfunction has occurred. • Colors of objects in the displayed image may differ from their actual
color. • Depending on the height of the lights of the vehicle behind, the area around
the vehicle may appear white and blurry.• Automatic image adjustment for
brighter surrounding image may cause flickering.If it is difficult to see the displayed image
or flickering bothers you, change to opti- cal mirror mode.
OThe Digital Rear-view Mirror may become hot while it is in digital mirror mode.
This is not a malfunction.
ODepending on your physical condition
or age, it may take longer than usual to focus on the displayed image. In this case, change to optical mirror
mode.
ODo not let passengers stare at the dis-
played image when the vehicle is being driven, as doing so may cause motion sickness.
QWhen the system malfunctions
If the symbol shown in the illustration is displayed when using the Digital Rear-view Mirror in digital mirror mode, the
system may be malfunctioning. The symbol will disappear in a few seconds. Operate the lever, change to optical mir-
ror mode and have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.

597Alphabetical Index
Rear window wiper ....................... 296
Refueling ....................................... 298
Capacity ..................................... 560
Fuel types .................................. 560
If the fuel filler door cannot be
opened..................................... 543
Opening the fuel tank cap .......... 298
Regenerative braking ..................... 90
Remote Air Conditioning System 414
Replacing
Electronic key battery................. 486
Fuses ......................................... 488
Light bulbs.................................. 491
Tires ........................................... 533
Wiper insert ................................ 482
Road accident cautions ................. 96
Road Sign Assist .......................... 328
RSA (Road Sign Assist) ............... 328
S
Seat belt reminder light........ 515, 516
Seat belts ........................................ 35
Adjusting the seat belt shoulder
anchor height ............................. 37
Child restraint system installation 60
Cleaning and maintaining the seat
belt ........................................... 445
Emergency Locking Retractor (ELR)
................................................... 37
How to wear your seat belt .......... 36
How your child should wear the seat
belt ............................................. 36
Pregnant women, proper seat belt
use ............................................. 35
Reminder light and buzzer . 515, 516
Seat belt pretensioners ................ 37
SRS warning light ...................... 510
Seat heaters .................................. 416
Seat position memory .................. 229
Seats
Adjustment precautions ..... 226, 227Adjustment ......................... 226, 227
Armrest....................................... 439
Cleaning ..................................... 445
Driving position memory............. 229
Folding down the rear seatbacks228
Head restraint.............................232
Properly sitting in the seat ............ 33
Seat heaters ............................... 416
Seat position memory ................ 229
Seat ventilators .......................... 416
Seat ventilators .............................416
Secondary Collision Brake .......... 392
Sensor
Automatic headlight system ....... 288
Automatic High Beam system .... 290
BSM (Blind Spot Monitor)........... 364
Digital Rear-view Mirror.............. 239
Front camera .............................. 300
Humidity sensor ......................... 413
Inside rear view mirror................ 235
Intrusion sensor and tilt sensor .... 79
LTA (Lane Tracing Assist).......... 318
Parking Support Brake function
(rear-crossing vehicles)............364
Parking Support Brake function
(static objects) .......................... 371
Radar sensor.............................. 300
Rain-sensing windshield wipers .295
RCTA ......................................... 364
Tilt sensor.....................................79
Toyota parking assist-sensor ..... 371
Toyota Safety Sense ..................300
Service plug .................................... 94
Shift lever ...................................... 277
If the shift lever cannot be shifted
from P ...................................... 279
Shift lock system .......................... 279
Side airbags .................................... 39
Side doors ..................................... 203
Side mirrors...................................245
Adjustment ................................. 245
