TOYOTA RAV4 PRIME 2021 (in English) User Guide
Manufacturer: TOYOTA, Model Year: 2021, Model line: RAV4 PRIME, Model: TOYOTA RAV4 PRIME 2021Pages: 36, PDF Size: 0.98 MB
Page 11 of 36

RAV4 PRIME_QG_OM42B93U_(U)
112. Charging operation
2
Charging operation
■Safety functions
The CCID (Charging Circuit Interrupting Device) has the following
safety features.
● Electrical leakage detection function
If an electrical leakage is detected during charging, the power
source will be automatically interrupted, thus preventing fires or
electrical shocks caused by electrical leakage.
● Automatic check function
This is an automatic system che ck that is run before charging
begins to check for problems in the operation of the electrical
leakage detection function.
● Temperature detection function
A temperature detection function is equipped to the plug. While
charging, if heat is generated due to looseness on the outlet side
etc., this function suppresses h eat by controlling the charging
current.
● Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to
prevent electrical current from being supplied to the charging
connector when it is not connected to the vehicle, even if the plug
is inserted into the outlet.
■ Safety functions
●The hybrid system will not start while the AC charging cable is attached to
the vehicle, even if the power switch is operated.
● If the AC charging cable is connected while the “READY” indicat or is illumi-
nated, the hybrid system will stop automatically and driving wi ll not be possi-
ble.
Page 12 of 36

12
RAV4 PRIME_QG_OM42B93U_(U)
2. Charging operation

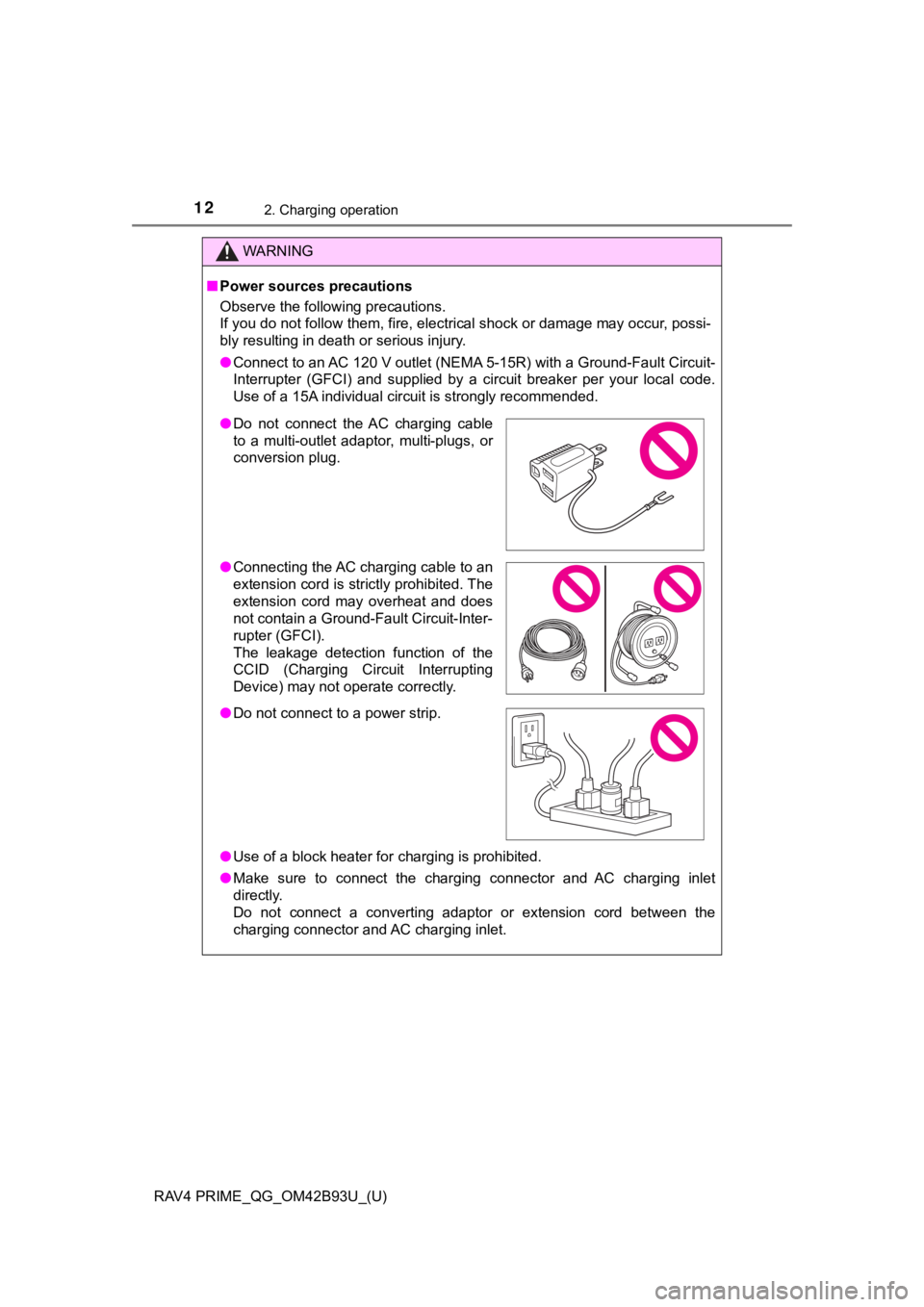

WARNING
■Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
● Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) and supplied by a circuit breaker per your l ocal code.
Use of a 15A individual circuit is strongly recommended.
● Use of a block heater for charging is prohibited.
● Make sure to connect the charging connector and AC charging inl et
directly.
Do not connect a converting adaptor or extension cord between t he
charging connector and AC charging inlet.
● Do not connect the AC charging cable
to a multi-outlet adaptor, multi-plugs, or
conversion plug.
● Connecting the AC charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-Inter-
rupter (GFCI).
The leakage detection function of the
CCID (Charging Circuit Interrupting
Device) may not operate correctly.
● Do not connect to a power strip.
Page 13 of 36

RAV4 PRIME_QG_OM42B93U_(U)
132. Charging operation
2
Charging operation

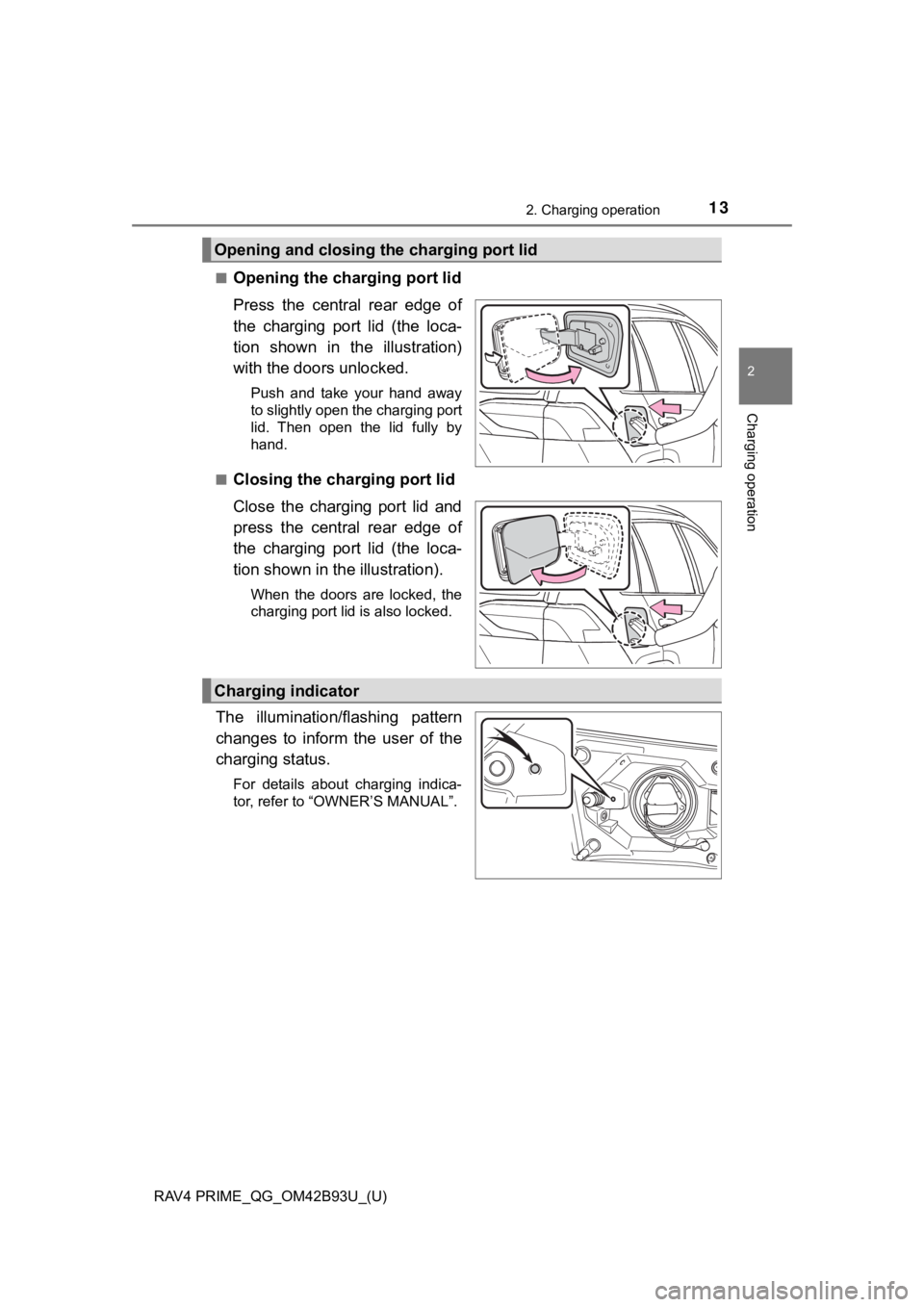

■Opening the charging port lid
Press the central rear edge of
the charging port lid (the loca-
tion shown in the illustration)
with the doors unlocked.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
■
Closing the charging port lid
Close the charging port lid and
press the central rear edge of
the charging port lid (the loca-
tion shown in the illustration).
When the doors are locked, the
charging port lid is also locked.
The illumination/flashing pattern
changes to inform the user of the
charging status.
For details about charging indica-
tor, refer to “OWNER’S MANUAL”.
Opening and closing the charging port lid
Charging indicator
Page 14 of 36

14
RAV4 PRIME_QG_OM42B93U_(U)
2. Charging operation
How to charge
This vehicle has been designed to allow charging from an external
power source using a AC charging cable for exclusive use with s tan-
dard household AC outlets.
However, the vehicle differs greatly from standard household el ectri-
cal goods in the following ways, and incorrect usage could caus e fire
or electric shock, pos sibly leading to death or serious injury.
● The charging operation is designed to operate at 12A continuous ly
for the charge duration (up to 12 hours).
● Charging can be conducted outdoors.
To charge properly, follow the procedure after reading the expl anation
below. Charging is intended to be carried out by licensed drive rs only
who properly understand the charging procedure.
● Do not allow children to use the AC charging cable without supe rvi-
sion. Also, keep the AC charging cable out o f reach of infants.
● When charging with a charger, follow the procedures for using e ach
charger.
● When charging using a public cha rging facility, check the setting of
the charging schedule function. • When the charging schedule is registered, temporarily turn off the function or turn “Charge Now” on.
• When the charging schedule is set to on, charging will not sta rt
even if the AC charging cable is connected. Also, charging fee
may occur due to connection of the AC charging cable.
Charging precautions
Page 15 of 36

RAV4 PRIME_QG_OM42B93U_(U)
152. Charging operation
2
Charging operation
Before charging, always check the following items.
● The parking brake is applied.
● Lights such as the headlights, emergency flashers and interior
lights etc. are turned off.
If these light switches are turned on, then these features will consume
electricity, and charging time will increase.
● The power switch is turned to OFF.
The time required to charge the hybrid battery (traction battery) differs
according to the charging vol tage and charging current.
*1: If equipped
*2: This is the maximum value.
*3: The time required to complete charging depends on conditions such as the
remaining charge of the hybrid battery (traction battery), the outside tem-
perature and specifications of a charger (charging station).
*4: When using “My Room Mode”, the time required for charging to c omplete
may be longer or the charging may not be completed.

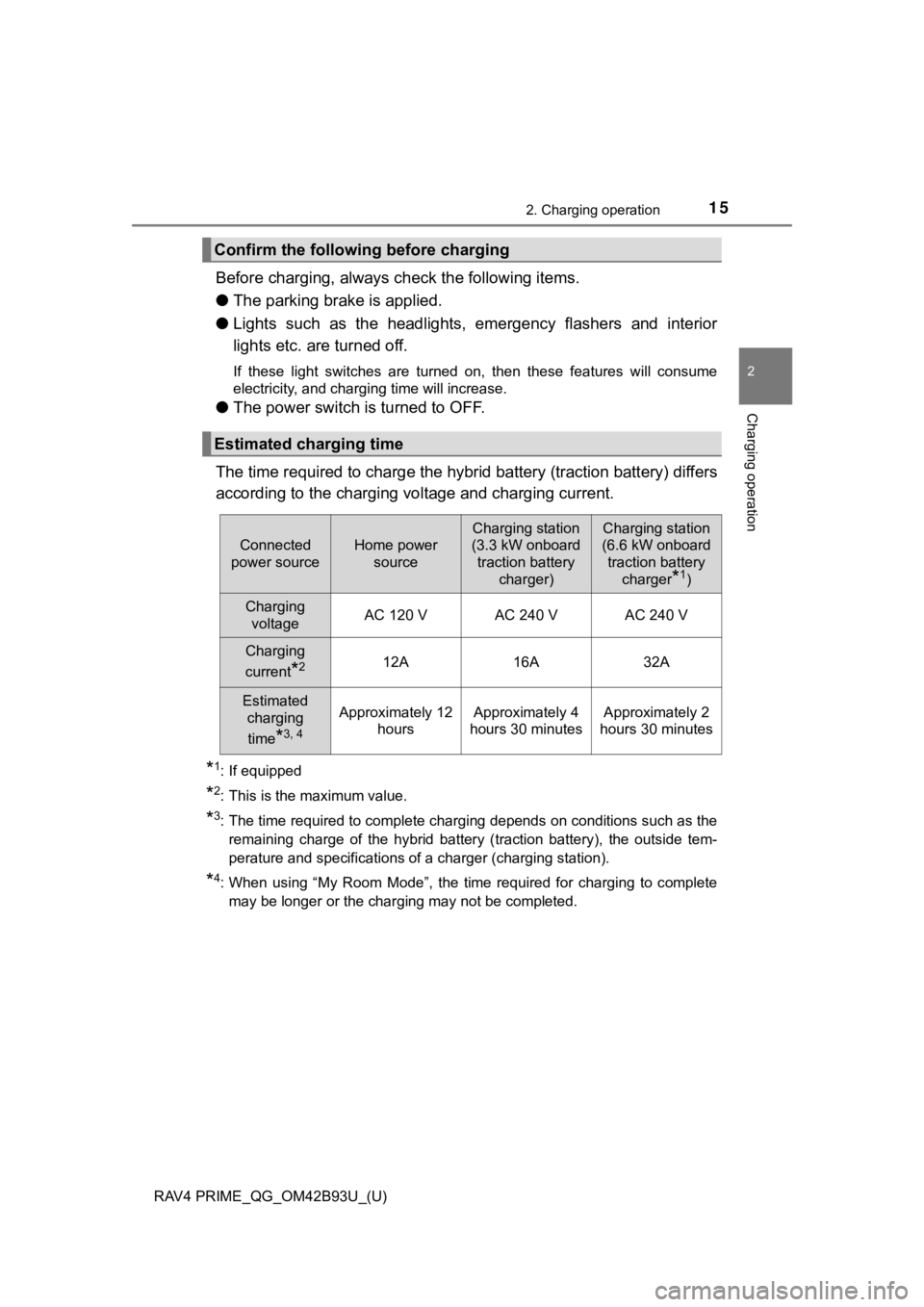

Confirm the following before charging
Estimated charging time
Connected
power sourceHome power source
Charging station
(3.3 kW onboard
traction battery charger)Charging station
(6.6 kW onboard
traction battery charger
*1)
Charging voltageAC 120 VAC 240 VAC 240 V
Charging
current
*212A16A32A
Estimated charging
time
*3, 4
Approximately 12 hoursApproximately 4
hours 30 minutesApproximately 2
hours 30 minutes
Page 16 of 36

16
RAV4 PRIME_QG_OM42B93U_(U)
2. Charging operation

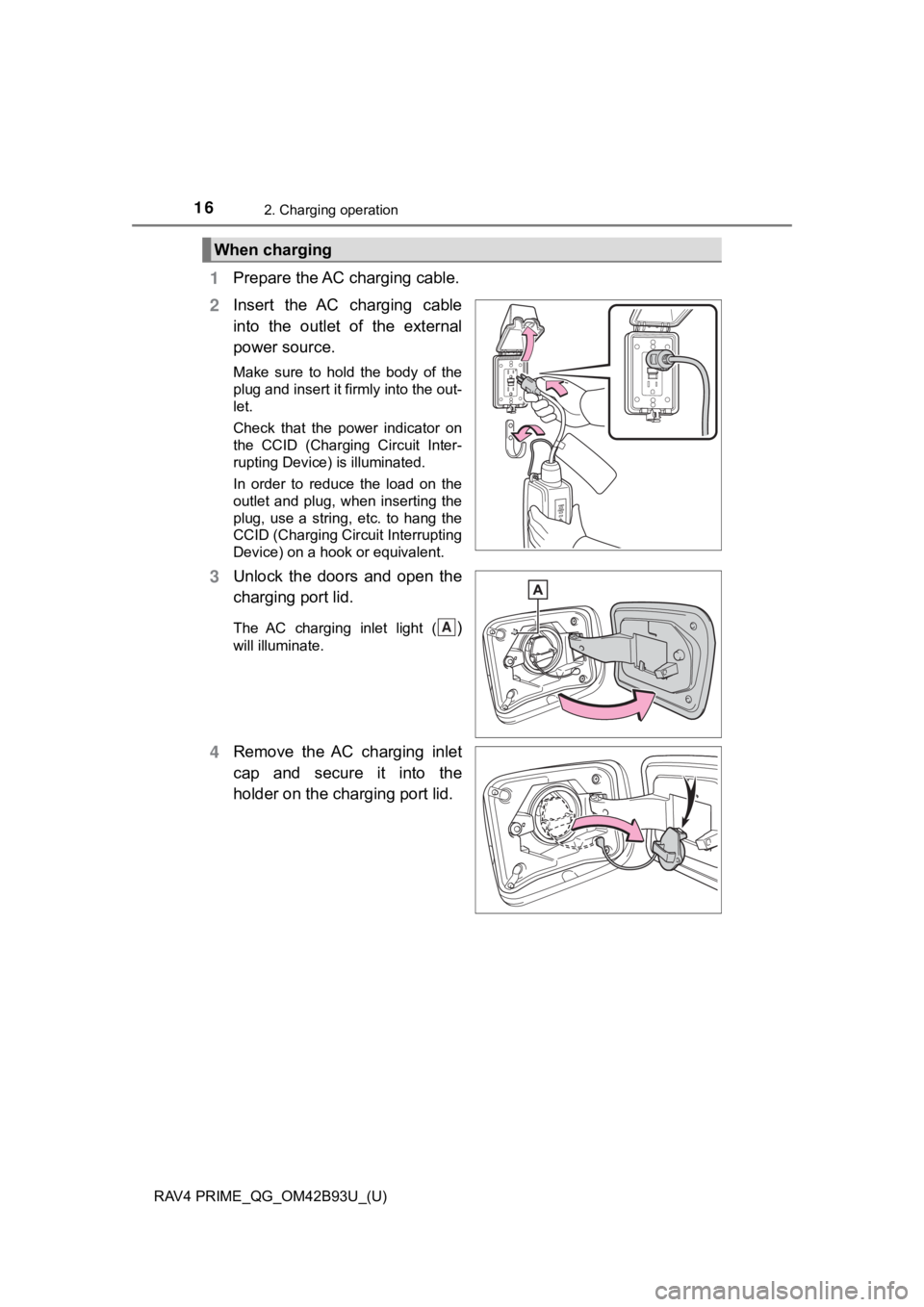

Prepare the AC charging cable.
Insert the AC charging cable
into the outlet of the external
power source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated.
In order to reduce the load on the
outlet and plug, when inserting the
plug, use a string, etc. to hang the
CCID (Charging Circuit Interrupting
Device) on a hook or equivalent.
Unlock the doors and open the
charging port lid.
The AC charging inlet light ()
will illuminate.
Remove the AC charging inlet
cap and secure it into the
holder on the charging port lid.
When charging
1
2
3
A
4
Page 17 of 36

RAV4 PRIME_QG_OM42B93U_(U)
172. Charging operation
2
Charging operation
Remove the charging connec-
tor cap and secure it to the
cable.
Insert the charging connector
into the AC charging inlet.
Align the guide position on the bot-
tom of the charging connector, and
push the charging connector
straight into the AC charging inlet
as far as possible.
Once a click sound is heard, check
that the charging connector is
securely locked.
When the charging connector is inserted straight as far as possible, it will
automatically lock.
Confirm that the charging indi-
cator of the charging port is illu-
minated.
Charging will not start if the
charging indicator does not illumi-
nate when the charging connector
is inserted.
If the charging indicator is flashing,
the charging schedule is regis-
tered.
If the error warning indicator on the CCID (Charging Circuit In terrupting
Device) flashes during charging, refer to “OWNER’S MANUAL” and follow
the correction procedure.
The charging indicator will turn off when charging is completed .
The charging indicator will also turn off when charging is interrupted. In this
case, refer to “OWNER’S MANUAL”.
5
6
7
Page 18 of 36

18
RAV4 PRIME_QG_OM42B93U_(U)
2. Charging operation
■During charging
●The charging starting time may differ depending on the state of the vehicle,
but this does not indicate a malfunction.
● Cooling fan sounds may be heard from near the rear seat.
● During charging, sounds may be heard from near the hybrid batte ry (traction
battery) in accordance with the operation of the air conditioni ng system or
“Battery Cooler”.
● During and after charging, the rear seat and its surrounding ar ea in which
the onboard traction battery charger is installed may get warm.
● The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction.
● Depending on radio wave conditions, interference may be heard o n the
radio.
● The current charging condition and the estimated time until cha rging will
complete can be checked on the multi-information display.
■ Safety function
If the latch release button is pressed, charging will not begin even if the AC
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and held
for several seconds during charging. When restarting charging, reinsert the
charging connector after pulling it out, and check that the charging indicator
of the charging port illuminates.
Page 19 of 36

RAV4 PRIME_QG_OM42B93U_(U)
192. Charging operation
2
Charging operation
Unlock the doors to unlock the charging connector.
The charging connector will be unlocked and the AC charging inlet light will
illuminate when the doors are unlocked.
Pull the charging connector
towards you while pressing the
latch release button.
If the latch release button is
pressed during charging (while the
charging indicator is illuminated),
charging will be interrupted.
Attach the charging connector cap.
Attach the AC charging inlet ca p and close the charging port lid.
Remove the plug from the outlet when the charging equipment will
not be used for a prolonged period of time.
Hold the body of the plug when removing.
Make sure to put the cable away immediately after disconnecting .
When leaving the plug inserted, inspect the plug and connector once a
month to check if dirt or dust has accumulated.
After charging
1
2
WARNING
■ AC charging inlet
Do not disassemble, repair or modify the AC charging inlet. Doi ng so may
lead to unforeseen accidents or serious injury. When the AC cha rging inlet
needs to be repaired, consult your Toyota dealer.
3
4
5
Page 20 of 36

20
RAV4 PRIME_QG_OM42B93U_(U)
2. Charging operation
WARNING
■When charging
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● Connect to a power source suitable for charging.
● Check that the AC charging cable, plug and outlet are free of f oreign mat-
ter.
● Before charging, check that the AC charging inlet is not deform ed, dam-
aged or corroded, and check that the inlet is free of foreign matter such as
dirt, snow and ice.
If there is dirt or dust in these areas, remove completely befo re inserting
the charging connector.
● Do not get the terminals of the AC charging inlet wet.
● Only use outlets where the plug can be securely inserted.
● Do not bundle or wind the AC charging cable while charging, as doing so
may result in overheating.
● Do not touch the terminals of the charging connector and AC cha rging
inlet with a sharp metal objects (needles etc.) or hands, or sh ort them with
foreign objects.
● When charging outdoors, make sure to connect to a weatherproof outlet
for outdoor use. Ensure the weatherproof outlet cover closes co mpletely. If
the weatherproof outlet cover cannot be closed, install a weath erproof out-
let cover that will close.
● In order to stop charging at the charging station, follow the instructions of
the charger.
● If any heat, smoke, odors, noise or other abnormalities are noticed during
charging, stop charging immediately.
● Do not insert the plug if the outlet is submerged in water or s now.
● When charging while it is raining or snowing, do not connect or disconnect
the plug if your hands are wet. Also, do not get the plug or outlet wet.
● Do not charge the vehicle during a lightning storm.
● Prevent the AC charging cable from being caught in the door or back door.
● Do not let the wheels on the AC charging cable, plug, charging connector
and CCID (Charging Circuit Interrupting Device).
● Firmly insert the plug into the outlet.
● Do not use an extension cord and converting adaptor.
