5478-2. Steps to take in an emergency
8
When trouble arises
dropped and the vehicle may be
driven normally.
However, if the message appears
again frequently, contact your
Toyota dealer.
WARNING
■When inspecting under the
hood of your vehicle
Observe the following precau-
tions.
Failure to do so may result in seri-
ous injury such as burns.
●If steam is seen coming from
under the hood, do not open the
hood until the steam has sub-
sided. The engine compart-
ment may be very hot.
●After the hybrid system has
been turned off, check that the
“READY” indicator is off.
When the hybrid system is oper-
ating, the gasoline engine may
automatically start, or the cool-
ing fan may suddenly operate
even if the gasoline engine
stops. Do not touch or approach
rotating parts such as the fan,
which may lead to fingers or
clothing (especially a tie, a scarf
or a muffler) getting caught,
resulting in serious injury.
●Do not loosen the coolant reser-
voir cap while the hybrid system
and radiator are hot.
High temperature steam or
coolant could spray out.
NOTICE
■When adding engine/power
control unit coolant
Add coolant slowly after the
hybrid system has cooled down
sufficiently. Adding cool coolant to
a hot hybrid system too quickly
can cause damage to the hybrid
system.
■To prevent damage to the
cooling system
Observe the following precau-
tions:
●Avoid contaminating the coolant
with foreign matter (such as
sand or dust, etc.).
●Do not use any coolant additive.

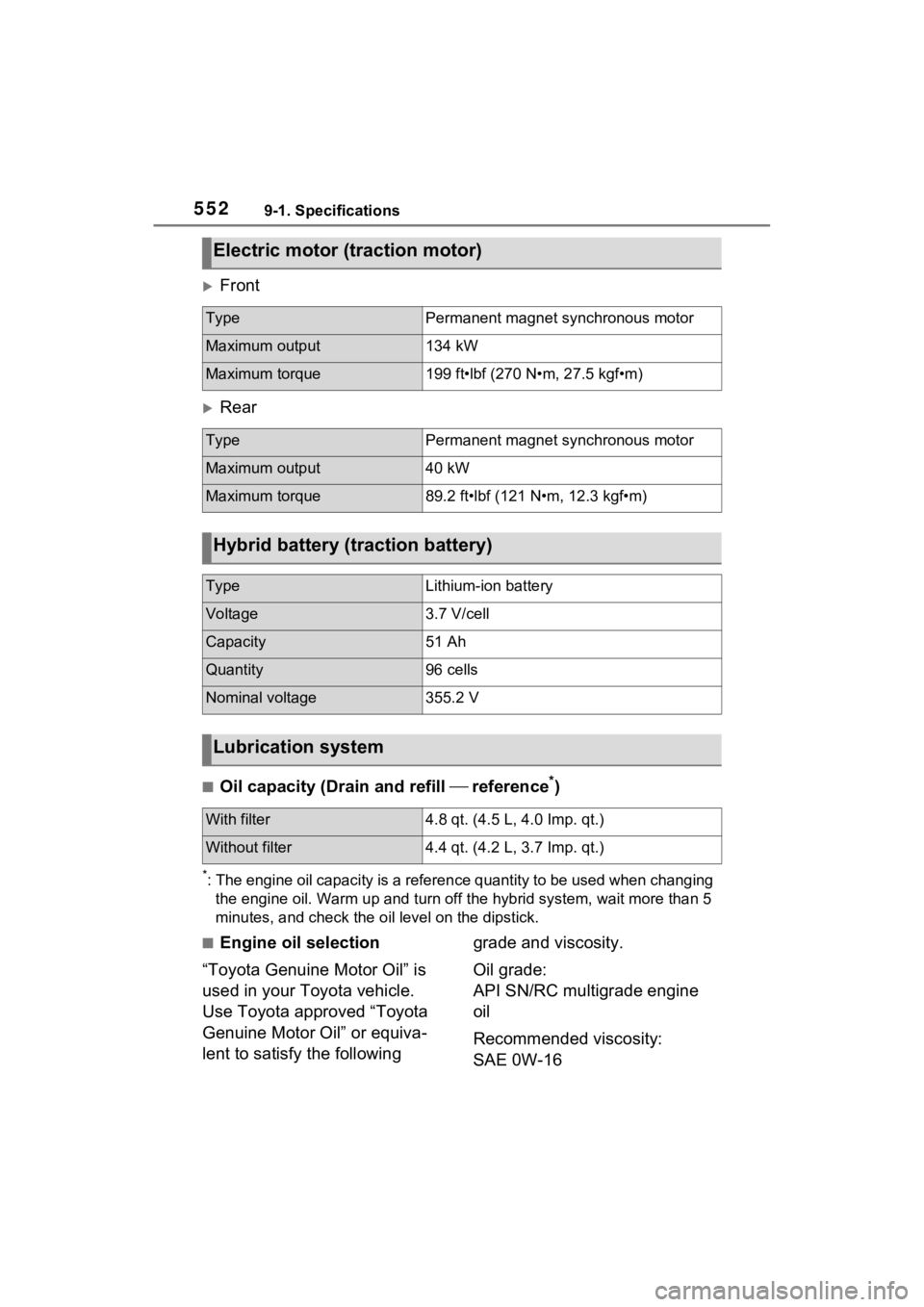

5529-1. Specifications
Front
Rear
■Oil capacity (Drain and refill  reference*)
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up and turn off the hybrid system, wait mo re than 5
minutes, and check the o il level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle.
Use Toyota approved “Toyota
Genuine Motor Oil” or equiva-
lent to satisfy the following grade and viscosity.
Oil grade:
API SN/RC multigrade engine
oil
Recommended viscosity:
SAE 0W-16
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output134 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)
TypePermanent magnet synchronous motor
Maximum output40 kW
Maximum torque89.2 ft•lbf (121 N•m, 12.3 kgf•m)
Hybrid battery (traction battery)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity51 Ah
Quantity96 cells
Nominal voltage355.2 V
Lubrication system
With filter4.8 qt. (4.5 L
, 4.0 Imp. qt.)
Without filter4.4 qt. (4.2 L, 3.7 Imp. qt.)

Alphabetical Index601
Charging equipment ............... 99
Charging indicator ................ 100
Charging messages ............. 152
Charging precautions ........... 126
Charging procedure ............. 123
Charging schedule function.. 130
Charging time may increase 115
High voltage components....... 87
How to charge ...................... 123
Information related to charging display ................................ 119
Opening and closing the charging port lid.................. 100
Power sources precautions .. 113
Power sources th at can be used
........................................... 111
Safety functions.................... 120
When charging cannot be car- ried out ............................... 147
Charging port ........................... 99 If the charging port lid does not open ................................... 108
Locking and unlocking.......... 107
Opening and closing ............ 100
Child-protector ....................... 202
Child restraint s ystem ............. 51
Fixed with a LATCH system ... 60
Fixed with a seat belt ............. 55
Front passenger occupant clas- sification system ................... 44
Points to remember ................ 51
Riding with children ................ 50
Types of child restraint system installation met hod ............... 53
Using an anchor bracket ........ 62
Child safety ............................... 50 12-volt battery precautions................. 466, 543
Airbag precautions ................. 39
Back door precautions ......... 203
Charging precautions ........... 120
Child restraint system............. 53 Heated steering wheel and seat
heater precautio ns..............407
How your child should wear the seat belt ................................30
Moon roof precautions..........250
Panoramic moon roof precau- tions ....................................254
Power window lock switch ....248
Power window precautions...247
Rear door child-protectors ....202
Seat belt extender precautions .............................................30
Seat belt precautions..............29
Seat heater precautions .......407
Cleaning ..........................444, 447 Aluminum wheels .................444
DC/DC Converter air intake vent
...........................................486
Exterior .................................444
Front camera ........................310
Interior ..................................447
Radar sensor ........................310
Seat belts .............................447
Water-repellent coating ........445
Clock ........................................169
Coat hooks ..............................435
Condenser ............. ..................463
Console box ............................414
Consumption screen ..............187
Coolant Capacity ...............................553
Checking ..............................462
Preparing and checking before winter ..................................387
Warning light ........................512
Cooling system .......................462 Engine overheating ..............544
Hybrid system overheating ...546
Cruise control Dynamic radar cruise control with full-speed range ..........336
Cup holders.............................414

Alphabetical Index603
Eco drive mode ...................... 377
EDR (Event data recorder)......... 8
E-Four (Electronic On-Demand AWD system) ........................ 381
Elapsed time ........................... 176
Electric motor Location.................................. 76
Specification ......................... 552
Electric Power Steering (EPS) Function ............................... 381
Warning light ........................ 513
Electronically Controlled Brake System (ECB) ....................... 380
Electronic key Battery-saving function......... 218
If the electronic key does not operate properly ................. 537
Replacing the battery ........... 493
Electronic sunshade .............. 252 Jam protection function ........ 253
Operation ............................. 252
Emergency, in case of If a warning buzzer sounds .. 511
If a warning light turns on ..... 511
If a warning message is dis-played................................. 523
If the 12-volt battery is dis- charged .............................. 539
If the electronic key does not operate properly ................. 537
If the fuel filler door cannot be opened ............................... 536
If the hybrid sy stem will not start
........................................... 534
If the vehicle is trapped in rising water .................................. 506
If you have a flat tire ............. 527
If you lose your keys ............ 536
If you think something is wrong ........................................... 509
If your vehicle becomes stuck ........................................... 548 If your vehicle has to be stopped
in an emergency .................505
If your vehicle needs to be towed ...........................................507
If your vehicle ove rheats ......544
Emergency flashers ...............504
Energy monitor .......................187
Engine Compartment........................460
Exhaust gas precautions ........49
Hood .....................................457
How to start the hybrid system...........................................279
Identification number ............551
If the hybrid sys tem will not start
...........................................534
If your vehicle has to be stopped in an emergency .................505
Overheating ..........................544
Power switch ........................279
Engine coolant Capacity ...............................553
Checking ..............................462
High coolant temperature warn-ing light ...............................512
Preparing and checking before winter ..................................387
Warning light ........................512
Engine oil Capacity ...............................552
Checking ..............................460
Preparing and checking before winter ..................................387
Warning light ........................512
Enhanced Vehicle Stability Con- trol (Enhanced VSC ) .............381
Enhanced VSC (Enhanced Vehi- cle Stability Control).............381
EPS (Electric Po wer Steering)
Function................................381
Warning light ........................513
EV/HV mode selection switch .78

Alphabetical Index613
Vanity mirrors ......................... 420
Vehicle data recordings ............. 7
Vehicle identification number550
Vehicle Stability Control (VSC)............................................... 381
Ventilators (seat ventilators) . 407
VSC (Vehicle Stability Control) ............................................... 381
W
Warning buzzers Approach warning ................ 343
Brake hold ............................ 517
Brake Override System ........ 517
Brake system ....................... 511
BSM OFF indicator............... 516
Charging system .................. 511
Downshifting................. 287, 288
Drive-Start Control ............... 517
Electric power steering ......... 513
High coolant temperature ..... 512
Hybrid system overheat ....... 512
Intuitive parking assist OFF indi-cator ................................... 515
Intuitive parking assist .......... 356
Low engine oil pressure ....... 512
LTA (Lane Tracing Assist).... 323
LTA indicator ........................ 514
Open door ............................ 202
Open hood ........................... 202
Open window ....................... 247
PKSB OFF indicato r ............. 515
Pre-collision warning ............ 315
Radar cruise control ............. 343
RCTA (Rear Cross Traffic Alert) ........................................... 347
RCTA OFF indicator............. 516
RSA (Road Sign Assist) ....... 333
Seat belt reminde r ........ 518, 519
Shift position................. 287, 288
Vehicle sway warning........... 327
Warning lights ABS ......................................513
Brake hold operated indicator
...........................................517
Brake Override System ........517
Brake system ........................511
BSM OFF indicator ...............516
Charging system ..................511
Driver’s seat be lt reminder light
...........................................518
Drive-Start Control ................517
Electric power steering .........513
Engine ..................................512
Front passenger’s seat belt reminder light......................518
High coolant temperature .....512
Hybrid system overheat ........512
Intuitive parking assist OFF indi- cator ...................................515
Low engine oil pressure .......512
Low fuel level........................518
LTA indicator ........................514
Malfunction indica tor lamp ....512
Parking brake indicator.........517
PCS warning light .................514
PKSB (Parking Support Brake) ...........................................515
PKSB OFF indicator .............515
RCTA OFF indicator .............516
Rear passengers’ seat belt reminder lights ....................519
Seat belt reminder light 518, 519
Slip indicator .........................516
SRS ......................................513
Tire pressure ...... ..................518
Warning messages .................523
Washer Checking ..............................465
Low washer fluid warning mes-sage............................465, 523
Preparing and checking before winter ..................................387
Switch ...........................301, 304
