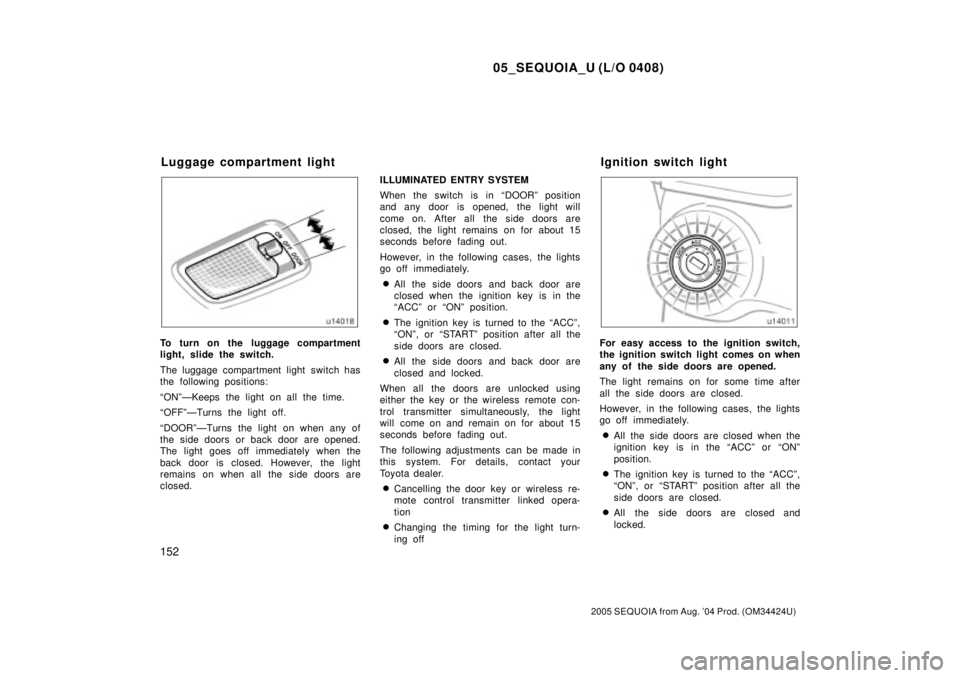

To turn on the luggage compartment
light, slide the switch.
The luggage compartment light switch has
the following positions:
ªONºÐKeeps the light on all the time.
ªOFFºÐTurns the light off.
ªDOORºÐTurns the light on when any of
the side doors or back door are opened.
The light goes off immediately when the
back door is closed. However, the light
remains on when all the side doors are
closed.ILLUMINATED ENTRY SYSTEM
When the switch is in ªDOORº position
and any door is opened, the light will
come on. After all the side doors are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the lights
go off immediately.

All the side doors and back door are
closed when the ignition key is in the
ªACCº or ªONº position.

The ignition key is turned to the ªACCº,
ªONº, or ªSTARTº position after all the
side doors are closed.

All the side doors and back door are
closed and locked.
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
will come on and remain on for about 15
seconds before fading out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.

Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion

Changing the timing for the light turn-
ing off
For easy access to the ignition switch,
the ignition switch light comes on when
any of the side doors are opened.
The light remains on for some time after
all the side doors are closed.
However, in the following cases, the lights
go off immediately.

All the side doors are closed when the
ignition key is in the ªACCº or ªONº
position.

The ignition key is turned to the ªACCº,
ªONº, or ªSTARTº position after all the
side doors are closed.

All the side doors are closed and
locked.
Luggage compartment light Ignition switch light

05_SEQUOIA_U (L/O 0408)
153
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the ignition
switch light will come on and remain on
for about 15 seconds before fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened for 20 minutes or more.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.

Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion

Changing the timing for the light turn-
ing off
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ªONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
The ªINT TIMEº band lets you adjust the
wiping time interval when the wiper lever
is in the intermittent position (position 1).
Twist the band upward to increase the
time between sweeps, and downward to
decrease it.To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see ªAdding washer fluidº on page 444 in
Section 7±3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer

05_SEQUOIA_U (L/O 0408)
154
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

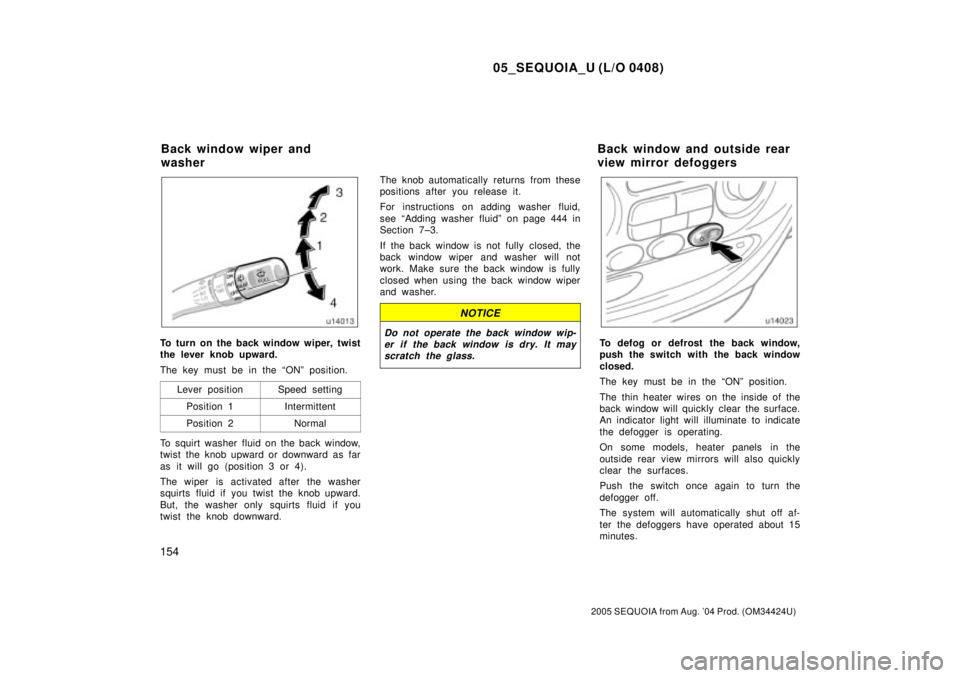

To turn on the back window wiper, twist
the lever knob upward.
The key must be in the ªONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the back window,
twist the knob upward or downward as far
as it will go (position 3 or 4).
The wiper is activated after the washer
squirts fluid if you twist the knob upward.
But, the washer only squirts fluid if you
twist the knob downward.The knob automatically returns from these
positions after you release it.
For instructions on adding washer fluid,
see ªAdding washer fluidº on page 444 in
Section 7±3.
If the back window is not fully closed, the
back window wiper and washer will not
work. Make sure the back window is fully
closed when using the back window wiper
and washer.
NOTICE
Do not operate the back window wip-
er if the back window is dry. It may
scratch the glass.To defog or defrost the back window,
push the switch with the back window
closed.
The key must be in the ªONº position.
The thin heater wires on the inside of the
back window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
On some models, heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.
Back window wiper and
washerBack window and outside rear
view mirror defoggers

05_SEQUOIA_U (L/O 0408)
155
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop±and±go driving. The defoggers are
not designed for drying rain water or for
melting snow.
CAUTION
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is on.
NOTICE
When cleaning the inside of the back
window, be careful not to scratch or
damage the heater wires or connec-
tors.
If the back window is not fully closed, the
back window defogger will not work. Make
sure the back window is fully closed when
using the back window defogger.If the back window is opened while the
defogger is working, the defogger will au-
tomatically turn off. Even if the back win-
dow is fully closed after that, the defogger
will not automatically turn on.

05_SEQUOIA_U (L/O 0408)
156
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

05_SEQUOIA_U (L/O 0408)
157
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge158 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge158 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure gauge159 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vo ltme te r160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers162 . . . . . . . . . . . . . .
SECTION 1± 6

05_SEQUOIA_U (L/O 0408)
158
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

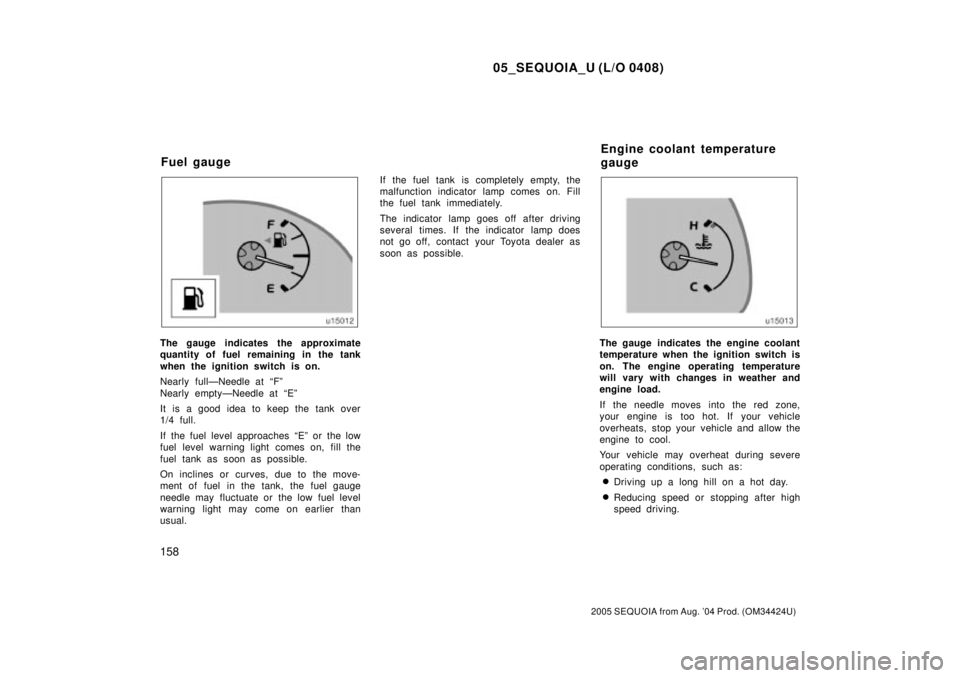

The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly fullÐNeedle at ªFº
Nearly emptyÐNeedle at ªEº
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches ªEº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:

Driving up a long hill on a hot day.

Reducing speed or stopping after high
speed driving.
Fuel gaugeEngine coolant temperature
gauge

05_SEQUOIA_U (L/O 0408)
159
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

Idling for a long period with the air
conditioning on in stop±and±go traffic.

Towing a trailer.
NOTICE

Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.

Do not continue driving with an
overheated engine. See ªIf your ve-
hicle overheatsº on page 386 in
Section 4.
Normal
driving
Idling

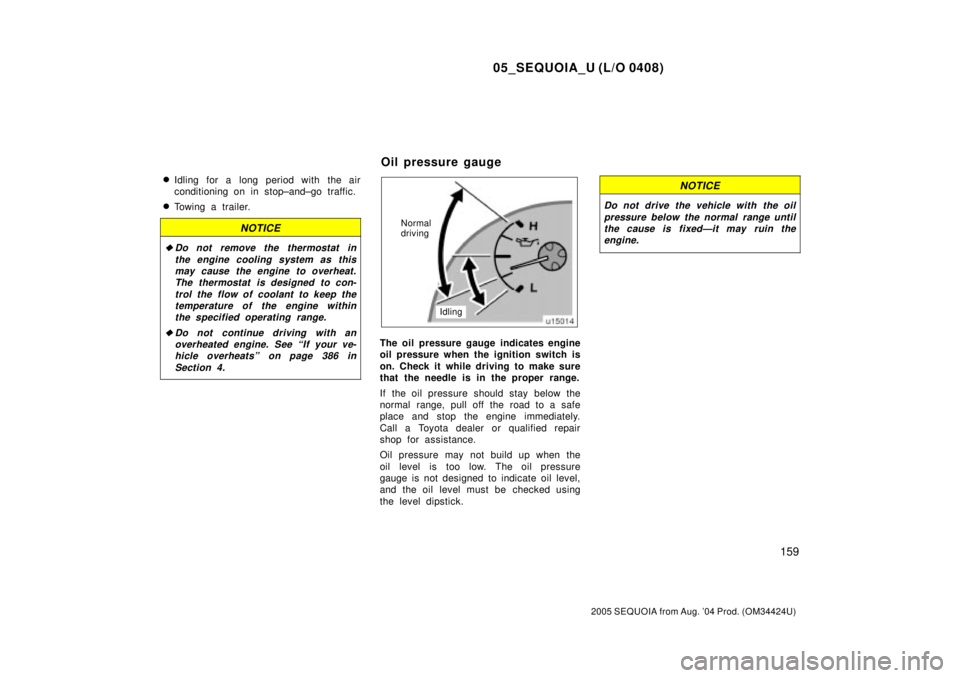

The oil pressure gauge indicates engine
oil pressure when the ignition switch is
on. Check it while driving to make sure
that the needle is in the proper range.
If the oil pressure should stay below the
normal range, pull off the road to a safe
place and stop the engine immediately.
Call a Toyota dealer or qualified repair
shop for assistance.
Oil pressure may not build up when the
oil level is too low. The oil pressure
gauge is not designed to indicate oil level,
and the oil level must be checked using
the level dipstick.
NOTICE
Do not drive the vehicle with the oil
pressure below the normal range until
the cause is fixedÐit may ruin the
engine.
Oil pressure gauge

05_SEQUOIA_U (L/O 0408)
160
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

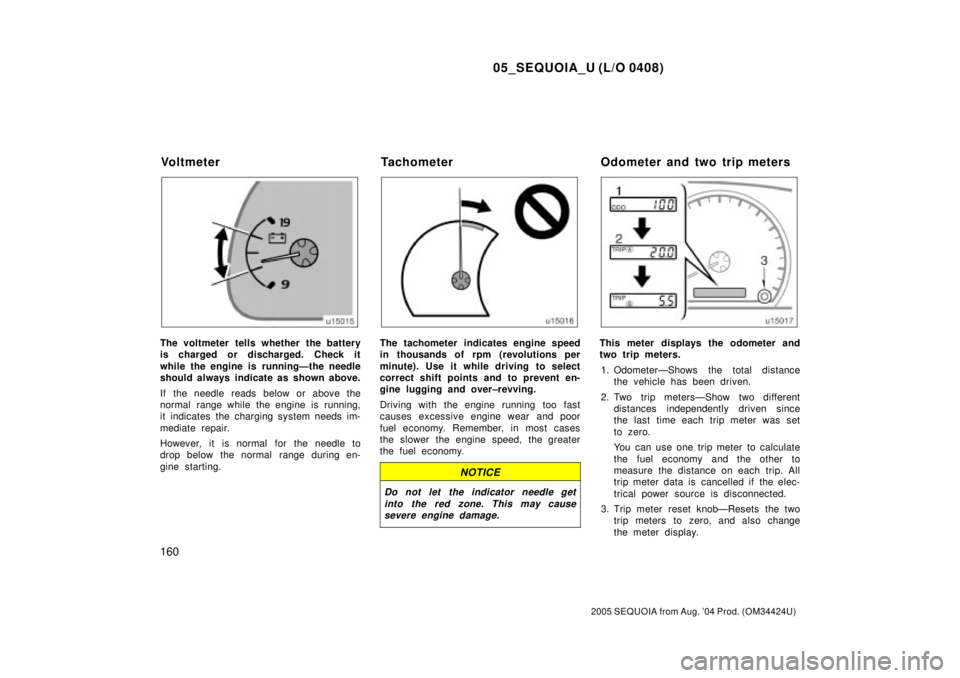

The voltmeter tells whether the battery
is charged or discharged. Check it
while the engine is runningÐthe needle
should always indicate as shown above.
If the needle reads below or above the
normal range while the engine is running,
it indicates the charging system needs im-
mediate repair.
However, it is normal for the needle to
drop below the normal range during en-
gine starting.The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over±revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
This meter displays the odometer and
two trip meters.
1. OdometerÐShows the total distance
the vehicle has been driven.
2. Two trip metersÐShow two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
3. Trip meter reset knobÐResets the two
trip meters to zero, and also change
the meter display.
Voltmeter Tachometer Odometer and two trip meters

05_SEQUOIA_U (L/O 0408)
161
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
