ªSTARTºÐStarter motor on. The key
will return to the ªONº position when
released.
For starting tips, see page 361 in Section
3.
ªONºÐEngine on and all accessories
on.
This is the normal driving position.
It is not a malfunction if the needle on all
meters and gauges move slightly when the
ignition switch is turned to the ªONº posi-
tion.ªACCºÐAccessories such as the radio
operate, but the engine is off.
If you leave the key in the ªACCº or
ªLOCKº position and open the driver's
door, a buzzer will remind you to remove
the key.
ªLOCKºÐEngine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn it from
ªACCº to the ªLOCKº position. The selec-
tor lever must be in the ªPº position be-
fore pushing the key.
Once you remove the key, the engine im-
mobilizer system is automatically set. (See
ªEngine immobilizer systemº on page 16
in Section 1±2.)
When starting the engine, the key may
seem stuck at the ªLOCKº position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
Approximately five hours after the engine
is turned off, you may hear sound coming
from underneath the luggage compartment
for several minutes. This is normal opera-
tion and does not indicate a malfunction.
(See ªLeak detection pumpº on page ix.)
NOTICE
Do not leave the key in the ªONº
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

05_SEQUOIA_U (L/O 0408)
173
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of ªPº position when the
brake pedal is depressed (with the ignition
switch in the ªONº or ªACCº position and
the selector lever pulled toward you).

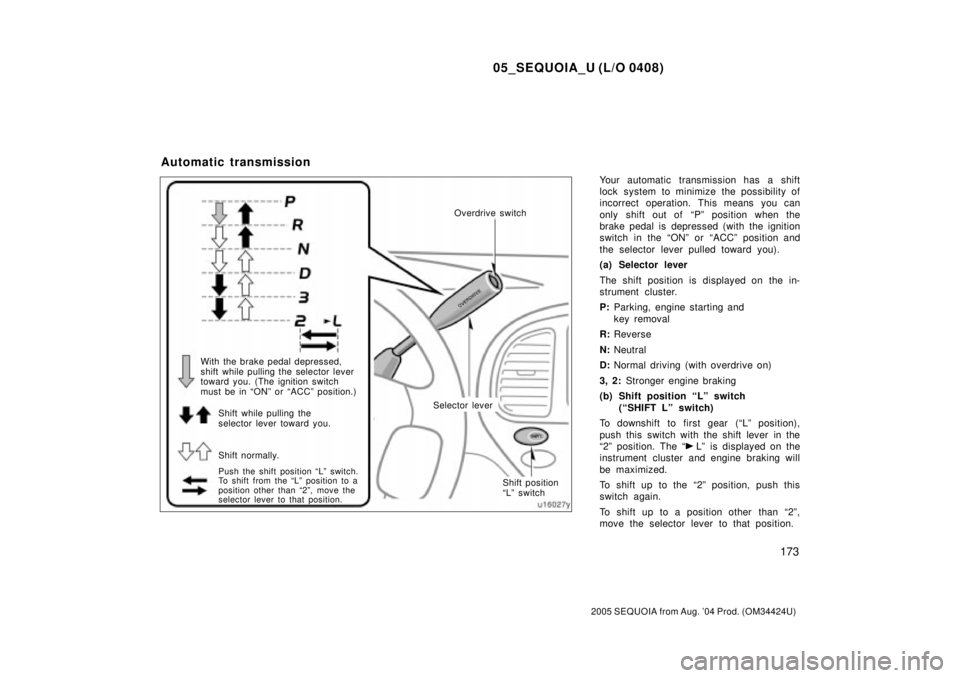

(a) Selector lever
The shift position is displayed on the in-
strument cluster.
P:Parking, engine starting and
key removal
R:Reverse
N:Neutral
D:Normal driving (with overdrive on)
3, 2: Stronger engine braking
(b) Shift position ªLº switch
(ªSHIFT Lº switch)
To downshift to first gear (ªLº position),
push this switch with the shift lever in the
ª2º position. The ª
Lº is displayed on the
instrument cluster and engine braking will
be maximized.
To shift up to the ª2º position, push this
switch again.
To shift up to a position other than ª2º,
move the selector lever to that position.
Automatic transmission
With the brake pedal depressed,
shift while pulling the selector lever
toward you. (The ignition switch
must be in ªONº or ªACCº position.)
Shift while pulling the
selector lever toward you.
Shift normally.Selector leverOverdrive switch
Shift position
ªLº switch
Push the shift position ªLº switch.
To shift from the ªLº position to a
position other than ª2º, move the
selector lever to that position.

05_SEQUOIA_U (L/O 0408)
174
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

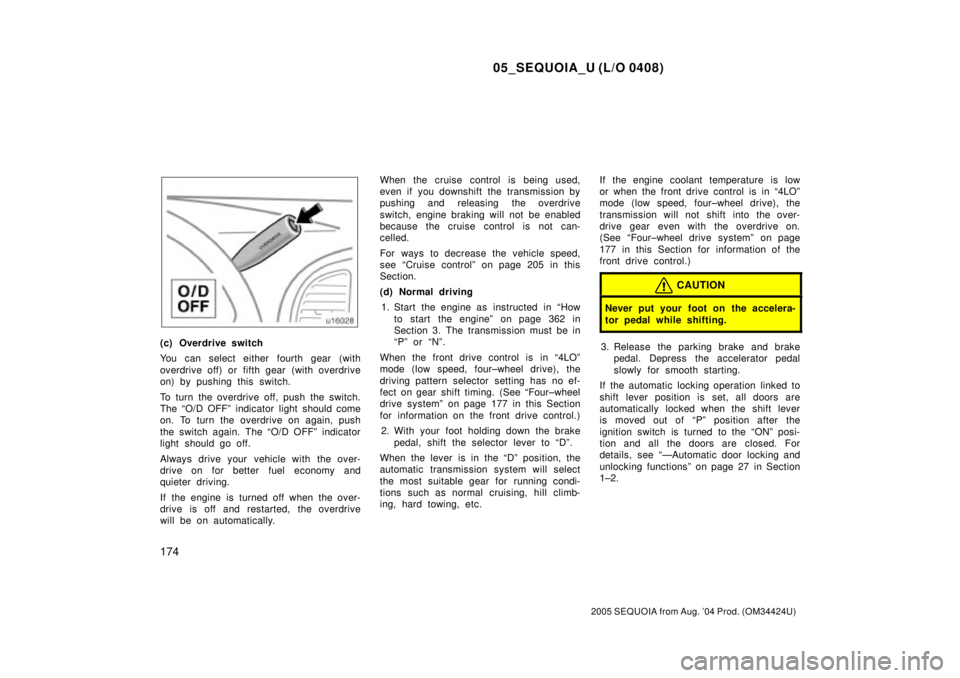

(c) Overdrive switch
You can select either fourth gear (with
overdrive off) or fifth gear (with overdrive
on) by pushing this switch.
To turn the overdrive off, push the switch.
The ªO/D OFFº indicator light should come
on. To turn the overdrive on again, push
the switch again. The ªO/D OFFº indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will be on automatically.When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not be enabled
because the cruise control is not can-
celled.
For ways to decrease the vehicle speed,
see ªCruise controlº on page 205 in this
Section.
(d) Normal driving
1. Start the engine as instructed in ªHow
to start the engineº on page 362 in
Section 3. The transmission must be in
ªPº or ªNº.
When the front drive control is in ª4LOº
mode (low speed, four±wheel drive), the
driving pattern selector setting has no ef-
fect on gear shift timing. (See ªFour±wheel
drive systemº on page 177 in this Section
for information on the front drive control.)
2. With your foot holding down the brake
pedal, shift the selector lever to ªDº.
When the lever is in the ªDº position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.If the engine coolant temperature is low
or when the front drive control is in ª4LOº
mode (low speed, four±wheel drive), the
transmission will not shift into the over-
drive gear even with the overdrive on.
(See ªFour±wheel drive systemº on page
177 in this Section for information of the
front drive control.)
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
If the automatic locking operation linked to
shift lever position is set, all doors are
automatically locked when the shift lever
is moved out of ªPº position after the
ignition switch is turned to the ªONº posi-
tion and all the doors are closed. For
details, see ªÐAutomatic door locking and
unlocking functionsº on page 27 in Section
1±2.

05_SEQUOIA_U (L/O 0408)
175
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
(e) Using engine braking
To use engine braking, you can downshift
the transmission as follows:

Push the overdrive switch. The ªO/D
OFFº indicator light will come on and
the transmission will downshift to fourth
gear.

Shift into the ª3º position. The trans-
mission will downshift to third gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Two±wheel drive models
121 km/h (75 mph)
Four±wheel drive models
ª2WDº or ª4HIº mode
121 km/h (75 mph)
ª4LOº mode 47 km/h (29 mph)

Shift into the ª2º position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be en-
abled.
Two±wheel drive models
80 km/h (49 mph)
Four±wheel drive models
ª2WDº or ª4HIº mode
80 km/h (49 mph)
ª4LOº mode 31 km/h (19 mph)

Push the ªSHIFT Lº switch. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than the following speed, and
maximum engine braking will be en-
abled.
Two±wheel drive models
35 km/h (21 mph)
Four±wheel drive models
ª2WDº or ª4HIº mode
35 km/h (21 mph)
ª4LOº mode 13 km/h (8 mph)When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not be enabled
because the cruise control is not can-
celled.
For ways to decrease the vehicle speed,
see ªCruise controlº on page 205 in this
Section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.

05_SEQUOIA_U (L/O 0408)
176
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
(f) Using the ª3º, ª2º and ªLº, posi-
tions
The ª3º, ª2º and ªLº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in ª3º, ª2º or
ªSHIFT Lº switch depressed, the vehicle
can start just as if the lever was in ªDº.
With the selector lever in ª3º or ª2º, the
vehicle will start in first gear and automat-
ically shift to second gear.
With the ªSHIFT Lº switch depressed, the
transmission is engaged in first gear.NOTICE

Be careful not to over±rev the en-
gine. Watch the tachometer to keep
engine rpm from going into the red
zone. The approximate maximum al-
lowable speed for each position is
given above for your reference:
Two±wheel drive models
ª3º 135 km/h (84 mph). . . . . . .
ª2º 90 km/h (56 mph). . . . . . . .
ªLº 50 km/h (31 mph). . . . . . . .
Four±wheel drive models
ª2WDº or ª4HIº mode
ª3º 135 km/h (84 mph). . . . . . .
ª2º 90 km/h (56 mph). . . . . . . .
ªLº 50 km/h (31 mph). . . . . . . .
ª4LOº mode
ª3º 50 km/h (31 mph). . . . . . . .
ª2º 35 km/h (21 mph). . . . . . . .
ªLº 20 km/h (12 mph). . . . . . . .

Do not continue hill climbing or
hard towing for a long time in the
ª3º, ª2º or ªLº position. This may
cause severe automatic transmis-
sion damage from overheating. To
prevent such damage, ªDº position
should be used in hill climbing or
hard towing.
(g) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with
your foot, shift the selector lever to the
ªRº position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(h) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down,
fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down,
shift the selector lever to the ªPº posi-
tion.
CAUTION
Never attempt to move the selector
lever into ªPº position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.

05_SEQUOIA_U (L/O 0408)
177
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If the automatic unlocking operation linked
to shift lever position is set, all doors are
automatically unlocked when the selector
lever is moved to ªPº position after the
ignition switch is turned to ªONº position.
For details, see ªÐAutomatic door locking
and unlocking functionsº on page 27 in
Section 1±2.
(i) Good driving practice

If the transmission repeatedly shifts up
and down between fourth gear and
overdrive when climbing a gentle slope,
the overdrive should be turned off. Be
sure to turn the switch on immediately
afterward.

When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Always use the brake pedal or the
parking brake to hold the vehicle on
an upgrade. Do not attempt to hold
the vehicle using the accelerator ped-
al, as this can cause the transmission
to overheat.
Front drive control switches
Center differential lock switch
Four±wheel drive systemÐ
(a) Front drive control

05_SEQUOIA_U (L/O 0408)
178
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Use the front drive control switches
and center differential lock switch to
select the transfer and center differen-
tial modes.
In the ª4HIº and ª4LOº mode, you can
choose to lock or unlock the center differ-
ential.
Use the center differential lock system if
your wheels get stuck in a ditch, or when
you are driving on a slippery or bumpy
surface. When the center differential is
locked, the vehicle stability control system
is automatically turned off and the center
differential lock and ªVSC OFFº indicator
lights come on because the function that
controls engine performance interferes
with the process of freeing your wheels.
NOTICE
As soon as the center differential lock
switch is turned on, the ªVSC OFFº
indicator light comes on. After the
wheels are out of the ditch or off the
slippery or bumpy surface, turn the
center differential lock switch off.
Make sure that the center differential
lock indicator light and ªVSC OFFº
indicator light turn off.
ª2WDº mode (high speed, two±wheel
drive)
This mode is the normal driving mode. In
this mode, the ª4HIº and ª4LOº indicator
lights are turned off.
Use this for normal driving on dry hard±
surfaced roads. This position gives greater
economy, quietest ride, least wear and
better vehicle control.
ª4HIº mode (high speed, four±wheel
drive, center differential unlocked)
To select this mode, press the ª2WD/4HIº
switch only. The ª4HIº indicator light
comes on.
Use this for normal driving on all types of
roads, from dry hard±surfaced roads to
wet, icy or snow±covered roads. This
position provides greater traction than
two±wheel drive.ª4HIº mode (high speed, four±wheel
drive, center differential locked)
To select this mode, press the ª2DW/4HIº
switch, and then the center differential
lock switch. The ª4HIº and the center dif-
ferential lock indicator lights come on.
Use this for greater traction when you
experience a loss of power, such as
wheel slipping, in the center differential
unlock mode.
ª4LOº mode (low speed, four±wheel
drive, center differential unlocked)
To select this mode, press the ª4LOº
switch only. The ª4LOº indicator light
comes on.
Use this for maximum power and traction.
Use this for climbing steep hills, off±road
driving, and hard pulling in sand or mud.
In this mode, the braking feeling that oc-
curs when the wheels are negotiating a
sharp corner is further reduced than in the
ª4LOº (low speed, four±wheel drive, center
differential locked) mode.

05_SEQUOIA_U (L/O 0408)
179
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
ª4LOº mode (low speed, four±wheel
drive, center differential locked)
To select this mode, press the ª4LOº
switch, and then press the center differen-
tial lock switch. The ª4LOº and the center
differential lock indicator lights come on.
Use this for maximum power and traction.
Use this for hard pulling in situations the
vehicle cannot negotiate even in ª4LOº
(low speed, four±wheel drive, center differ-
ential unlocked) mode. Also, using this
mode when driving down steep off±road
inclines will help contribute to increased
vehicle stability.
The indicator light tells when the differen-
tial lock is engaged. Note that the differ-
ential is not still locked as long as the
indicator light remains off.
When the operation is not completed, the
indicator blinks. If the indicator light does
not go off when you push out the center
differential lock switch, drive straight
ahead while accelerating or decelerating,
or drive in reverse.
If the center differential lock system op-
eration is not completed within 5 seconds
while the cruise control system is set,
cancel the cruise control system. To can-
cel the cruise control system, see ªCruise
controlº on page 205 in Section 1±7.If the indicator blinks even if doing so,
contact your Toyota dealer as soon as
possible. There may be a trouble in the
center differential lock system.
See ª(c) Shifting procedureº for further in-
structions.
Advice for driving on slippery roads in
ª4LOº (low speed, four±wheel drive)
mode
If you press the ª4LOº switch and shift
the automatic transmission lever to ª2º
when you drive in steep off±road areas,
the output of the brake can be controlled
effectively by the active traction control
system, which assists the driver to control
the driving power of 4 wheels.
Use the ªLº position of the automatic
transmission for maximum power and trac-
tion when your wheels get stuck or when
you drive down a steep incline. The output
of the brake can be controlled by the
active traction control system if the engine
speed is under 3000 rpm (normally engine
speed is under 3000 rpm when the wheels
get unstuck), in the following cases:

The front drive control in ª4LOº mode
and the automatic transmission in ªLº
or the automatic transmission in ªDº,
ª3º or ª2º with the transmission down-
shifting to the first gear

The front drive control in ª4LOº mode
and the automatic transmission in ªRº
(As for the automatic transmission shift
positions, see ªAutomatic transmissionº on
page 173 in this Section.)

05_SEQUOIA_U (L/O 0408)
180
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The A.D.D. can be engaged or disen-
gaged by the shifting operations des-
cribed in ª(c) Shifting procedureº.
You should drive in four±wheel drive for
at least 16 km (10 miles) each month.
This will assure that the front drive com-
ponents are lubricated.SHIFTING BETWEEN ª2WDº MODE AND
ª4HIº MODE
To shift from ª2WDº mode to ª4HIº
mode, reduce your speed to less than
100 km/h (62 mph) and press the
ª2WD/4HIº switch.
If the ª4HIº indicator light flashes when
you press the ª2WD/4HIº switch, drive
straight ahead while accelerating or decel-
erating.
If the ª4HIº indicator light flashes and the
buzzer sounds when you press the
ª2WD/4HIº switch, reduce the vehicle
speed to less than 100 km/h (62 mph)
and press the switch again.
CAUTION
Never press the ª2WD/4HIº switch if
wheels are slipping. Stop the slipping
or spinning before shifting.
To shift from ª4HIº mode to ª2WDº
mode, press the ª2WD/4HIº switch again
to turn it off.
This can be done at any vehicle speed.
If the ª4HIº indicator light flashes when
you press the ª2WD/4HIº switch, drive
straight ahead while accelerating or decel-
erating, or drive in reverse.
SHIFTING BETWEEN ª4HIº (UNLOCKED)
AND ª4HIº (LOCKED)
To shift from ª4HIº (UNLOCKED) to
ª4HIº (LOCKED), press the center differ-
ential lock switch.
If the center differential lock indicator light
flashes when you press the center differ-
ential lock switch, drive straight ahead
while accelerating or decelerating.
CAUTION
Never press the center differential
lock switch if wheels are slipping.
Stop the slipping or spinning before
shifting.
(b) A.D.D. (automatic
disconnecting differential)(c) Shifting procedure

05_SEQUOIA_U (L/O 0408)
181
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE
Do not drive on a dry paved surface
in ª4HIº (LOCKED) mode. This may
damage the locking mechanism and
the drive system.
To shift from ª4HIº (LOCKED) to ª4HIº
(UNLOCKED), press the center differential
lock switch again to turn off it.
This can be done at any vehicle speed.
If the center differential lock indicator light
flashes when you press the center differ-
ential lock switch, drive straight ahead
while accelerating or decelerating, or drive
in reverse.
SHIFTING BETWEEN ª2WDº OR ª4HIº
AND ª4LOº
To shift between ª2WDº or ª4HIº mode and
ª4LOº mode, stop the vehicle and put the
transmission in ªNº. With your foot holding
down the brake pedal, press the ª4LOº
switch.If the ª4LOº indicator light flashes and the
buzzer sounds three times when you
press the ª4LOº switch, stop the vehicle
completely, put the transmission securely
into ªNº and press the switch again.
CAUTION
Never press the ª4LOº switch if
wheels are slipping. Stop the slipping
or spinning before shifting.
NOTICE
Do not drive on a dry paved surface
in ª4LOº (LOCKED) mode. This may
damage the locking mechanism and
the drive system.
SHIFTING BETWEEN ª4LOº
(UNLOCKED) AND ª4LOº (LOCKED)
To shift between ª4LOº (UNLOCKED)
mode and ª4LOº (LOCKED) mode, press
the center differential lock switch.
This can be done at any vehicle speed.
If the center differential lock indicator light
flashes when you press the center differ-
ential lock switch, drive straight ahead
while accelerating or decelerating.
CAUTION
Never press the center differential
lock switch if wheels are slipping.
Stop the slipping or spinning before
shifting.
NOTICE
Do not drive on a dry paved surface
in ª4LOº (LOCKED) mode. This may
damage the locking mechanism and
the drive system.
