CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe bucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forwardfac-
ing position only.

02_SEQUOIA_U (L/O 0108)
932002 MY SEQUOIA_U (OM34418U)
Move seat fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, be-
cause the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
Same position
Same angle
When installing a child restraint
system in the third seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.

02_SEQUOIA_U (L/O 0108)
942002 MY SEQUOIA_U (OM34418U)
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page
55 for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.

02_SEQUOIA_U (L/O 0108)
952002 MY SEQUOIA_U (OM34418U)
2. To remove the child restraint system,press the bucklerelease button and al-
low the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use one anchorage on the rear of second
seats and two anchorages on the floor as
shown above to attach the top strap.
Anchors are installed for each second
seating position.
— U sin g a to p st rap
(for second seats)

02_SEQUOIA_U (L/O 0108)
962002 MY SEQUOIA_U (OM34418U)
TO USE THE ANCHORAGES:1. Remove the head restraint.Outside position
Center position
2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchorages
and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 82 in this section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

02_SEQUOIA_U (L/O 0108)
972002 MY SEQUOIA_U (OM34418U)
3. Replace the head restraint.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Symbol mark
Use the anchorage on the rear of the
seatback of each third seat to attach the
top strap.
Anchorages are installed for third outside
seating positions.
This symbol indicates the locations of
user ready anchorage.
— U sin g a to p st rap
(for third seats)

02_SEQUOIA_U (L/O 0108)
982002 MY SEQUOIA_U (OM34418U)

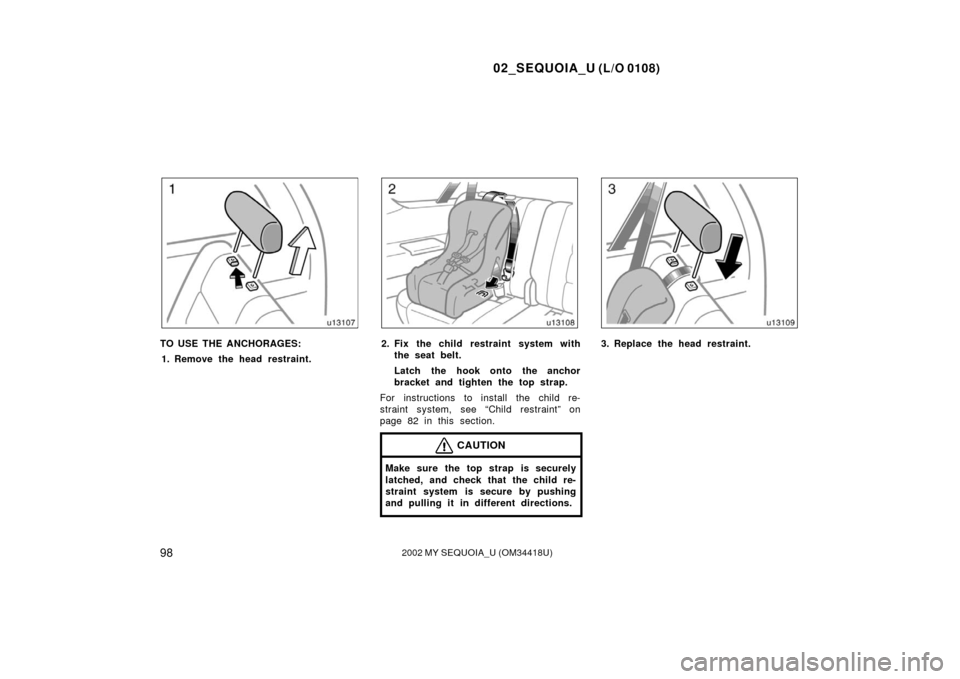

TO USE THE ANCHORAGES:1. Remove the head restraint.2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 82 in this section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
3. Replace the head restraint.

02_SEQUOIA_U (L/O 0108)
992002 MY SEQUOIA_U (OM34418U)

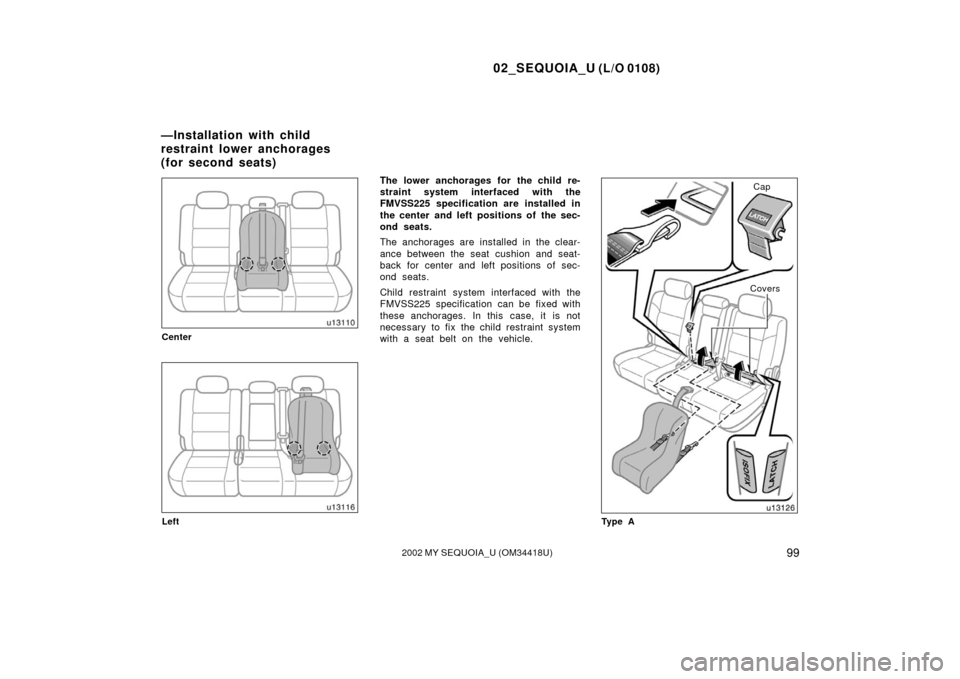

Center
Left
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the center and left positions of the sec-
ond seats.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back for center and left positions of sec-
ond seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.Cap
Covers
Ty p e A
—Installation with child
restraint lower anchorages
(for second seats)

02_SEQUOIA_U (L/O 0108)
1002002 MY SEQUOIA_U (OM34418U)
Cap
Covers
Ty p e BCHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Turn up the covers for left lower anchorage on the center position of
the seats anchorages on the left side
position of the seats, and remove
the cap for the right lower anchor-
age of the center position of the
seat as shown in the illustration.
2. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag and cap
in the seat cushion.
3. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Turn up the covers for left lower anchorage on the center position of
the seats anchorages on the left side
of the position of the seat, and re-
move the cap for the right lower an-
chorage of the center position of the
seat as shown in the illustration. 2. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seat cushion.
3. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 95 in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.

02_SEQUOIA_U (L/O 0108)
1012002 MY SEQUOIA_U (OM34418U)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause severe injury
to the child and front passenger in
case of sudden braking or a colli-
sion.

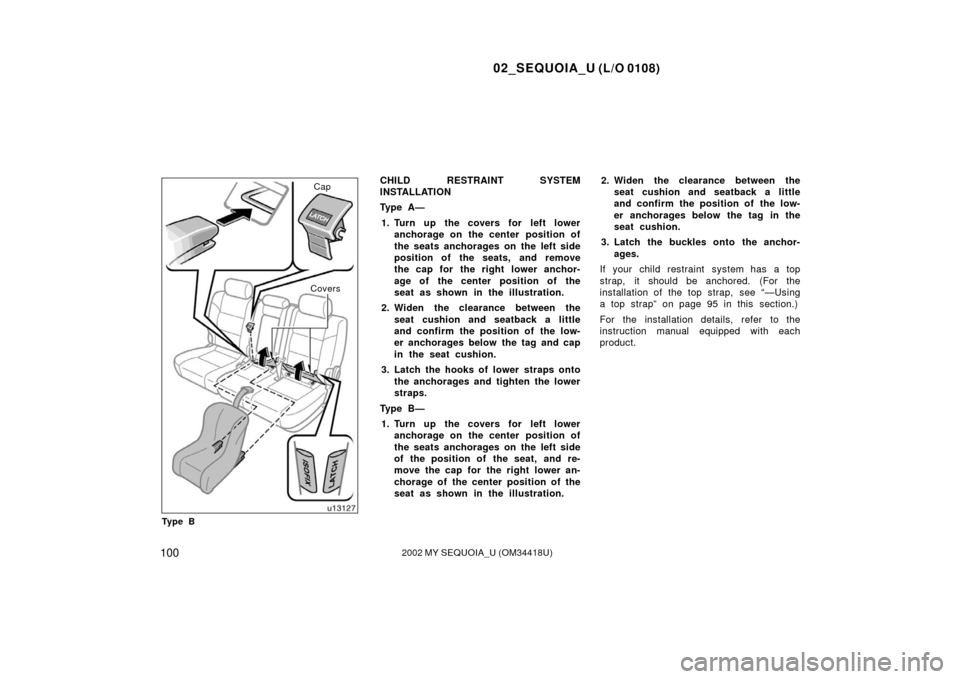

The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the right side position of the third
seats.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back for right side position of the third
seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
Cover
Ty p e A
—Installation with child
restraint lower anchorages
(for third seats)
