TOYOTA SEQUOIA 2002 1.G Owners Manual

02_SEQUOIA_U (L/O 0108)
1022002 MY SEQUOIA_U (OM34418U)
Cover
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION

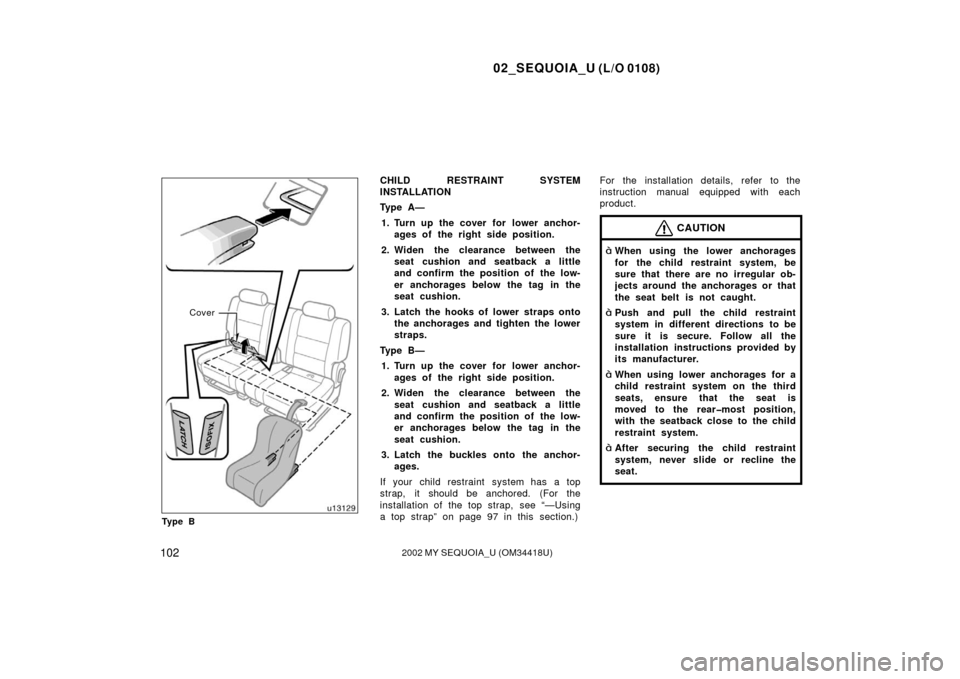

Ty p e A — 1. Turn up the cover for lower anchor- ages of the right side position.
2. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seat cushion.
3. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Turn up the cover for lower anchor- ages of the right side position.
2. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seat cushion.
3. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 97 in this section.) For the installation details, refer to the
instruction manual equipped with each
product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using lower anchorages for a
child restraint system on the third
seats, ensure that the seat is
moved to the rearmost position,
with the seatback close to the child
restraint system.
After securing the child restraint
system, never slide or recline the
seat.

02_SEQUOIA_U (L/O 0108)
1032002 MY SEQUOIA_U (OM34418U)
Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause severe injury
to the child and front passenger in
case of sudden braking or a colli-
sion.

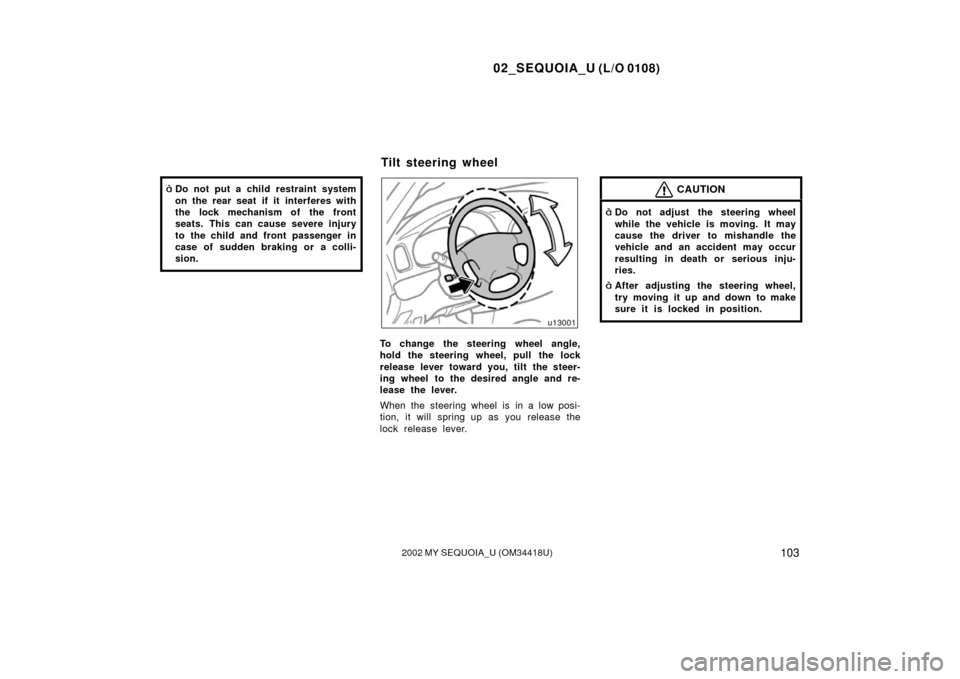

To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Tilt steering wheel

02_SEQUOIA_U (L/O 0108)
1042002 MY SEQUOIA_U (OM34418U)

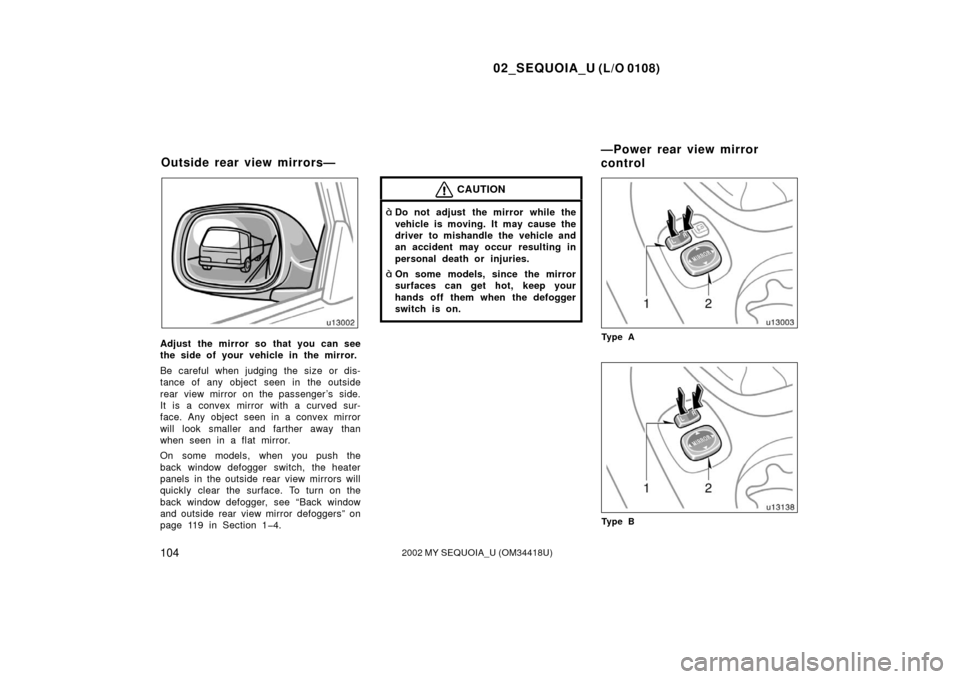

Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. To turn on the
back window defogger, see “Back window
and outside rear view mirror defoggers” on
page 119 in Section 14.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal death or injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.
Ty p e A
Ty p e B
Outside rear view mirrors——Power rear view mirror
control

02_SEQUOIA_U (L/O 0108)
1052002 MY SEQUOIA_U (OM34418U)
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the “L” (left) or “R” (right) switch.
2. Control switch—To move the mirror
Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.

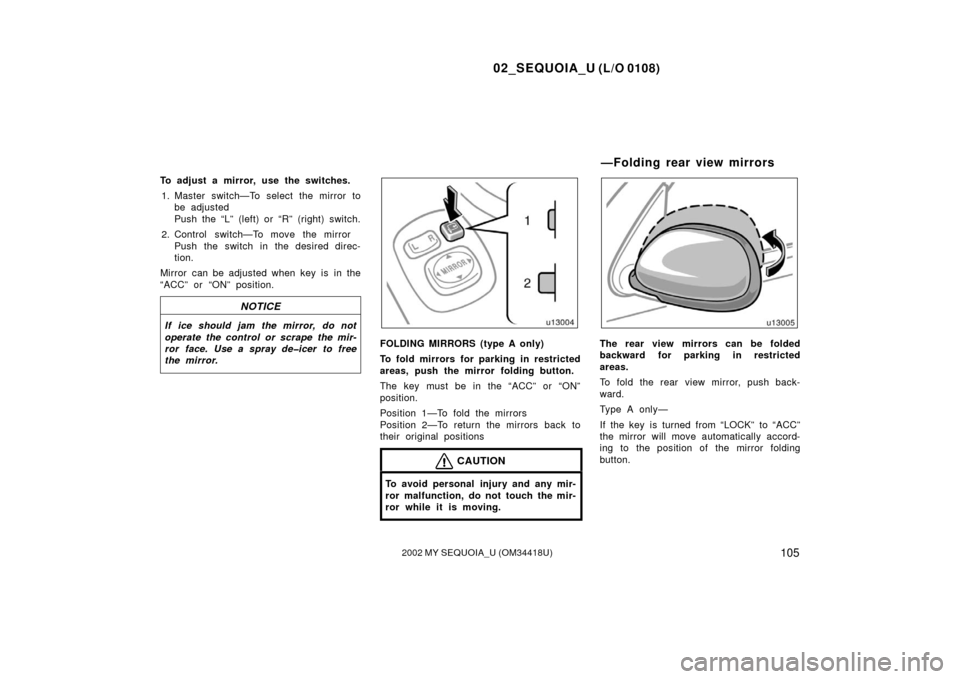

FOLDING MIRRORS (type A only)
To fold mirrors for parking in restricted
areas, push the mirror folding button.
The key must be in the “ACC” or “ON”
position.
Position 1—To fold the mirrors
Position 2—To return the mirrors back to
their original positions
CAUTION
To avoid personal injury and any mir-
ror malfunction, do not touch the mir-
ror while it is moving.
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push back-
ward.
Type A only—
If the key is turned from “LOCK” to “ACC”
the mirror will move automatically accord-
ing to the position of the mirror folding
button.
—Folding rear view mirrors

02_SEQUOIA_U (L/O 0108)
1062002 MY SEQUOIA_U (OM34418U)
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.

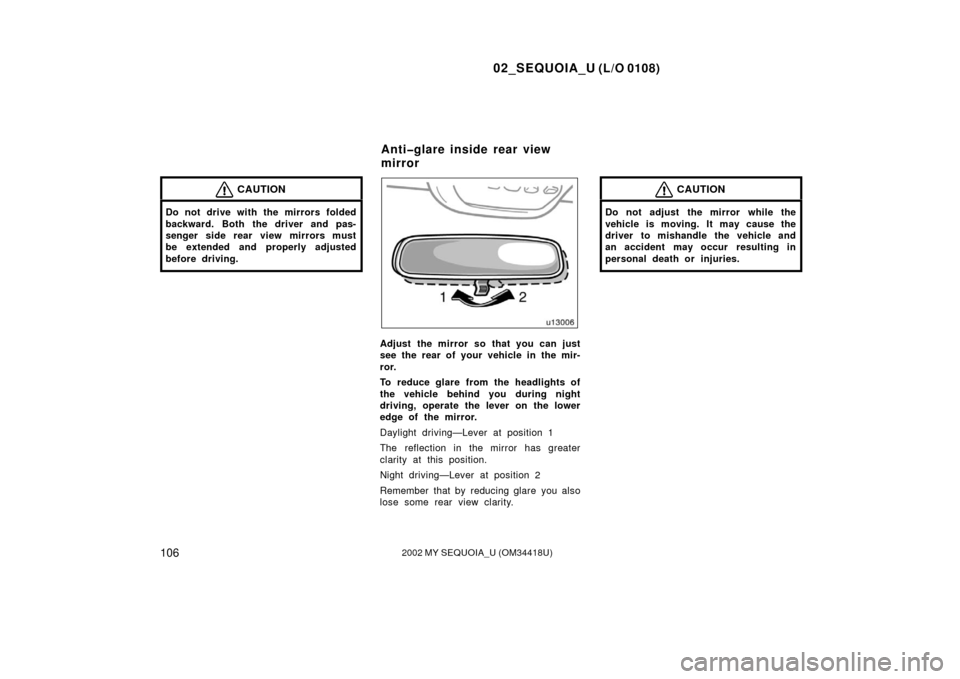

To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal death or injuries.
Antiglare inside rear view
mirror

02_SEQUOIA_U (L/O 0108)
1072002 MY SEQUOIA_U (OM34418U)

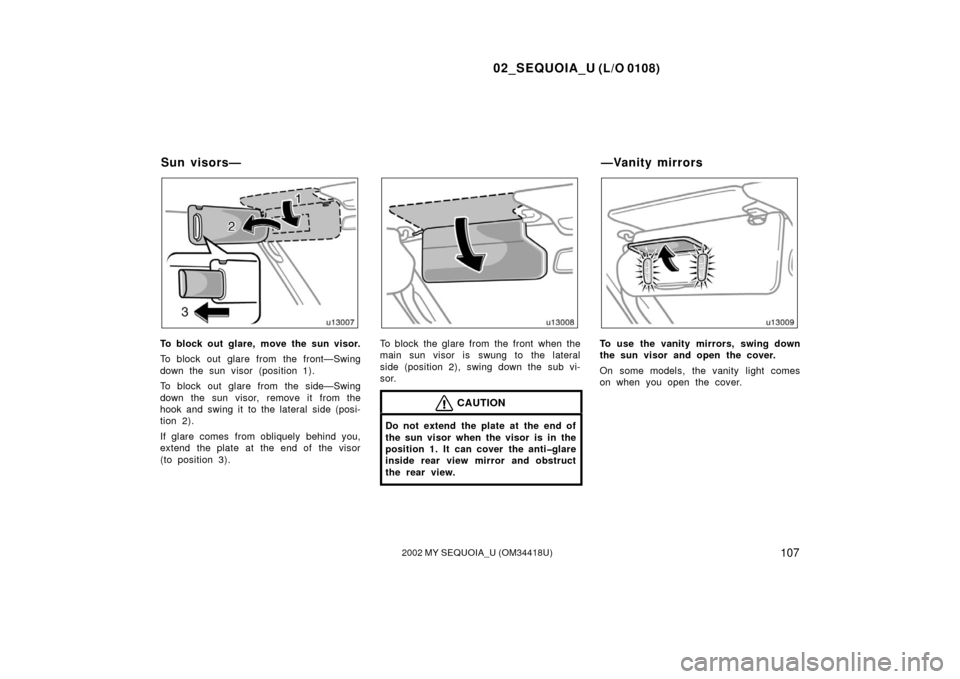

To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).To block the glare from the front when the
main sun visor is swung to the lateral
side (position 2), swing down the sub vi-
sor.
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
Sun visors——Vanity mirrors

02_SEQUOIA_U (L/O 0108)
1082002 MY SEQUOIA_U (OM34418U)

02_SEQUOIA_U (L/O 0108)
1092002 MY SEQUOIA_U (OM34418U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 113
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 114
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 114
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Personal lights 115
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Center interior and personal lights 115
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage compartment light 116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 118
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers 119
. . . . . . . . . . .
SECTION 1 4

02_SEQUOIA_U (L/O 0108)
11 02002 MY SEQUOIA_U (OM34418U)
HEADLIGHTS

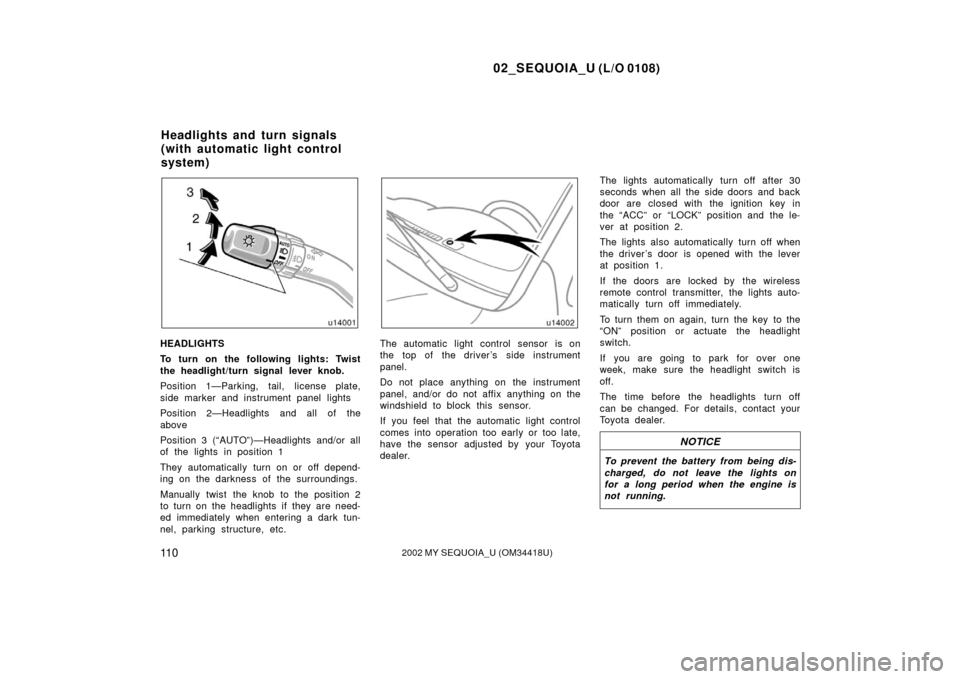

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
If you feel that the automatic light control
comes into operation too early or too late,
have the sensor adjusted by your Toyota
dealer.The lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position and the le-
ver at position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The time before the headlights turn off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Headlights and turn signals
(with automatic light control
system)

02_SEQUOIA_U (L/O 0108)
1112002 MY SEQUOIA_U (OM34418U)
Daytime running light system (all mod-
els sold in Canada and some models
sold in the U.S.A.)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the “OFF”
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to the position 2 to turn
to full intensity for driving at night.

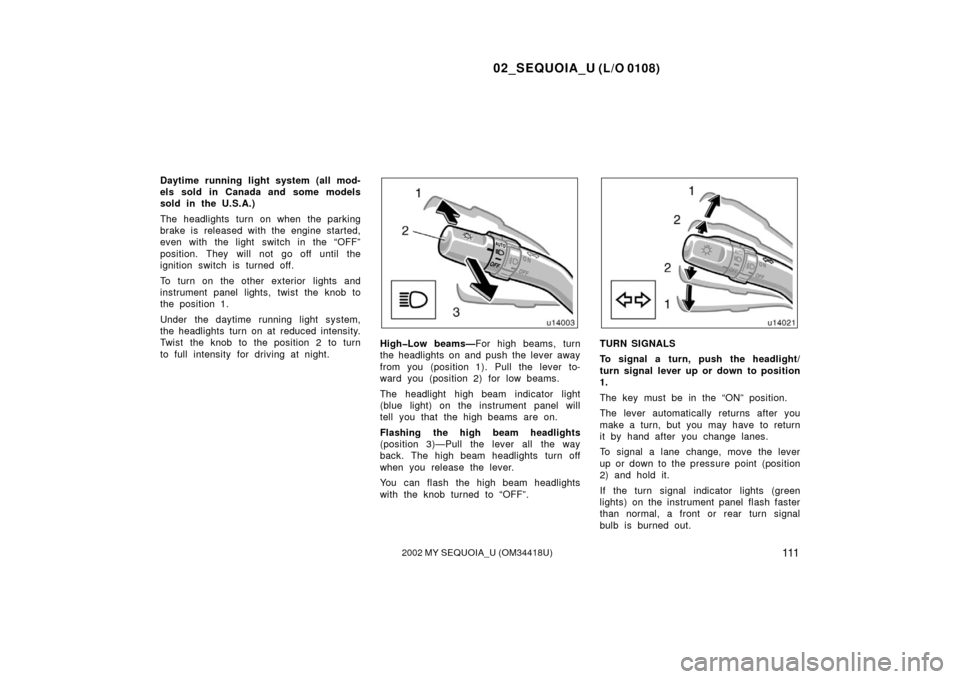

HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
