TOYOTA SEQUOIA 2003 1.G Owners Manual

03_SEQUOIA_U (L/O 0301)
265
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.Cigarette lighter and front ashtray
Rear ashtray
ClockCigarette lighter and ashtrays

03_SEQUOIA_U (L/O 0301)
266
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
Front: To use the ashtray, pull it out.
Rear: To use the ashtray, raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
Front—To remove the ashtray, press down
on the lock spring plate and pull out.
Rear—To remove the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Instrument panel
Rear console box
Luggage compartment
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Power outlets (12 VDC)

03_SEQUOIA_U (L/O 0301)
267
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
the appropriate plug that fits the
outlet, or allowing any liquid into
the outlet may cause electrical fail-
ure or short circuits.
This power outlet is designed for use
as a power supply for electric ap-
pliances in the vehicle.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
Power outlet (115 VAC)

03_SEQUOIA_U (L/O 0301)
268
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
a foreign object other than the ap-
propriate plug that fits the outlet
may cause electrical failure or short
circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathoderay tube type televisions,
compressordriven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
To use the glove box, pull the lever.
The glove box light will come on when the
glove box is open with the instrument pan-
el lights on.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Glove box

03_SEQUOIA_U (L/O 0301)
269
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of square and adhere
the square to back side of the transmitter
near the center.Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.
Garage door opener box

03_SEQUOIA_U (L/O 0301)
270
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Place the transmitter with Velcro square
facing inside of box into the box. Make
sure the transmitter button is located
above button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.

03_SEQUOIA_U (L/O 0301)
271
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
To use the auxiliary bo xes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and B—As these holder are
designed for holding a light object
such as an eyeglass, do not place
any heavy objects in them. Heavy
objects may cause the holder to
open and the contents to fly out
resulting in injuries.
NOTICE
Type A and B—During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Auxiliary boxes—

03_SEQUOIA_U (L/O 0301)
272
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Type A (over head console with electric
moon roof)
Type B (over head console without elec-
tric moon roof)
Type C (rear side trim)
Type D (rear right side panel—without
rear air conditioning system)
Type E (rear left side panel)

03_SEQUOIA_U (L/O 0301)
273
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
The auxiliary box type E is equipped
with a strap to hold the warning reflec-
tor.
Although the warning reflector itself is not
included as an original equipment, this
auxiliary box can be used to store the
warning reflector.
Hold the warning reflector kit with the
straps.
1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Make sure the warning reflector is secure-
ly held.
UPPER TRAY
To access the upper tray, raise the con-
sole box lid while pushing the lock re-
lease button.
—Warning reflector holder Rear console box

03_SEQUOIA_U (L/O 0301)
274
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

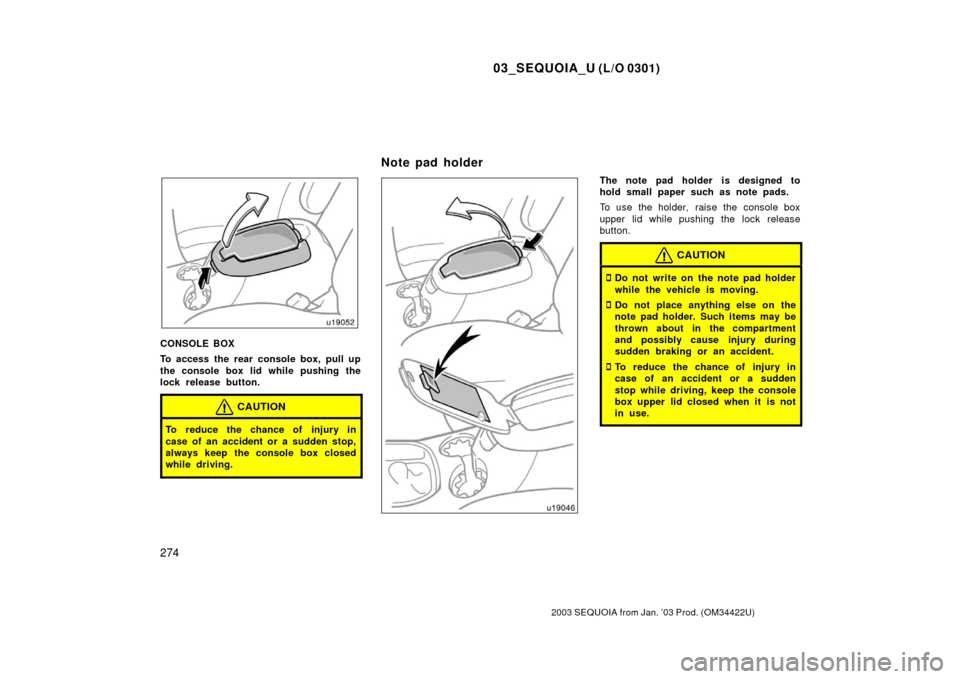

CONSOLE BOX
To access the rear console box, pull up
the console box lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
The note pad holder is designed to
hold small paper such as note pads.
To use the holder, raise the console box
upper lid while pushing the lock release
button.
CAUTION
Do not write on the note pad holder
while the vehicle is moving.
Do not place anything else on the
note pad holder. Such items may be
thrown about in the compartment
and possibly cause injury during
sudden braking or an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the console
box upper lid closed when it is not
in use.
Note pad holder
