TOYOTA SEQUOIA 2003 1.G Owners Manual

03_SEQUOIA_U (L/O 0301)
235
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
a foreign object other than the ap-
propriate plug that fits the outlet
may cause electrical failure or short
circuit.
The power outlet is not designed for
the following electric appliances even if
their power consumption is under 115
VAC/100W. These appliances may not
operate properly.
Appliances with high initial peak watt-
age: cathoderay tube type televisions,
compressordriven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer
controlled electric blankets, touch sen-
sor lamps, etc. Certain electrical appliances may cause
radio noise.
You can enjoy the rear seat entertain-
ment system with commercial head-
phones.
To use the headphones, connect them to
the jack.
The key must be in the “ACC” or “ON”
position.
—Headphone input j
acks

03_SEQUOIA_U (L/O 0301)
236
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
To adjust the volume of the headphones,
turn the knob. Turn right to increase the
volume. Turn left to decrease the volume.
The maximum volume depends on the
type of headphones.
The recommended headphone impedance
is from 16 Ω to 32 Ω.
Please contact your Toyota dealer for fur-
ther details.
CAUTION
Adjust the volume when you connect
the headphones to the jack. Loud
sounds may have a significant impact
on the human body.
NOTICE
To ensure correct audio/video system
operation:
 Be careful not to spill beverages
over the system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 Do not put anything other than a
DVD video, DVD audio, video CD,
dtsCD and audio CD into the DVD
player.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle. For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multipath—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Car audio/video system
operating hints

03_SEQUOIA_U (L/O 0301)
237
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)
Use highquality cassettes.
Lowquality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant autoreversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.
CARING FOR YOUR COMPACT DISC
PLAYER, DVD PLAYER AND DISCS
Your compact disc player and DVD
player are intended for use with 12 cm
(4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player and DVD
player from working. On hot days, use
the air conditioning to cool the vehicle
interior before you use the players.
Bumpy roads or other vibrations may
make your compact disc player and
DVD player skip.
If moisture gets into your compact disc
player and DVD player, the players
may not play even though they appear
to be working. Remove the disc from
the player and wait until it dries.

03_SEQUOIA_U (L/O 0301)
238
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
CAUTION
Compact disc players and DVD play-
ers use an invisible laser beam which
could cause hazardous radiation ex-
posure if directed outside the unit. Be
sure to operate the players correctly.
Compact disc player
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copyprotected CD
CDR (CDRecordable)
CDRW (CDRewritable)
CDROM
Audio CDs
DVD video discs
DVD audio discs
Video CDs

03_SEQUOIA_U (L/O 0301)
239
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
DVD player
Use only discs marked as shown
above. The following products may not
be playable on your DVD player.
SACD
Copyprotected CD
CDR (CDRecordable)
CDRW (CDRewritable)
CDROM
DVDR
DVD+R
DVD+RW
DVDRW
DVDROM
DVDRAM
Special shaped discs
Low quality discs
Labeled discs
NOTICE
To prevent damage to the player or
changer, do not use special shaped,
low quality or labeled discs such as
those shown in the illustrations.

03_SEQUOIA_U (L/O 0301)
240
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lintfree cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lintfree cloth. Do not use a conventional
record cleaner or antistatic device.

03_SEQUOIA_U (L/O 0301)
241
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Front air conditioning systemControls 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Air flow selector settings 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Instrument panel vents 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Rear air conditioning system Controls 250
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Air flow selector settings 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8

03_SEQUOIA_U (L/O 0301)
242
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

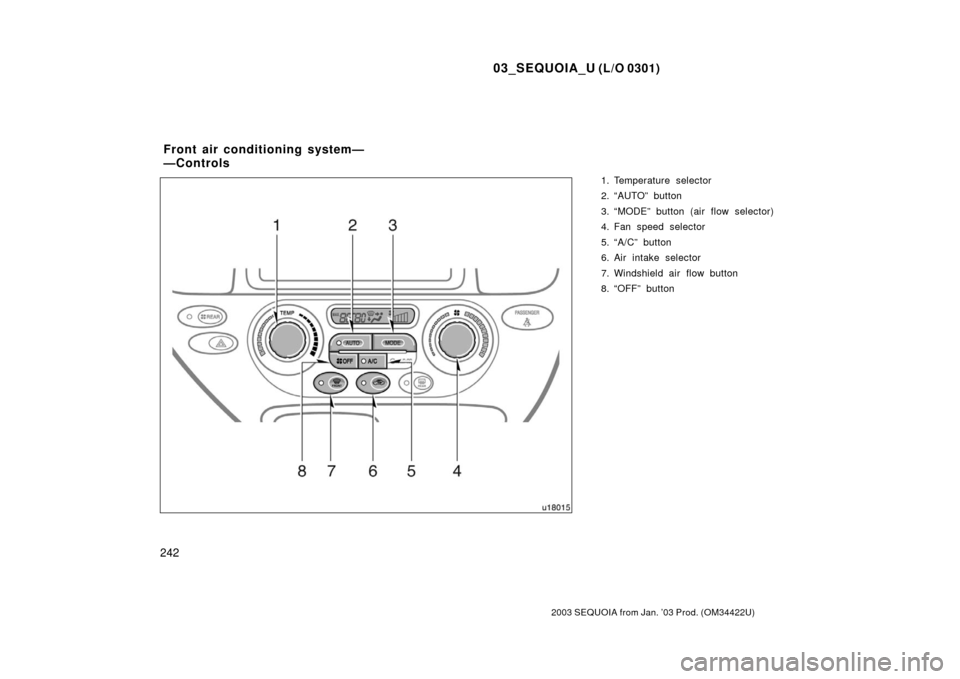

1. Temperature selector
2. “AUTO” button
3. “MODE” button (air flow selector)
4. Fan speed selector
5. “A/C” button
6. Air intake selector
7. Windshield air flow button
8. “OFF” button
Front air conditioning system—
—Controls

03_SEQUOIA_U (L/O 0301)
243
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow, onoff of the air condi-
tioning and air intake according to the
temperature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
When you adjust the temperature selector
to maximum cooling, a “MAX COLD” mes-
sage will appear on the display and the
air intake mode will be automatically
changed to RECIRCULATE.
You may use manual controls if you want
to select your own settings.
To turn off the automatic operation, press
the “OFF” button.Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
In automatic operation, the fan speed is
adjusted automatically unless you desire
another fan speed mode.
Temperature selector
Turn the knob to adjust the temperatu-
re—to the right to warm, to the left to
cool.
The temperature display changes between
“
 C” and “ F” when the unit of the outside
temperature display is changed. (For de-
tails, see “Multiinformation display” on
page 254 in Section 19.)
“OFF” button
Push the button to turn off the air condi-
tioning system.
“MODE” button (air flow selector)
Press the button to select the vents used
for air flow.
In automatic operation, the air flow mode
is selected automatically among Panel, Bi
level and Floor unless you desire another
air flow mode.
1. Panel— Air flows mainly from the
instrument panel vents.

03_SEQUOIA_U (L/O 0301)
244
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
2. Bilevel—Air flows from both the floor
vents and the instrument panel vents.
When you set the temperature selector
setting at about the middle in automatic
operation, warm air flows out of the
floor vents and relatively lowtempera-
ture air flows out of the center and
side vents.
3. Floor— Air flows mainly from the floor
vents.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” on page 249
in this section.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” on page 249
in this section.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.

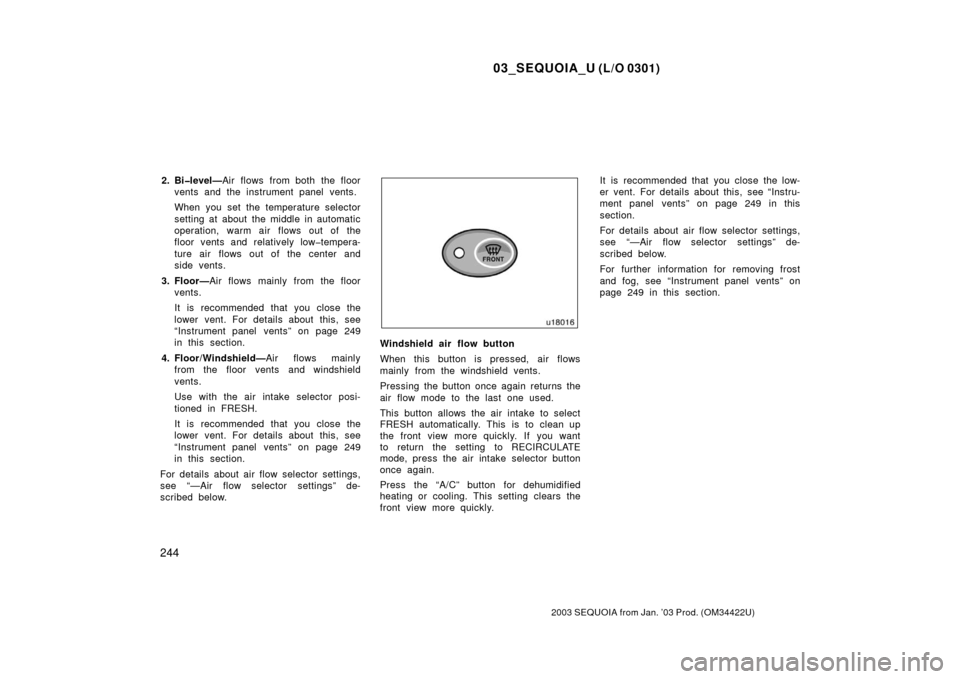

Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents.
Pressing the button once again returns the
air flow mode to the last one used.
This button allows the air intake to select
FRESH automatically. This is to clean up
the front view more quickly. If you want
to return the setting to RECIRCULATE
mode, press the air intake selector button
once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly. It is recommended that you close the low-
er vent. For details about this, see “Instru-
ment panel vents” on page 249 in this
section.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.
For further information for removing frost
and fog, see “Instrument panel vents” on
page 249 in this section.
