TOYOTA SEQUOIA 2003 1.G Owners Manual

03_SEQUOIA_U (L/O 0301)
275
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
The rear console box is equipped with
a coin holder.
To use the coin holder:1. Raise the console box upper lid while pushing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder

03_SEQUOIA_U (L/O 0301)
276
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

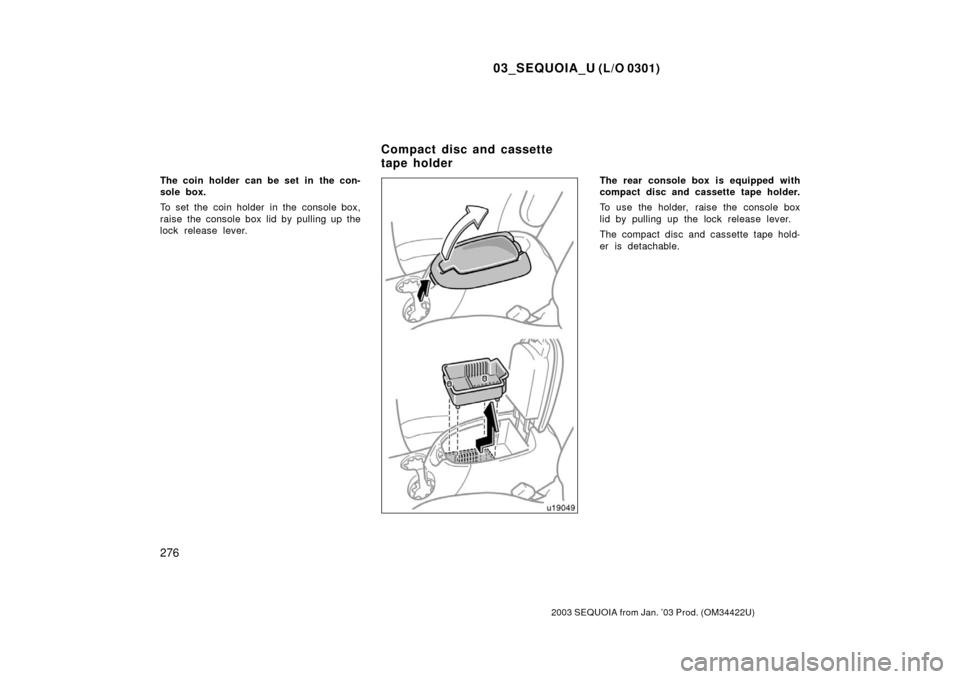

The coin holder can be set in the con-
sole box.
To set the coin holder in the console box,
raise the console box lid by pulling up the
lock release lever.The rear console box is equipped with
compact disc and cassette tape holder.
To use the holder, raise the console box
lid by pulling up the lock release lever.
The compact disc and cassette tape hold-
er is detachable.
Compact disc and cassette
tape holder

03_SEQUOIA_U (L/O 0301)
277
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
The cup holder is designed for holding
cups or drinkcans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
Type A only—to reduce the chance
of injury in case of an accident or
a sudden stop while driving, keep
the cup holder closed when it is
not in use.
NOTICE
Type A only—As this holder is de-
signed for holding soft cups only, do
not place too heavy a cup, drinkcan
or bottle in it.
Type A (instrument panel)
Type B (front side of rear console box)
Type C (rear side of rear console box)
Type D (rear side trim)
C u p ho ld ers

03_SEQUOIA_U (L/O 0301)
278
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
To secure your luggage, use the tie
down hooks as shown above.
See “Luggage stowage precautions” on
page 292 in Section 2 for precautions in
loading luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks folded in place on the
floor when not in use.
NOTICE
Do not use the seat anchors instead
of the tiedown hooks.
These hooks are designed to hang
things like grocery bags.
NOTICE
To prevent damage to the hook, avoid
hanging heavy loads on it.
These hooks are designed to hang car-
go net.
Although the cargo net itself is not in-
cluded as an original equipment, these
hooks can be used to hang the cargo net.
NOTICE
To prevent damage to the hook, avoid
hanging things other than a cargo net
on it.
Tiedown hooksGrocery bag hooksCargo net hooks

03_SEQUOIA_U (L/O 0301)
279
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
The roof luggage carrier consists of
roof rails (1) attached to the roof and
sliding cross rails (2).
To adjust the positions of cross rails, do
this.1. Turn the knobs counterclockwise to loosen the cross rails.
2. Slide the cross rails to the desired position for loading the luggages of
various sizes.
3. After adjusting, be sure to tighten the cross rails by turning knobs clockwise.
Follow the manufacturer ’s instructions and
precautions when installing the attach-
ments or their equivalent.
CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weight” on page 384 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 68 kg (150 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.
Roof luggage carrier

03_SEQUOIA_U (L/O 0301)
280
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
Floor mat

03_SEQUOIA_U (L/O 0301)
281
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Offroad vehicle precautions282
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakin period 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Fuel 283
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 285
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Threeway catalytic converters 286
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 287
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 287
. . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 292
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota’s identification 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Types of tires 295
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

03_SEQUOIA_U (L/O 0301)
282
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
This vehicle belongs to the utility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to the height of its center of gravity to
make it capable of performing in a wide
variety of offroad applications. Specific
design characteristics give it a higher
center of gravity than ordinary passen-
ger cars. This vehicle design feature
causes this type of vehicle to be more
likely to rollover. And, utility vehicles
have a significantly higher rollover rate
than other types of vehicles. An advan-
tage of the higher ground clearance is
a better view of the road allowing you
to anticipate problems. It is not de-
signed for cornering at the same
speeds as ordinary passenger cars any
more than lowslung sports cars de-
signed to perform satisfactorily under
offroad conditions. Therefore, sharp
turns at excessive speeds may cause
rollover.CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
Offroad vehicle precautions

03_SEQUOIA_U (L/O 0301)
283
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Always slow down in gusty cross-
winds. Because of its profile and
higher center of gravity, your ve-
hicle is more sensitive to side
winds than an ordinary passenger
car. Slowing down will allow you to
have better control.
When driving offroad or in rugged
terrain, do not drive at excessive
speeds, jump, make sharp turns,
strike objects, etc. This may cause
loss of control or vehicle rollover
causing death or serious injury. You
are also risking expensive damage
to your vehicle’s suspension and
chassis.
Do not drive horizontally across
steep slopes. Driving straight up or
straight down is preferred. Your ve-
hicle (or any similar offroad ve-
hicle) can tip over sideways much
more easily than forward or back-
ward.
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
breakin. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first
3200km (2000 miles).FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mixups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet the specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5M93
in Canada.NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
Breakin period
Fuel

03_SEQUOIA_U (L/O 0301)
284
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
OCTANE RATING
Select Octane Rating 87 (Research Oc-
tane Number 91) or higher.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.
GASOLINE CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contains detergent additives to
avoid buildup of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of three categories
that depend on required emission lev-
els. In the U.S., category 3 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.
CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.
OXYGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
