If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 353 in Sec-
tion 71 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 388 in Section 8 of this manual for
the functions controlled by each circuit.
Type A fuses can be pulled out by using
the pullout tool. The location of the pull
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “DOME”
or “RAD” fuse, which may be dispensable
for normal driving, and use it if its amper-
age rating is the same.If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
If a new fuse immediately blows out, there
is a problem with the electrical system.
Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

03_SEQUOIA_U (L/O 0301)
376
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Light bulbsBulbNo.WTy p e
Headlights—60/55A
Front fog lights900655B
Parking, front side
marker and front
turn signal lights3157 NA27/8C
Rear turn signal
lights744021D
Stop/tail and rear
side marker lights744321/5D
Backup lights92118D
Tail lights1685D
License plate lights1685D
High mounted stop
light1685D
Interior lights—8E
Personal lights—3.8D
Glove box light—1.2D
Luggage
compartment light—8E
Vanity lights—3D
Door courtesy
lights1943.4D
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs
Replacing light bulbs—

03_SEQUOIA_U (L/O 0301)
377
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
1. Open the hood. Unplug the connec-tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
“TOP PULL” mark
3. Install the rubber cover with the “TOP PULL” mark upward, and fit it
securely on the boss. Then, plug in
the connector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

03_SEQUOIA_U (L/O 0301)
378
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
If either the left or right front fog lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
Use a Phillipshead screwdriver. Remove
and install the clip as shown in the fol-
lowing illustrations.Removing clip
Installing clip
—Front fog lights—Parking, front side marker
and front turn signal lights

03_SEQUOIA_U (L/O 0301)
379
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
a: Stop/tail and rear side marker light
b: Backup light
c: Rear turn signal light
—Rear turn signal, stop/tail,
rear side marker and backup
lights

03_SEQUOIA_U (L/O 0301)
380
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

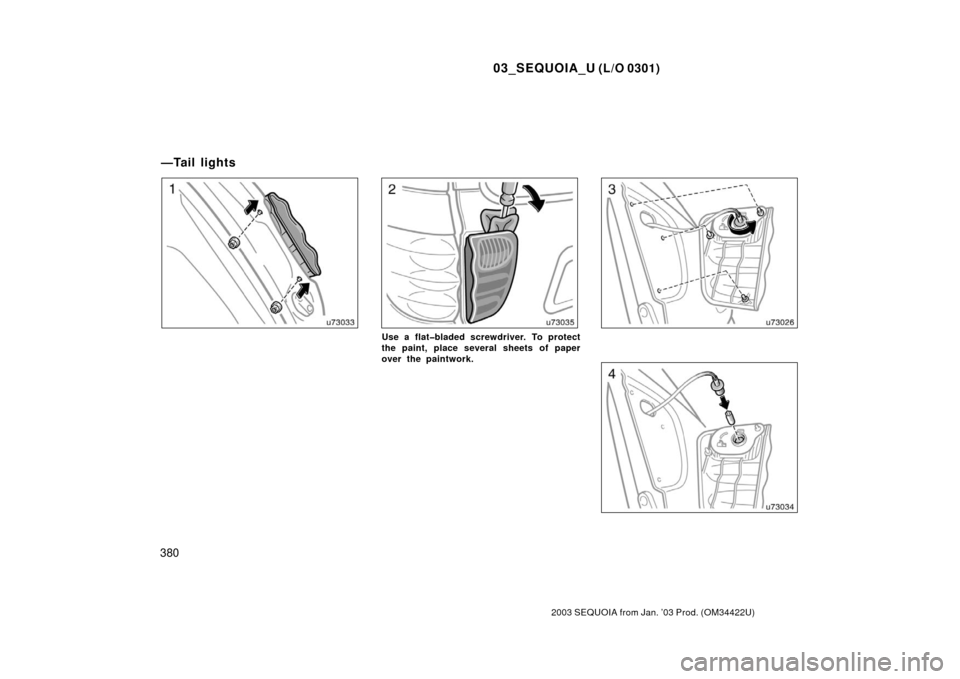

Use a flatbladed screwdriver. To protect
the paint, place several sheets of paper
over the paintwork.
—Tail lights

03_SEQUOIA_U (L/O 0301)
381
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

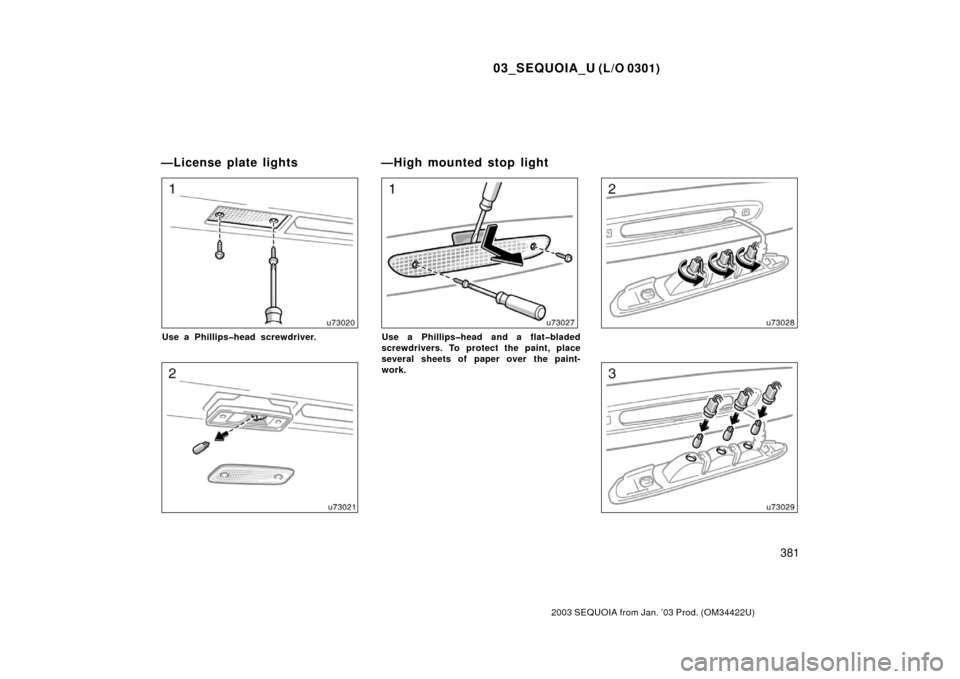

Use a Phillipshead screwdriver.Use a Phillipshead and a flatbladed
screwdrivers. To protect the paint, place
several sheets of paper over the paint-
work.
—License plate lights—High mounted stop light

03_SEQUOIA_U (L/O 0301)
382
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)

03_SEQUOIA_U (L/O 0301)
383
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
SPECIFICATIONS
Specifications
Dimensions and weight384
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 384
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 385
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 385
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 388
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 388
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

03_SEQUOIA_U (L/O 0301)
384
2003 SEQUOIA from Jan. ’03 Prod. (OM34422U)
Model:2UZFE
Type: 8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0 84.0 (3.70 3.31)
Displacement, cm
3 (cu. in.):
4664 (284.5)
Dimensions and weight
Overall length mm (in.) 5180 (203.9)
Overall widthmm (in.) 1980 (78.0)∗
1
1940 (76.4)∗2
Overall height∗3mm (in.) 1860 (73.2)
∗
4
1870 (73.6)∗5
1915 (75.4)∗6
1925 (75.8)∗7
Wheelbase mm (in.) 3000 (118.1)
Front treadmm (in.) 1675 (65.9)
Rear treadmm (in.) 1680 (66.1)
∗
1: With over fender∗2: With wheel arch moulding∗3: Unladen vehicle∗4: With P245/70R16 tires and without roof rails∗5: With P265/70R16 or P265/65R17 tires and without roof rails∗6: With P245/70R16 tires and with roof rails∗7: With P265/70R16 or P265/65R17 tires and with roof rails
Vehicle capacity weight (occupants  luggage) kg (lb.) 567 (1250)1880 (74.0)
∗
5
1935 (76.2)∗7
Twowheel drive
models
Fourwheel drive
models
Engine
