TOYOTA SEQUOIA 2004 1.G Owners Manual

04_SEQUOIA_U (L/O 0309)
93
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
pillar or roof side rail from which
the side airbags or curtain shield
airbags deploy even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
and curtain shield airbag inflate,
and the impact could cause death
or serious injury to the child.
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mecha-
nism of the front (or second) seats.
Otherwise, the child or front seat
occupant(s) may be killed or seri-
ously injured in case of sudden
braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the second right
seat.
Same position
Same angle
When installing a child restraint
system in the third seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.

04_SEQUOIA_U (L/O 0309)
94
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

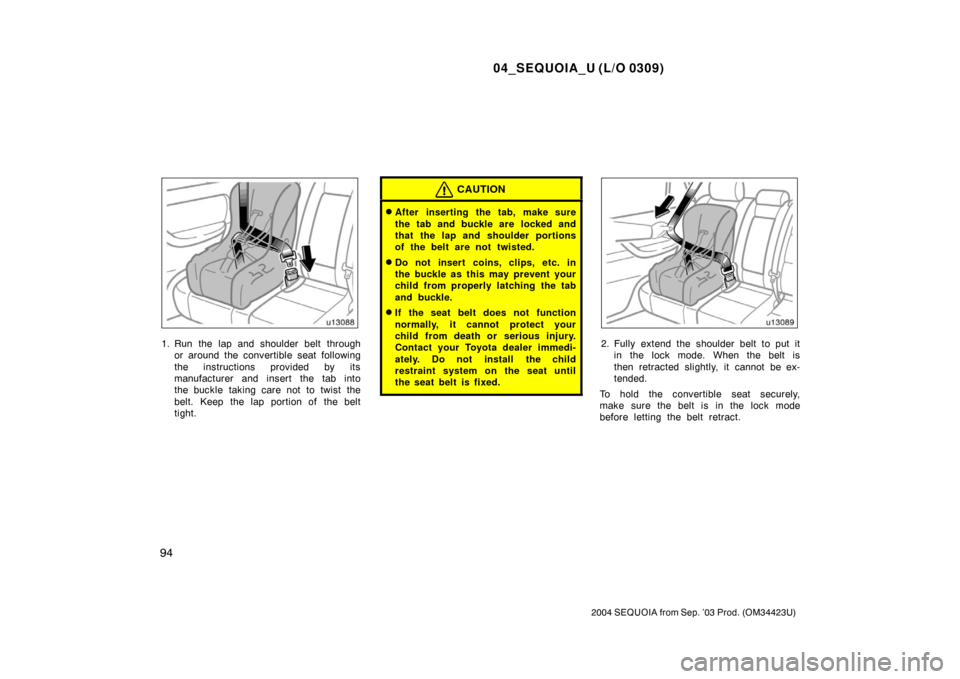

1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.

04_SEQUOIA_U (L/O 0309)
95
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

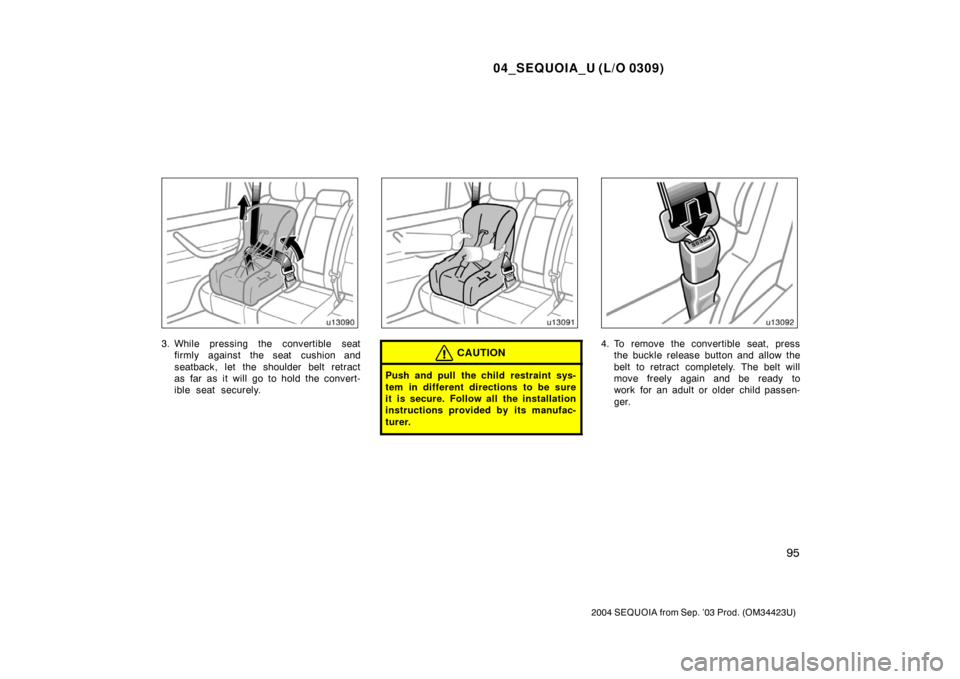

3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

04_SEQUOIA_U (L/O 0309)
96
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

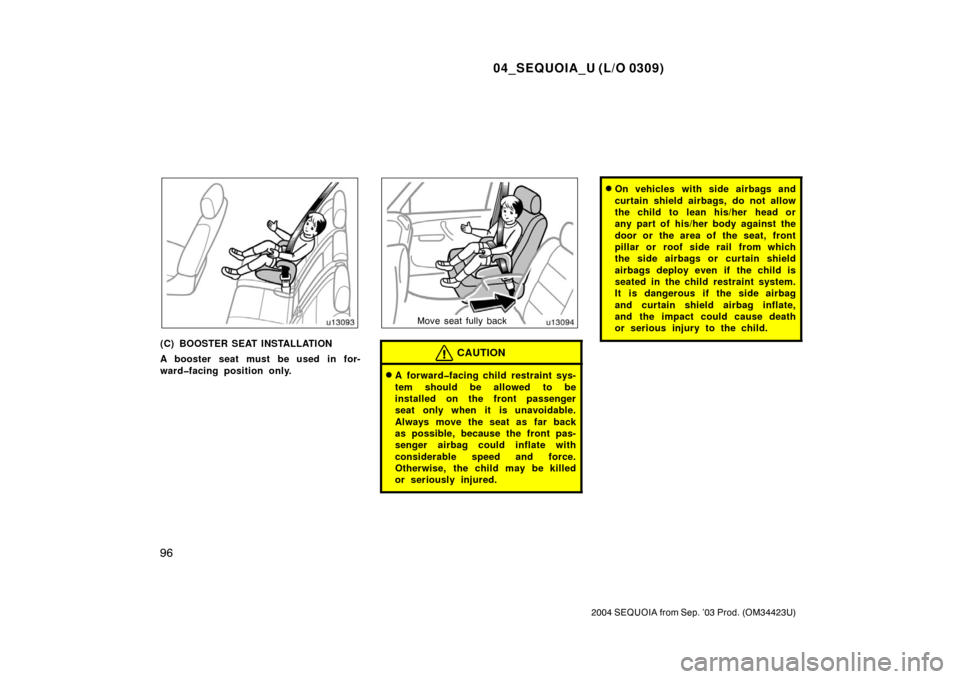

(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
Move seat fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
pillar or roof side rail from which
the side airbags or curtain shield
airbags deploy even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
and curtain shield airbag inflate,
and the impact could cause death
or serious injury to the child.

04_SEQUOIA_U (L/O 0309)
97
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

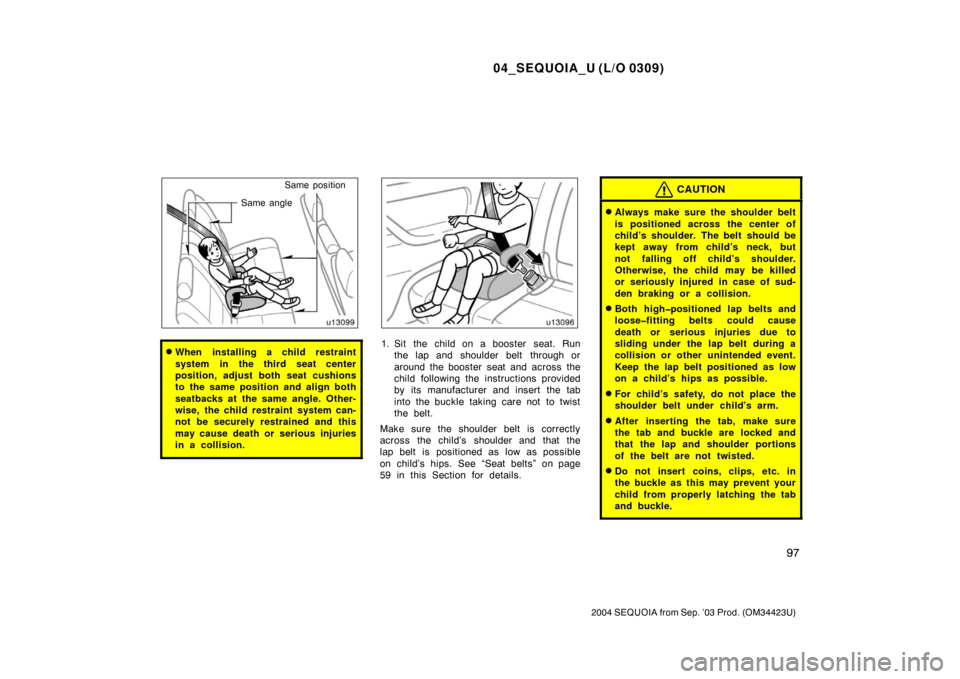

Same position
Same angle
When installing a child restraint
system in the third seat center
position, adjust both seat cushions
to the same position and align both
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.1. Sit the child on a booster seat. Run the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page
59 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.

04_SEQUOIA_U (L/O 0309)
98
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

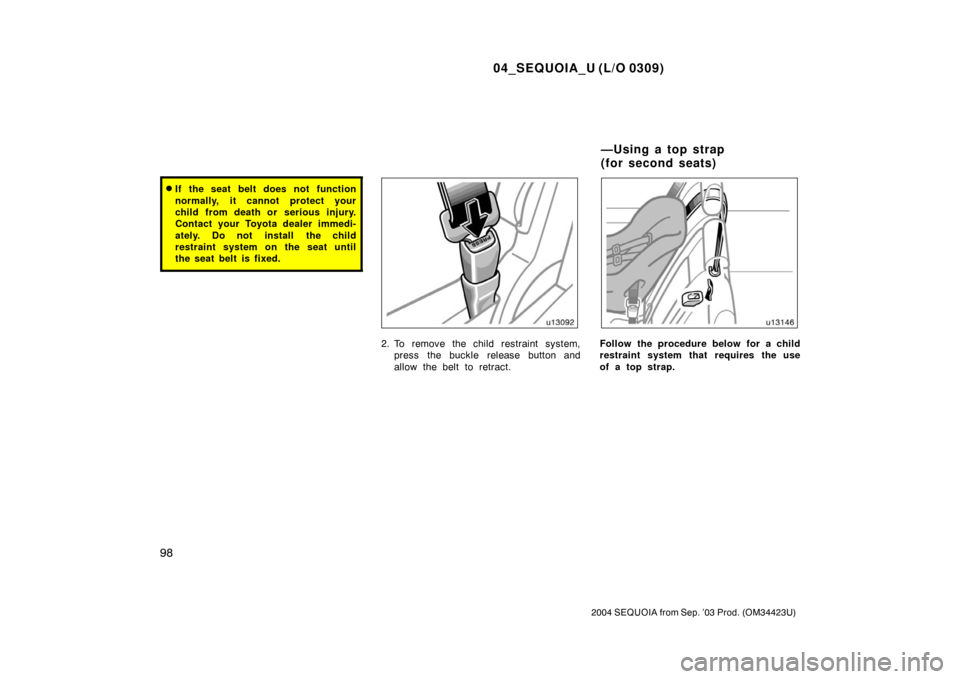

If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. To remove the child restraint system,press the buckle release button and
allow the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(for second seats)

04_SEQUOIA_U (L/O 0309)
99
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

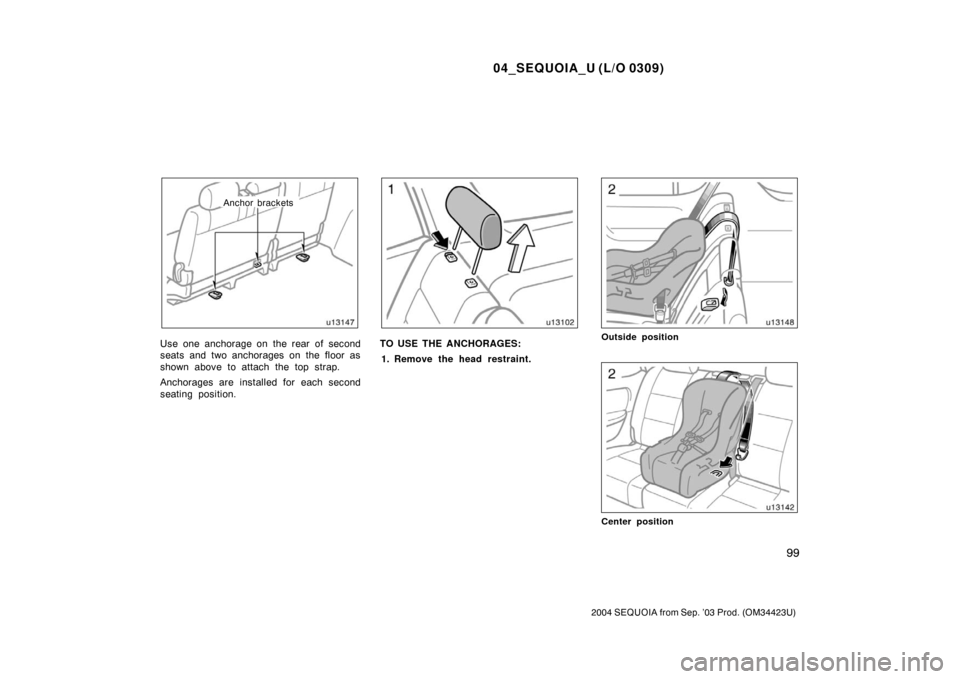

Anchor brackets
Use one anchorage on the rear of second
seats and two anchorages on the floor as
shown above to attach the top strap.
Anchorages are installed for each second
seating position.TO USE THE ANCHORAGES:1. Remove the head restraint.Outside position
Center position

04_SEQUOIA_U (L/O 0309)
100
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
2. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchorages
and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 86 in this Section.

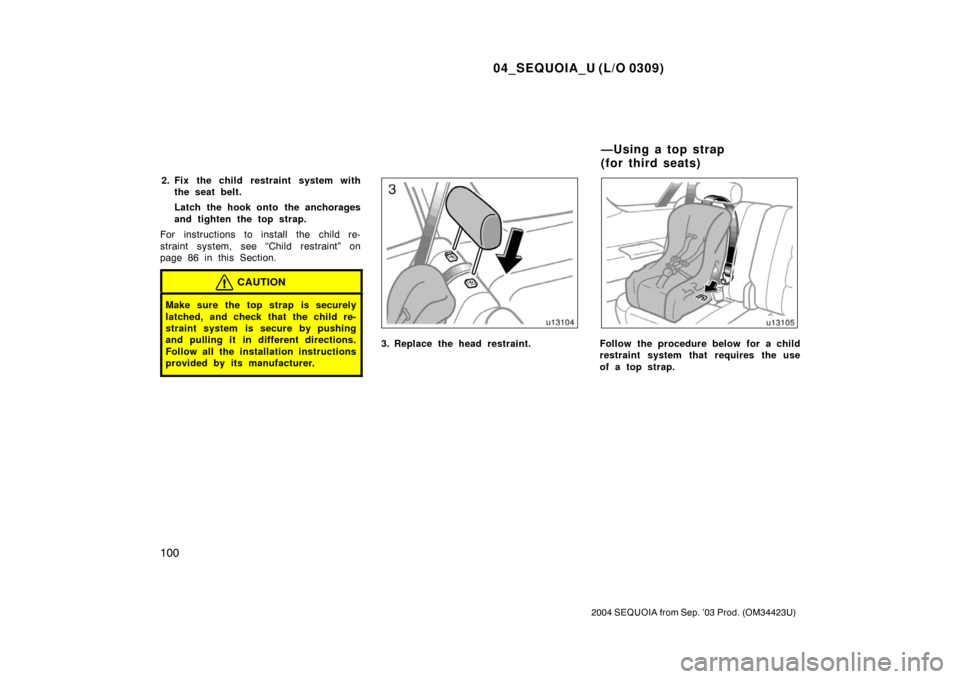

CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Replace the head restraint.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(for third seats)

04_SEQUOIA_U (L/O 0309)
101
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Anchor brackets
Symbol mark
Use the anchorage on the rear of the
seatback of each third seat to attach the
top strap.
Anchorages are installed for third outside
seating positions.
This symbol indicates the locations of
user ready anchorage.TO USE THE ANCHORAGES:
1. Remove the head restraint.2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 86 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.

04_SEQUOIA_U (L/O 0309)
102
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

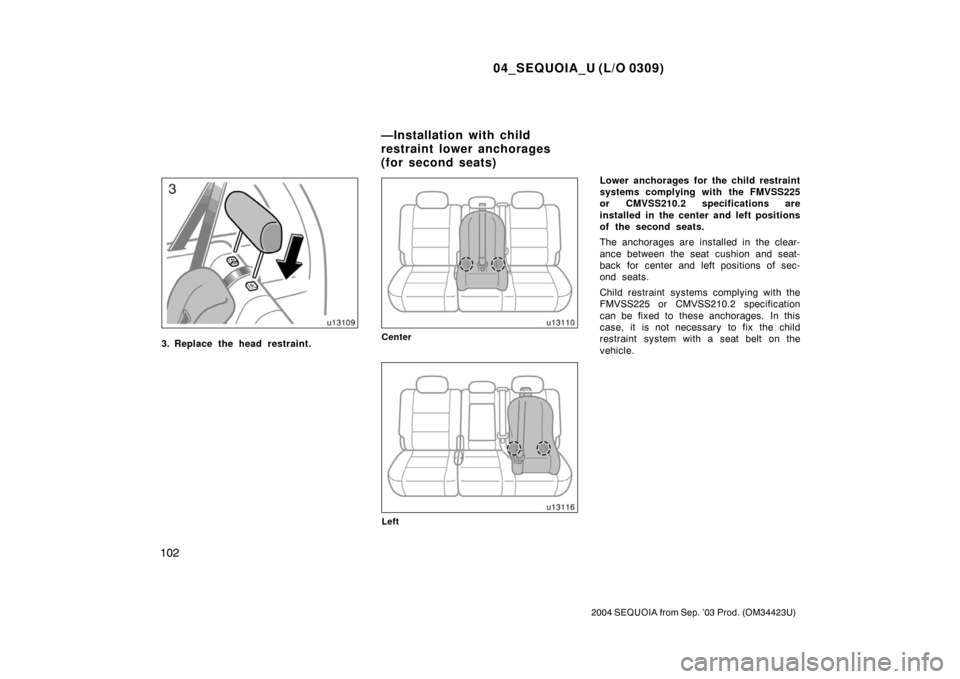

3. Replace the head restraint.Center
Left
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the center and left positions
of the second seats.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back for center and left positions of sec-
ond seats.
Child restraint systems complying with the
FMVSS225 or CMVSS210.2 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for second seats)
