TOYOTA SEQUOIA 2004 1.G Owners Manual

04_SEQUOIA_U (L/O 0309)
103
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

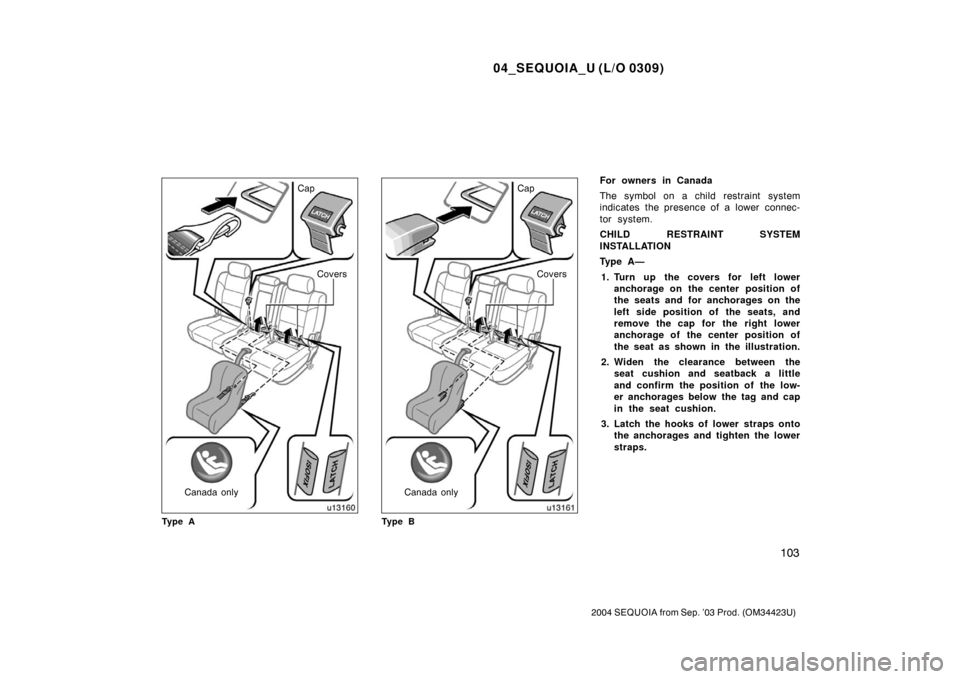

Covers
Cap
Canada only
Ty p e ACovers
Cap
Canada only
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Turn up the covers for left lower anchorage on the center position of
the seats and for anchorages on the
left side position of the seats, and
remove the cap for the right lower
anchorage of the center position of
the seat as shown in the illustration.
2. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag and cap
in the seat cushion.
3. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.

04_SEQUOIA_U (L/O 0309)
104
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Ty p e B —1. Turn up the covers for left lower anchorage on the center position of
the seats and for anchorages on the
left side of the position of the seat,
and remove the cap for the right
lower anchorage of the center posi-
tion of the seat as shown in the
illustration.
2. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seat cushion.
3. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 98 in this Section.)
For the installation details, refer to the
instruction manual equipped with each

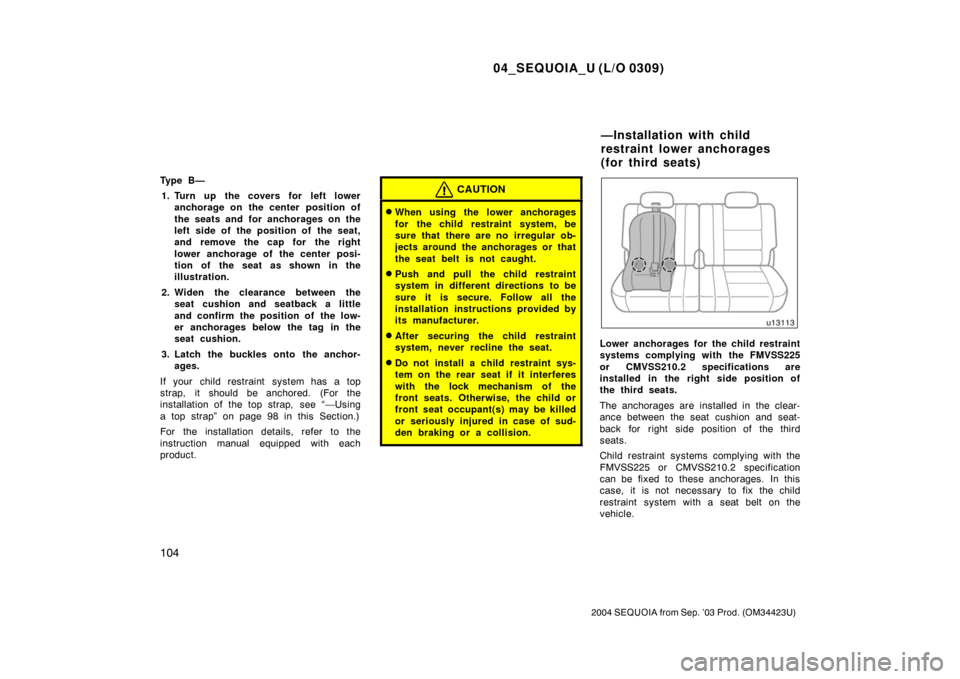

product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the right side position of
the third seats.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back for right side position of the third
seats.
Child restraint systems complying with the
FMVSS225 or CMVSS210.2 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
(for third seats)

04_SEQUOIA_U (L/O 0309)
105
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

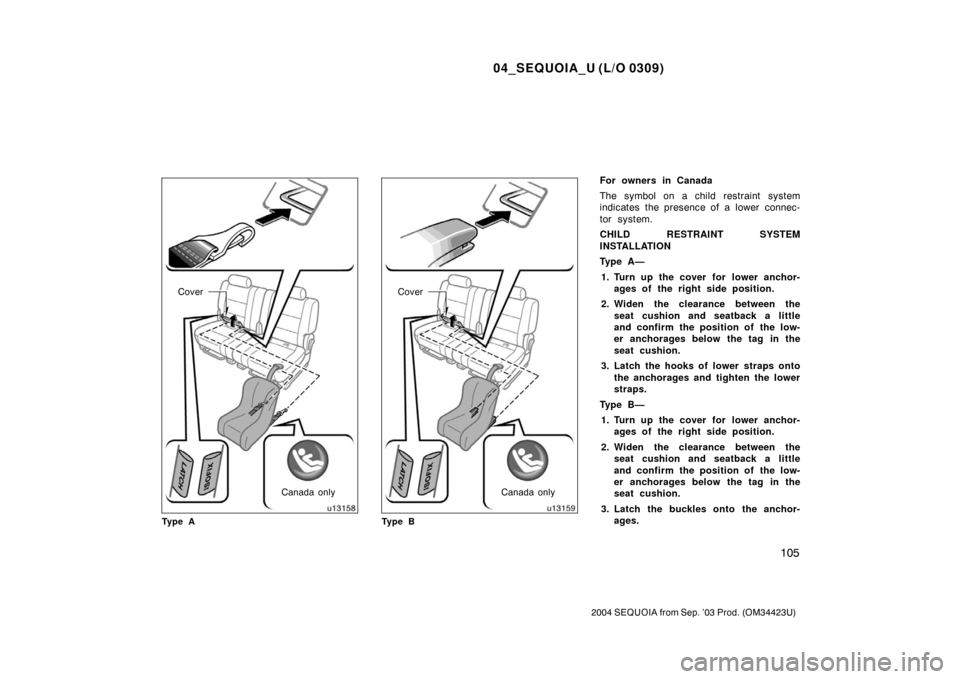

Canada only
Cover
Ty p e ACanada only
Cover
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Turn up the cover for lower anchor- ages of the right side position.
2. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seat cushion.
3. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Turn up the cover for lower anchor- ages of the right side position.
2. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seat cushion.
3. Latch the buckles onto the anchor- ages.

04_SEQUOIA_U (L/O 0309)
106
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 100 in this Section.)
For the installation details, refer to the
instruction manual equipped with each
product.

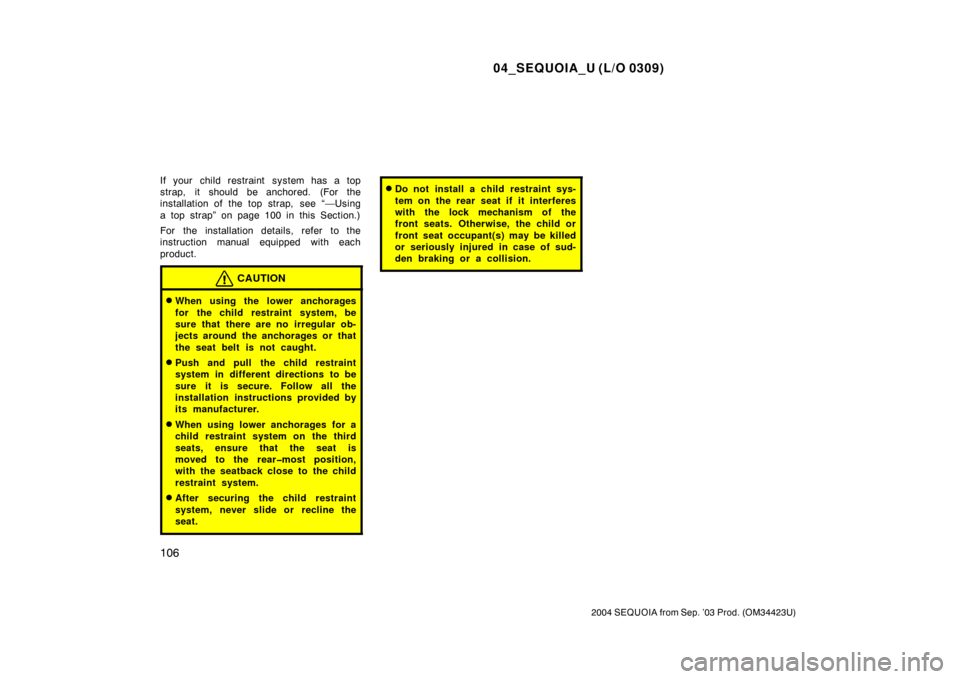

CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using lower anchorages for a
child restraint system on the third
seats, ensure that the seat is
moved to the rearmost position,
with the seatback close to the child
restraint system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

04_SEQUOIA_U (L/O 0309)
107
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Outside rear view mirrors 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 111
. . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 11 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1 4

04_SEQUOIA_U (L/O 0309)
108
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. To turn on the
back window defogger, see “Back window
and outside rear view mirror defoggers” on
page 126 in Section 1−5.
Tilt steering wheel Outside rear view mirrors—

04_SEQUOIA_U (L/O 0309)
109
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or injuries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.
Ty p e A
Ty p e B
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

04_SEQUOIA_U (L/O 0309)
11 0
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
FOLDING MIRRORS (type A only)
To fold mirrors for parking in restricted
areas, push the mirror folding button.
The key must be in the “ACC” or “ON”
position.
Position 1—To fold the mirrors
Position 2—To return the mirrors back to
their original positions
CAUTION
To avoid personal injury and any mir-
ror malfunction, do not touch the mir-
ror while it is moving.
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
Vehicles with power mirror folding button
only—
If the key is turned from “LOCK” to “ACC”
the mirror will move automatically accord-
ing to the position of the mirror folding
button.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
—Folding rear view mirrors

04_SEQUOIA_U (L/O 0309)
111
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the “AUTO” mode.
The “AUTO” indicator illuminates to show
you that the function is on.
Antiglare inside rear view
mirrorAuto antiglare inside rear
view mirror

04_SEQUOIA_U (L/O 0309)
11 2
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
In “AUTO” mode, if the mirror detects light
from the headlights of the vehicle behind
you, the mirror surface darkens slightly to
reduce the reflected light.
To turn off the automatic function, press
the switch on the “OFF” side.
To turn on the automatic function again,
press the switch on the “AUTO” side.
Adjust it before driving so that the rear
view is in the best condition.
When the outside air temperature is low,
it may take little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious personal
injuries.
To ensure correct functioning of an
antiglare mirror sensor located on the
back side of the mirror, do not touch
or cover the sensor with your finger or
a piece of cloth, etc.To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
Sun visors—
