’06_SEQUOIA_U (L/O 0508)
71
Front seats
Second seats (bench type)
To use the armrest, do this.
Front seats—Pull the armrest down as
shown in the illustration.
Second seats (bench type)—Pull the arm-
rest out as shown in the illustration.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
To turn on the seat heater, push the
switches (“L” switch for the driver ’s
seat and “R” switch for the front pas-
senger ’s seat).
At this time, the indicator light will illumi-
nate to indicate the seat heater is operat-
ing.
The seat heater switches have the follow-
ing positions.
“HI”—High heating temperature
“LO”—Low heating temperature
The key must be in the “ON” position to
operate seat heaters.
Pushing lightly on the opposite side will
turn it off.
ArmrestsSeat heaters

’06_SEQUOIA_U (L/O 0508)
72
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Person who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharge, turn the switch off when
the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 107 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat belts—
—Seat belt precautions

’06_SEQUOIA_U (L/O 0508)
73
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific

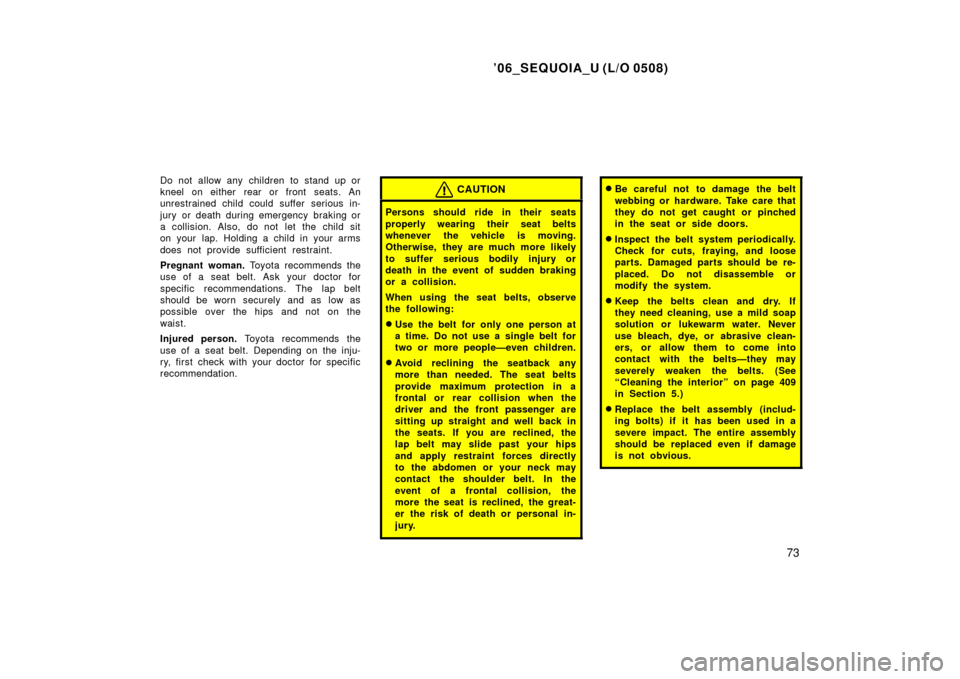

recommendation.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal co llision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 409
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

’06_SEQUOIA_U (L/O 0508)
74
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 107 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
To o h i g h
Keep as low on
hips as possible
Ta k e u p
slack
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
—Fastening front and rear
seat belts

’06_SEQUOIA_U (L/O 0508)
75

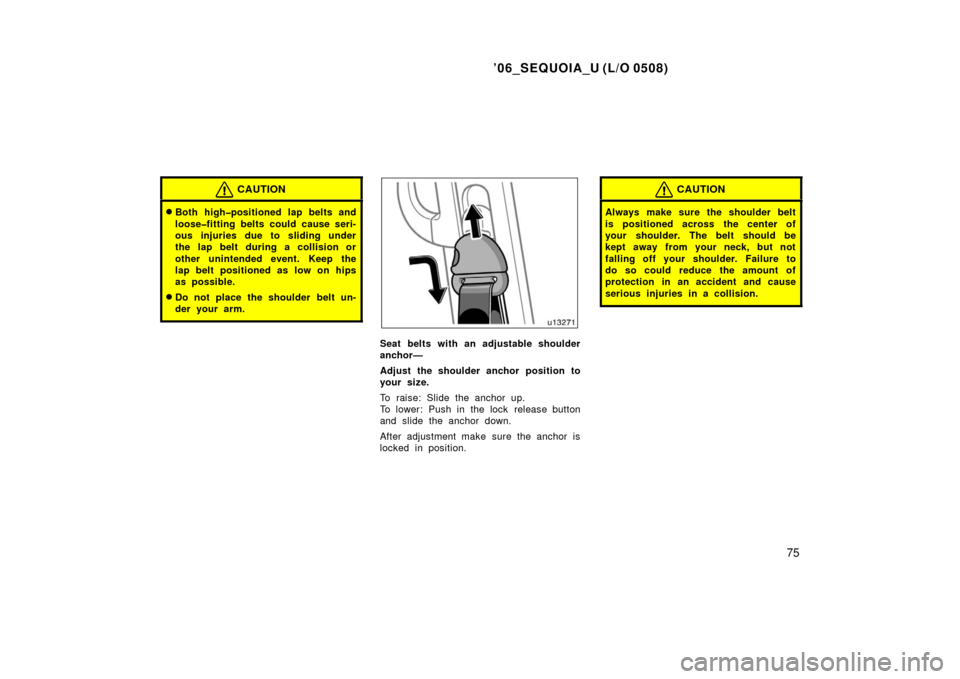

CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.
Do not place the shoulder belt un-
der your arm.
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.

’06_SEQUOIA_U (L/O 0508)
76

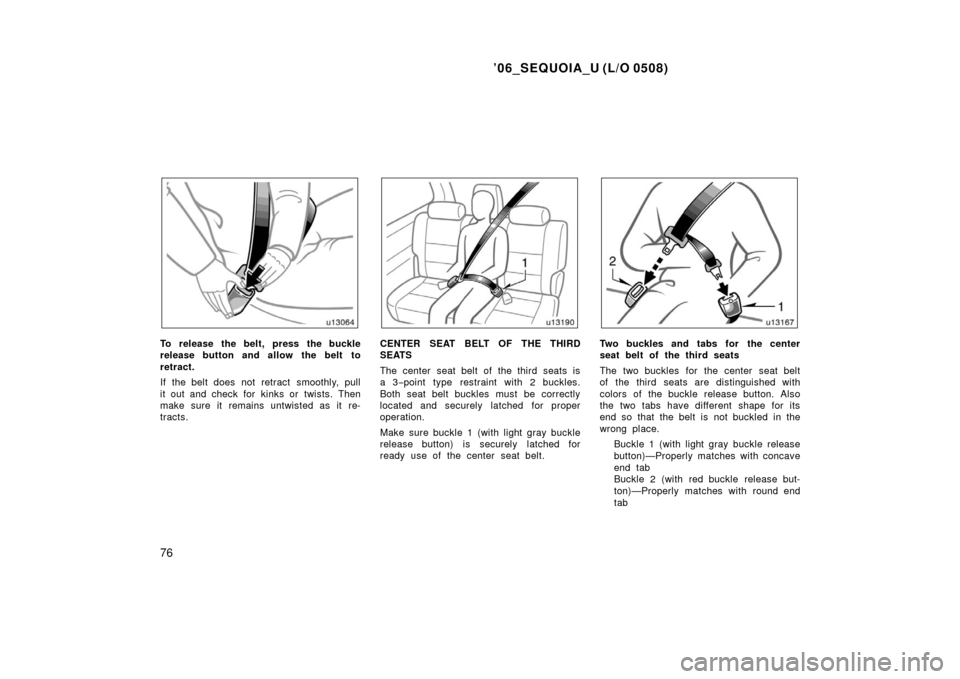

To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.CENTER SEAT BELT OF THE THIRD
SEATS
The center seat belt of the third seats is
a 3−point type restraint with 2 buckles.
Both seat belt buckles must be correctly
located and securely latched for proper
operation.
Make sure buckle 1 (with light gray buckle
release button) is securely latched for
ready use of the center seat belt.Two buckles and tabs for the center
seat belt of the third seats
The two buckles for the center seat belt
of the third seats are distinguished with
colors of the buckle release button. Also
the two tabs have different shape for its
end so that the belt is not buckled in the
wrong place.
Buckle 1 (with light gray buckle release
button)—Properly matches with concave
end tab
Buckle 2 (with red buckle release but-
ton)—Properly matches with round end
tab

’06_SEQUOIA_U (L/O 0508)
77

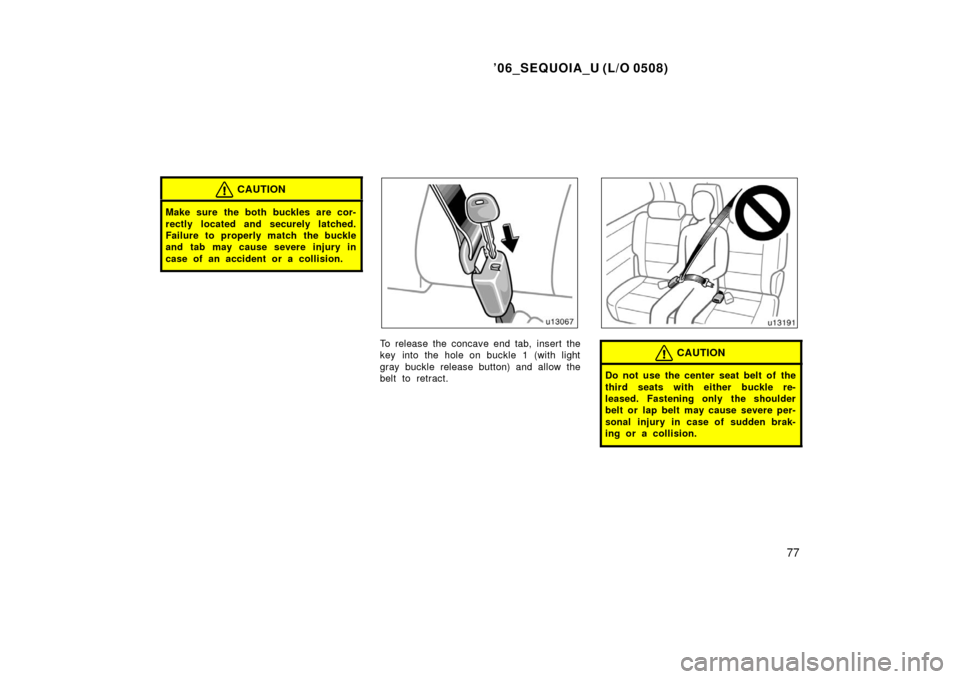

CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a collision.
To release the concave end tab, insert the
key into the hole on buckle 1 (with light
gray buckle release button) and allow the
belt to retract.CAUTION
Do not use the center seat belt of the
third seats with either buckle re-
leased. Fastening only the shoulder
belt or lap belt may cause severe per-
sonal injury in case of sudden brak-
ing or a collision.

’06_SEQUOIA_U (L/O 0508)
78
Second seats (bench type)
Second seats (separate type)
Third seats

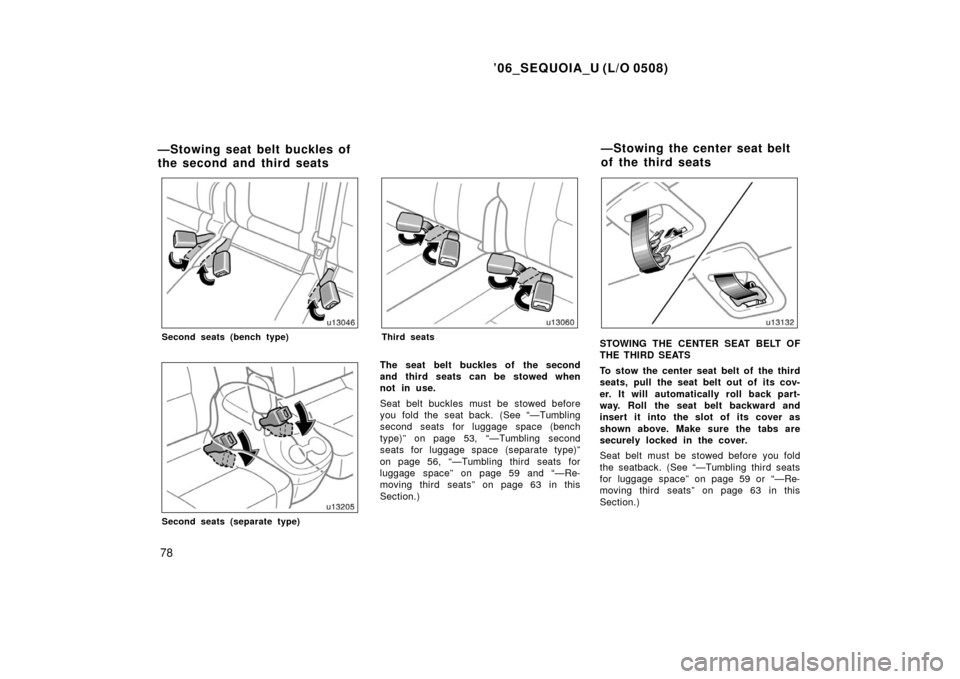

The seat belt buckles of the second
and third seats can be stowed when
not in use.
Seat belt buckles must be stowed before
you fold the seat back. (See “—Tumbling
second seats for luggage space (bench
type)” on page 53, “—Tumbling second
seats for luggage space (separate type)”
on page 56, “—Tumbling third seats for
luggage space” on page 59 and “—Re-
moving third seats” on page 63 in this
Section.)
STOWING THE CENTER SEAT BELT OF
THE THIRD SEATS
To stow the center seat belt of the third
seats, pull the seat belt out of its cov-
er. It will automatically roll back part-
way. Roll the seat belt backward and
insert it into the slot of its cover as
shown above. Make sure the tabs are
securely locked in the cover.
Seat belt must be stowed before you fold
the seatback. (See “—Tumbling third seats
for luggage space” on page 59 or “—Re-
moving third seats” on page 63 in this
Section.)
—Stowing seat belt buckles of
t h e seco n d an d th ird seat s—Stowing the center seat belt
of the third seats

’06_SEQUOIA_U (L/O 0508)
79
NOTICE
Stow the center seat belt of the third
seats when not in use.
PULLING OUT THE CENTER SEAT BELT
OF THE THIRD SEATS
To use the center seat belt of the third
seats, pull the belt out a little and then
pull the tabs out from the cover.The center shoulder belt comfort guide
for the third seat center position will
provide added seat belt comfort for
children who have outgrown child re-
straints and for small adults. When the
center shoulder belt is inserted through
the guide, the comfort guide pulls the
belt away from the neck and head of an
occupant.
To use the comfort guide, do as fol-
lows.
—Seat belt comfort guide

’06_SEQUOIA_U (L/O 0508)
80

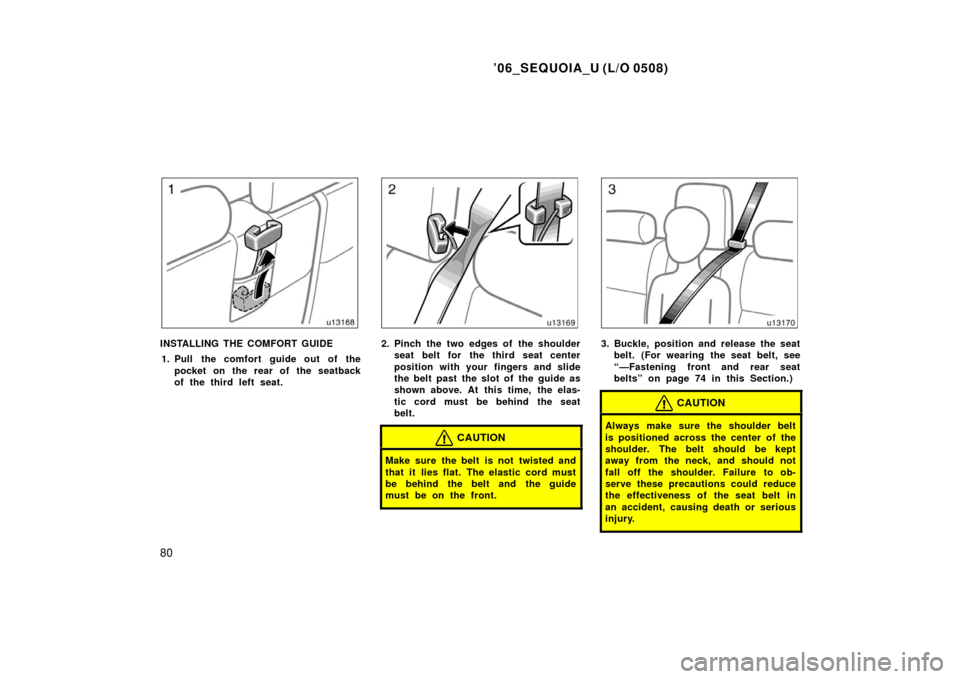

INSTALLING THE COMFORT GUIDE1. Pull the comfort guide out of the pocket on the rear of the seatback
of the third left seat.2. Pinch the two edges of the shoulderseat belt for the third seat center
position with your fingers and slide
the belt past the slot of the guide as
shown above. At this time, the elas-
tic cord must be behind the seat
belt.
CAUTION
Make sure the belt is not twisted and
that it lies flat. The elastic cord must
be behind the belt and the guide
must be on the front.
3. Buckle, position and release the seatbelt. (For wearing the seat belt, see
“—Fastening front and rear seat
belts” on page 74 in this Section.)
CAUTION
Always make sure the shoulder belt
is positioned across the center of the
shoulder. The belt should be kept
away from the neck, and should not
fall off the shoulder. Failure to ob-
serve these precautions could reduce
the effectiveness of the seat belt in
an accident, causing death or serious
injury.
