TOYOTA SEQUOIA 2007 1.G Owners Manual

2922007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

2932007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Front air conditioning systemControls 294
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Air flow selector settings 298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Instrument panel vents 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Rear air conditioning system Controls 302
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Air flow selector settings 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 9

2942007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

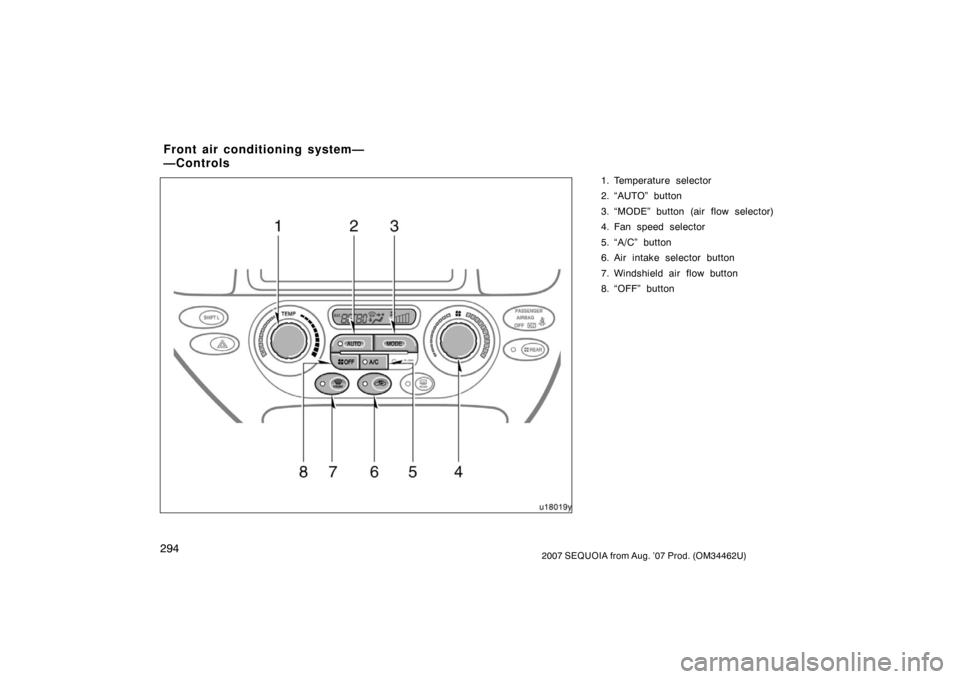

1. Temperature selector
2. “AUTO” button
3. “MODE” button (air flow selector)
4. Fan speed selector
5. “A/C” button
6. Air intake selector button
7. Windshield air flow button
8. “OFF” button
Front air conditioning system—
—Controls
u18019y

2952007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. An indi-
cator light will illuminate to show that the
automatic operation mode has been se-
lected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow, on−off of the air condi-
tioning and air intake according to the
temperature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
When you adjust the temperature selector
to maximum cooling, a “MAX. COLD” mes-
sage will appear on the display and the
air intake mode will be automatically
changed to RECIRCULATE.
You may use manual controls if you want
to select your own settings. In the default mode, air intake changes in
accordance with the temperature when the
automatic operation mode is selected. This
feature can be disabled by doing the fol-
lowing:
Turn the ignition switch to “ACC” or
“LOCK”. Turn the ignition switch to the
“ON” position while pressing the “AUTO”
and “OFF” buttons at the same time.
When the automatic operation of the air
intake mode is disabled, it may affect the
cooling performance. You can set the de-
fault mode by the following:
Turn the ignition switch to “ACC” or
“LOCK”. Turn the ignition switch to the
“ON” position while pressing the wind-
shield air flow button and “OFF” button at
the same time.
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
In automatic operation, the fan speed is
adjusted automatically unless you desire
another fan speed mode.Temperature selector
Turn the knob to adjust the temperatu-
re—to the right to warm, to the left to
cool.
The temperature display changes between
“
 C” and “ F” when the unit of the outside
temperature display is changed. (For de-
tails, see “Multi −information display” on
page 306 in Section 1 −10.)
“OFF” button
Push the button to turn off the air condi-
tioning system.

2962007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u18002
“MODE” button (air flow selector)
Press the button to select the vents used
for air flow.
In automatic operation, the air flow mode
is selected automatically among Panel, Bi−
level and Floor unless you desire another
air flow mode.
1. Panel— Air flows mainly from the
instrument panel vents. 2. Bilevel—
Air flows from both the floor
vents and the instrument panel vents.
When you set the temperature selector
setting at about the middle in automatic
operation, warm air flows out of the
floor vents and relatively low −tempera-
ture air flows out of the center and
side vents.
3. Floor— Air flows mainly from the floor
vents.

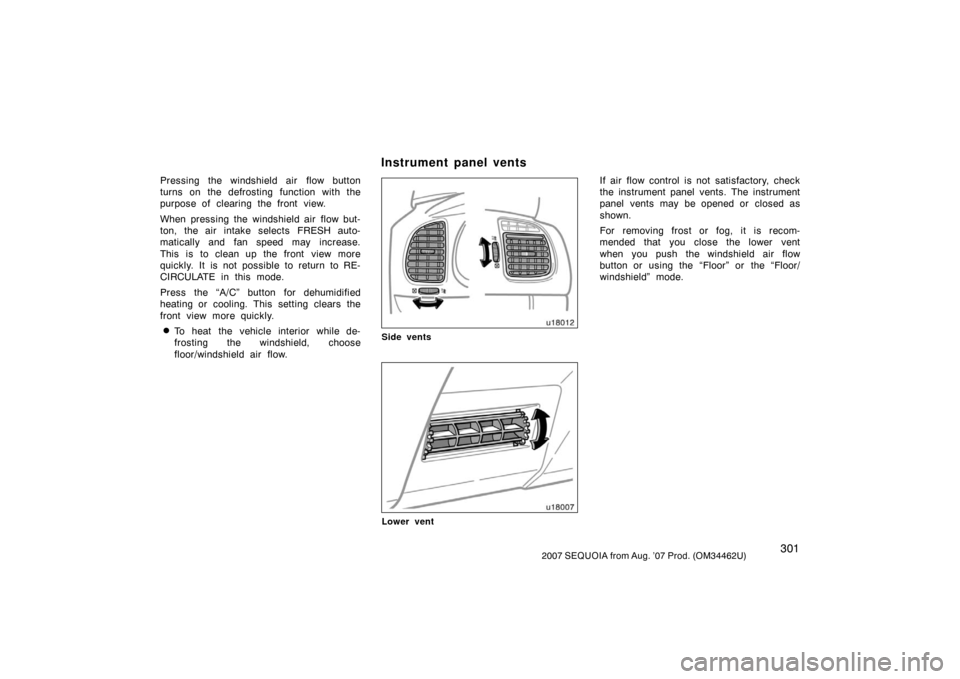

It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” on page 301
in this Section.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents and fan speed may increase in
order to clean up the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” on page 301
in this Section. For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.

2972007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and fan
speed may increase in order to clean up
the front view.
Pressing the button once again returns the
air flow mode to the last one used.
When this button is pressed, air intake
selector mode changes to FRESH auto-
matically to clean up the front view quick-
ly. It is not possible to return to RECIR-
CULATE in this mode.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
It is recommended that you close the
lower vent. For details about this, see
“Instrument panel vents” on page 301 in
this Section.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.
For further information for removing frost
and fog, see “Instrument panel vents” on
page 301 in this Section.
u18004
Air intake selector button
Press the button to select the air source.1. RECIRCULATE— Recirculates the air in-
side the vehicle.
2. FRESH— Draws outside air into the
system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
For example, when the ambient tempera-
ture is low, the air intake mode may
change automatically to FRESH. This is
not a malfunction. When the ignition switch is turned to the
“ON” position, the air intake mode is al-
ways set to FRESH even if the previous
mode was RECIRCULATE.
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

2982007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

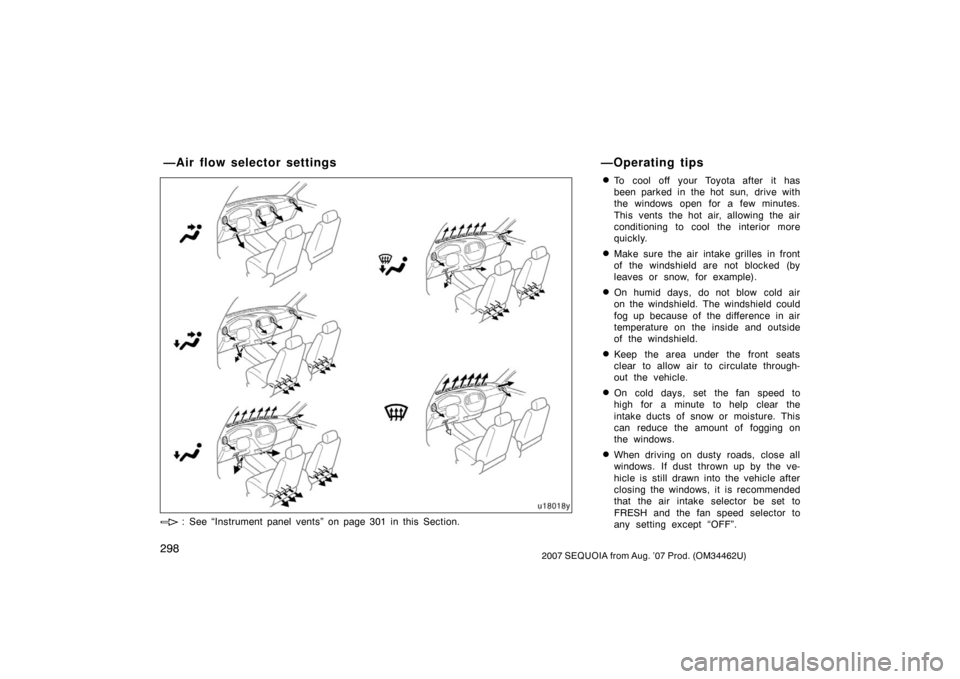

—Air flow selector settings
: See “Instrument panel vents” on page 301 in this Section.
u18018y
—Operating tips

2992007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
—For automatic operation
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air conditioning—OFF
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—FLOOR
Lower vent—CLOSED
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
—For automatic operation
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air conditioning—ON
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
(to the left)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.

3002007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
Ventilation
For best results, set controls to:
—For automatic operationPress in the “AUTO” button.
Temperature— To w a r d s COLD
(to the left)
Air conditioning—OFF
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
(to the left)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
The inside of the windshield
For best results, set controls to:
—For automatic operation
Temperature— To w a r d s WARM
(to the right) to heat;
COLD (to the left)
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
(to the right) to heat;
COLD (to the left)
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view. When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically and fan speed may increase.
This is to clean up the front view more
quickly. It is not possible to return to RE-
CIRCULATE in this mode.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
The outside of the windshield
For best results, set controls to:
—For automatic operation
Temperature— To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
(to the right)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Lower vent—CLOSED

3012007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically and fan speed may increase.
This is to clean up the front view more
quickly. It is not possible to return to RE-
CIRCULATE in this mode.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
u18012
Side vents
u18007
Lower vent
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
For removing frost or fog, it is recom-
mended that you close the lower vent
when you push the windshield air flow
button or using the “Floor” or the “Floor/
windshield” mode.
Instrument panel vents
