TOYOTA SEQUOIA 2007 1.G Owners Manual

3022007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

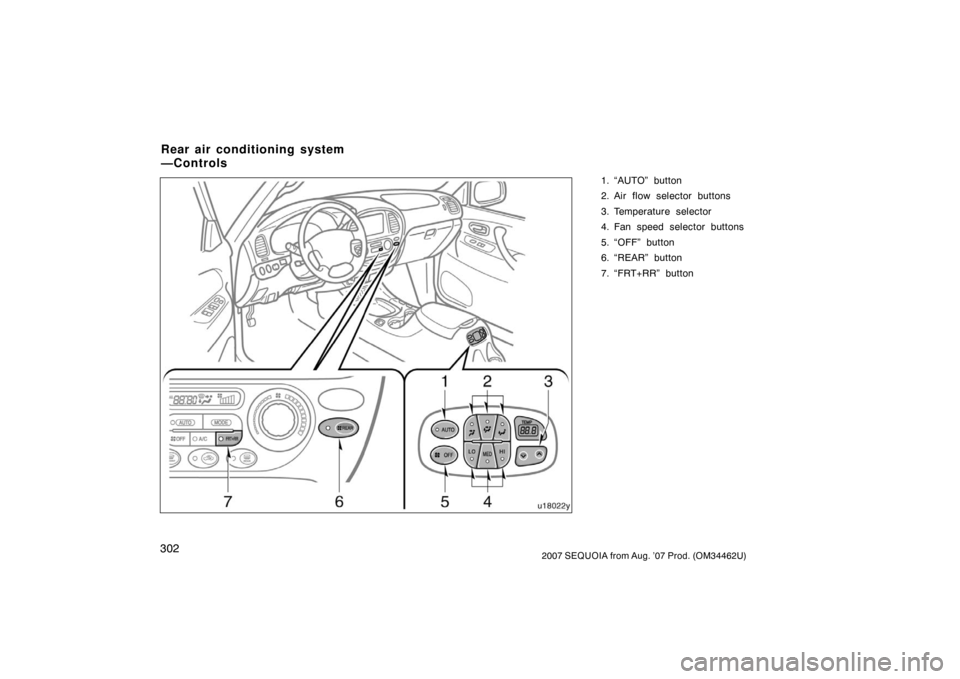

1. “AUTO” button
2. Air flow selector buttons
3. Temperature selector
4. Fan speed selector buttons
5. “OFF” button
6. “REAR” button
7. “FRT+RR” button
Rear air conditioning system
—Controls
u18022y

3032007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
“AUTO” button
For automatic operation of the rear air
conditioning, press the “AUTO” button. An
indicator light will illuminate to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow according to the tem-
perature.
You may use manual controls if you want
to select your own settings.
Fan speed selector
Select the mode button you desire to ad-
just the fan speed and push it.
In automatic operation, the fan speed is
adjusted automatically unless you desire
another fan speed mode.
Temperature selector
To increase the temperature, press the
“ ” side, to decrease it, press the “ ”
side.
The temperature display changes between
“  C” and “ F” when the unit of the outside
temperature display is changed. (For de-
tails, see “Multi −information display” on
page 306 in Section 1 −10.) “REAR” button
You can turn on or off the rear air condi-
tioning system by pushing the button.
“FRT+RR” button
You can cancel the operations from the
rear control panel by pushing this button.
While the operation from the rear control
panel are stopped, the front and rear air
conditioning systems can be set simulta-
neously from the front control panel.
“OFF” button
Push the “OFF” button to turn off the air
conditioning system.
u18013

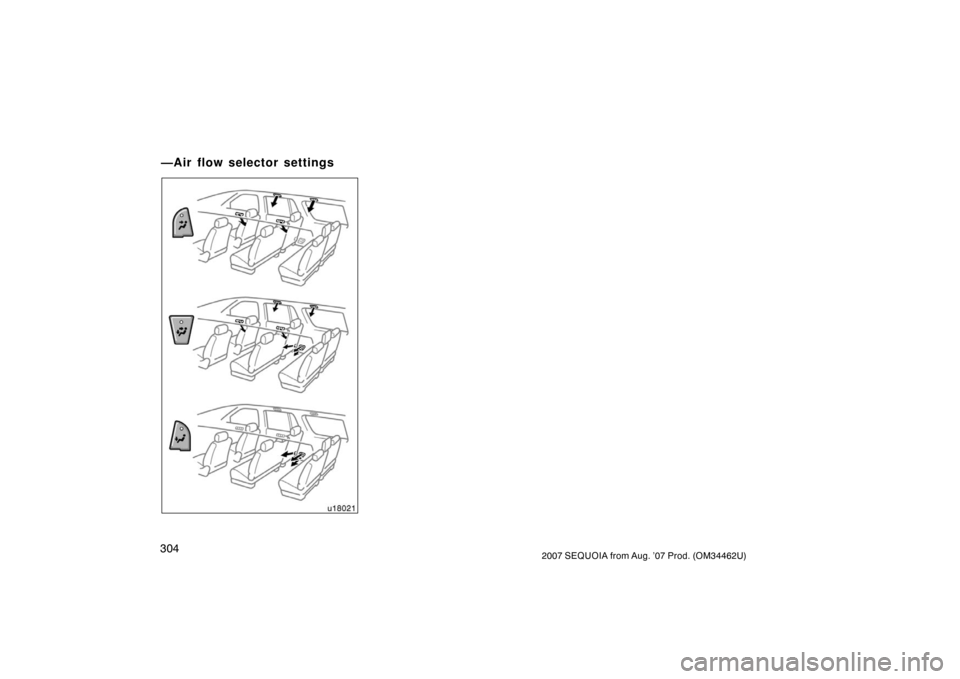

Air flow selector
Push the button to select the vents used
for air flow.
1. Panel— Air flows mainly from the roof
panel vents.
2. Bilevel— Air flows from both the roof
panel vents and floor vents.
3. Floor— Air flows mainly from the floor
vents.

3042007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u18021
—Air flow selector settings

3052007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays 318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power outlet 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 321
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 322
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Note pad holder 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Coin holder 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Compact disc and cassette tape holder 329
. . . . . . . . . . . . . . . . . . . . . . .
Removable console box 330
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Cup holders 332
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tie −down hooks 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net hooks 334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Roof luggage carrier 334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Floor mat 335
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

3062007 SEQUOIA from Aug. ’07 Prod. (OM34462U)

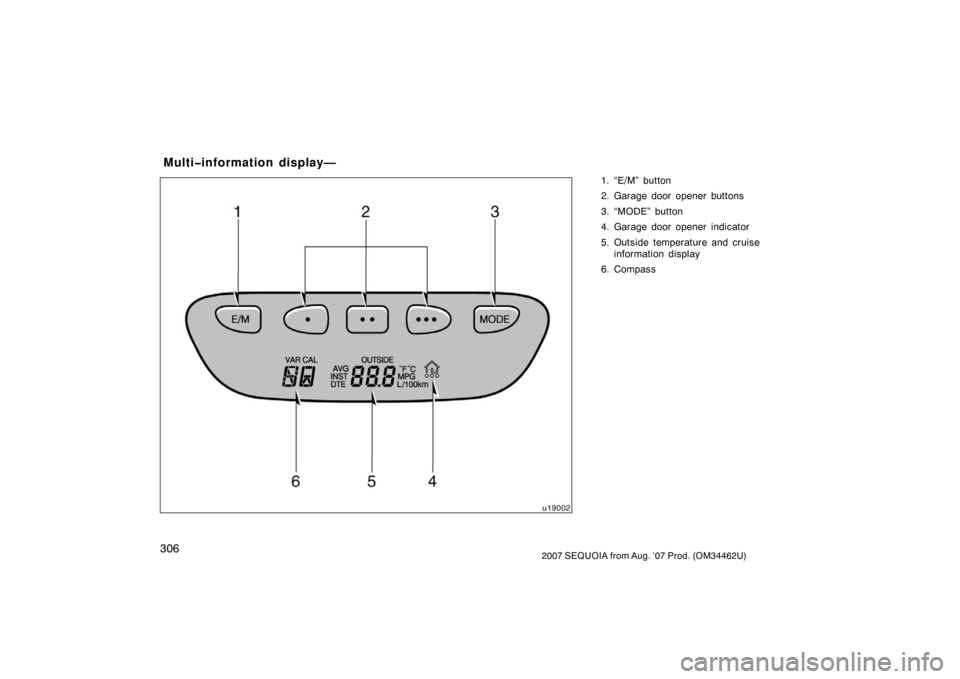

1. “E/M” button
2. Garage door opener buttons
3. “MODE” button
4. Garage door opener indicator
5. Outside temperature and cruiseinformation display
6. Compass
Multiinformation display—
u19002

3072007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
Operate the multiinformation display
with the ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
may be reduced.
—Before using the
multiinformation display
Indication
English/U.S.
Customary
System (E) Metric (M) Outside
temperature
F
 C Instantaneous fuel consumption/
Average fuel consumption
MPG
L/100 km Distance to empty
MI
km
“E/M” button
This button is used to switch between English/U.S. Customary System and
metric units.
Each time you push this button, the displa y switches. This is also linked to the
multi −information display and the front and rear air conditioning displays. The display
variations are as follows;
The initial mode will be English/U.S. Customary System units, however, if the unit
is switched to metric and ignition switch is off, it will display metric units when the
ignition switch is turned to on.

3082007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
“MODE” button
This button is used to select the item.
Every time you push the “MODE” button,
the display toggles.
For more details, see “—Outside
temperature and cruise information
display” on page 312 in this Section.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
u19048
The garage door opener (\b
Universal Transceiver) is manufactured
under license from HomeLink\b and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc.
(a) Programming the HomeLink
\b
The HomeLink\b in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
\b, install a new battery in the
hand− held transmitter prior to program-
ming.
The battery side of the hand −held trans-
mitter must be pointed away from the
HomeLink
\b during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance gate/pro-
gramming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
\b buttons
you want to program. Push and hold
down one of the buttons until the indi-
cator corresponding to the selected
channel begins to flash.
—Garage door opener

3092007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u19092
HomeLink
Hand −held
garage
transmitter 25 to
75 mm
(1 to 3 in.)
2. Place your hand−
held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
\b.
Keep the indicator light on the HomeLink
\b
in view while programming.
u19093
3. Simultaneously press and hold the hand− held garage transmitter button
along with the selected HomeLink
\b but-
ton.
Do not release the buttons until step 4
has been completed.
4. When the indicator light on the HomeLink
\b changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.
u19094
5. Test the operation of the HomeLink\b by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate, iden-
tify if your garage transmitter is of the
“Rolling Code” type. Press and hold the
programmed HomeLink
\b button. The ga-
rage door has the rolling code feature if
the indicator light (on the HomeLink
\b)
flashes rapidly and then remains lit after
2 seconds. If your garage transmitter is
the “Rolling Code” type, proceed to the
heading “Programming a rolling code sys-
tem”.

3102007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
6. Repeat steps 2 through 5 for each re-maining HomeLink\b button to program
another device.
Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
\b” before
proceeding with the steps listed below.
1. Locate the “training” button on the ceil- ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below. 3. Press and release the vehicle’s pro- grammed HomeLink
\b button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door. The ceiling mounted garage door opener
motor should now recognize the
HomeLink
\b unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
\b button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market 1. Decide which of the 3 HomeLink
\b but-
tons you want to program.
2. Place your hand −held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
\b.
Keep the indicator light on the HomeLink
\b
in view while programming.
3. Press and hold the selected HomeLink
\b button.
4. Continuously press and release ( cycle)
the hand− held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
\b changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons. 6. Test the operation of the HomeLink
\b by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
\b button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
\b buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
\b”.
(b) Operating the HomeLink
\b
To operate the HomeLink\b, press the
appropriate HomeLink\b button to activate
the programmed device. The HomeLink\b
indicator light should come on. The
HomeLink\b continues to send the signal
for up to 20 seconds as long as the
button is pressed.

3112007 SEQUOIA from Aug. ’07 Prod. (OM34462U)
u19095
(c) Erasing the entire HomeLink\b
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink
\b
memory. For additional programming assistance
with your HomeLink
\b Universal
Transceiver call the:
Toyota Customer Experience Center at
1 −800− 331−4331 (U.S.A.)
Toyota Canada Customer Interaction
Centre at 1 −888− 869−6828 (Canada)
Refer to HomeLink
\b on the internet at:
WWW.HOMELINK.COM
CAUTION
When programming the HomeLink\b
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink\b Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
