ADVANCED FUNCTIONS
82
9“Voice Recognition Guidance”
Voice recognition guidance can be set.
106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes.
107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set.
107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Popup Message”
Selection of either ON or OFF to display
the pop−up message is possible.
108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis−cal-
culation by changing tire will be adjusted.
109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Default”
This touch−screen button initializes all of
the settings. 100. . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can
be viewed. 22. . . . . . . . . . . . . . . . . . . . . .
To suspend guidance
XS00301
1. Push the “MENU” button.
4U5001aF
2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, “Suspend
Guidance” cannot be used.
4U5002F
The screen will return to the current posi-
tion map without route guidance.
Suspending and resuming
guidance

ADVANCED FUNCTIONS
85

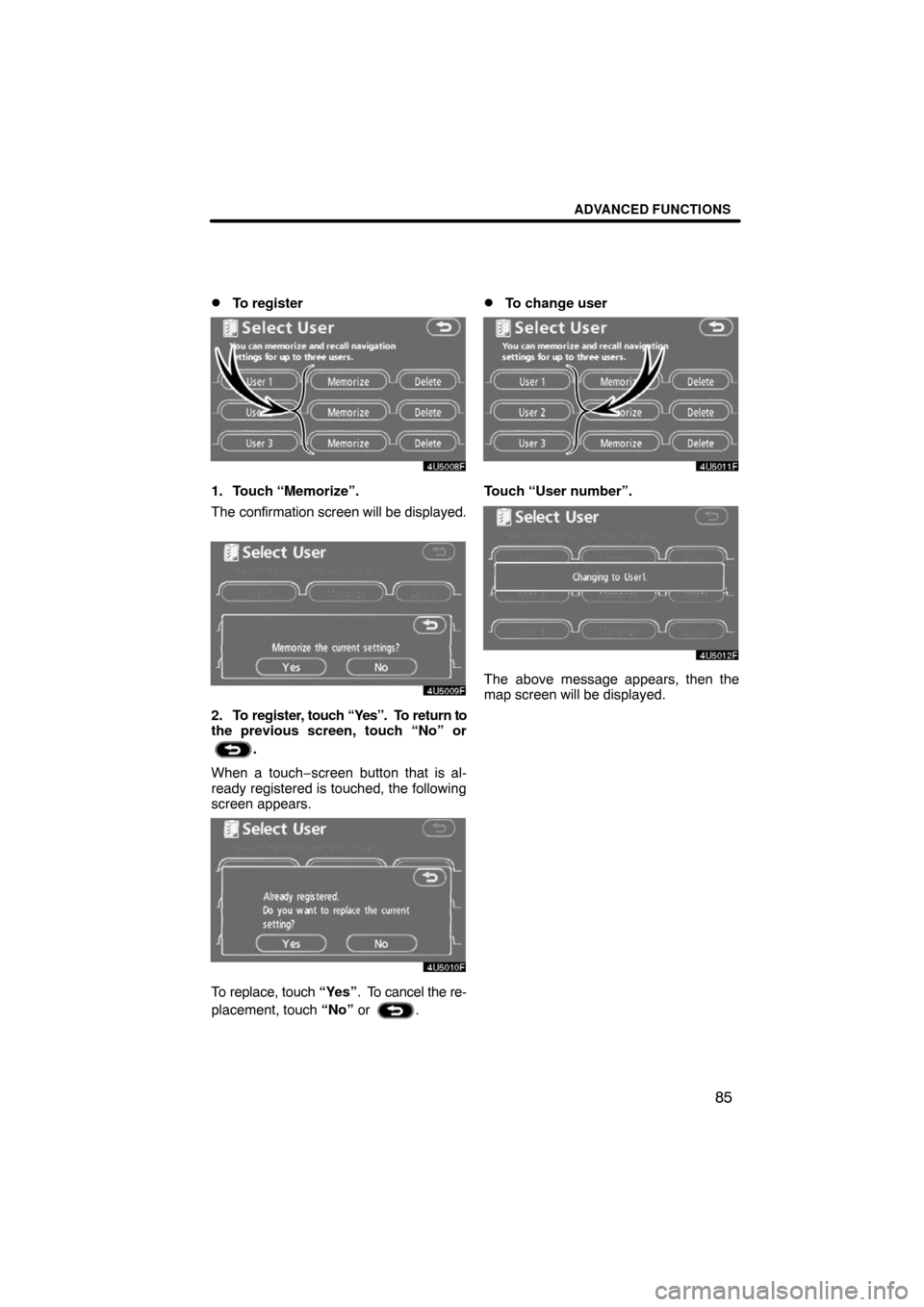

To register
4U5008F
1. Touch “Memorize”.
The confirmation screen will be displayed.
4U5009F
2. To register, touch “Yes”. To return to
the previous screen, touch “No” or
.
When a touch−screen button that is al-
ready registered is touched, the following
screen appears.
4U5010F
To replace, touch “Yes”. To cancel the re-
placement, touch “No” or
.
To change user
4U5011F
Touch “User number”.
4U5012F
The above message appears, then the
map screen will be displayed.

ADVANCED FUNCTIONS
86
To delete user
4U5013F
1. Touch “Delete”.
The confirmation screen will be displayed.
4U5014F
2. To delete, touch “Yes”. To return to
the previous screen, touch “No” or
.Points or areas on the map can be regis-
tered.
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Home” on page 38 and “ —
Destination search by Quick access” on
page 38.)
Registered areas are avoided at the time of
route search.
XS00301
1. Push the “MENU” button.
4U5015aF
2. Touch “My Places”.
My places —

ADVANCED FUNCTIONS
87
4U5016F
On this screen, the following operations
can be performed.
1Registers memory points. (See “ —
Registering memory points” on page
87.)
2Edits memory points. (See “ —
Editing memory points” on page 88.)
3Deletes memory points. (See “ —
Deleting memory points” on page
93.)
4Registers or deletes home. (See “
— Registering home” or “ — Deleting
home” on pages 94 or 95.)
5Registers areas to avoid. (See “ —
Registering area to avoid” on page
95.)
6Edits areas to avoid. (See “ —
Editing area to avoid” on page 96.)
7Deletes areas to avoid. (See “ —
Deleting area to avoid” on page 99.)
8Deletes previous points. (See “ —
Deleting previous points” on page
100.)
9Number of remaining memory
points
10Number of remaining areas to
avoid1. Push the “MENU” button.
2. Touch “My Places”.
4U5017F
3. Touch “Register”.
4U5018F
4. Enter the location in the same way
as for a destination search. (See
“Destination search” on page 35.)
After memory point registration is com-
pleted, the “Memory Point” screen will be
displayed.
— Registering memory
points

ADVANCED FUNCTIONS
89
4U5022F
5. Touch the touchscreen button to
be edited.
“Icon”: To select icons to be displayed on
the map. (See page 89.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” but-
ton. (See page 90.)
“Name”: To edit memory point names.
The names can be displayed on the map.
(See page 91.)
“Location”: To edit location information.
(See page 92.)
“Phone #”: To edit telephone numbers.
(See page 93.)
6. Touch “OK”.
To change “Icon”
1. Touch “Icon” on the “Memory
Point” screen.
4U5023F
2. Touch the desired icon.
Turn the page by touching “Page 1”,
“Page 2” or “with Sound”.

ADVANCED FUNCTIONS
91

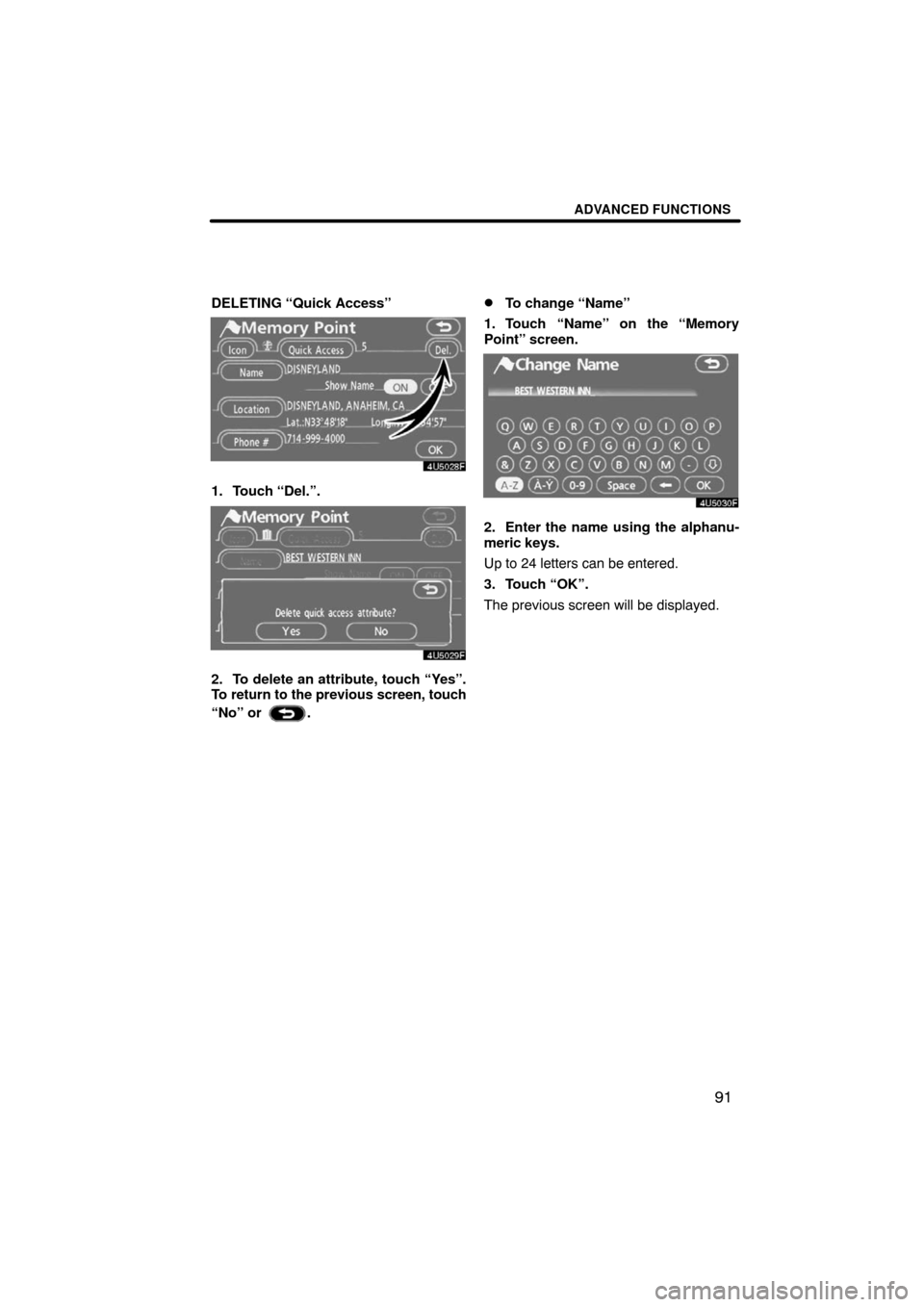

DELETING “Quick Access”
4U5028F
1. Touch “Del.”.
4U5029F
2. To delete an attribute, touch “Yes”.
To return to the previous screen, touch
“No” or
.
To change “Name”
1. Touch “Name” on the “Memory
Point” screen.
4U5030F
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
92

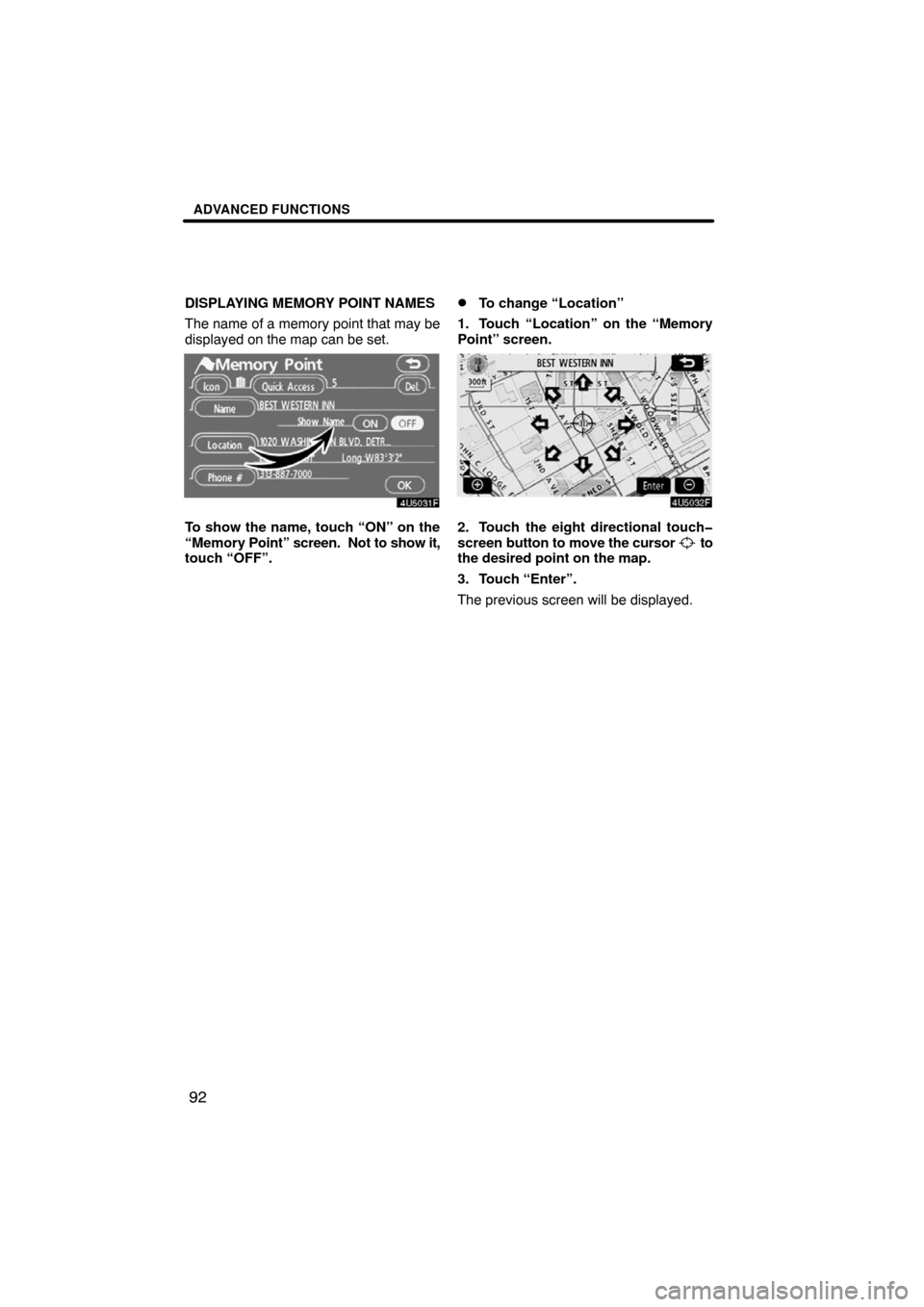

DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be
displayed on the map can be set.
4U5031F
To show the name, touch “ON” on the
“Memory Point” screen. Not to show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
4U5032F
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
93

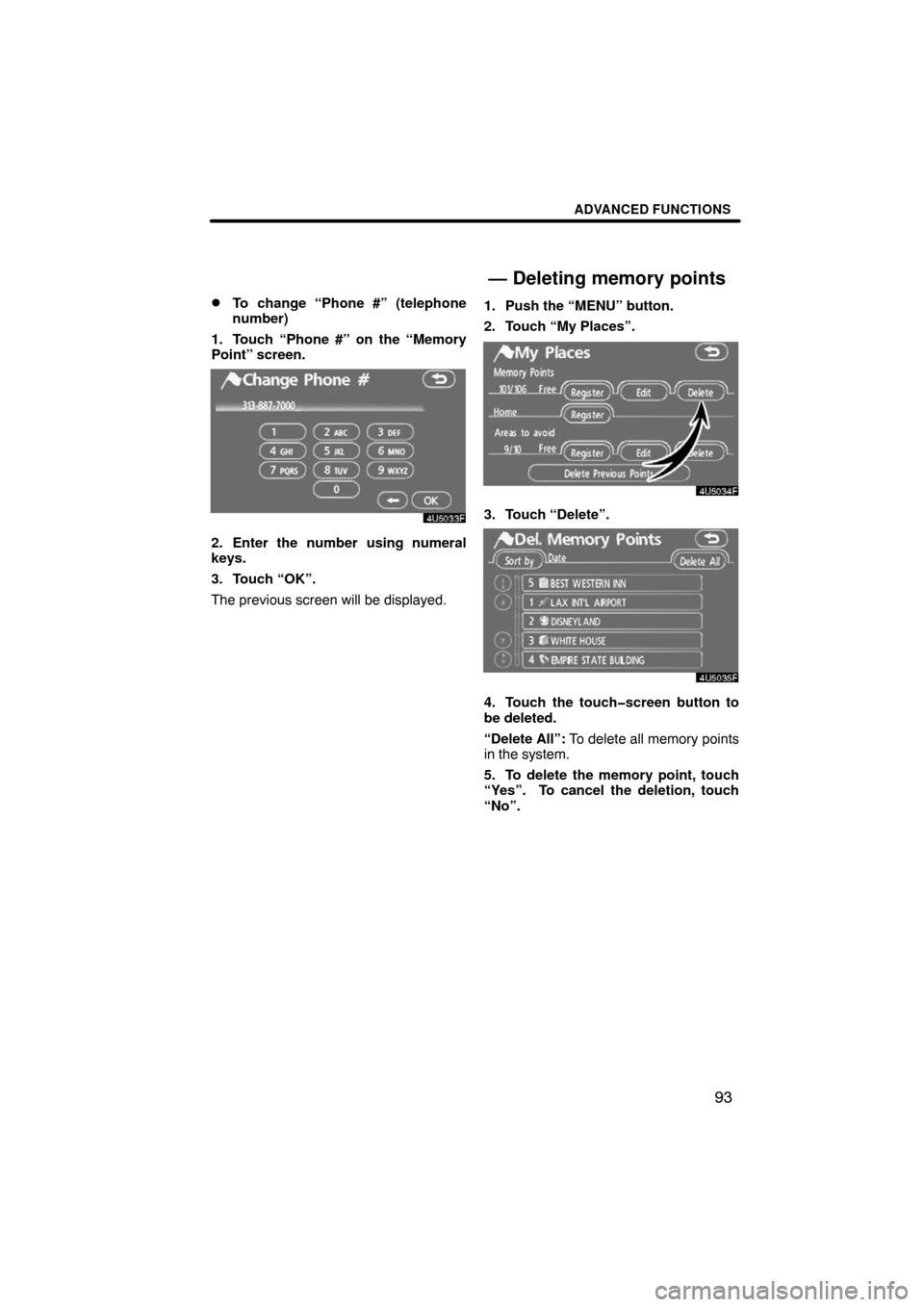

To change “Phone #” (telephone
number)
1. Touch “Phone #” on the “Memory
Point” screen.
4U5033F
2. Enter the number using numeral
keys.
3. Touch “OK”.
The previous screen will be displayed.1. Push the “MENU” button.
2. Touch “My Places”.
4U5034F
3. Touch “Delete”.
4U5035F
4. Touch the touchscreen button to
be deleted.
“Delete All”: To delete all memory points
in the system.
5. To delete the memory point, touch
“Yes”. To cancel the deletion, touch
“No”.
— Deleting memory points

ADVANCED FUNCTIONS
95
1. Push the “MENU” button.
2. Touch “My Places”.
4U5039F
3. Touch “Delete”.
4. To delete home, touch “Yes”. To
cancel the deletion, touch “No”.Areas you want to avoid because of traffic
jams, construction work or other reasons
can be registered as areas to avoid.
1. Push the “MENU” button.
2. Touch “My Places”.
4U5040F
3. Touch “Register”.
4U5041F
4. Enter the location in the same way
as for a destination search, or display
the map of the area to be avoided. (See
“Destination search” on page 35.)
4U5042F
5. Touch the eight directional
touchscreen button to set the cursor
in the center of the area to avoid, and
touch “Enter”.
— Deleting home— Registering area to avoid

ADVANCED FUNCTIONS
96

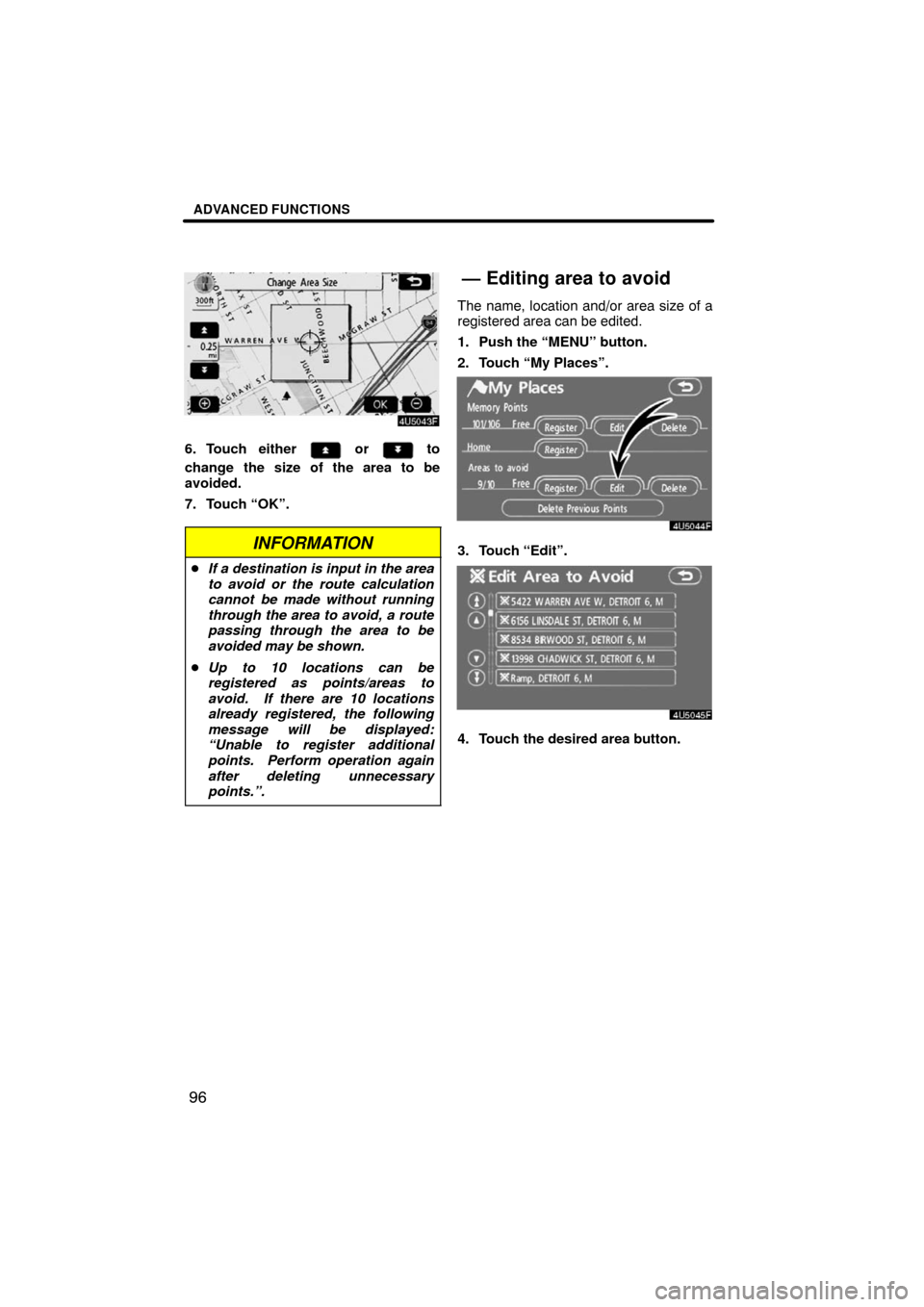

4U5043F
6. Touch either or to
change the size of the area to be
avoided.
7. Touch “OK”.
INFORMATION
If a destination is input in the area
to avoid or the route calculation
cannot be made without running
through the area to avoid, a route
passing through the area to be
avoided may be shown.
Up to 10 locations can be
registered as points/areas to
avoid. If there are 10 locations
already registered, the following
message will be displayed:
“Unable to register additional
points. Perform operation again
after deleting unnecessary
points.”.
The name, location and/or area size of a
registered area can be edited.
1. Push the “MENU” button.
2. Touch “My Places”.
4U5044F
3. Touch “Edit”.
4U5045F
4. Touch the desired area button.
— Editing area to avoid
