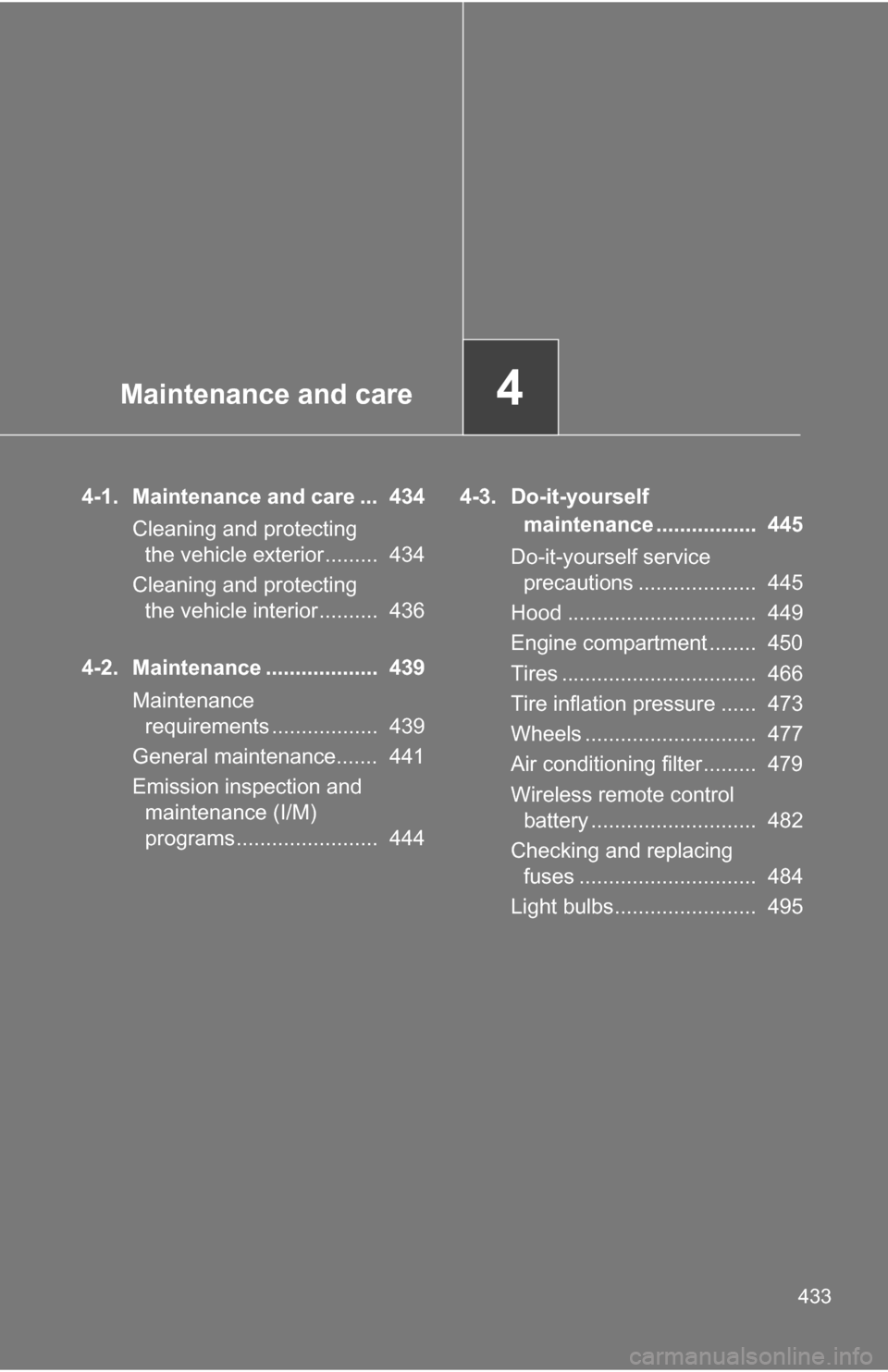

Maintenance and care4
433
4-1. Maintenance and care ... 434Cleaning and protecting the vehicle exterior......... 434
Cleaning and protecting the vehicle interior.......... 436
4-2. Maintenance ................... 439 Maintenance requirements .................. 439
General maintenance....... 441
Emission inspection and maintenance (I/M)
programs........................ 444 4-3. Do-it-yourself
maintenance ................. 445
Do-it-yourself service precautions .................... 445
Hood ................................ 449
Engine compartment ........ 450
Tires ................................. 466
Tire inflation pressure ...... 473
Wheels ............................. 477
Air conditioning filter......... 479
Wireless remote control battery ............................ 482
Checking and replacing fuses .............................. 484
Light bulbs........................ 495

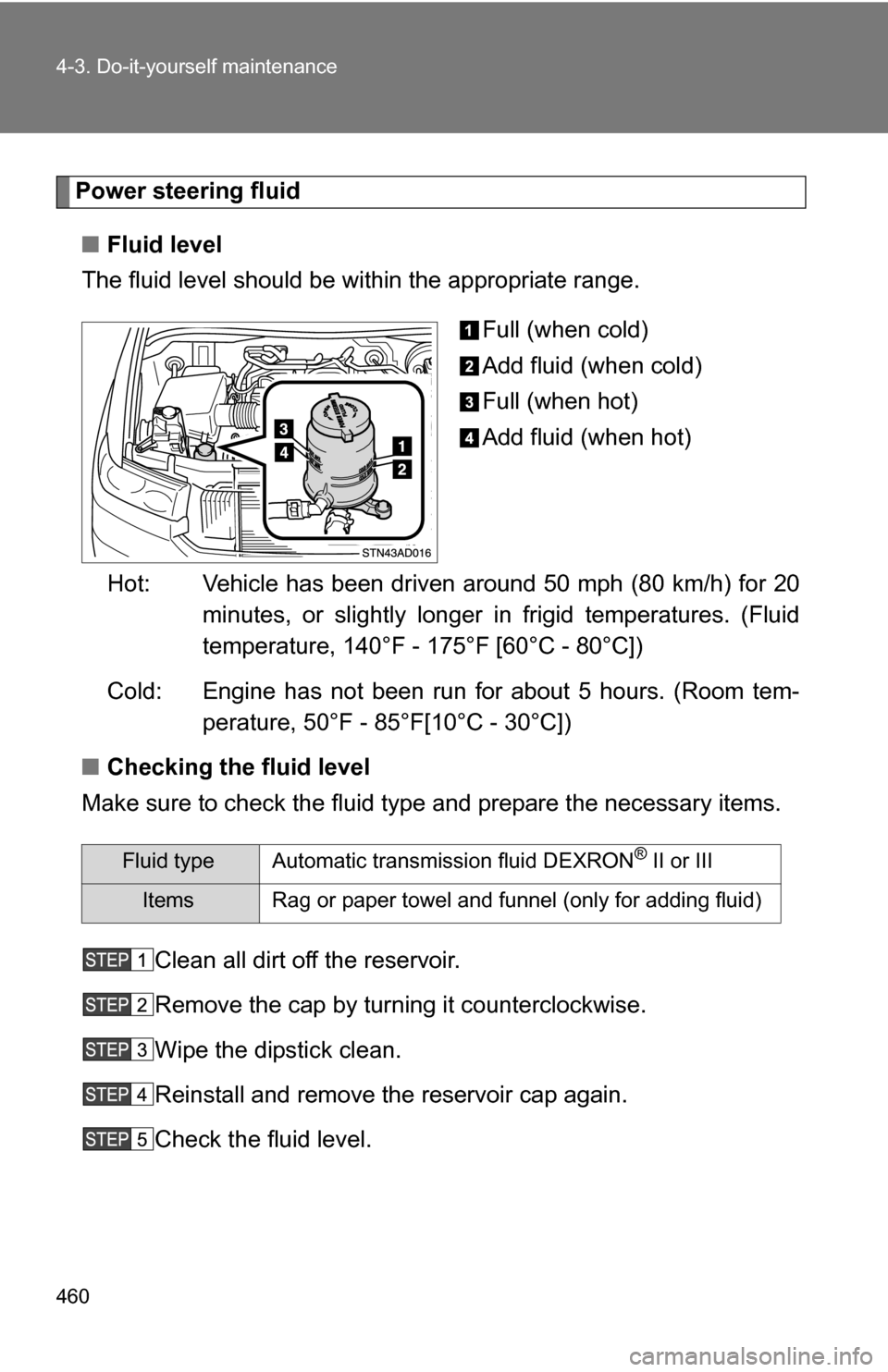

460 4-3. Do-it-yourself maintenance
Power steering fluid■ Fluid level
The fluid level should be within the appropriate range.
Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot: Vehicle has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in frigid temperatures. (Fluid
temperature, 140°F - 175°F [60°C - 80°C])
Cold: Engine has not been run for about 5 hours. (Room tem- perature, 50°F - 85°F[10°C - 30°C])
■ Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turn ing it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
Fluid type Automatic transmission fluid DEXRON® II or III
Items Rag or paper towel and funnel (only for adding fluid)

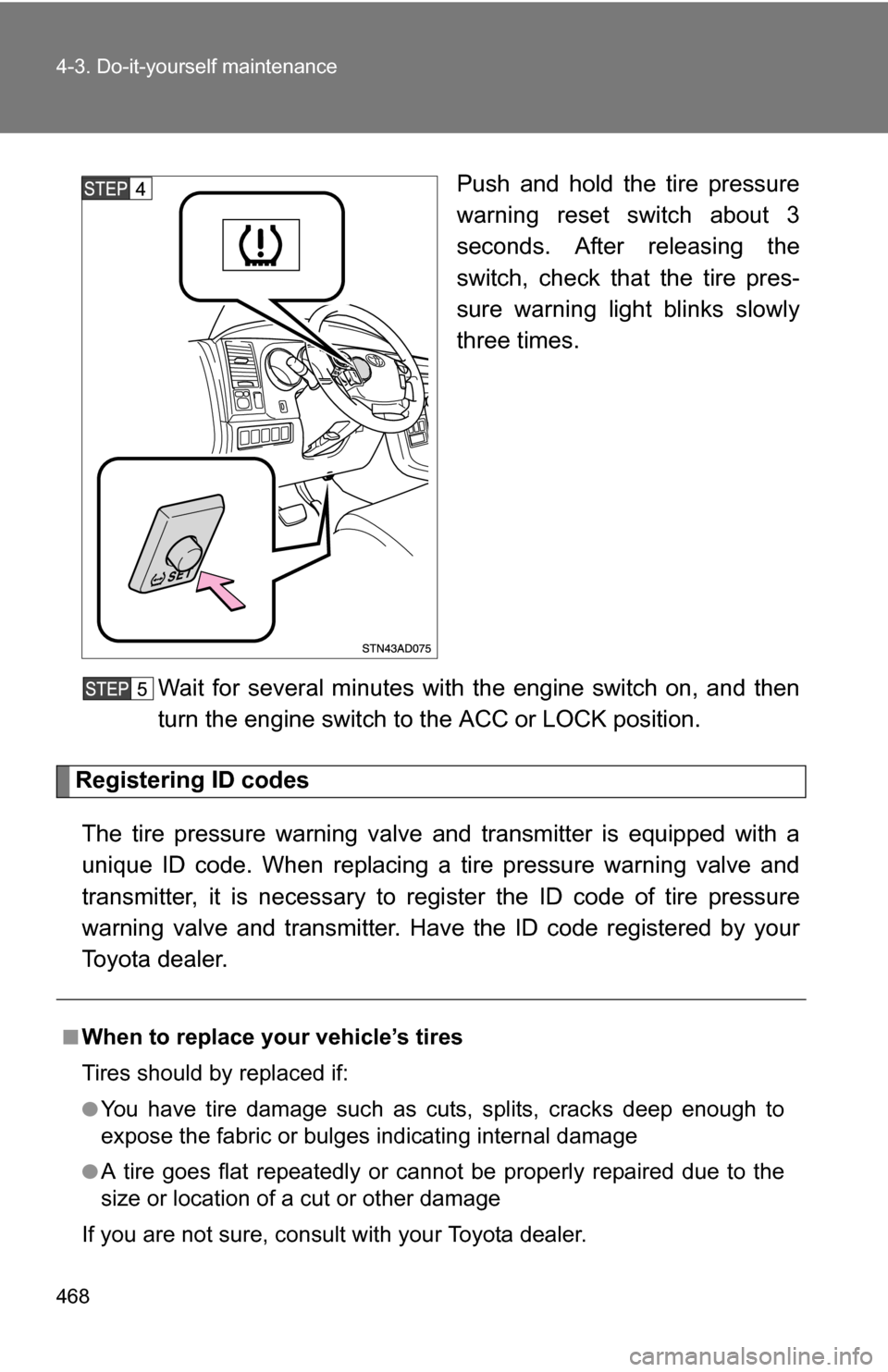

468 4-3. Do-it-yourself maintenance
Push and hold the tire pressure
warning reset switch about 3
seconds. After releasing the
switch, check that the tire pres-
sure warning light blinks slowly
three times.
Wait for several minutes with the engine switch on, and then
turn the engine switch to the ACC or LOCK position.
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to regi ster the ID code of tire pressure
warning valve and transmitter. Have the ID code registered by your
Toyota dealer.
■When to replace your vehicle’s tires
Tires should by replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to
expose the fabric or bulges indicating internal damage
●A tire goes flat repeatedly or c annot be properly repaired due to the
size or location of a cut or other damage
If you are not sure, consult with your Toyota dealer.

5
When trouble arises
521

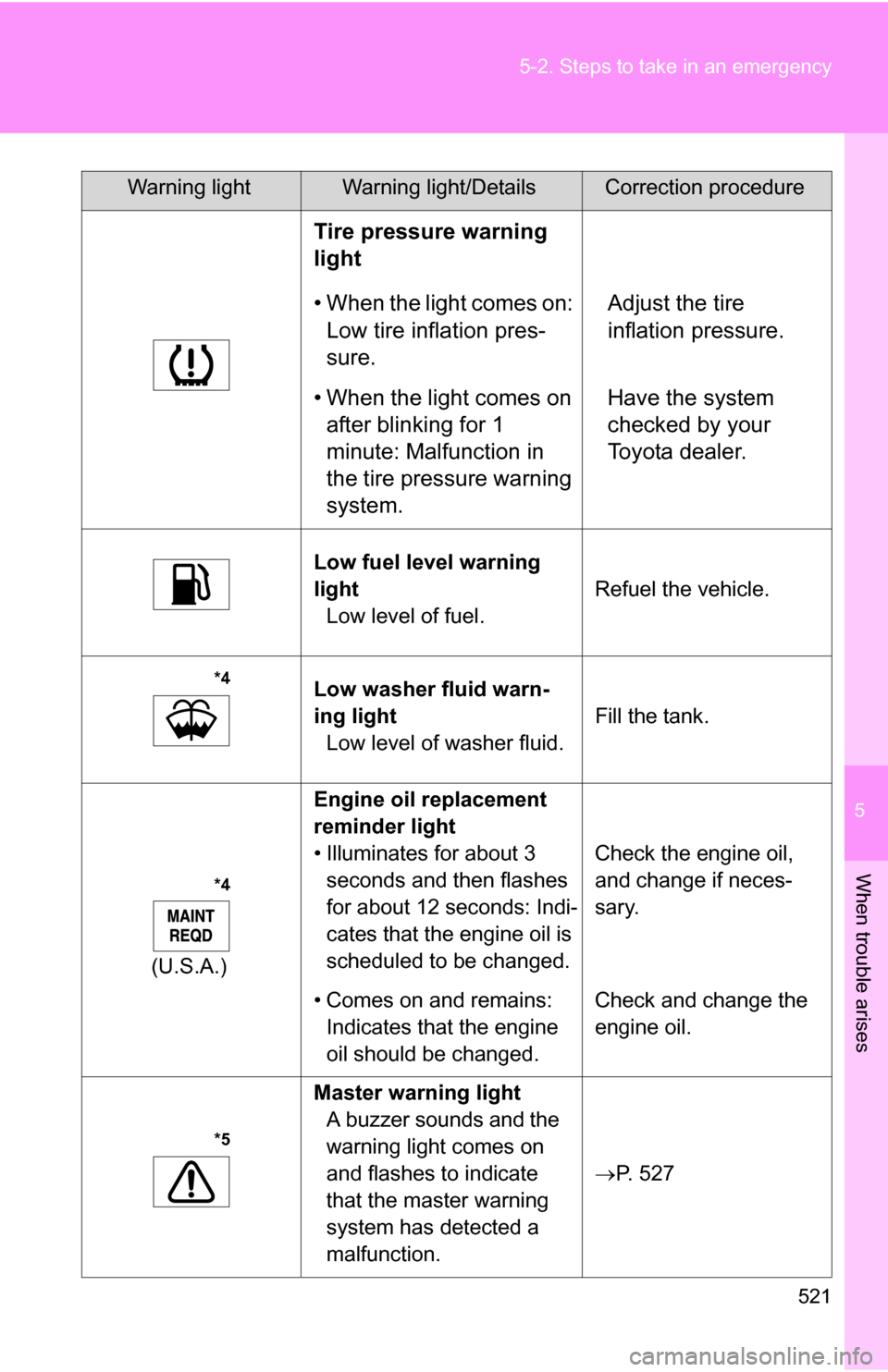

5-2. Steps to take in an emergency
Tire pressure warning
light
• When the light comes on:
Low tire inflation pres-
sure. Adjust the tire
inflation pressure.
• When the light comes on after blinking for 1
minute: Malfunction in
the tire pressure warning
system. Have the system
checked by your
Toyota dealer.
Low fuel level warning
light
Low level of fuel. Refuel the vehicle.
*4Low washer fluid warn-
ing light
Low level of washer fluid. Fill the tank.
*4
(U.S.A.)Engine oil replacement
reminder light
• Illuminates for about 3
seconds and then flashes
for about 12 seconds: Indi-
cates that the engine oil is
scheduled to be changed. Check the engine oil,
and change if neces-
sary.
• Comes on and remains: Indicates that the engine
oil should be changed. Check and change the
engine oil.
*5
Master warning light
A buzzer sounds and the
warning light comes on
and flashes to indicate
that the master warning
system has detected a
malfunction. P. 527
Warning lightWarning light/DetailsCorrection procedure

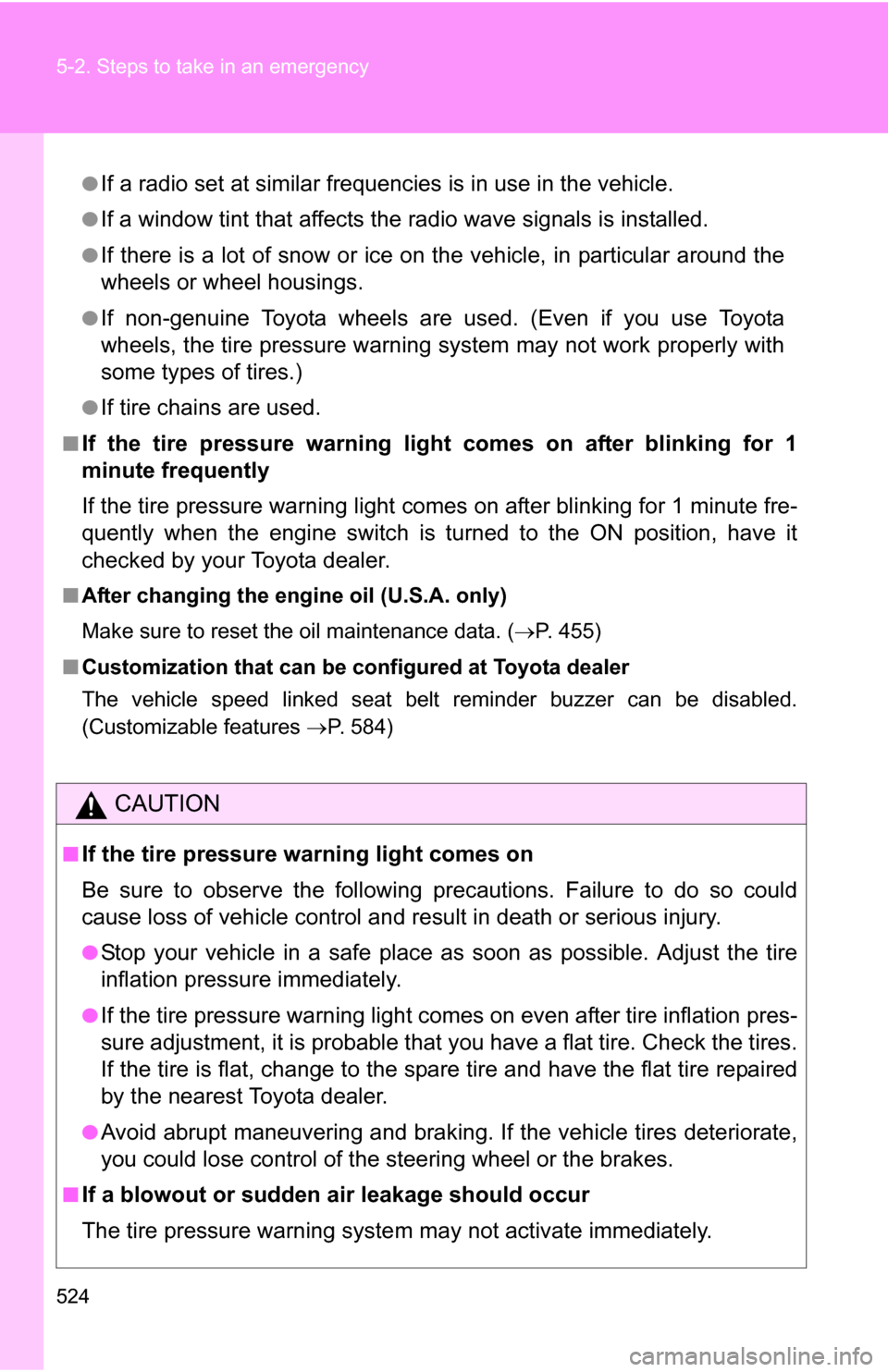

524 5-2. Steps to take in an emergency
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the
wheels or wheel housings.
●If non-genuine Toyota wheels are used. (Even if you use Toyota
wheels, the tire pressu re warning system may not work properly with
some types of tires.)
●If tire chains are used.
■If the tire pressure warning light comes on after blinking for 1
minute frequently
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the ON position, have it
checked by your Toyota dealer.
■ After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( P. 455)
■ Customization that can be co nfigured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 584)
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and re sult in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning syste m may not activate immediately.

5
When trouble arises
547
5-2. Steps to take in an emergency

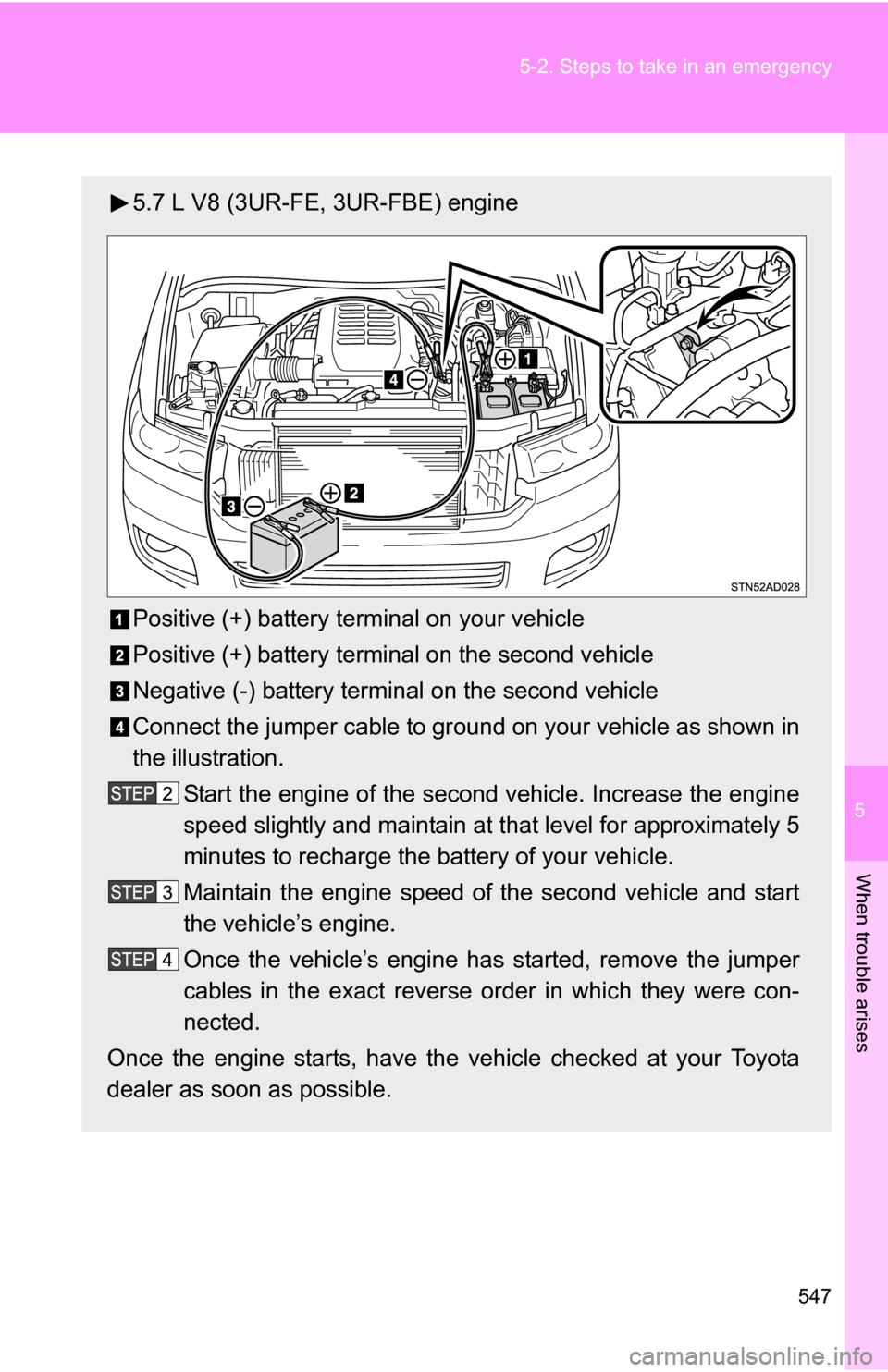

5.7 L V8 (3UR-FE, 3UR-FBE) engine
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start
the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.

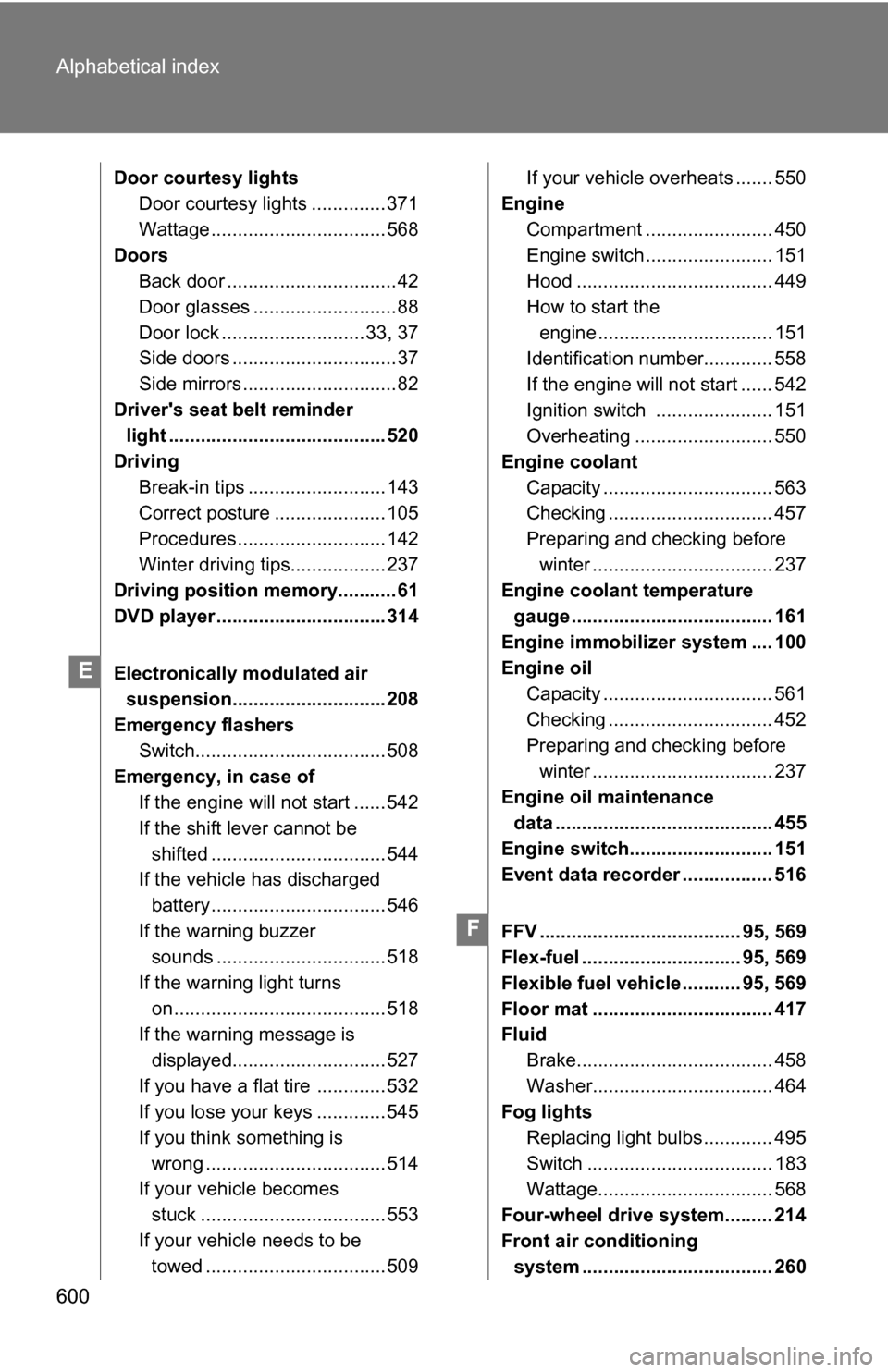

600 Alphabetical index
Door courtesy lightsDoor courtesy lights .............. 371
Wattage ................................. 568
Doors Back door ................................42
Door glasses ...........................88
Door lock ...........................33, 37
Side doors ...............................37
Side mirrors .............................82
Driver's seat belt reminder light ......................................... 520
Driving Break-in tips .......................... 143
Correct posture ..................... 105
Procedures ............................ 142
Winter driving tips.................. 237
Driving position memory...........61
DVD player ................................ 314
Electronically modulated air
suspension............................. 208
Emergency flashers
Switch.................................... 508
Emergency, in case of If the engine will not start ...... 542
If the shift lever cannot be
shifted ................................. 544
If the vehicle has discharged
battery ................................. 546
If the warning buzzer sounds ................................ 518
If the warning light turns on ........................................ 518
If the warning message is
displayed............................. 527
If you have a flat tire ............. 532
If you lose your keys ............. 545
If you think something is wrong .................................. 514
If your vehicle becomes
stuck ................................... 553
If your vehicle needs to be towed .................................. 509 If your vehicle overheats ....... 550
Engine
Compartment ........................ 450
Engine switch ........................ 151
Hood ..................................... 449
How to start the engine ................................. 151
Identification number............. 558
If the engine will not start ...... 542
Ignition switch ...................... 151
Overheating .......................... 550
Engine coolant Capacity ................................ 563
Checking ............................... 457
Preparing and checking before winter .................................. 237
Engine coolan t temperature
gauge ...................................... 161
Engine immobilizer system .... 100
Engine oil Capacity ................................ 561
Checking ............................... 452
Preparing and checking before winter .................................. 237
Engine oil maintenance data ......................................... 455
Engine switch........................... 151
Event data recorder ................. 516
FFV ...................................... 95, 569
Flex-fuel .............................. 95, 569
Flexible fuel vehicle ........... 95, 569
Floor mat .................................. 417
Fluid Brake..................................... 458
Washer.................................. 464
Fog lights
Replacing light bulbs ............. 495
Switch ................................... 183
Wattage................................. 568
Four-wheel drive system......... 214
Front air conditioning system .................................... 260
E
F

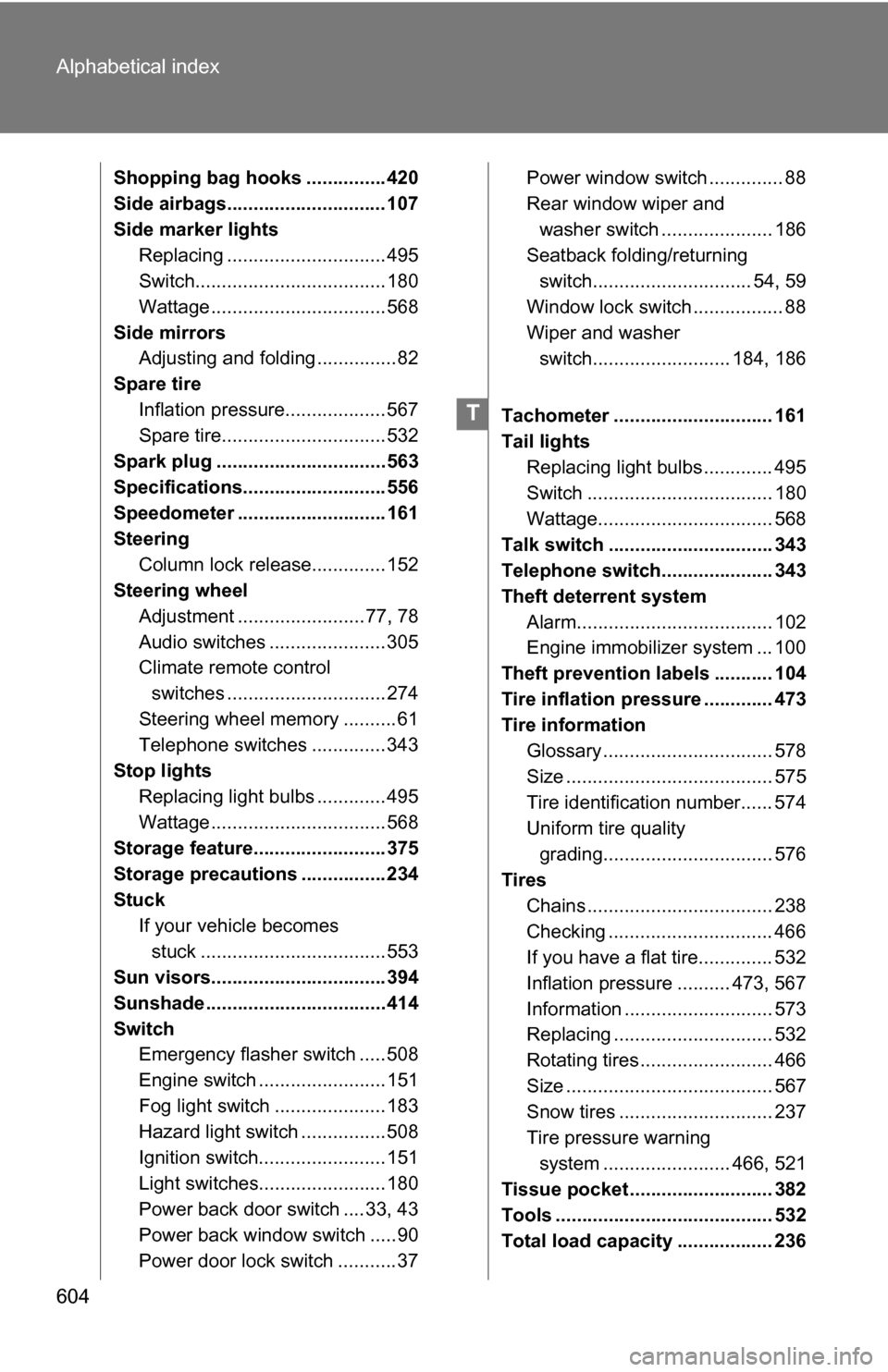

604 Alphabetical index
Shopping bag hooks ............... 420
Side airbags.............................. 107
Side marker lightsReplacing .............................. 495
Switch.................................... 180
Wattage ................................. 568
Side mirrors Adjusting and folding ...............82
Spare tire Inflation pressure................... 567
Spare tire............................... 532
Spark plug ................................ 563
Specifications........................... 556
Speedometer ............................ 161
Steering Column lock release.............. 152
Steering wheel
Adjustment ........................77, 78
Audio switches ...................... 305
Climate remote control switches .............................. 274
Steering wheel memory ..........61
Telephone switches .............. 343
Stop lights Replacing light bulbs ............. 495
Wattage ................................. 568
Storage feature......................... 375
Storage precautions ................234
Stuck If your vehicle becomes stuck ................................... 553
Sun visors................................. 394
Sunshade .................................. 414
Switch Emergency flasher switch ..... 508
Engine switch ........................ 151
Fog light switch ..................... 183
Hazard light switch ................508
Ignition switch........................ 151
Light switches........................ 180
Power back door switch ....33, 43
Power back window switch .....90
Power door lock switch ...........37 Power window switch .............. 88
Rear window wiper and
washer switch ..................... 186
Seatback folding/returning switch.............................. 54, 59
Window lock switch ................. 88
Wiper and washer switch.......................... 184, 186
Tachometer .............................. 161
Tail lights Replacing light bulbs ............. 495
Switch ................................... 180
Wattage................................. 568
Talk switch ............................... 343
Telephone switch..................... 343
Theft deterrent system Alarm..................................... 102
Engine immobilizer system ... 100
Theft prevention labels ........... 104
Tire inflation pressure ............. 473
Tire information Glossary ................................ 578
Size ....................................... 575
Tire identification number...... 574
Uniform tire quality grading................................ 576
Tires
Chains ................................... 238
Checking ............................... 466
If you have a flat tire.............. 532
Inflation pressure .......... 473, 567
Information ............................ 573
Replacing .............................. 532
Rotating tires ......................... 466
Size ....................................... 567
Snow tires ............................. 237
Tire pressure warning system ........................ 466, 521
Tissue pocket ........................... 382
Tools ......................................... 532
Total load capacity .................. 236
T

605

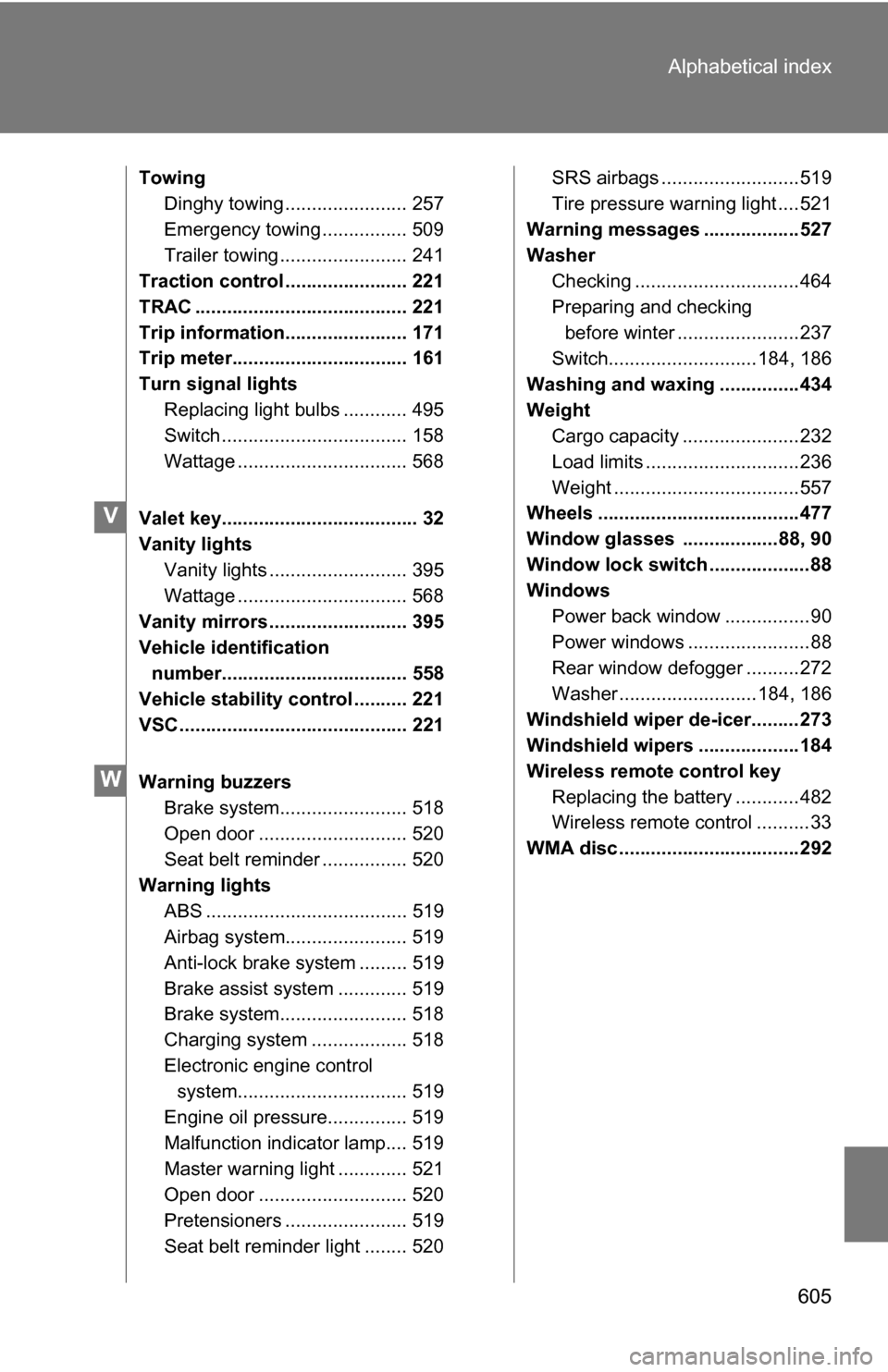

Alphabetical index
Towing
Dinghy towing ....................... 257
Emergency towing ................ 509
Trailer towing ........................ 241
Traction control ....................... 221
TRAC ........................................ 221
Trip information....................... 171
Trip meter................................. 161
Turn signal lights
Replacing light bulbs ............ 495
Switch ................................... 158
Wattage ................................ 568
Valet key..................................... 32
Vanity lights Vanity lights .......................... 395
Wattage ................................ 568
Vanity mirrors .......................... 395
Vehicle identification number................................... 558
Vehicle stability control .......... 221
VSC ........................................... 221
Warning buzzers Brake system........................ 518
Open door ............................ 520
Seat belt reminder ................ 520
Warning lights ABS ...................................... 519
Airbag system....................... 519
Anti-lock brake system ......... 519
Brake assist system ............. 519
Brake system........................ 518
Charging system .... .............. 518
Electronic engine control system................................ 519
Engine oil pressure............... 519
Malfunction indicator lamp.... 519
Master warning light ............. 521
Open door ............................ 520
Pretensioners ....................... 519
Seat belt reminder light ........ 520 SRS airbags ..........................519
Tire pressure warning light ....521
Warning messages ..................527
Washer Checking ...............................464
Preparing and checking
before winter .......................237
Switch............................184, 186
Washing and waxing ...............434
Weight Cargo capacity ......................232
Load limits .............................236
Weight ...................................557
Wheels ......................................477
Window glasses ..................88, 90
Window lock switch ...................88
Windows
Power back window ................90
Power windows .......................88
Rear window defogger ..........272
Washer ..........................184, 186
Windshield wiper de-icer.........273
Windshield wipers ...................184
Wireless remote control key Replacing the battery ............482
Wireless remote control ..........33
WMA disc ..................................292
V
W
