TOYOTA SEQUOIA 2009 2.G Owners Manual

5
When trouble arises
551
5-2. Steps to take in an emergency

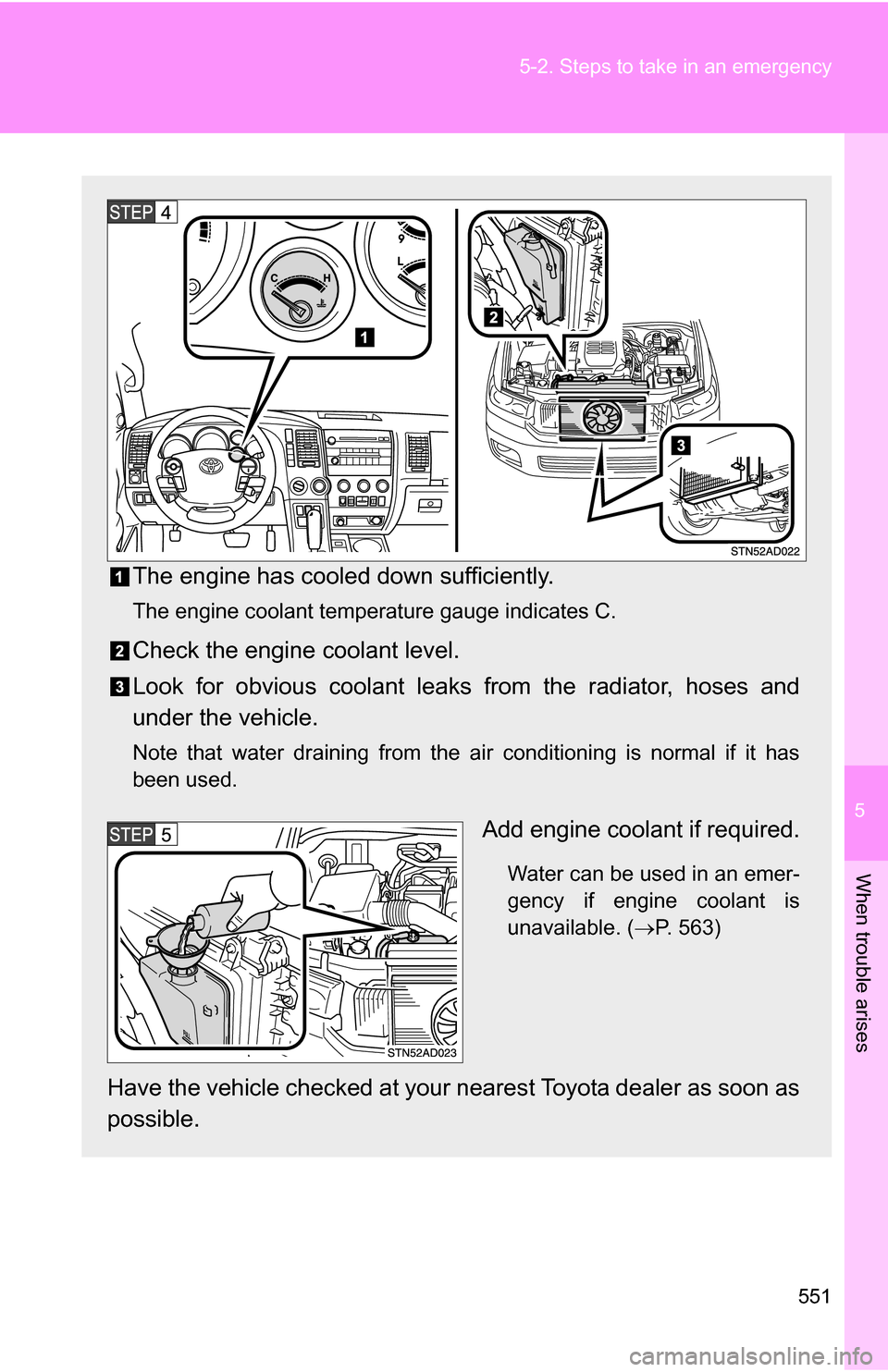

The engine has cooled down sufficiently.
The engine coolant temperature gauge indicates C.
Check the engine coolant level.
Look for obvious coolant leaks
from the radiator, hoses and
under the vehicle.
Note that water draining from the air conditioning is normal if it has
been used.
Add engine coolant if required.
Water can be used in an emer-
gency if engine coolant is
unavailable. ( P. 563)
Have the vehicle checked at your nearest Toyota dealer as soon as
possible.

552 5-2. Steps to take in an emergency

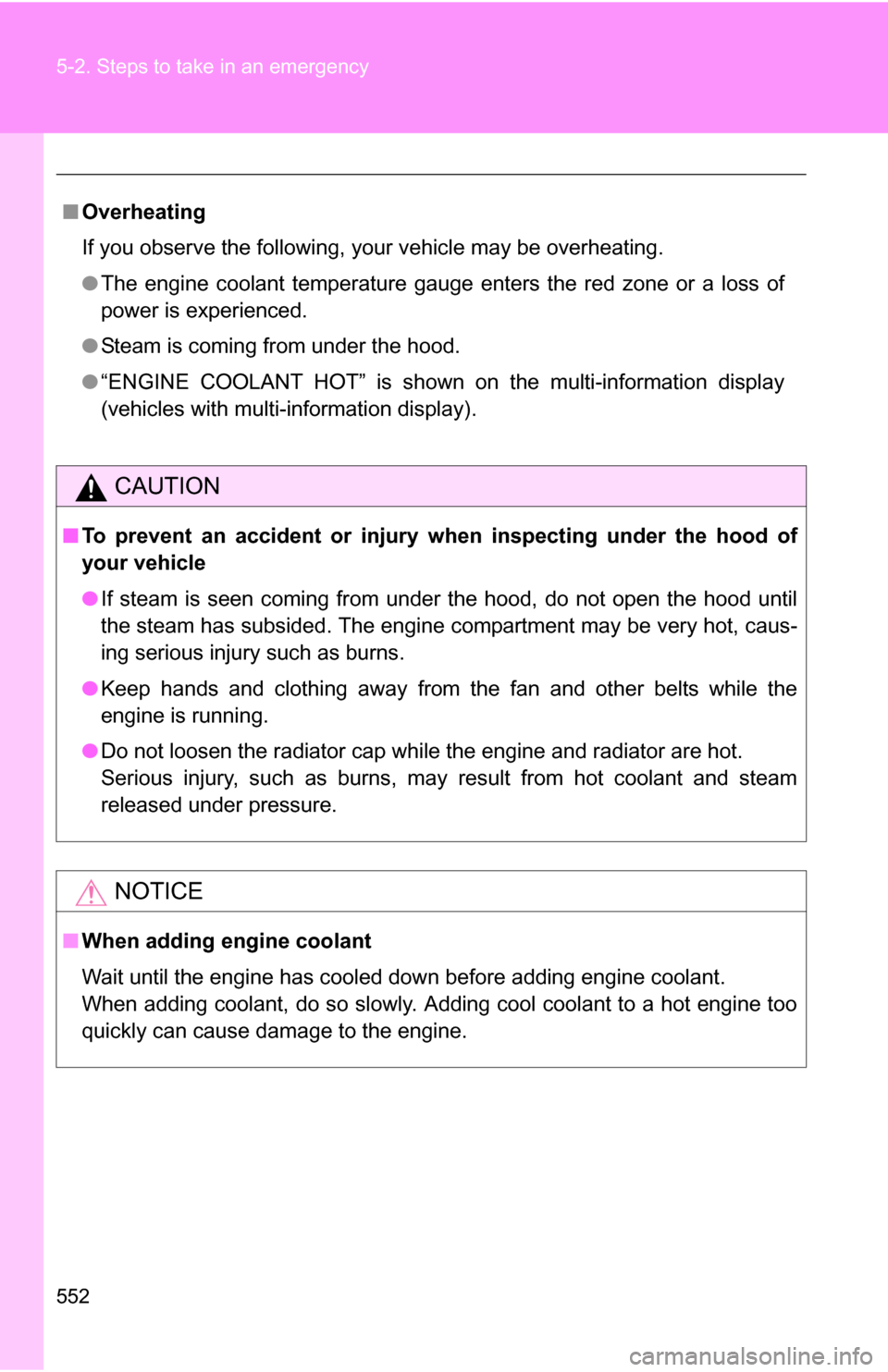

■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
● “ENGINE COOLANT HOT” is shown on the multi-information display
(vehicles with multi-information display).
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing away from the fan and other belts while the
engine is running.
● Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

5
When trouble arises
553
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Turn off the VSC. ( P. 222, 223)
Shift the shift lever to D or R and carefully apply the accel-
erator to free the vehicle.

554 5-2. Steps to take in an emergency

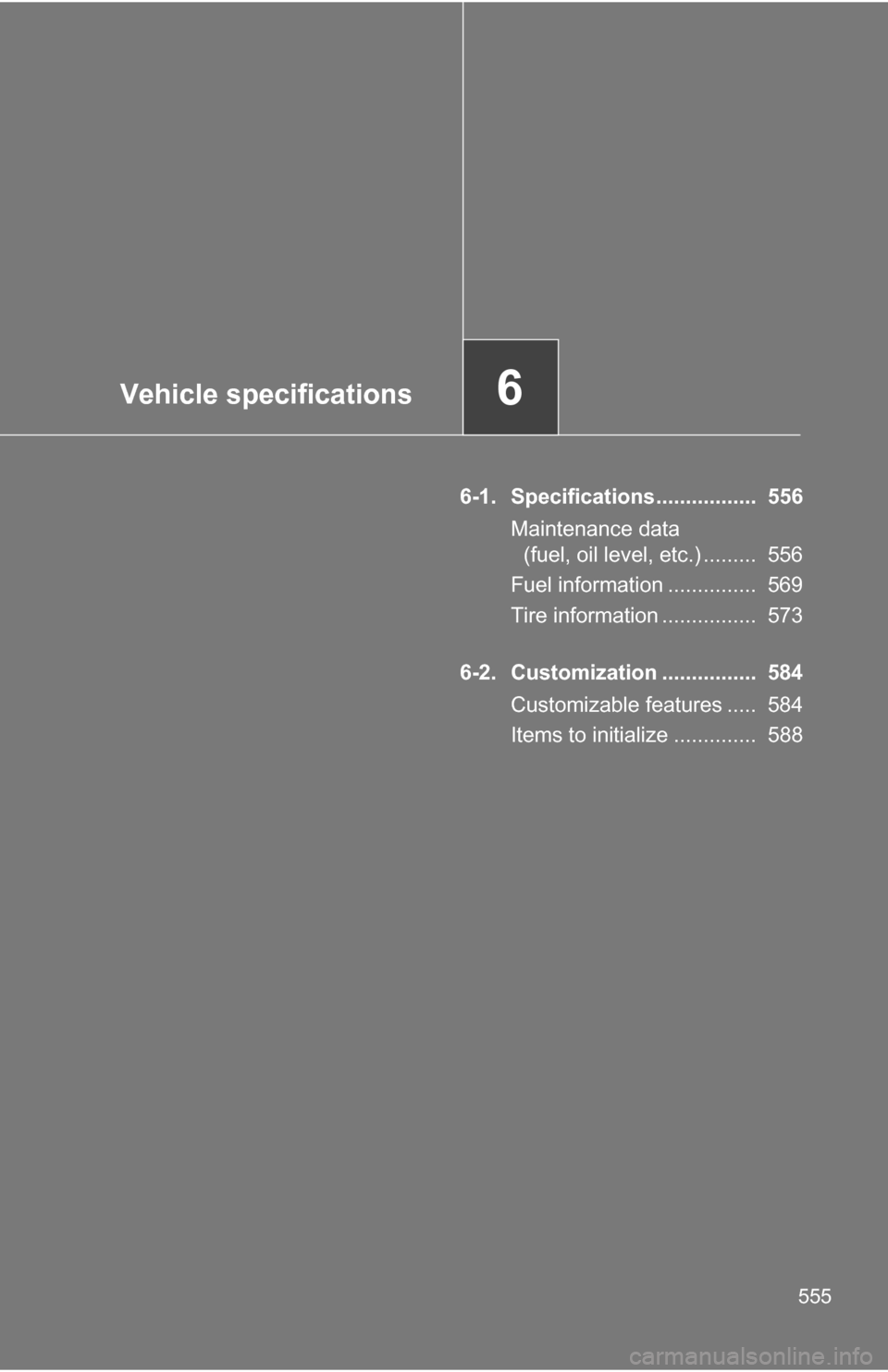

Vehicle specifications6
555
6-1. Specifications................. 556Maintenance data (fuel, oil level, etc.) ......... 556
Fuel information ............... 569
Tire information ................ 573
6-2. Customization ................ 584 Customizable features ..... 584
Items to initialize .............. 588

556
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions
*: Unladen vehicle
Overall length205.1 in. (5210 mm)
Overall width79.9 in. (2030 mm)
Overall height* Without roof rails
74.6 in. (1895 mm)
With roof rails
77.0 in. (1955 mm)
Wheelbase
122.0 in. (3100 mm)
Front tread 67.9 in. (1725 mm)
Rear tread69.1 in. (1755 mm)

557
6-1. Specifications
6
Vehicle specifications

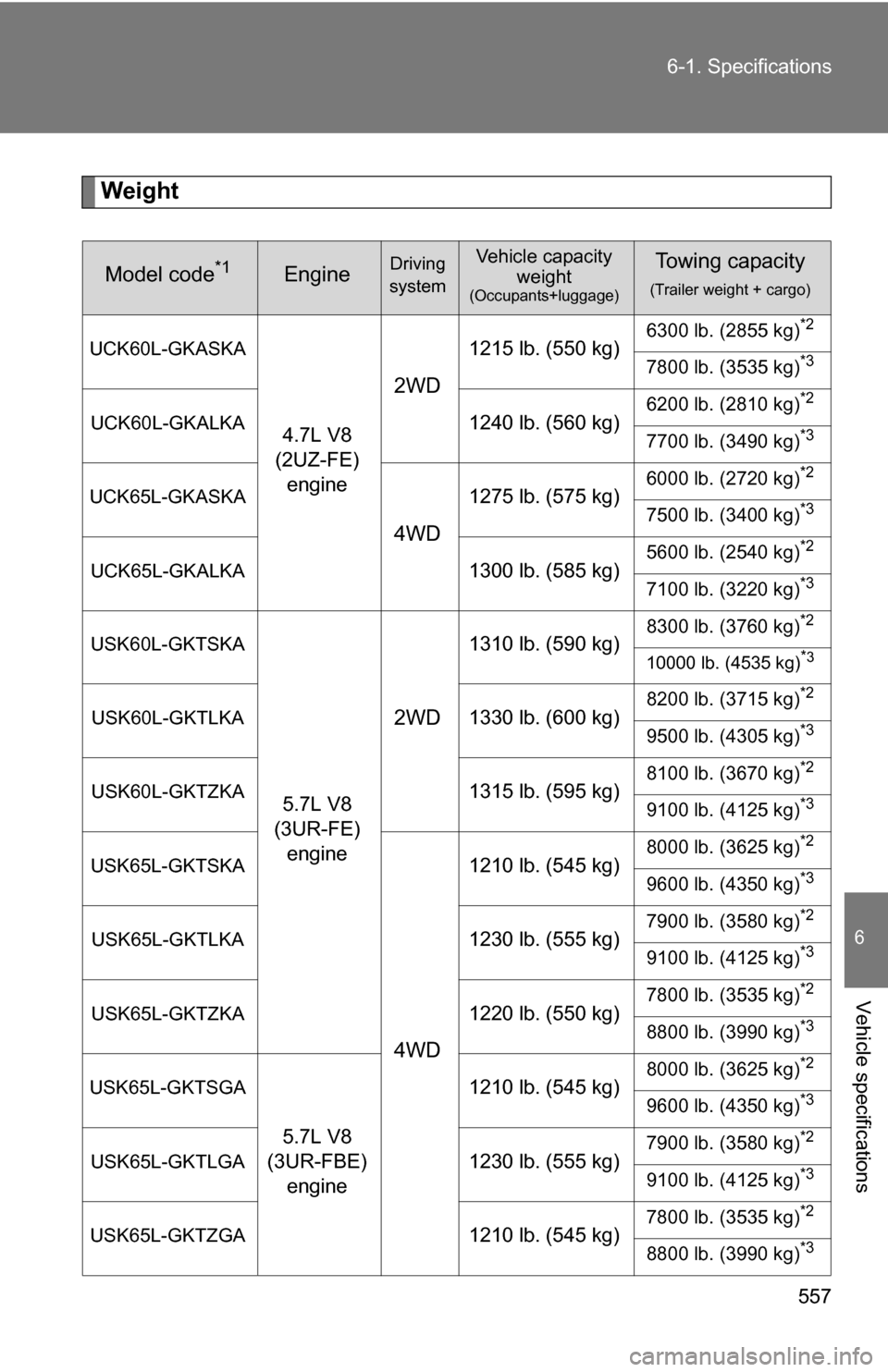

Weight
Model code*1EngineDriving
systemVehicle capacity weight
(Occupants+luggage)
Towing capacity
(Trailer weight + cargo)
UCK60L-GKASKA
4.7L V8
(2UZ-FE)
engine
2WD
1215 lb. (550 kg)6300 lb. (2855 kg)*2
7800 lb. (3535 kg)*3
UCK60L-GKALKA1240 lb. (560 kg)6200 lb. (2810 kg)*2
7700 lb. (3490 kg)*3
UCK65L-GKASKA
4WD
1275 lb. (575 kg)6000 lb. (2720 kg)*2
7500 lb. (3400 kg)*3
UCK65L-GKALKA1300 lb. (585 kg)5600 lb. (2540 kg)*2
7100 lb. (3220 kg)*3
USK60L-GKTSKA
5.7L V8
(3UR-FE)
engine
2WD
1310 lb. (590 kg)8300 lb. (3760 kg)*2
10000 lb. (4535 kg)*3
USK60L-GKTLKA1330 lb. (600 kg)8200 lb. (3715 kg)*2
9500 lb. (4305 kg)*3
USK60L-GKTZKA1315 lb. (595 kg)8100 lb. (3670 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTSKA
4WD
1210 lb. (545 kg)8000 lb. (3625 kg)*2
9600 lb. (4350 kg)*3
USK65L-GKTLKA1230 lb. (555 kg)7900 lb. (3580 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTZKA1220 lb. (550 kg)7800 lb. (3535 kg)*2
8800 lb. (3990 kg)*3
USK65L-GKTSGA
5.7L V8
(3UR-FBE)
engine 1210 lb. (545 kg)
8000 lb. (3625 kg)*2
9600 lb. (4350 kg)*3
USK65L-GKTLGA1230 lb. (555 kg)7900 lb. (3580 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTZGA1210 lb. (545 kg)7800 lb. (3535 kg)*2
8800 lb. (3990 kg)*3

558 6-1. Specifications

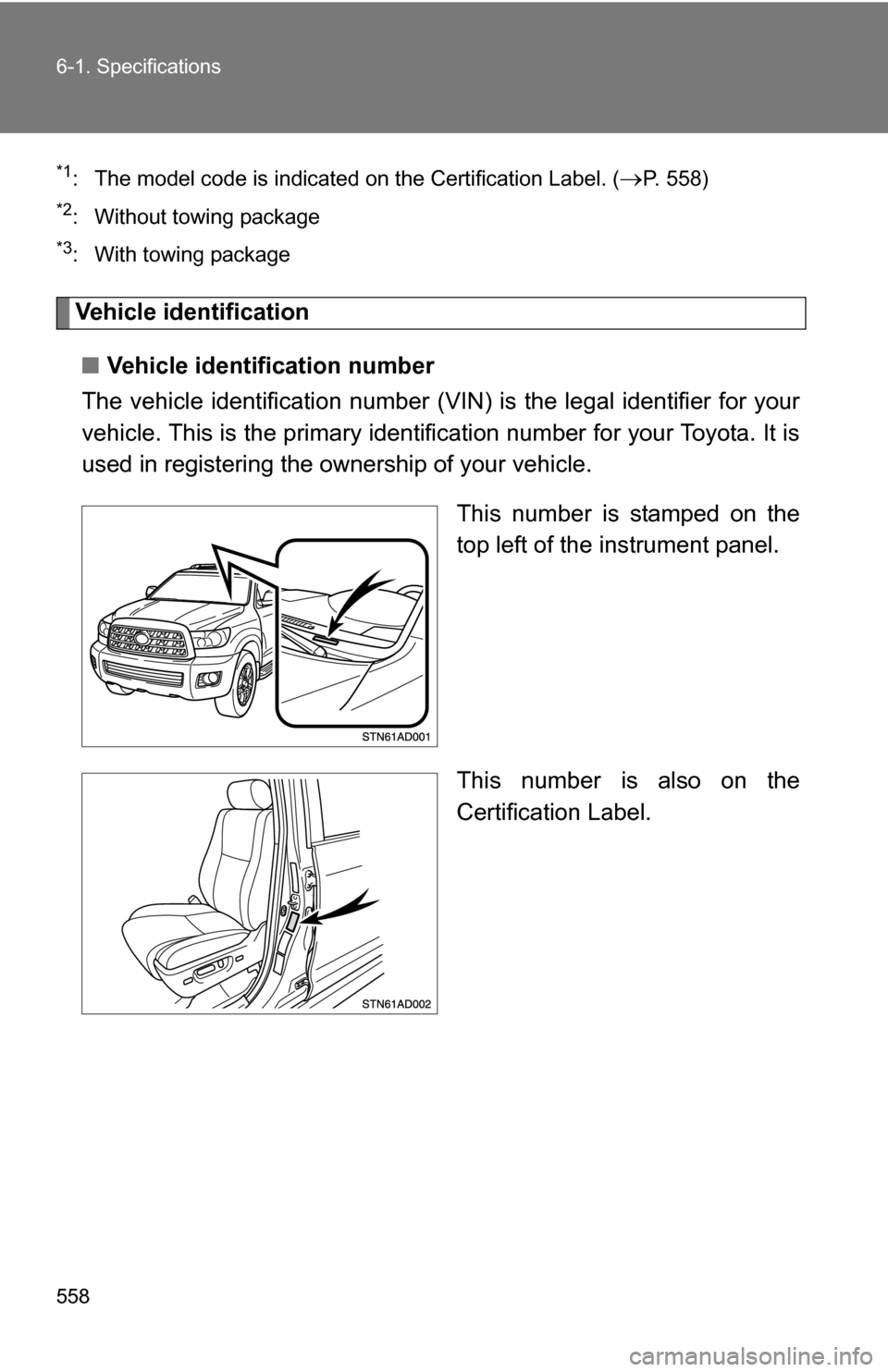

*1: The model code is indicated on the Certification Label. (P. 558)
*2: Without towing package
*3: With towing package
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
Certification Label.

559
6-1. Specifications
6
Vehicle specifications
■

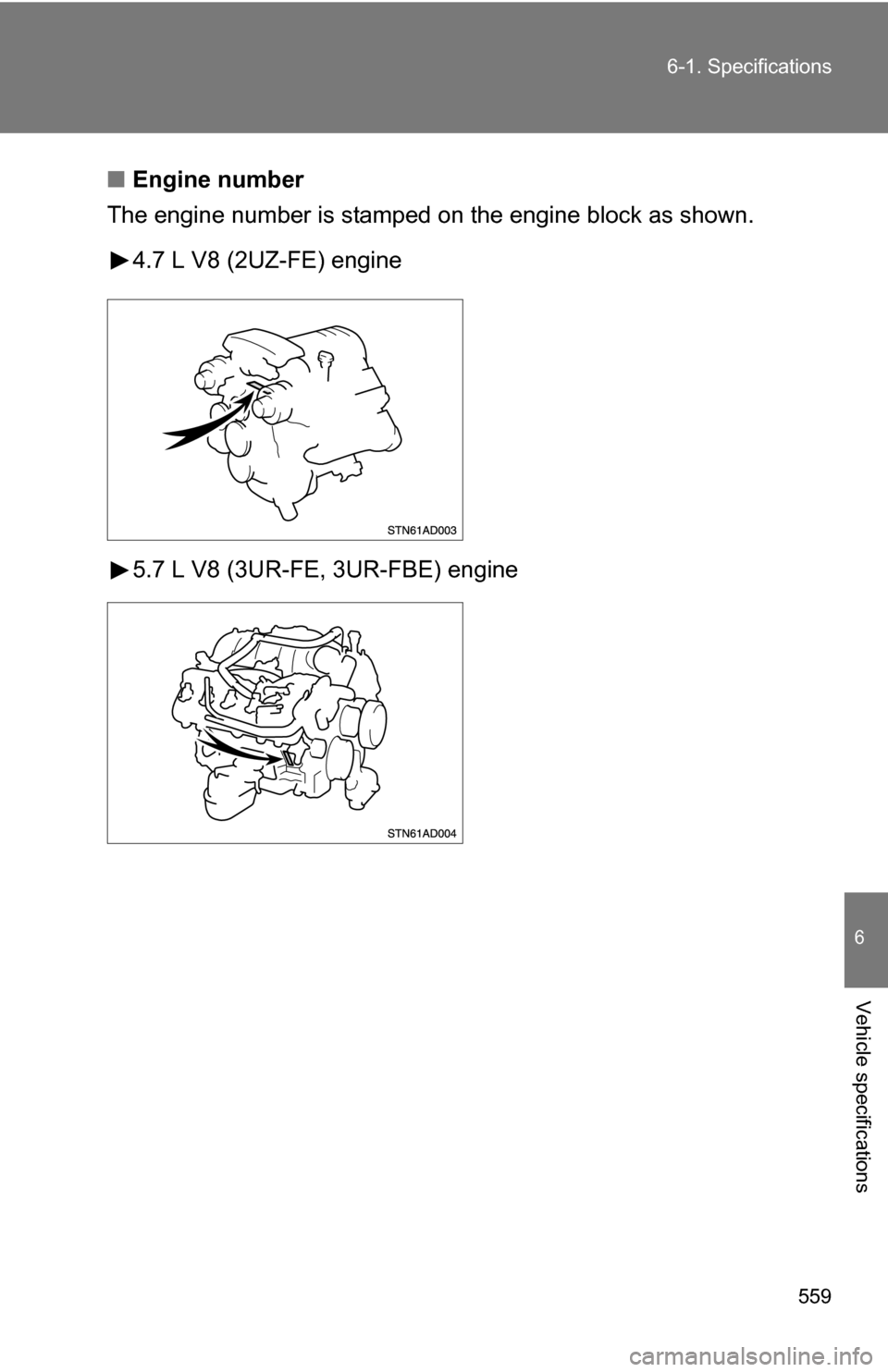

Engine number
The engine number is stamped on the engine bl ock as shown.
4.7 L V8 (2UZ-FE) engine
5.7 L V8 (3UR-FE, 3UR-FBE) engine

560 6-1. Specifications

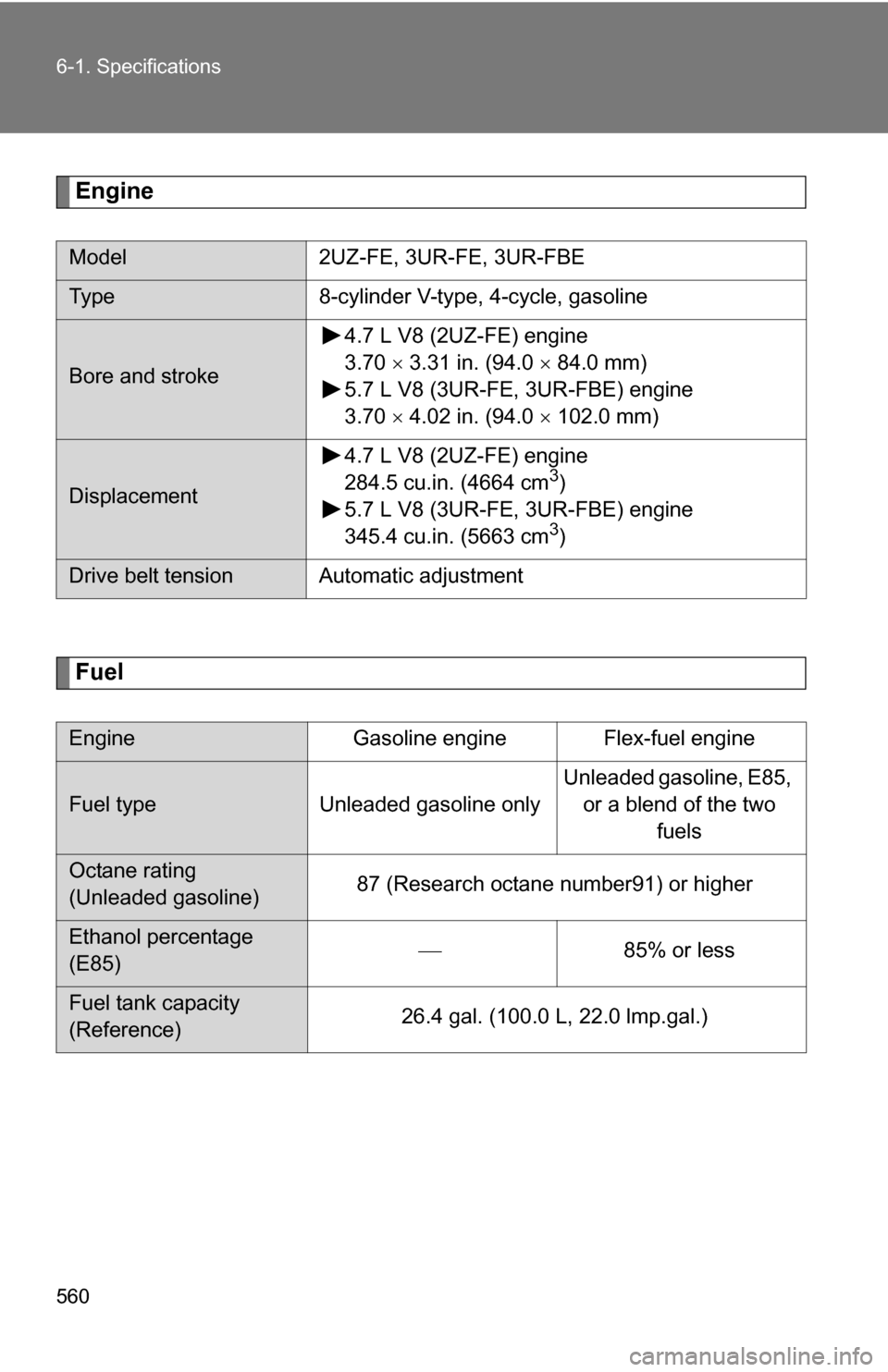

Engine
Fuel
Model2UZ-FE, 3UR-FE, 3UR-FBE
Type 8-cylinder V-type, 4-cycle, gasoline
Bore and stroke 4.7 L V8 (2UZ-FE) engine
3.70 
3.31 in. (94.0  84.0 mm)
5.7 L V8 (3UR-FE, 3UR-FBE) engine
3.70  4.02 in. (94.0  102.0 mm)
Displacement 4.7 L V8 (2UZ-FE) engine
284.5 cu.in. (4664 cm3)
5.7 L V8 (3UR-FE, 3UR-FBE) engine
345.4 cu.in. (5663 cm
3)
Drive belt tension Automatic adjustment
Engine Gasoline engine Flex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gasoline) 87 (Research octane number91) or higher
Ethanol percentage
(E85) 
85% or less
Fuel tank capacity
(Reference) 26.4 gal. (100.0 L, 22.0 lmp.gal.)
