Page 450 of 612

450
4-3. Do-it-yourself maintenance

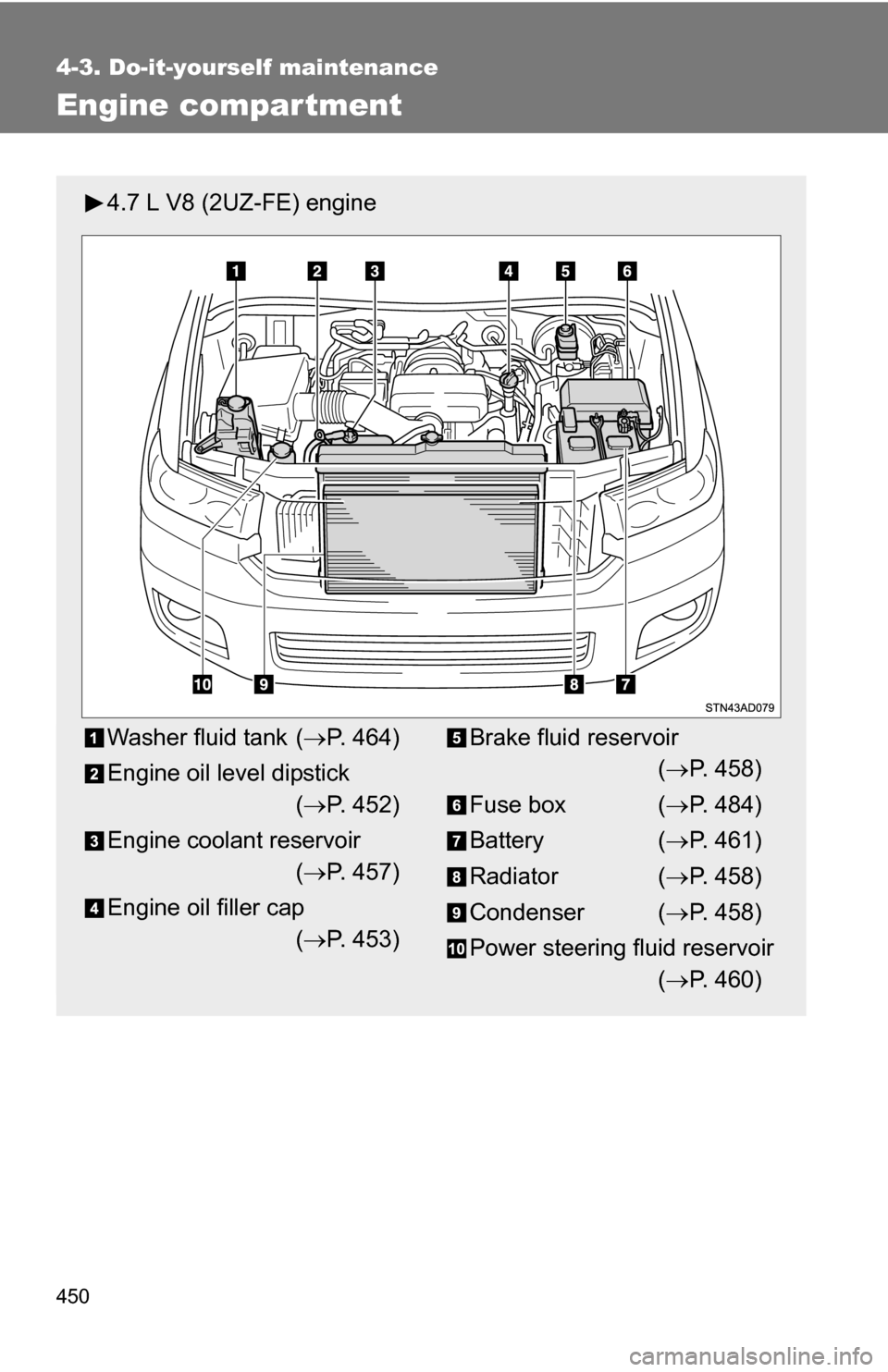

Engine compar tment
4.7 L V8 (2UZ-FE) engine
Washer fluid tank (P. 464)
Engine oil level dipstick ( P. 452)
Engine coolant reservoir ( P. 457)
Engine oil filler cap ( P. 453)Brake fluid reservoir
( P. 458)
Fuse box ( P. 484)
Battery ( P. 461)
Radiator ( P. 458)
Condenser ( P. 458)
Power steering fluid reservoir ( P. 460)
Page 451 of 612

451
4-3. Do-it-yourself maintenance
4
Maintenance and care

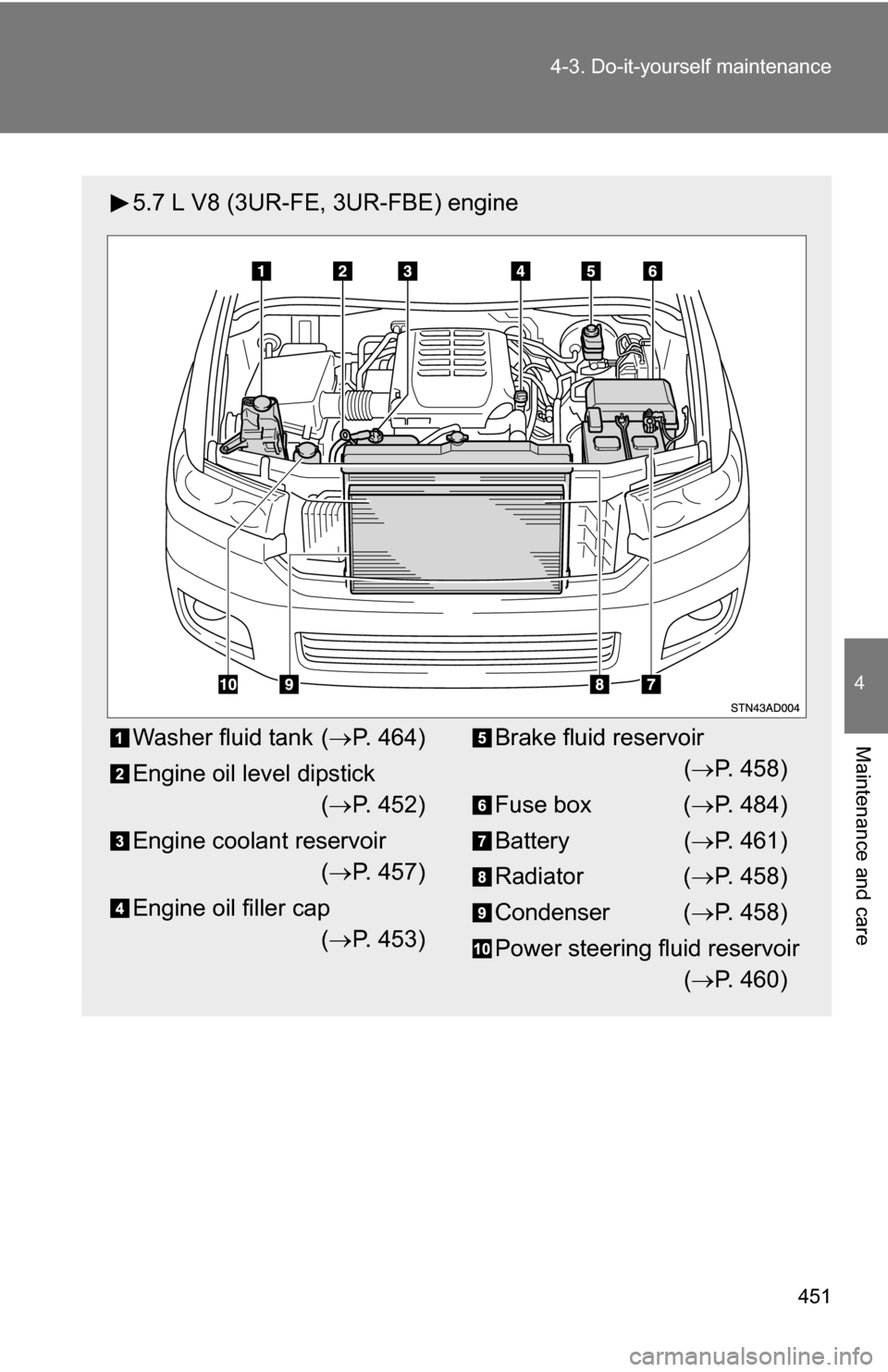

5.7 L V8 (3UR-FE, 3UR-FBE) engine
Washer fluid tank (
P. 464)
Engine oil level dipstick ( P. 452)
Engine coolant reservoir ( P. 457)
Engine oil filler cap ( P. 453)Brake fluid reservoir
( P. 458)
Fuse box ( P. 484)
Battery ( P. 461)
Radiator ( P. 458)
Condenser ( P. 458)
Power steering fluid reservoir ( P. 460)
Page 486 of 612

486 4-3. Do-it-yourself maintenance

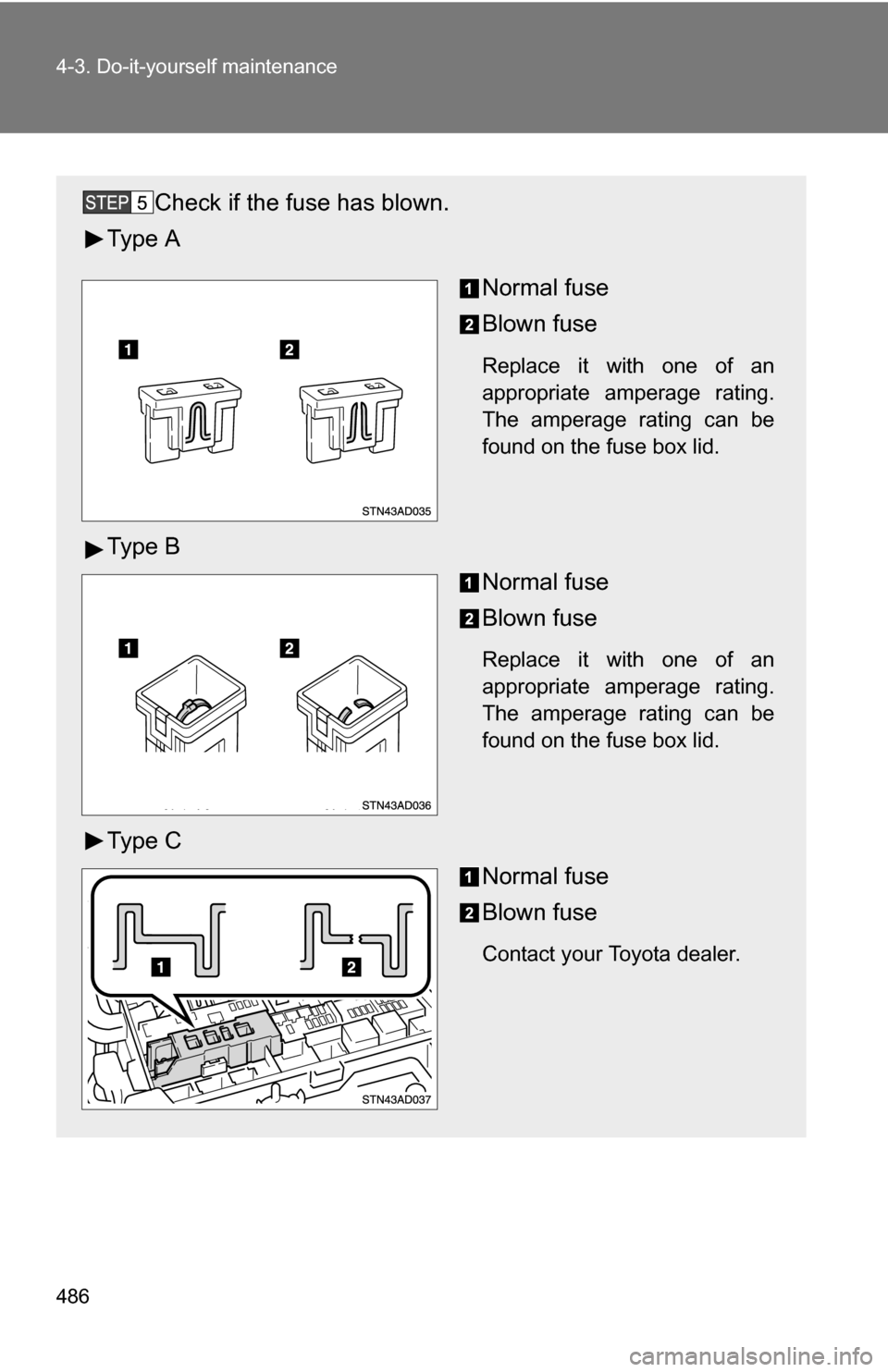

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.
Page 493 of 612

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
26 PANEL
7.5 AInstrument panel lights, glove box
light, ashtray, accessory meter,
audio system, rear view monitor,
navigation system, rear seat enter-
tainment system, gauges and
meters, air conditioning system,
seat heater or heated and venti-
lated switches
27 ACC 7.5 AAccessory meter, audio system,
rear seat entertainment system,
rear view monitor, navigation sys-
tem, back-up lights, trailer lights
(back-up lights), multiplex commu-
nication system, power outlet, out-
side rear view mirror
28 BK/UP LP 10 A Back-up light, gauges and meters
29 CIG 15 A Cigarette lighter
30 POWER No.1 30 A Power windows, power back win-
dow
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 495)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
FuseAmpereCircuit

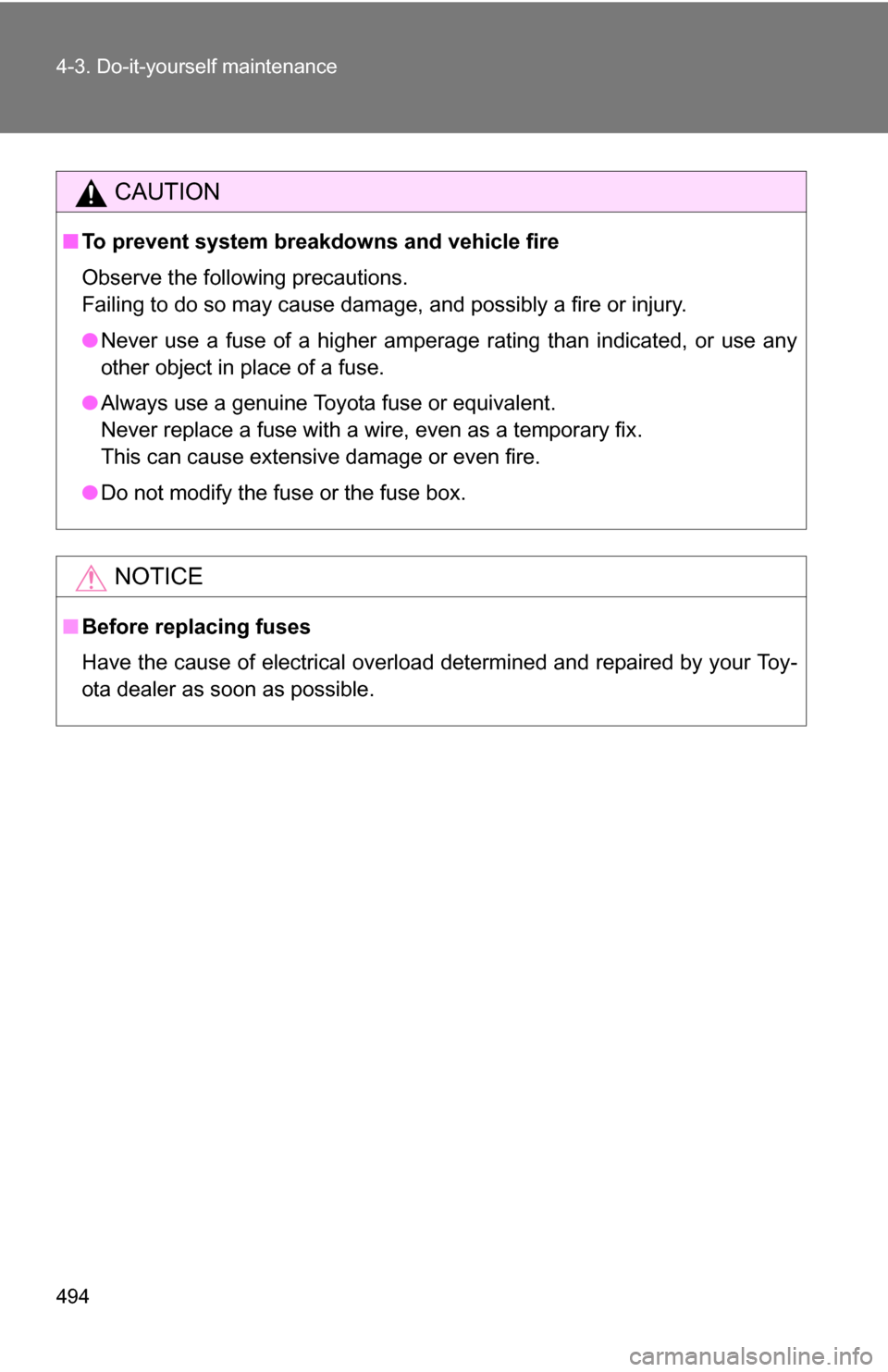

Page 494 of 612

494 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.

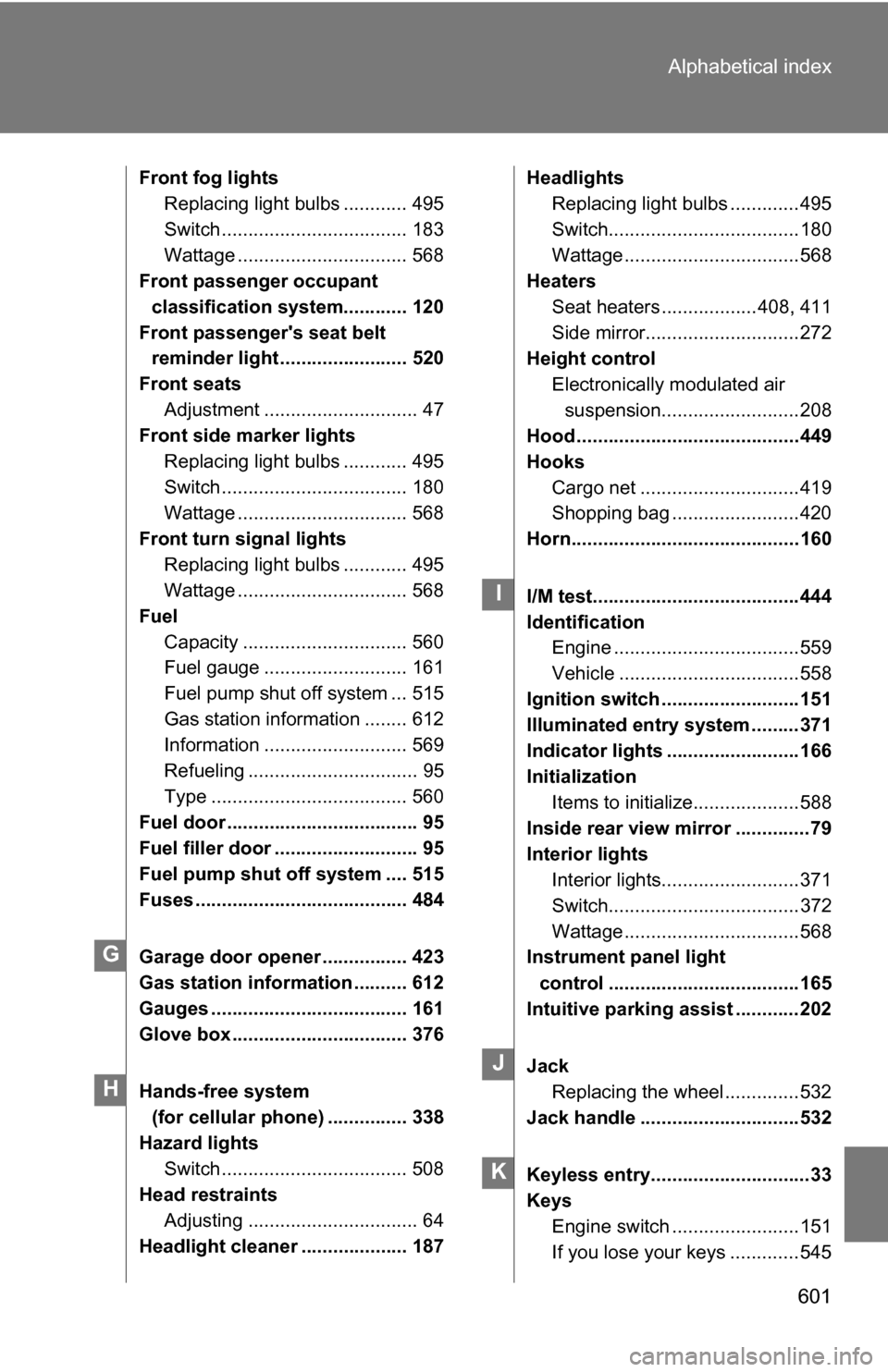

Page 601 of 612

601
Alphabetical index
Front fog lights
Replacing light bulbs ............ 495
Switch ................................... 183
Wattage ................................ 568
Front passenger occupant
classification system............ 120
Front passenger's seat belt reminder light ........................ 520
Front seats Adjustment ............................. 47
Front side marker lights
Replacing light bulbs ............ 495
Switch ................................... 180
Wattage ................................ 568
Front turn signal lights Replacing light bulbs ............ 495
Wattage ................................ 568
Fuel Capacity ............................... 560
Fuel gauge ........................... 161
Fuel pump shut off system ... 515
Gas station information ........ 612
Information ........................... 569
Refueling ................................ 95
Type ..................................... 560
Fuel door .................................... 95
Fuel filler door ........................... 95
Fuel pump shut off system .... 515
Fuses ........................................ 484
Garage door opener ................ 423
Gas station information .......... 612
Gauges ..................................... 161
Glove box ................................. 376
Hands-free system
(for cellular phone) ............... 338
Hazard lights Switch ................................... 508
Head restraints Adjusting ................................ 64
Headlight cleaner .................... 187 Headlights
Replacing light bulbs .............495
Switch....................................180
Wattage .................................568
Heaters
Seat heaters ..................408, 411
Side mirror.............................272
Height control
Electronically modulated air suspension..........................208
Hood ..........................................449
Hooks
Cargo net ..............................419
Shopping bag ........................420
Horn...........................................160
I/M test.......................................444
Identification Engine ...................................559
Vehicle ..................................558
Ignition switch ..........................151
Illuminated entry system .........371
Indicator lights .........................166
Initialization Items to initialize....................588
Inside rear view mirror ..............79
Interior lights Interior lights..........................371
Switch....................................372
Wattage .................................568
Instrument panel light
control ....................................165
Intuitive parking assist ............202
Jack Replacing the wheel ..............532
Jack handle ..............................532
Keyless entry..............................33
Keys Engine switch ........................151
If you lose your keys .............545
G
H
I
J
K

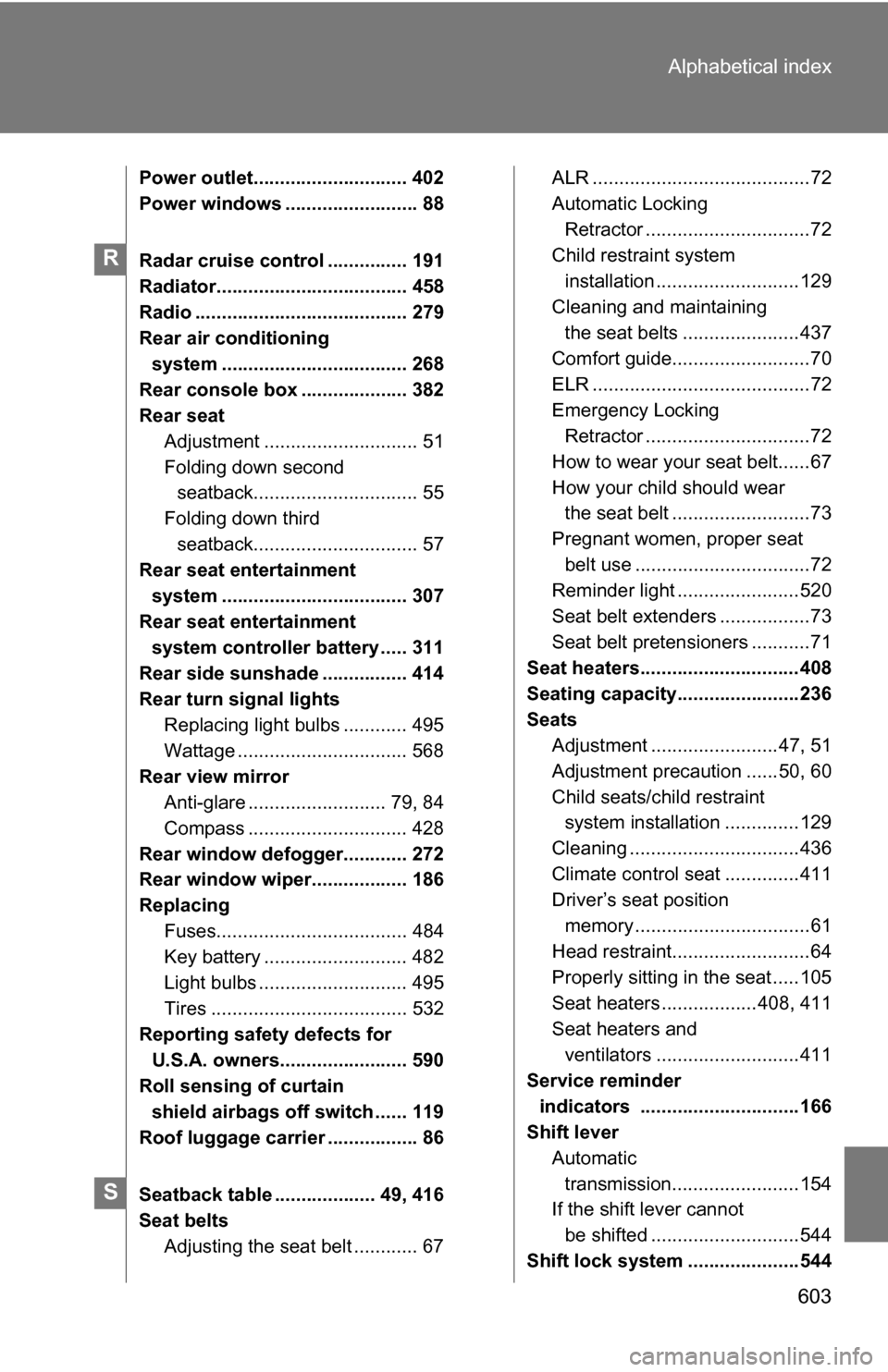

Page 603 of 612

603
Alphabetical index
Power outlet............................. 402
Power windows ......................... 88
Radar cruise control ............... 191
Radiator.................................... 458
Radio ........................................ 279
Rear air conditioning
system ................................... 268
Rear console box .................... 382
Rear seat Adjustment ............................. 51
Folding down second seatback............................... 55
Folding down third seatback............................... 57
Rear seat entertainment
system ................................... 307
Rear seat entertainment system controller battery ..... 311
Rear side sunshade ................ 414
Rear turn signal lights Replacing light bulbs ............ 495
Wattage ................................ 568
Rear view mirror Anti-glare .......................... 79, 84
Compass .............................. 428
Rear window defogger............ 272
Rear window wiper.................. 186
Replacing Fuses.................................... 484
Key battery ........................... 482
Light bulbs ............................ 495
Tires ..................................... 532
Reporting safety defects for
U.S.A. owners........................ 590
Roll sensing of curtain shield airbags off switch ...... 119
Roof luggage carrier ................. 86
Seatback table ................... 49, 416
Seat belts Adjusting the seat belt ............ 67 ALR .........................................72
Automatic Locking
Retractor ...............................72
Child restraint system installation ...........................129
Cleaning and maintaining the seat belts ......................437
Comfort guide..........................70
ELR .........................................72
Emergency Locking Retractor ...............................72
How to wear your seat belt......67
How your child should wear the seat belt ..........................73
Pregnant women, proper seat belt use .................................72
Reminder light .......................520
Seat belt extenders .................73
Seat belt pretensioners ...........71
Seat heaters..............................408
Seating capacity.......................236
Seats Adjustment ........................47, 51
Adjustment precaution ......50, 60
Child seats/child restraint system installation ..............129
Cleaning ................................436
Climate control seat ..............411
Driver’s seat position memory .................................61
Head restraint..........................64
Properly sitting in the seat .....105
Seat heaters ..................408, 411
Seat heaters and ventilators ...........................411
Service reminder indicators ..............................166
Shift lever
Automatic transmission........................154
If the shift lever cannot
be shifted ............................544
Shift lock system .....................544
