odometer TOYOTA SEQUOIA 2009 2.G Owners Manual

161
2
When driving

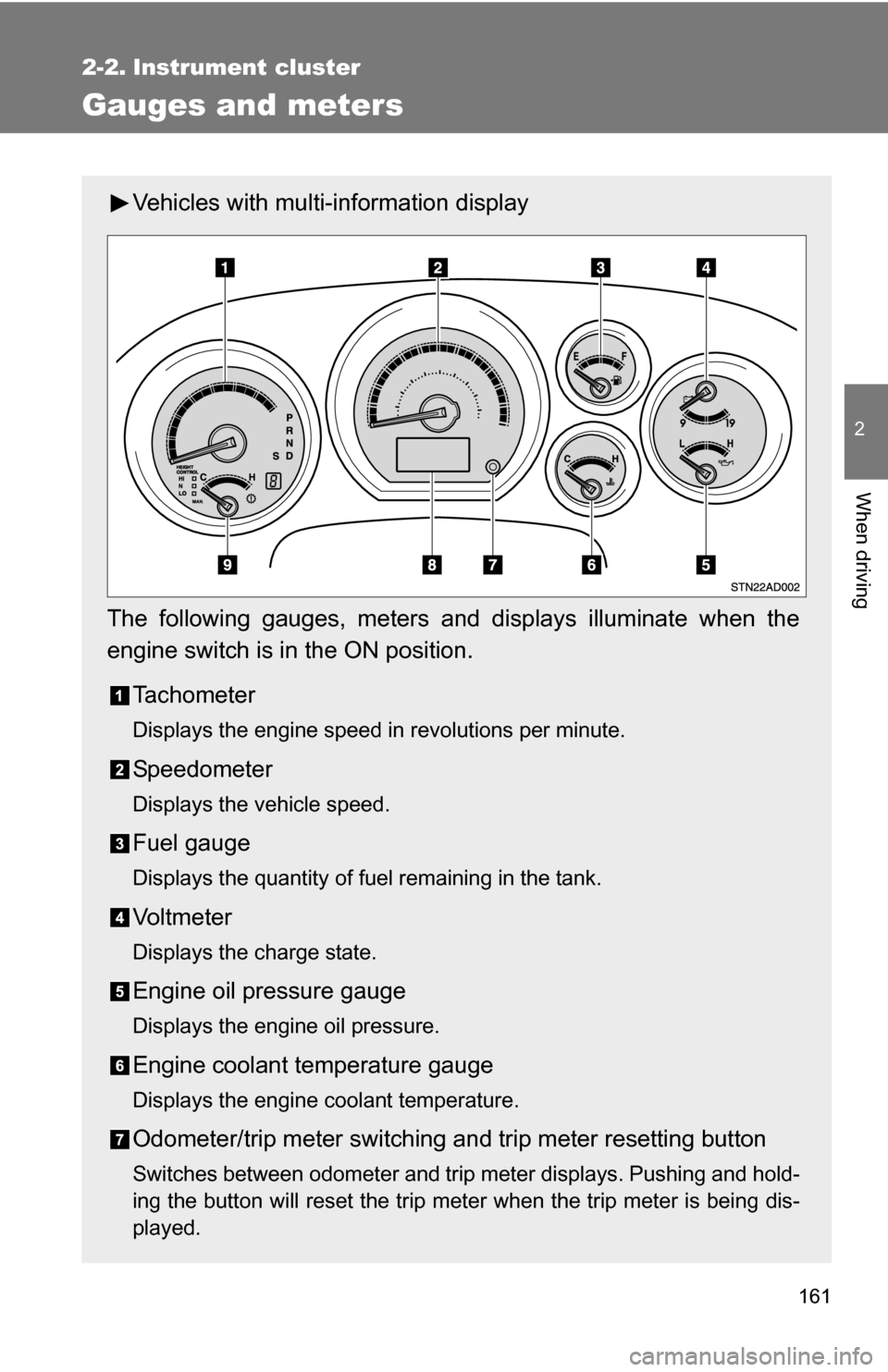

2-2. Instrument cluster
Gauges and meters
Vehicles with multi-information display
The following gauges, meters and displays illuminate when the
engine switch is in the ON position. Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Vo l t m e t e r
Displays the charge state.
Engine oil pressure gauge
Displays the engine oil pressure.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer/trip meter switching and trip meter resetting button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.

163
2-2. Instrument cluster
2
When driving

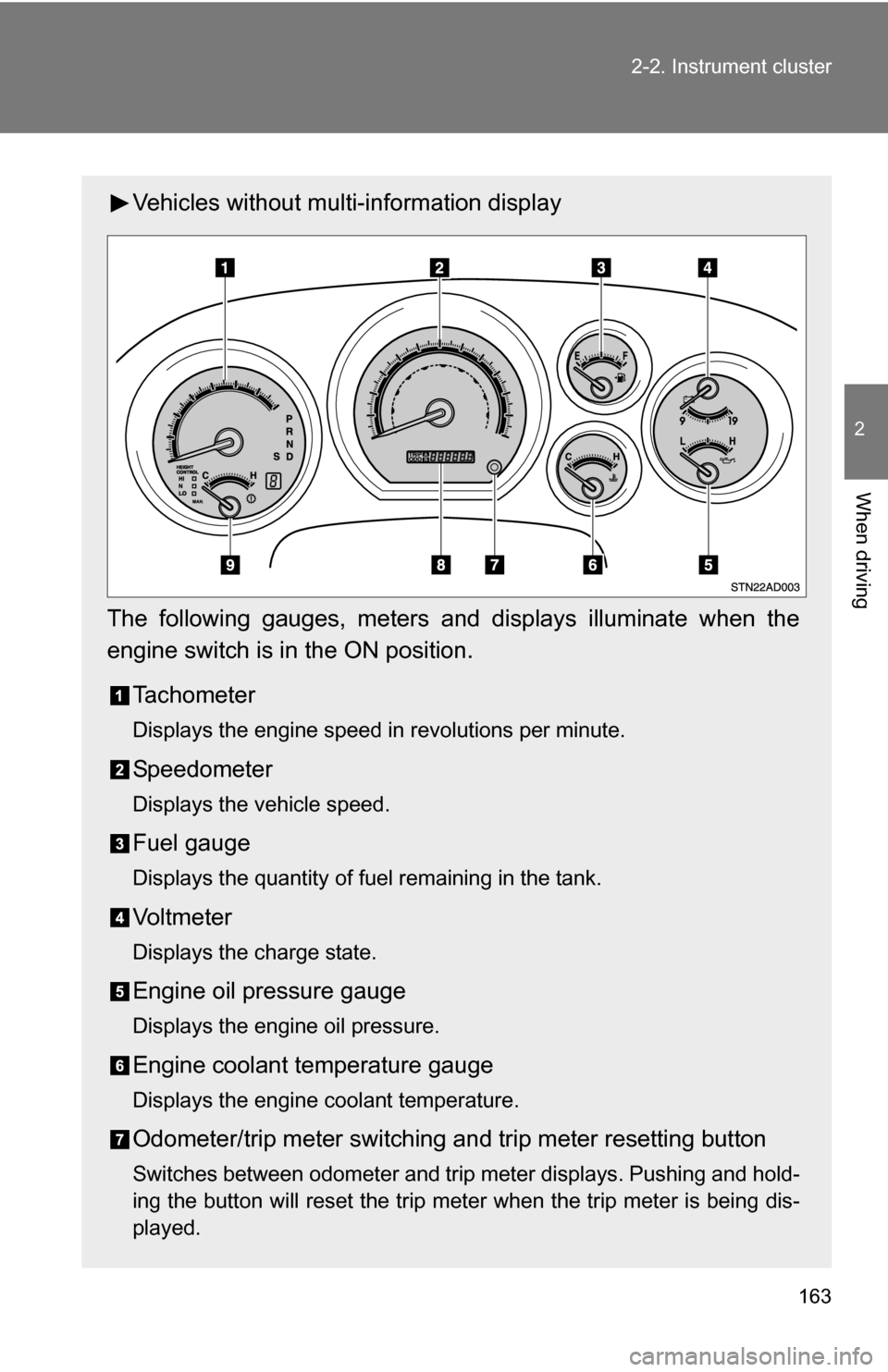

Vehicles without multi-information display
The following gauges, meters and displays illuminate when the
engine switch is in the ON position. Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Vo l t m e t e r
Displays the charge state.
Engine oil pressure gauge
Displays the engine oil pressure.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer/trip meter switching and trip meter resetting button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.

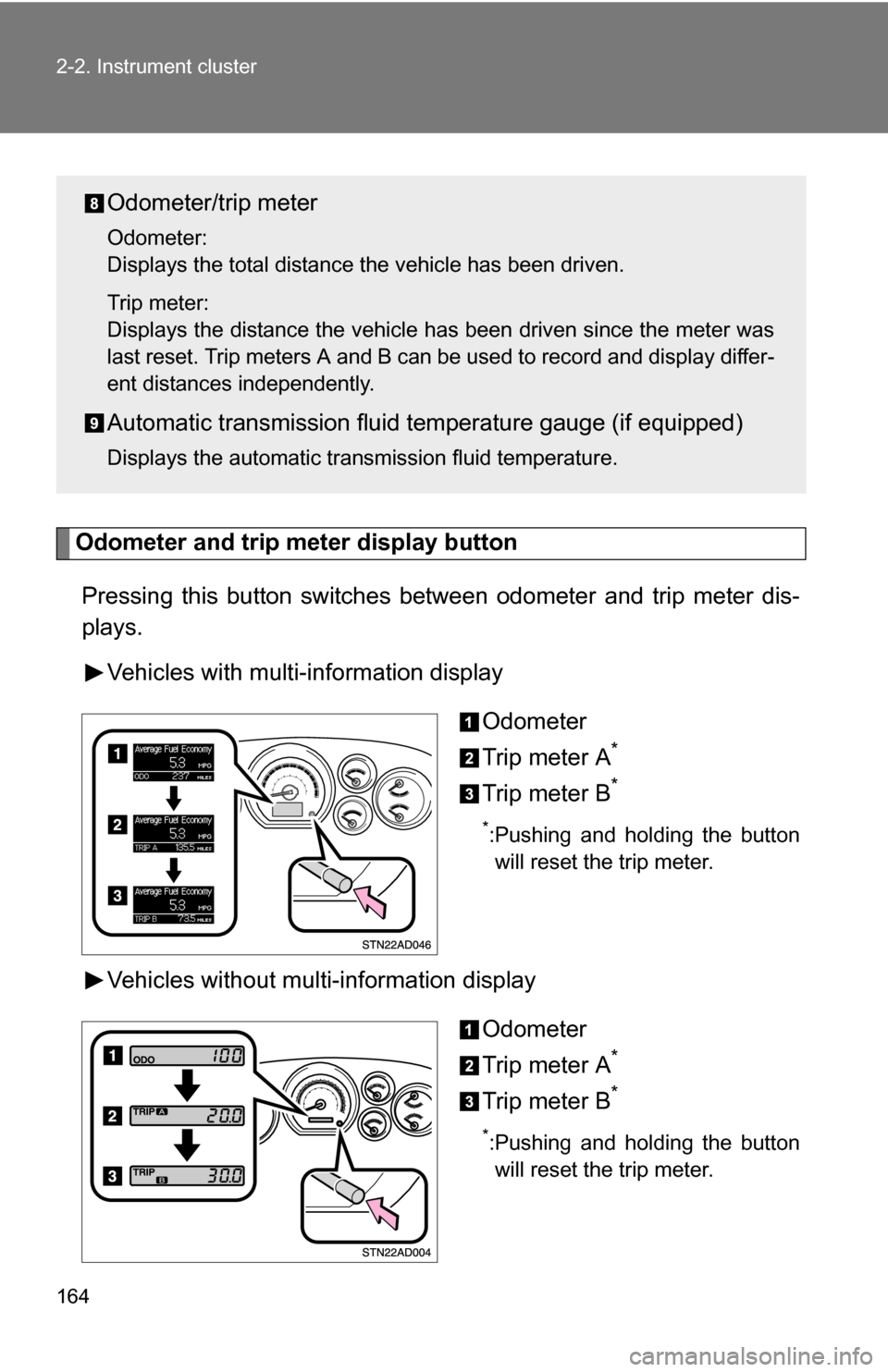

164 2-2. Instrument cluster
Odometer and trip meter display button
Pressing this button switches between odometer and trip meter dis-
plays.
Vehicles with multi-information display
Odometer
Trip meter A
*
Trip meter B*
*:Pushing and holding the buttonwill reset the trip meter.
Vehicles without multi-information display
Odometer
Trip meter A
*
Trip meter B*
*:Pushing and holding the buttonwill reset the trip meter.
Odometer/trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
Automatic transmission fluid temperature gauge (if equipped)
Displays the automatic transmission fluid temperature.

171
2-2. Instrument cluster
2
When driving

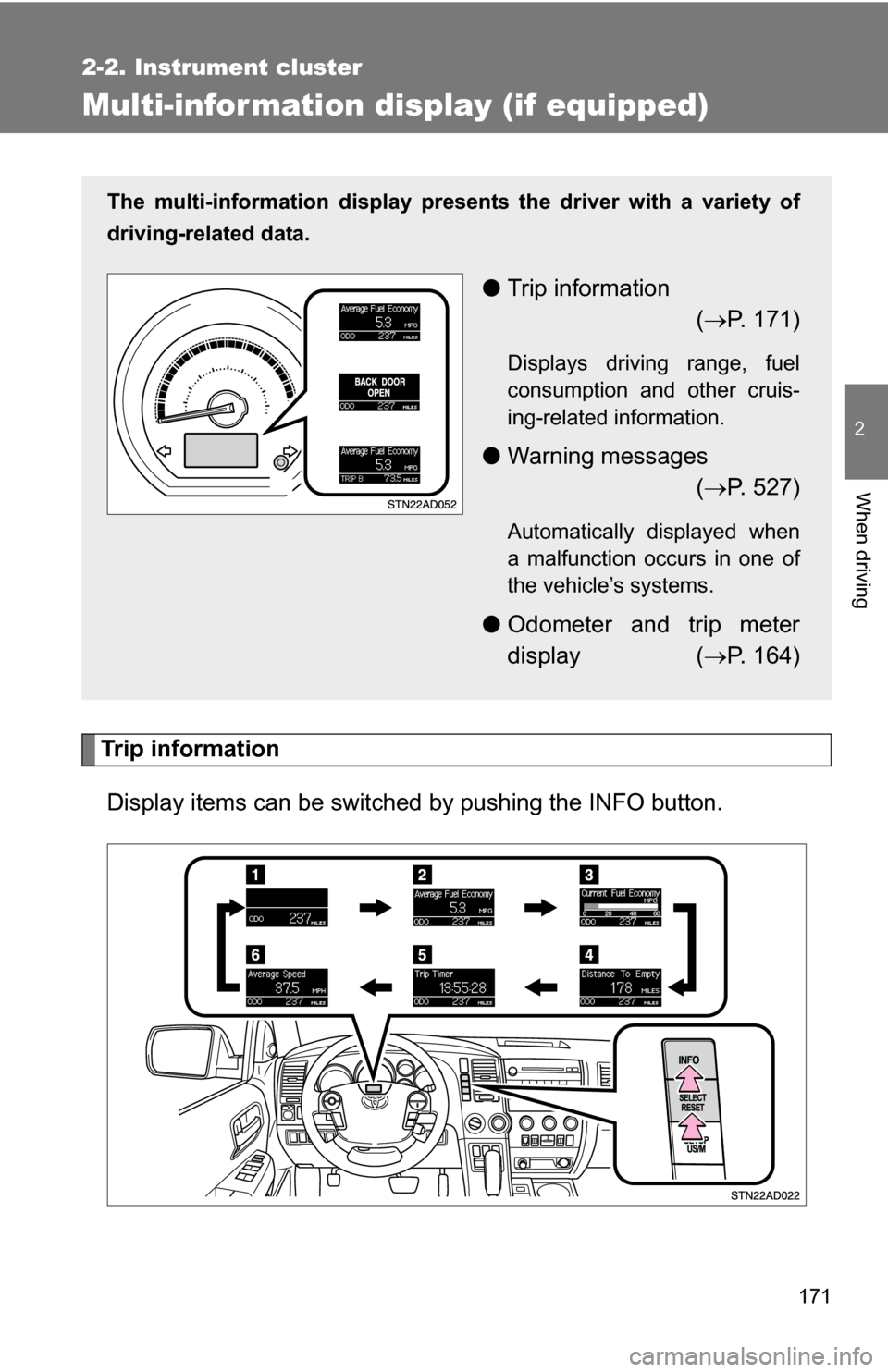

Multi-information display (if equipped)
Trip informationDisplay items can be switched by pushing the INFO button.
The multi-information display presen ts the driver with a variety of
driving-related data.
● Trip information
( P. 171)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Warning messages
( P. 527)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.
● Odometer and trip meter
display ( P. 164)

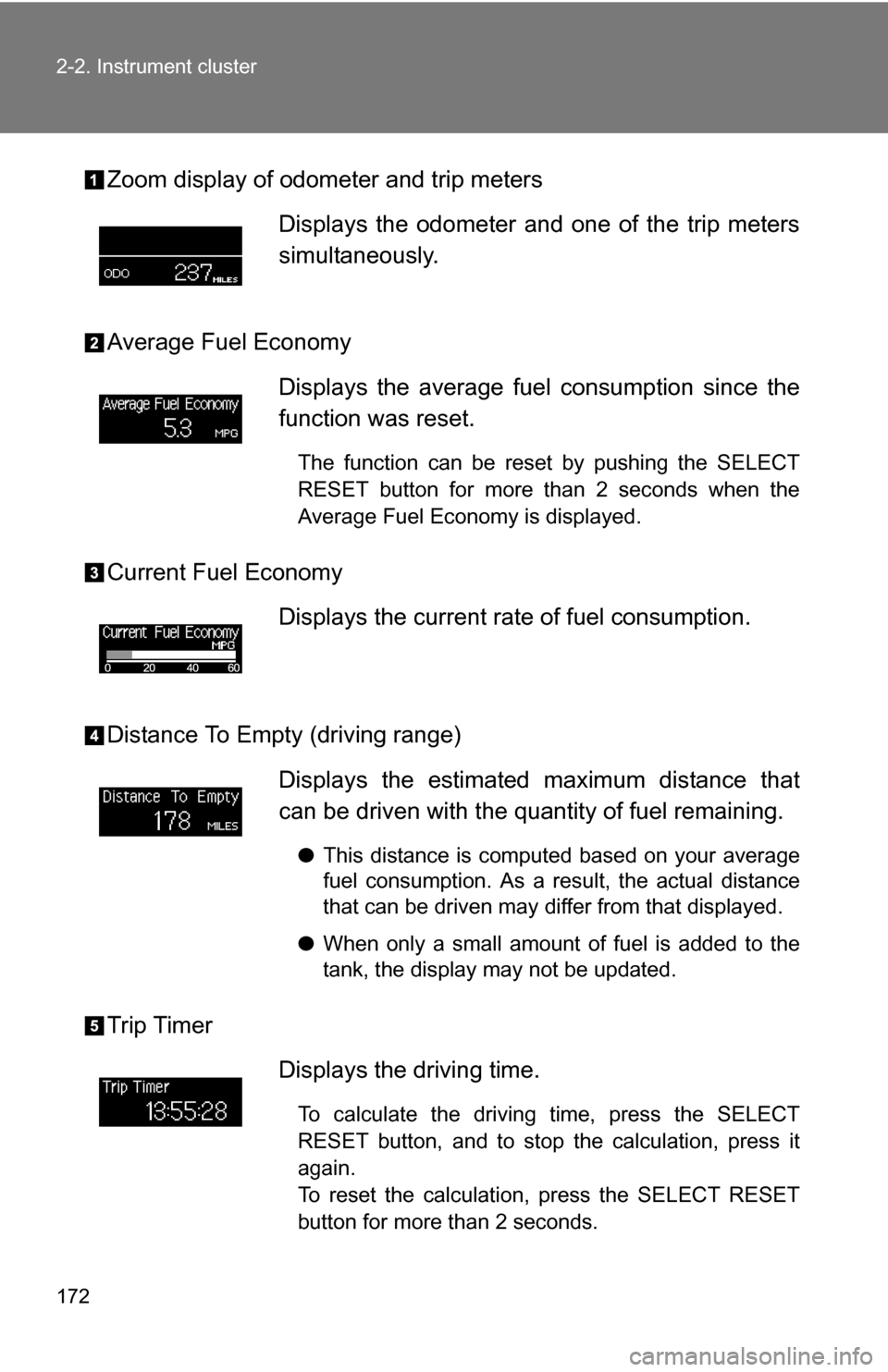

172 2-2. Instrument cluster
Zoom display of odometer and trip meters
Average Fuel Economy
Current Fuel Economy
Distance To Empty (driving range)
Trip TimerDisplays the odometer and one of the trip meters
simultaneously.
Displays the average fuel
consumption since the
function was reset.
The function can be reset by pushing the SELECT
RESET button for more than 2 seconds when the
Average Fuel Economy is displayed.
Displays the current rate of fuel consumption.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
● This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
● When only a small amount of fuel is added to the
tank, the display may not be updated.
Displays the driving time.
To calculate the driving time, press the SELECT
RESET button, and to stop the calculation, press it
again.
To reset the calculation, press the SELECT RESET
button for more than 2 seconds.

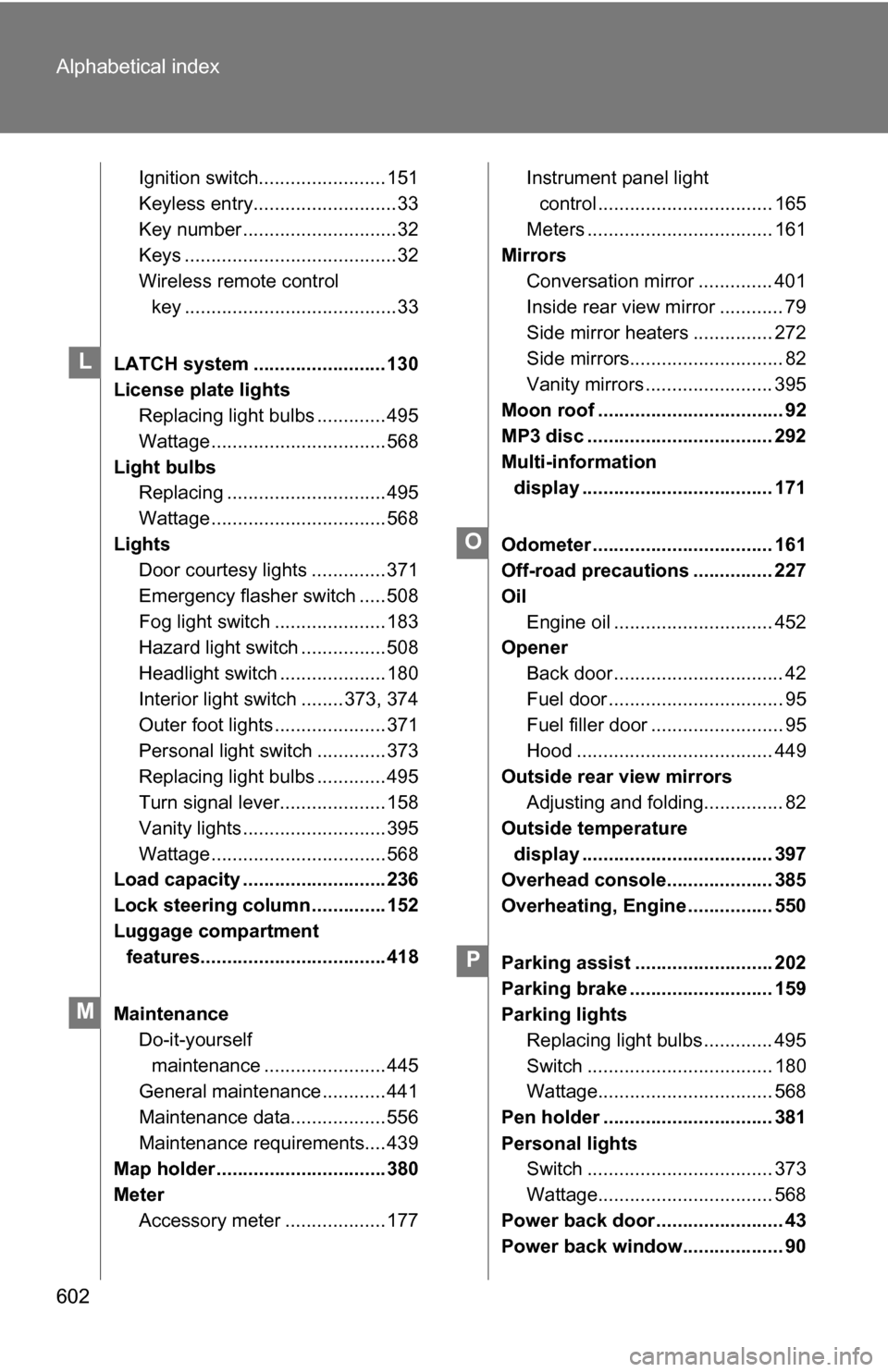

602 Alphabetical index
Ignition switch........................ 151
Keyless entry...........................33
Key number .............................32
Keys ........................................32
Wireless remote control key ........................................33
LATCH system ......................... 130
License plate lights Replacing light bulbs ............. 495
Wattage ................................. 568
Light bulbs Replacing .............................. 495
Wattage ................................. 568
Lights Door courtesy lights .............. 371
Emergency flasher switch ..... 508
Fog light switch ..................... 183
Hazard light switch ................508
Headlight switch .................... 180
Interior light switch ........373, 374
Outer foot lights ..................... 371
Personal light switch ............. 373
Replacing light bulbs ............. 495
Turn signal lever.................... 158
Vanity lights ........................... 395
Wattage ................................. 568
Load capacity ........................... 236
Lock steering column .............. 152
Luggage compartment features................................... 418
Maintenance Do-it-yourself maintenance ....................... 445
General maintenance ............ 441
Maintenance data.................. 556
Maintenance requirements.... 439
Map holder ................................ 380
Meter
Accessory meter ................... 177 Instrument panel light
control ................................. 165
Meters ................................... 161
Mirrors Conversation mirror .............. 401
Inside rear view mirror ............ 79
Side mirror heaters ............... 272
Side mirrors............................. 82
Vanity mirrors ........................ 395
Moon roof ................................... 92
MP3 disc ................................... 292
Multi-information display .................................... 171
Odometer .................................. 161
Off-road precautions ............... 227
Oil Engine oil .............................. 452
Opener
Back door ................................ 42
Fuel door ................................. 95
Fuel filler door ......................... 95
Hood ..................................... 449
Outside rear view mirrors Adjusting and folding............... 82
Outside temperature display .................................... 397
Overhead console.................... 385
Overheating, Engine ................ 550
Parking assist .......................... 202
Parking brake ........................... 159
Parking lights
Replacing light bulbs ............. 495
Switch ................................... 180
Wattage................................. 568
Pen holder ................................ 381
Personal lights Switch ................................... 373
Wattage................................. 568
Power back door ........................ 43
Power back window................... 90
L
M
O
P
