TOYOTA SEQUOIA 2012 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29
Telephone controls (Bluetooth®)
(if equipped)
Bluetooth®technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone \
and the
system.
Refer to “Using the hands-free phone system (for cellular phone),”\
Section 3-5 in
the Owner’s Manual , for more details.
Microphone
Audio unit
Steering wheel telephone switches
VolumeVoice command
button
End call
Start call
End call
Start call
VolumeVoice command
button
Type BType A
2012-Sequoia-QRG.qxd 8/16/11 7:55 PM Page 29

30
Cu
Fro
Rea
Fro
FEATURES/OPERATIONS
Power outlets-120V AC (if equipped)
Key must be in the “ON” position to be used.
Power outlets-12V DC (if equipped)
Luggage compartment
Instrument panelInside of the center console box
Back of the center console box
Key must be in the “ACC” or “ON” position to be used.
Re
(if
F
D
D
R
A
1
H
Vehi
Own
Rea
2012-Sequoia-QRG.qxd 8/16/11 7:56 PM Page 30

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
31
Cup holders
Front
Rear
Front consoleBack of the front console
Rear console box (if equipped)
Rear seat entertainment system
(if equipped)
Front audio system
DVD player
DVD screen
Remote control
A/V input port
120V AC Power outlet
Headphone volume controls and headphone jacks
Vehicles with navigation system: for details, refer to the “ Navigation System
Owner’s Manual .”
Rear side trim
2012-Sequoia-QRG.qxd 8/16/11 7:58 PM Page 31

32
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child res\
traint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or repl\
aced, turn
the ignition switch to “ON” and press and hold the “ SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initi\
alization to
complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains
on, take the vehicle to your local Toyota dealer.
NOTE : The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initi\
alized
recently, setting the tire pressures to factory specifications should turn off t\
he
light.
Se
Sp
Spa
Rem
(1) R
(2) A
(3) I
c
Refe
Movi
Rea
Do
(1)
2012-Sequoia-QRG.qxd 8/16/11 7:59 PM Page 32

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
33
ld
lack
ton
rnatorto
on s
in
Push up
Seat belts-Shoulder belt anchor
Squeeze lock release to lower
Spare tire & tools
Spare tire, jack and tool location
Removing the spare tire
(1) Remove the cover.
(2) Assemble the jack handle.
(3) Insert the jack handle extension into the lowering screw. Lower the spare tire completely to the ground.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Moving the lever to “LOCK” will allow the door to be opened only f\
rom the outside.
Rear door
Doors-Child safety locks
(1)(2)(3)
Spare tireJack and tool
2012-Sequoia-QRG.qxd 8/16/11 7:59 PM Page 33

34
Ther
has m
For s
•O
• Us
pl
• In
Flo
SAFETY AND EMERGENCY FEATURES
Smar
and
SST e
firml
SST d
allow
back
SmaStar Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine p\
ower and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is travelin\
g.
When it senses that the front or rear wheels begin to lose traction, VSC\
reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by "pulsing" brake pressure to \
each
wheel. This limits brake lockup and provides the maximum brake effectiveness fo\
r
the current road conditions.
Toyota's ABS sensors detect which wheels are locking up and limits wheel lockup b\
y
"pulsing" each wheel's brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the maximum
traction that the current road conditions will allow, helping you stay in control.
Brake Assist is designed to detect sudden or “panic” braking, and then a\
dd braking
pressure to decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \
This
transfers power to the wheels that still have traction to help you drive\
safely.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain stability and balance when braking. Abrupt stops cause the vehicle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to \
sudden
stops by redistributing brake force to maximize the braking effectivenes\
s of all
four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking
System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart
Stop Technology (SST).
2012-Sequoia-QRG.qxd 8/16/11 8:03 PM Page 34

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
35
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
For safety, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the \
mat in
place.
• Install floor mats right side up.
Floor mat installation
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are appli\
ed
firmly for longer than one-half second at speeds greater than five miles\
per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator\
pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling
backward.
Smart Stop Technology (SST)
nd
.s
on
for
p by
.
king
han
and
n
.
tilt
en king
mart
2012-Sequoia-QRG.qxd 8/16/11 8:05 PM Page 35

36

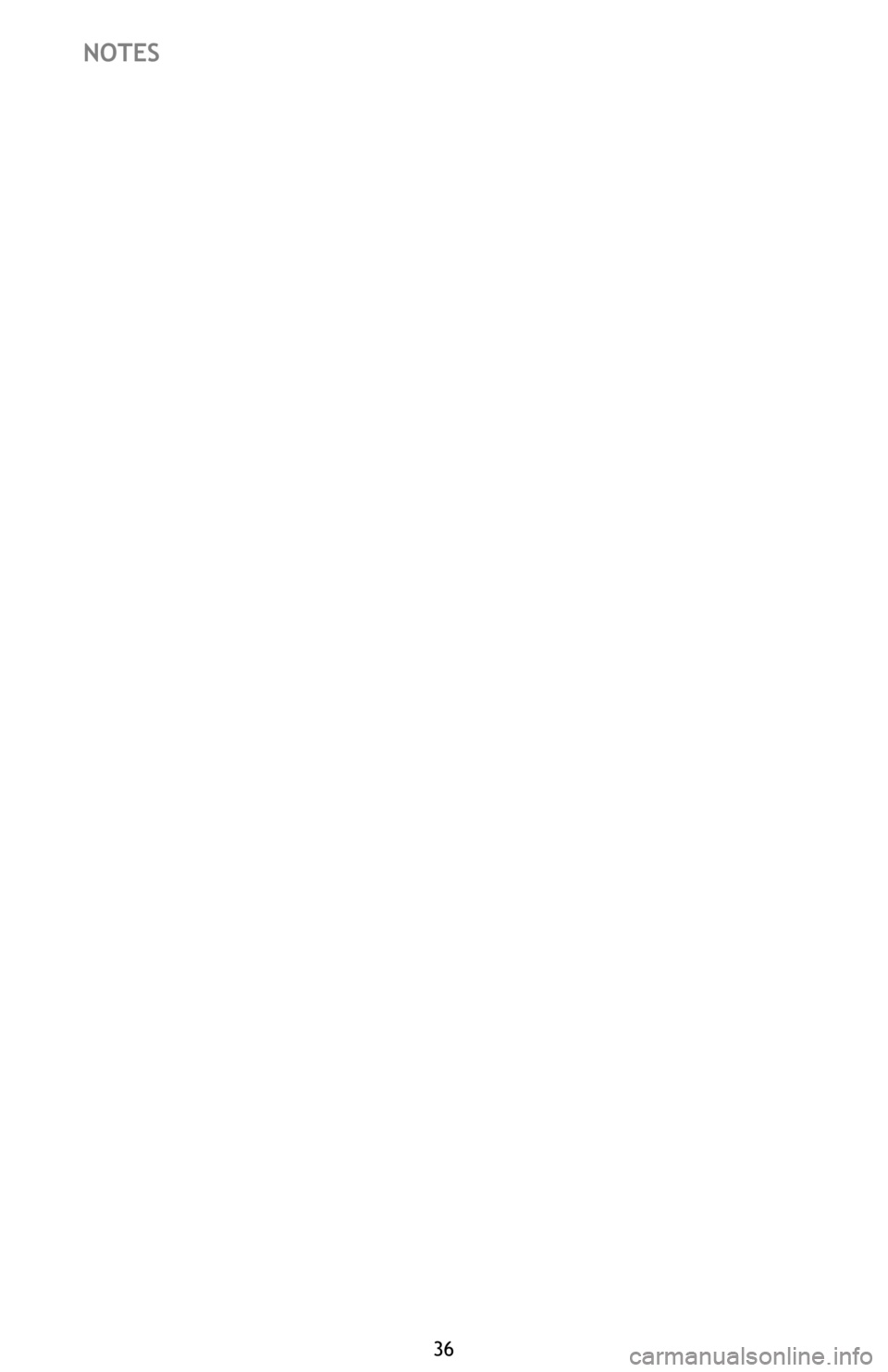

NOTES
2012-Sequoia-QRG.qxd 8/16/11 8:05 PM Page 36

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

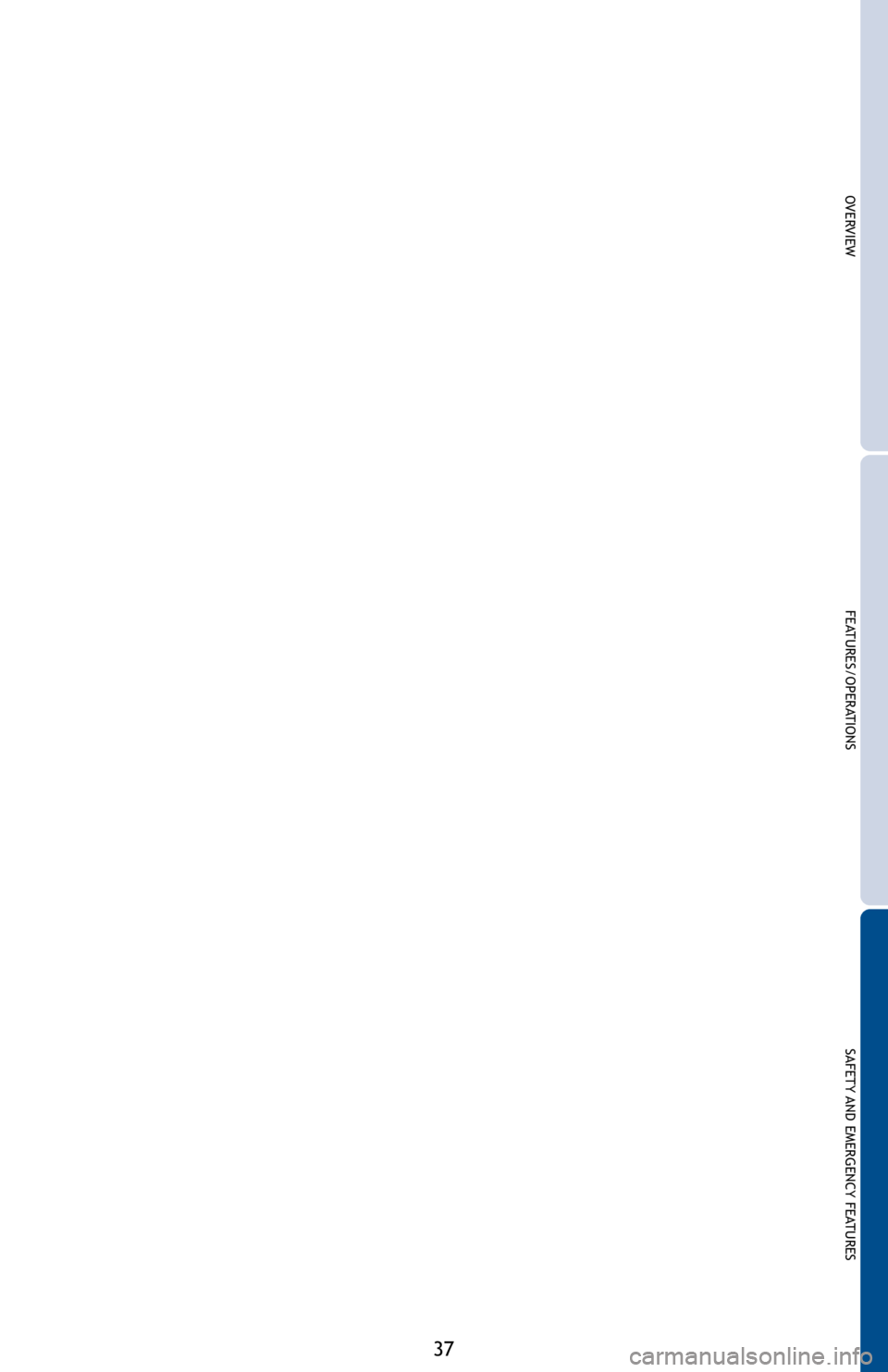

37
2012-Sequoia-QRG.qxd 8/16/11 8:06 PM Page 37

CUSTOMER EXPERIEN CE CENTER
1- 8 0 0 - 3 31- 4 3 31
00505-Q RG12 - SEQ
P
rinted in U.S .A. 8 / 11
11 - TCS -04989
