TOYOTA SEQUOIA 2020 Accessories, Audio & Navigation (in English)

1534-6. Tips for operating the audio/visual system
4
Audio/visual system
■ID3 tag
 This is a method of embed- ding track related information
in an MP3 file. This embed-
ded information can include
the track number, track title,
the artist’s name, the album
title, the music genre, the year
of production, comments,
cover art and other data. The
contents can be freely edited
using software with ID3 tag
editing functions. Although
the tags are restricted to a
number of characters, the
information can be viewed
when the track is played back.
■WMA tag
 WMA files can contain a
WMA tag that is used in the
same way as an ID3 tag.
WMA tags carry information
such as track title and artist
name.
■MP3
 MP3 is an audio compression
standard determined by a
working group (MPEG) of the
ISO (International Standard
Organization). MP3 com-
presses audio data to about
1/10 the size of that on con-
ventional discs.
■WMA
 WMA (Windows Media Audio)
is an audio compression for-
mat developed by Microsoft
®.
It compresses files into a size
smaller than that of MP3 files.
The decoding formats for
AVI Container
Video codec:
 H.264/MPEG-
4 AVC
 MPEG4
 WMV9
 WMV9
Advanced pro-
file
Audio codec:
 AAC
 MP3
 WMA9.2 (7, 8,
9.1, 9.2)
Corresponding
screen size:
 MAX
1920 1080
Corresponding
frame rate:
 MAX 60i/30p
Windows Media
Video
Video codec:
WMV9
 WMV9
Advanced pro-
file
Audio codec:
 WMA9.2 (7, 8,
9.1, 9.2)
Corresponding
screen size:
 MAX
1920 1080
Corresponding
frame rate:
 MAX 60i/30p
Te r m s
FormatCodec

1544-6. Tips for operating the audio/visual system
WMA files are Ver. 7, 8 and 9.
 Windows Media is either a
registered trademark or trade-
mark of Microsoft Corpora-
tion in the United States
and/or other countries. This
product is protected by certain
intellectual property rights of
Microsoft. Use or distribution
of such technology outside of
this product is prohibited with-
out a license from Microsoft.
 This product includes technol-
ogy owned by Microsoft Cor-
poration and cannot be used
or distributed without a
license from Microsoft Licens-
ing, Inc.
■AAC
 AAC is short for Advanced
Audio Coding and refers to an
audio compression technol-
ogy standard used with
MPEG2 and MPEG4.
■USB
■iPod
Error messages
MessageExplanation
“USB Error”
This indicates a
problem in the
USB memory or
its connection.
“No music files
found.”
This indicates
that no
MP3/WMA/AAC
files are included
in the USB mem-
ory.
“No video files
found.”
This indicates
that no video
files are included
in the USB mem-
ory.
MessageExplanation
“iPod Error”
This indicates a
problem in the
iPod or its con-
nection.
“No music files
found.”
This indicates
that there is no
music data in the
iPod.

1554-6. Tips for operating the audio/visual system
4
Audio/visual system

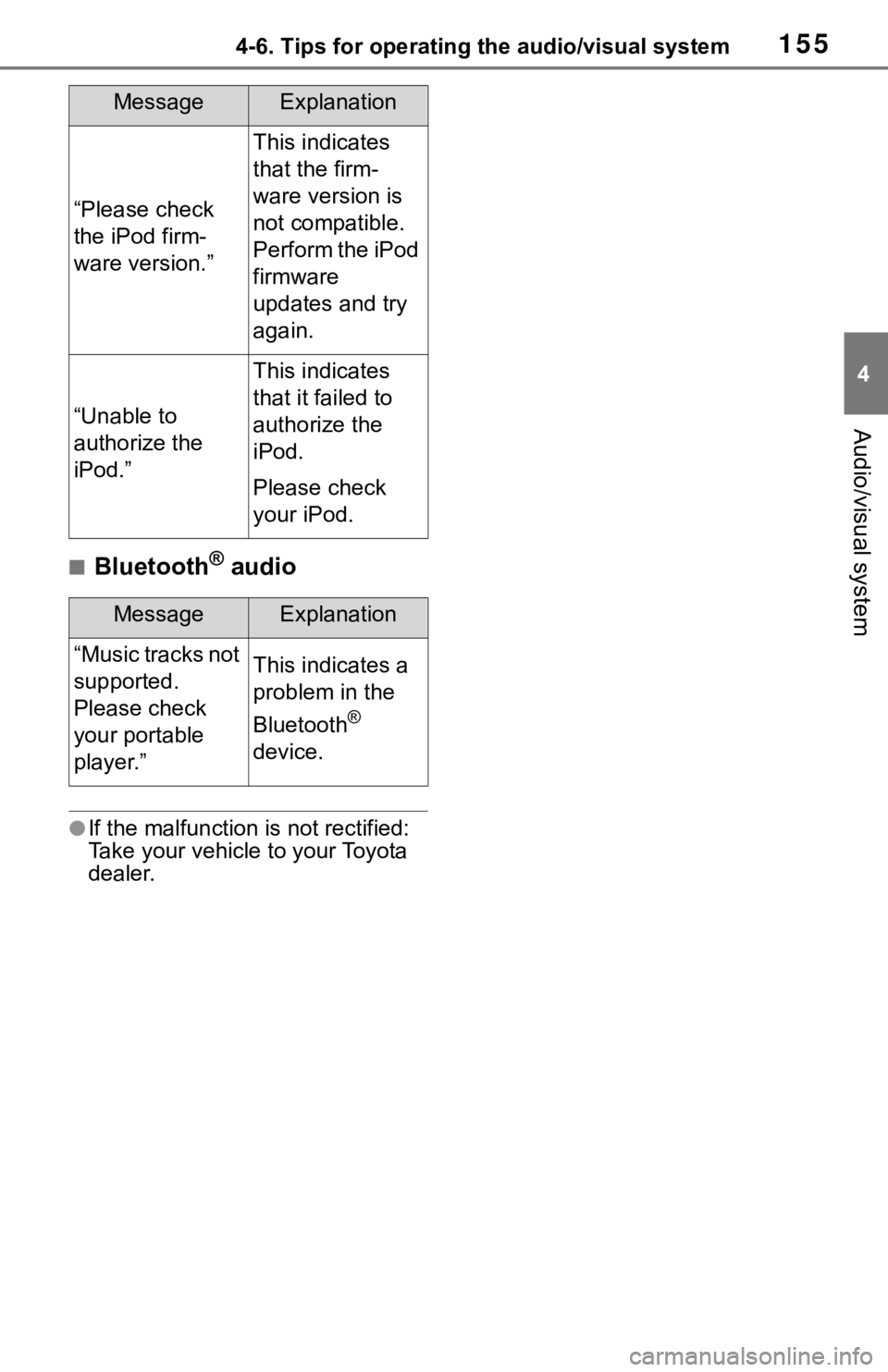

■Bluetooth® audio
●If the malfunction is not rectified:
Take your vehicle to your Toyota
dealer.
“Please check
the iPod firm-
ware version.”
This indicates
that the firm-
ware version is
not compatible.
Perform the iPod
firmware
updates and try
again.
“Unable to
authorize the
iPod.”
This indicates
that it failed to
authorize the
iPod.
Please check
your iPod.
MessageExplanation
“Music tracks not
supported.
Please check
your portable
player.”This indicates a
problem in the
Bluetooth
®
device.
MessageExplanation

1564-7. Rear seat entertainment system
4-7.Rear seat entertainment system
*: If equipped
Rear seat entertainment system
Remote controller
A/V input port
Headphone volume control dials and headphone jacks
Front audio/visual system
Rear seat enter tainment system features*
The rear seat entertainment system is designed for the rear
passengers to enjoy audio/visual system.
The video played by the rear seat entertainment system is not
displayed on the front audio/visual system’s screen.
The system can b e used when the engine s witch is in ACC or
ON.
System components
A
B
C
D
E

1574-7. Rear seat entertainment system
4
Audio/visual system
1Press the lock release but-
ton to open the display. 2
Pull the display down to an
easily viewable angle.
1 Push the display up until a
click is heard.
●The illumination of the screen
automatically turn s off when the
display is closed. However, the
rear seat entertainment system is
not turned off. (The sound is not
turned off.)
Some basics
Display
WA R N I N G
●When the rear s eat entertain-
ment system is not used
• Keep the display closed. In the event of an accident of sudden
braking, the opened display
may hit an occupant’s body,
resulting in injury.
NOTICE
●Cleaning the display
• Wipe the display with a dry soft cloth. If the screen is wiped with
a rough cloth, the surface of the
screen may be scratched.
●Opening and closing the display
• When opening or closing the display, hold the bottom center
of the display ou ter frame. Hold-
ing or pressing the LCD panel
could result in display problems
or LCD deterioration.
Opening the display
Closing the display

1584-7. Rear seat entertainment system
1Insert the disc into the slot
with the label side up.
 The “DISC” indicator light
turns on while the disc is
loaded.
 The player will start to play
the disc automatically.
1 Press the button and
remove the disc.
●If a disc cannot be ejected, do not
forcibly take out the disc. Keep
pressing the button for
approximately 10 seconds and
release it.
●If the ejected disc remains in the
slot for 15 seconds, the player will
automatically reload the disc.
1Insert the SD card with the
label side up, positioning the
cut off corner to the right.
 To eject the SD card, push on
the center of the SD card.
When it ejects slightly, pull it
straight out.
The rear seat entertainment
system can be operated with the
remote controller. The system
cannot be operated by touching
the switches on the screen
directly.
Disc slot
Loading a disc
Ejecting a discSD card slot
Remote controller

1594-7. Rear seat entertainment system
4
Audio/visual system
Turning on/off the rear seat
entertainment system
Selecting a control icon
Inputting the selected control
icon
Turning on/off the speaker
output
Changing the screen size
Turning on the DLNA/Mira-
cast™/External mode
Adjusting the volume
Turning on the SD mode
Turning on the DISC mode
Adjusting the screen settings1
Press the button to turn
on the rear seat entertain-
ment system.
 Press the button once
again to turn off the system.
1 Press “+” or “-” on the “VOL”
button to adjust the volume.
 When the speaker output is
off, the volume cannot be
adjusted.
1 Press the button to
turn on/off the speaker out-
put.
On: The sound is available from
both vehicle speakers and head-
phones.
Off: The sound is available from the
headphones only.
1Press the “DISC”, “SD” or
“INPUT” button to change the
audio/visual source.
 Every time “INPUT” button is
pressed, the DLNA/Mira-
cast™/External mode will be
changed.
A
B
C
D
E
F
G
H
I
J
Turning on/off the rear
seat entertainment system
Adjusting the volume
Turning on/off the speaker
output
Changing the audio/visual
source

1604-7. Rear seat entertainment system
1Press the , , or
button to select the control
icon on the screen.
2 Press the “ENT” button to
enter.
1 Press the “SIZE” button to
change the screen size.
DISC/SD/DLNA/Miracast™
mode
“Normal”: Displays the screen at
the original ratio (16:9)
“Full”: Displays the screen in full
screen mode
External mode
“Normal 1”: Displays the screen at
the original ratio (4:3)
“Normal 2”: Displays the screen in
wide screen aspect (16:9)
“Full”: Displays the screen in full
screen mode
●The screen size can be changed
for each media mode individually.
You can adjust the color, con-
trast, tone and brightness of the
screen. The screen setting lev-
els can be adjusted for day
mode and night mode individu-
ally.
1Press the “SETTING” button.
2 The screen settings can be
adjusted.
DISC/SD/DLNA/Miracast™
mode
External mode
Turning on/off the speaker
output
Turning on/off the “LCD AI”.
The “LCD AI” is automatically
determines the tone of the
video image and sets the
contrast to an optimum level,
displaying a sharp image.
Selecting a control icon
Changing the screen size
Adjusting the screen set-
tings
A
B

1614-7. Rear seat entertainment system
4
Audio/visual system
Select to turn the screen off.
Weakens the contrast of the
screen
Strengthens the contrast of
the screen
Darkens the screen
Brightens the screen
Turning on/off the PAL video.
Strengthens red color of the
screen
Strengthens green color of
the screen
Weakens the tone of the
screen
Strengthens the tone of the
screen
1 Remove the insulating sheet.
●An insulating sheet is set to pre-
vent the batteries from being dis-
charged.
1Remove the cover.
2 Remove the depleted batter-
ies and install 2 new AA bat-
teries.
●If the remote contr oller batteries
are discharged, the following
symptoms may occur.
• The rear seat entertainment sys-
tem control will no t function prop-
erly.
• The operational range is reduced.
●When replacing the AA batteries
• Batteries can be purchased at
your Toyota dealer, electric appli-
ance shop, or camera stores.
• Replace only with the same or
equivalent type recommended by
a Toyota dealer.
• Dispose of used batteries accord-
ing to local laws.
Before using the remote
controller (for new vehicle
owners)
C
D
E
F
G
H
I
J
K
L
:KHQWKHUHPRWHFRQWURO
OHUEDWWHULHVDUHIXOO\
GHSOHWHG

1624-7. Rear seat entertainment system
Adjust the volume when you connect the headphones to the
jack. Loud sounds may have a
significant impact on the human
body.
To use headphones, connect
them to the jack
To adjust the volume
 With some wireless head-
phones generally available in
the market, it may be difficult
to catch signals properly. Toy-
ota recommends the use of
Toyota genuine wireless
headphones. Please contact
your Toyota dealer for further
details.
 When the sound volume
needs to be changed while a
wireless headphone is used,
adjust the volume using the
wireless headphone’s volume
switch.
WA R N I N G
●To prevent accidents and elec-
tric shock
• Do not disassemble or modify the remote controller.
●When the remote c ontroller is
not used
• Stow the remote controller. Inju- ries may result in the event of
an accident or sudden braking.
●Removed batteries and other
parts
• Keep away from children. These parts are small and if
swallowed by a child, they can
cause choking.
NOTICE
●To prevent damage to the
remote controller
• Keep the remote controller away from direct sunlight, heat
and high humidity.
• Do not drop or strike the remote controller against hard objects.
• Do not sit on or place heavy objects on the remote controller.
●For normal operation after
replacing the batteries, observe
the following precautions to pre-
vent accidents.
• Always work with dry hands. Moisture may cau se the battery
to rust.
• Do not touch or move any other components inside the remote
controller.
• Do not bend any of the battery terminals.
Headphone jacks
Wireless headphones
(sold separately)
A
B
