811-2. Emergency assistance
1
For safety and security
SEQUOIA_OM_USA_OM0C021U_20MY
■Certification for Safety Connect

821-3. Theft deterrent system
SEQUOIA_OM_USA_OM0C021U_20MY
Engine immobilizer system
The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the engine switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer syst em.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic ob ject
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys ha ve built-in transponder chips that prevent
the engine from starting if a key has not been previously regis -
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

831-3. Theft deterrent system
1
For safety and security
SEQUOIA_OM_USA_OM0C021U_20MY■
Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: MOZRI-42BTY
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause har mful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party re sponsible for
compliance could void the user’s authority to operate the equip ment.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interfe rence, includ-
ing interference that may cause undesired operation of the devi ce.
WARNING
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user’s authority to operate the e quipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

841-3. Theft deterrent system
SEQUOIA_OM_USA_OM0C021U_20MY
Alar m
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the ala rm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock aga in automatically.)
● The hood is opened.
● Vehicles with the glass breaka ge sensor: The side windows are
tapped or broken.
● The battery is reconnected.
Close the doors and hood, and
lock all the doors. The system will
be set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to d eactivate or stop the alarms:
● Unlock the doors.
● Turn the engine switch to ACC or ON, or start the engine. (The
alarm will be deactivated or s topped after a few seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

851-3. Theft deterrent system
1
For safety and security
SEQUOIA_OM_USA_OM0C021U_20MY
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft , make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●A person inside the vehicle opens a door
or the hood.
● The battery is recharged or replaced
when the vehicle is locked.

861-3. Theft deterrent system
SEQUOIA_OM_USA_OM0C021U_20MY■
Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle locks the door and the a larm is acti-
vated.
● When the alarm is activated and a person remaining in the vehic le unlocks
the door.
● When recharging or replacing the battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

87
Instrument cluster2
SEQUOIA_OM_USA_OM0C021U_20MY2. Instrument cluster
Warning lights and indicators .......................... 88
Gauges and meters ............ 94
Multi-information display ..... 98
Fuel consumption information ...................... 104

882. Instrument cluster
SEQUOIA_OM_USA_OM0C021U_20MY

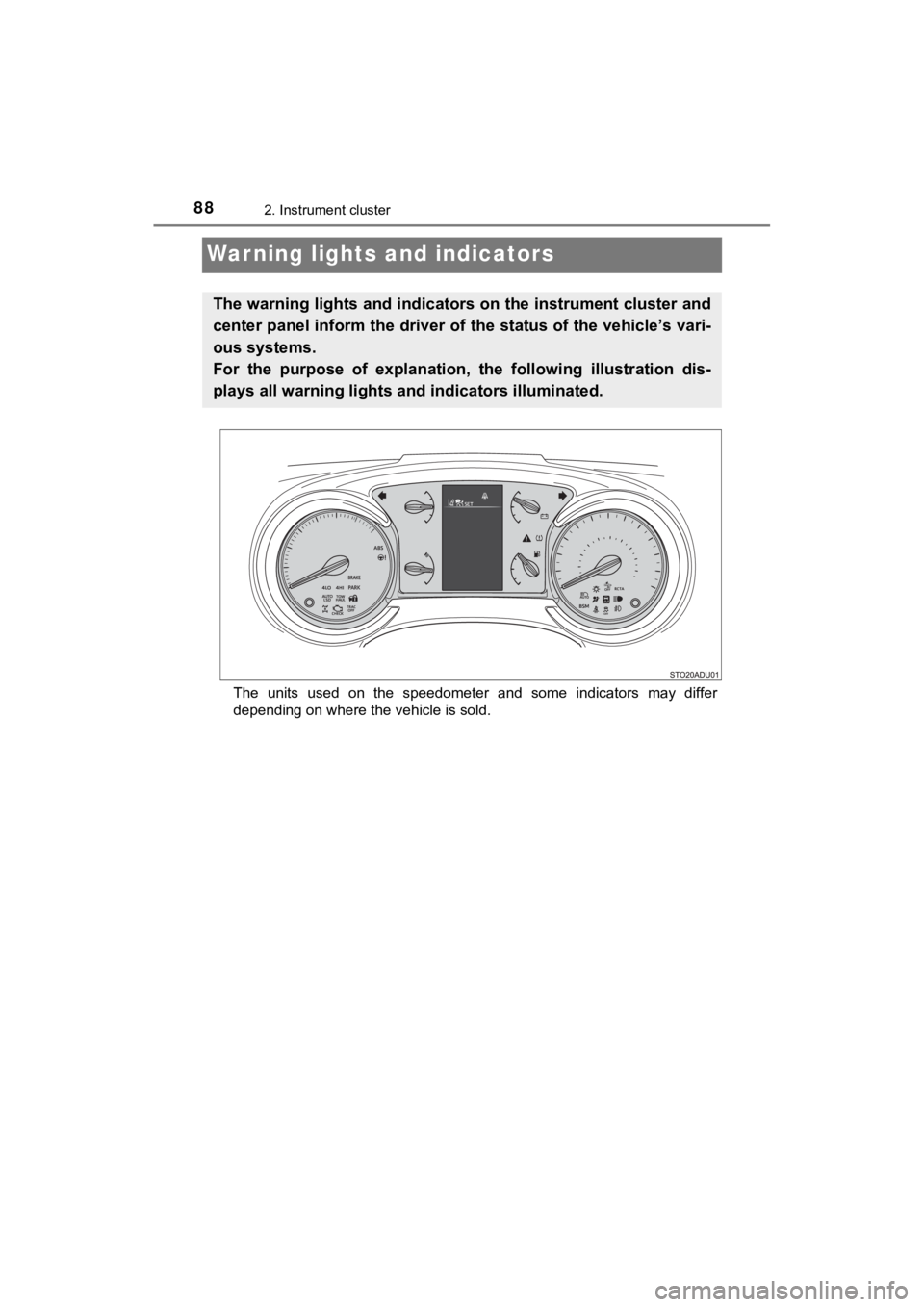

Warning lights and indicators
The units used on the speedometer and some indicators may differ
depending on where the vehicle is sold.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, t he following illustration dis-
plays all warning lights a nd indicators illuminated.

892. Instrument cluster
2
Instrument cluster
SEQUOIA_OM_USA_OM0C021U_20MY
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 469)*1
(U.S.A.)
ABS warning light
(P. 470)
*1
(Canada)
Brake system warning
light ( P. 469)*1
(Canada)
ABS warning light
(P. 470)
*1
Charging system warn-
ing light ( P. 469)*1
Power steering warning
light (P. 470)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 469)
*1
Slip indicator ( P. 470)
*1
(Canada)
Malfunction indicator
lamp (P. 469)*1PCS warning light
(P. 470)
*1
SRS warning light
(P. 469)
*3, 4
(Yellow)
LDA indicator ( P. 470)

902. Instrument cluster
SEQUOIA_OM_USA_OM0C021U_20MY
*1: These lights turn on when the engine switch is turned to ON to indicate thata system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: The light illuminates on the multi-information display.
*3: The light comes on to indicate a malfunction.
Low fuel level warning
light ( P. 470)*1
Tire pressure warning
light (P. 471)
*1
Seat belt reminder light
(P. 471)*1
Master warning light
(P. 471)
