WARNING
●Do not allow the child to lean his/her head or any part of his/ her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield air bags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and th e impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors sh ould be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat ev en if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

621-1. For safe use
SEQUOIA_OM_USA_OM0C021U_20MY

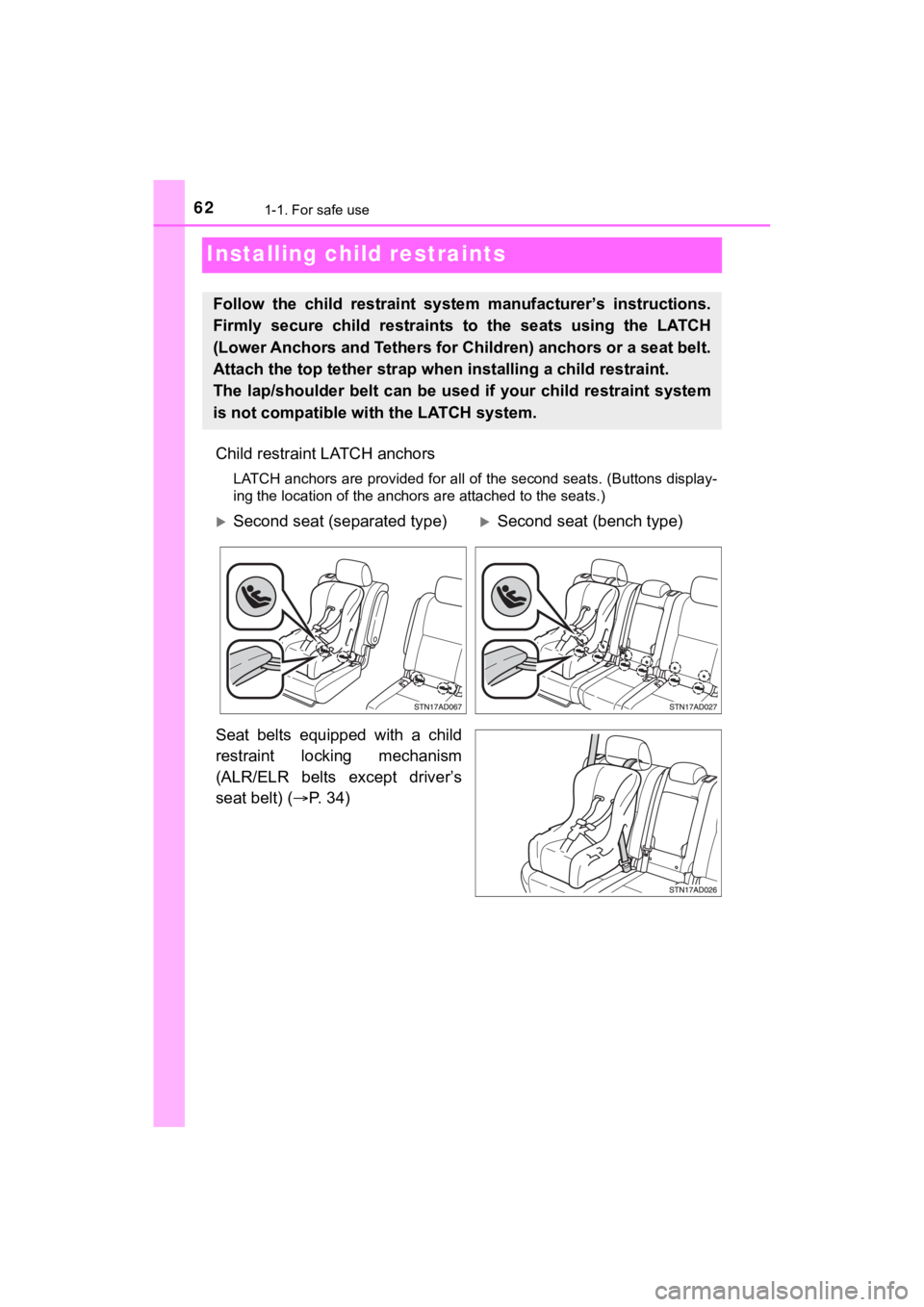

Installing child restraints
Child restraint LATCH anchors
LATCH anchors are provided for all of the second seats. (Buttons display-
ing the location of the anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) ( P. 34)
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
(Lower Anchors and Tethers for Ch ildren) anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint syste m
is not compatible wi th the LATCH system.
Second seat (separated type)Second seat (bench type)

631-1. For safe use
1
For safety and security
SEQUOIA_OM_USA_OM0C021U_20MY

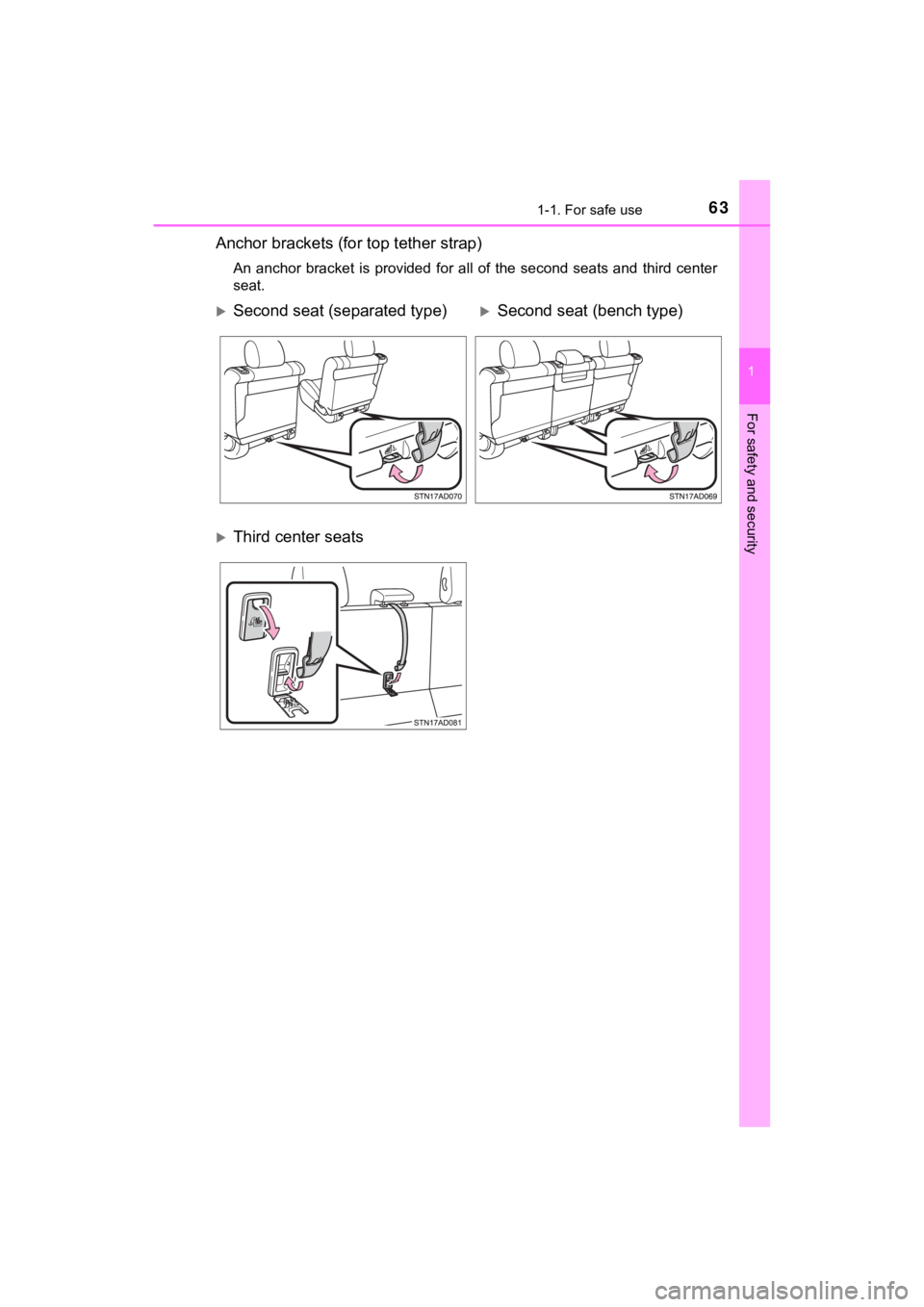

Anchor brackets (for top tether strap)
An anchor bracket is provided for all of the second seats and t hird center
seat.
Second seat (separated type)Second seat (bench type)
Third center seats

641-1. For safe use
SEQUOIA_OM_USA_OM0C021U_20MY
Fold the seatback while pulling the lever.
Second seat (except center seat)
Return the seatback and
secure it at the 1st lock position
(most upright position). Adjust
the seatback to the 4th lock
position. ( P. 138)
1st lock position
4th lock position
Second center seat (bench type)
Return the seatback and
secure it at the 1st lock position
(most upright position). Adjust
the seatback to the 8th lock
position. ( P. 138)
1st lock position
8th lock position

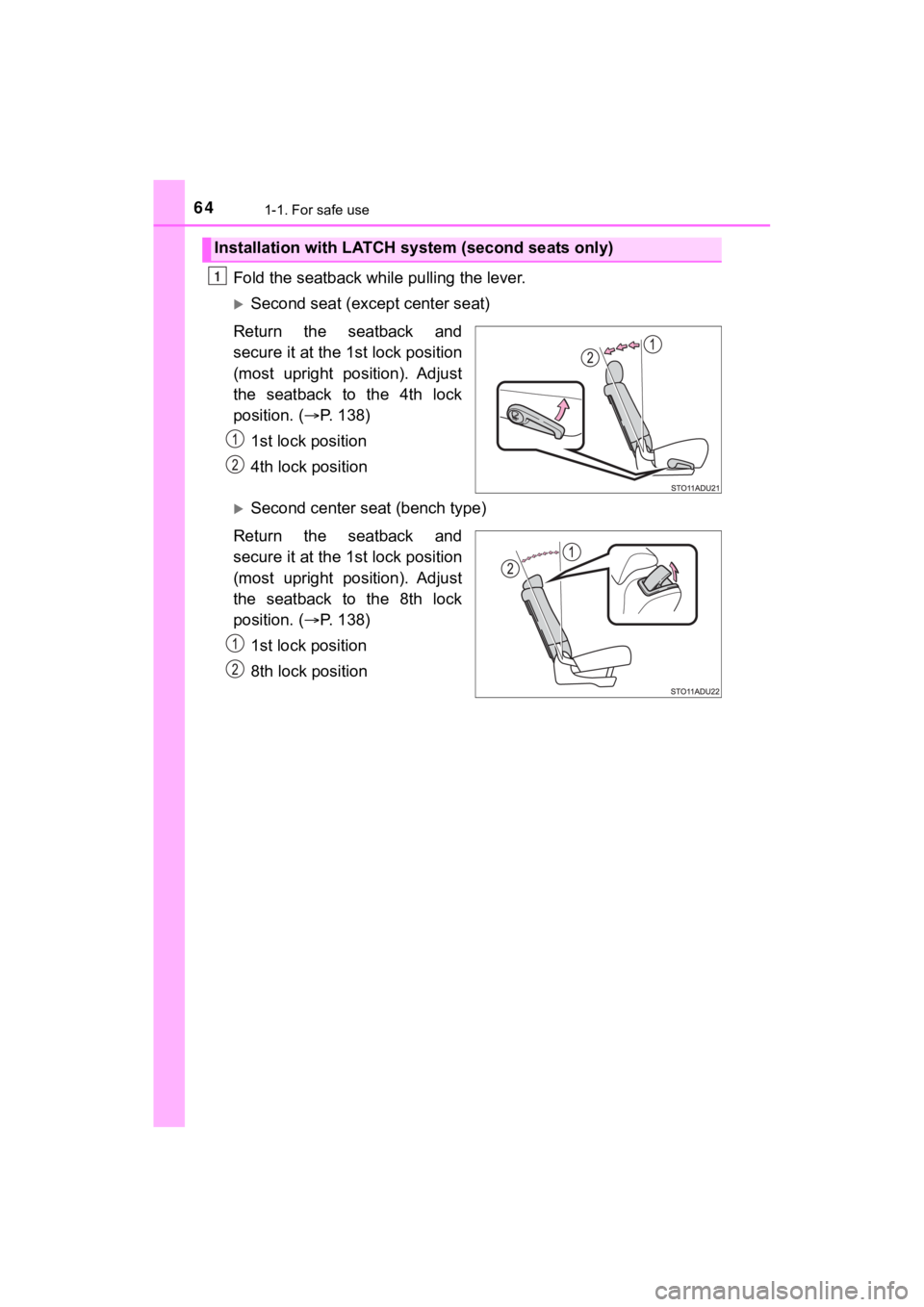

Installation with LATCH system (second seats only)
1

651-1. For safe use
1
For safety and security
SEQUOIA_OM_USA_OM0C021U_20MY

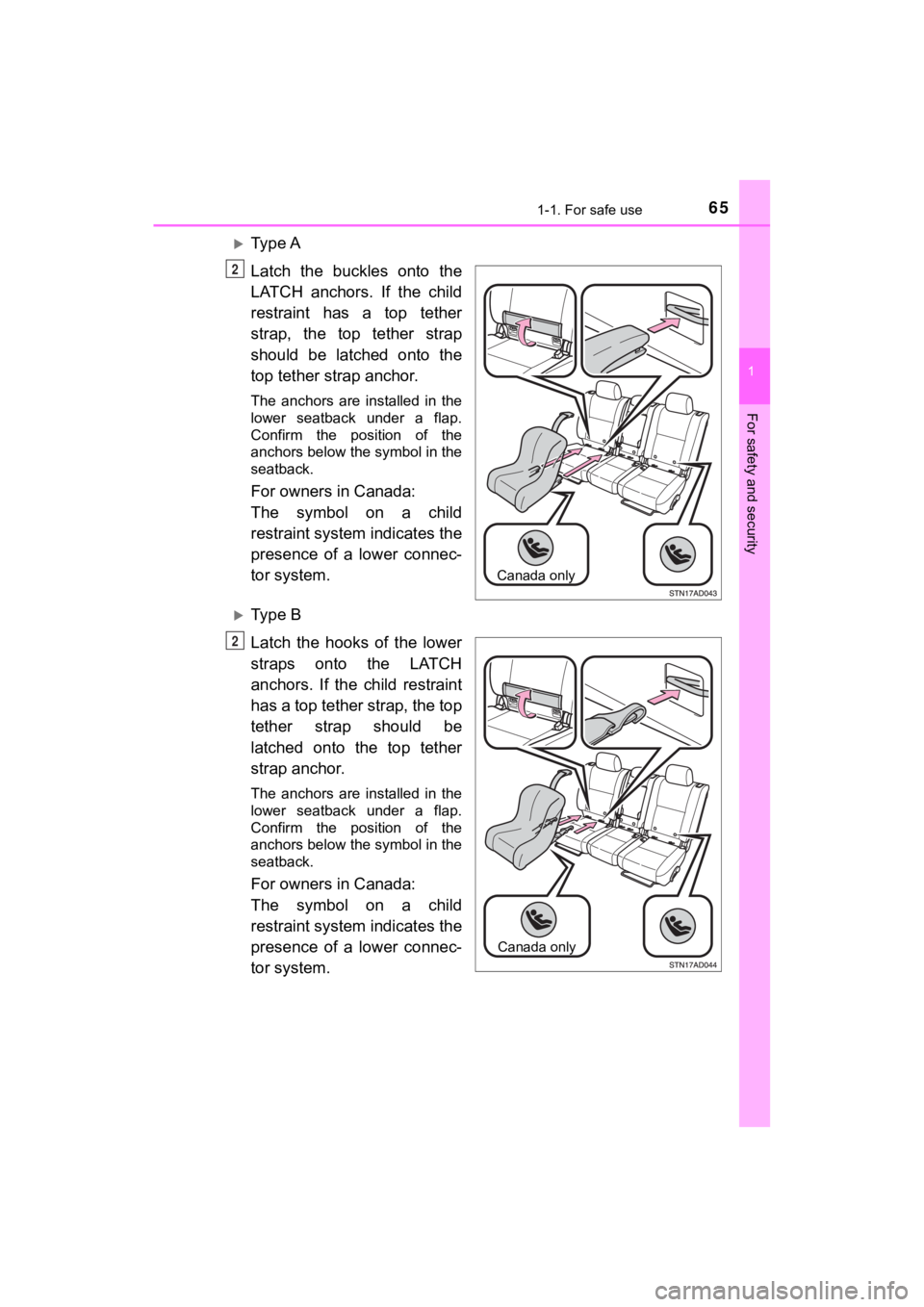

Ty p e A
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether
strap, the top tether strap
should be latched onto the
top tether strap anchor.
The anchors are installed in the
lower seatback under a flap.
Confirm the position of the
anchors below the symbol in the
seatback.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connec-
tor system.
Ty p e B
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be
latched onto the top tether
strap anchor.
The anchors are installed in the
lower seatback under a flap.
Confirm the position of the
anchors below the symbol in the
seatback.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connec-
tor system.
Canada only
2
Canada only
O

661-1. For safe use
SEQUOIA_OM_USA_OM0C021U_20MY■
Rear-facing
 Infant seat/convertible seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

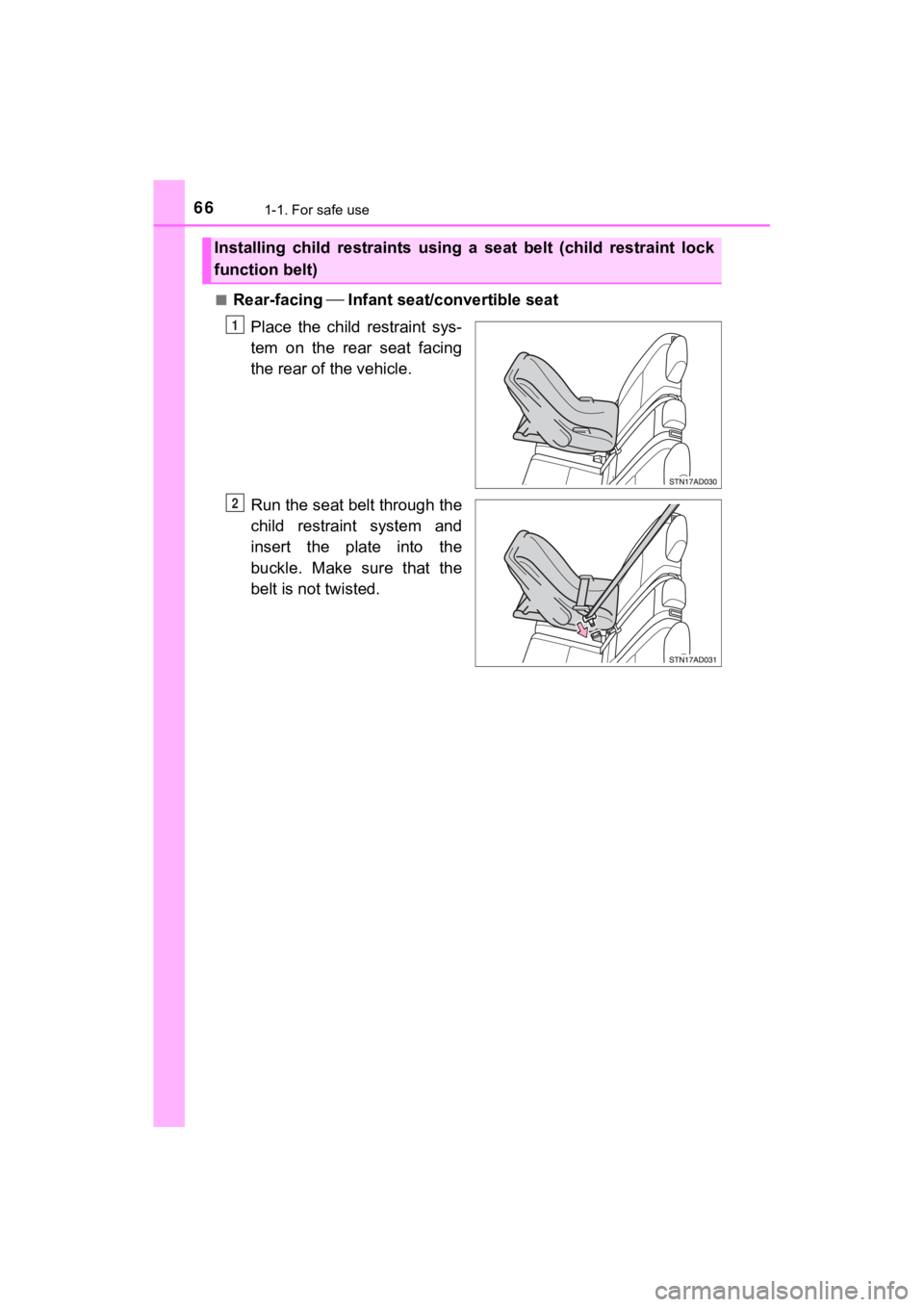

Installing child restraints using a seat belt (child restraint lock
function belt)
1
2

671-1. For safe use
1
For safety and security
SEQUOIA_OM_USA_OM0C021U_20MY

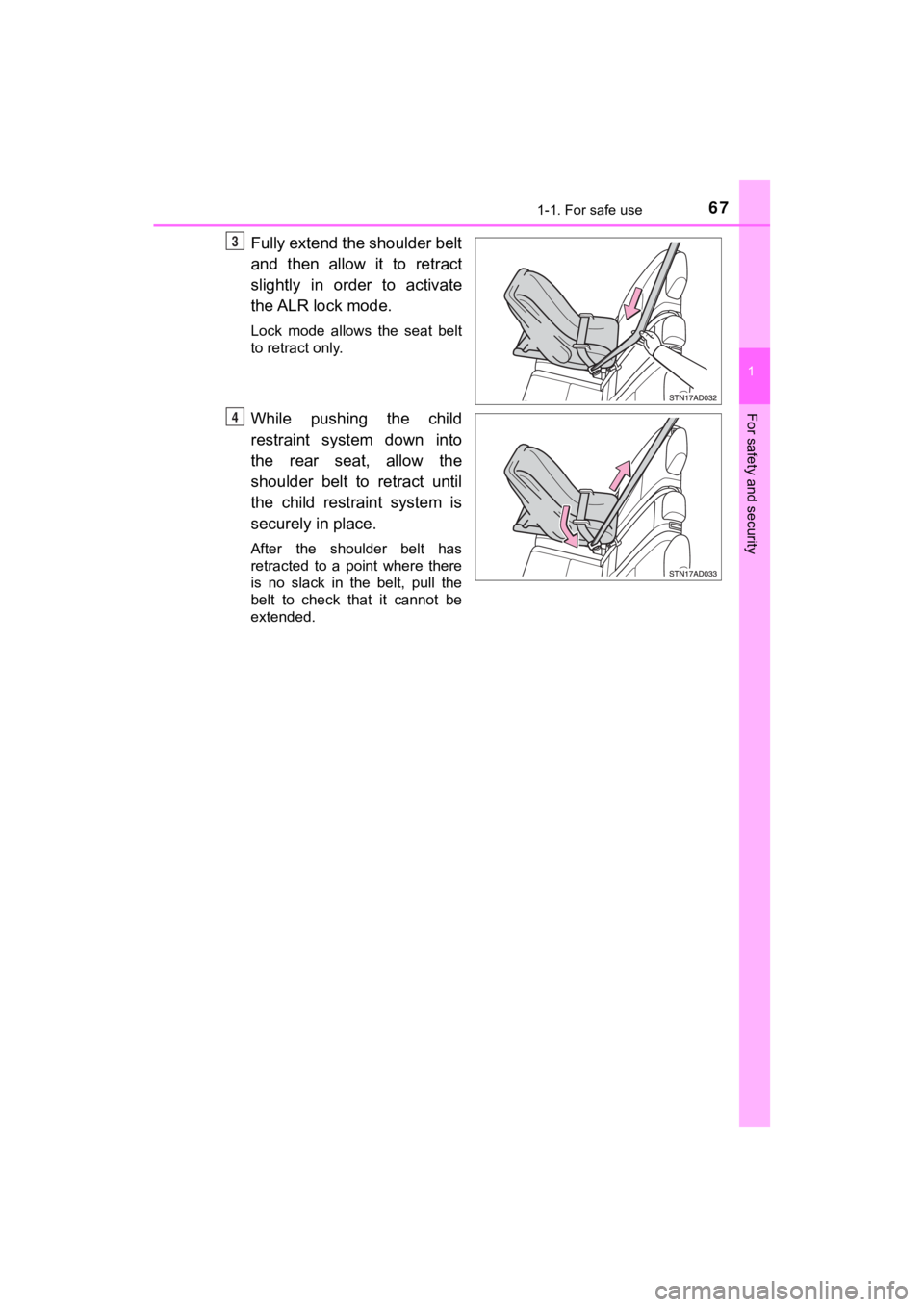

Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate
the ALR lock mode.
Lock mode allows the seat belt
to retract only.
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
3
4

681-1. For safe use

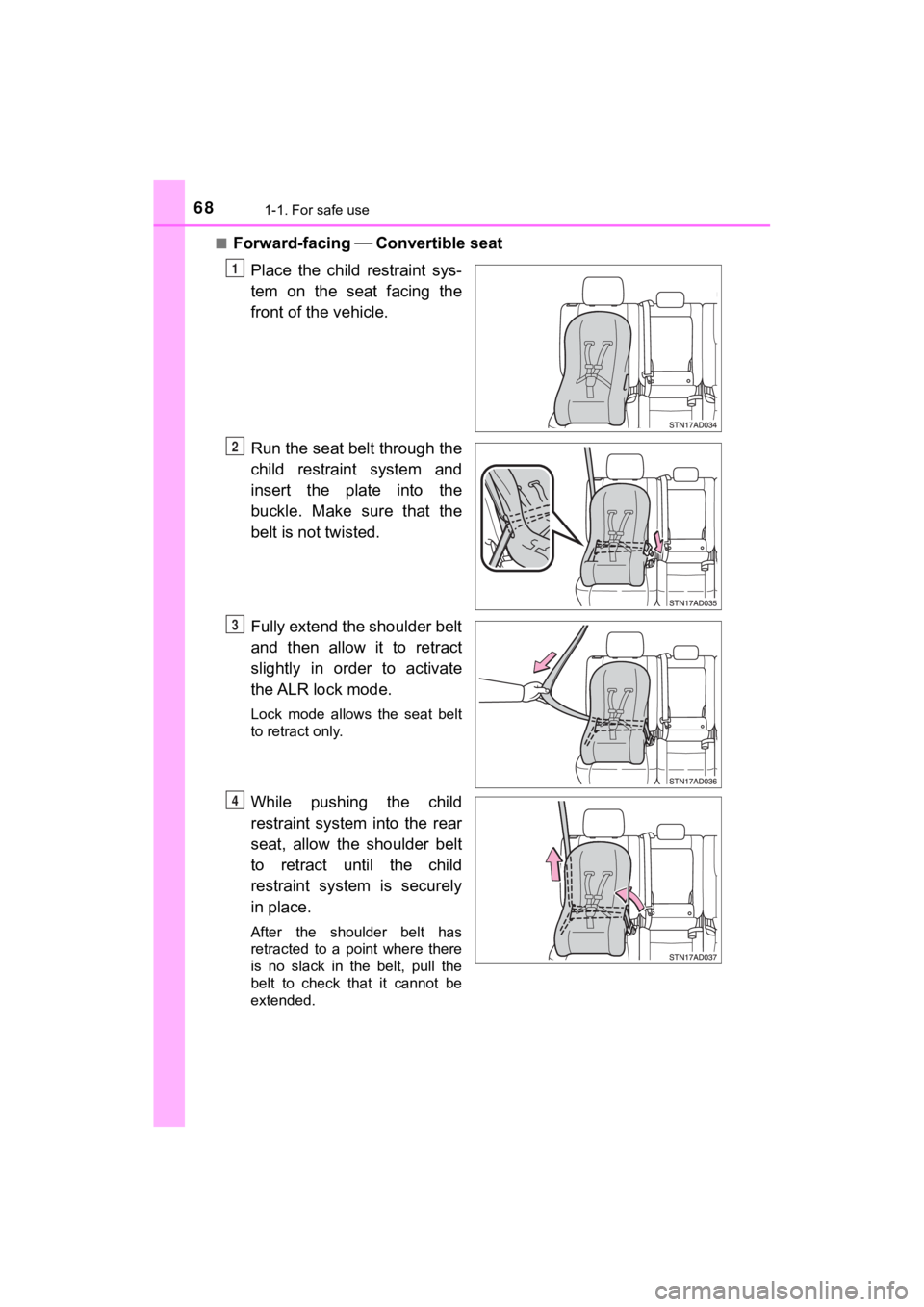

SEQUOIA_OM_USA_OM0C021U_20MY■
Forward-facing
Convertible seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate
the ALR lock mode.
Lock mode allows the seat belt
to retract only.
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
1
2
3
4

691-1. For safe use
1
For safety and security
SEQUOIA_OM_USA_OM0C021U_20MY
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 70)

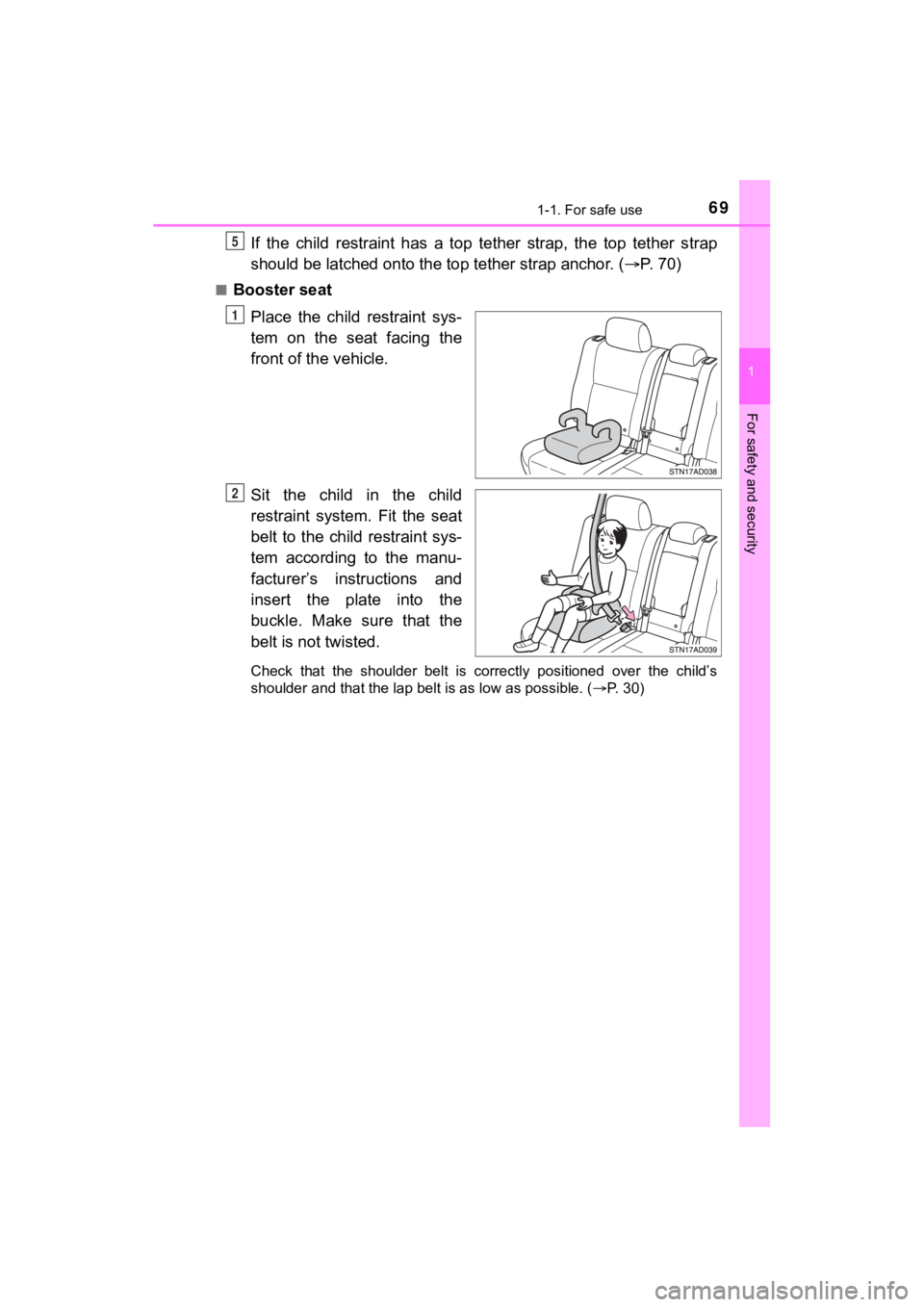

■Booster seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the c hild’s
shoulder and that the lap belt is as low as possible. ( P. 30)
5
1
2

701-1. For safe use
SEQUOIA_OM_USA_OM0C021U_20MY

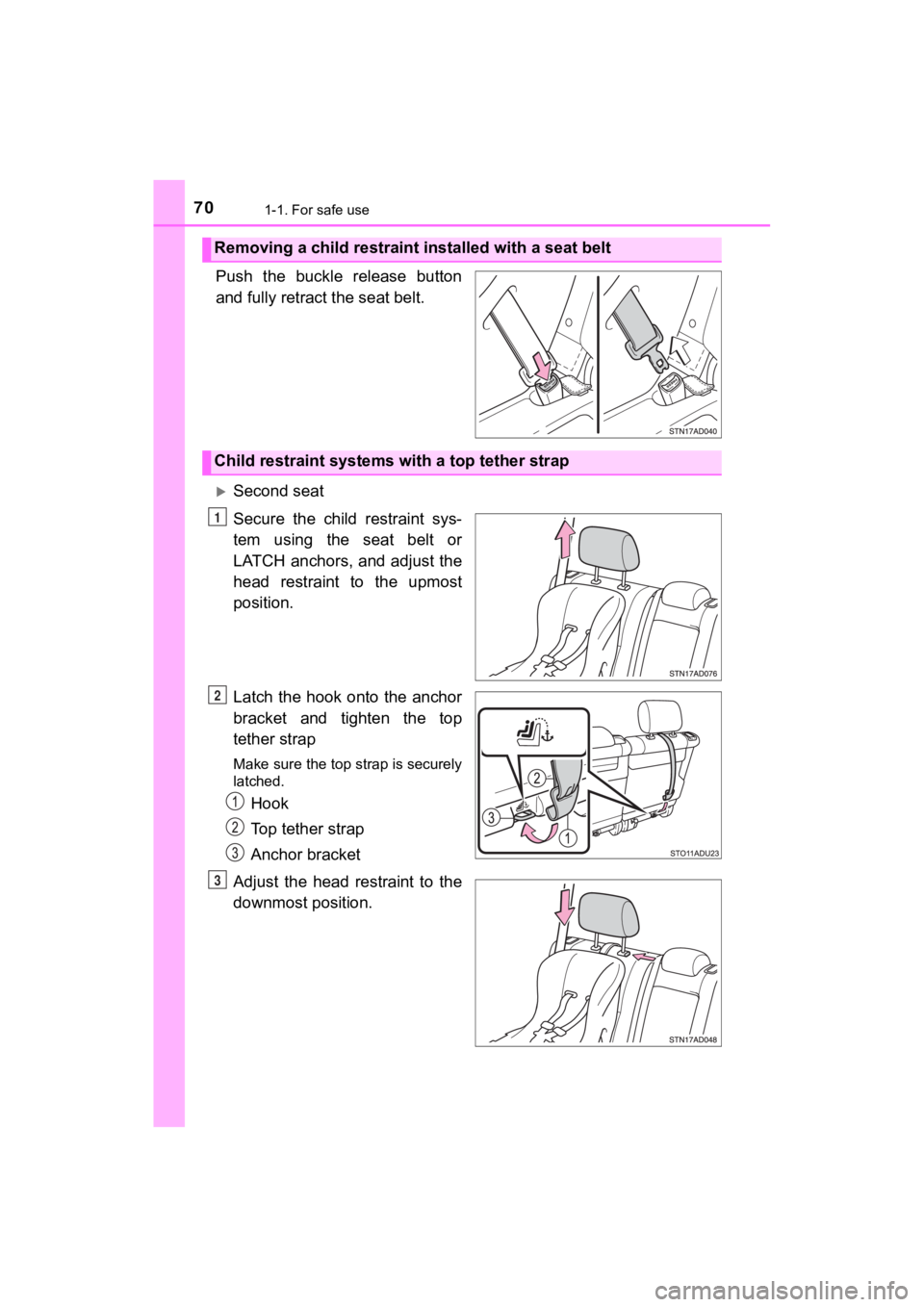

Push the buckle release button
and fully retract the seat belt.
Second seat
Secure the child restraint sys-
tem using the seat belt or
LATCH anchors, and adjust the
head restraint to the upmost
position.
Latch the hook onto the anchor
bracket and tighten the top
tether strap
Make sure the top strap is securely
latched.
Hook
Top tether strap
Anchor bracket
Adjust the head restraint to the
downmost position.
Removing a child restraint installed with a seat belt
Child restraint systems with a top tether strap
1
2
3
