4777-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C047U■
When the tire pressure warning light comes on
Inspect the appearance of the ti
re to check that the tire is not punctured.
If the tire is punctured: P. 493
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered
sufficiently.
●Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even after several minutes , check
that the tire inflation pressure is at the specified level and carry out ini-
tialization. ( P. 4 3 0 )
The warning light may come on again if the above operations are con-
ducted without first allowing t he tire temperature to lower suf ficiently.
■The tire pressure warning light may come on due to natural caus es
The tire pressure warning light may come on due to natural caus es such
as natural air leaks and tire inflation pressure changes caused by tem-
perature.
In this case, adjusting the tire inflation pressure will turn o ff the warning
light (after a few minutes).
■When a tire is replace d with a spare tire
The temporary spare tire is not equipped with the tire pressure warning
valve and transmitter. If a tire goes flat, the tire pressure w arning light will
not turn off even though the flat tire is replaced with the tem porary spare
tire.
Replace the temporary spare tire with the repaired tire and adj ust the
proper tire inflation pressure. The tire pressure warning light will turn off
after several minutes.
■Conditions that the tire pressure warning system may not functi on
properly
 P. 4 3 4
■If the tire pressure warning light frequently comes on after bl inking
for 1 minute
If the tire pressure warning light frequently comes on after bl inking for
1 minute when the engine switch is turned to ON, have it checked by your
Toyota dealer.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy pla ce or an
audio sound.

4817-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C047U
7
When trouble arises

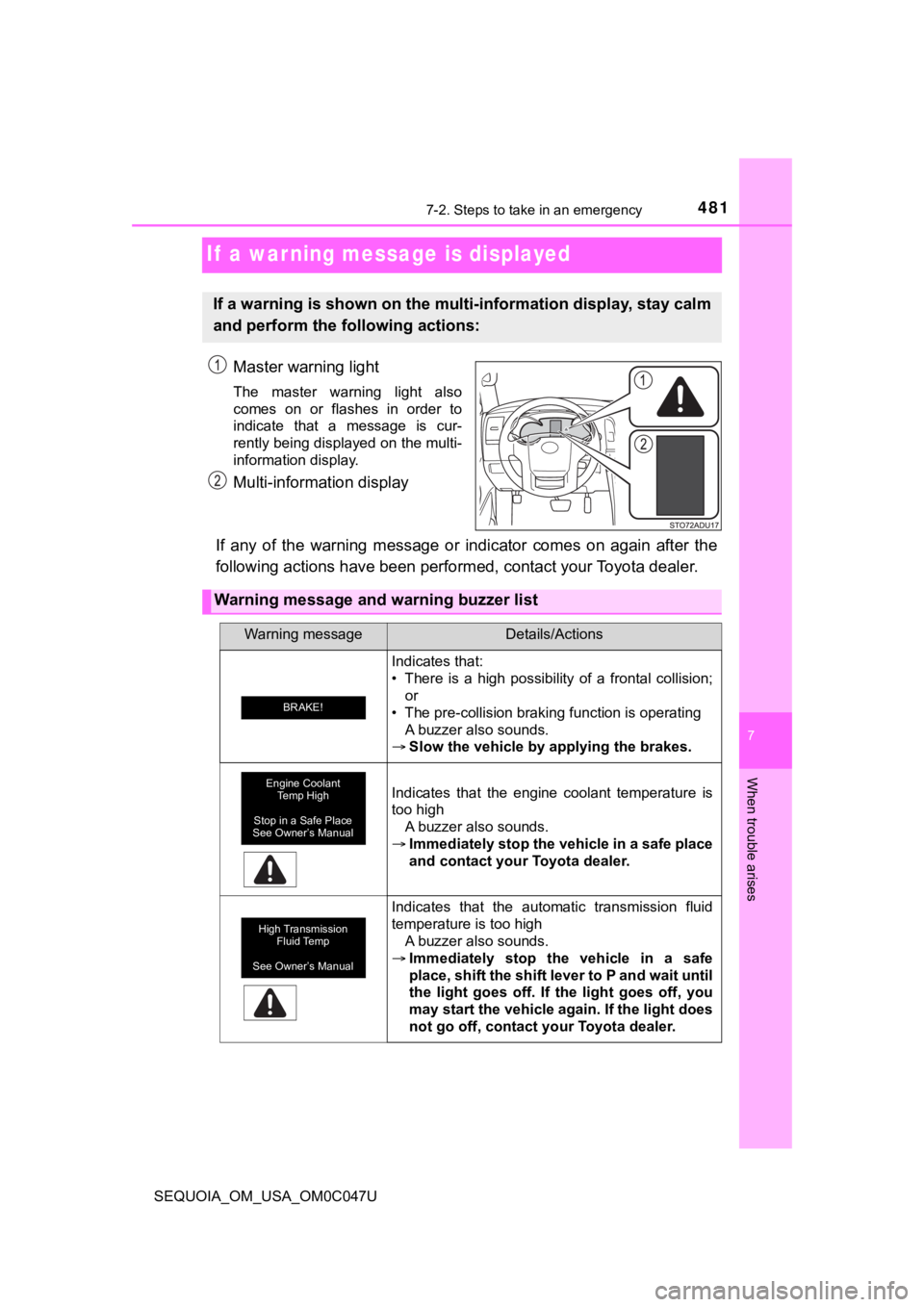

If a warning message is displayed
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been per formed, contact your Toyota deal er.
If a warning is shown on the multi-information display, stay ca lm
and perform the following actions:
Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates that:
• There is a high possibility of a frontal collision; or
• The pre-collision braking function is operating
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
Indicates that the engine coolant temperature is
too high
A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates that the automatic transmission fluid
temperature is too high
A buzzer also sounds.
 Immediately stop the vehicle in a safe
place, shift the shift lever to P and wait until
the light goes off. If the light goes off, you
may start the vehicle again. If the light does
not go off, contact your Toyota dealer.
BRAKE!
Engine Coolant
Temp High
Stop in a Safe Place
See Owner’s Manual
High Transmission Fluid Temp
See Owner’s Manual

4837-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C047U

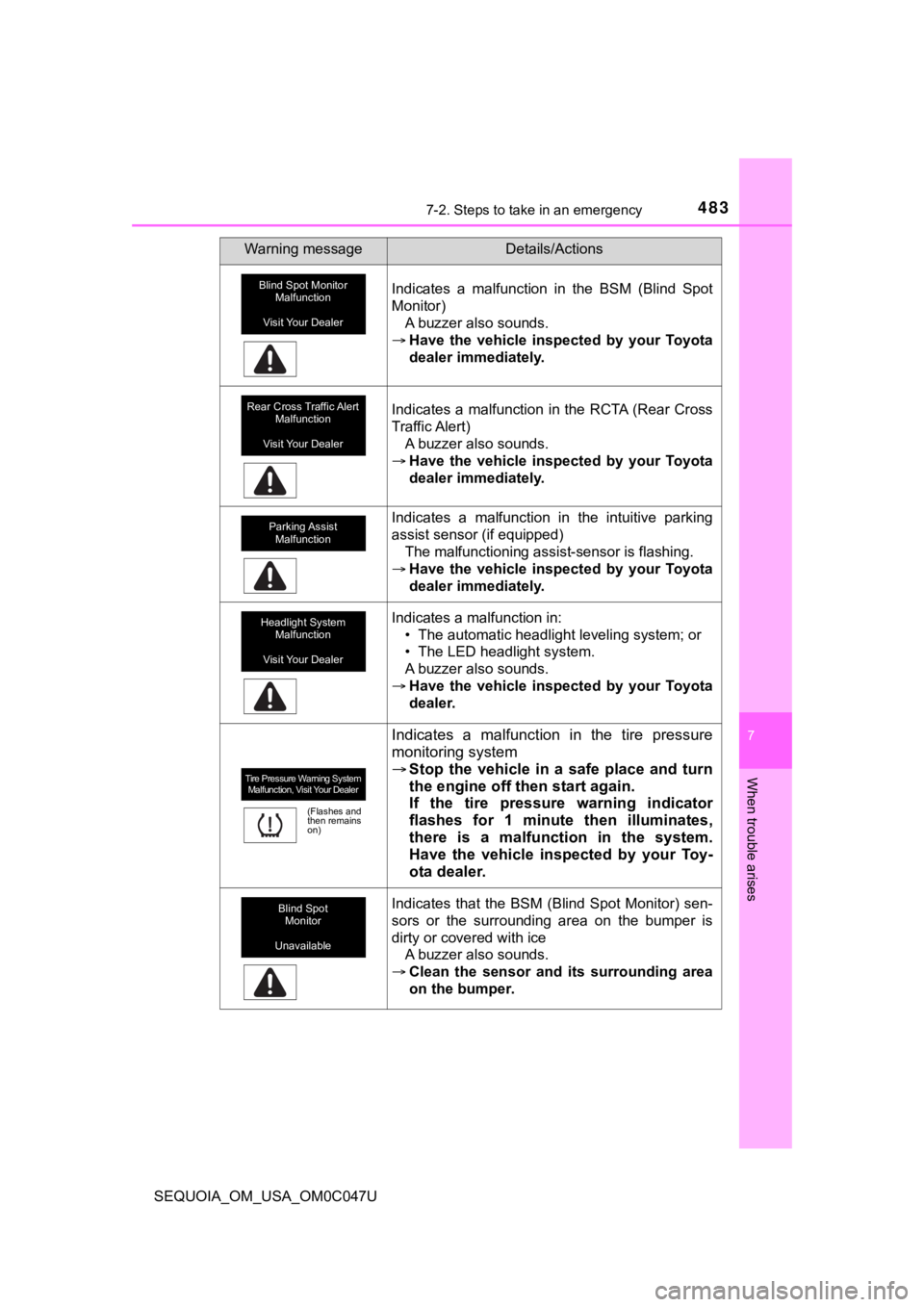

Indicates a malfunction in the BSM (Blind Spot
Monitor)A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Indicates a malfunction in the RCTA (Rear Cross
Traffic Alert)
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer immediately.
Indicates a malfunction in the intuitive parking
assist sensor (if equipped)
The malfunctioning assist-sensor is flashing.
 Have the vehicle inspected by your Toyota
dealer immediately.
Indicates a malfunction in:
• The automatic headlight leveling system; or
• The LED headlight system.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the tire pressure
monitoring system
Stop the vehicle in a safe place and turn
the engine off then start again.
If the tire pressure warning indicator
flashes for 1 minute then illuminates,
there is a malfunction in the system.
Have the vehicle inspected by your Toy-
ota dealer.
Indicates that the BSM (Blind Spot Monitor) sen-
sors or the surrounding area on the bumper is
dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Warning messageDetails/Actions
Blind Spot Monitor Malfunction
Visit Your Dealer
Rear Cross Traffic Alert Malfunction
Visit Your Dealer
Parking Assist Malfunction
Headlight System Malfunction
Visit Your Dealer
Tire Pressure Warning System Malfunction, Visit Your Dealer
(Flashes and
then remains
on)
Blind Spot Monitor
Unavailable

4847-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C047U
Indicates that the RCTA (Rear Cross Traffic Alert)
sensors or the surrounding area on the bumper is
dirty or covered with iceA buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Indicates that the engine was stopped with the
shift lever not in P. A buzzer also sounds.
 Shift the shift lever to P.
Indicates that the engine was stopped while driv-
ing.
A buzzer also sounds.
 Stop the vehicle in a safe place such as the
shoulder of a road.
Indicates that one or more of the doors or the
hood is not fully closed
The system also indicates which doors are not
fully closed. If the vehicle reaches a speed of
3 mph (5 km/h), flashes and a buzzer
sounds to indicate that the door(s) are not yet
fully closed.
 Make sure that all the doors and the hood
are closed.
Indicates that the parking brake is still engaged
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the parking br ake is still engaged.
Release the parking brake.
Indicates that the accelerator and brake pedals
are being depressed simultaneously, and the
Brake Override System is operating. ( P. 177)
 Release the accelerator pedal and depress
the brake pedal.
Warning messageDetails/Actions
Rear Cross Traffic Alert
Unavailable
Engine Stopped Shift Into P
(Flashes)
Engine Stopped
Stop in a Safe Place
(Flashes)
(Flashes)
Release
Parking Brake
(Flashes)
Accelerator and
Brake Pedals Pressed
Simultaneously

4857-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C047U
Indicates the following:• The brake fluid level is low; or
• The brake system is malfunctioning.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates remaining fuel is approximately 4.0 gal.
(15.0 L, 3.3 Imp.gal.) or less
A buzzer also sounds.
 Refuel the vehicle.
Indicates that the tire inflation pressure is low
Check the tire inflation pressure, and
adjust to the appropriate level.
Indicates that the washer fluid level is low
 Add washer fluid.
Indicates that intuitive parking assist sensor is
dirty or covered with ice (if equipped)
Clean the sensor.
Indicates that the headlight switch is in or
position (with the key removed and the
driver’s door opened) A buzzer also sounds.
 Turn the lights off.
Indicates that the moon roof is not fully closed
(with the engine switch off, and the driver’s door
open)
A buzzer also sounds.
 Close the moon roof.
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perfo rm maintenance.
Warning messageDetails/Actions
Check Brake System
Fuel Low
Tire Pressure Low
Check Tire
Windshield
Washer Fluid Low
Clean Parking Assist Sensor
Turn Lights Off
(Flashes)
Moon Roof Open
(Flashes)
Maintenance
Required Soon

4897-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C047U

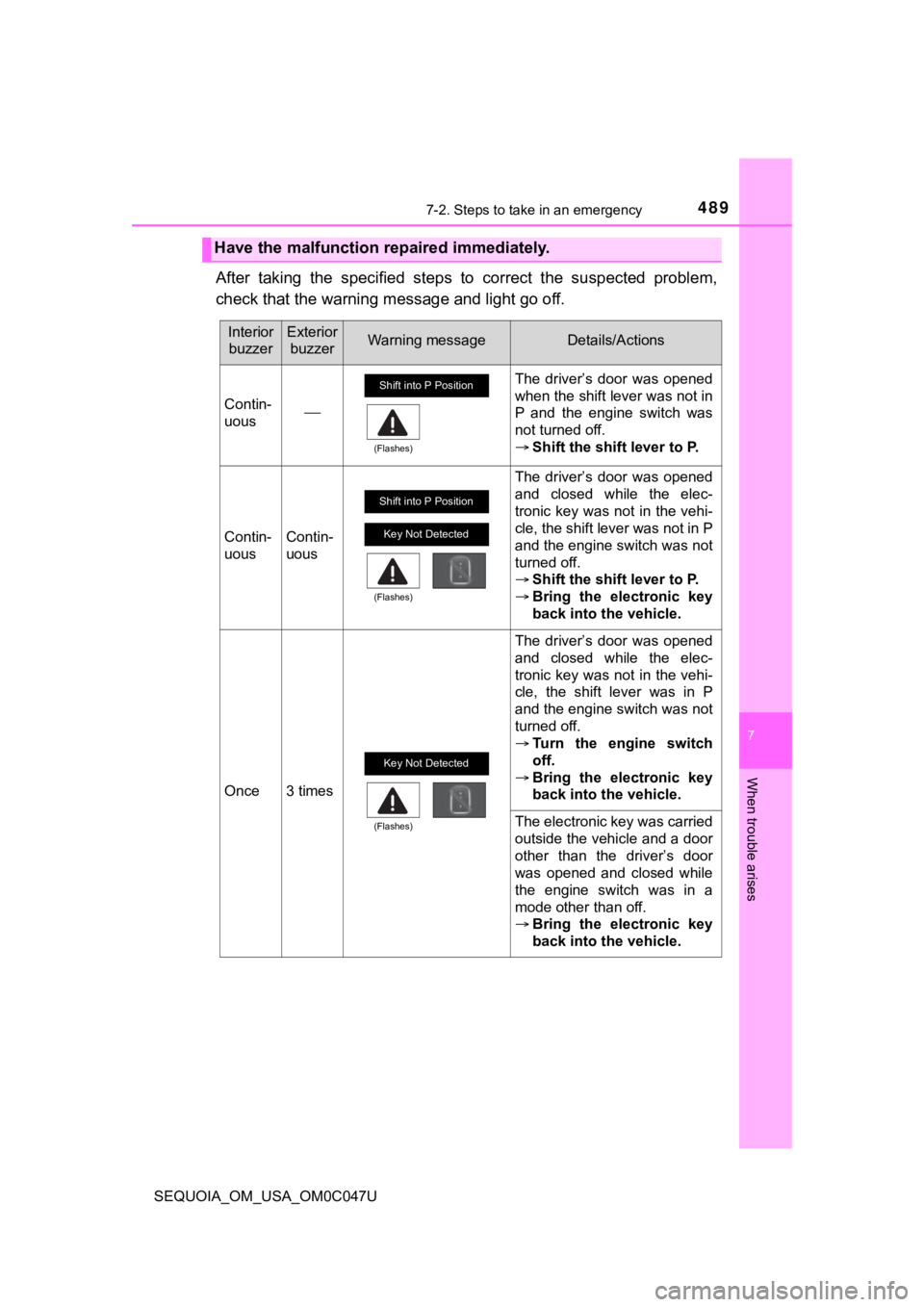

After taking the specified steps to correct the suspected problem,
check that the warning m essage and light go off.
Have the malfunction repaired immediately.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Contin-
uous  The driver’s door was opened
when the shift lever was not in
P and the engine switch was
not turned off.

Shift the shift lever to P.
Contin-
uousContin-
uous
The driver’s door was opened
and closed while the elec-
tronic key was not in the vehi-
cle, the shift lever was not in P
and the engine switch was not
turned off.
Shift the shift lever to P.
 Bring the electronic key
back into the vehicle.
Once3 times
The driver’s door was opened
and closed while the elec-
tronic key was not in the vehi-
cle, the shift lever was in P
and the engine switch was not
turned off.
Turn the engine switch
off.
 Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver’s door
was opened and closed while
the engine switch was in a
mode other than off.
Bring the electronic key
back into the vehicle.
Shift into P Position
(Flashes)
Shift into P Position
Key Not Detected
(Flashes)
Key Not Detected
(Flashes)

4907-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C047U

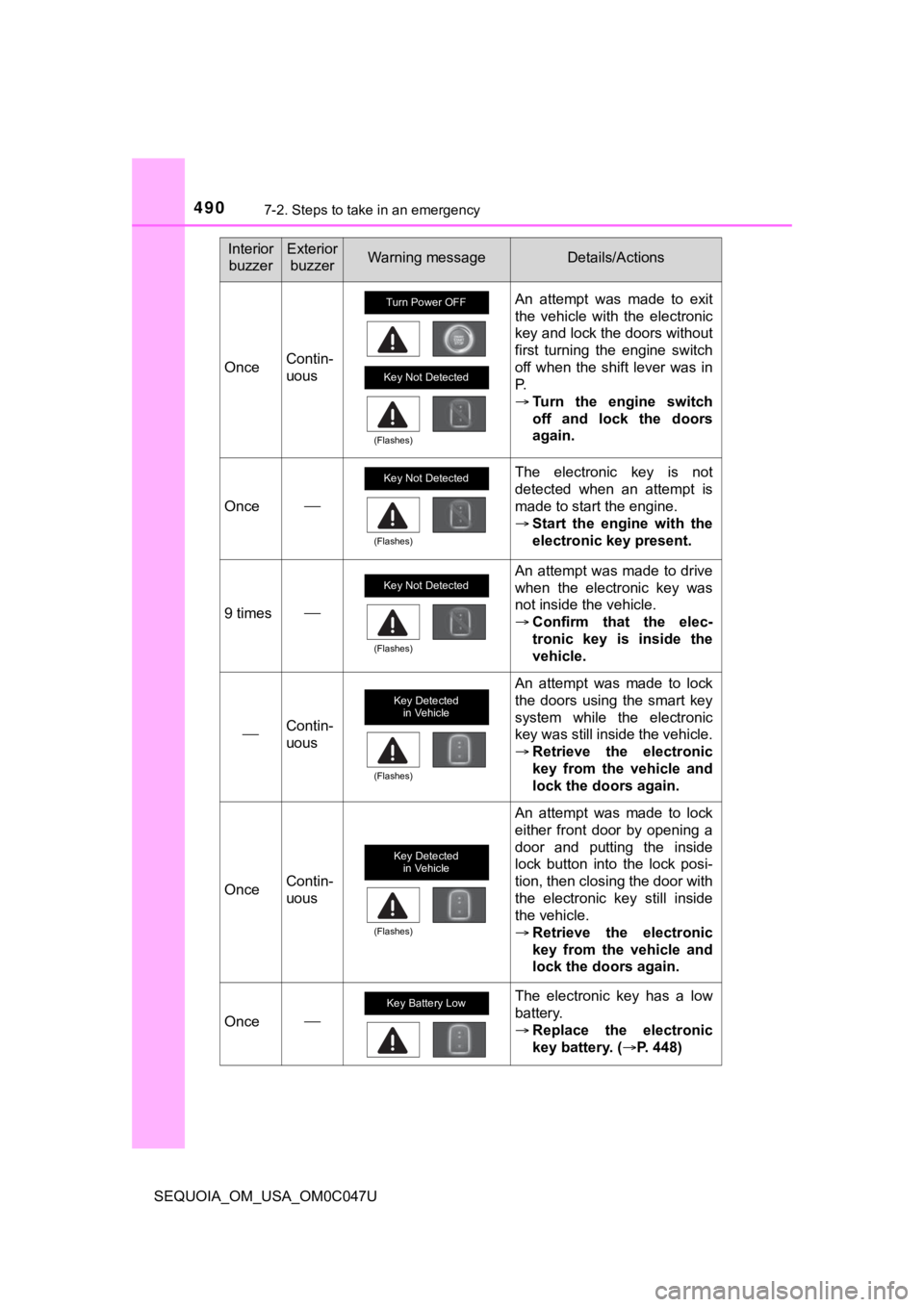

OnceContin-
uous
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off when the shift lever was in
P.
Turn the engine switch
off and lock the doors
again.
Once
The electronic key is not
detected when an attempt is
made to start the engine.
Start the engine with the
electronic key present.
9 times
An attempt was made to drive
when the electronic key was
not inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Contin-
uous
An attempt was made to lock
the doors using the smart key
system while the electronic
key was still inside the vehicle.
Retrieve the electronic
key from the vehicle and
lock the doors again.
OnceContin-
uous
An attempt was made to lock
either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door with
the electronic key still inside
the vehicle.
Retrieve the electronic
key from the vehicle and
lock the doors again.
Once
The electronic key has a low
battery.
Replace the electronic
key battery. ( P. 448)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Turn Power OFF
Key Not Detected
(Flashes)
Key Not Detected
(Flashes)
Key Not Detected
(Flashes)
Key Detected in Vehicle
(Flashes)
Key Detected
in Vehicle
(Flashes)
Key Battery Low

4917-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C047U

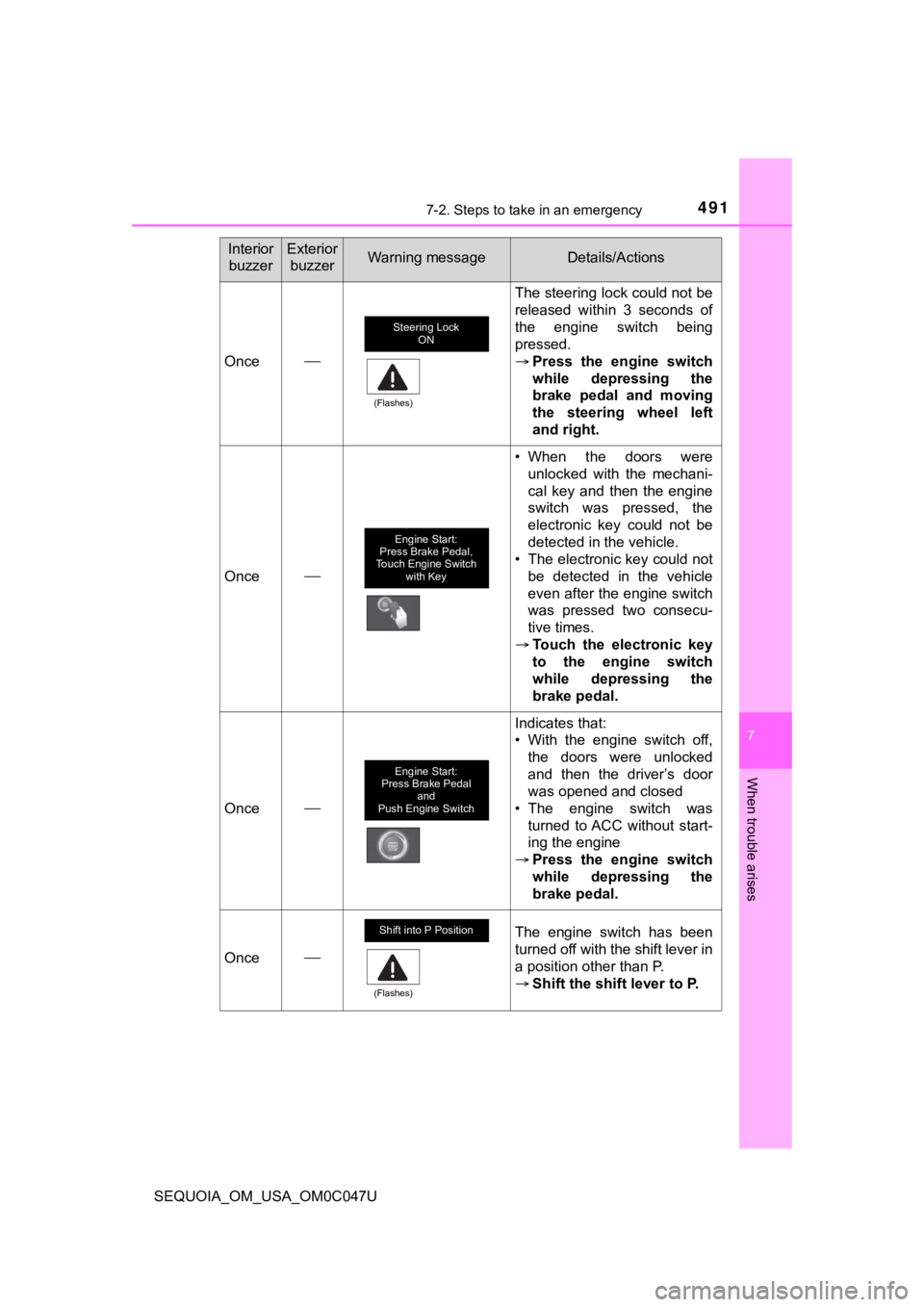

Once
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the
brake pedal and moving
the steering wheel left
and right.
Once
• When the doors were
unlocked with the mechani-
cal key and then the engine
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
 Touch the electronic key
to the engine switch
while depressing the
brake pedal.
Once
Indicates that:
• With the engine switch off,
the doors were unlocked
and then the driver’s door
was opened and closed
• The engine switch was turned to ACC without start-
ing the engine
 Press the engine switch
while depressing the
brake pedal.
Once
The engine switch has been
turned off with the shift lever in
a position other than P.
Shift the shift lever to P.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Steering Lock ON
(Flashes)
Engine Start:
Press Brake Pedal,
Touch Engine Switch with Key
Engine Start:
Press Brake Pedal
and
Push Engine Switch
Shift into P Position
(Flashes)

4927-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C047U
■Warning buzzer
P. 477

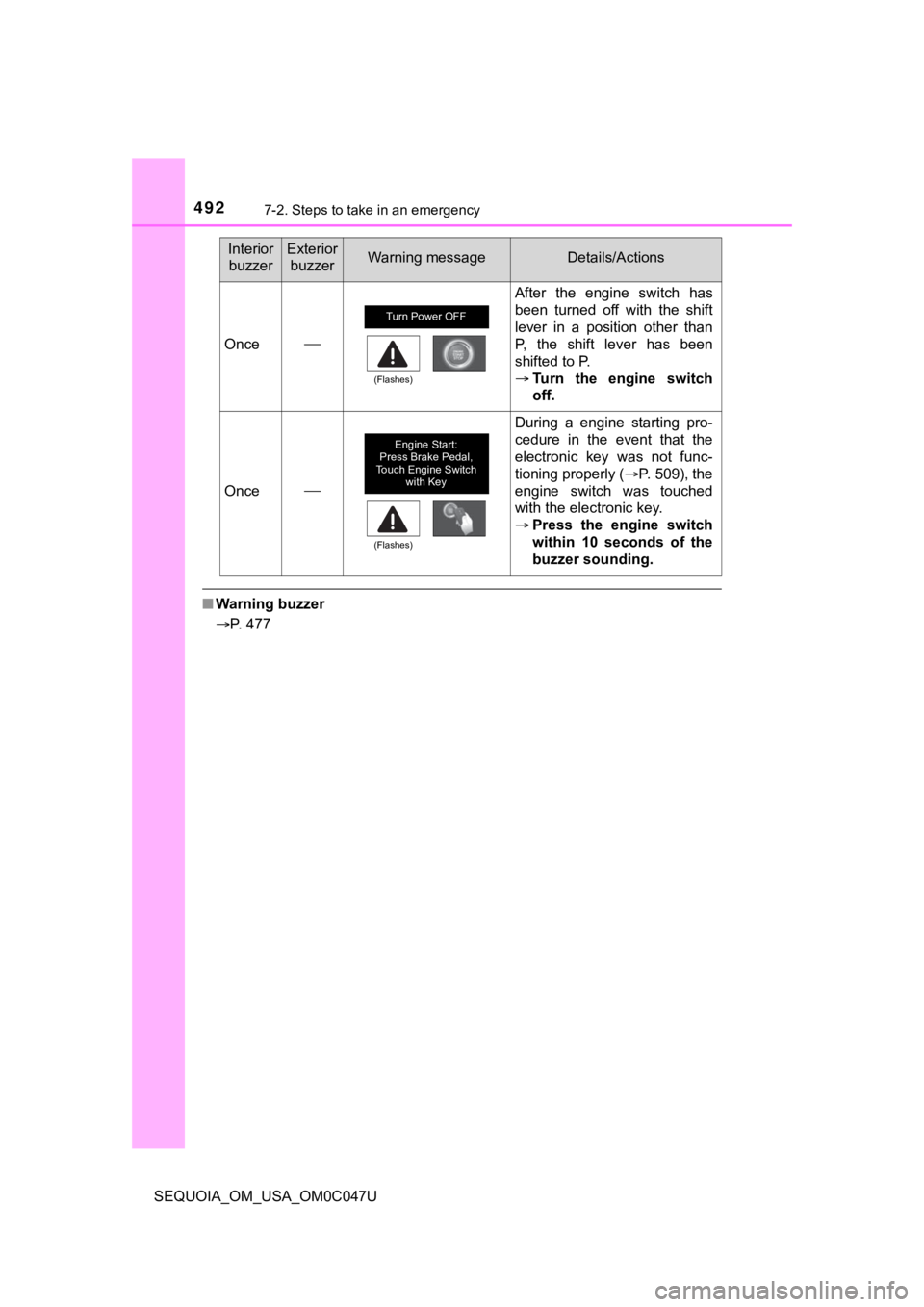

Once
After the engine switch has
been turned off with the shift
lever in a position other than
P, the shift lever has been
shifted to P.
 Turn the engine switch
off.
Once
During a engine starting pro-
cedure in the event that the
electronic key was not func-
tioning properly ( P. 509), the
engine switch was touched
with the electronic key.
 Press the engine switch
within 10 seconds of the
buzzer sounding.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
Turn Power OFF
(Flashes)
Engine Start:
Press Brake Pedal,
Touch Engine Switch
with Key
(Flashes)

4937-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C047U
7
When trouble arises
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. ( P. 462)
● Press the height control mode sel ect switch to set the height control
system to manual mode (if equipped) ( P. 311)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 2 8
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance wit h a flat tire can damage the tire and the
wheel beyond repair, which cou ld result in an accident.
Before jacking up the vehicle
